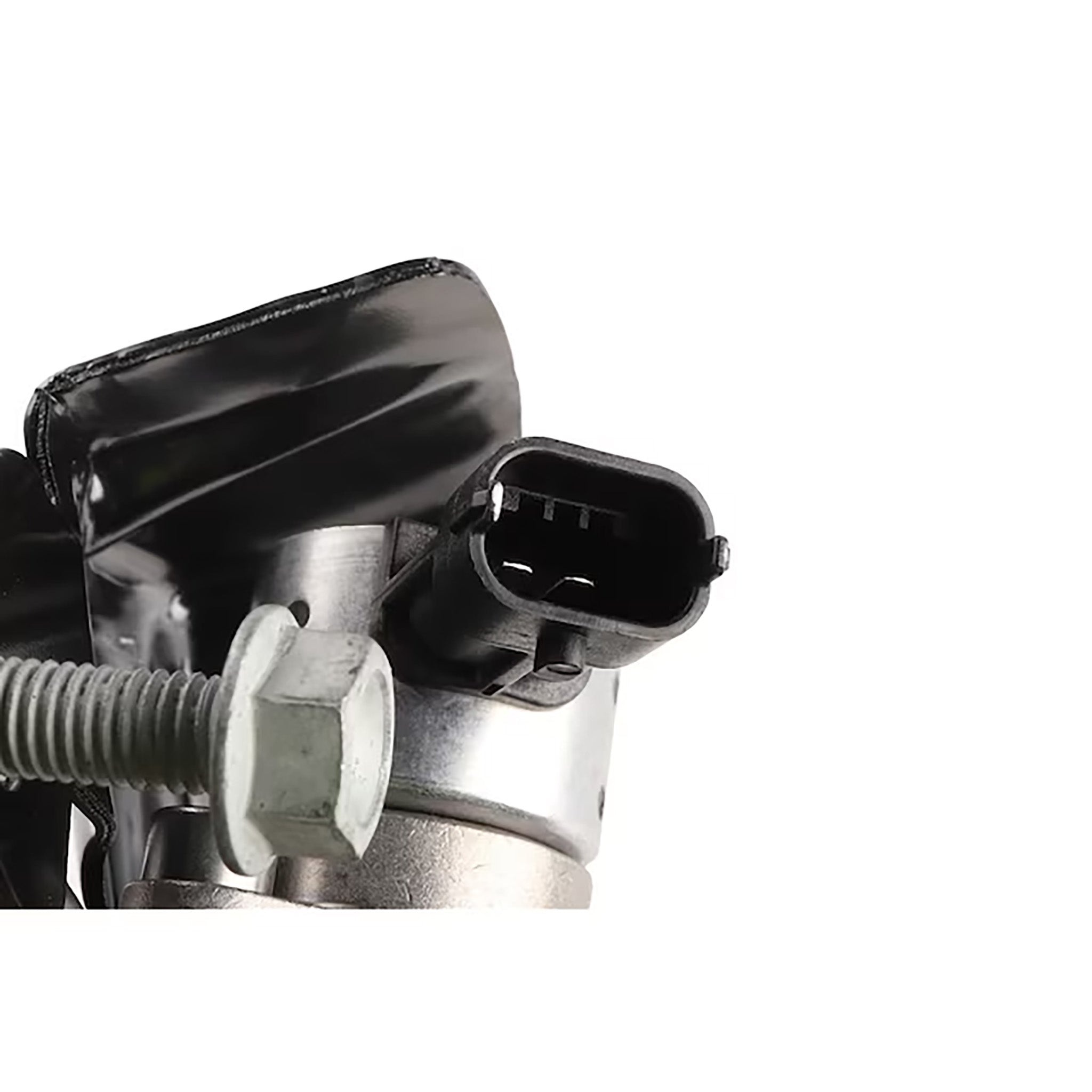

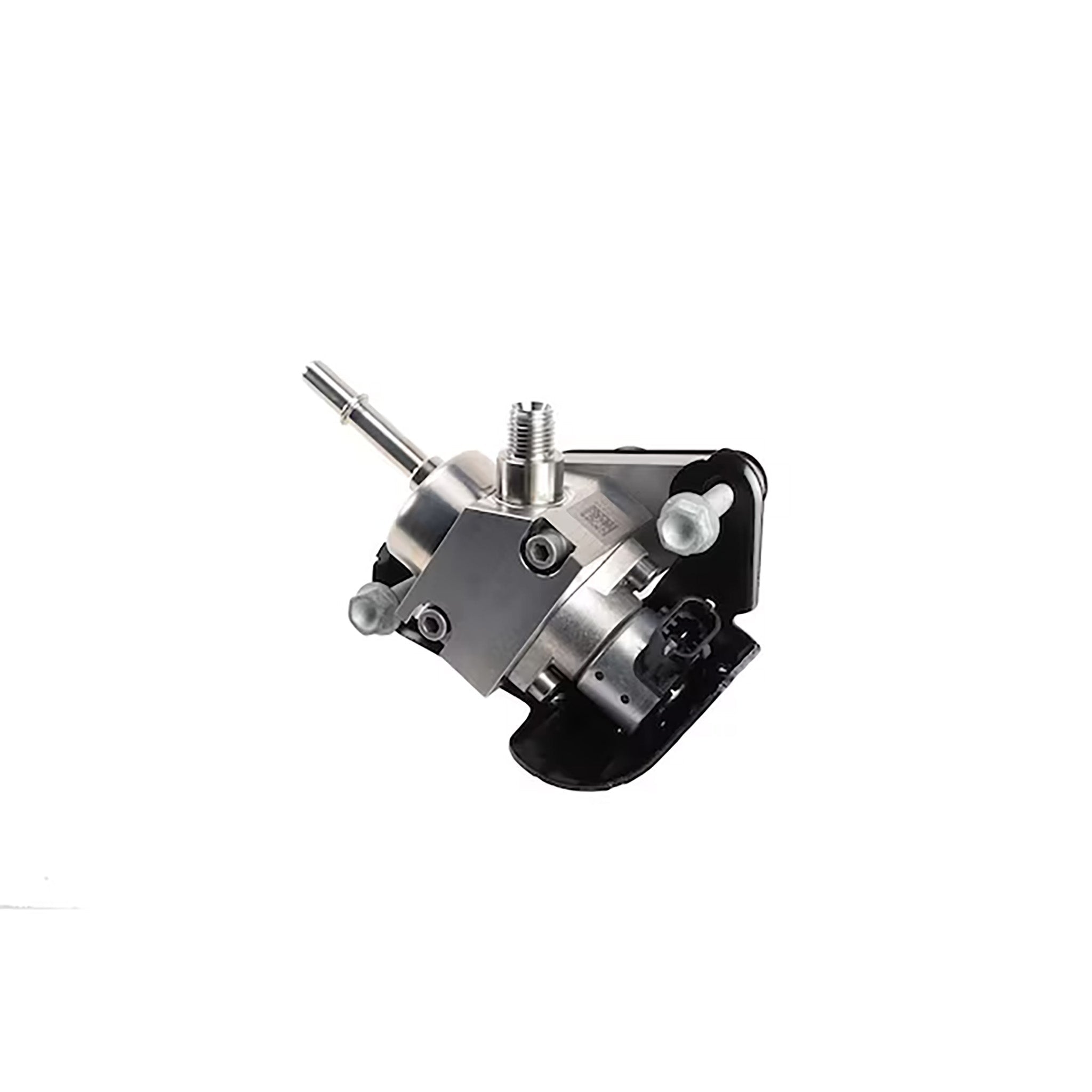

LT4 Direct Injection High Pressure Fuel Pump

Product Details

• Compatible with all LT Gen 5 engines
• Camshaft driven, high pressure, direct injection fuel pump
• This is the factory fuel pump used on all LT4 engines, with large or small injectors
• Includes: 1 fuel pump

Compatible with

• Cadillac CT5-V Blackwing 2022-2026
• Cadillac CTS-V 2016-2019
• Chevrolet Camaro ZL1 2017-2024
• Chevrolet Corvette Z06 2015-2019

Helpful Links

• Torque hold down bolts 18 lb-ft (using below tool)
• Optional fuel line or LT4 fuel injectors (6mm or 7.5mm)
• Optional fuel line plugs: 5/16", 3/8", or 1/2"
• Optional Lisle A/C and fuel line disconnect tool

Use this installation tool to make sure the camshaft lobe is turned to its lowest point before tightening down the fuel pump to avoid damage
