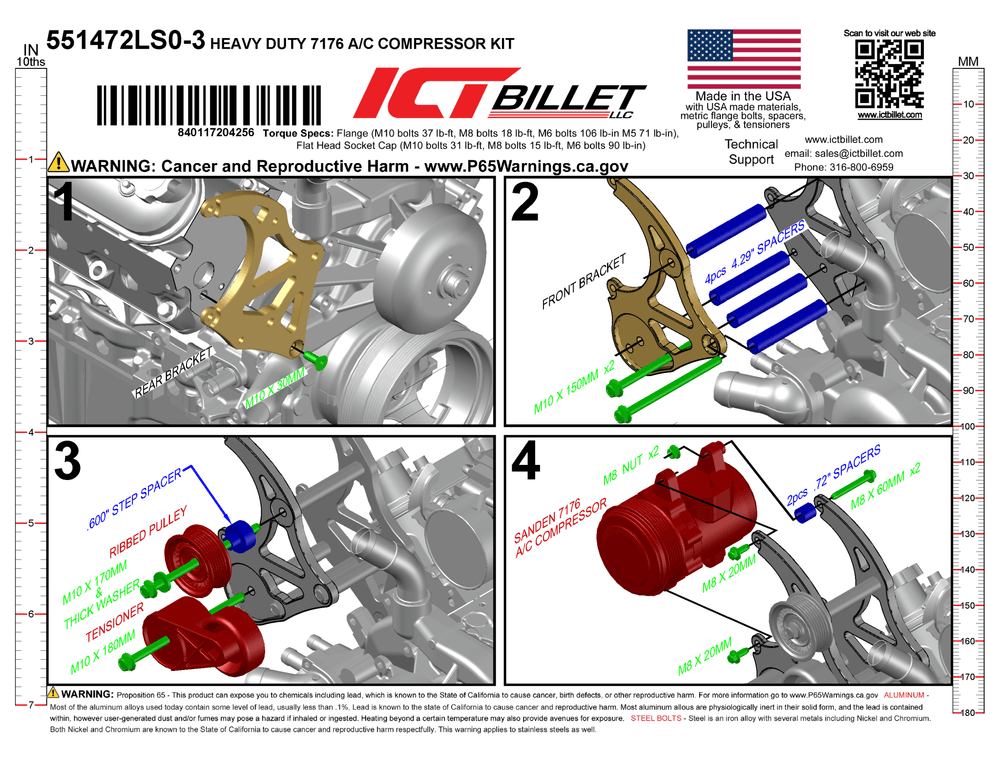

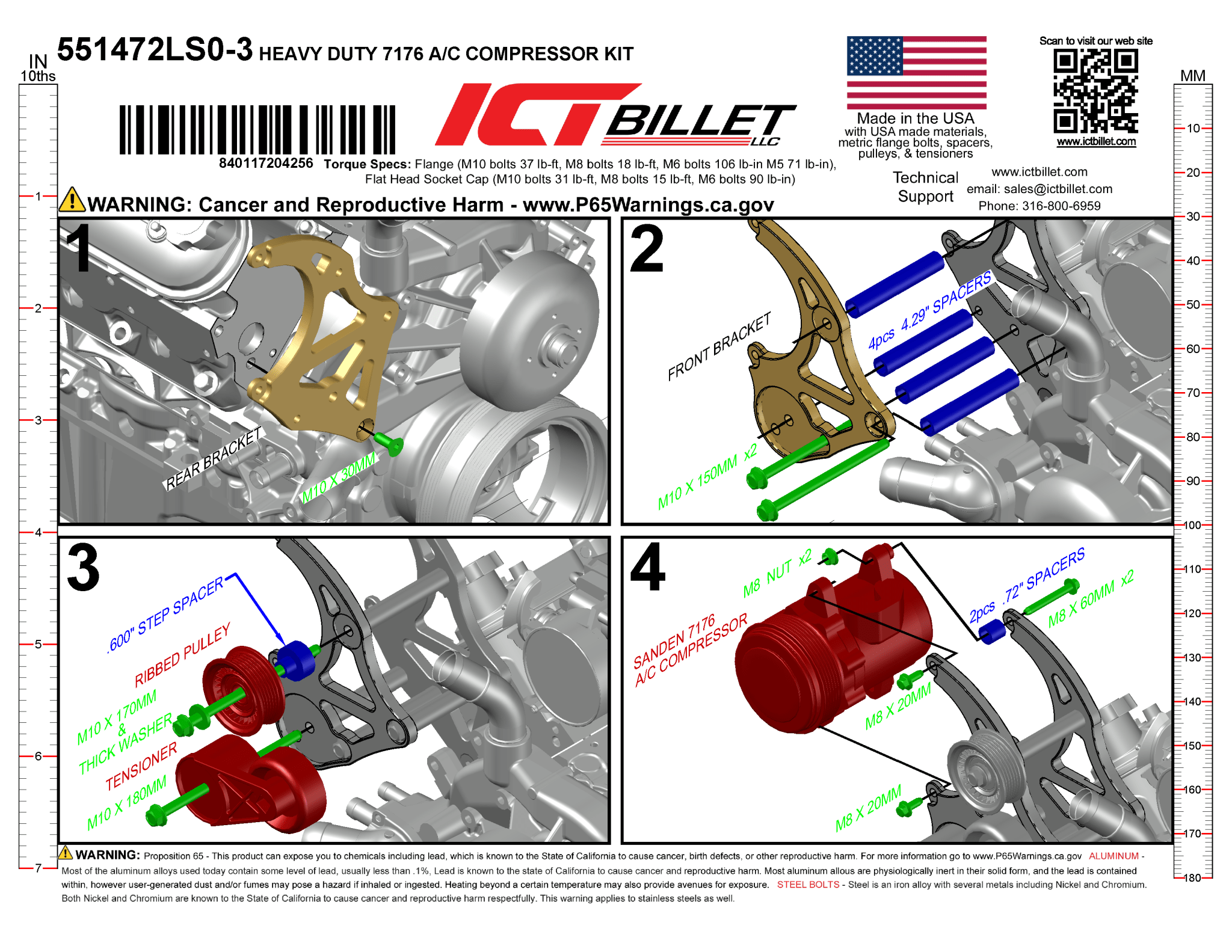

LS Truck Sanden 7176 SD7 A/C Air Conditioner Compressor Bracket

Air Conditioner Compressor Bracket - for LS Truck Crank Pulley Spacing

Compatible with: GM LS applications using 1999-2013 Silverado or 2010-2015 Camaro crank pulley spacing

• Heavy-duty bracket system mounts the A/C compressor near the passenger cylinder head away from frame rails
• Precision CNC milled billet aluminum bracket to ensure accurate fitment and belt alignment
• Compatible with Sanden 7176 SD7 AC Compressors
• Compatible with: GM LS series engines
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Includes: belt tensioner, A/C compressor bracket, idler pulley, and mounting hardware

Belt lengths when used with:

• Factory truck Alt/PS    1090K6 with 105amp alt; or 1150K6 with 145-160amp alt
• 551353    960K6 with 105amp alt; or 975K6 with 145-160amp alt
• 551362-3   1035K6 with 105amp alt
• 551519-3    955K6 with 105amp alt
• 551519X-3   955K6 with 105amp alt
• 551519XL-3  1000K6 with 105amp alt
• 551520-3     910K6 with 105amp alt
• 551521X-3   985K6 with 105amp alt
• 551566-3     945K6 with 105amp alt
• 551577-3     915K6 with 105amp alt
• 551668-3     735K6 with 105amp alt
• 551669-3     965K6 with 105amp alt
• 551747         945K6 with 105amp alt
• 551777        1090K6 with 105amp alt; or 1105K6 with 145-160amp alt
• 551777    with 551353 use 960K6 with 105amp alt; or 9750K6 with 145-160amp alt
• 551778-3     945K6 with 105amp alt
• 551791-3     1035K6 with 105amp alt
