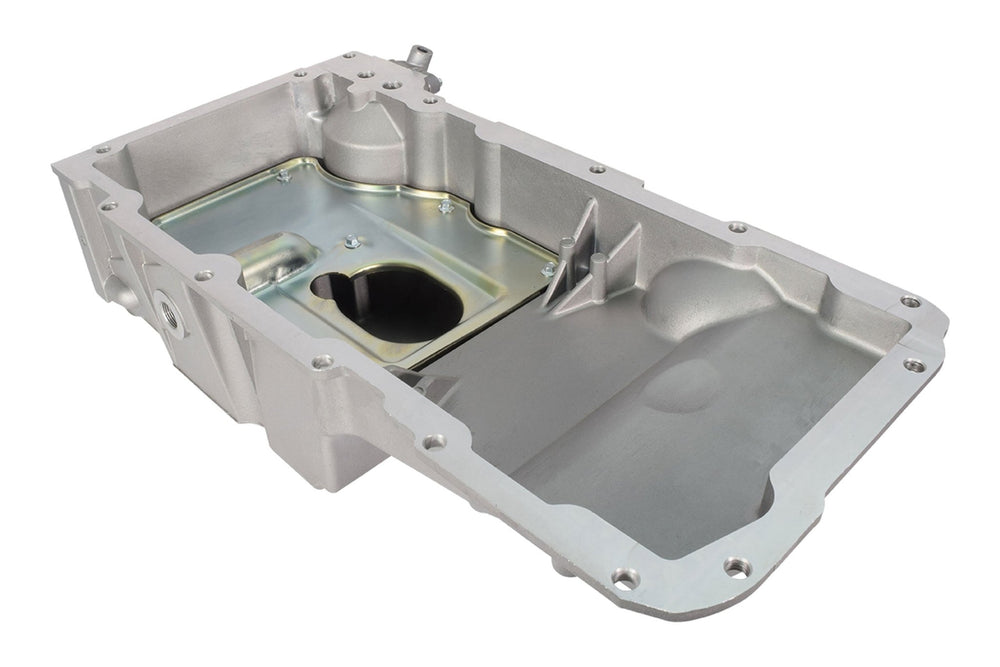

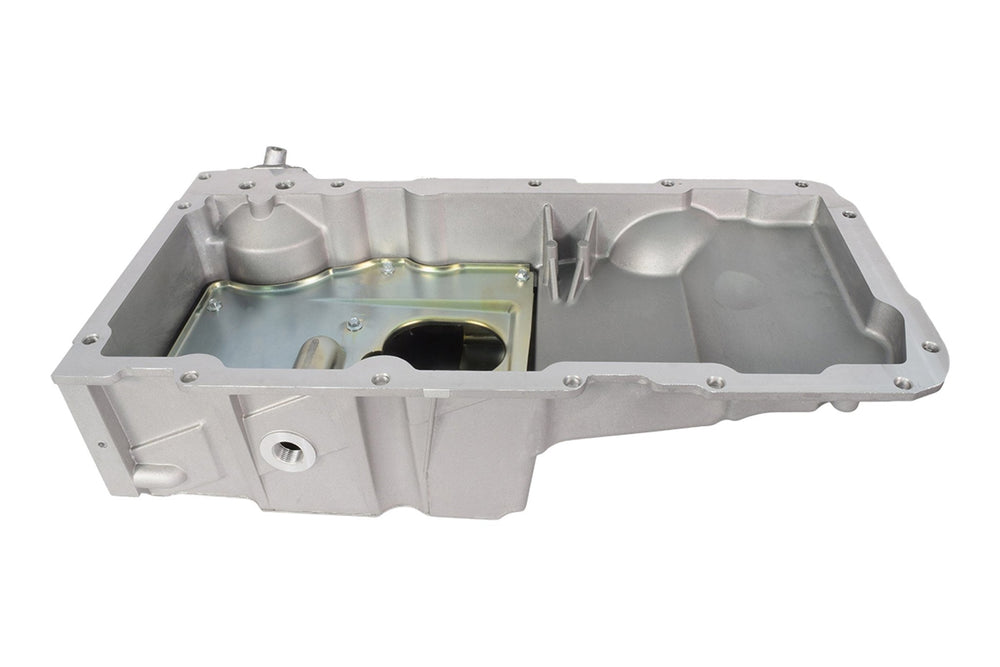

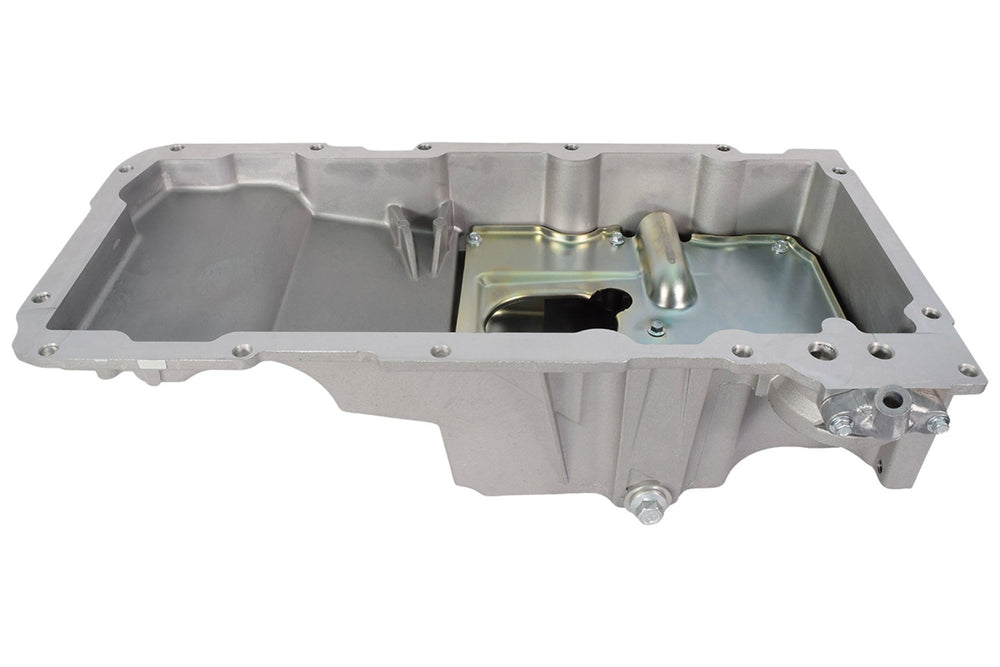

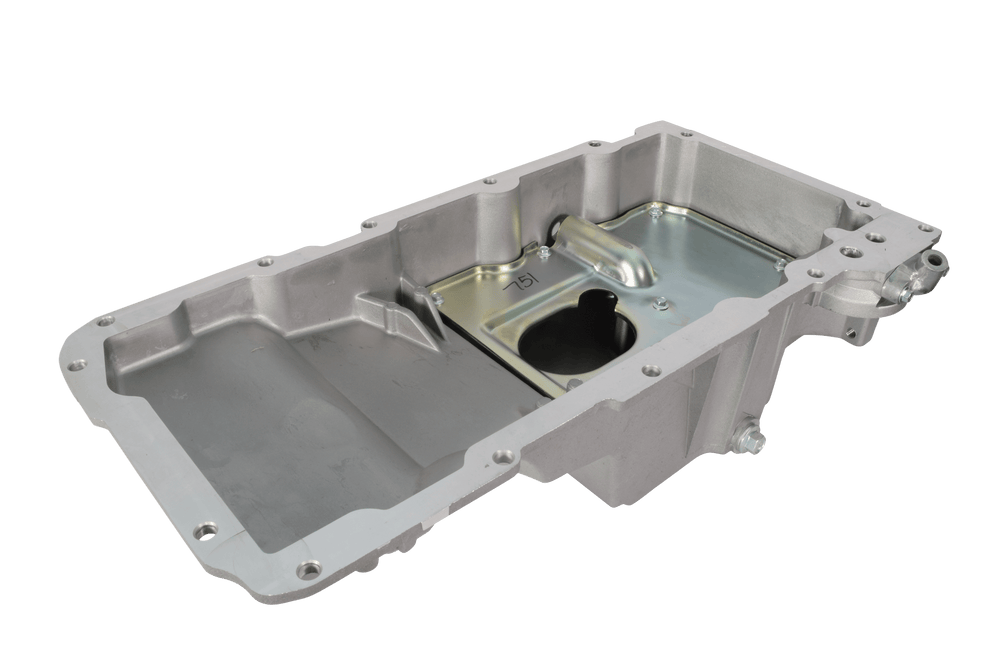

Factory Style Oil Pan for LS1 Camaro

Product Details

• Cast aluminum, stock replacement oil pan for LS1 Camaro
• Includes: oil pan, drain plug, oil cooler block off plate, lower pan - steel baffle plate
• Compatible with oil filter PF46E
• Compatible with oil pickup tube CHI-12558251 (or modify existing tube)

*NOT Compatible with Truck windage tray unless you cut it around the 2nd main cap

Compatible with these vehicles

• Chevrolet Camaro 1998-2002 LS1 (factory replacement)


Compatible with (based on vehicle 3D scans using ICT engine mounts)

• Chevrolet Camaro           70-92

• Chevrolet Corvette C3     68-82
• Chevrolet Corvette C4     84-96
• Chevrolet Truck                47-55
• Chevrolet Truck                67-87
• Ford Mustang                  79-93

Helpful Links

• Torque pan to block bolts: M8=18 lb-ft, M6=106 lb-in
• Optional bolt kit or gasket
• Optional oil pickup tube or windage tray or dipstick
