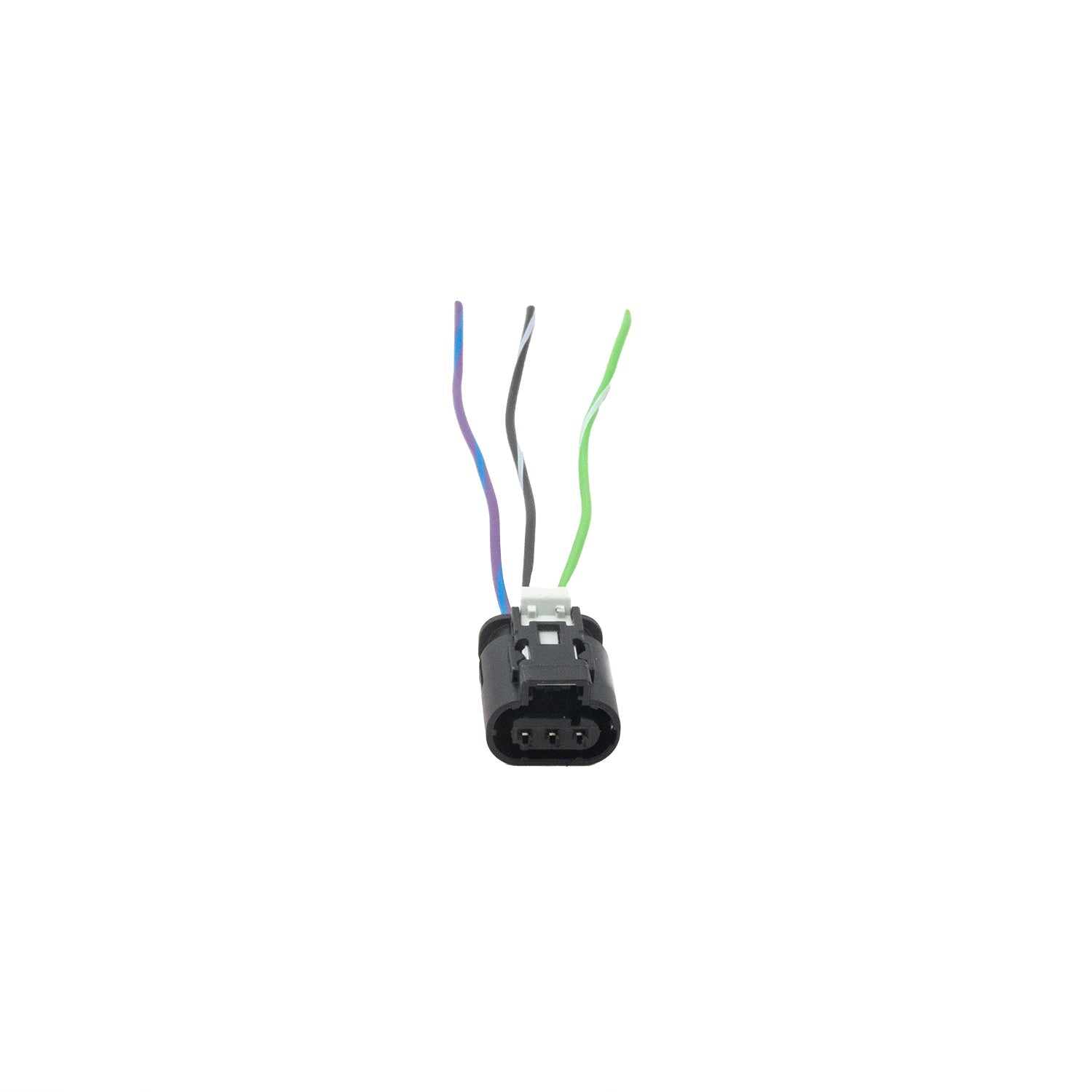

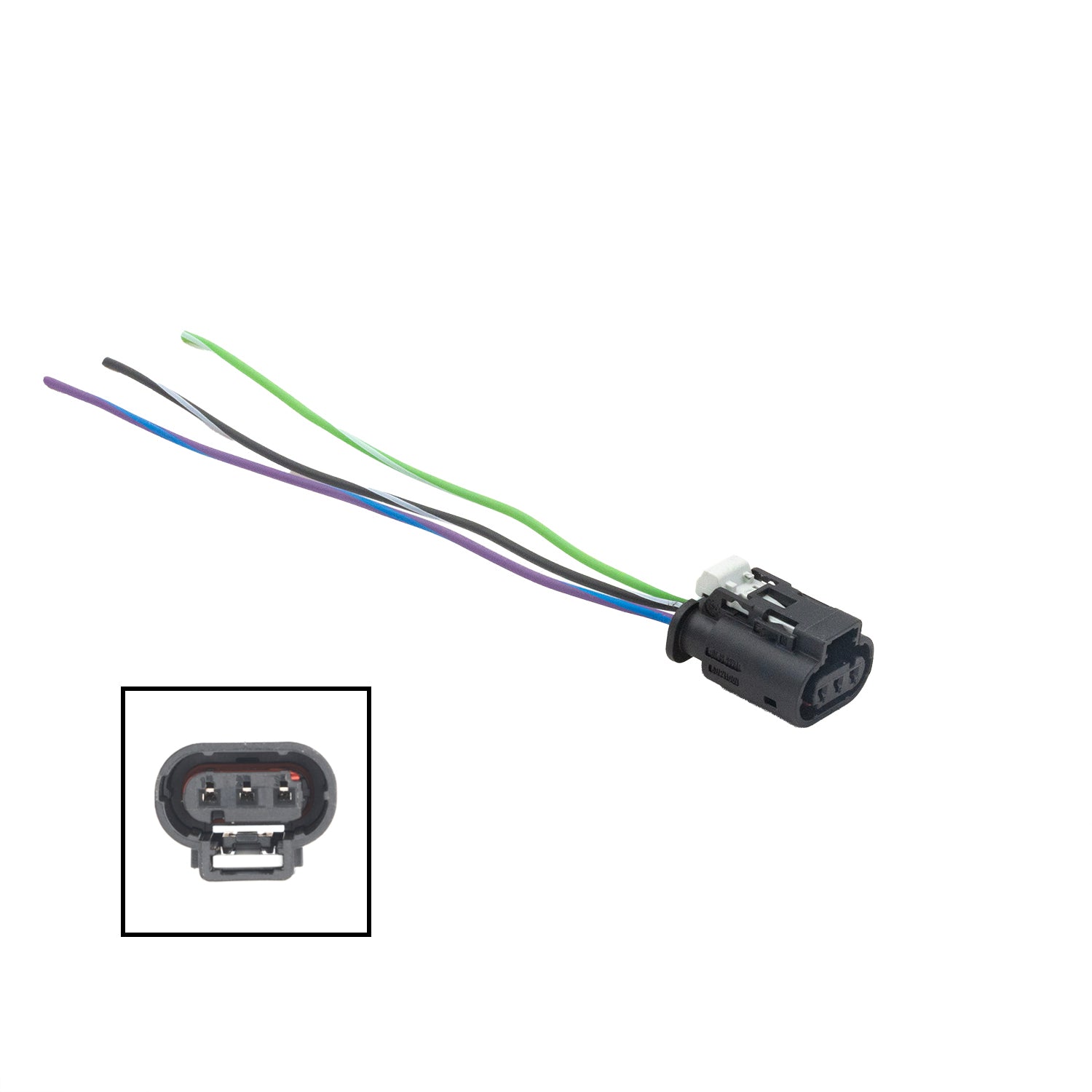

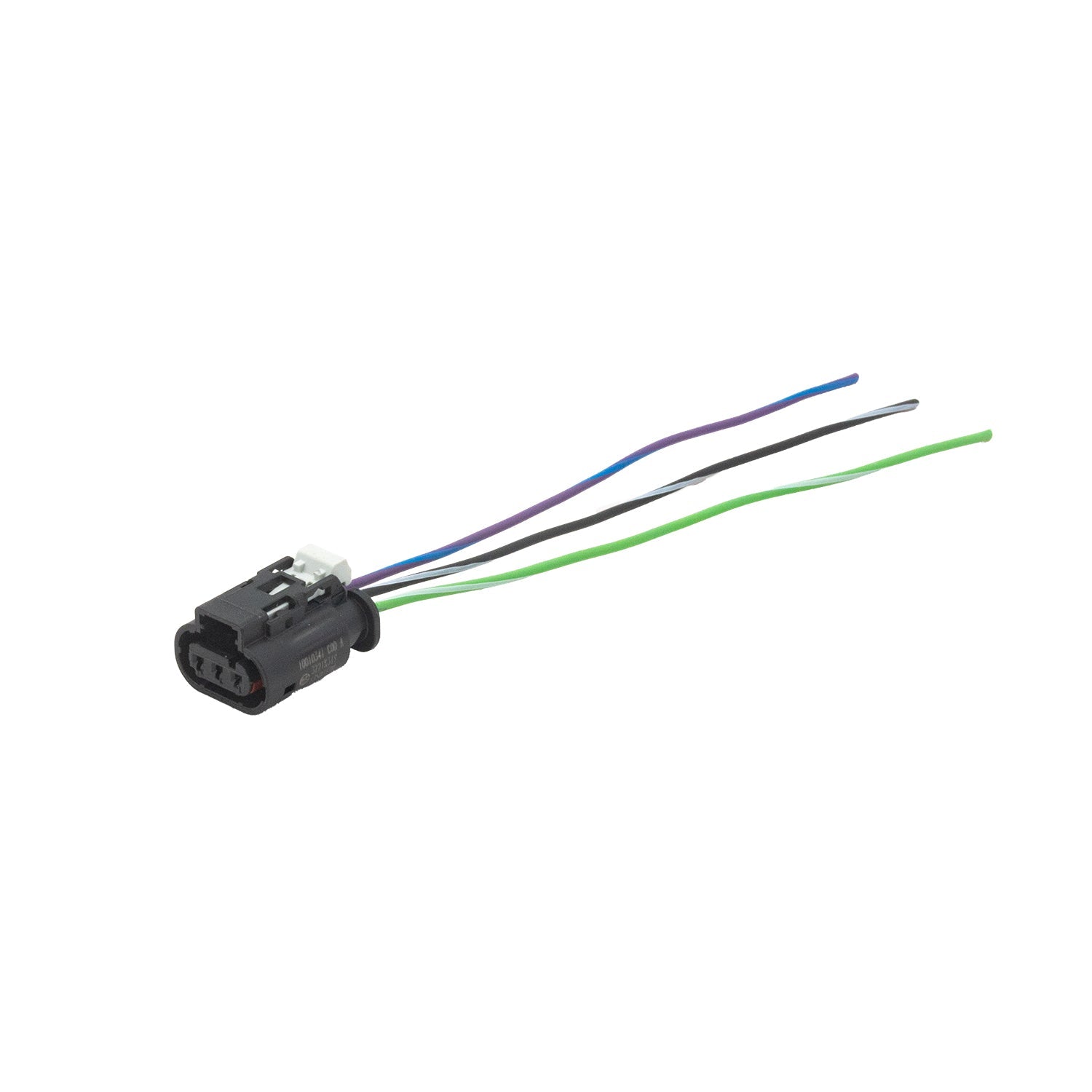

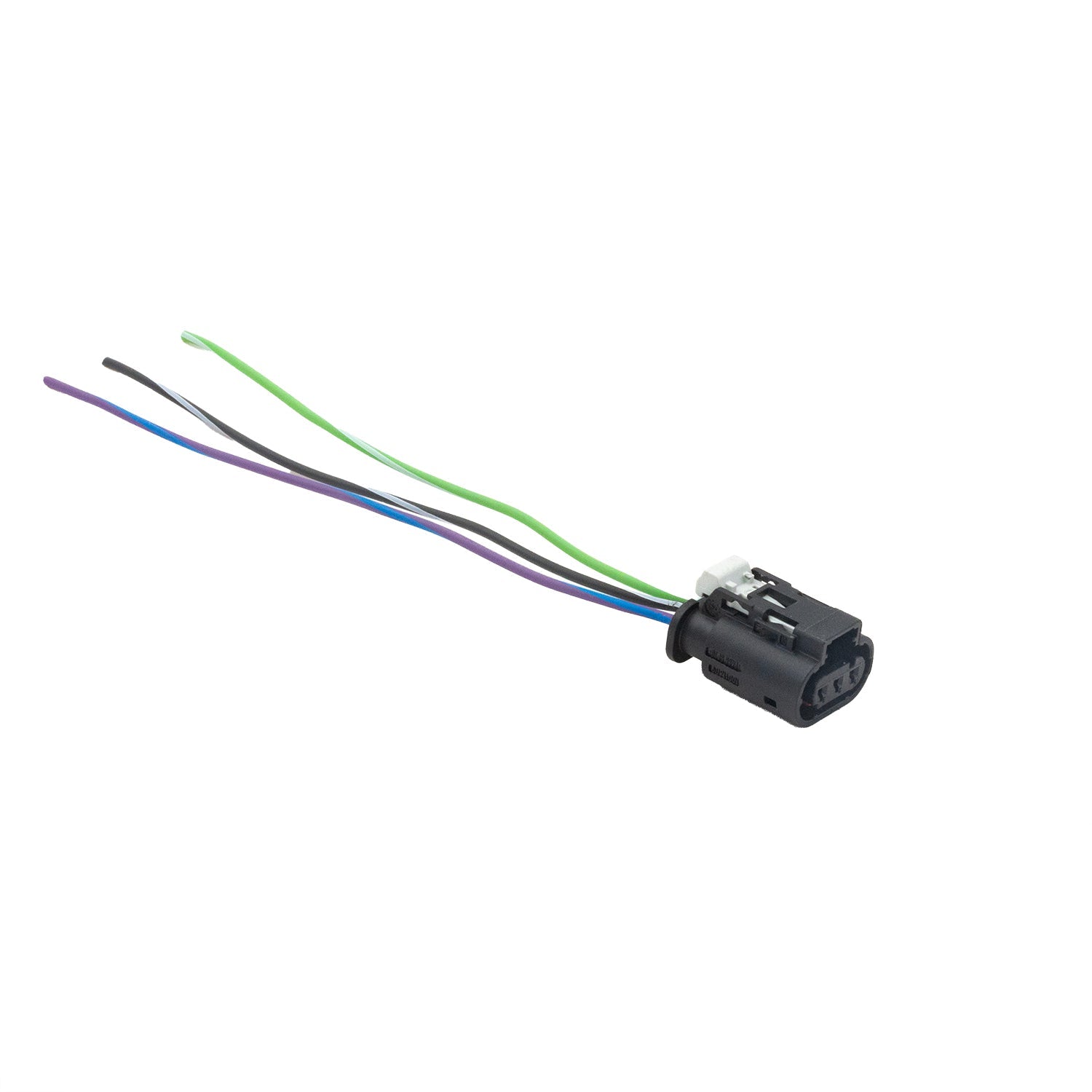

LT Gen 5 3-Wire CKP Crankshaft or Camshaft Position Sensor Connector Harness Pigtail

LS Gen 4 Grey CKP Crankshaft or Camshaft Position Sensor Connector Pigtail

• Sealed, crimped and assembled in Wichita Kansas, with USA made, OEM grade, TXL wire

• Compatible with 2014 and newer GM Gen 5 LT series engines
• Includes: 1 pigtail w/ 6 inch wire leads
• Assembled with OEM tooling, OEM Delphi (connector, lock, seals, and terminals),(uses OEM harness wire colors)
• Uses OEM wire color for easy installation (when using as Crankshaft Position Sensor Pigtail)
• If using as a Camshaft Position Sensor, see below

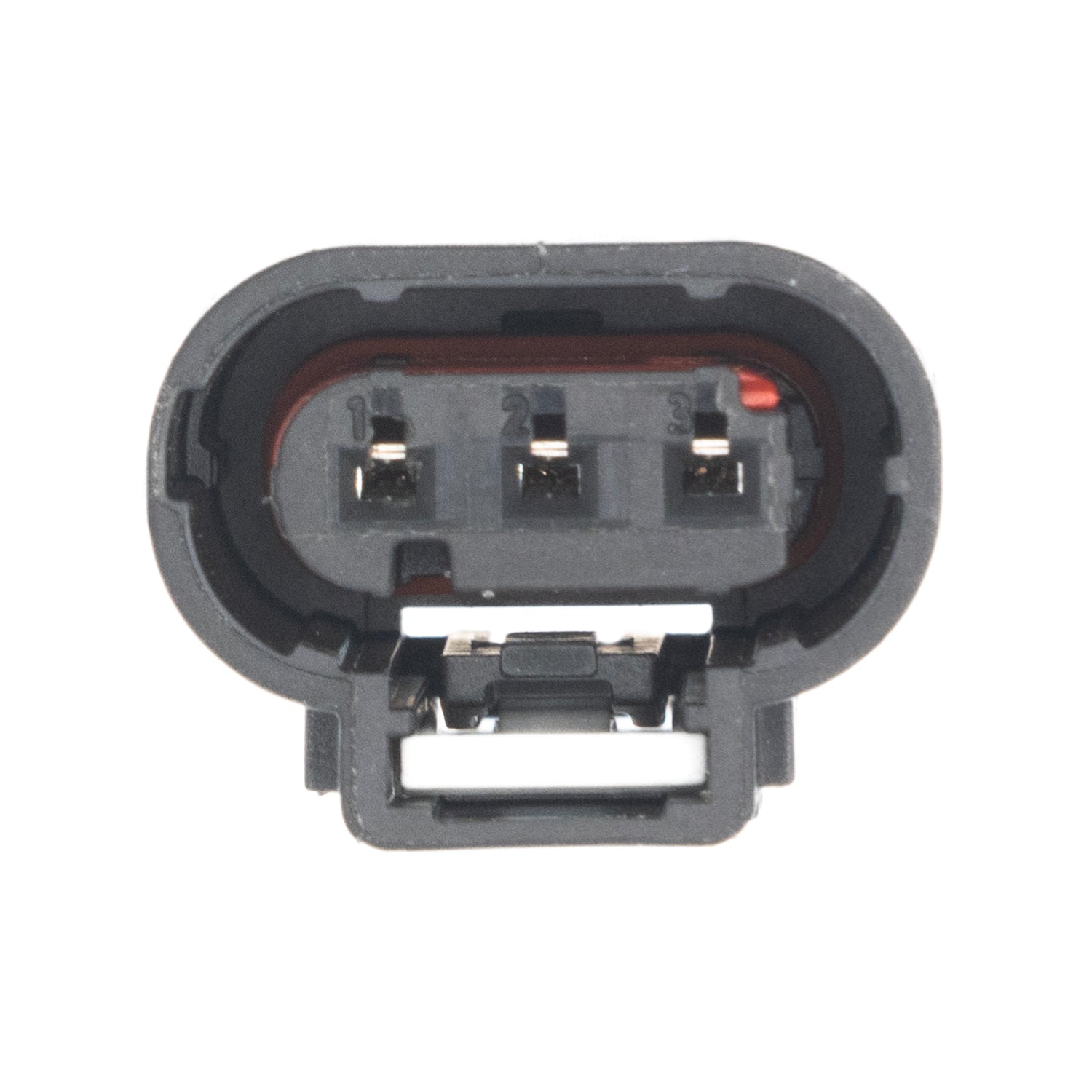

  • Crank Pin 1 (Green/White) = Cam Pin 1 (Purple/Blue)
  • Crank Pin 2 (Black/White) = Cam Pin 2 (Gray/Green)
  • Crank Pin 3 (Purple/Blue) = Cam Pin 3 (Yellow/Gray)
