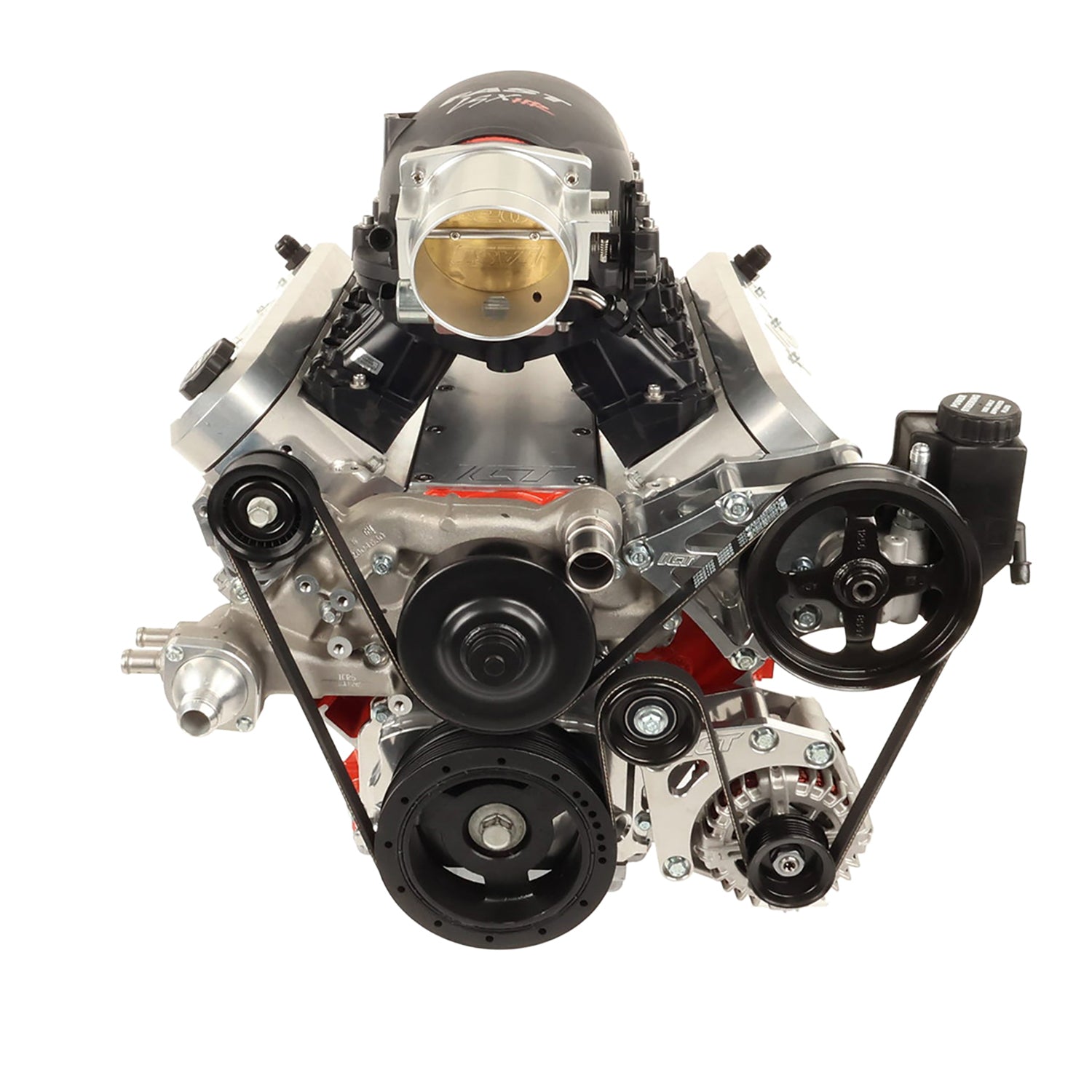

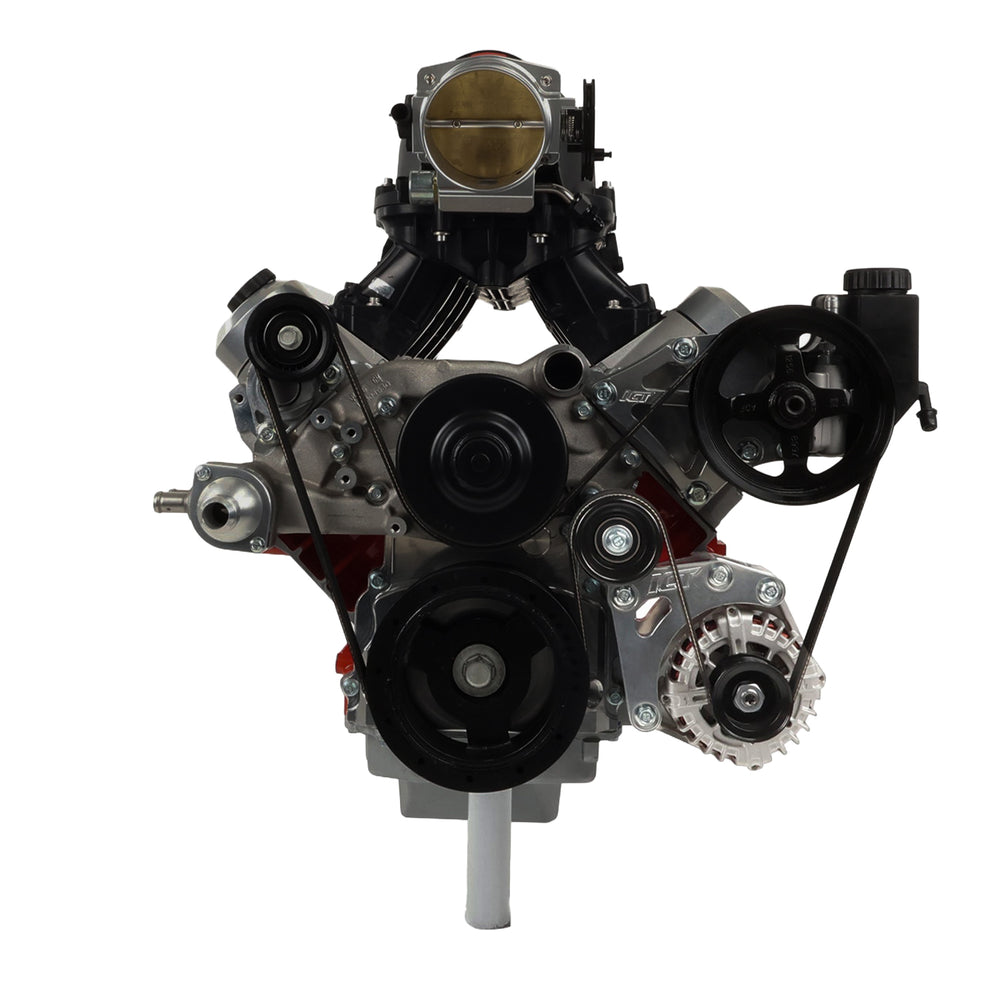

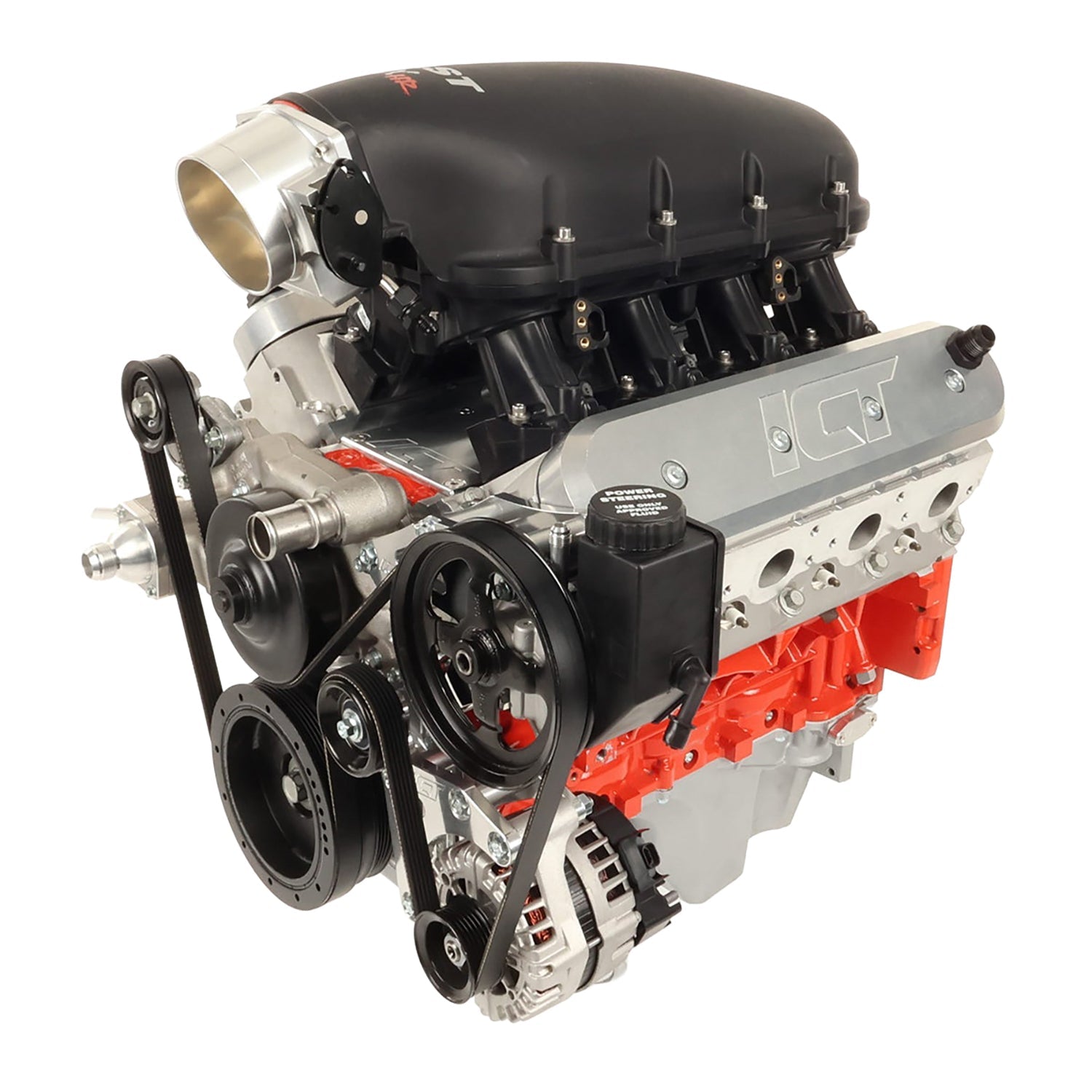

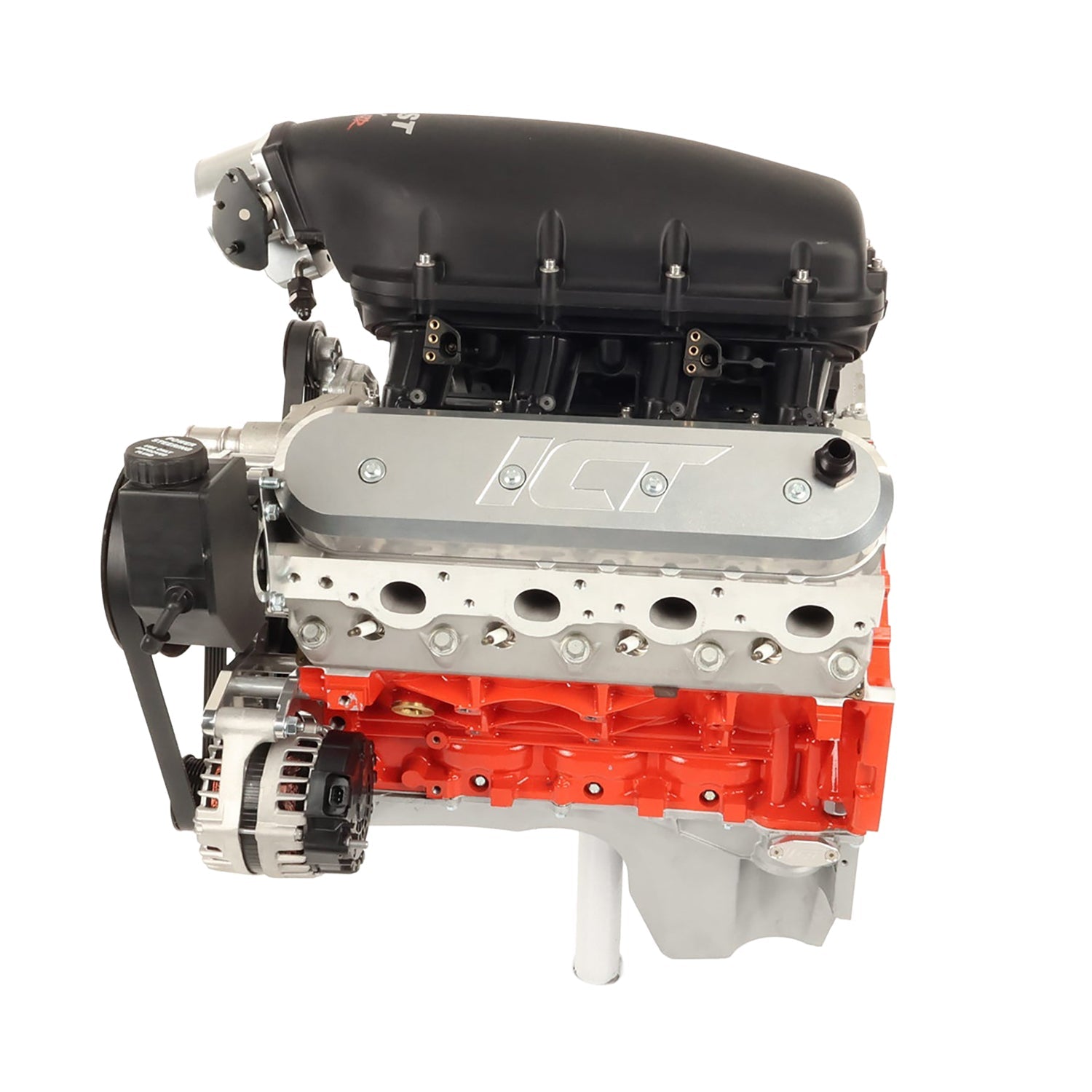

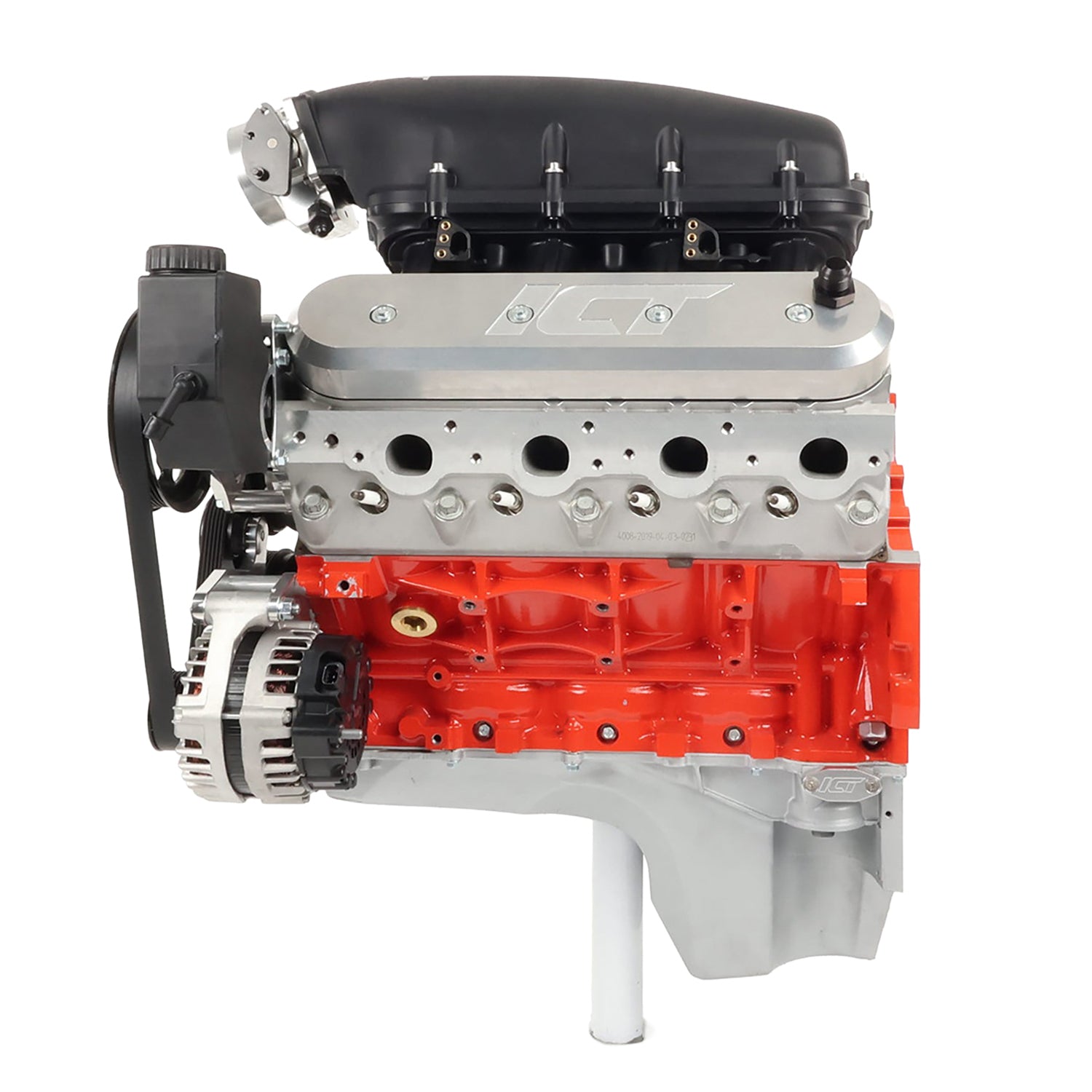

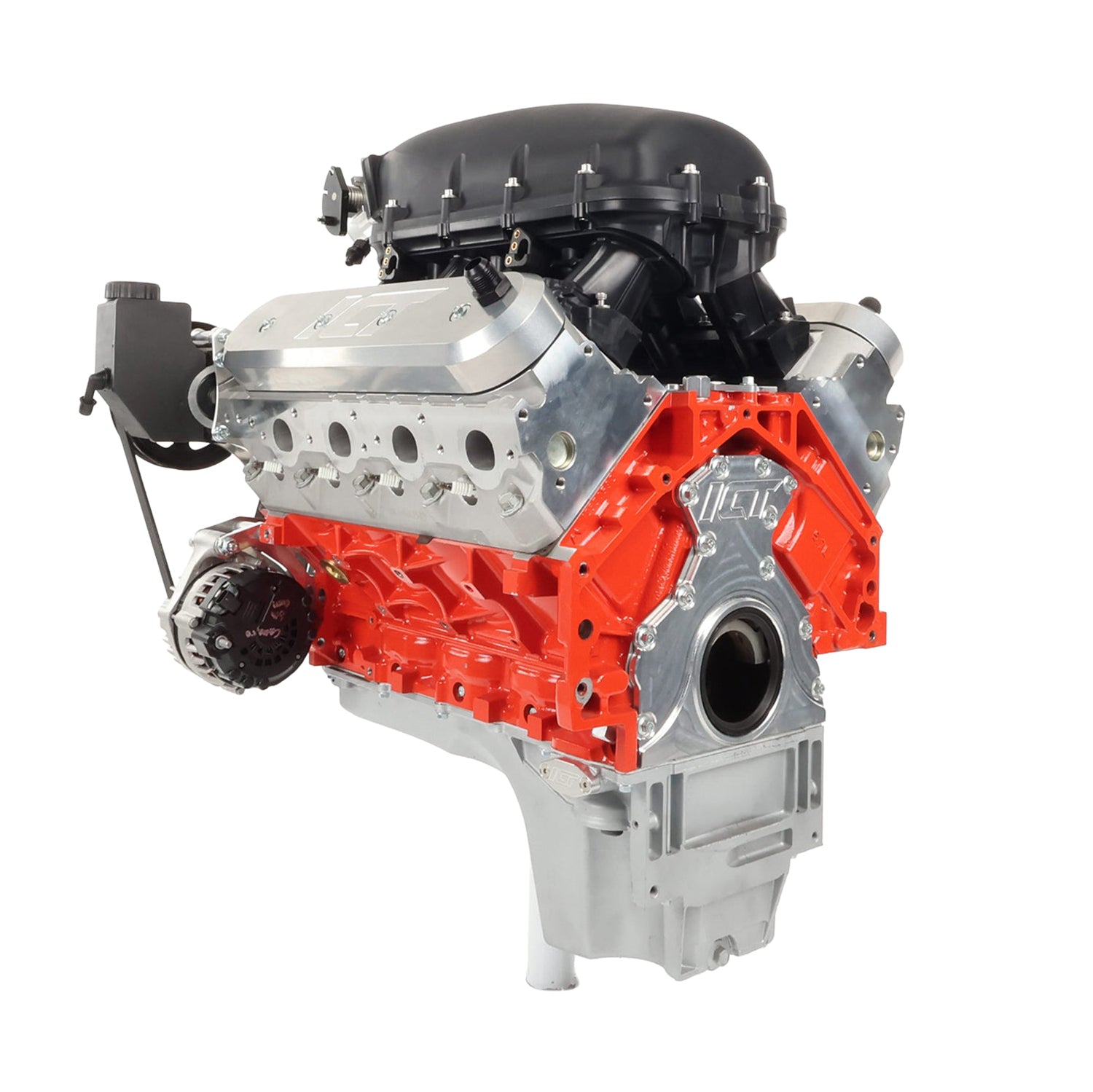

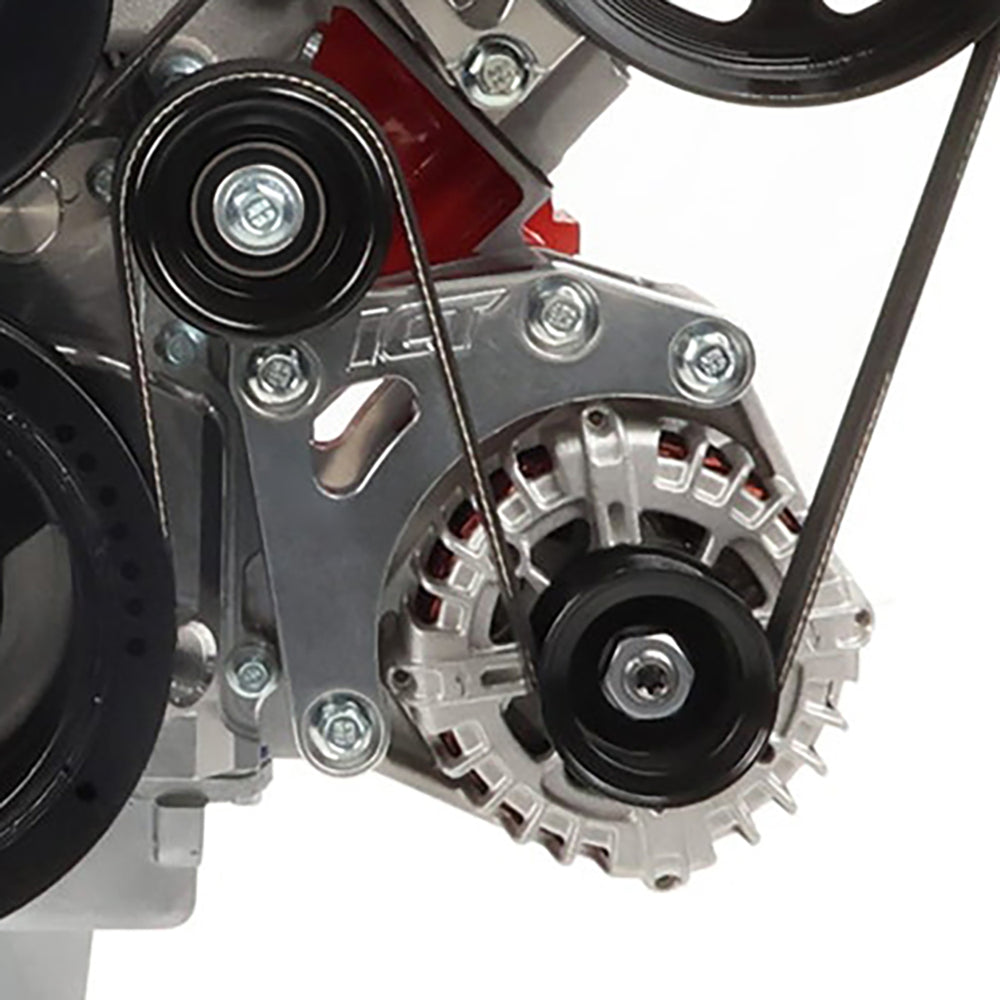

LS Alternator Bracket - Corvette Spacing (Low Mount)

Low Mount Alternator Bracket Kit w/ Pulley for LS3 Corvette & Camaro Alternators - Corvette Spacing

Product Details

• Compatible with '97-'13 Corvette (LS1, LS2, LS3), '04-'15 CTS-V, '08-'09 G8, '14-'17 SS sedan harmonic balancer
• Compatible with "6.06 wide bolt" pattern alternators (Corvette or 2010-15 LS3 Camaro)

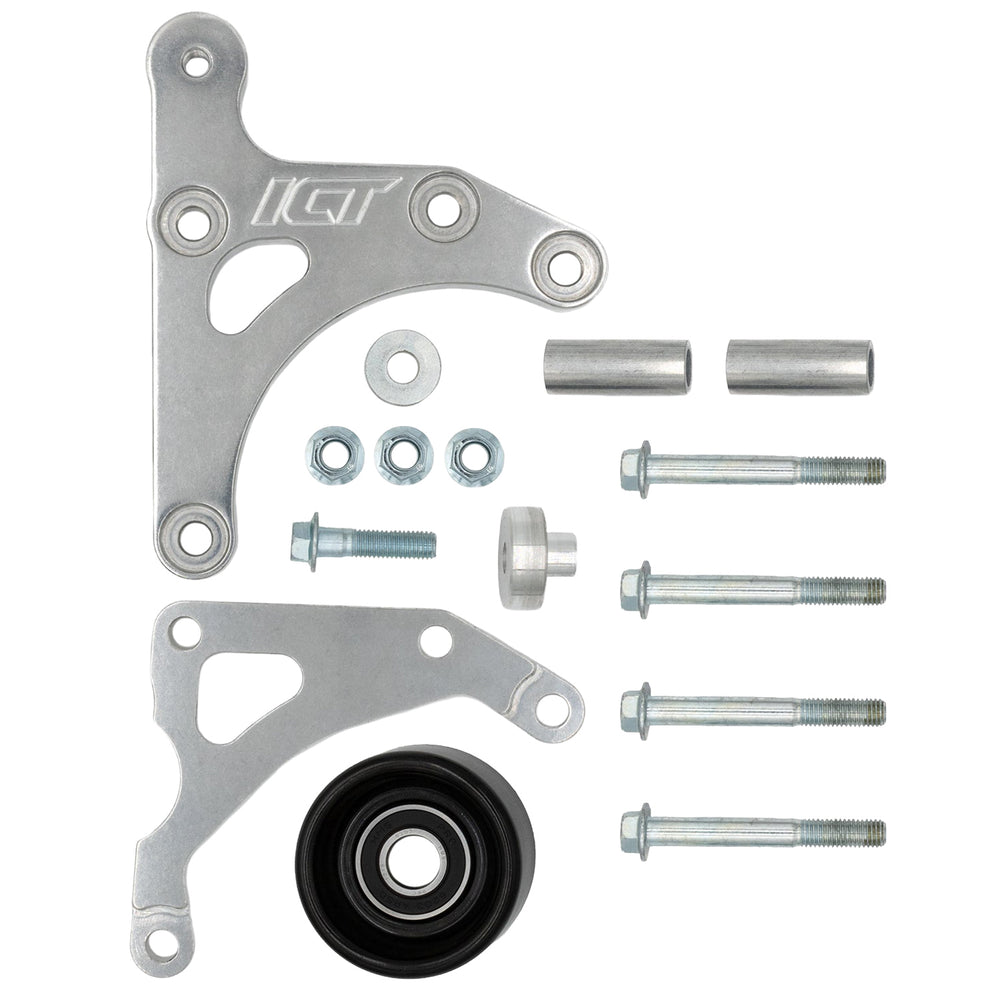

• Includes: bracket, smooth pulley, mounting hardware, and instructions
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum


*If using an iron engine block, it will only have one of the three holes to mount the alternator.  To get the minimum two holes, use our drill template, then drill & M10 tap.  Then use our bracket and template kit to get the third bracket mounting hole

Helpful Links

• Torque bolts to 37 lb-ft
• Belt length chart
• Replacement smooth idler pulley or bolt and spacer kit
• Optional billet smooth pulley or PowerMaster 220amp alternator

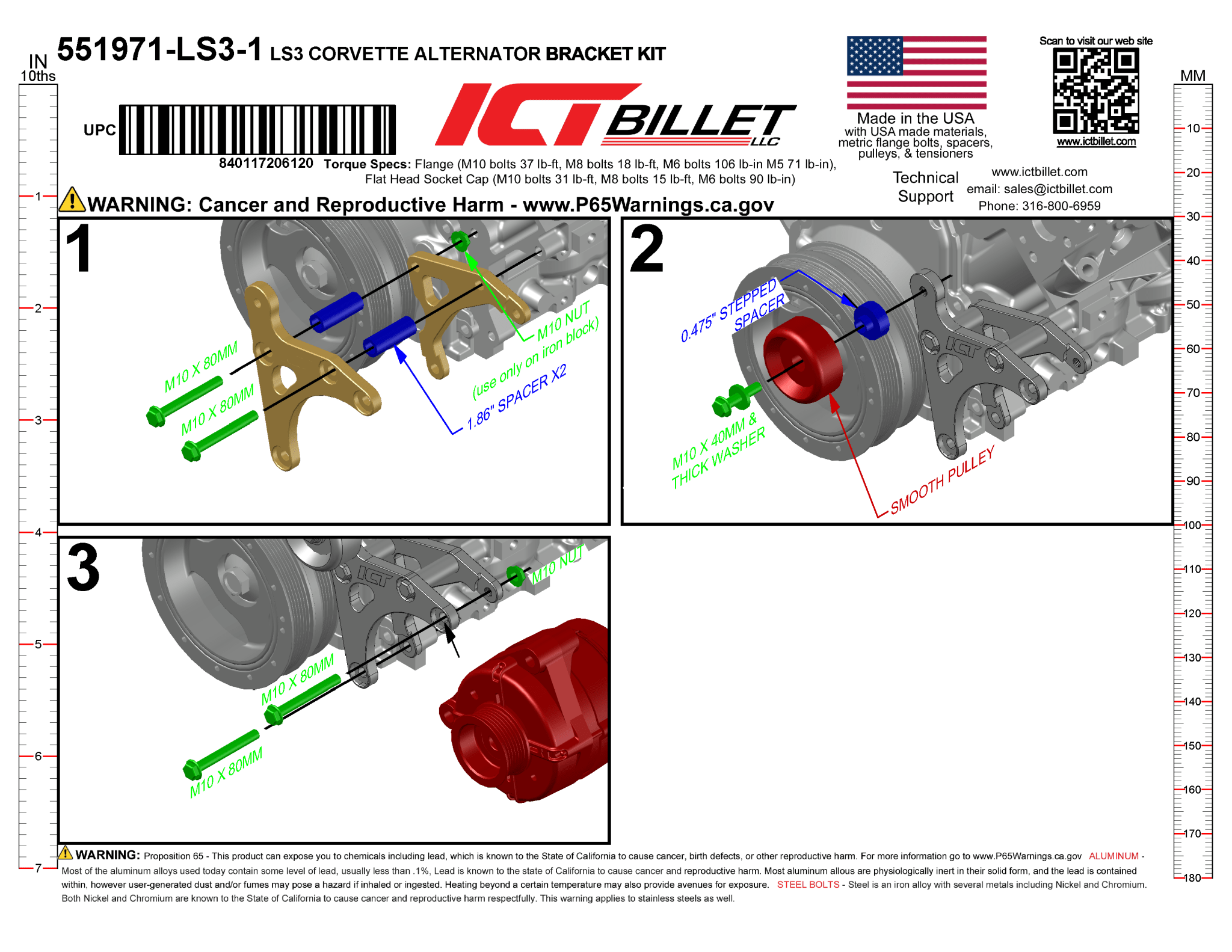

• Instructions
