LS Water Pump Spacers - Motor Plate + LS1 Camaro Pump w/ Truck Balancer - ICT Billet 551690-0461

LS Water Pump Spacers - Motor Plate + LS1 Camaro Pump w/ Truck Balancer

Sale price
$75
Regular price
$85
You save
12%
SKU#: 551690-0461
In stock

Product Description

LS Water Pump Spacers - Motor Plate + LS1 Camaro Pump w/ Truck Balancer

Product Details

  • Allows you to use a 1/4" thick motor plate with 1998-2002 LS1 Camaro water pump and belt tensioner while keeping the exact belt alignment while running a LS Truck harmonic balancer pulley.
  • Spacers are made in Wichita, Kansas from 6061-T6, USA produced billet aluminum and bolts are made in the USA

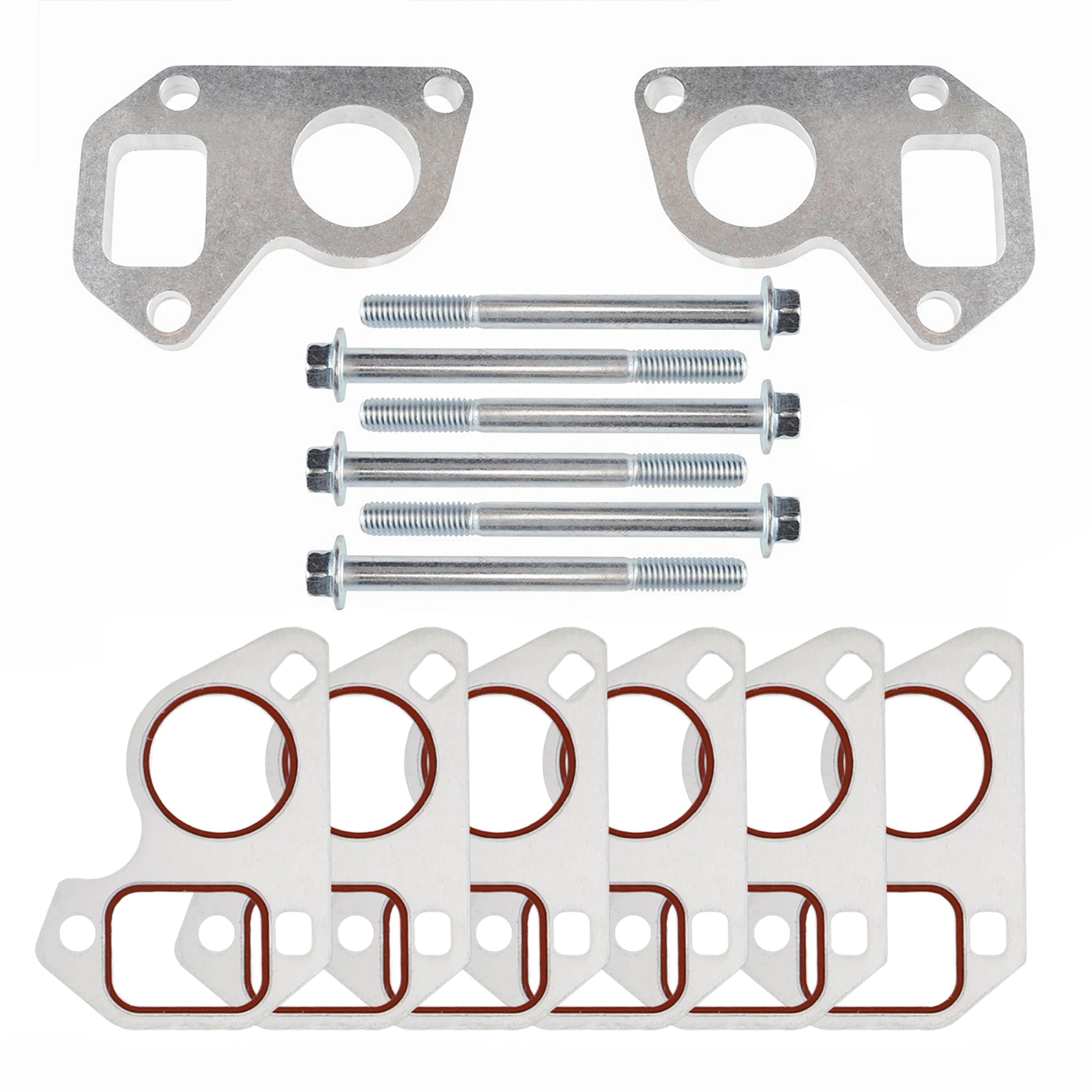

  • Includes: 2 spacers, 6 metal gaskets and bolts
  • These move the water pump forward .71" total (.28" spacers, while using .25" thick motor plate)

Helpful Links

  • Torque water pump bolts to 22 ft-lb
  • Optional thermostat housing bolts
  • Replacement gaskets

supersedes part #551524

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

LS Water Pump Spacers - Motor Plate + LS1 Camaro Pump w/ Truck Balancer

SKU#: 551690-0461
In stock
Sale price
$75
Regular price
$85
You save
12%
free shipping over $100

& 90 day returns Policy

Product Description

LS Water Pump Spacers - Motor Plate + LS1 Camaro Pump w/ Truck Balancer

Product Details

  • Allows you to use a 1/4" thick motor plate with 1998-2002 LS1 Camaro water pump and belt tensioner while keeping the exact belt alignment while running a LS Truck harmonic balancer pulley.
  • Spacers are made in Wichita, Kansas from 6061-T6, USA produced billet aluminum and bolts are made in the USA
  • Includes: 2 spacers, 6 metal gaskets and bolts
  • These move the water pump forward .71" total (.28" spacers, while using .25" thick motor plate)

Helpful Links

  • Torque water pump bolts to 22 ft-lb
  • Optional thermostat housing bolts
  • Replacement gaskets

supersedes part #551524

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

Product Specifications

Manufacturer Part Number UPC Weight Length Width Height Made in
ICT Billet 551690-0461 840117210295 0.86 lb 5 in 4 in 1.5 in USA
