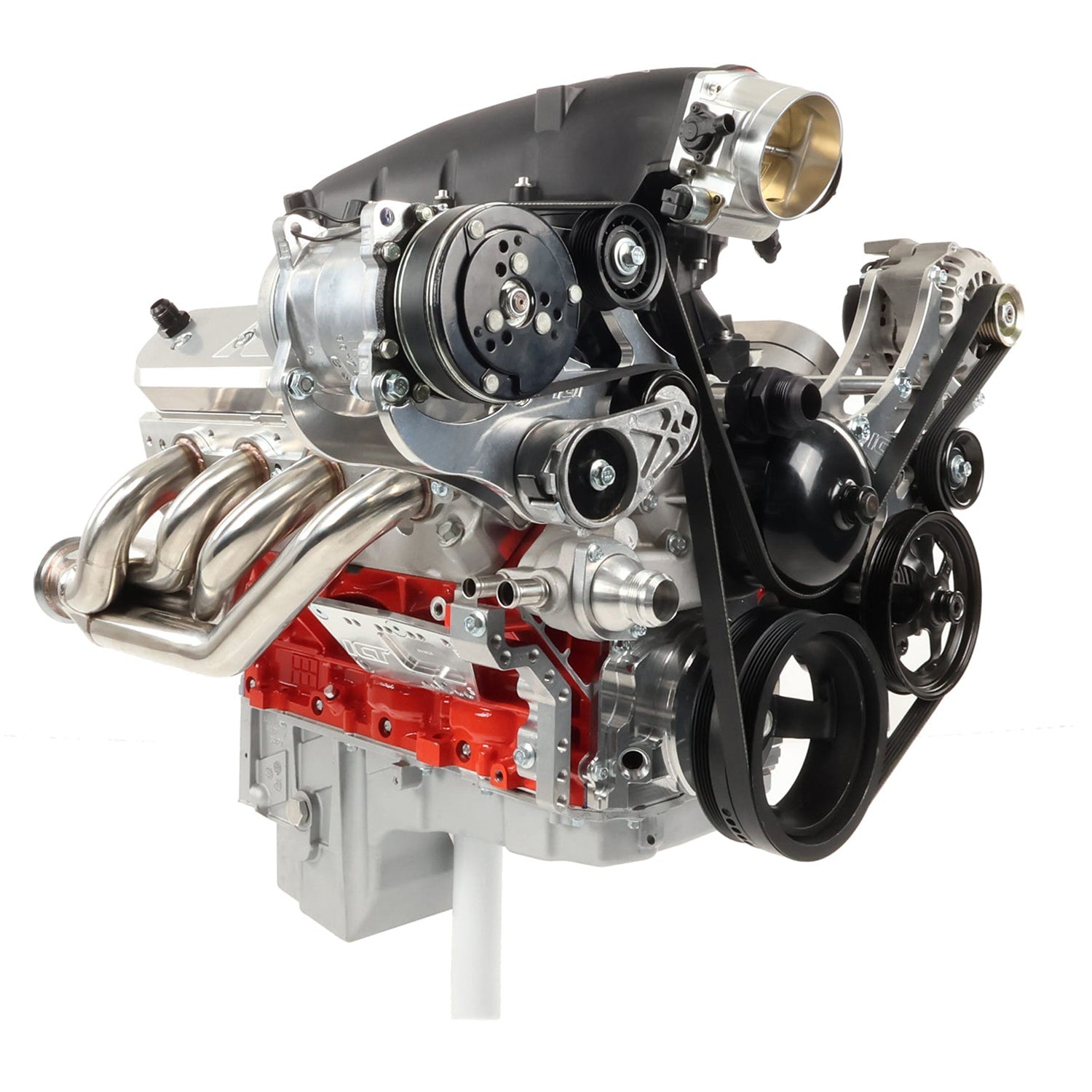

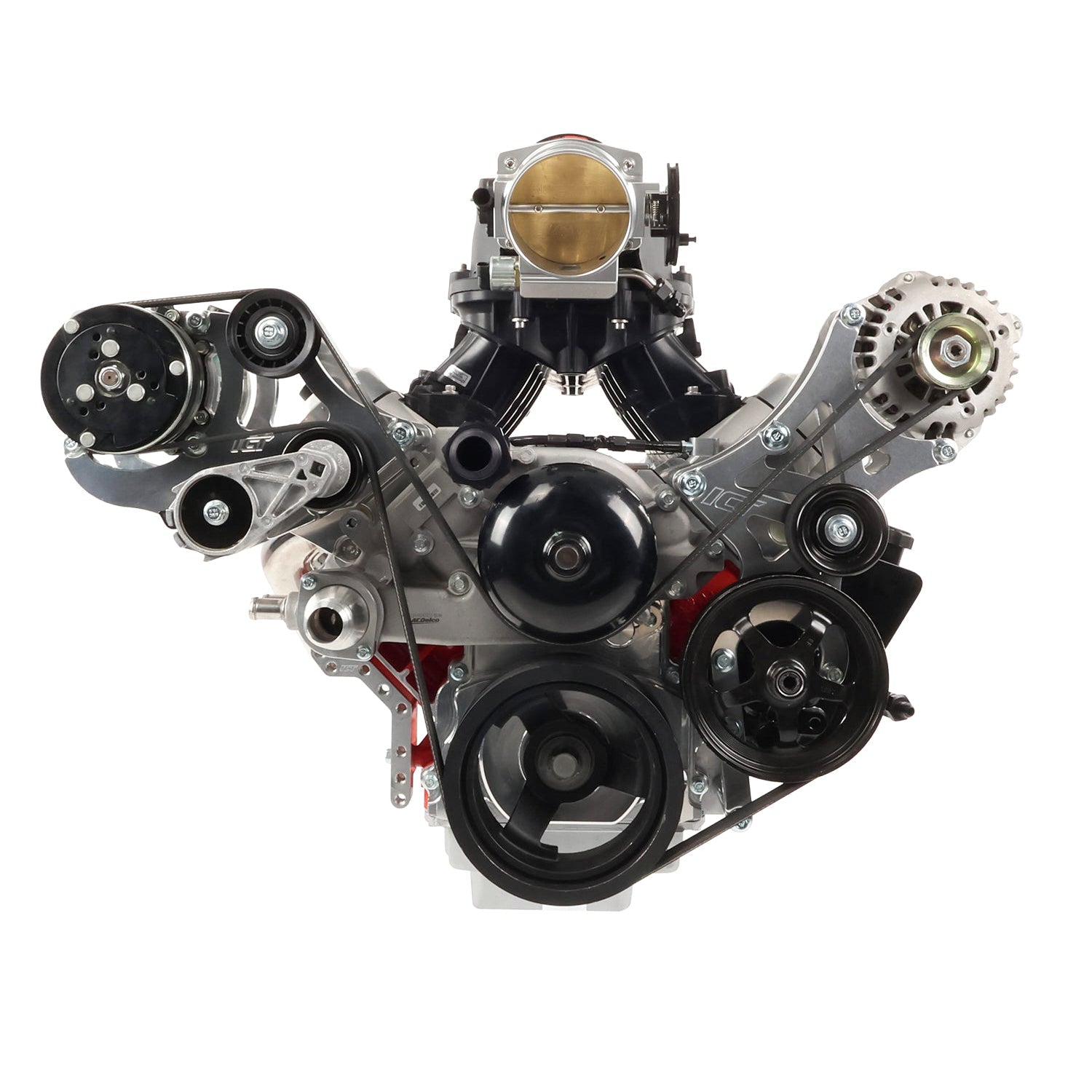

LS Truck - Sanden 508 A/C Air Conditioner Compressor Bracket Kit LS1 LS3 LSX AC

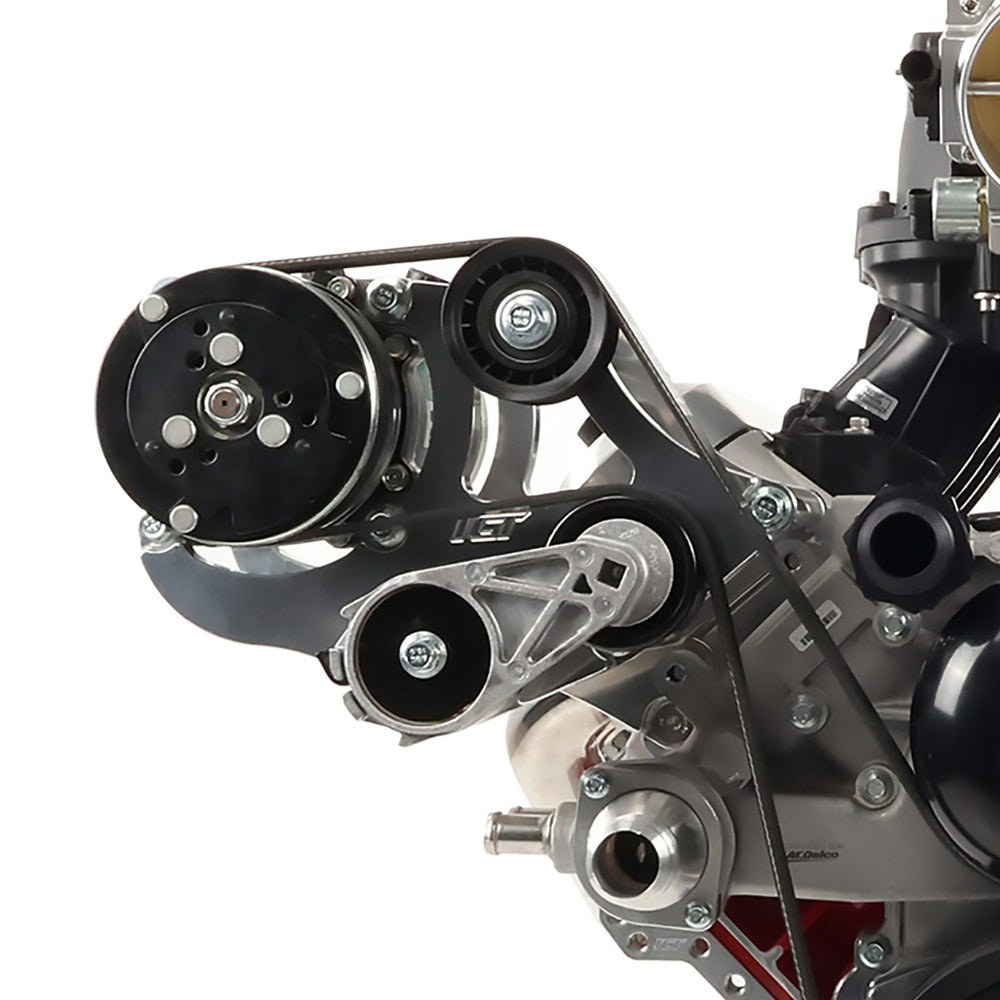

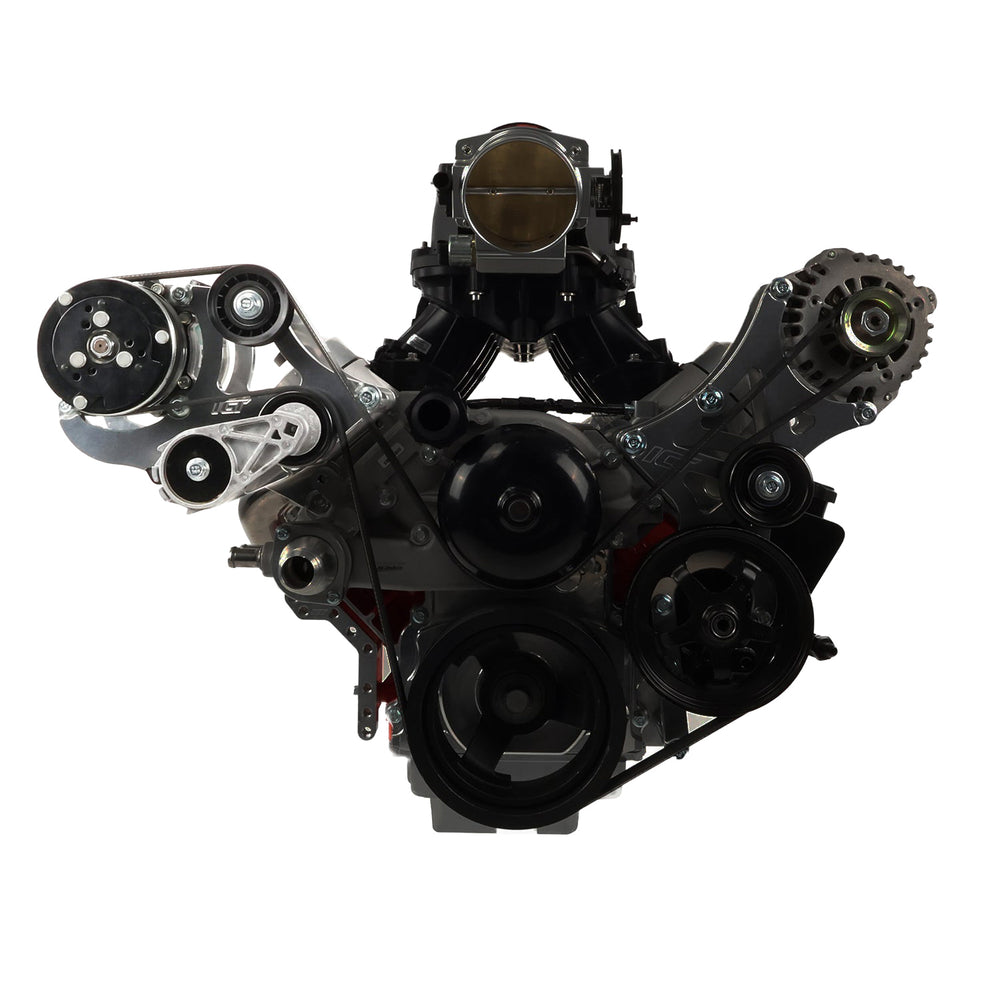

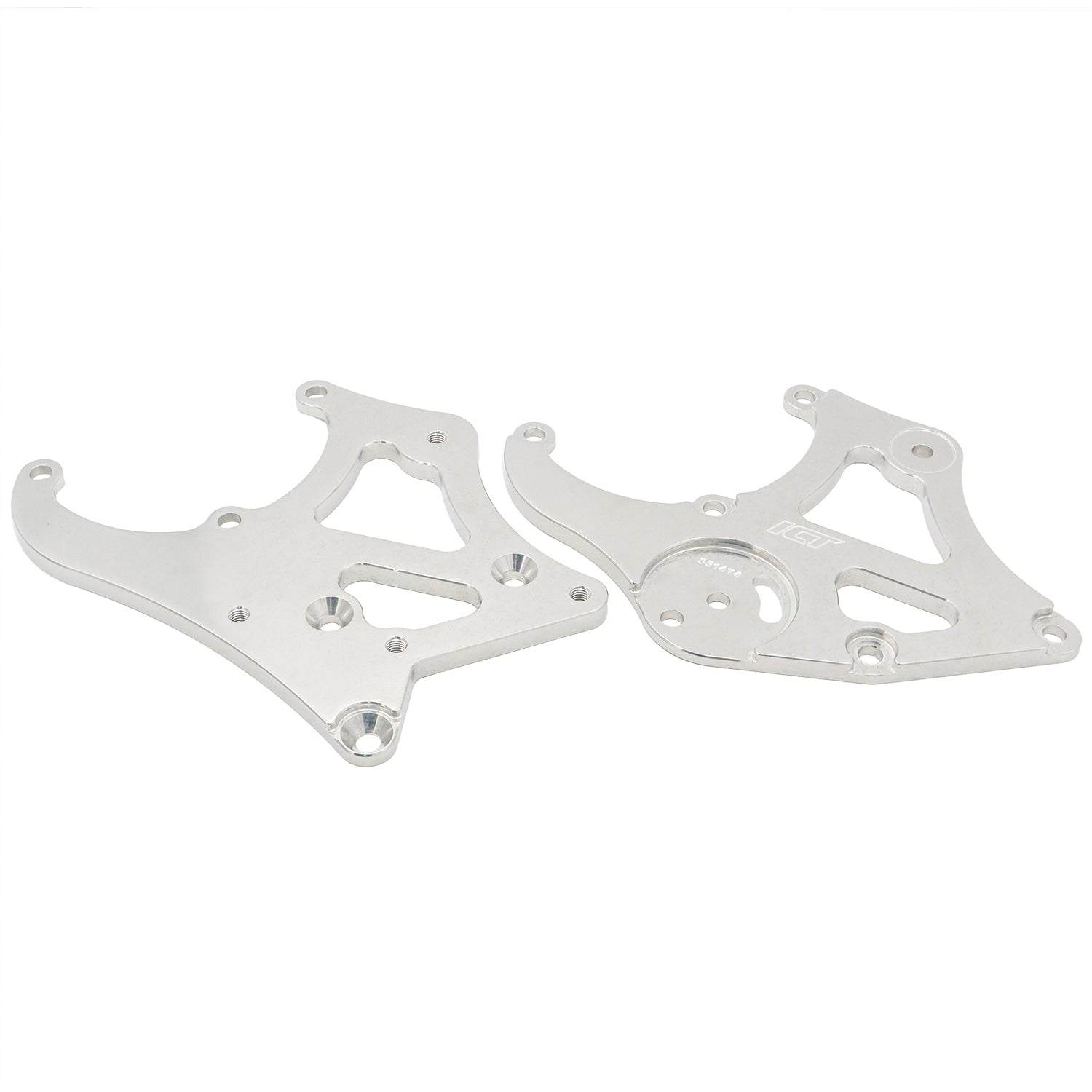

Heavy Duty LS Sanden 508 A/C Compressor Bracket Kit

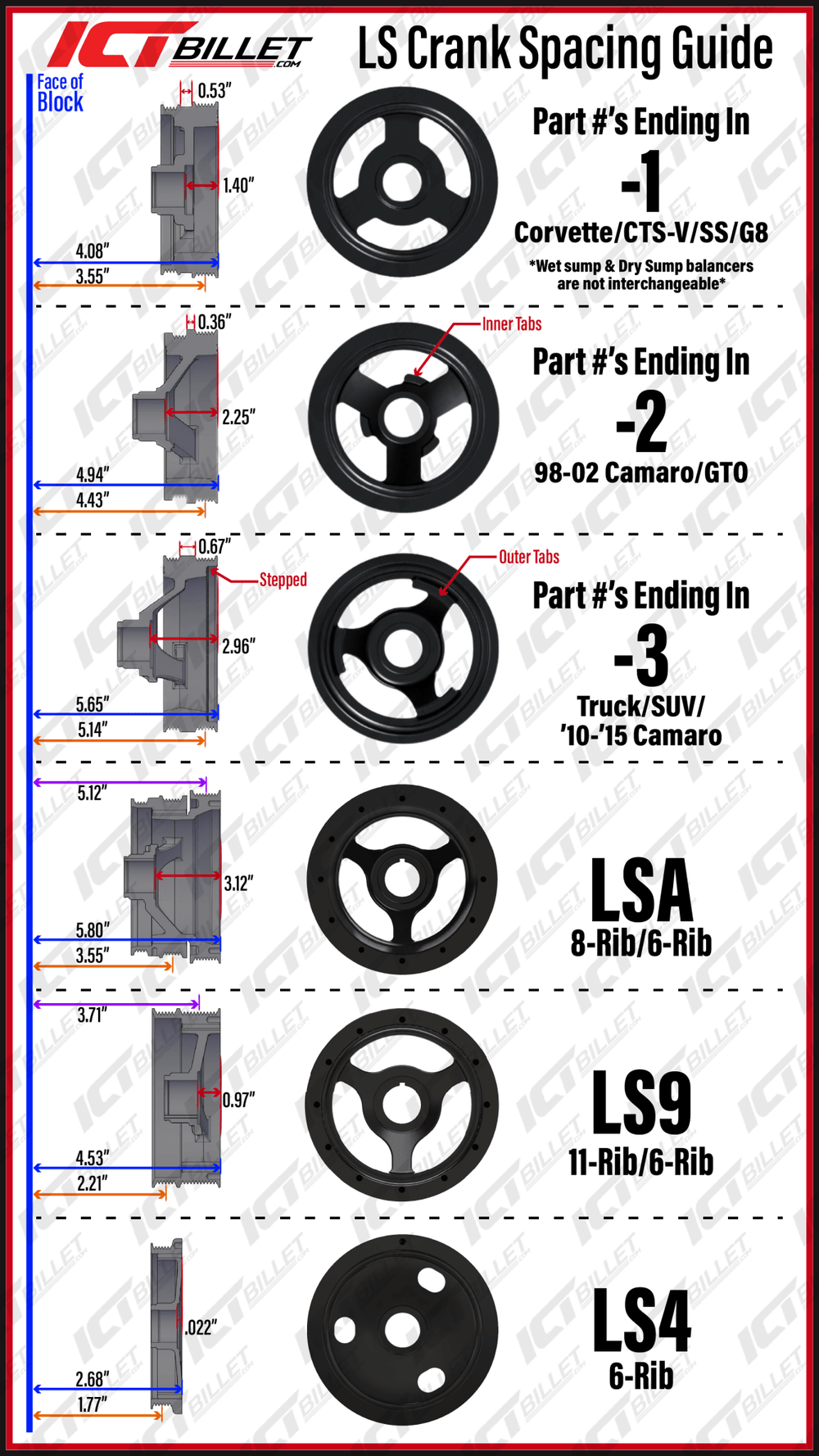

Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)

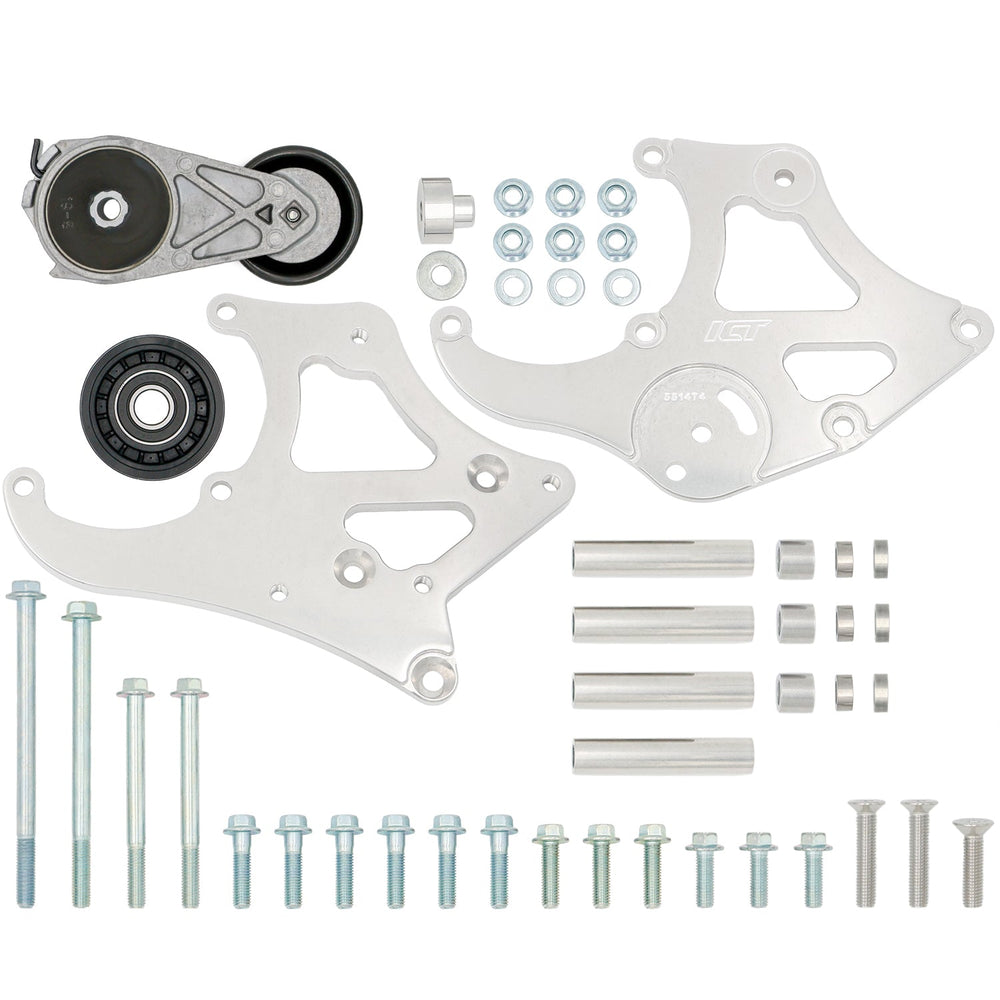

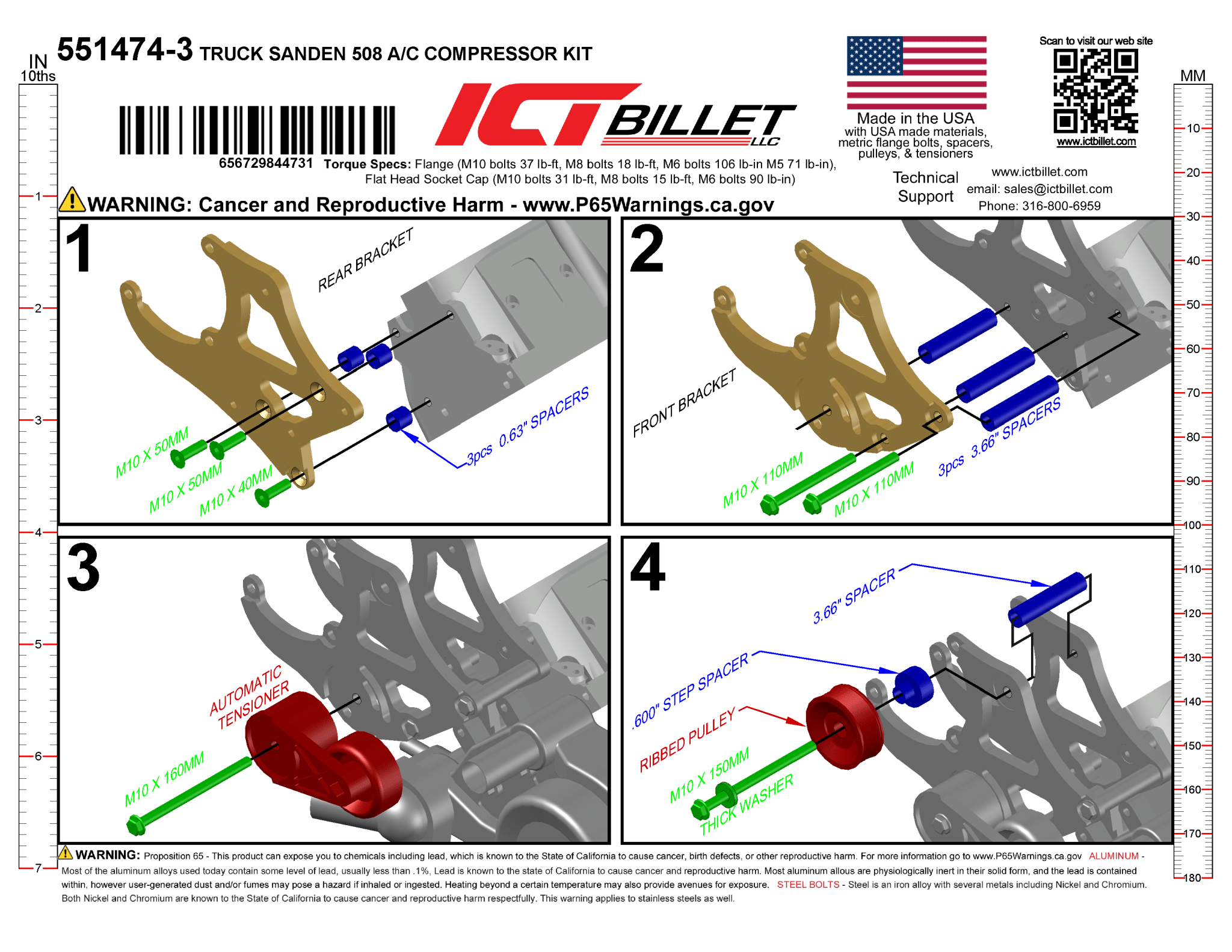

• Includes: belt tensioner, A/C compressor bracket, idler pulley, and mounting hardware

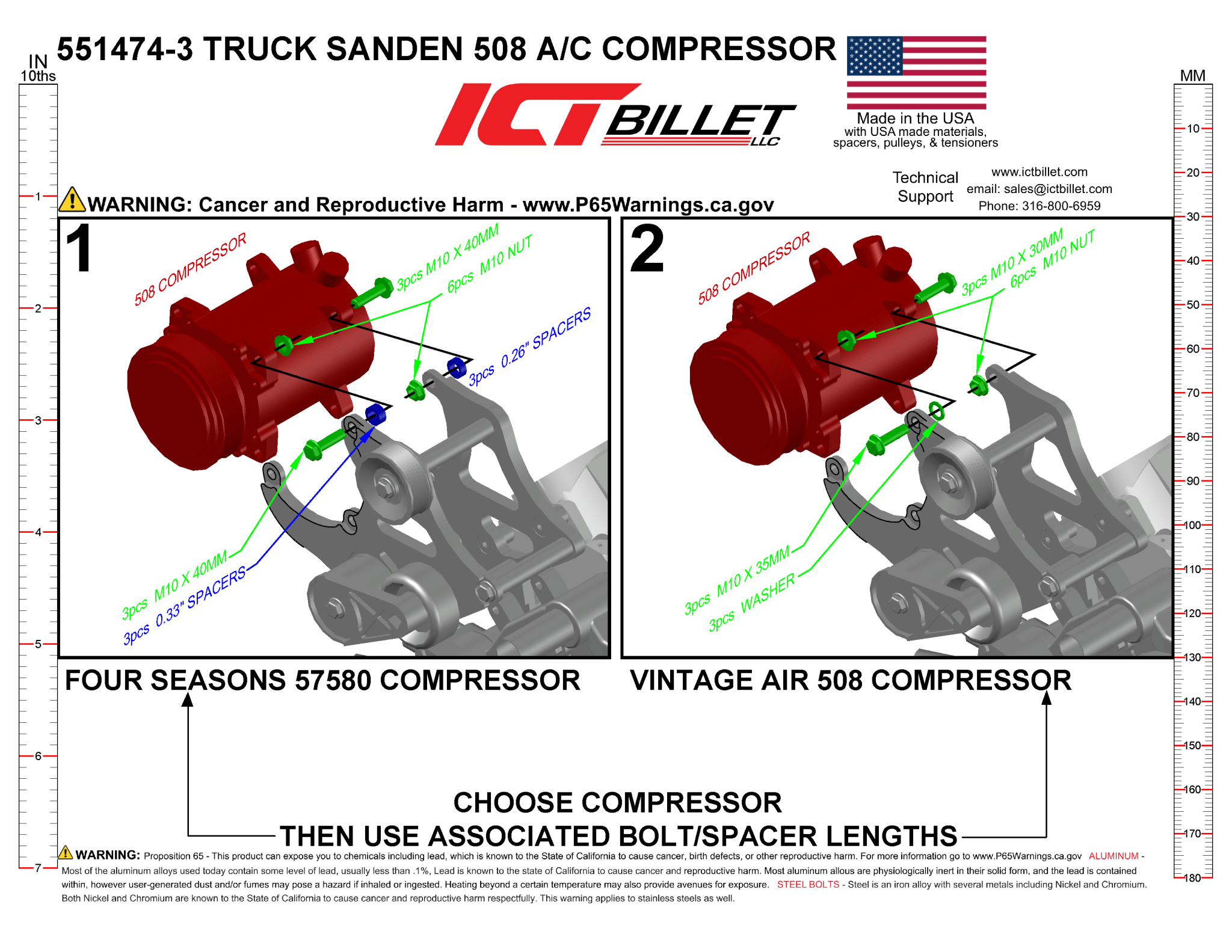

• Compatible A/C compressors: Sanden 508 (VTA-04808-VMA), Sanden 709 (VTA-04709-VMA)

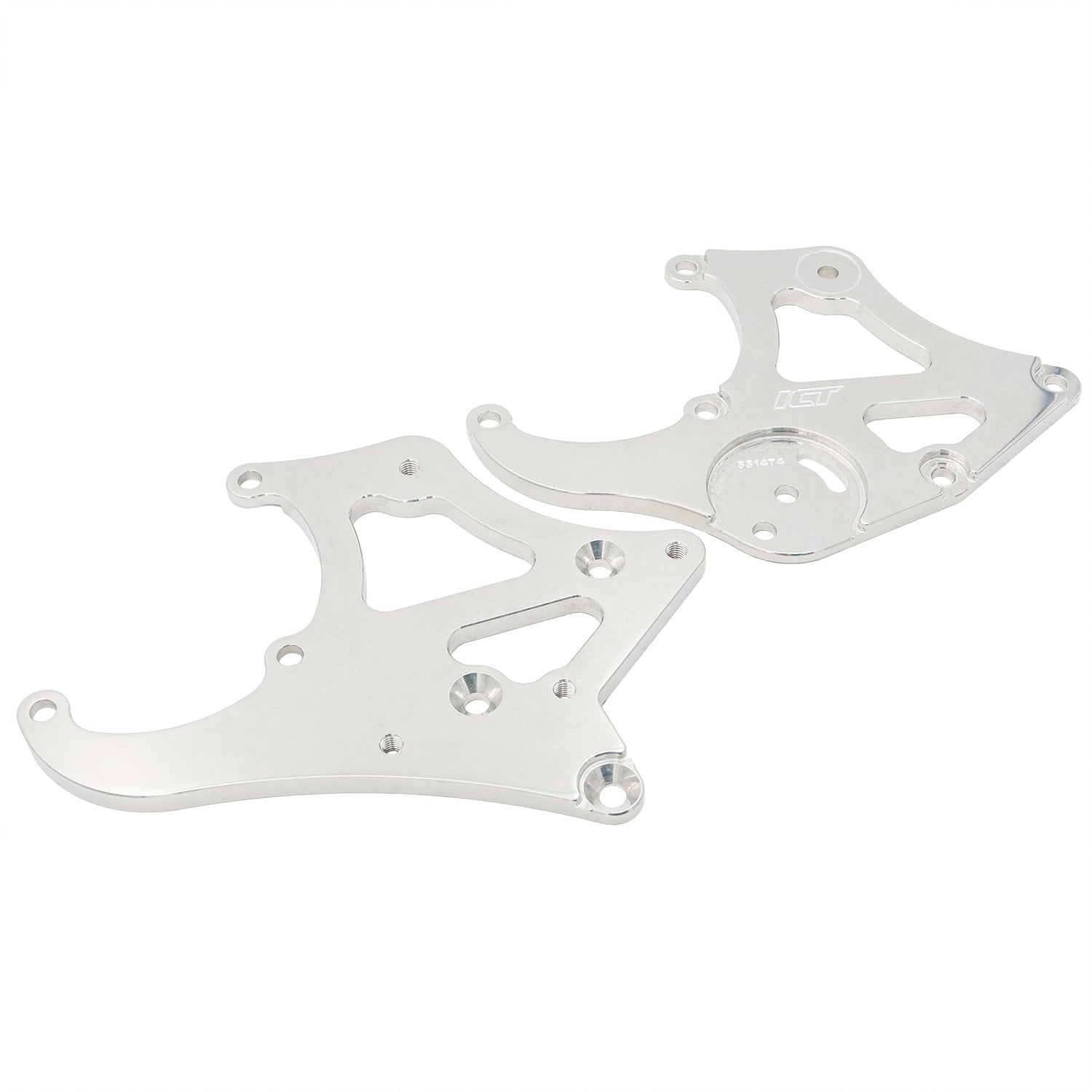

• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Compatible with all GM LS series engines and works with any water pump (Corvette/Camaro water pumps require spacers)

Compatible with 1130K6 belt (113 inch) with OEM truck alternator/power steering bracket. If the idler pulley on A/C bracket is removed for clearance, then use 1098K6 belt. *This bracket does NOT fit or use the factory LS vehicle a/c compressors Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479

Belt lengths when used with:

• 551353       995K6 with 105amp alt/ 1005K6 with 145/160amp alt
• 551362-3    1055K6 with 105 amp alt
• 551519-3     990K6 with 105 amp alt
• 551519X-3  K060988 with 105amp alt
• 551520-3    940K6 with 105amp alt
• 551521X-3  K061000 with 105amp alt/ K061015 for 6.06 pattern alt
• 551566-3    960K6 with 105amp alt
• 551577-3    940K6 with 105amp alt/ K060940 with 145/160amp alt
• 551668-3    755K6 with 105amp alt
• 551669-3    K060995 with 105amp alt
• 551747       K060986 with 105amp alt
• 551777      1130K6 with 105amp alt/ 1130K6 with 145/160amp alt
• 551777 with 551353 use 0995K6 with 105amp alt/ 1005K6 with 145/160amp alt
• 551778-3    970K6 with 105amp alt
• 551791      1045K6 with 105amp alt
• 551971-LS3-3 & 551193LS0-3 use K061054 for 105amp alt
