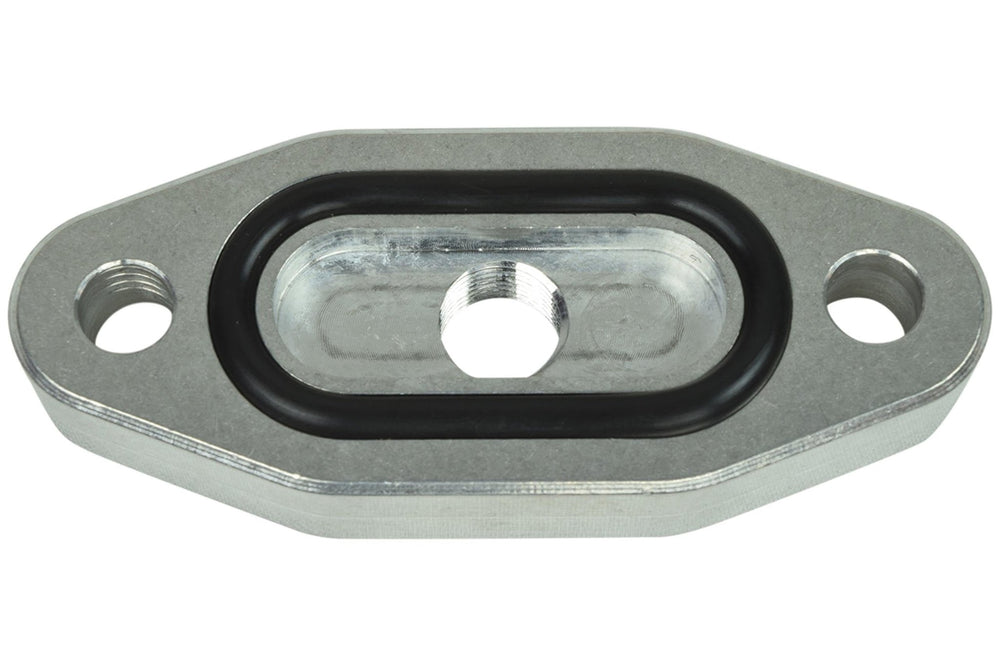

Oil Cooler Port Adapter Plate for LS series GM V8 engines w/ 1/8" NPT port

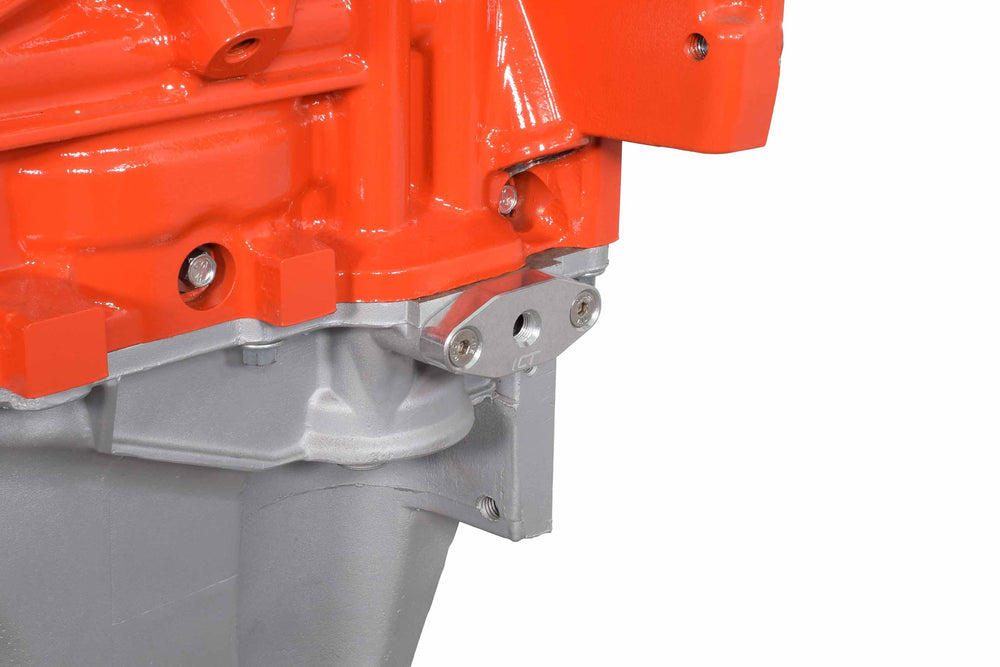

This plate is used to seal off the pressurized oil port in your oil pan above the oil filter, commonly used for oil cooler plumbing in factory applications, while also offering a 1/8"NPT port to access the oil circuit of your engine. This is often used for an oil pressure sensor or a turbocharger oil feed line.

• This plate compatible with all LS oil pans, except GTO front-sump oil pans due to the architecture of the internal oil routing in the pan, and dry-sump oil pans (LS7, LS9, etc), and LS4 oil pans
• Torque spec - 106in lbs (DO NOT OVERTIGHTEN)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Heavy duty, 1/2" thick billet aluminum plate for maximum oil circulation

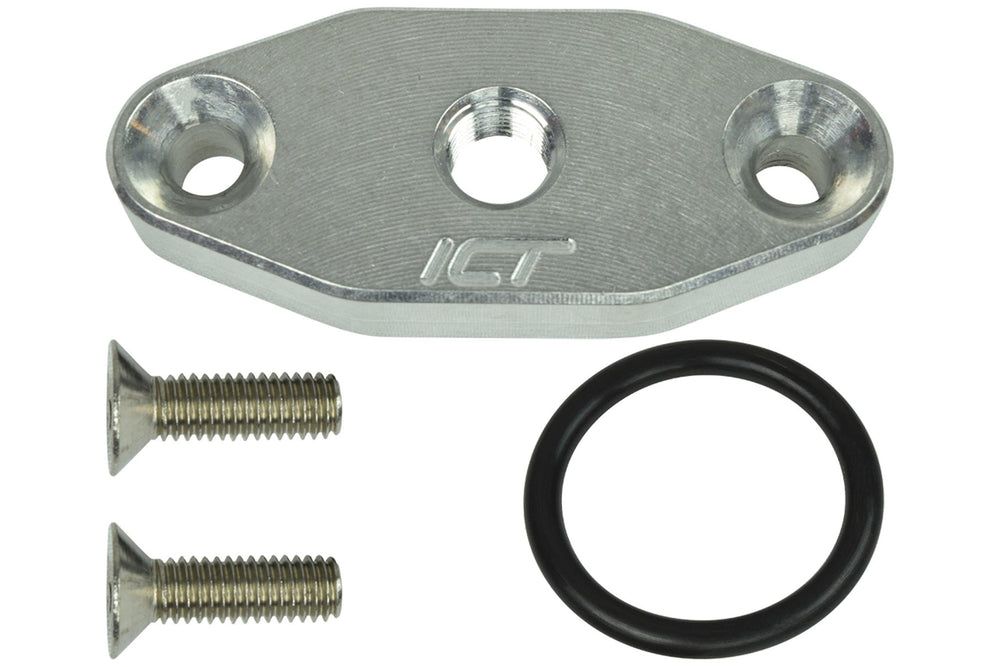

• Includes one seal plate, one reusable o-ring, and mounting bolts
