LS Alternator & Power Steering Bracket - LS1 Camaro Spacing

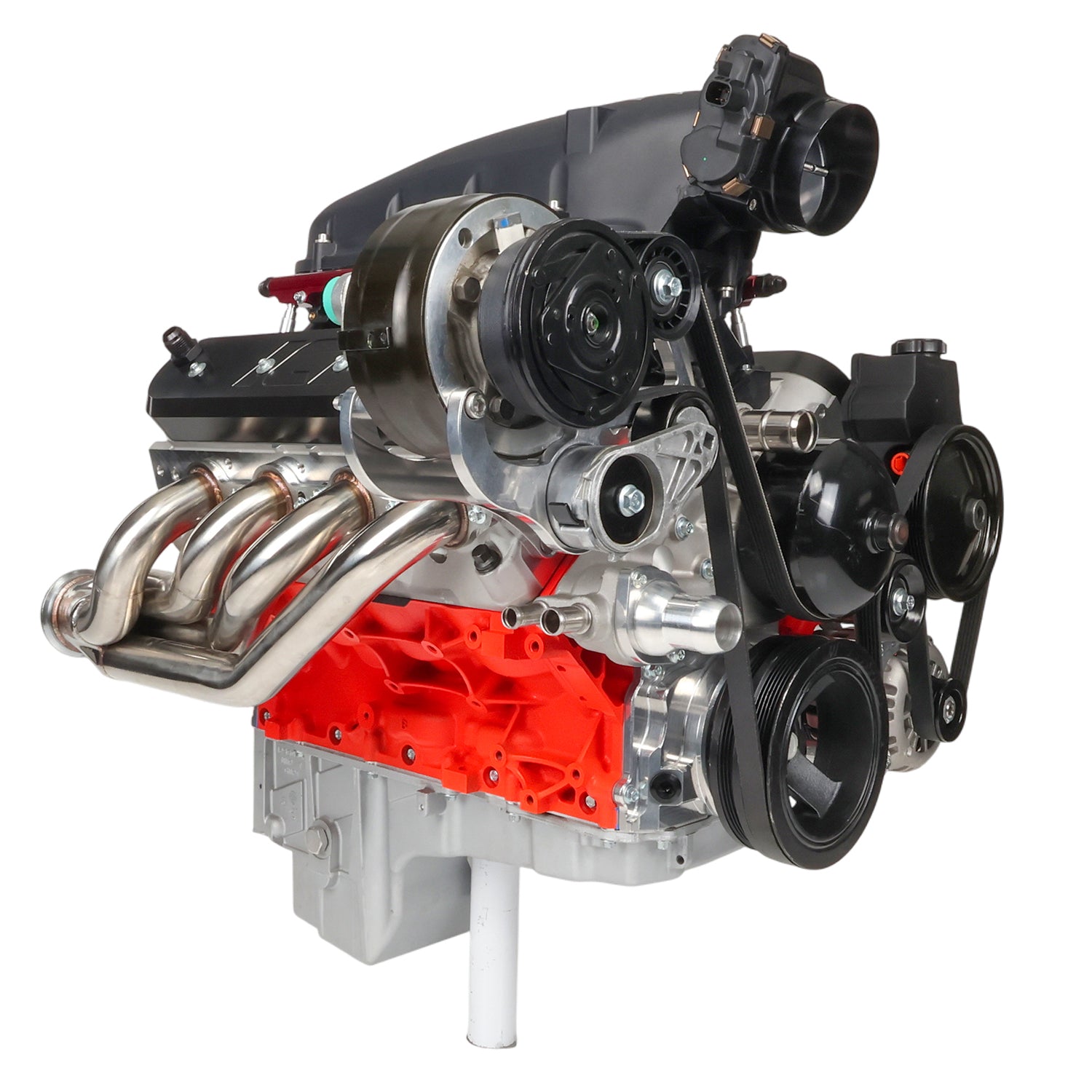

LS Low Mount Alternator and Power Steering Pump Bracket for LS1 Camaro Spacing

Product Details

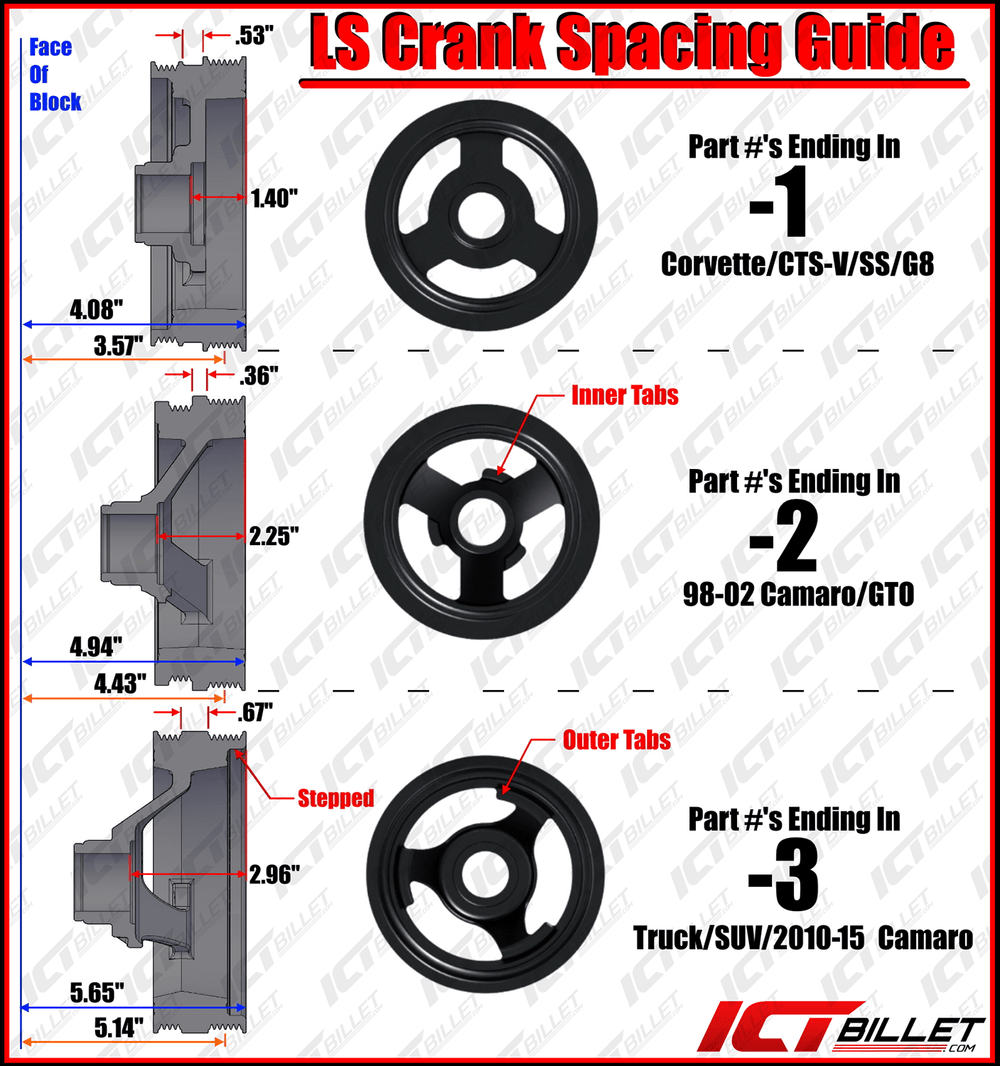

• Compatible with 1998-2002 Camaro LS1 (2004-06 GTO) harmonic balancer
• Compatible with 1998-02 LS1 Camaro power steering pump and pulley (or billet 2pc pulley)
• Compatible with all LS truck (5.46" bolt pattern) alternators
• Compatible with: all GM LS series engines

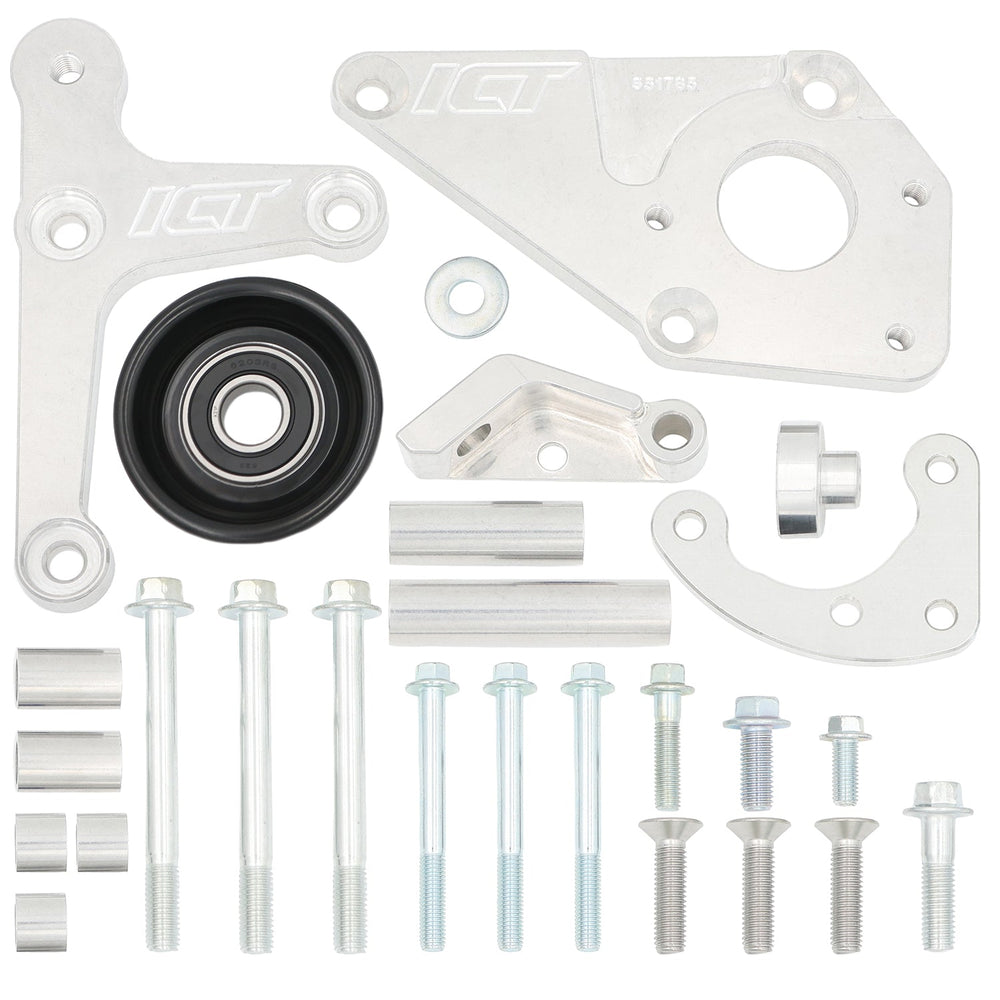

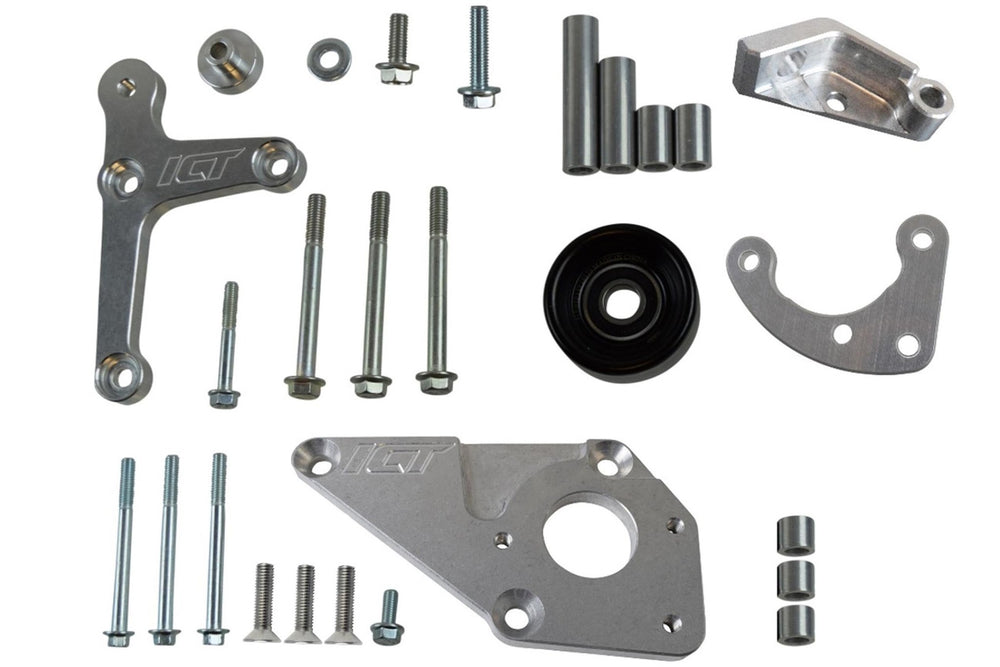

• Includes: alternator bracket, power steering bracket, idler pulley, instructions, and mounting hardware
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

*If using an iron engine block, it will only have one of the three holes to mount the alternator. To get the minimum two holes, use our drill template, then drill & M10 tap. Then use our support bracket

Compatible with (based on vehicle 3D scans by ICT)

• Nissan 240SX, S14        95-98

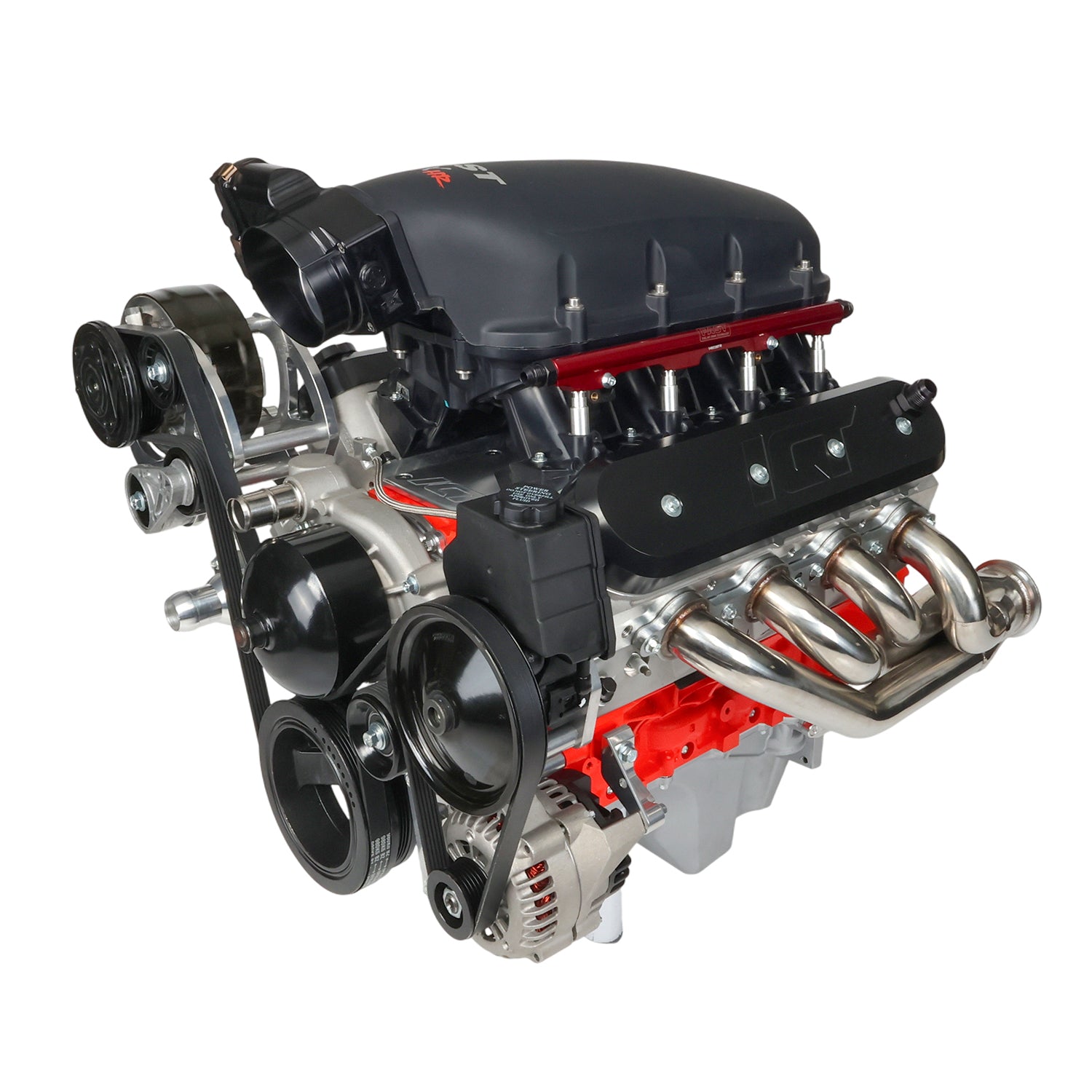

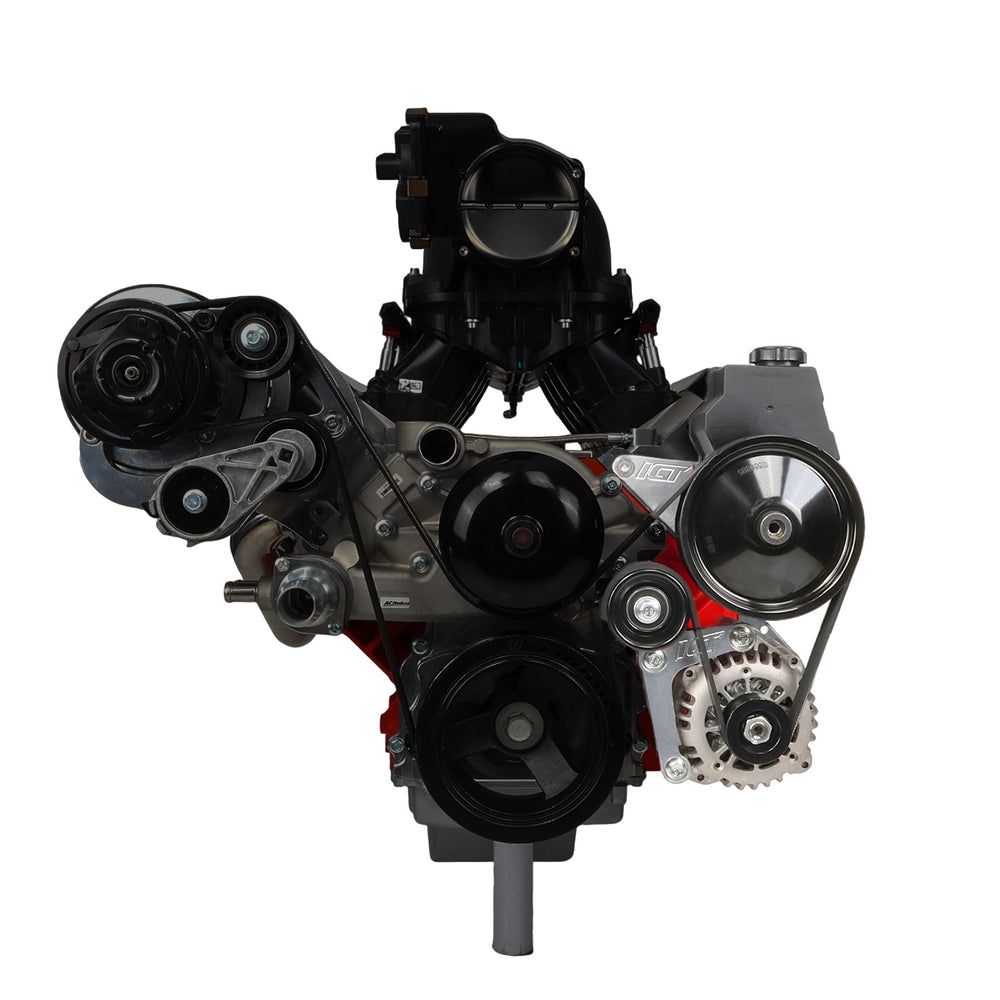

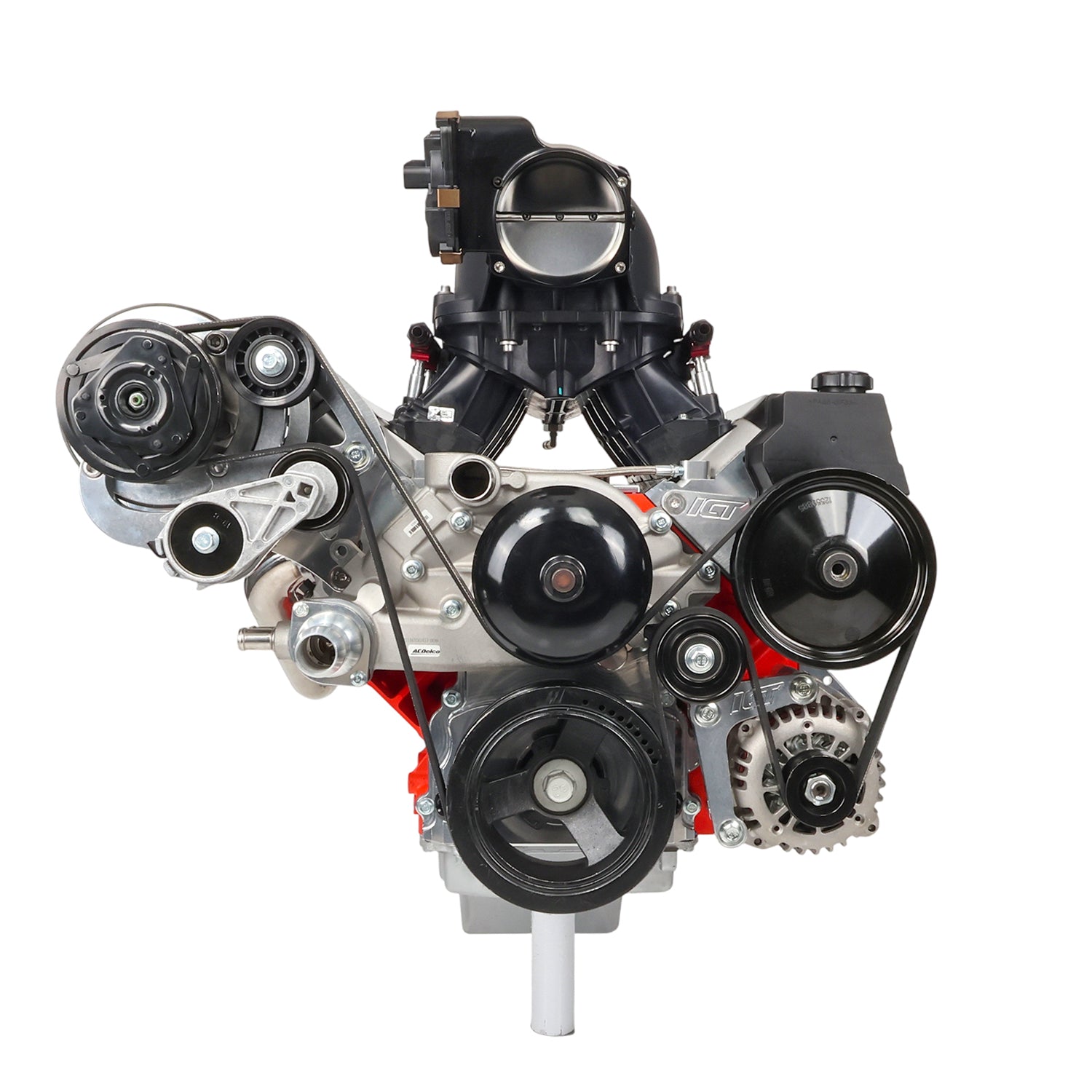

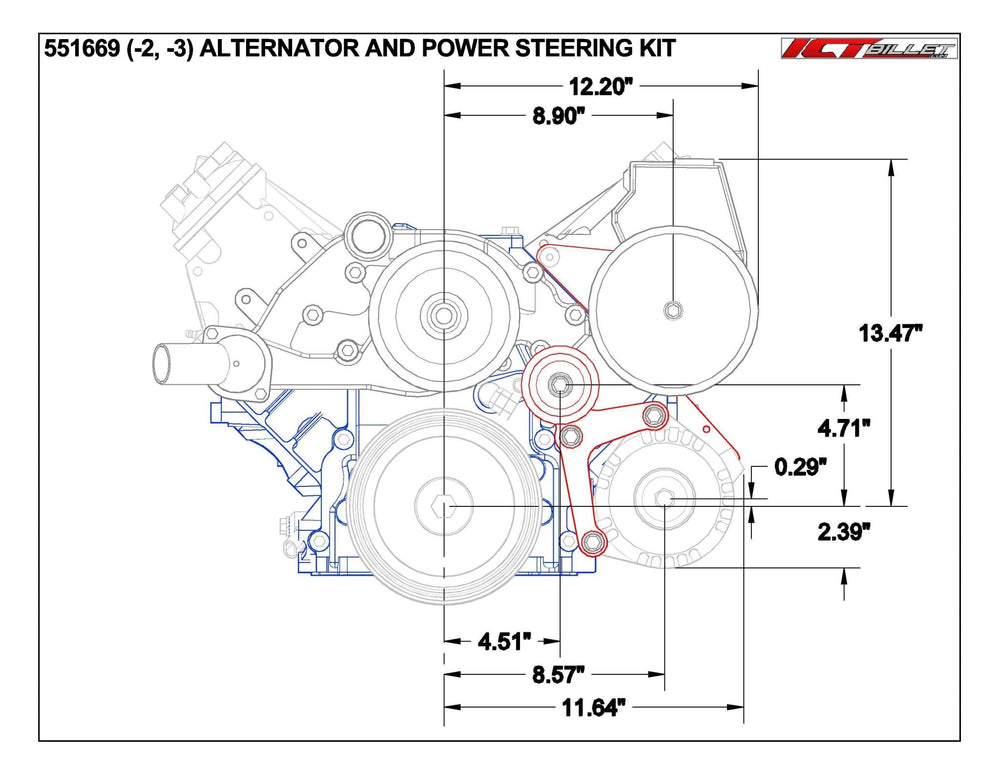

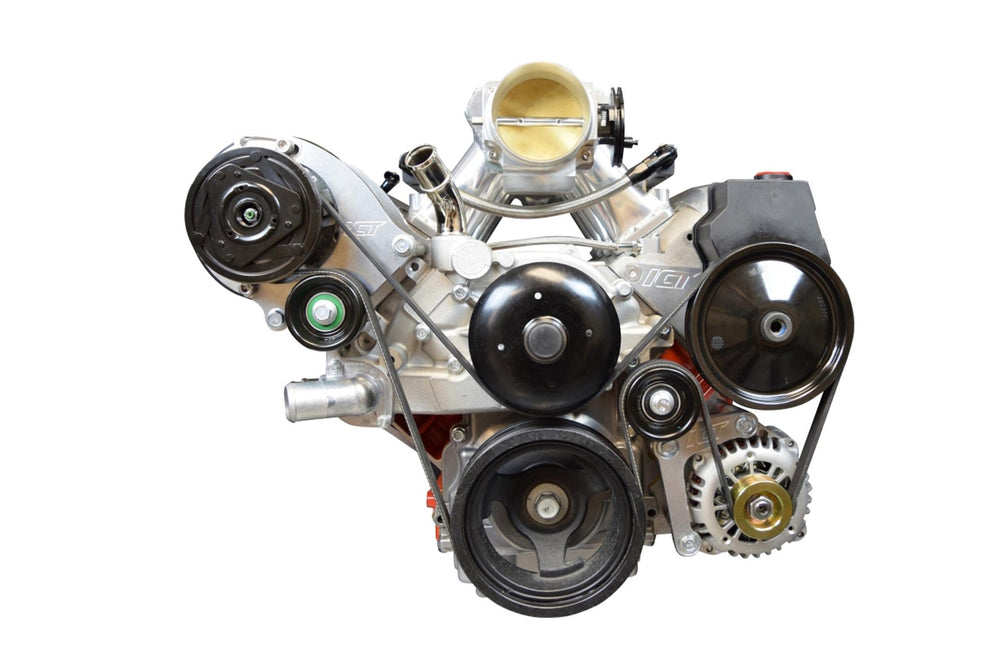

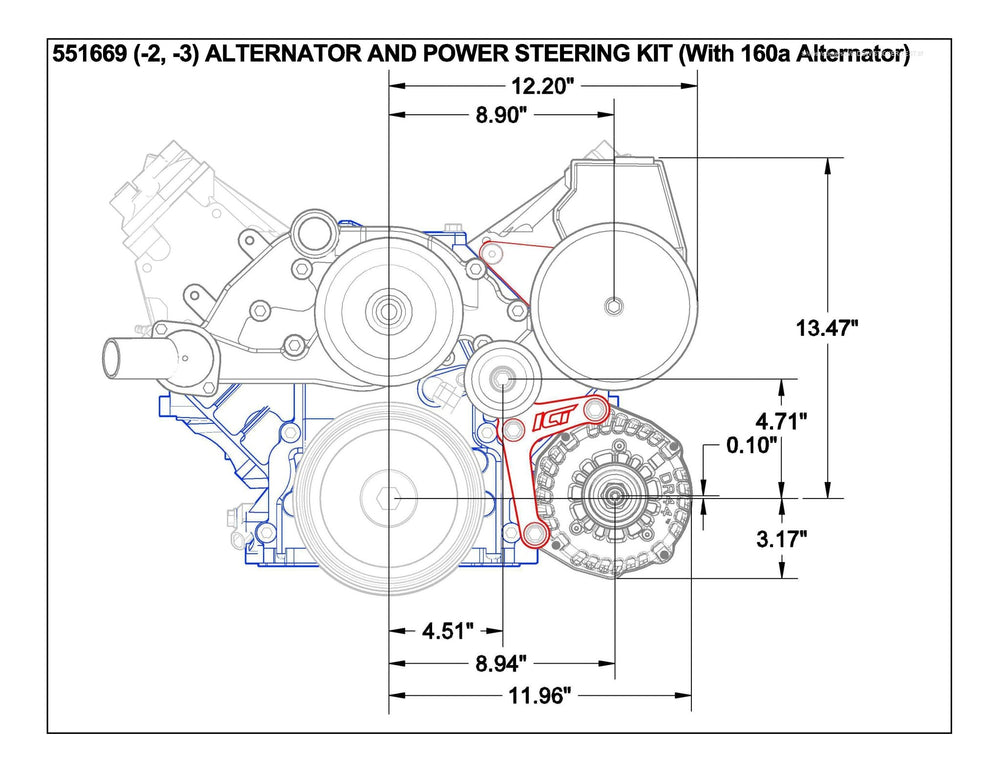

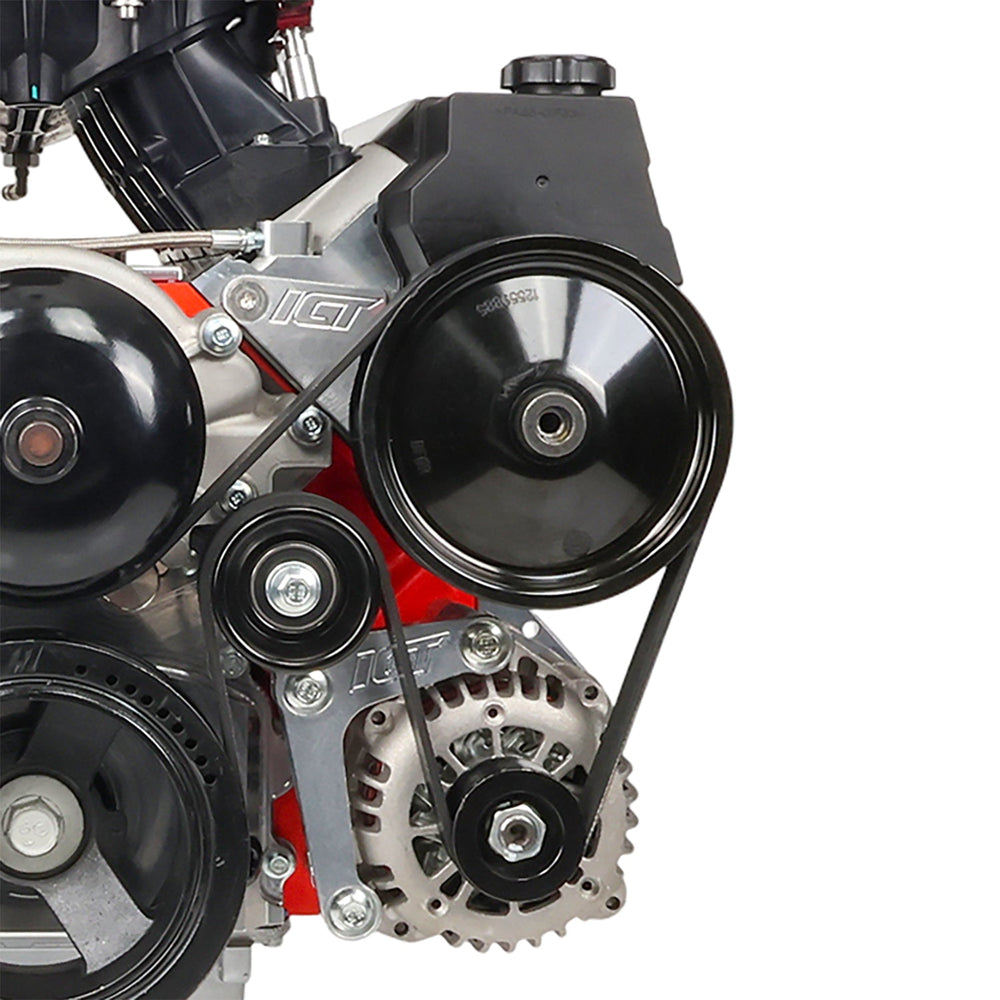

These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 factory location

Helpful Links

• Torque Specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft), FHCS (M10 = 31 lb-ft)
• Belt length chart
• Optional billet smooth pulley

• Optional alternator wire harness extension (4 pin or 2 pin)
• Replacement bolt and spacer kit or smooth pulley
• Replacement bolt and spacer kit for alternator or power steering bracket
• Power steering pulley installer/removal tool
• Instructions
