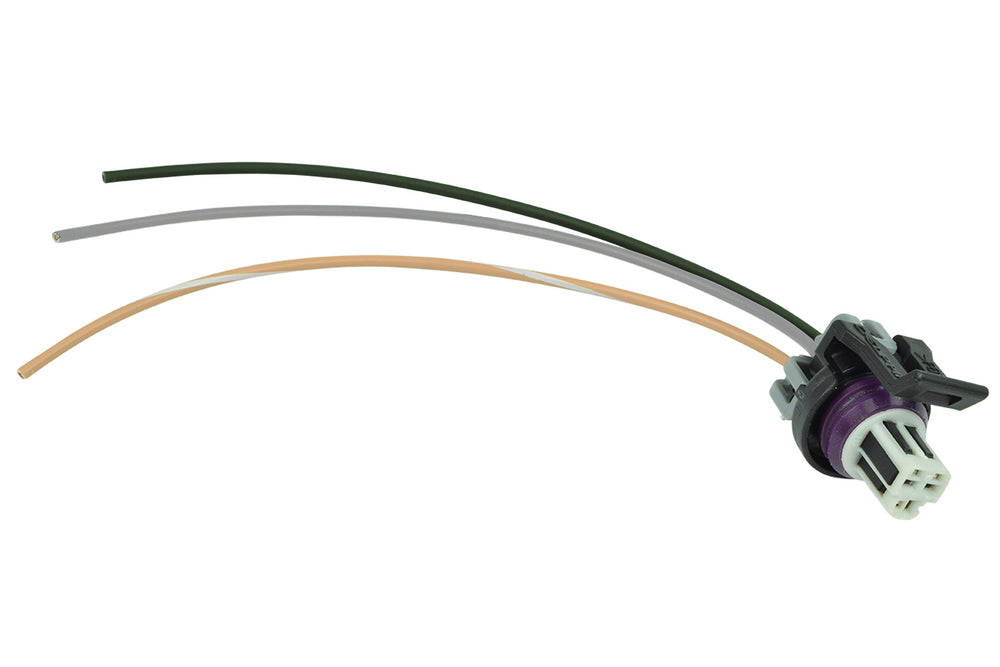

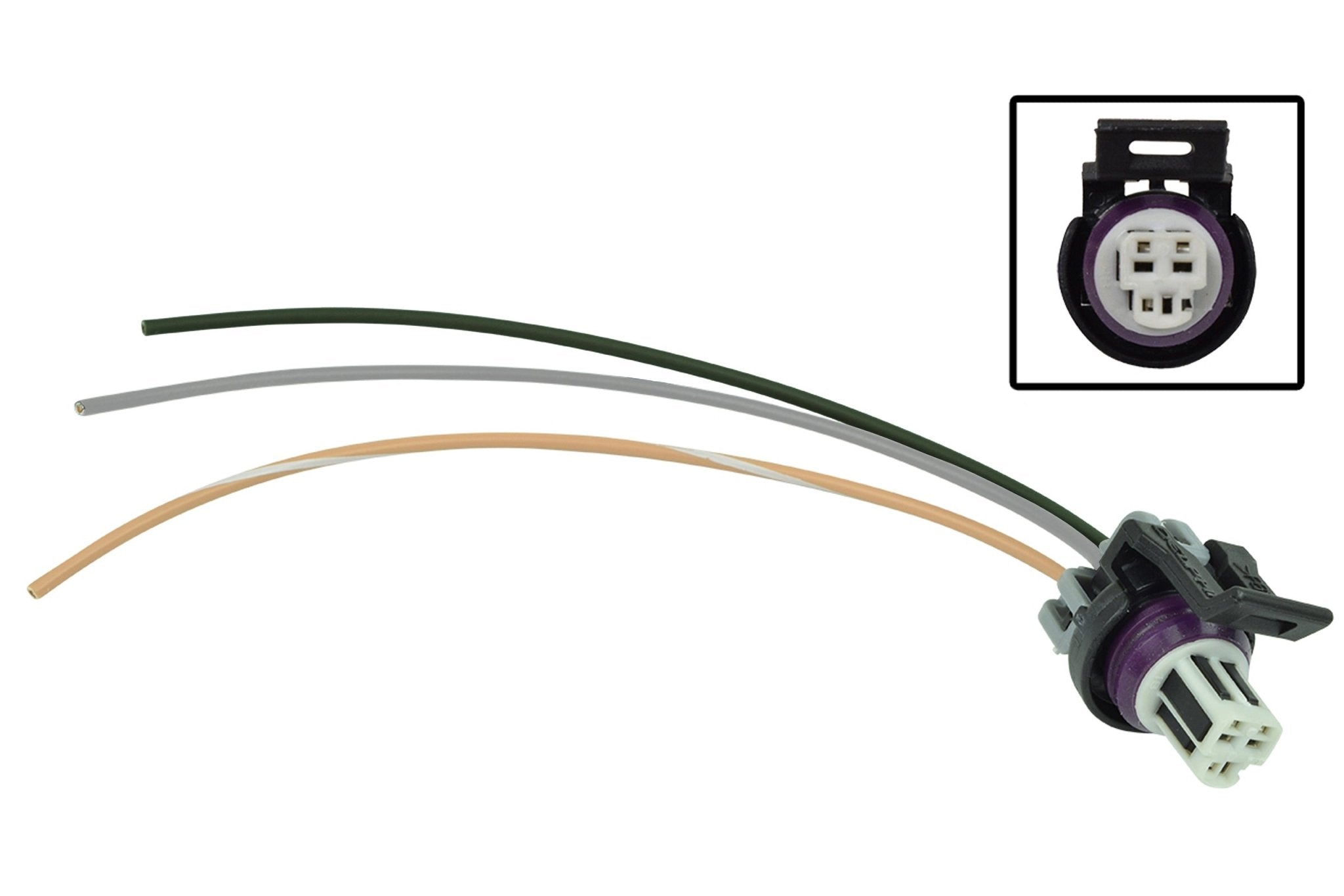

LS Oil Pressure Connector Harness Pigtail for DBW (drive-by-wire) Gen 3 Engines

Product Details

• Includes: pigtail w/ 6" wire leads

• Sealed, crimped, and assembled in Wichita, Kansas using USA made OEM grade TXL wire, OEM connectors, locks, seals, and terminals for proper fit and a positive, audible click when connected

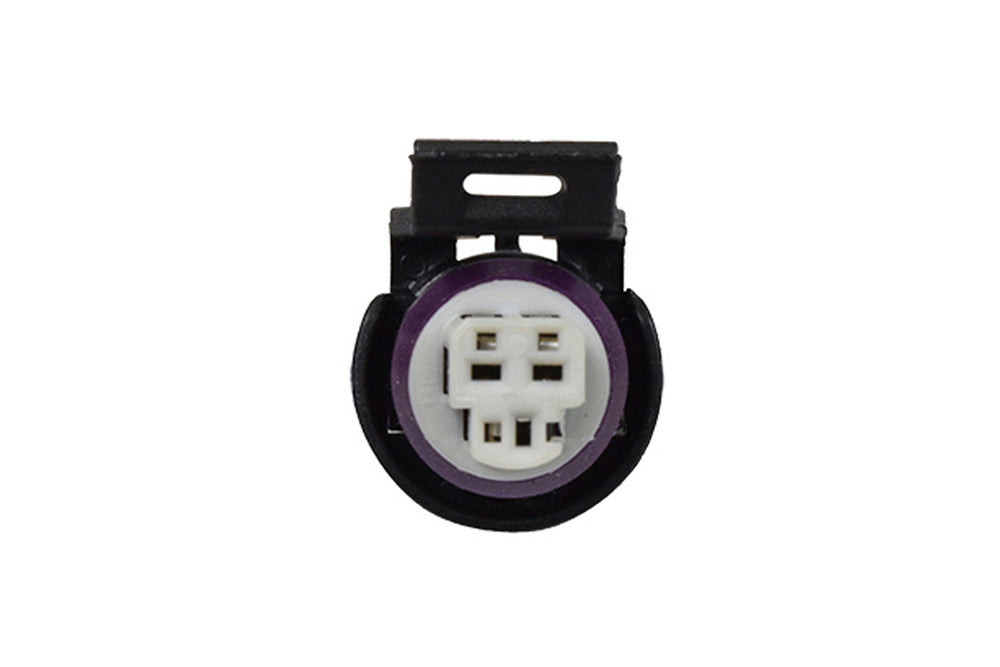

• "3 cubes" style connector plug
• Compatible with 1999 and newer GM LS series engines with 3 terminal oil pressure sensor - Primarily Drive-by-Wire applications

Compatible With

• 2008 Buick Allure and LaCrosse with matching 3-terminal oil-pressure sensor
• 2004–2007 Buick Rainier with matching 3-terminal oil-pressure sensor
• 2004–2007 Cadillac CTS-V with matching 3-terminal oil-pressure sensor
• 2003–2008 Cadillac Escalade, Escalade ESV, and Escalade EXT with matching 3-terminal oil-pressure sensor
• 2003–2008 Chevrolet Avalanche with matching 3-terminal oil-pressure sensor
• 1997–2008 Chevrolet Corvette with matching 3-terminal oil-pressure sensor
• 2003–2008 Chevrolet Express 1500, 2500, and 3500 with matching 3-terminal oil-pressure sensor
• 2006–2008 Chevrolet Impala with matching 3-terminal oil-pressure sensor
• 2006–2007 Chevrolet Monte Carlo with matching 3-terminal oil-pressure sensor
• 2003–2008 Chevrolet Silverado 1500, 2500, and 3500 with matching 3-terminal oil-pressure sensor
• 2004–2006 Chevrolet SSR with matching 3-terminal oil-pressure sensor
• 2003–2008 Chevrolet Suburban 1500 and 2500 with matching 3-terminal oil-pressure sensor
• 2003–2008 Chevrolet Tahoe with matching 3-terminal oil-pressure sensor
• 2003–2008 Chevrolet Trailblazer with matching 3-terminal oil-pressure sensor

Helpful Links

• Compatible 3-terminal oil-pressure sensor

• Optional connector component kit
• Optional terminal depinning tool

Need a custom length? We can build most wiring to your required length within 48 hours. Custom lengths are typically around 2× the listed price. Contact us for pricing.
