Chevrolet Performance LS Swap Muscle Car Oil Pan Kit

Product details

• Genuine Chevrolet Performance oil pan kit designed for LS engine swaps
• Compatible with wet-sump GM LS series engines
• Not compatible with dry-sump engines
• Tight side clearance and a short sump help clear most vehicle crossmembers
• Sump measures approximately 7.75 inches deep
• Oil capacity is 5.5 quarts

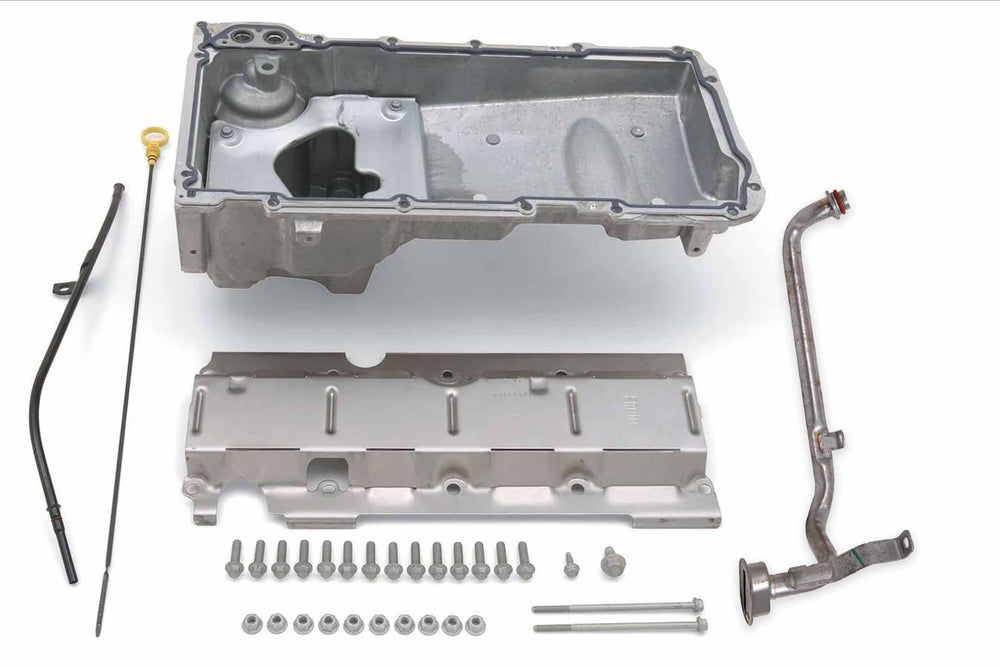

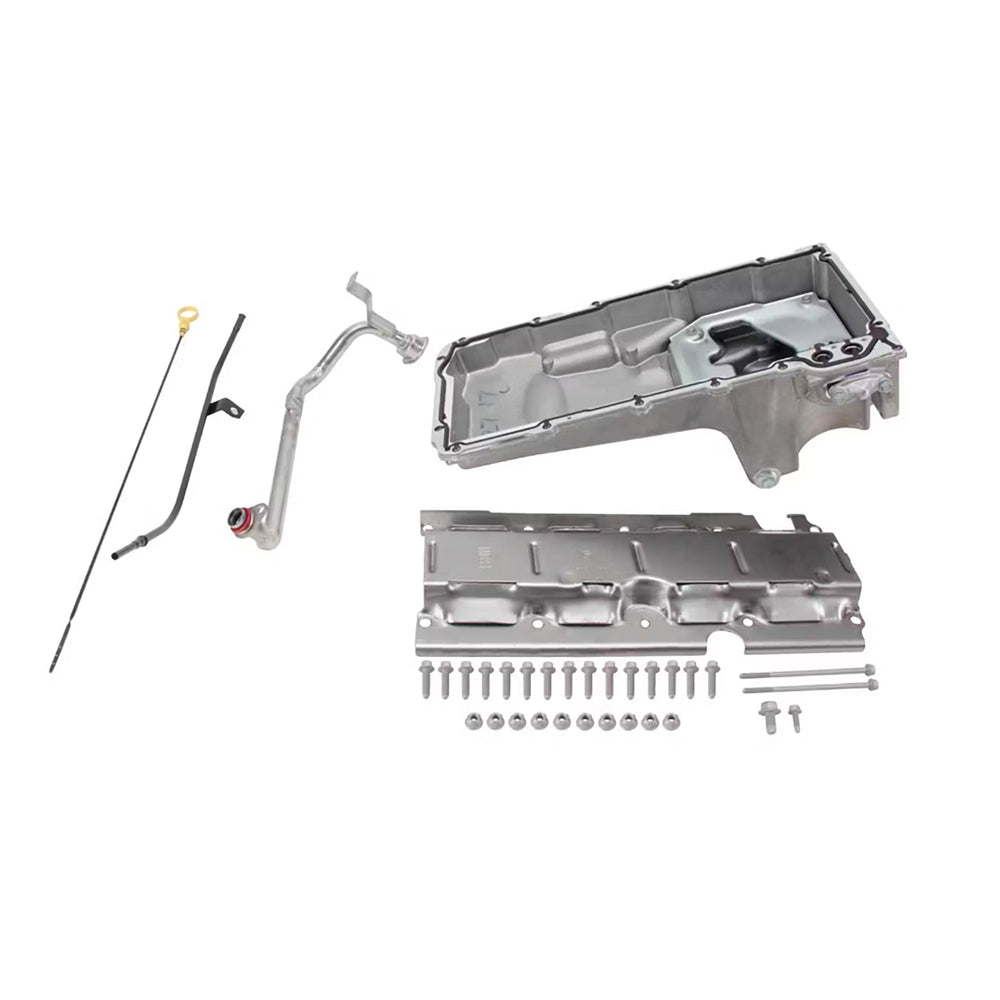

• Includes oil pan, pickup tube and screen, oil pan gasket, oil pan bolts, windage tray, windage tray bolts, dipstick, and dipstick tube
• Uses an ACDelco PF48E oil filter or an equivalent filter for newer LS-powered vehicles; oil filter is not included
• Refer to the product photos for detailed dimensions and size comparisons

*The windage tray requires spacers when used with a stroker crankshaft. Always check clearance when using aftermarket connecting rods or a stroker crankshaft.

*LM4 engine blocks and LS1/LS2 GTO engine blocks require drilling for installation of the included dipstick tube.

Compatible with these vehicles (based on vehicle 3D scans by ICT Billet)

• Chevy S10 1994-2004

*Fitment in other vehicles depends on the engine position, crossmember, steering, suspension, and ground clearance. Compare the dimensions shown in the product photos with your vehicle before installation.

Helpful Links

• Optional oil pan bolt kit or ACDelco oil filter
• Optional oil catch cans: single -12AN or dual -10AN
• Optional LS oil pressure accessories, including adapters, sensors, and harnesses
• LS Oil Pan Guide including full set of fully dimensioned LS pans
