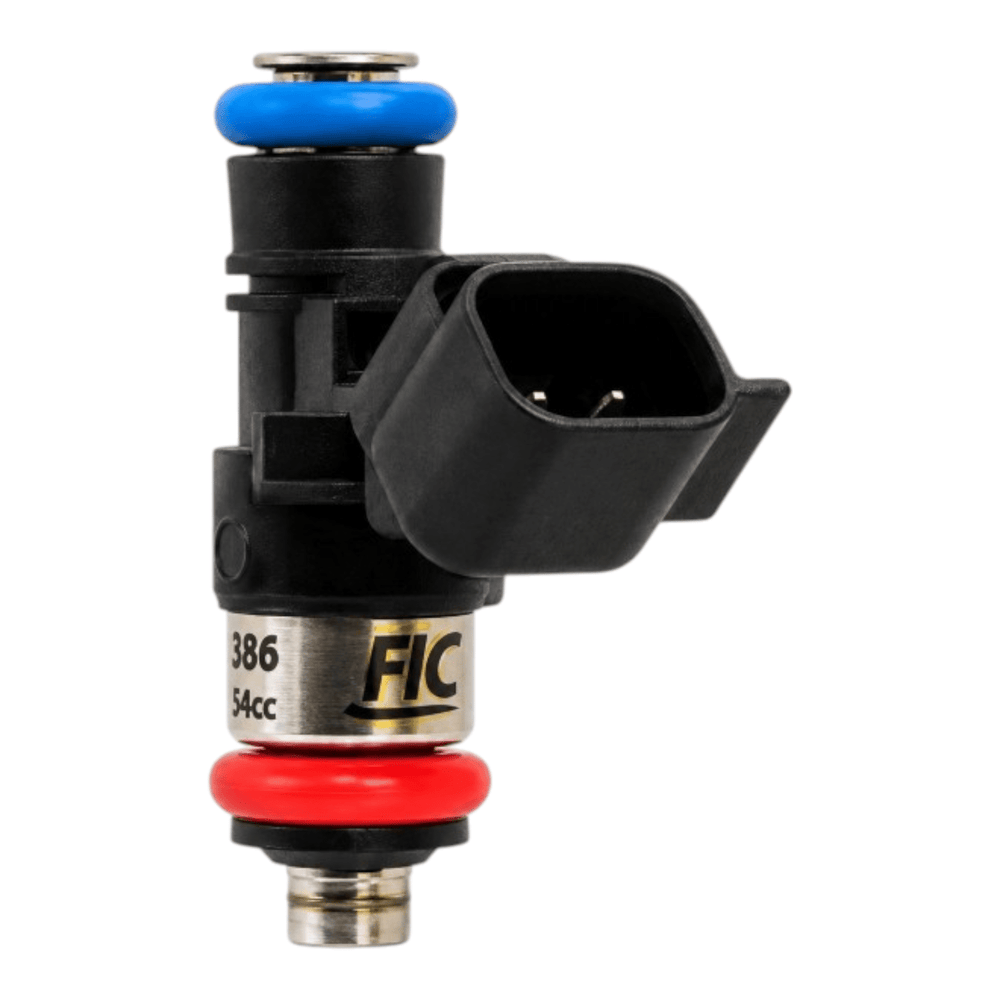

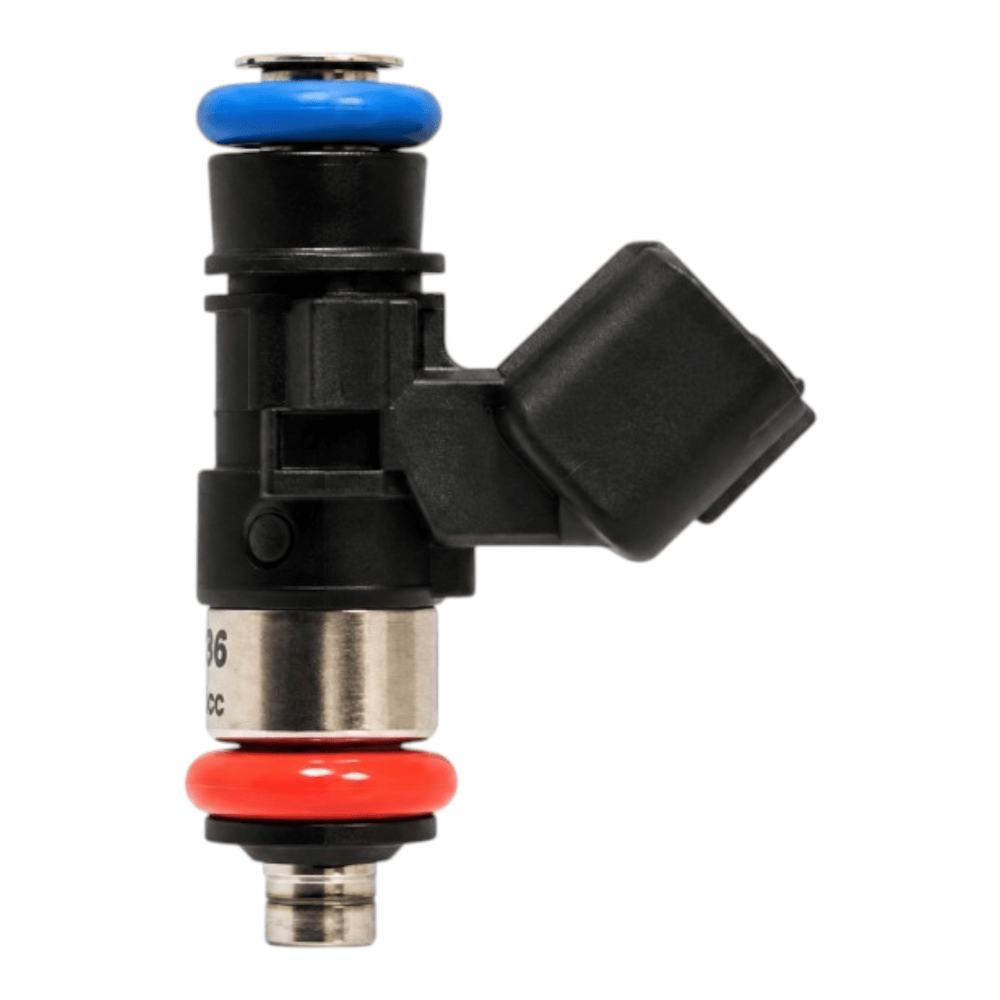

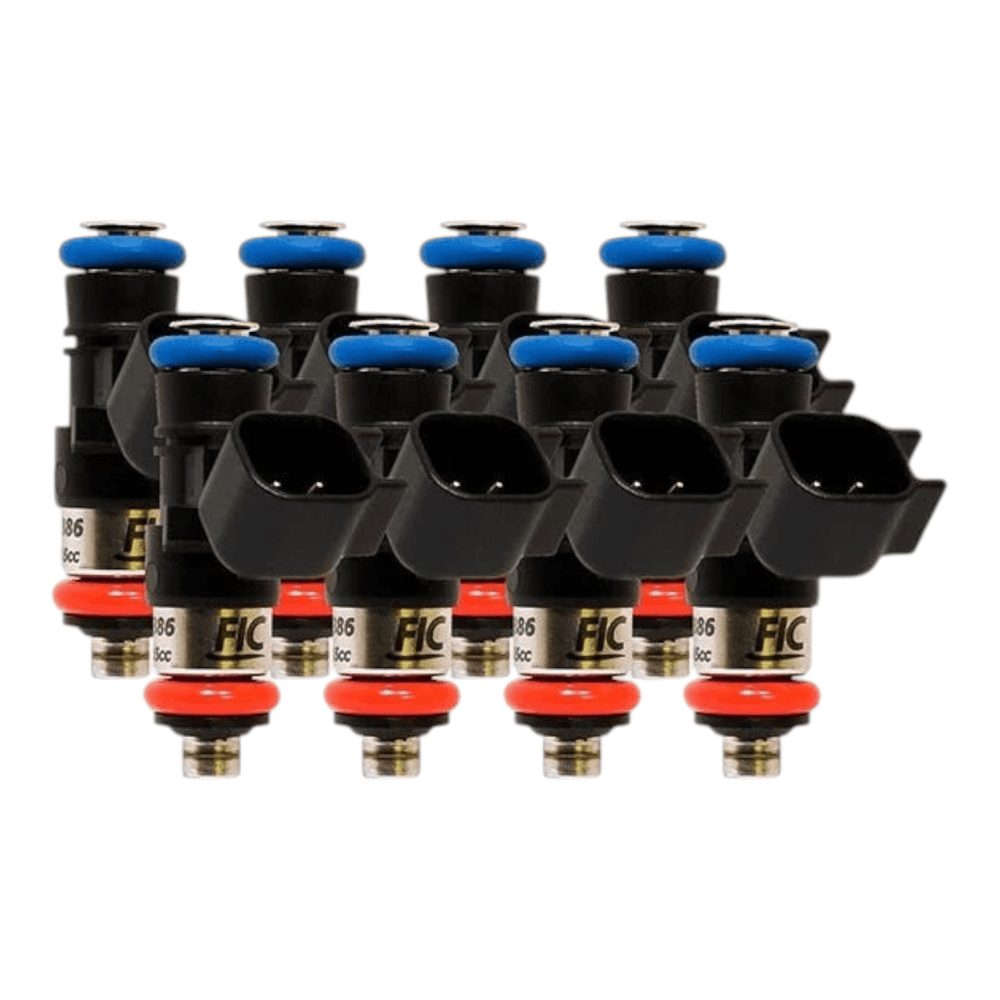

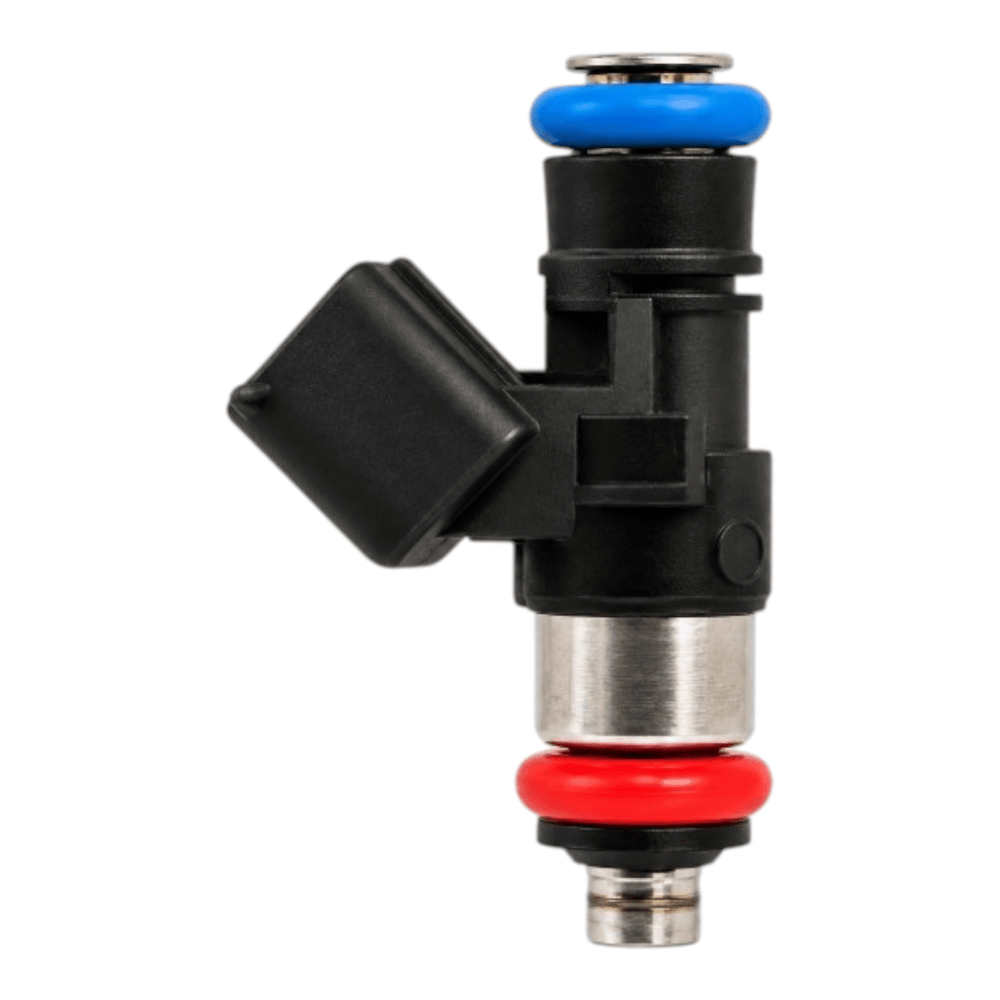

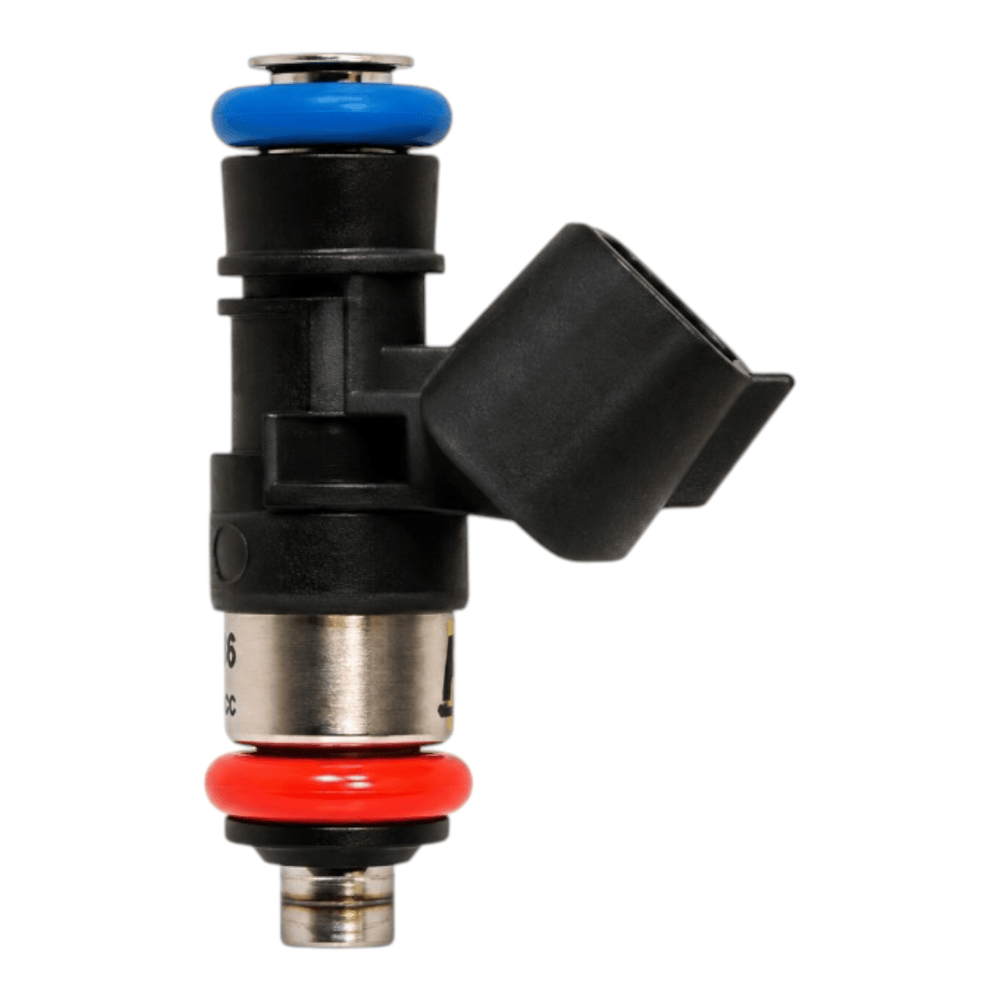

Fuel Injector Clinic 540cc LS3-Height Fuel Injector Set

Product details

• Flows 540cc/min (60 lb/hr) at the factory 58 PSI fuel pressure

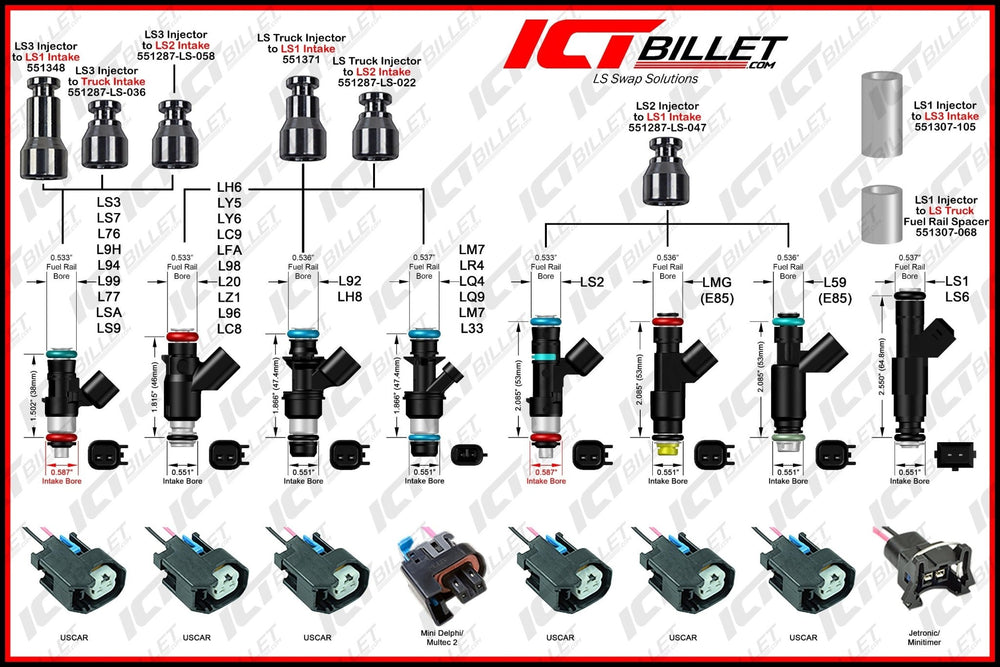

• Designed for LS3, LS7, LSA, L76, L92, and L99 intake manifold and fuel rail height
• High-impedance saturated design is compatible with factory and aftermarket engine control systems
• Each injector set is flow-matched using Fuel Injector Clinic Data Match Technology
• Excellent short-pulse-width control and repeatability provides consistent fuel delivery
• Drop-in installation with factory-style electrical connectors
• Each injector is individually serial numbered
• Includes detailed flow-matching and latency data for accurate tuning

Compatible with these vehicles

• Cadillac CTS-V 2009-2015
• Cadillac Escalade 2007-2008
• Chevy Camaro SS 2010-2015
• Chevy Camaro Z/28 2014-2015
• Chevy Camaro ZL1 2012-2015
• Chevy Corvette 2008-2013
• Chevy Corvette Z06 2006-2013
• Chevy Corvette 427 Convertible 2013
• Chevy Silverado 1500 6.2L 2007-2009
• Chevy SS 2014-2017
• Chevy Suburban 6.0L 2007-2009
• GMC Sierra 1500 6.2L 2007-2009
• GMC Yukon Denali 2007-2008
• Pontiac G8 GT 2008-2009

*Also compatible with engine swaps using LS3, LS7, LSA, L76, L92, or L99 intake manifold and fuel rail height

Helpful Links

• Injector wiring pigtails: single or 8-pack
• 9-inch injector wiring extensions
• Injector harness adapters: EV1 or Multec 2
• Injector connector component kits: single or 8-pack
