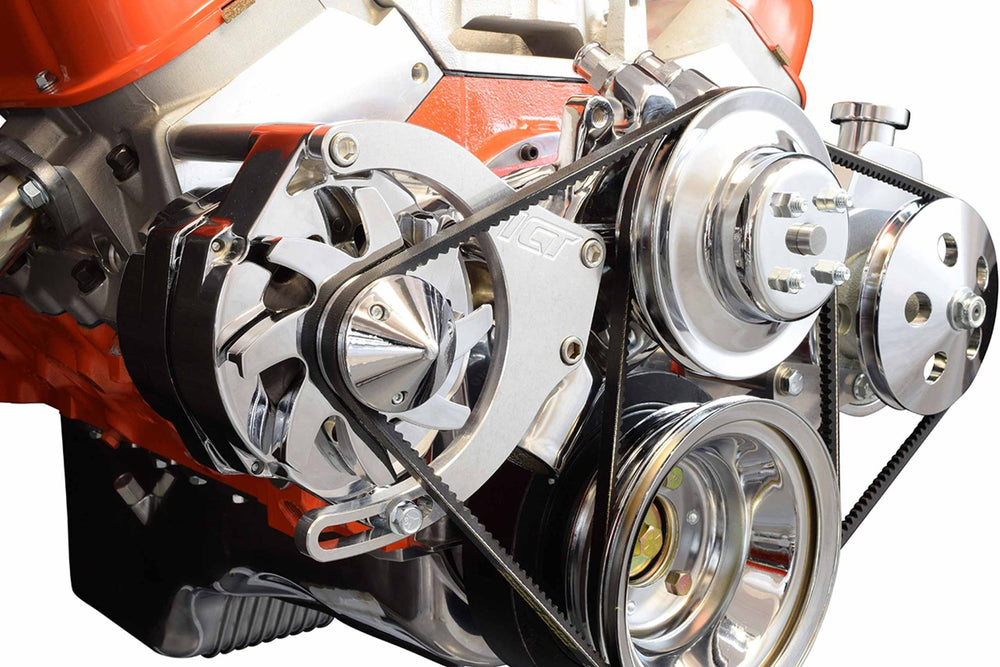

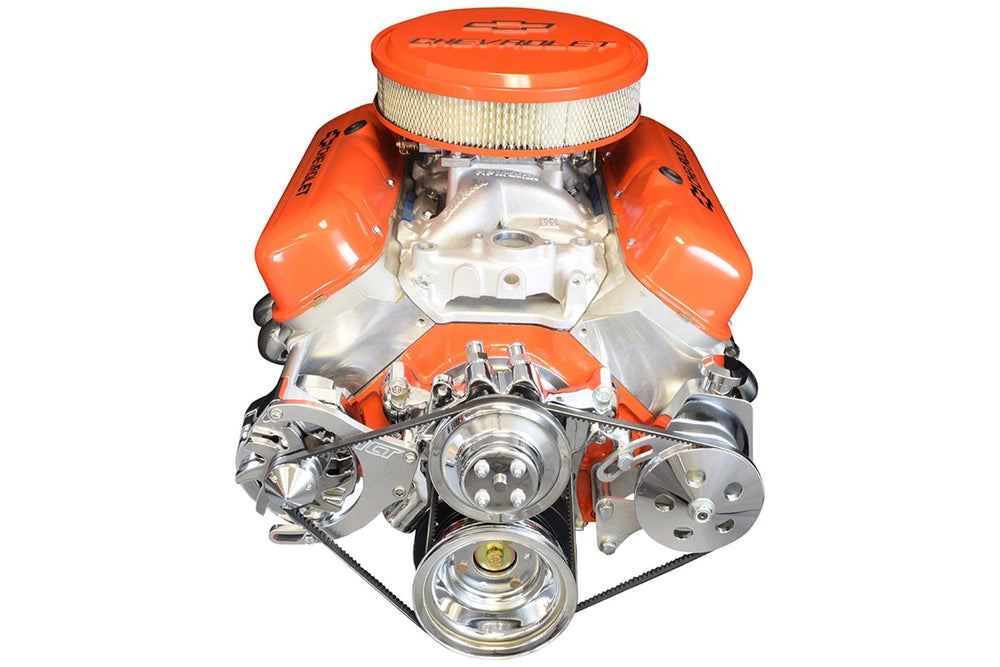

454 BBC Alternator and Power Steering Pump Bracket Kit - Head and Water Pump Mounted

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

• Brackets mount to cylinder head and water pump
• Does NOT include pulleys
• This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)

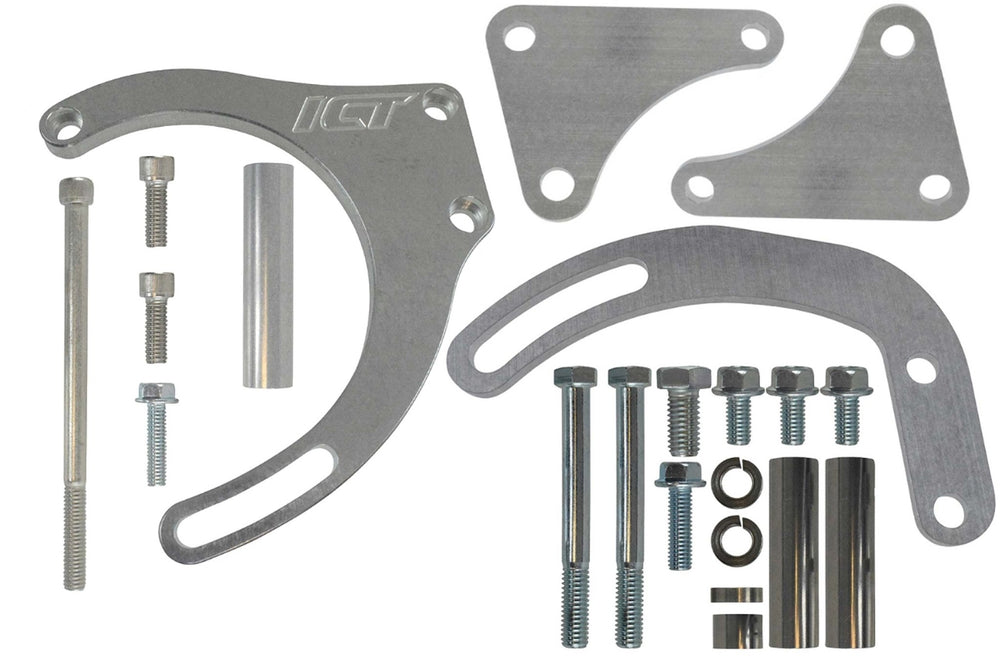

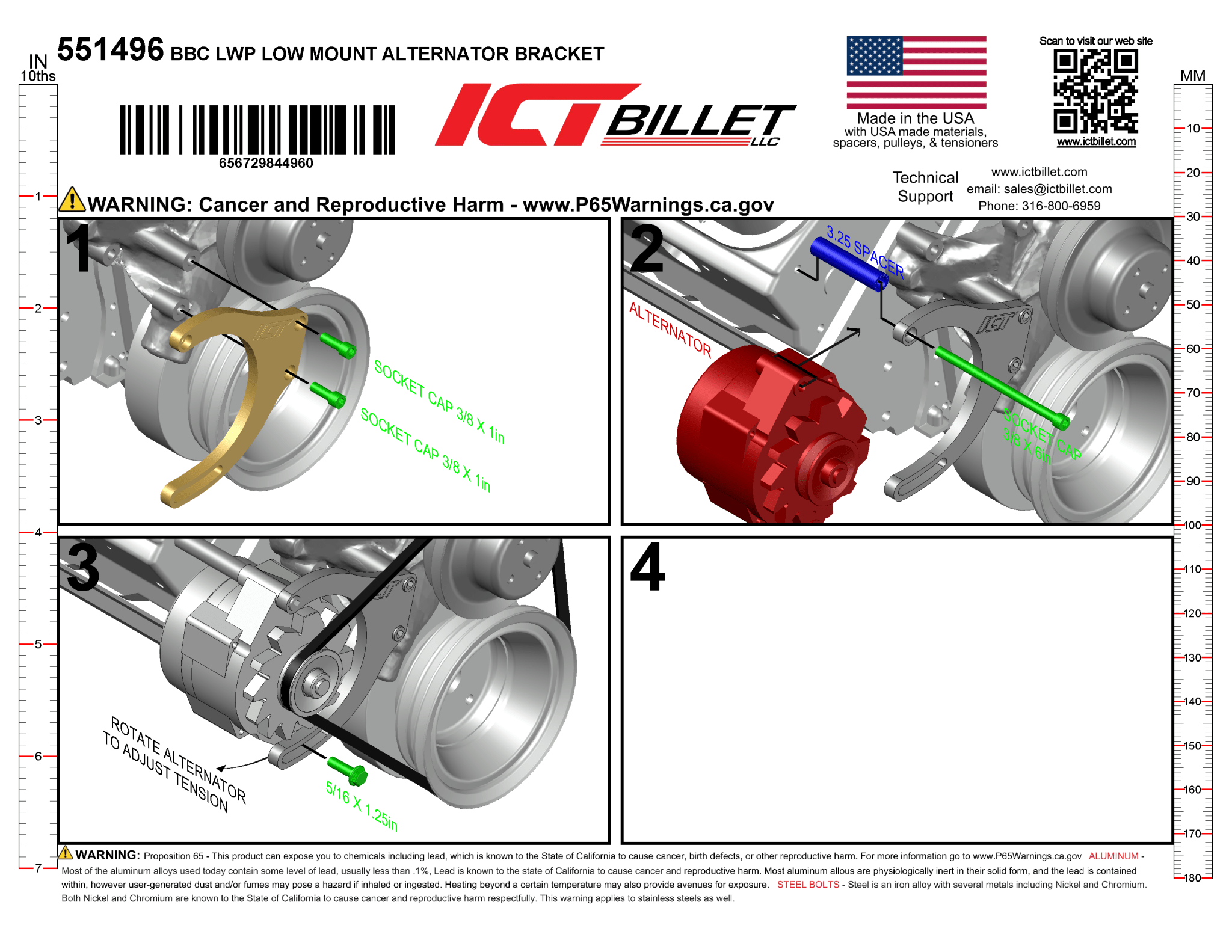

• Includes: pump bracket, instructions, and mounting hardware

Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts).  If the hole is larger then also purchase 7/16" bolt #551663-B0LT.

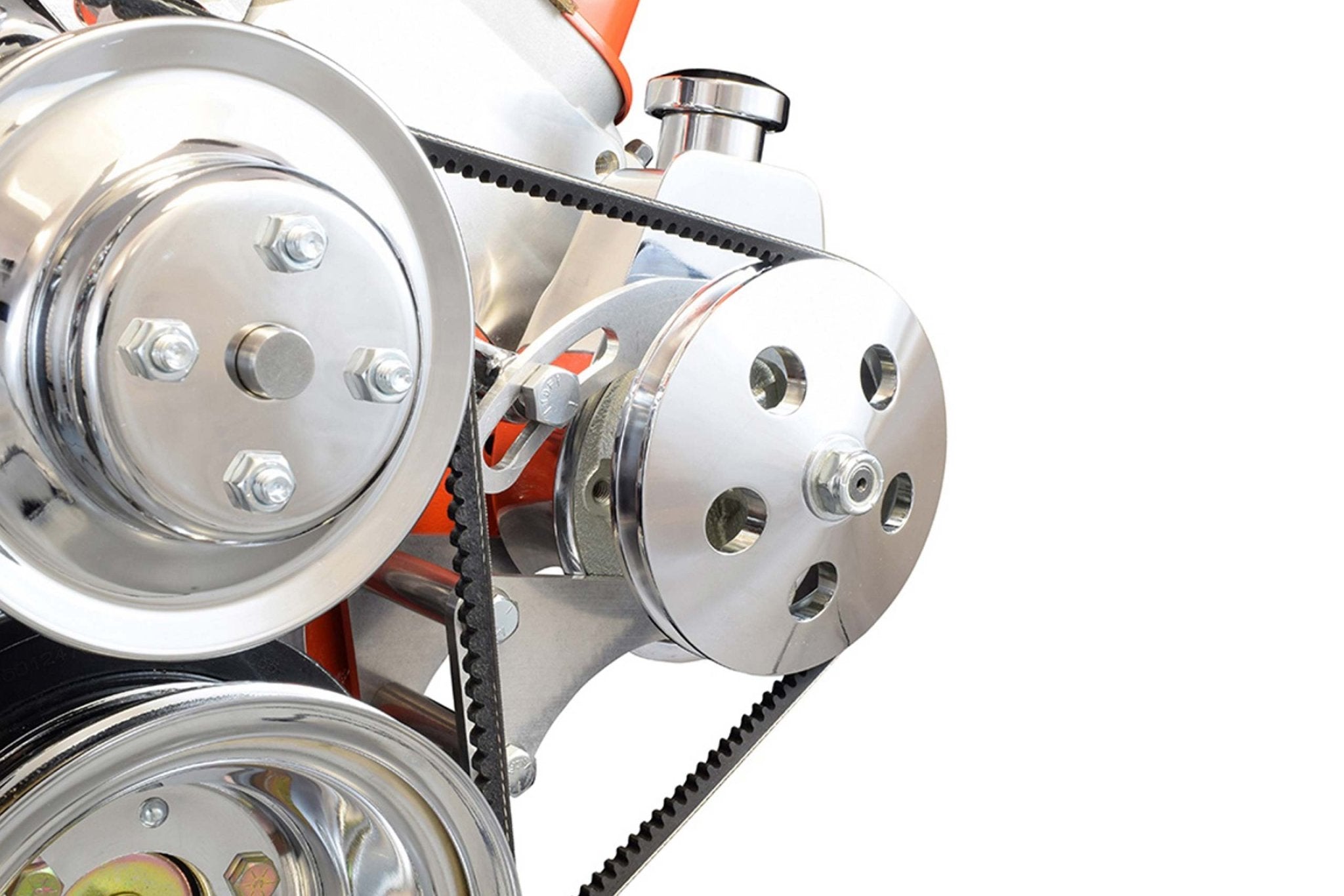

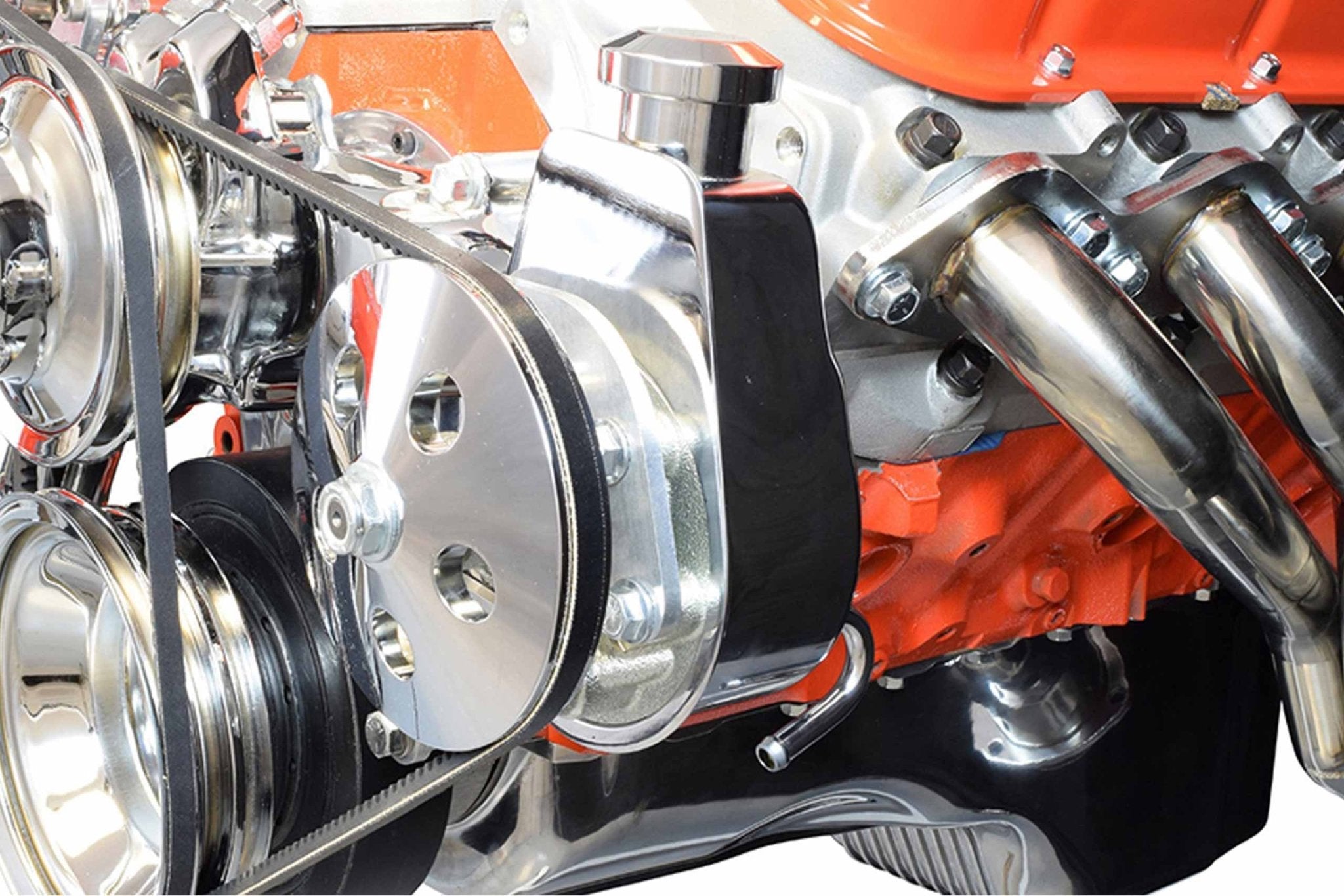

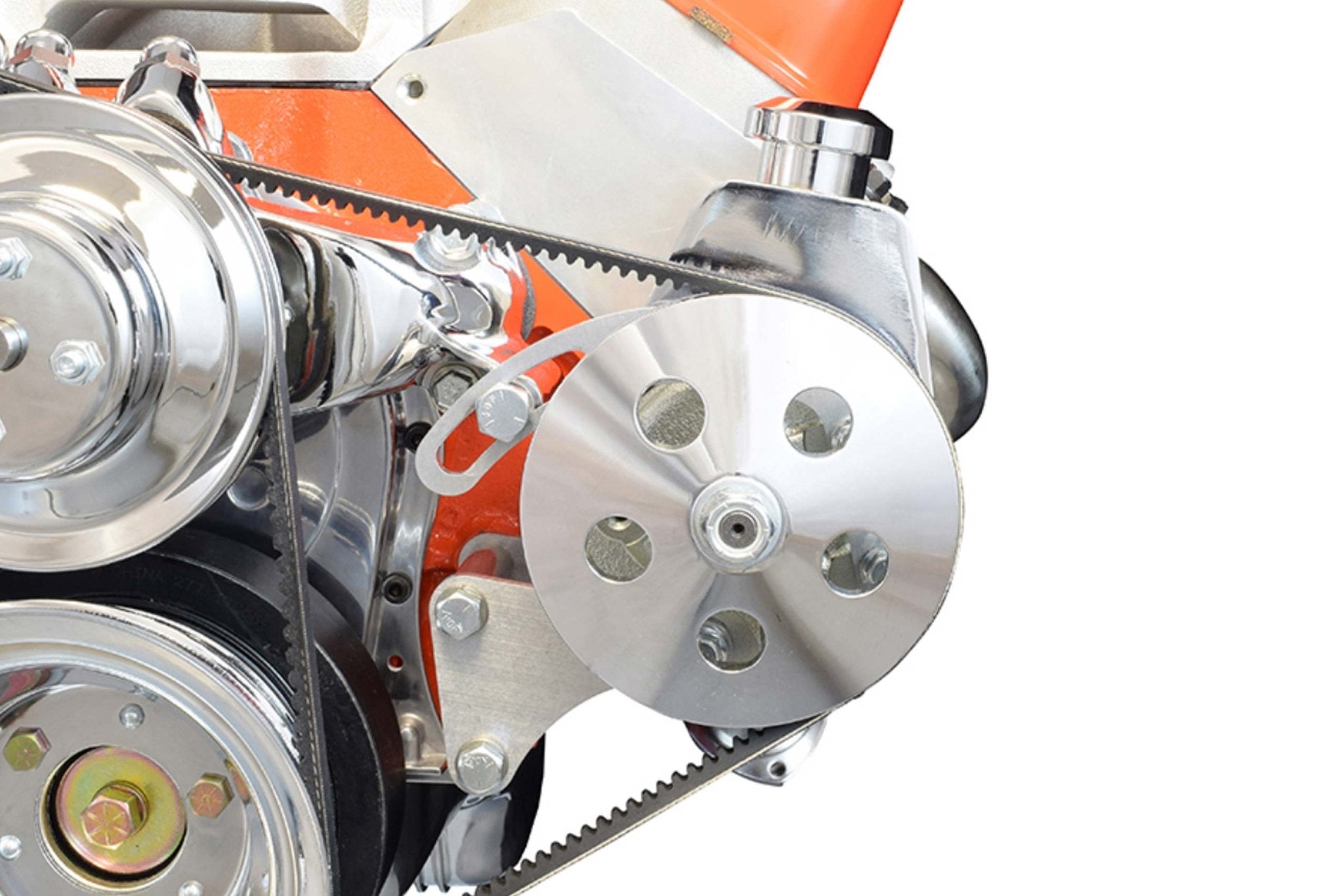

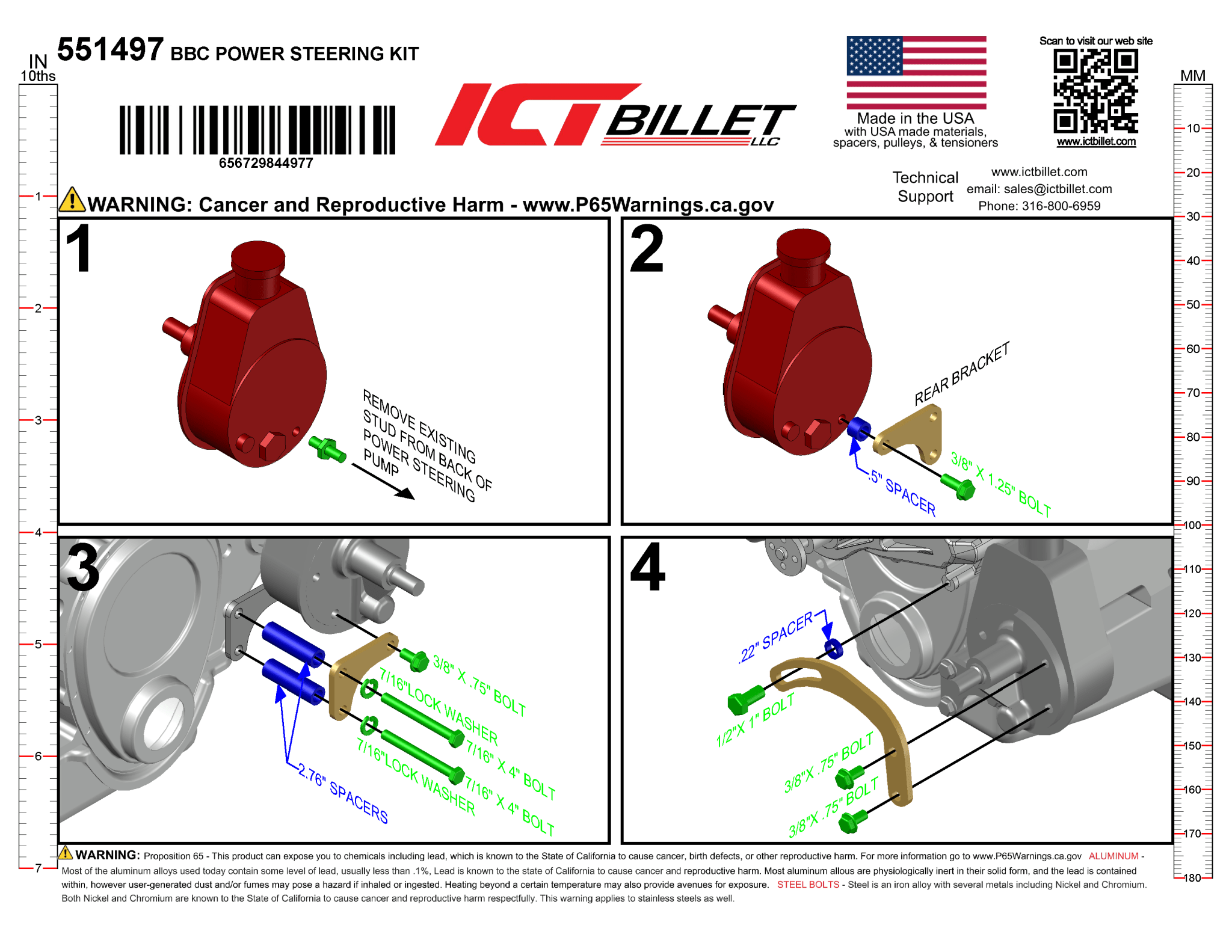

Power Steering Pump (OE style or Lares 2134)

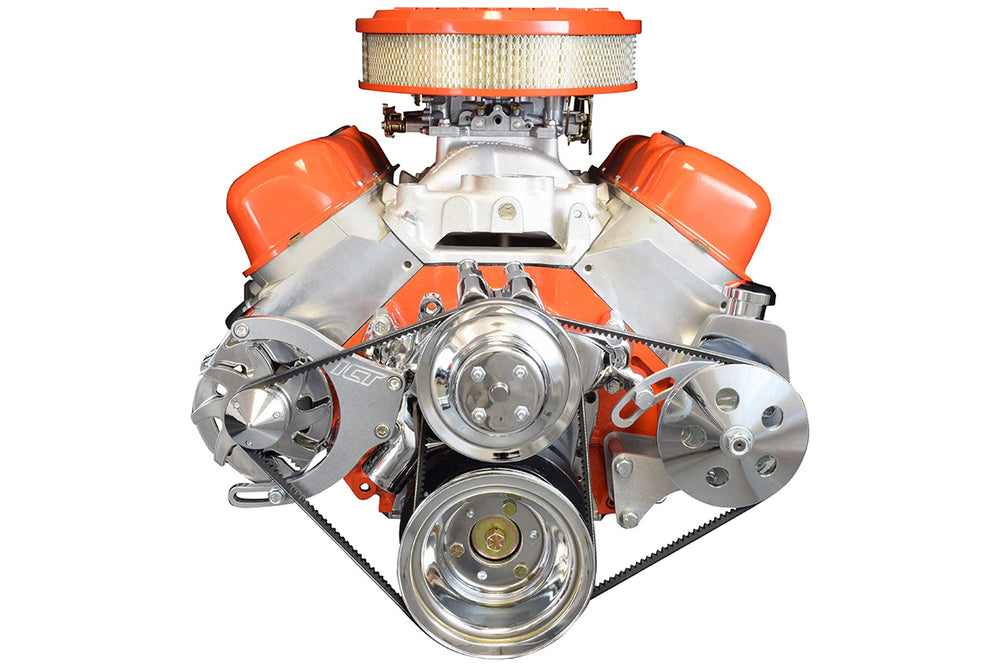

Bracket is only compatible with the power steering pump style shown in picture 3 with rear stud at bottom of the reservoir.

Pulleys (or similar OE style, V-Rib ONLY)

• Suggested Crank Pulley #14023148
• Suggested Power Steering Pulley #14023173
• Suggested Water Pump DWP-442

Belt Length

• Alternator uses 45" V-belt (with factory diameter pulleys)
• Power steering uses 45" V-belt (with factory diameter pulleys)

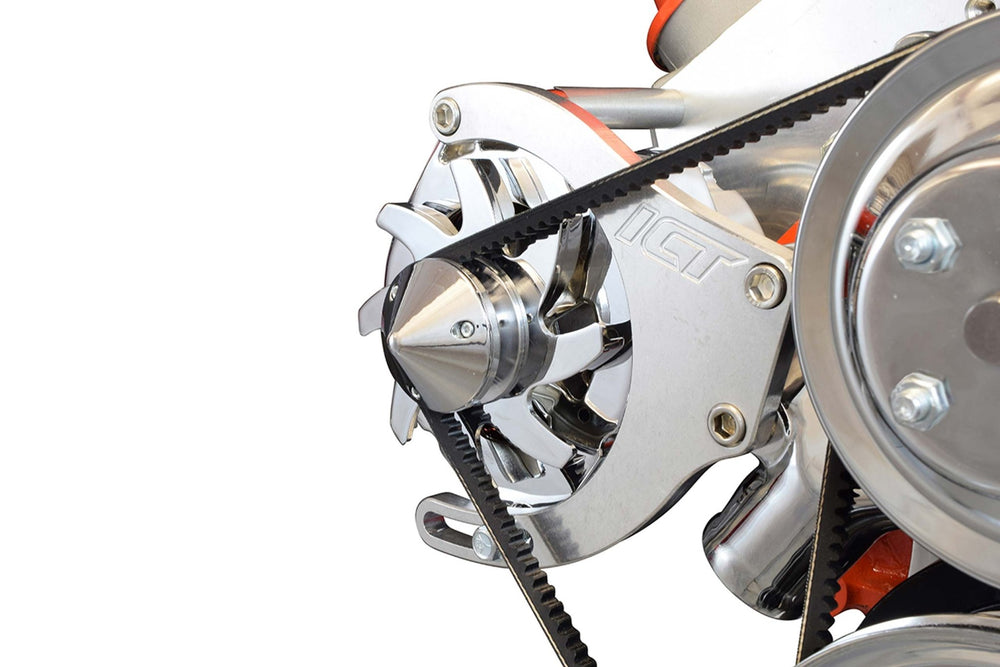

*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093
