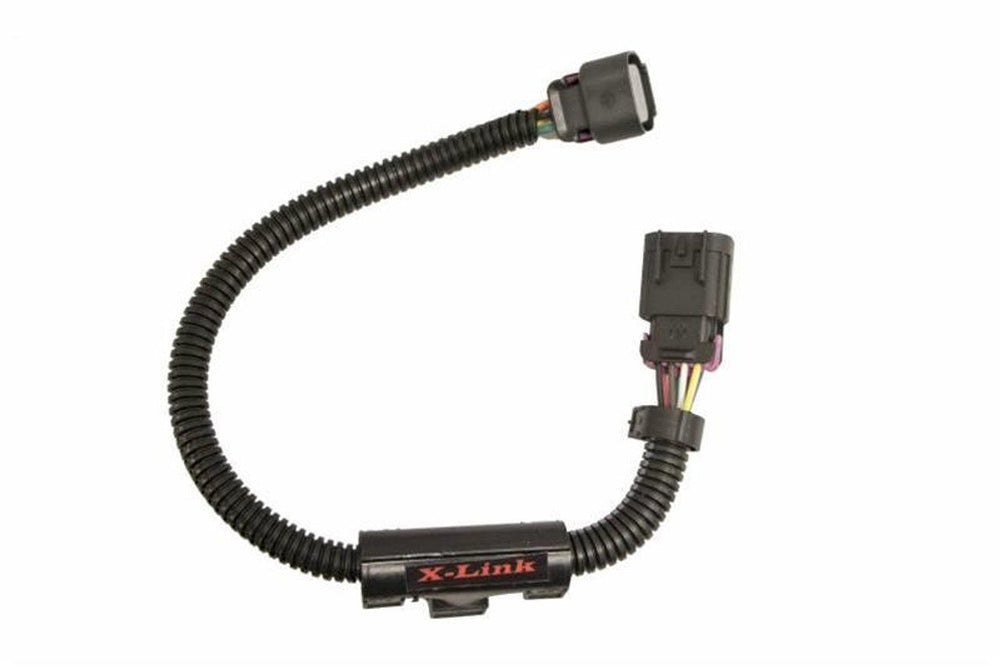

Torque Rush X-Link Throttle Body Adapter Harness

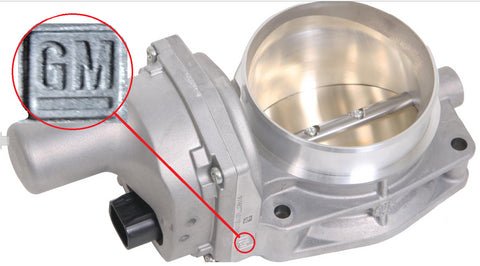

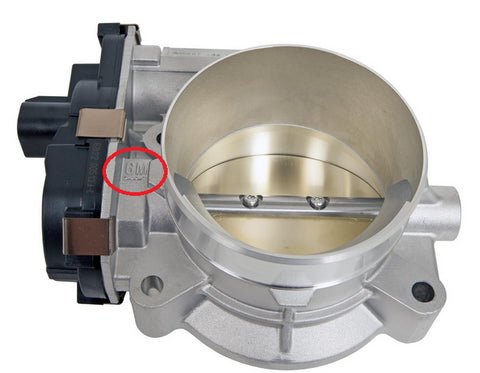

This X-Link adapter harness is used to adapt OEM 8 Pin GM Truck/SUV harness to GM 90mm Gold Blade, or Nick Williams 6 pin throttle bodies. This X-Link will ONLY work with Gold Blade GM throttle bodies or Nick Wiliams throttle bodies.

NOT compatible with early 2000-2002 full size truck TAC systems which use two separate plugs at the throttle body.

NOT compatible with GM "Silver Blade" LS2 throttle bodies (12570790/19420034).

• Applications: 2003-2006 and 2007 Classic Full -Size GM trucks, 2004 SSR, 2004-2005 Holden VZ LS1 vehicles
• X-Link works with either truck 87mm (e.g. Trailblazer SS or 08+ truck) or car style (e.g. Corvette) 90mm throttle bodies
• Robust, all automotive class construction
• Maintains the independence of the two throttle position sensor signals
• Simple plug-n-play installation
• Works with your original throttle actuator control (TAC) module and pedal assembly
• Allows full throttle blade range to 100% wide open throttle
• Get the full potential out of draw-through superchargers like the Magna Charger Radix or` TVS and the Kenne Bell and Whipple twin screws
• Allows use of 90mm electronic throttle on L76, L92, TBSS and FAST intake/induction swaps
• Simplifies L76, L92, LS2 and LS3 engine swaps into these LS1 vehicles
• Less restriction and improved airflow for turbocharged or high output naturally aspirated applications

Throttle Swap Signal Conversion Module for GM 03-07 full size V8 trucks and Holden
LS1 VZ cars – Connection to a LS4 SS car will permanently damage the X-Link

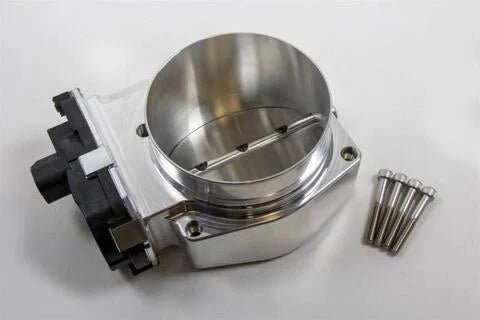

Use with GM/ACDelco 90mm LS3 or 87mm(Truck/LS9/LSA) gold blade and Nick
Williams LS 103/112mm throttle bodies.
*Aftermarket magnetic sensor throttle bodies are not compatible with the throttle
control system in these vehicles.
