Compatible with (LS1 Camaro to Truck) Water Pump Spacer .7" Adapter Swap kit LSX LS LS2 LQ4 GTO - ICT Billet 551690 - 71
Cliquez pour ouvrir la vue développée
Cliquez pour ouvrir la vue développée
Cliquez pour ouvrir la vue développée
Cliquez pour ouvrir la vue développée
Cliquez pour ouvrir la vue développée
Cliquez pour ouvrir la vue développée
Cliquez pour ouvrir la vue développée

Compatible with (LS1 Camaro to Truck) Water Pump Spacer .7" Adapter Swap kit LSX LS LS2 LQ4 GTO

Prix de vente
$58.99
Prix habituel
$70.99
Vous sauvegardez
17%
UGS#: 551690-71
En stock et prêt pour l'expédition

Description du produit

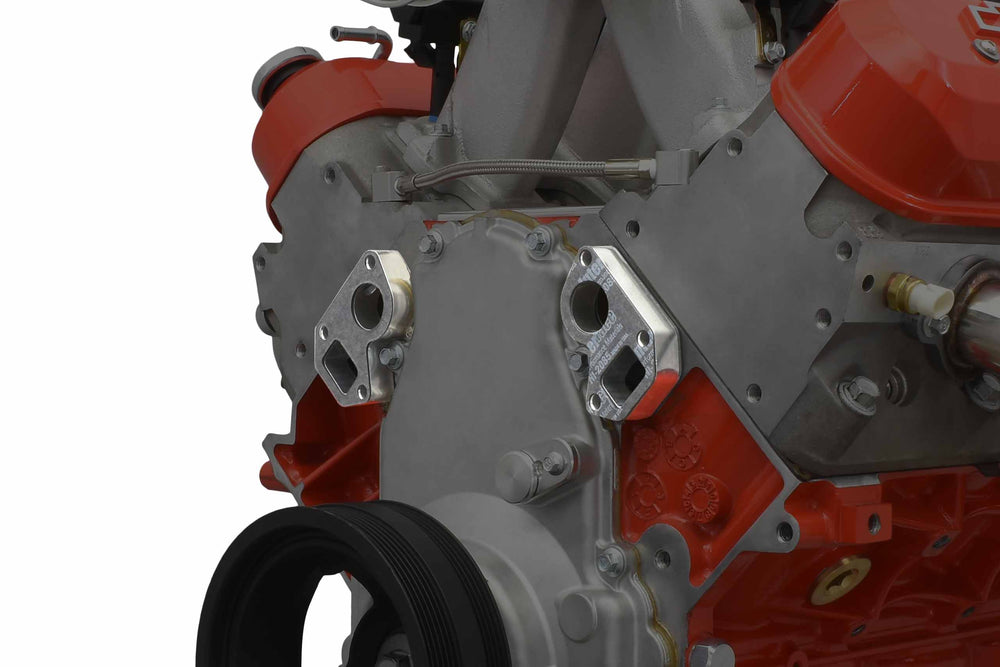

LS Water Pump Spacer Kit

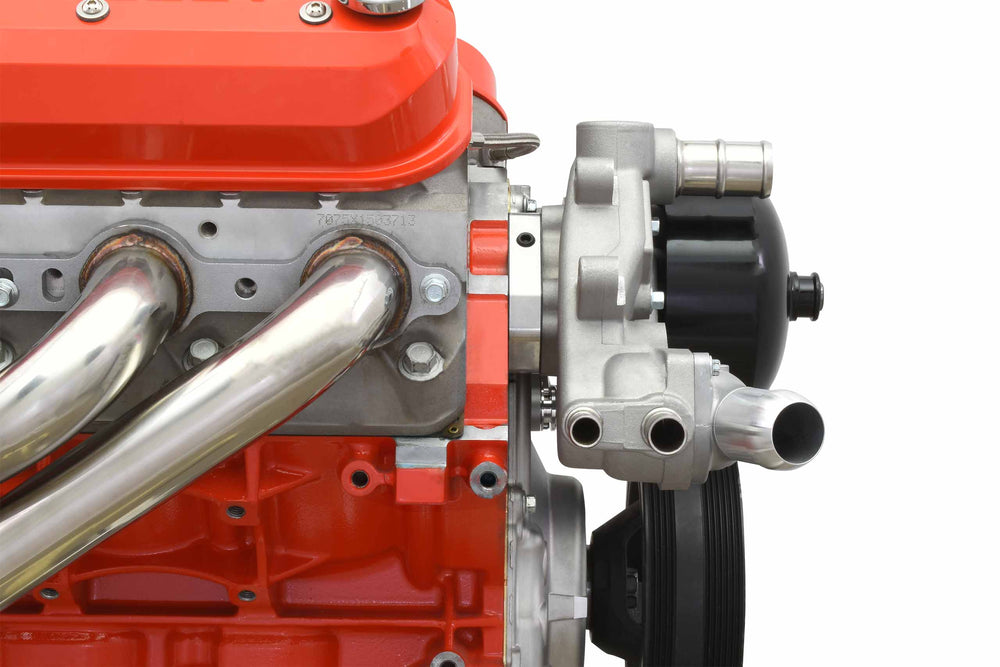

Used for mounting 1998-02 LS1 Camaro (or GTO any year) water pumps onto LS Truck/SUV (any year) engines to keep the belt aligned. This is the EXACT dimension required for this combination.

  • Can be bolted to all LS engines, currently running LS Truck (or LS3 Camaro) crank pulley
  • Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

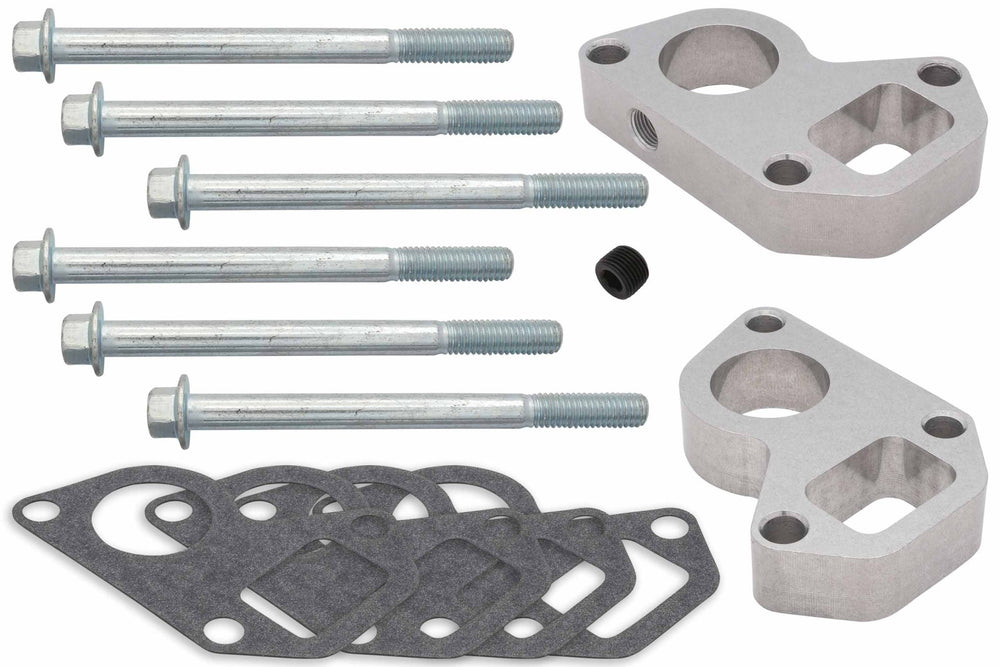

  • Includes: 2 spacers, 4 gaskets, 1 steam port plug (1/8"), and bolts

***always use the belt tensioner that would have originally came with the water pump that you are using. (example: 1998-02 Camaro water pump would use a 1998-02 Camaro belt tensioner) These spacers will keep the alignment perfectly.



LS Series Engine Belt Spacing Guide: Corvette, G8, SS, & CTSV engines have the tightest belt to block setting (other than FWD vehicles w/ LS4) LS1 Camaro belt spacing is approximately .86" further outboard Truck & Camaro 2010up belt spacing is approximately .71" further than LS1 Camaro (1.57" from Corvette)



for replacement gaskets use part number 551690-GAS4

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

Compatible with (LS1 Camaro to Truck) Water Pump Spacer .7" Adapter Swap kit LSX LS LS2 LQ4 GTO

UGS#: 551690-71
En stock et prêt pour l'expédition
Prix de vente
$58.99
Prix habituel
$70.99
Vous sauvegardez
17%
free shipping over $100

& 90 day returns Policy

Description du produit

LS Water Pump Spacer Kit

Used for mounting 1998-02 LS1 Camaro (or GTO any year) water pumps onto LS Truck/SUV (any year) engines to keep the belt aligned. This is the EXACT dimension required for this combination.

  • Can be bolted to all LS engines, currently running LS Truck (or LS3 Camaro) crank pulley
  • Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
  • Includes: 2 spacers, 4 gaskets, 1 steam port plug (1/8"), and bolts

***always use the belt tensioner that would have originally came with the water pump that you are using. (example: 1998-02 Camaro water pump would use a 1998-02 Camaro belt tensioner) These spacers will keep the alignment perfectly.



LS Series Engine Belt Spacing Guide: Corvette, G8, SS, & CTSV engines have the tightest belt to block setting (other than FWD vehicles w/ LS4) LS1 Camaro belt spacing is approximately .86" further outboard Truck & Camaro 2010up belt spacing is approximately .71" further than LS1 Camaro (1.57" from Corvette)



for replacement gaskets use part number 551690-GAS4

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

Product Specifications

Manufacturer Part Number UPC Weight Length Width Height Made in
ICT Billet 551690-71 797822587771 1.6 lb 6 po 2 po 3 po USA
