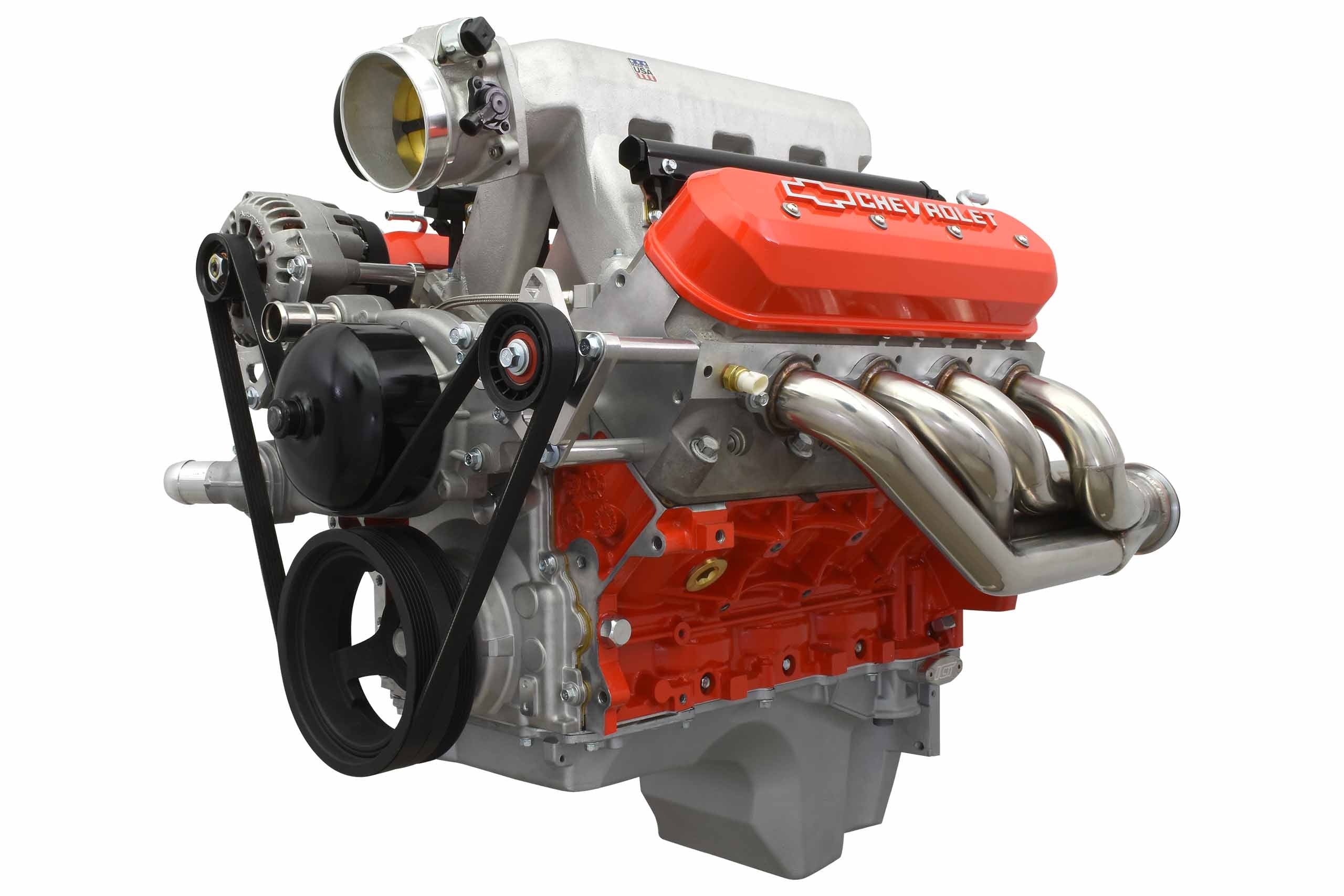

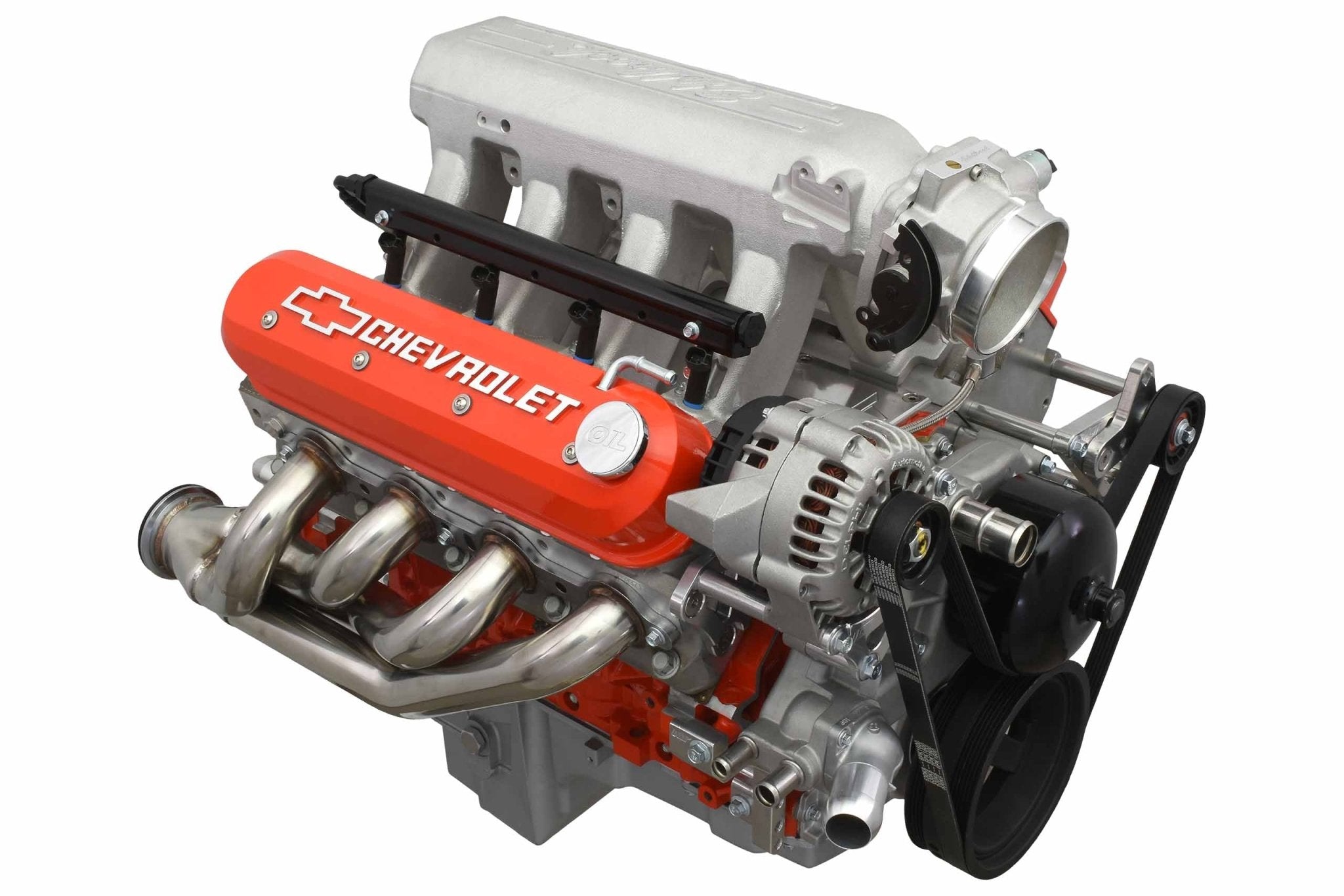

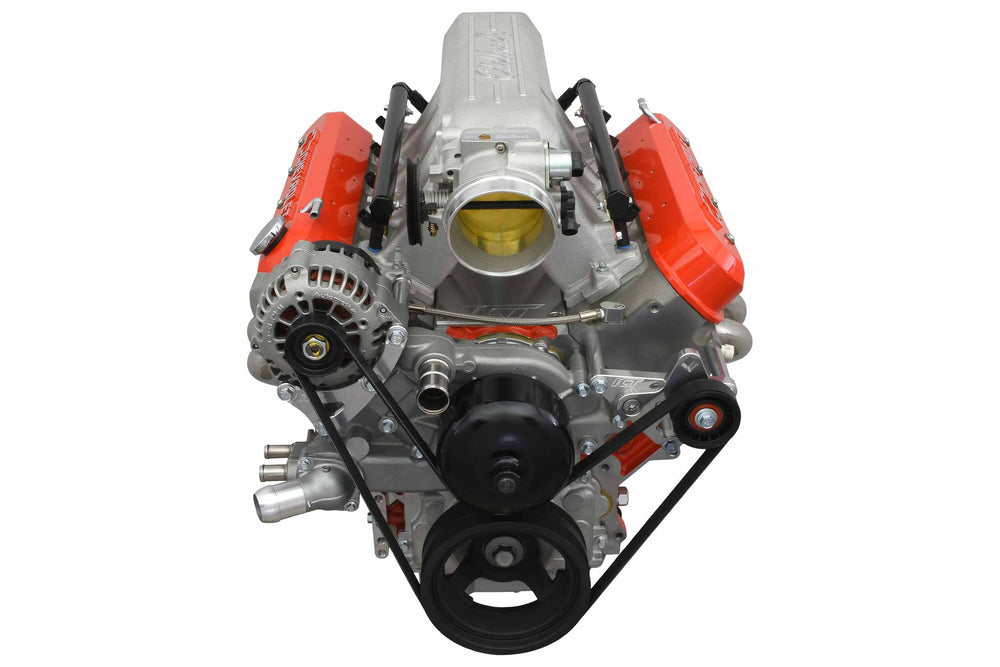

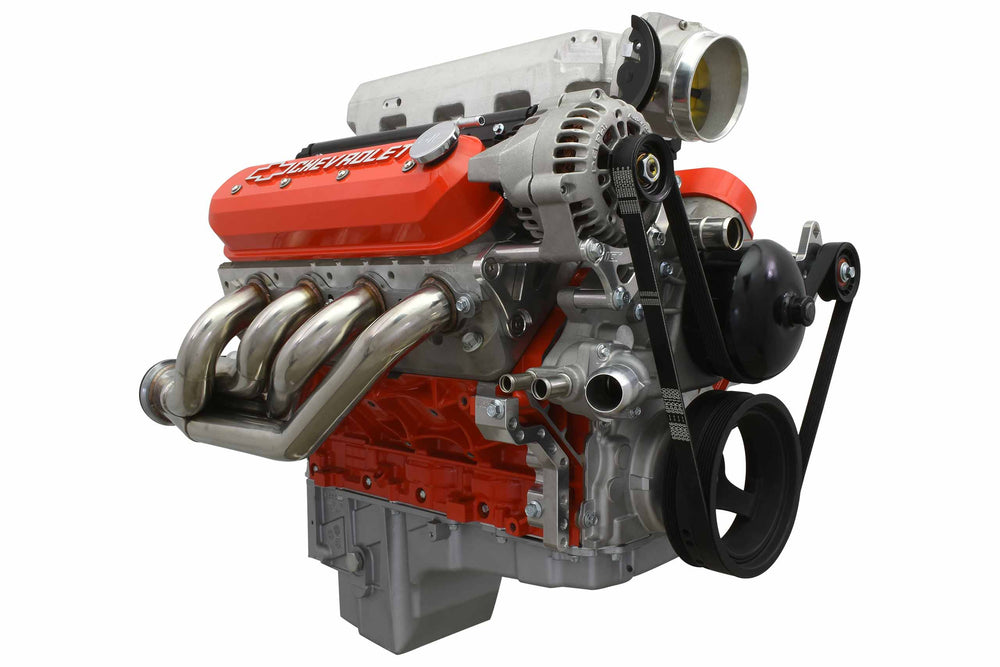

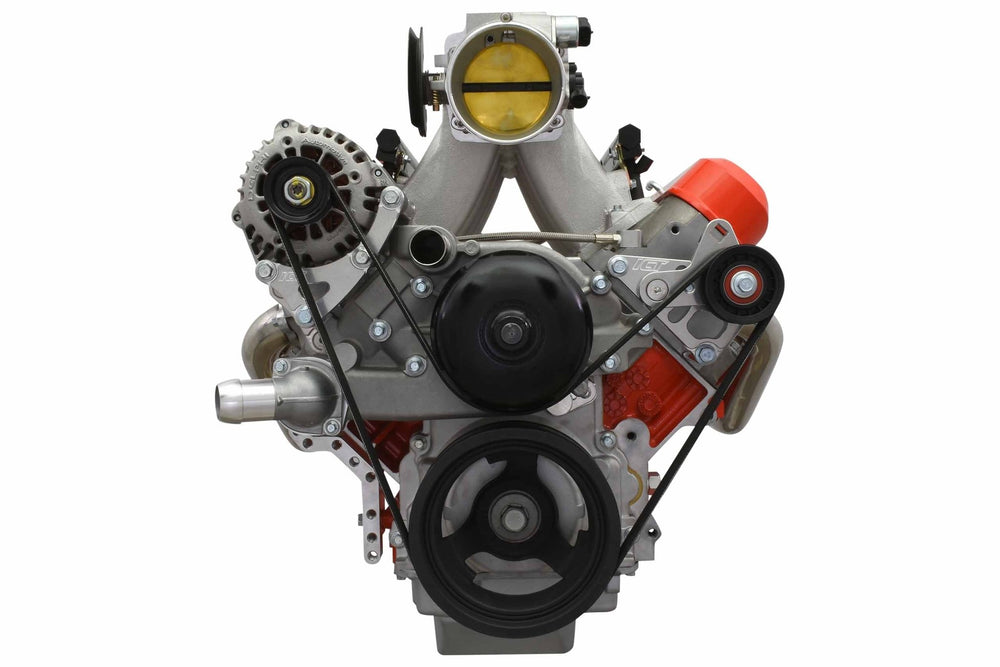

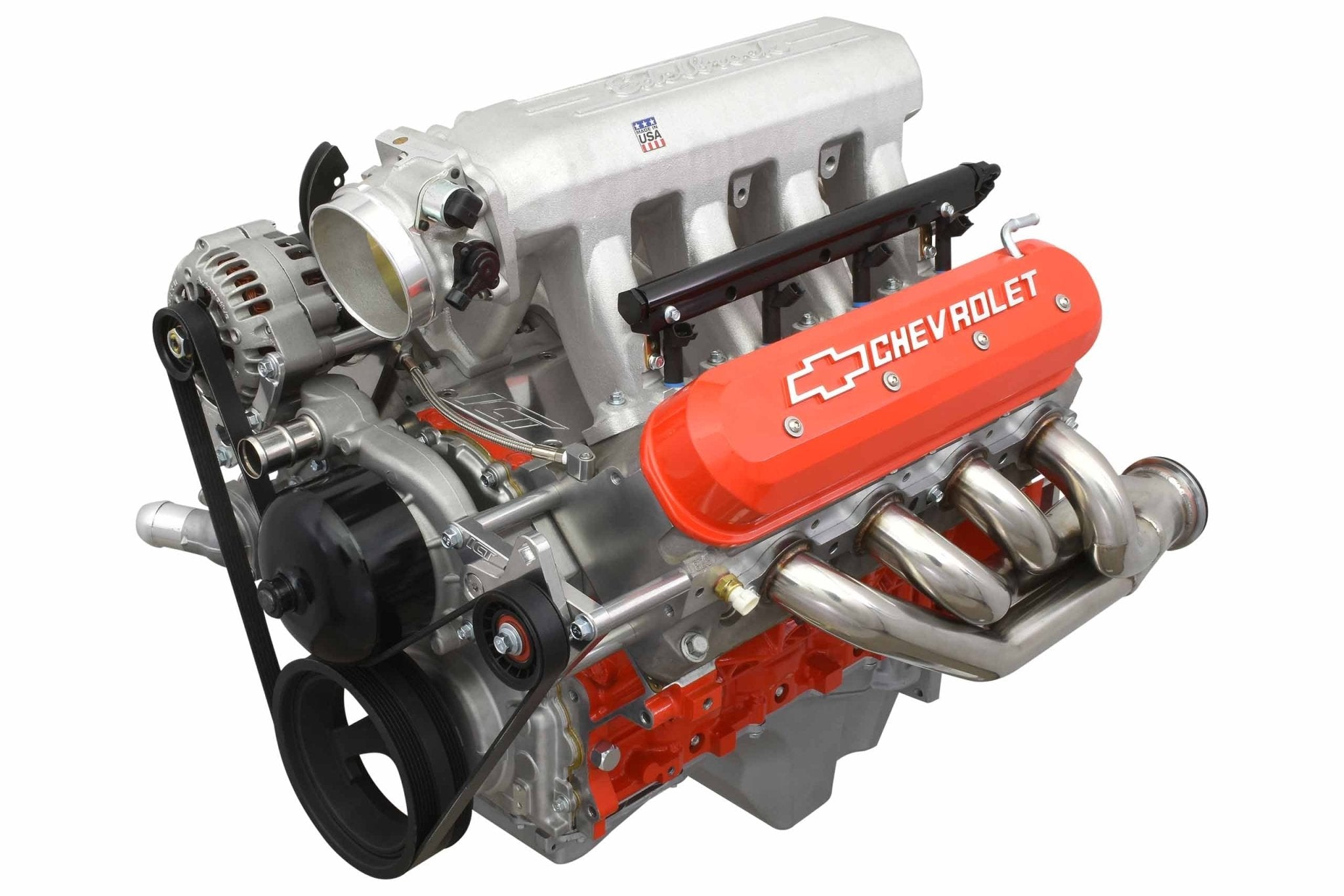

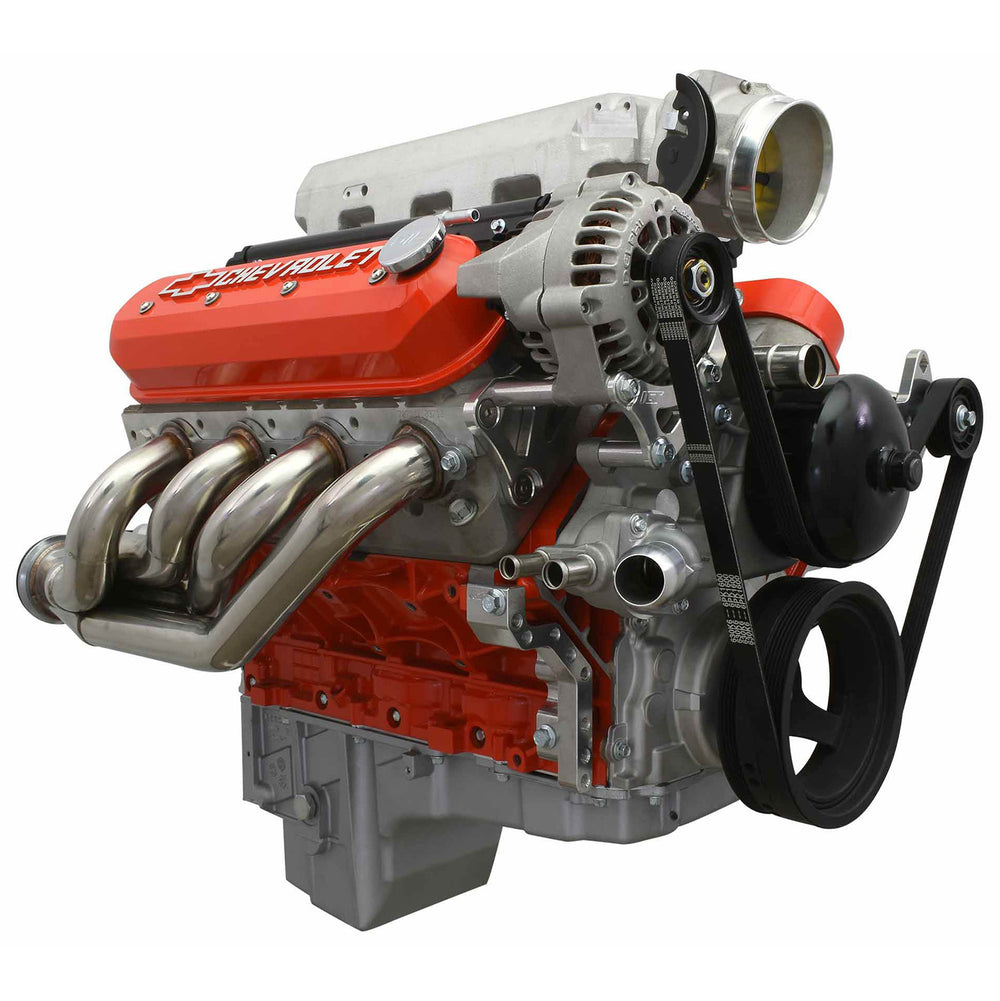

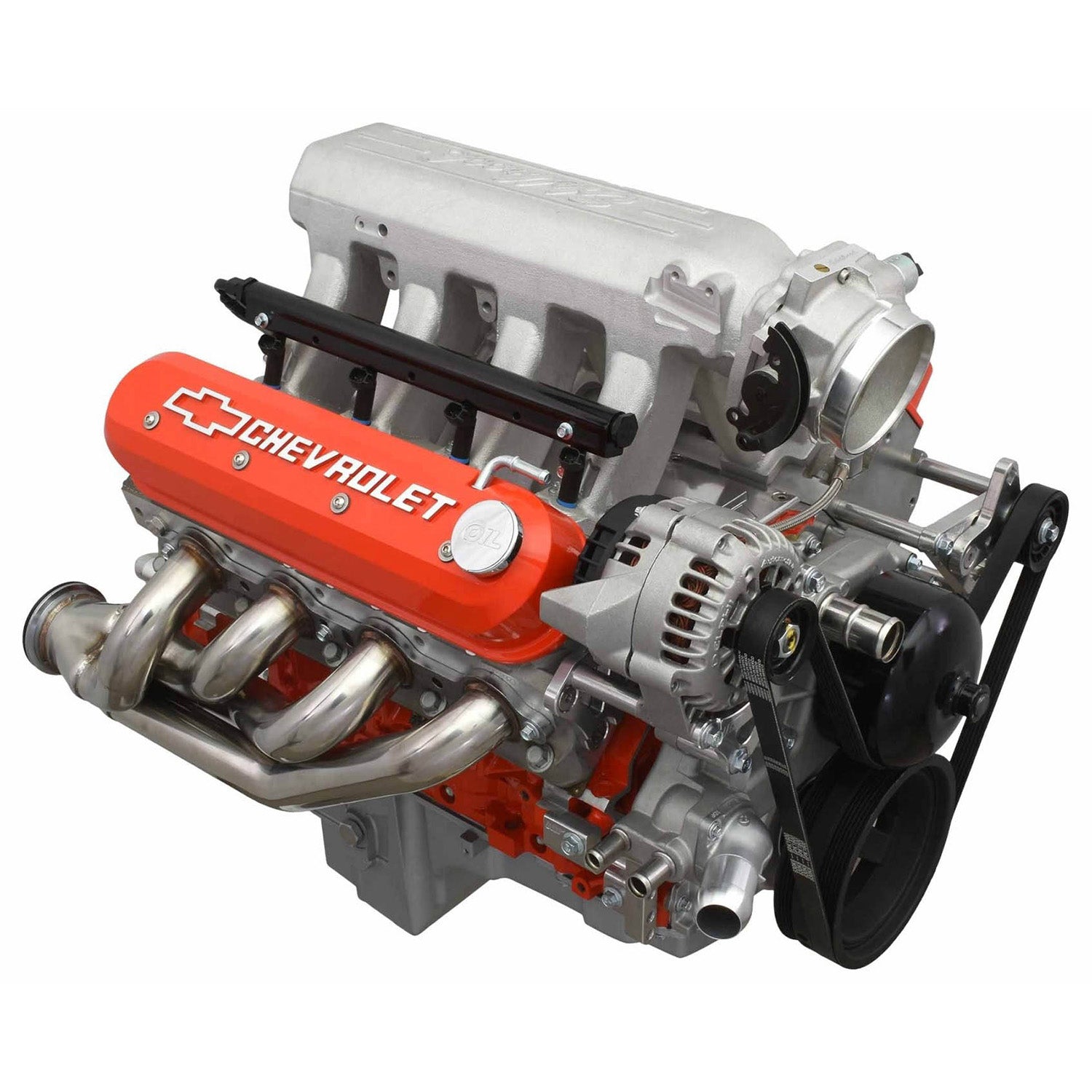

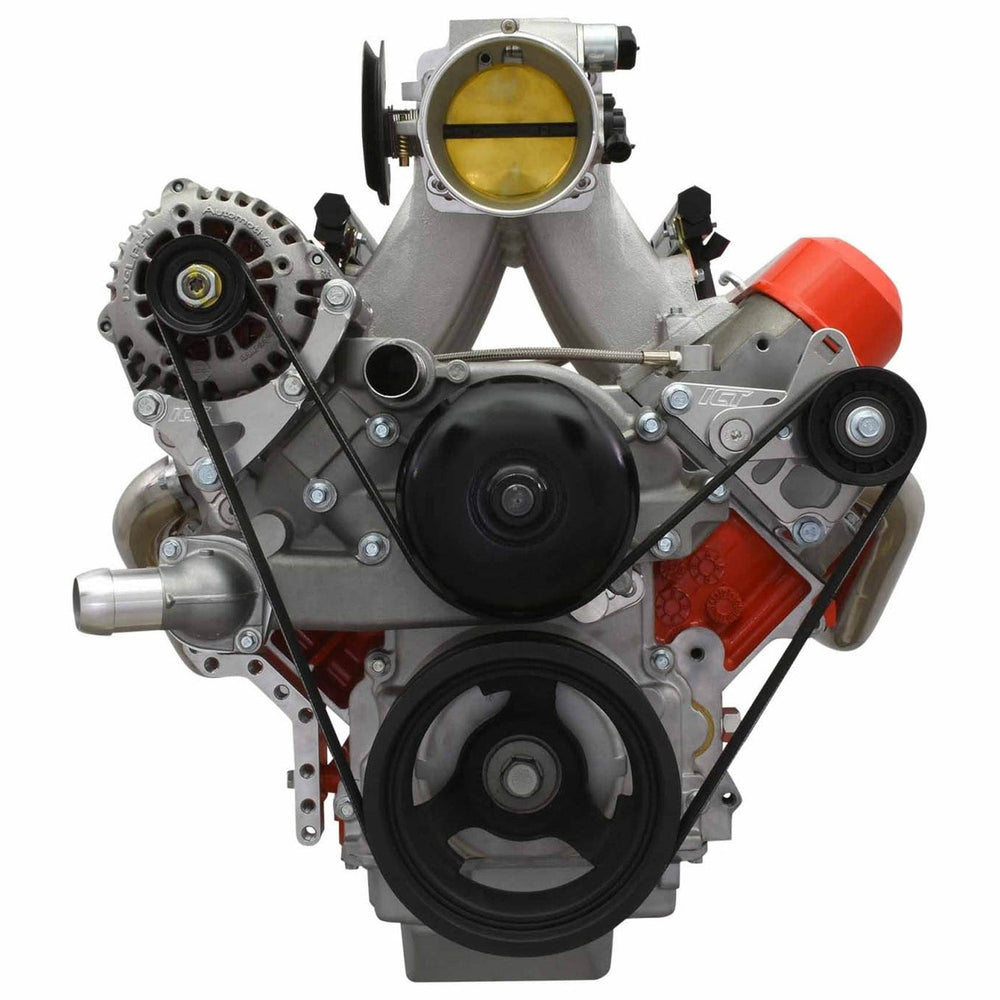

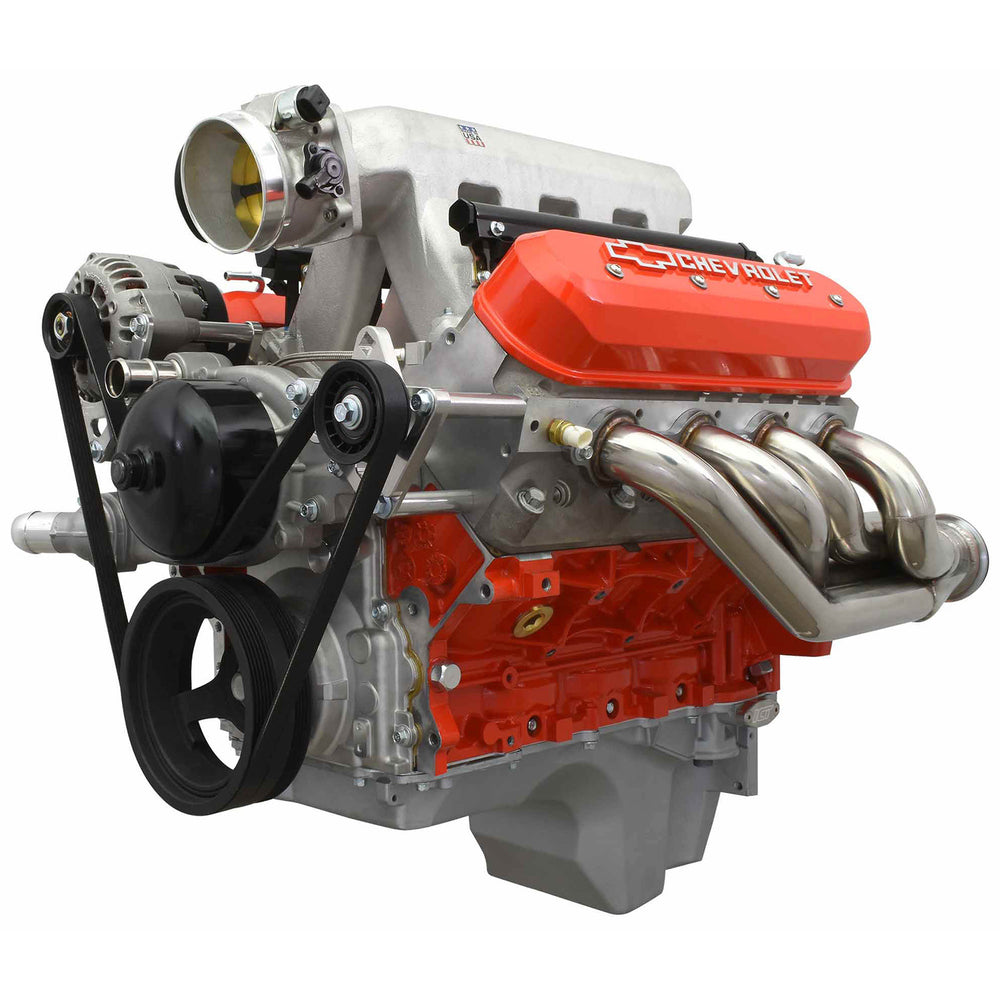

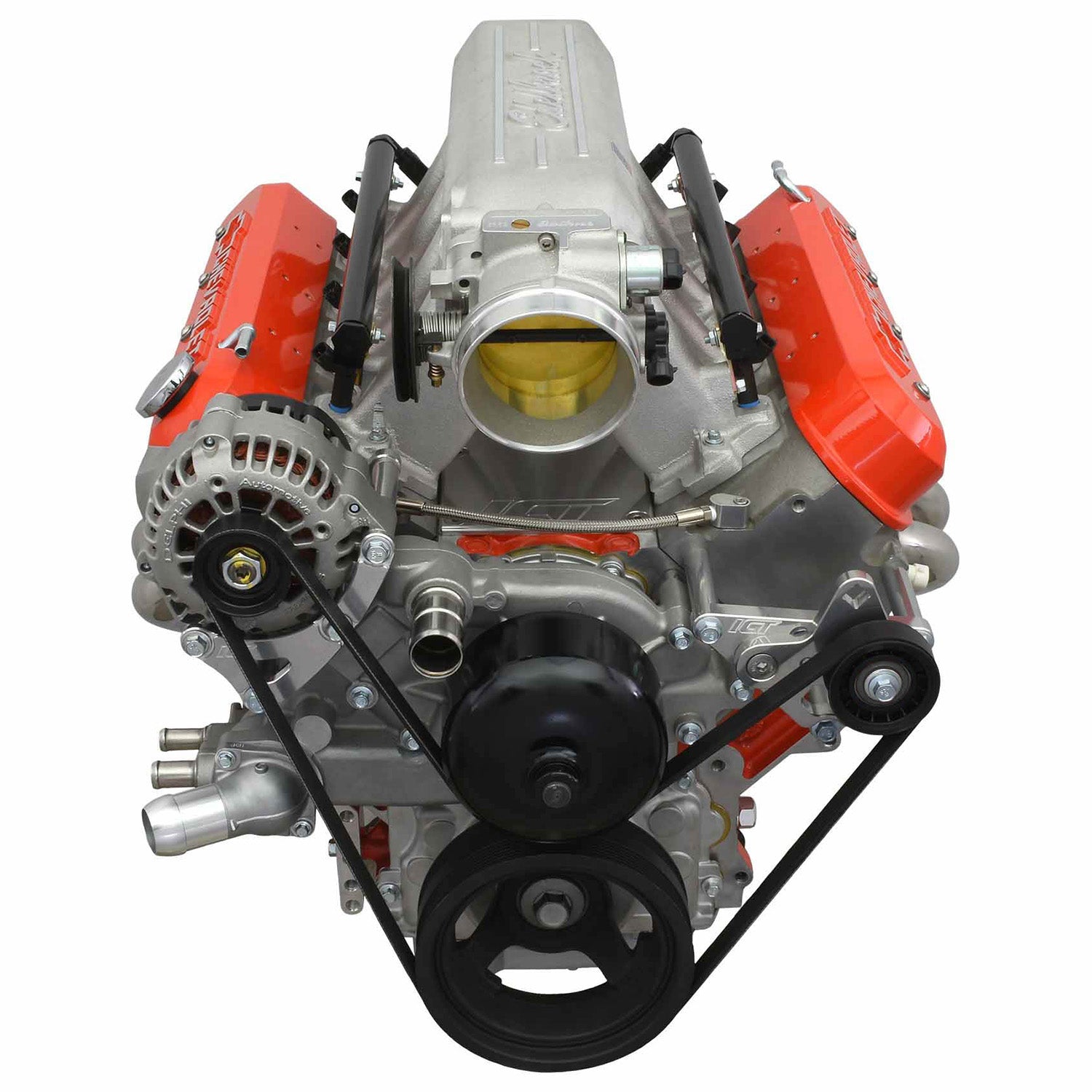

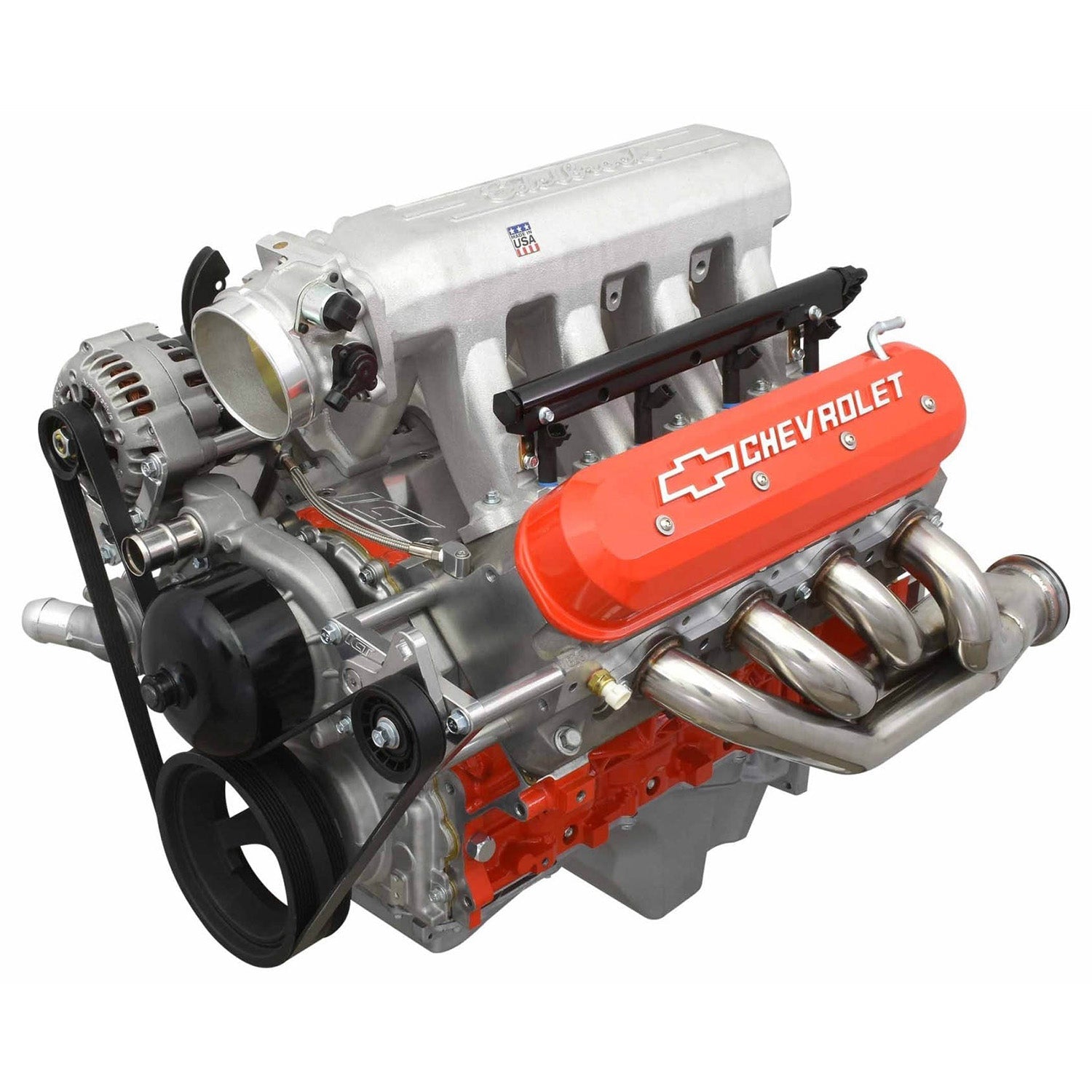

LS Truck - Alternator and Belt Tensioner Relocation Bracket

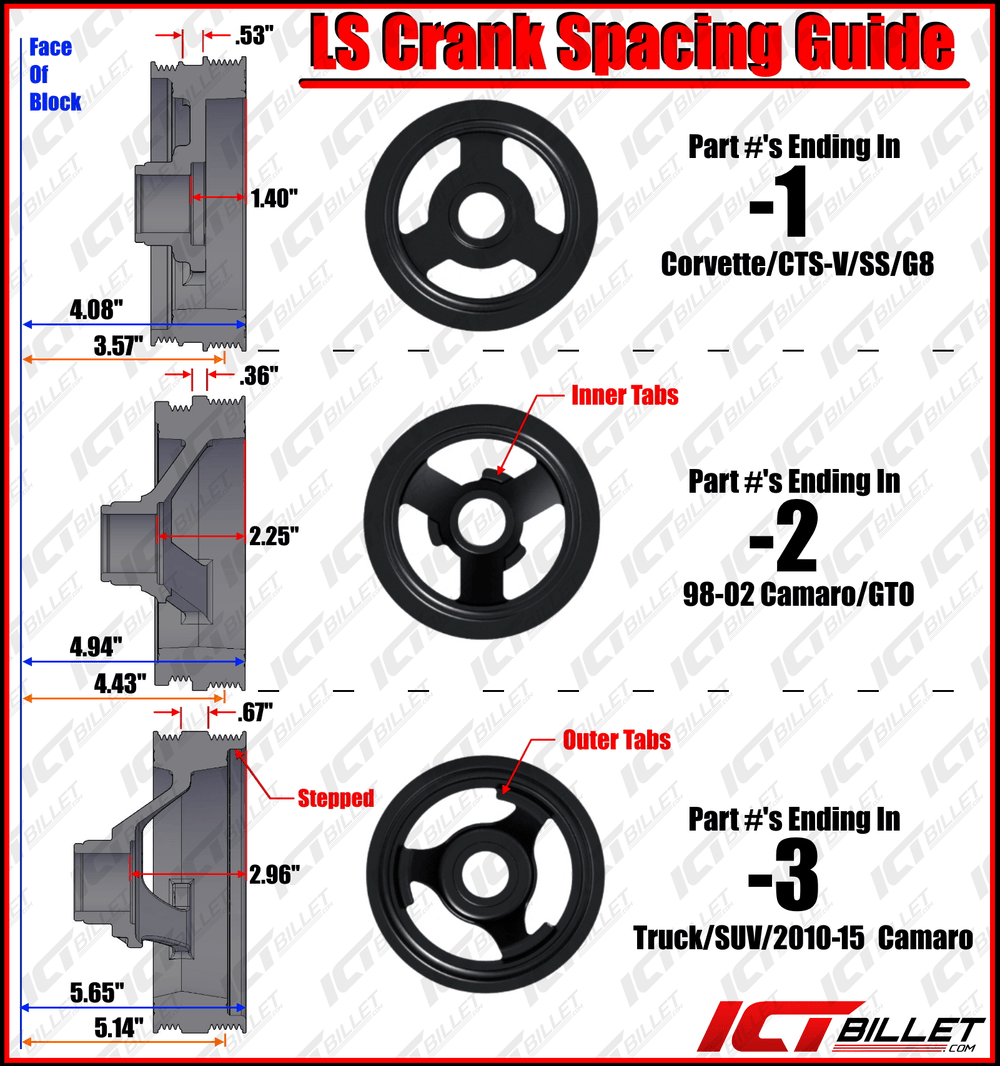

Truck/SUV (or 2010-15 Camaro) crank pulley (ICT# BAL300)

• Compatible with:
  • 1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)
  • Use 105 or 145 amp truck alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)
  • Includes: alternator bracket and mounting hardware
• Not compatible with Gen 3 or 4 "truck" water pumps
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

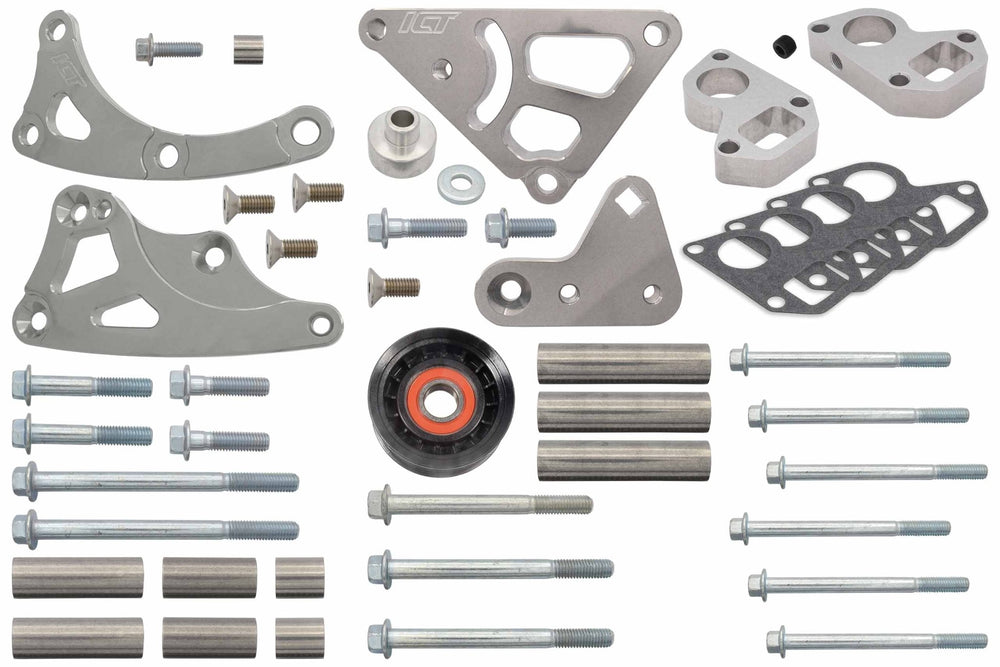

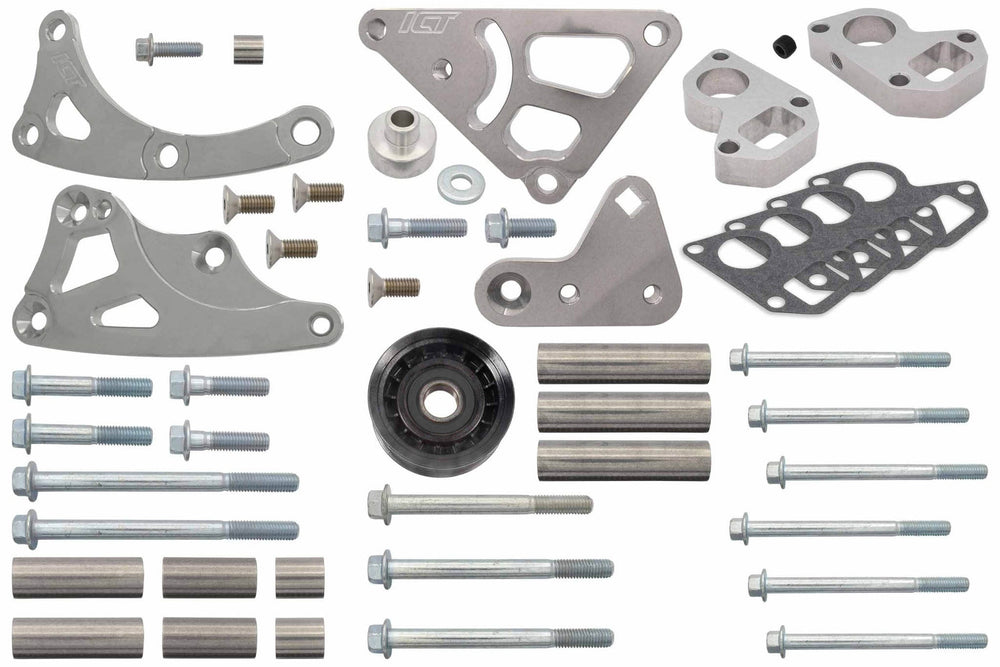

• Includes: accessory brackets w/ manual tensioner, water pump spacers w/ gaskets and mounting hardware

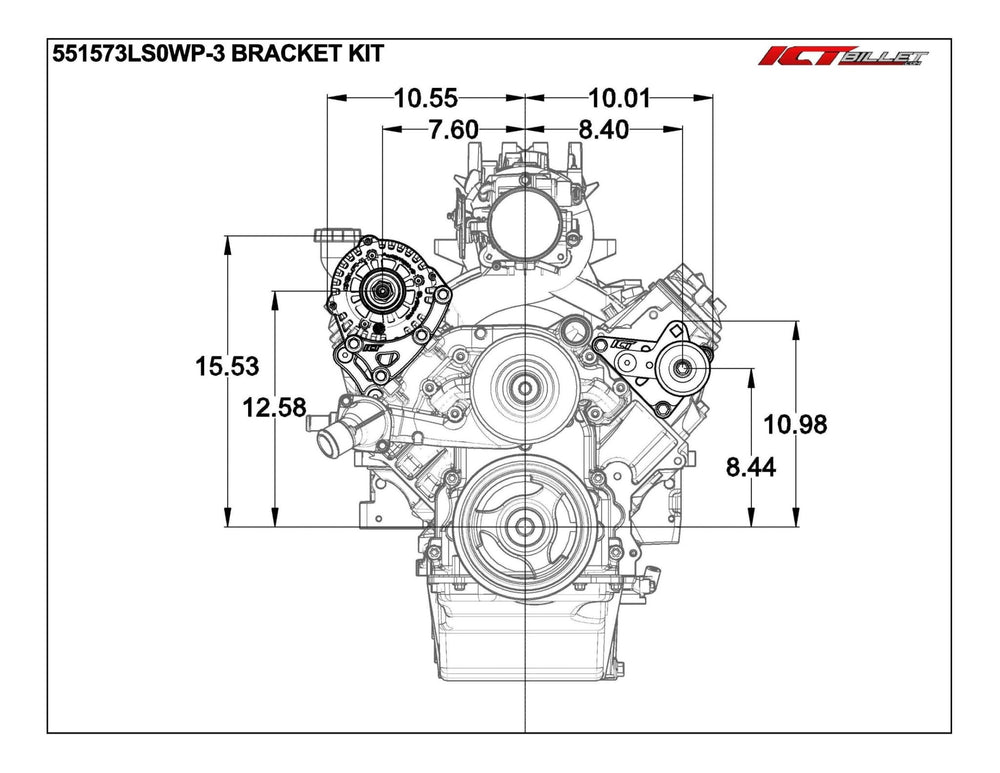

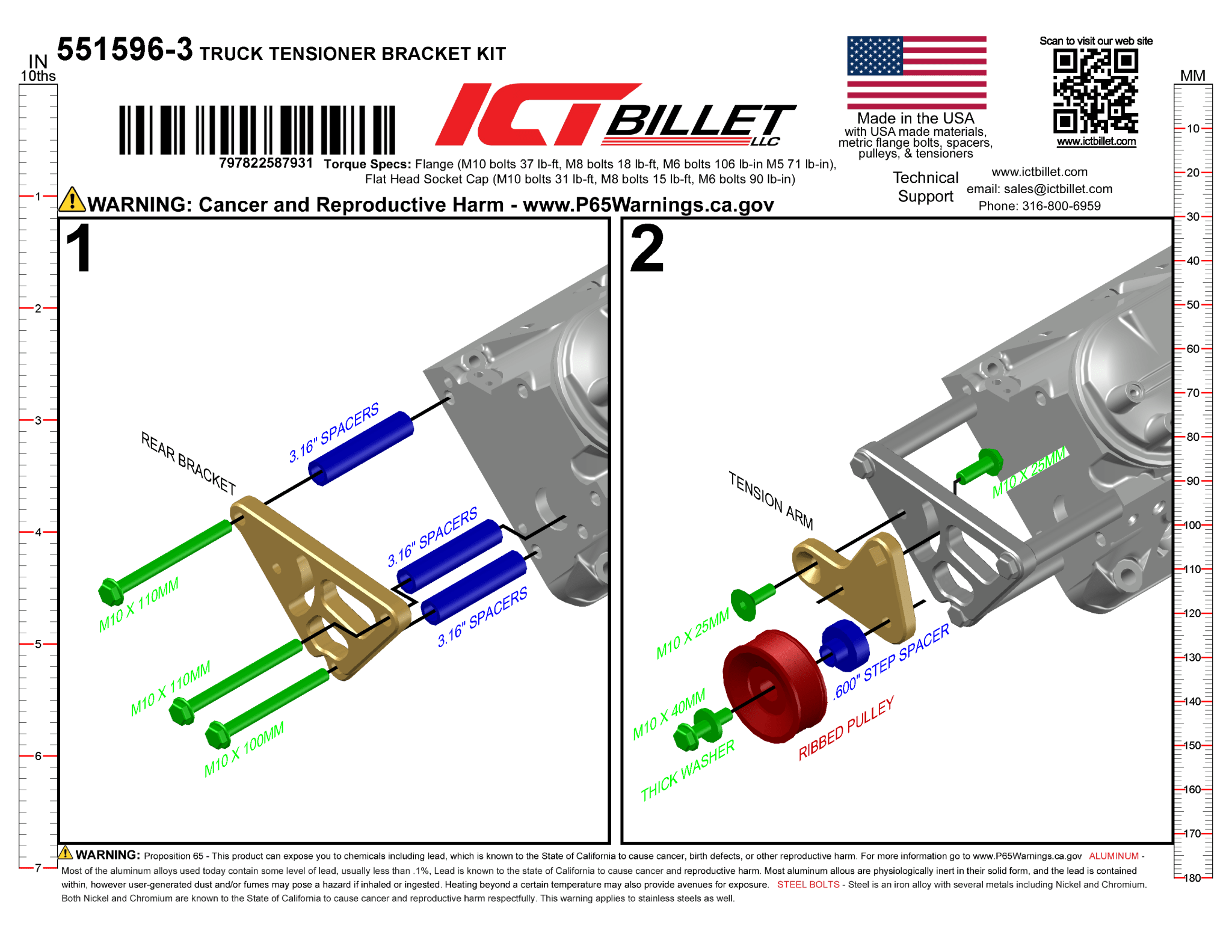

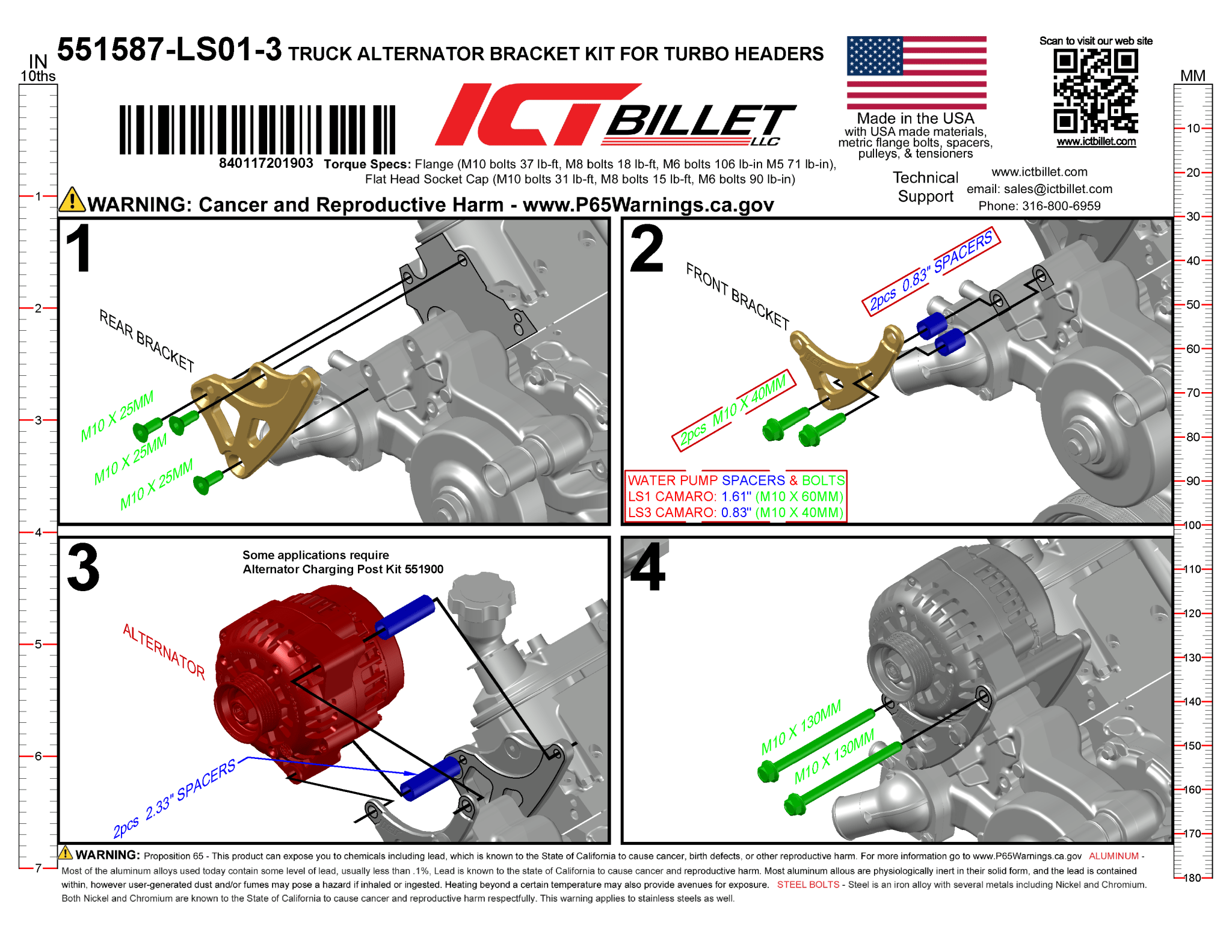

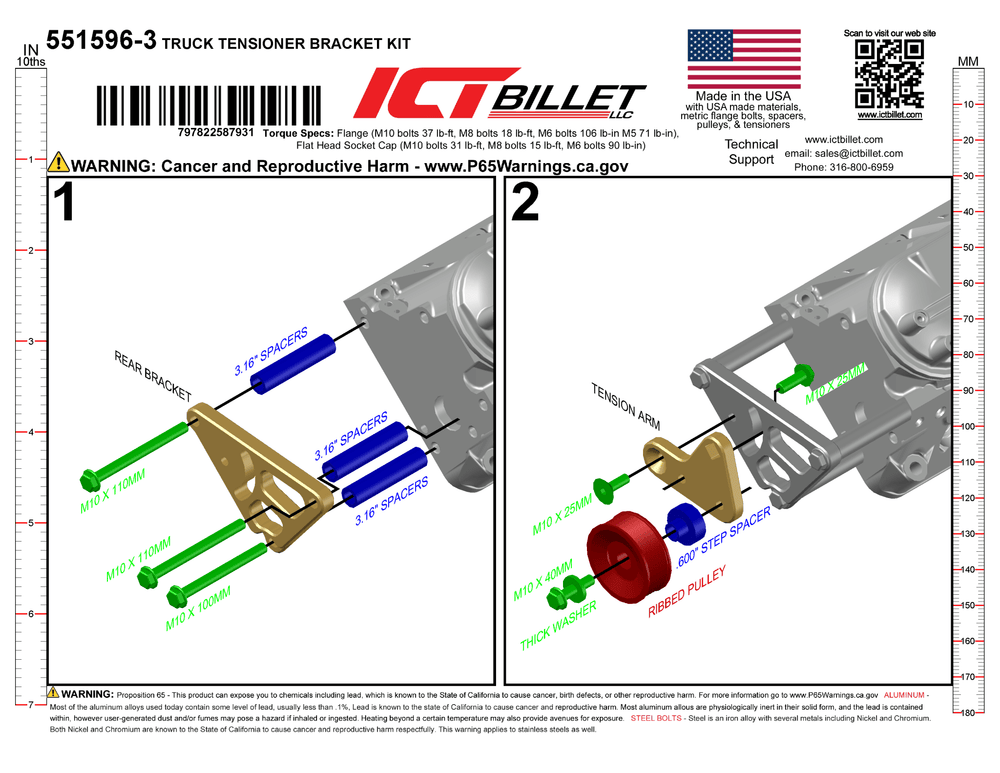

• Kit made up of part #'s 551587-LS01-3, 551596-3, and 551690-71 bracket kits
• Belt Length: 63.0" (630K6)
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
