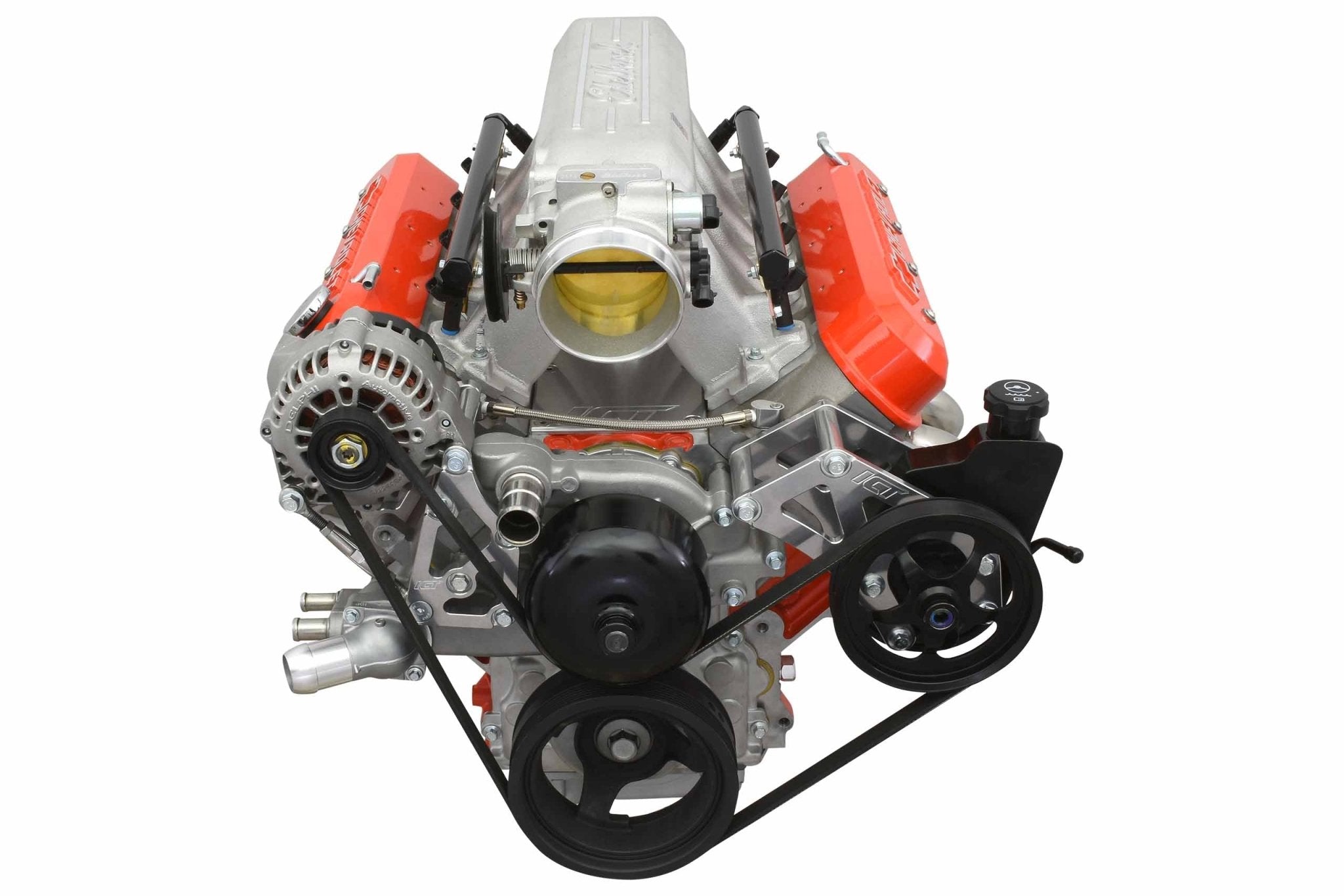

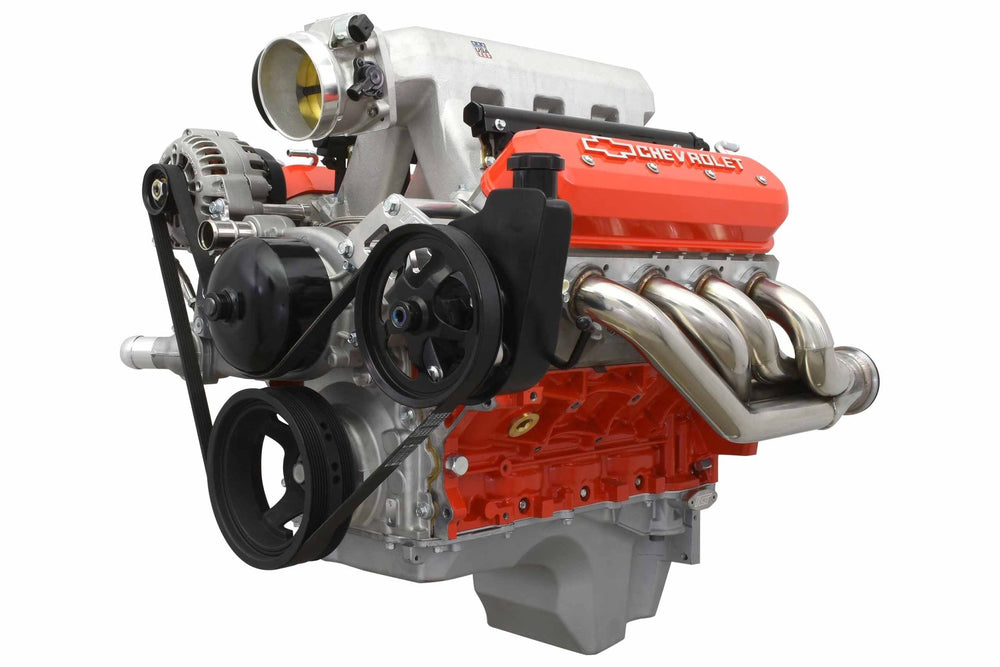

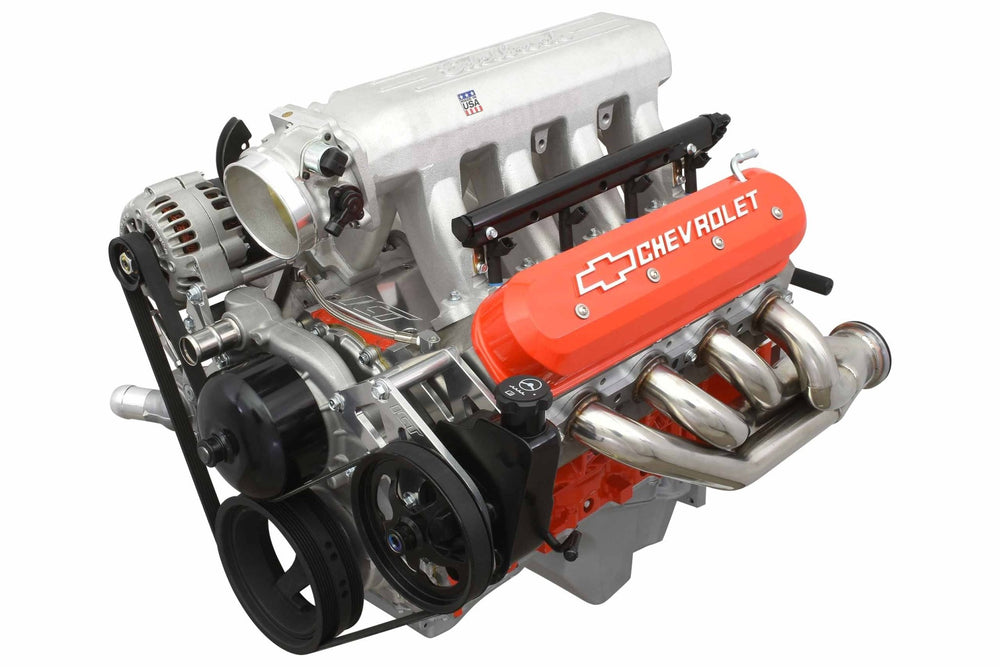

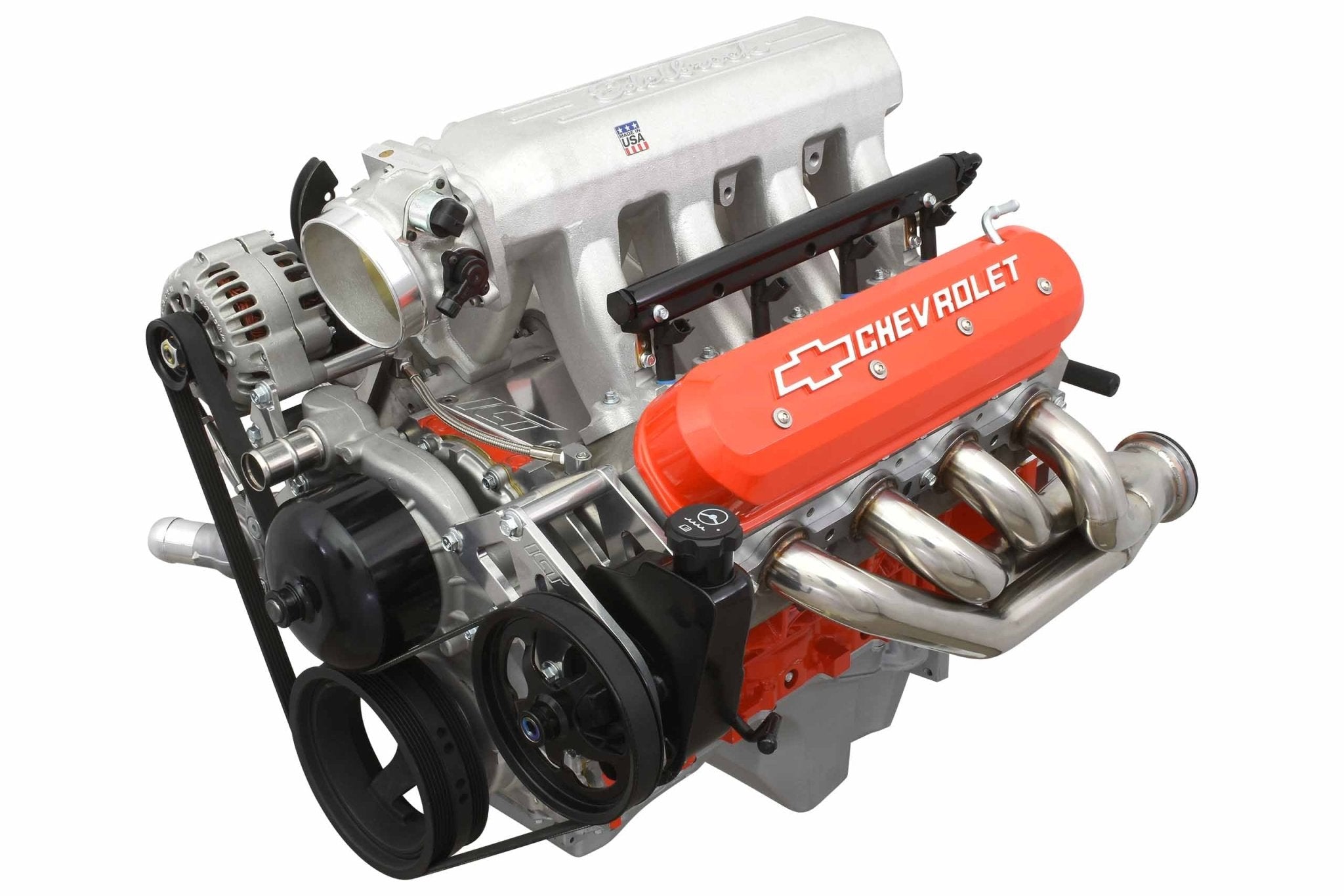

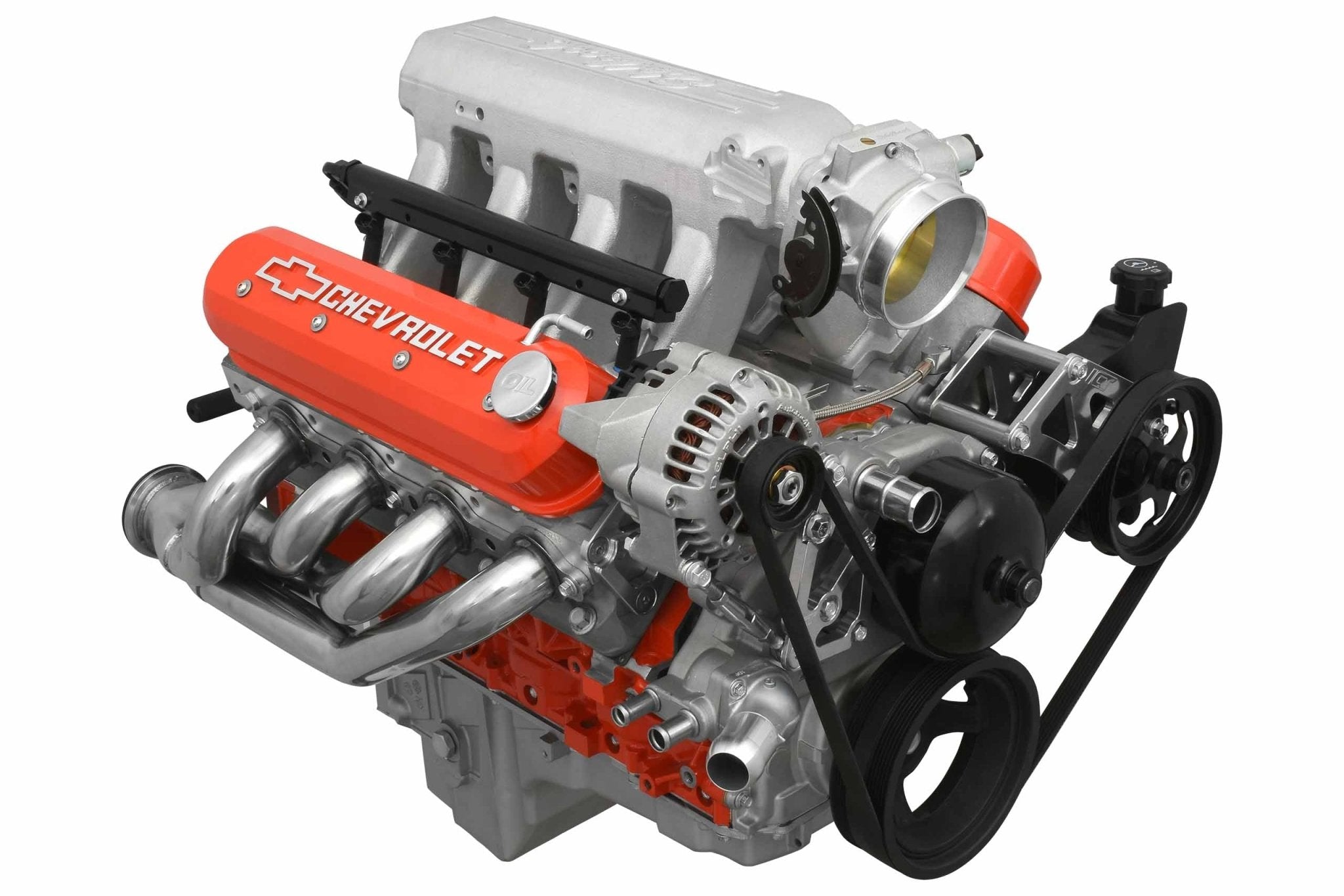

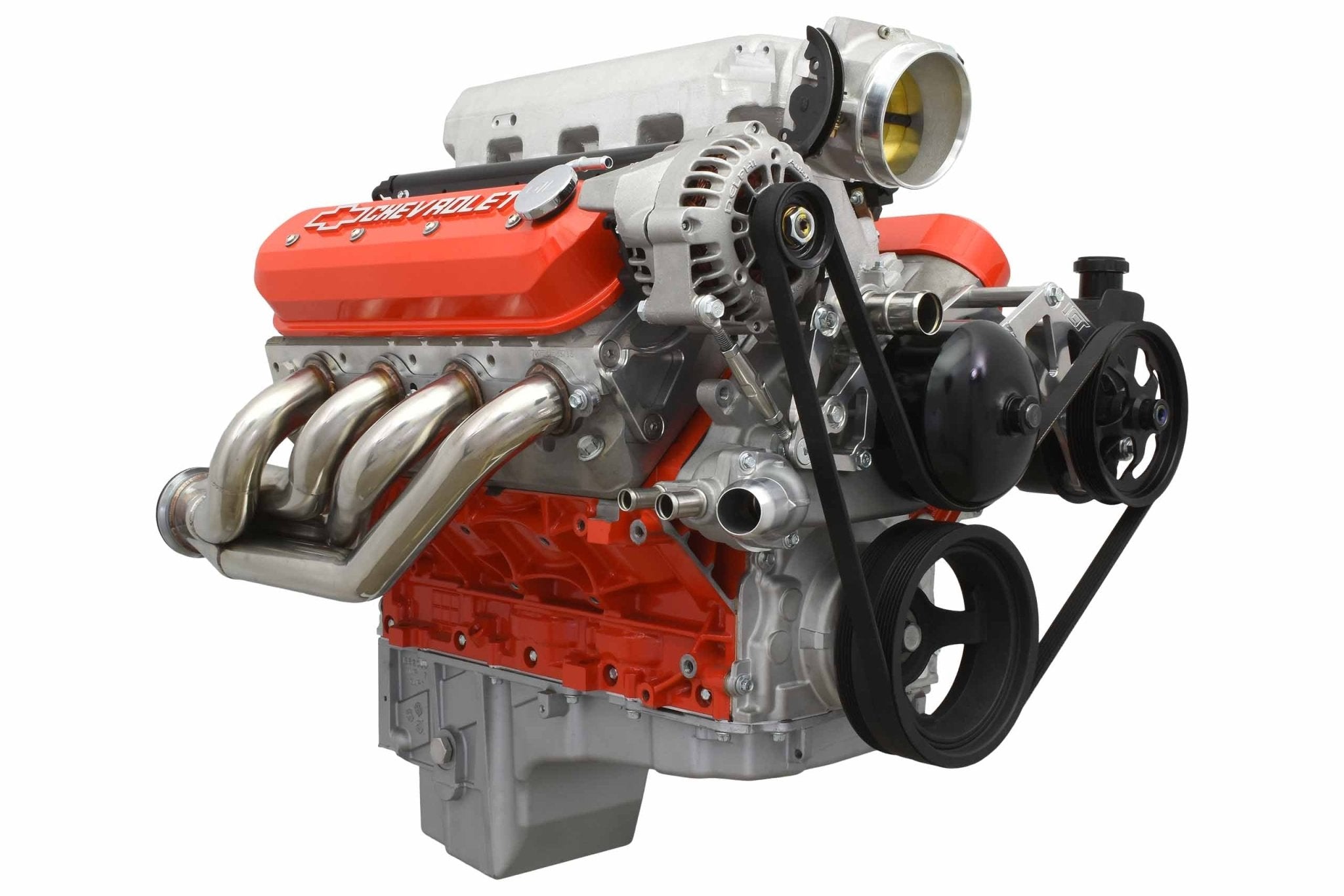

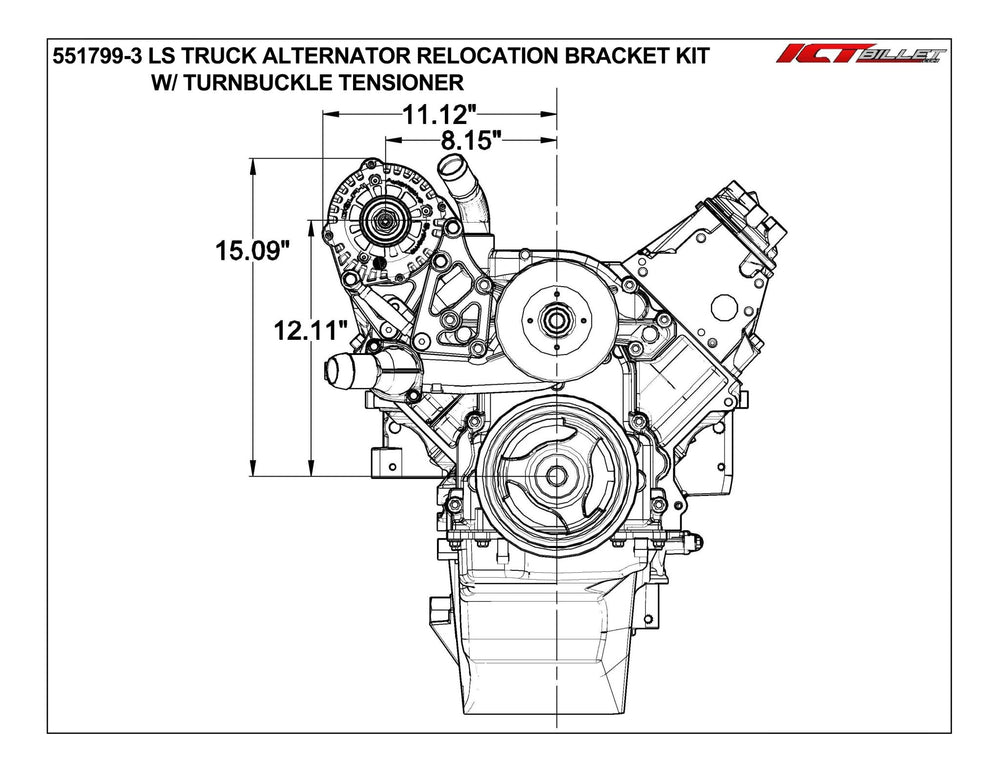

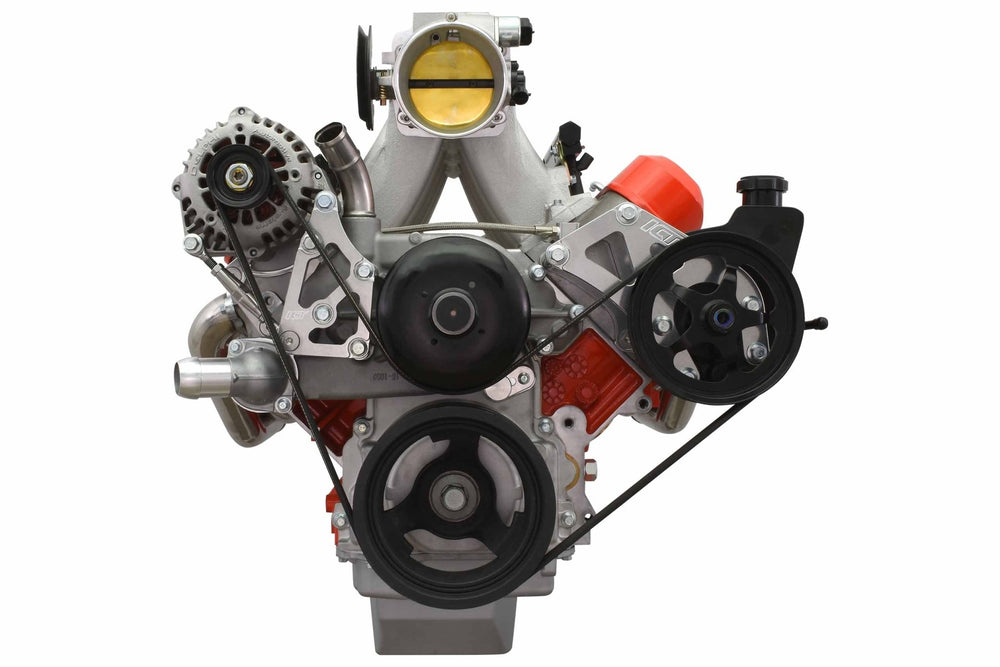

LS Truck Alternator Relocation Heavy Duty Bracket Kit with Turnbuckle Tensioner

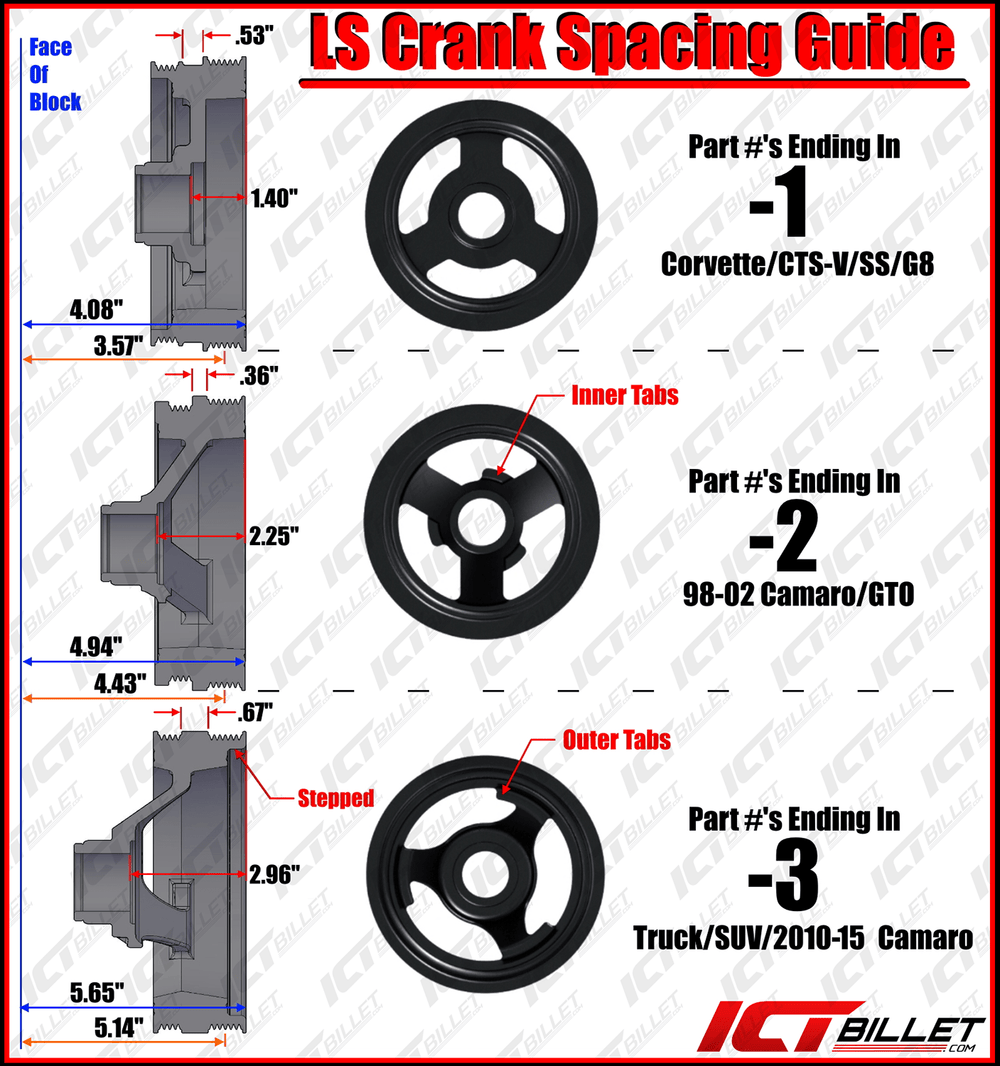

-3 Truck/SUV crank pulley spacing (or LS3/L99 Camaro) (ICT# BAL300/ATI918644)

Compatible with:

• Truck/SUV Water Pump (SKU WAT300) or LS3/L99 Water Pump (SKU WAT302)(Gen 4 "truck" water will NOT fit due to 10 o'clock upper hose exit position)
• Truck/SUV alternator only 105a (We recommend the PowerMaster 165a due to fitment (SKU PWM-584061))
• Will NOT fit Corvette/CTSV 2010-15 Camaro bolt pattern alternators. Will fit any other LS powered vehicle alternator bolt pattern.
• Can be used with LS1 Camaro / Corvette water pump (SKU WAT200) with (SKU 551690-71) water pump spacers (Some water pump trimming may be required due to missing bolt hole in LS1 water pumps.) Use 2010-2015 LS3 Camaro water pump to avoid this SKU WAT302)

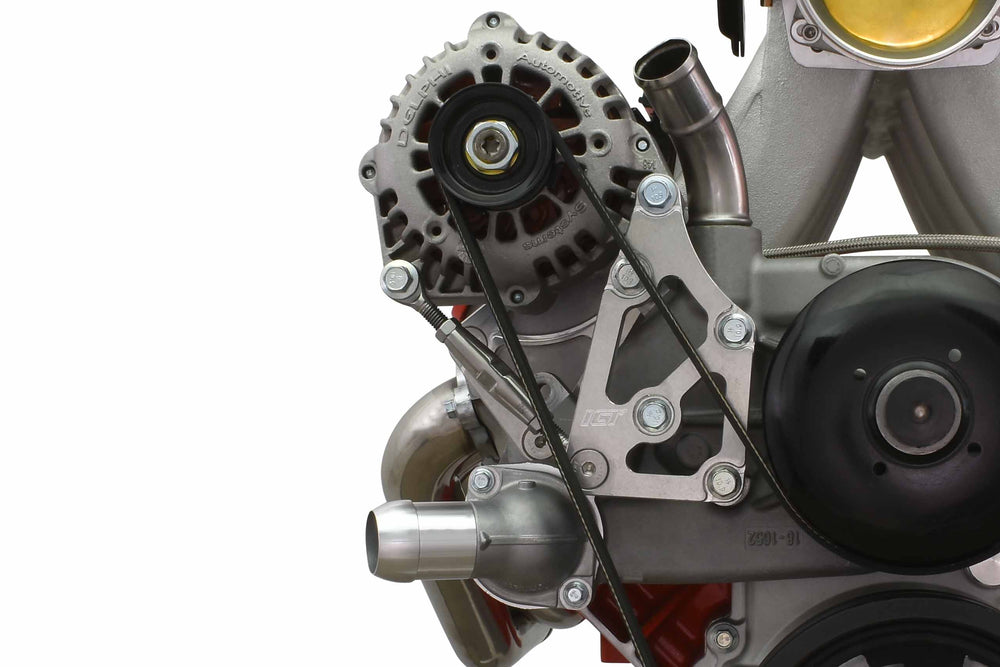

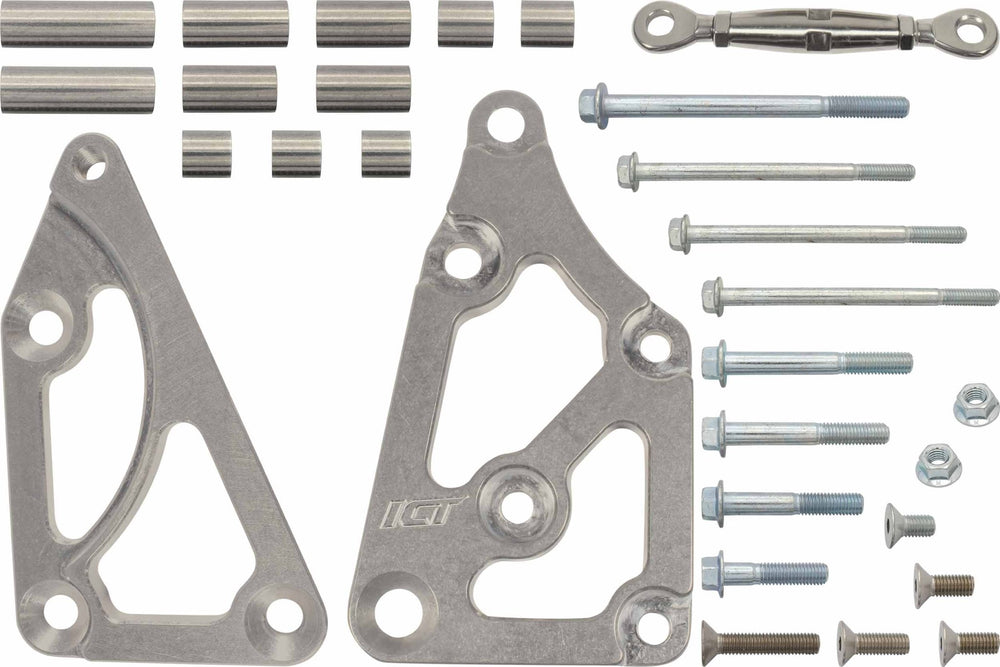

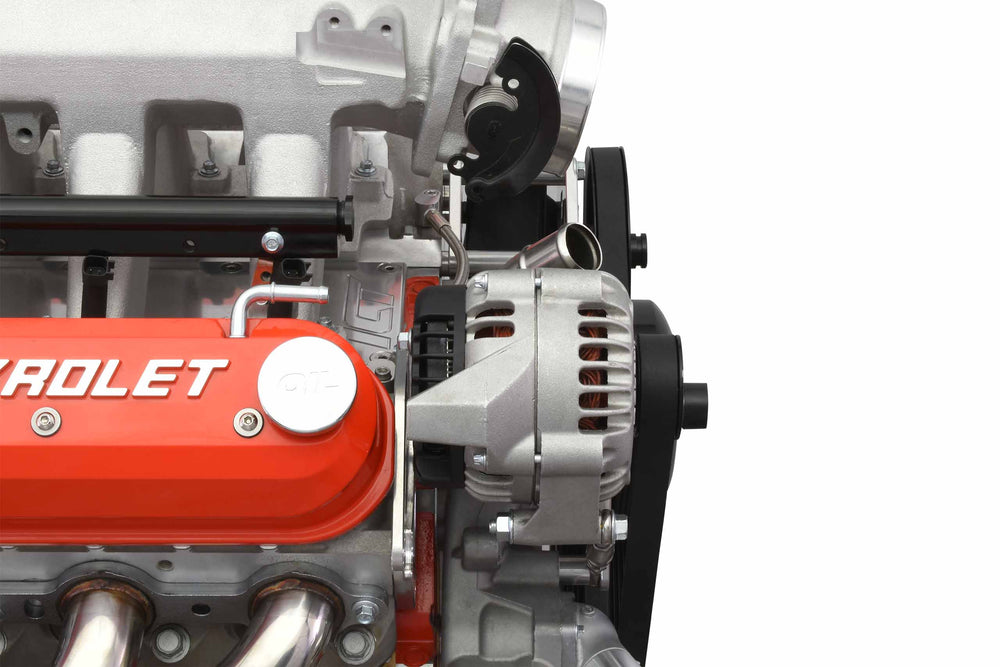

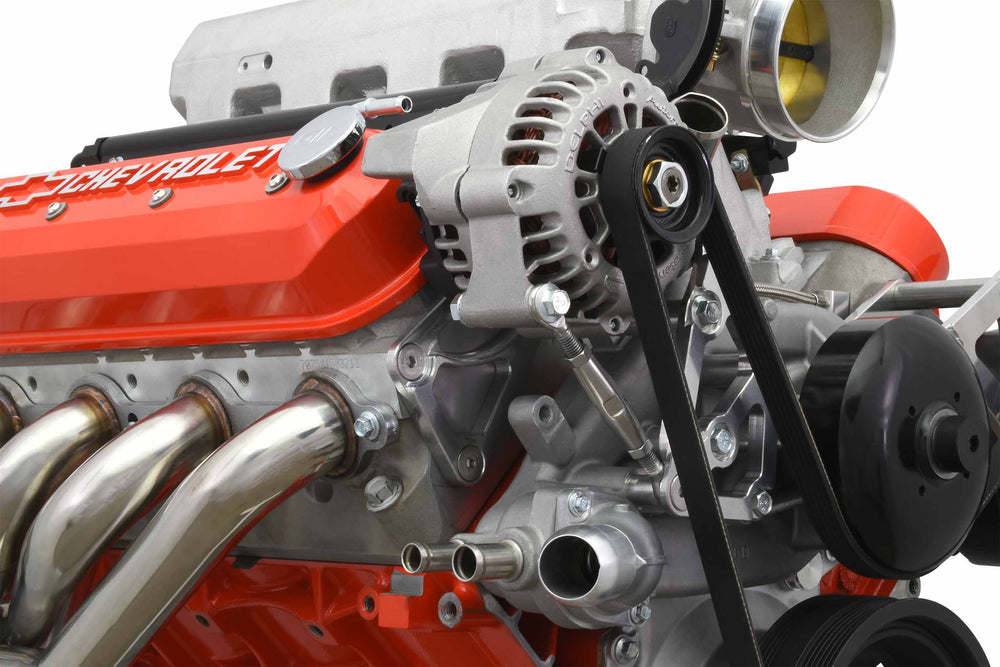

• Includes: alternator bracket with turnbuckle belt tensioner, and mounting hardware
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Can be used with factory low mount A/C compressor on passenger side
• Compatible with LS3 Throttle Body Rotation Adapter (551781) when using with LS3 Camaro Intake Manifold and Throttle Body
• If needing to extend your alternator harness connection, use ICT# WEALT

*If using Truck water pump it must use GM/ACDelco for proper fitment

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Truck 94-04


Compatible with 660K6 (66.0 inch) belt when used with ICT Billet 551581 power steering kit. NOT compatible with ICT #551675 coolant crossover kit with steam vent port

Belt lengths when used with:

• 551127 860K6 with 105amp alt
• 551321-LS01 680K6 with 105amp alt
• 551523 672K6 with 105amp alt
• 551785 672K6 with 105amp alt
• 551706 770K6 with 105amp alt
• 551776 625K6 with 105amp alt
• 551779 890K6 with 105amp alt
