LS Throttle Body Adapter / 3 Bolt Intake to 4 Bolt TB - ICT Billet 551513
Cliquez pour ouvrir la vue développée
LS 3-Bolt DBW & DBC Intake to LS/LT1 102mm Throttle Body Adapter - ICT Billet 551513-102
Cliquez pour ouvrir la vue développée
Nick Williams 112mm LS Electronic Throttle Body - ICT Billet NW-112LSXBK
Cliquez pour ouvrir la vue développée
LS Throttle Body Adapter / 3 Bolt Intake to 4 Bolt TB - ICT Billet 551513
Cliquez pour ouvrir la vue développée
LS Throttle Body Adapter / 3 Bolt Intake to 4 Bolt TB - ICT Billet 551513

LS 3-Bolt Intake to LS/LT1 4-Bolt Throttle Body Adapter

Prix de vente
$46.99
Prix habituel
$55.99
Vous sauvegardez
16%
UGS#: 551513
En stock et prêt pour l'expédition

Description du produit

LS 3 Bolt Intake to LS/LT1 4 Bolt Throttle Body Adapter

Product Details:

*NOT compatible with mechanical throttle body intake

  • 75mm through hole, tapers to 92mm

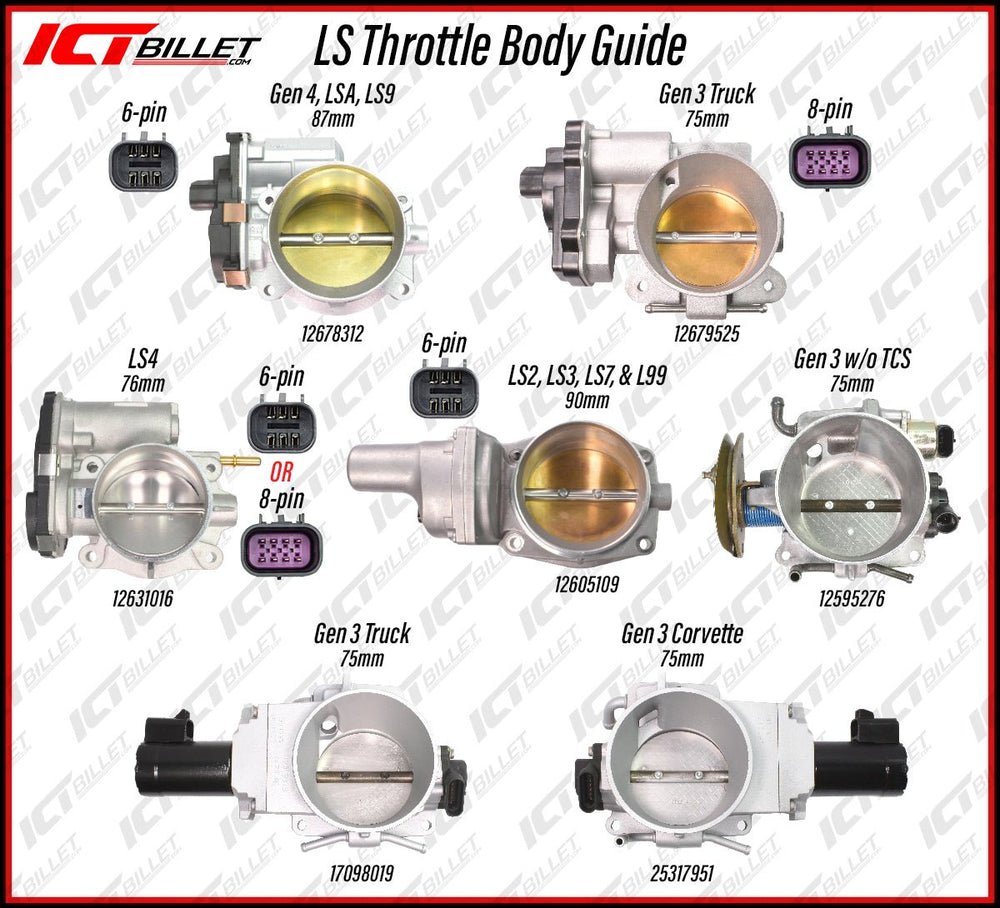

  • Compatible with 75-92mm throttle bodies LS 4-bolt (except LS4) and Gen V: LT1, LT2, LT4, L86, L87, L8B, L8P, L8T
  • Compatible with 75-103mm intake manifold that use to have LS 3-bolt electronic DBW throttle body (2003+ (L33, L59, LM4, LM7, LQ4, LQ9, LR4) (LS1, LS6 Corvette 1997-04))
  • Plate has 4x M6-1.0mm threaded holes
  • Made in Wichita, Kansas, from 1/2" thick 6061-T6 USA produced billet aluminum
  • Includes: adapter, oring, and mounting bolts

Helpful Links

  • Torque bolts to 106 lb-in
  • Replacement -240 oring
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

LS 3-Bolt Intake to LS/LT1 4-Bolt Throttle Body Adapter

UGS#: 551513
En stock et prêt pour l'expédition
Prix de vente
$46.99
Prix habituel
$55.99
Vous sauvegardez
16%
free shipping over $100

& 90 day returns Policy

Description du produit

LS 3 Bolt Intake to LS/LT1 4 Bolt Throttle Body Adapter

Product Details:

*NOT compatible with mechanical throttle body intake

  • 75mm through hole, tapers to 92mm
  • Compatible with 75-92mm throttle bodies LS 4-bolt (except LS4) and Gen V: LT1, LT2, LT4, L86, L87, L8B, L8P, L8T
  • Compatible with 75-103mm intake manifold that use to have LS 3-bolt electronic DBW throttle body (2003+ (L33, L59, LM4, LM7, LQ4, LQ9, LR4) (LS1, LS6 Corvette 1997-04))
  • Plate has 4x M6-1.0mm threaded holes
  • Made in Wichita, Kansas, from 1/2" thick 6061-T6 USA produced billet aluminum
  • Includes: adapter, oring, and mounting bolts

Helpful Links

  • Torque bolts to 106 lb-in
  • Replacement -240 oring
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

Product Specifications

Manufacturer Part Number UPC Weight Length Width Height Made in
ICT Billet 551513 656729845134 0.84 lb 5 po 5 po 0,5 po USA
