LS Sanden 7176 A/C Compressor Bracket Kit Tight Fit w/ Low Mount Tensioner LQ4 L33 AC Turbo

LS "Tight Fit" Sanden 7176 A/C Compressor Bracket w/ Tensioner

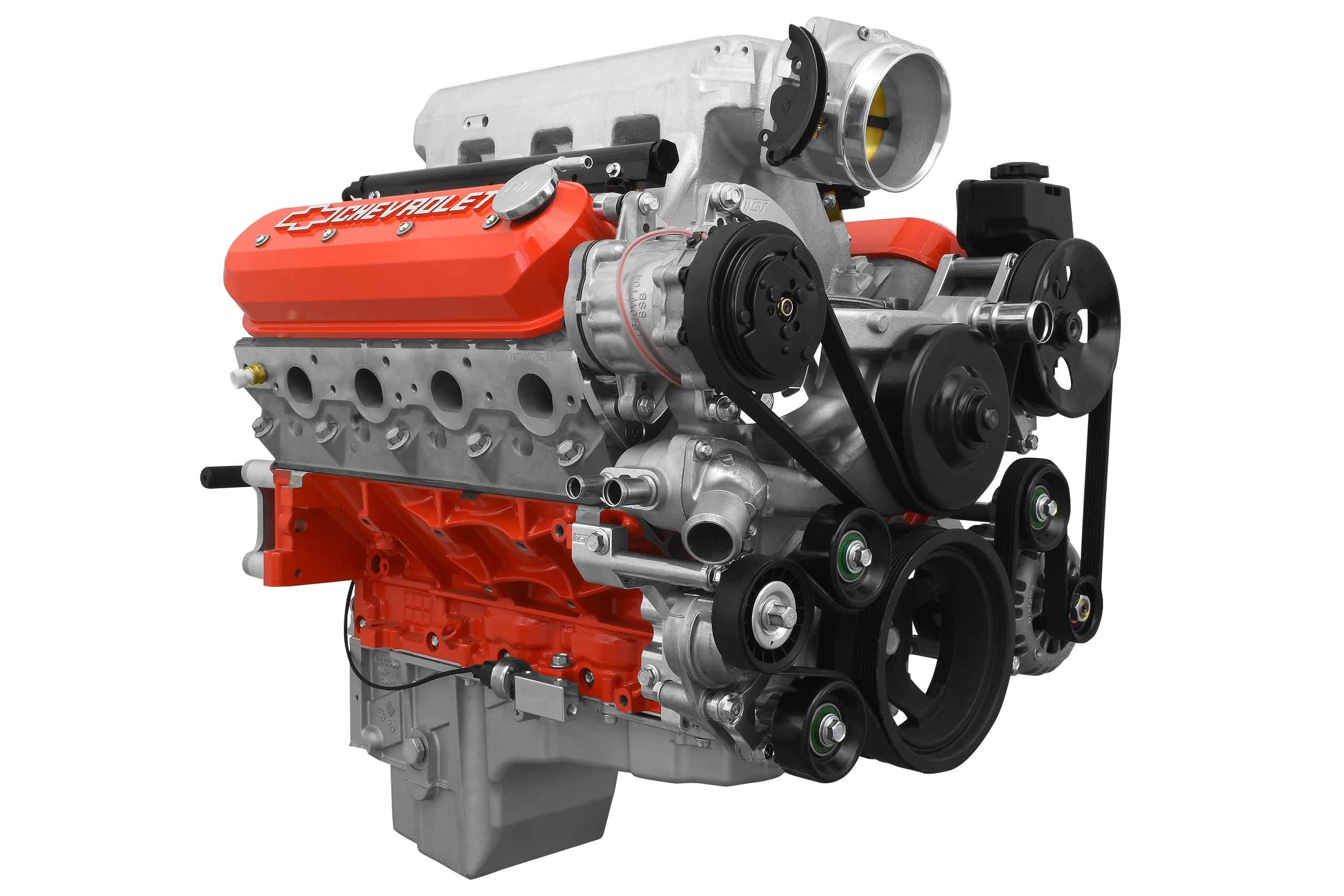

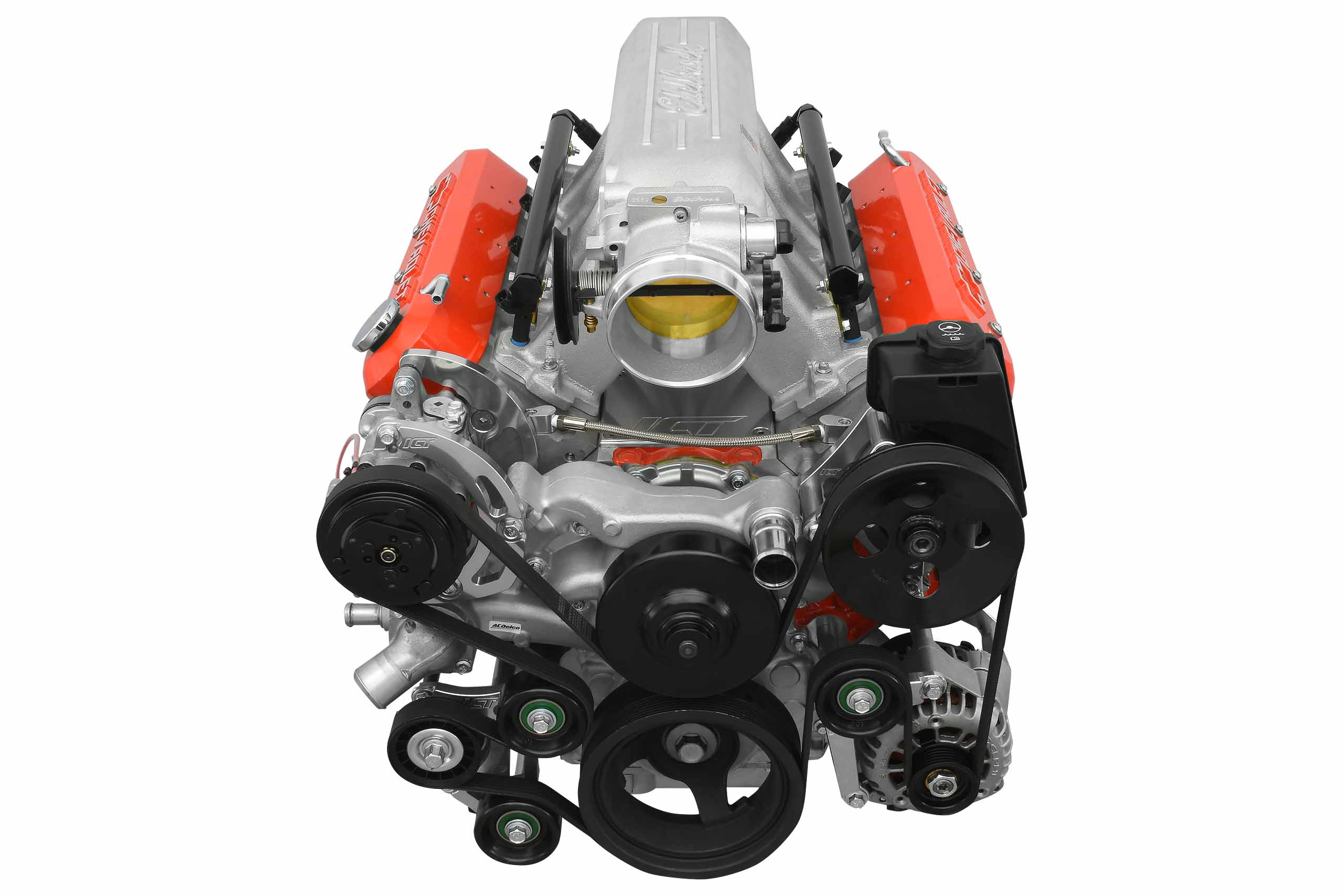

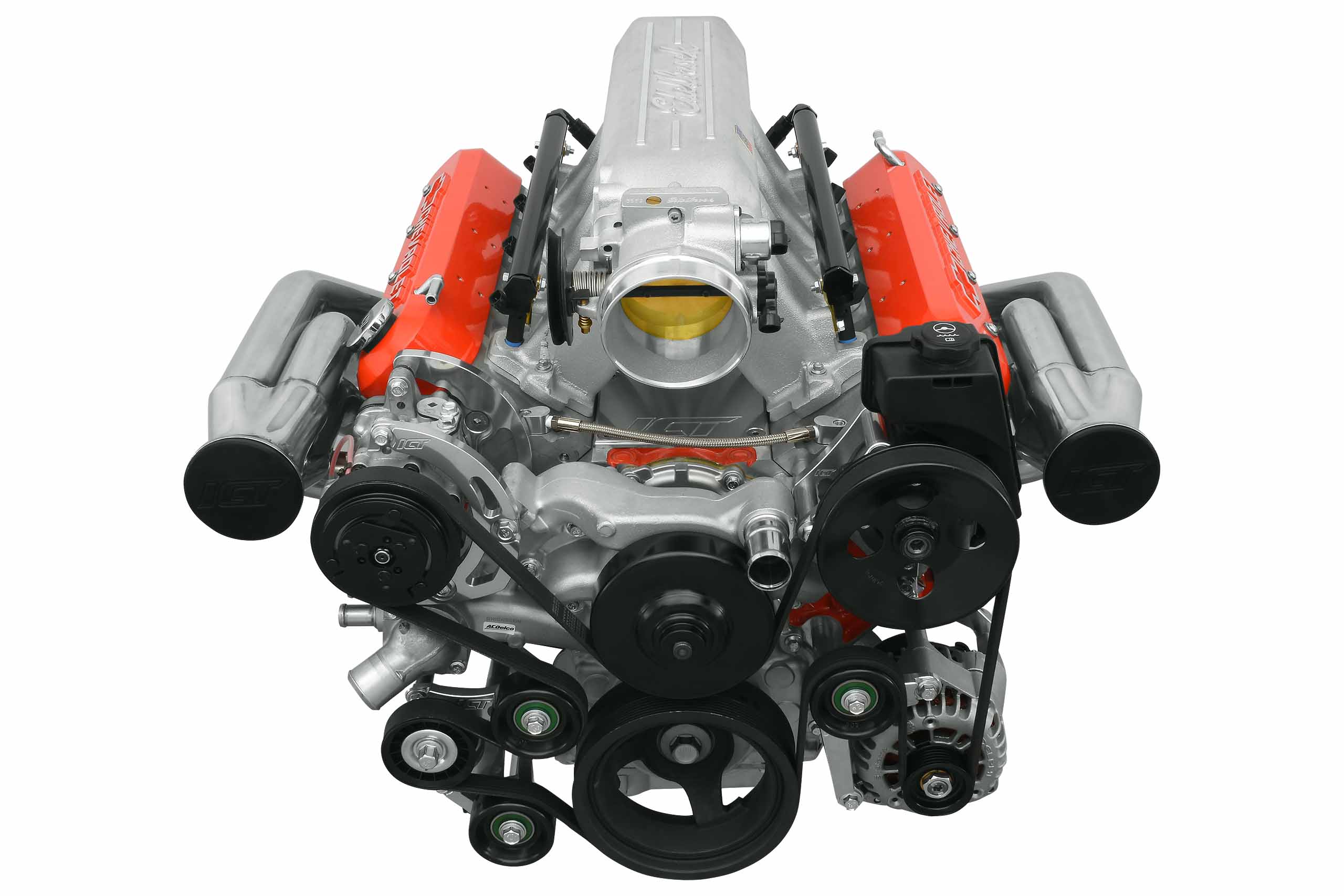

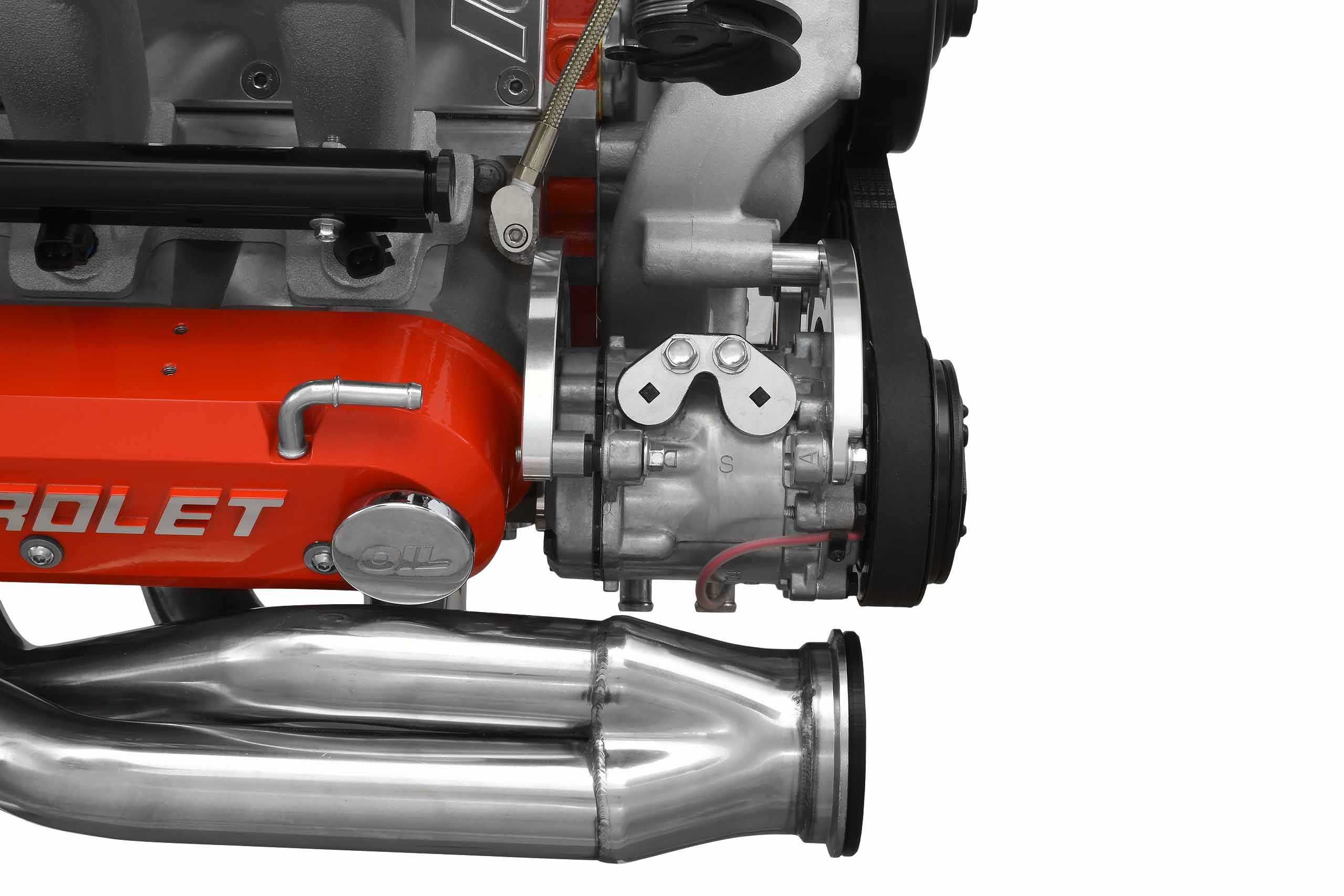

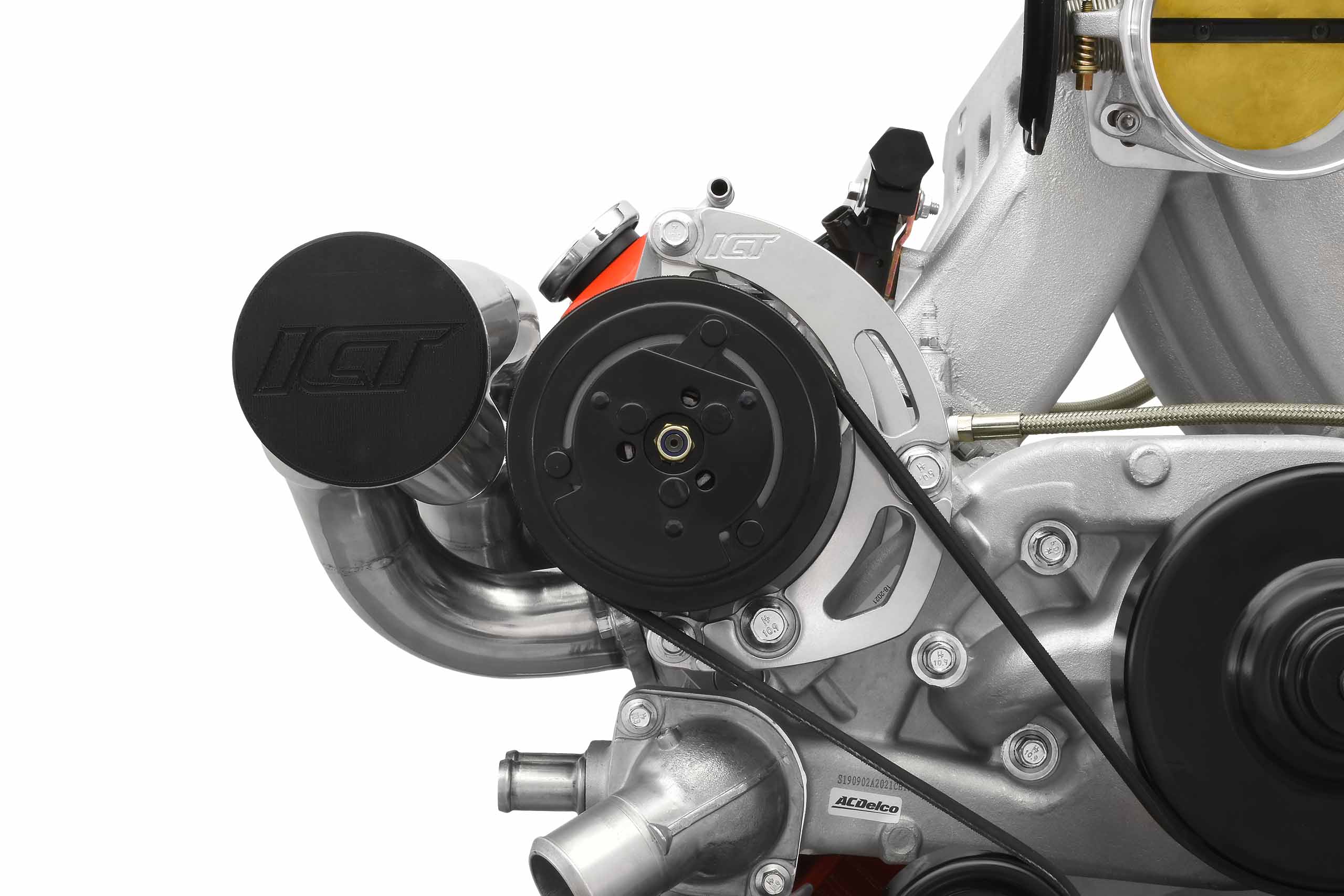

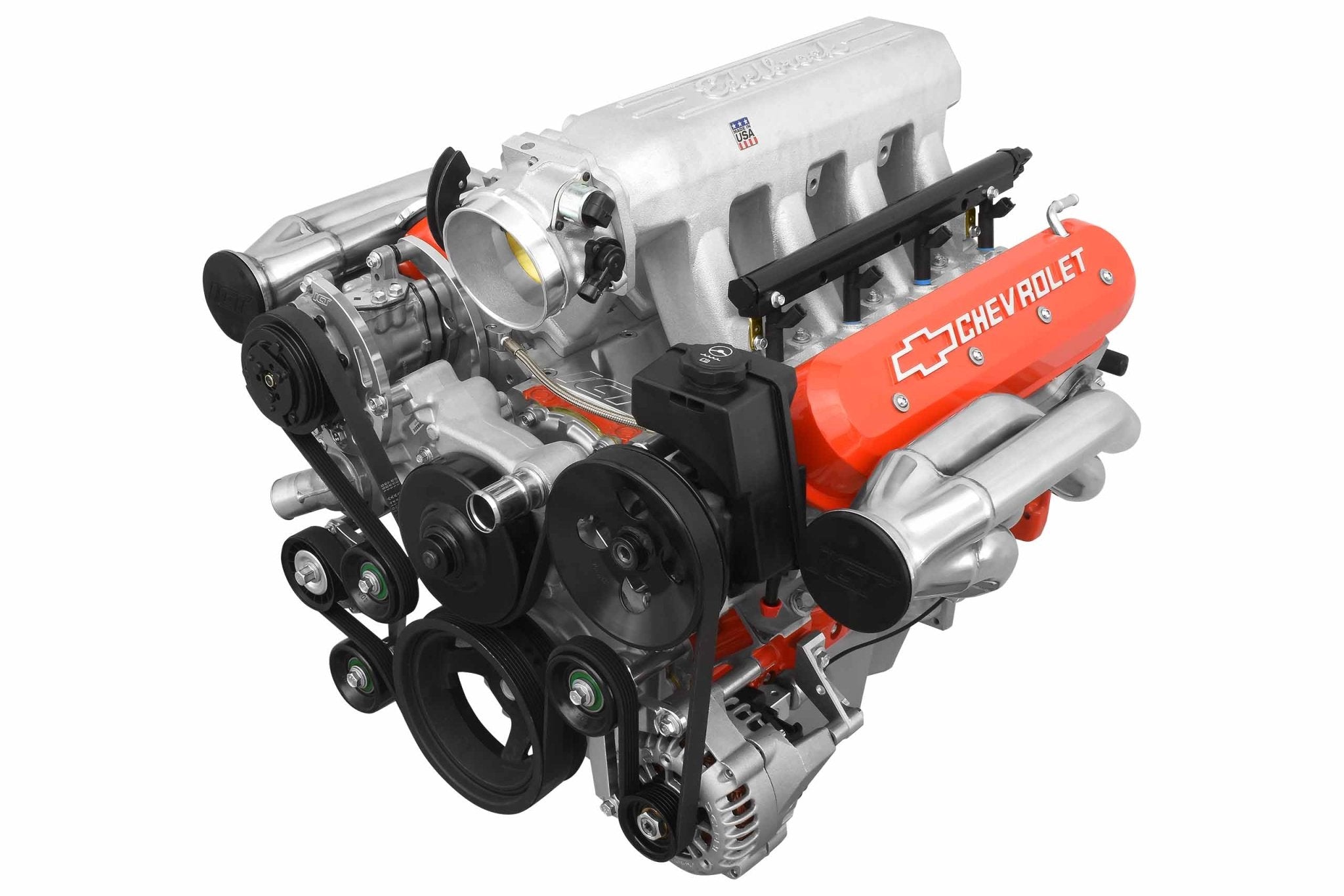

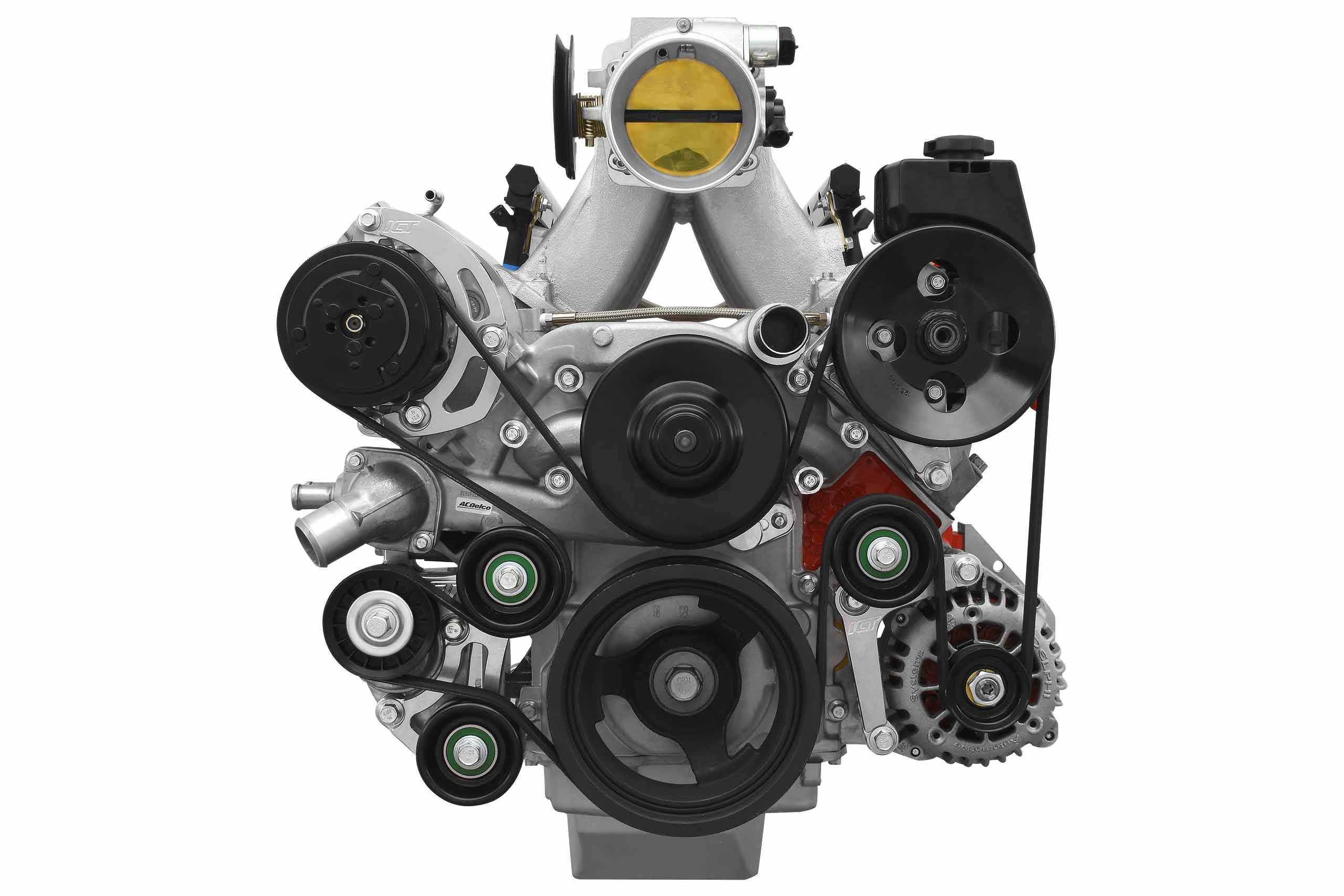

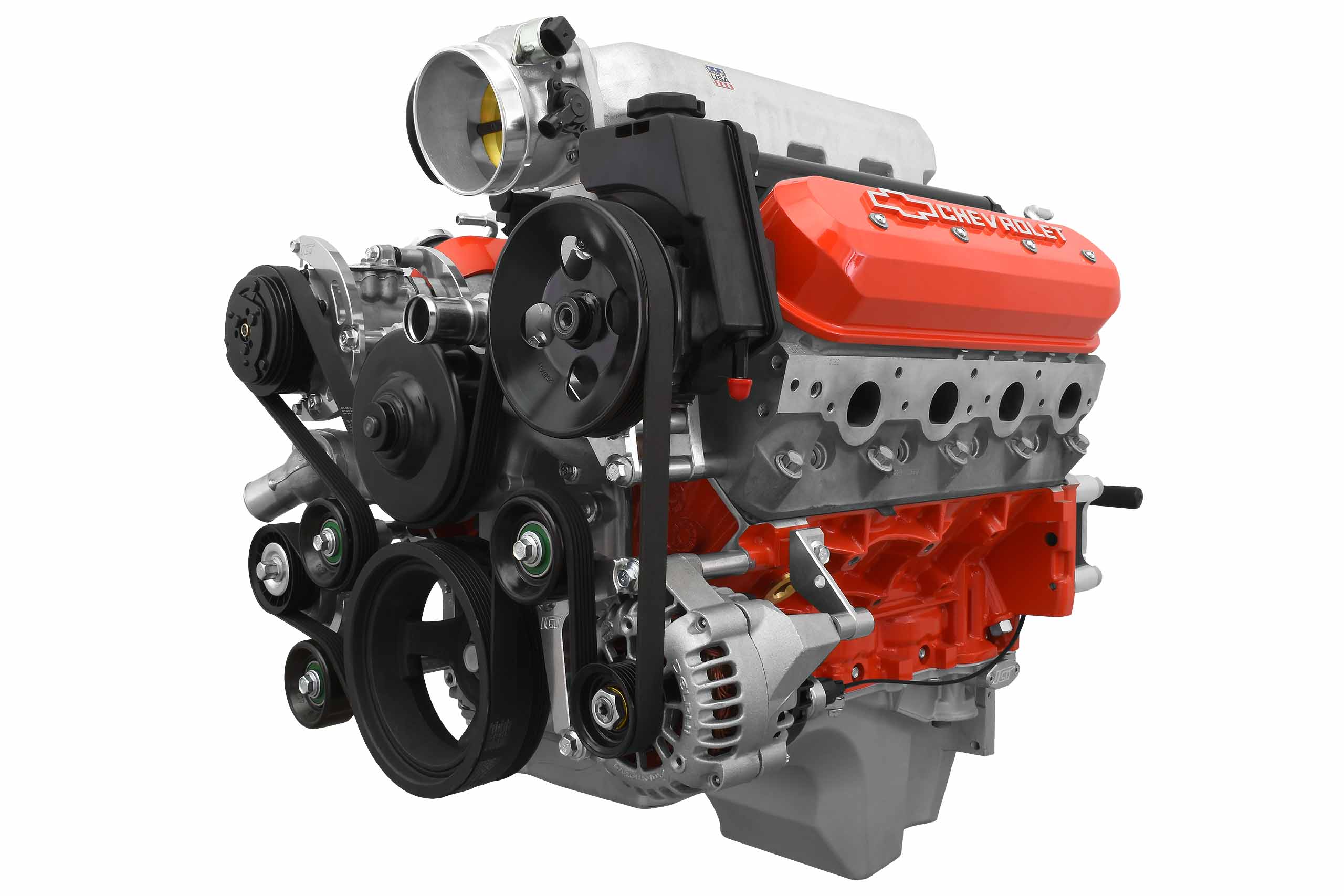

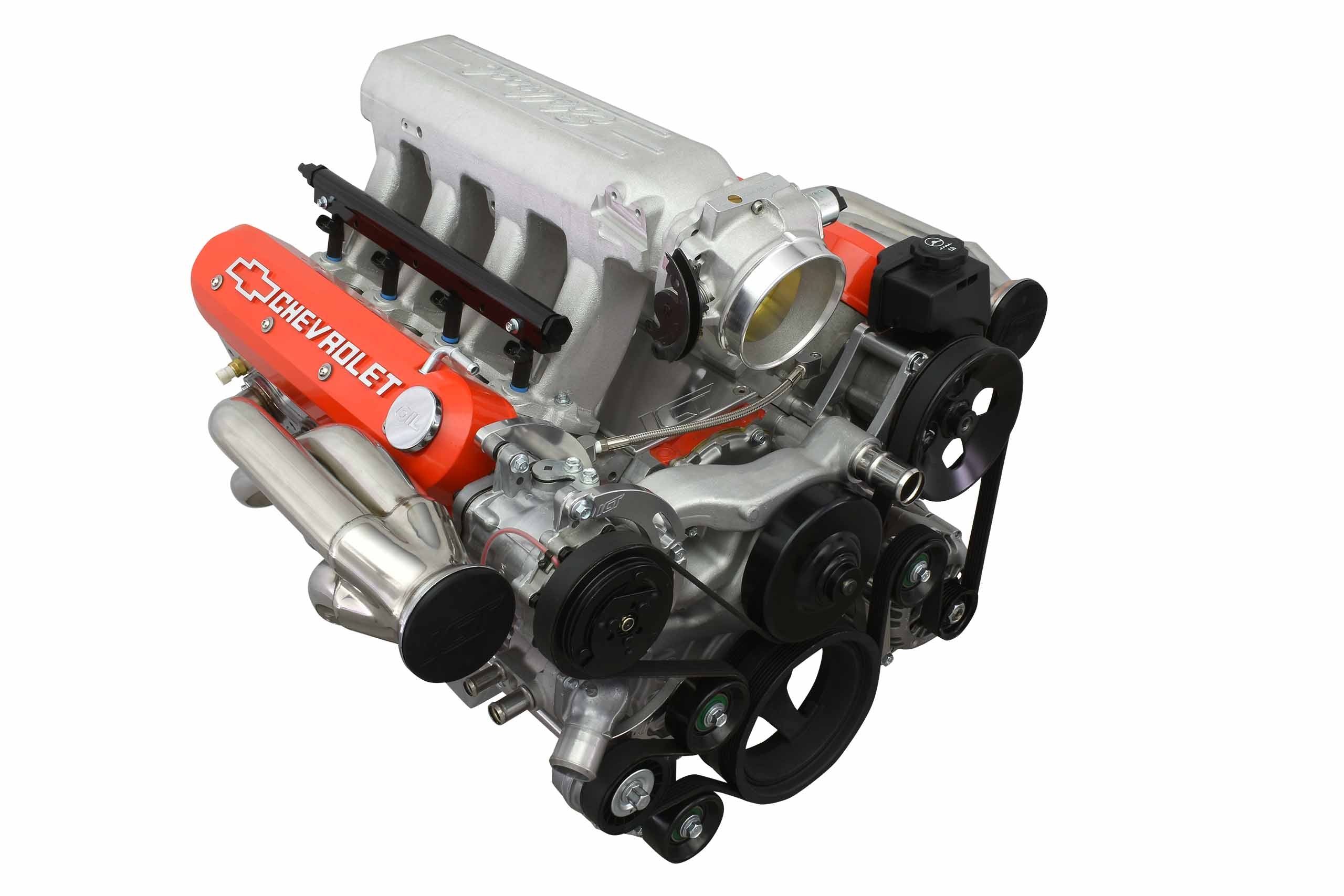

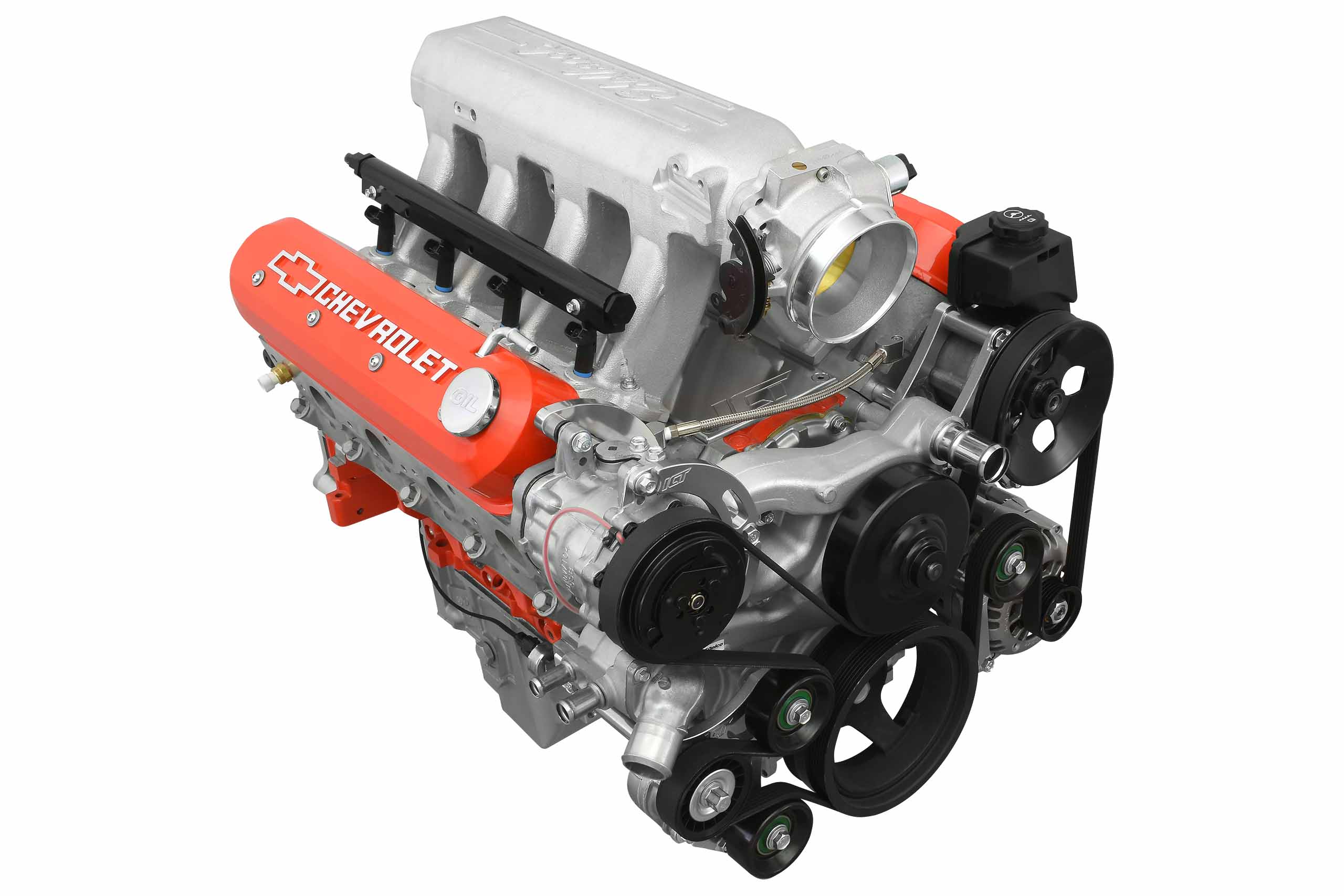

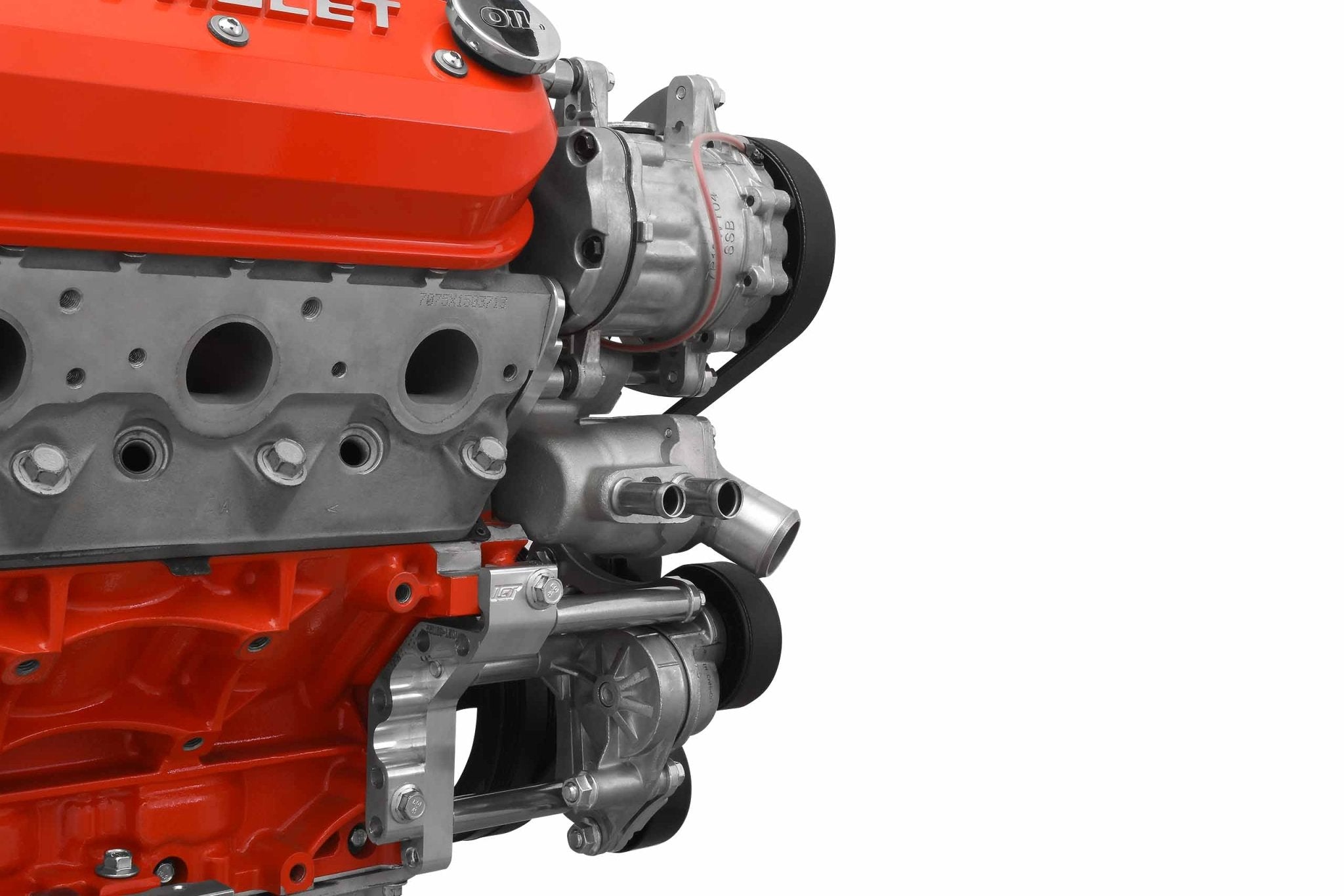

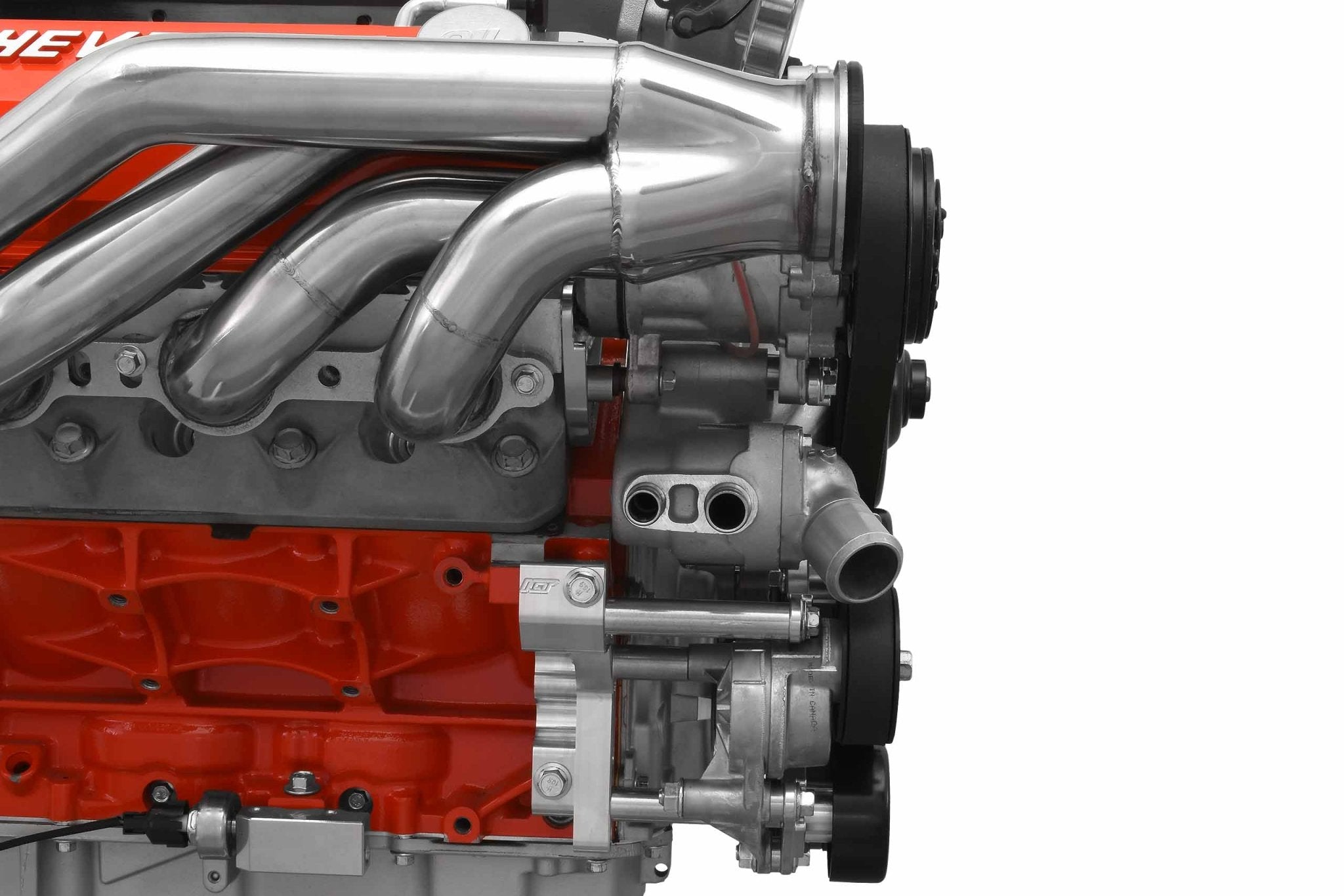

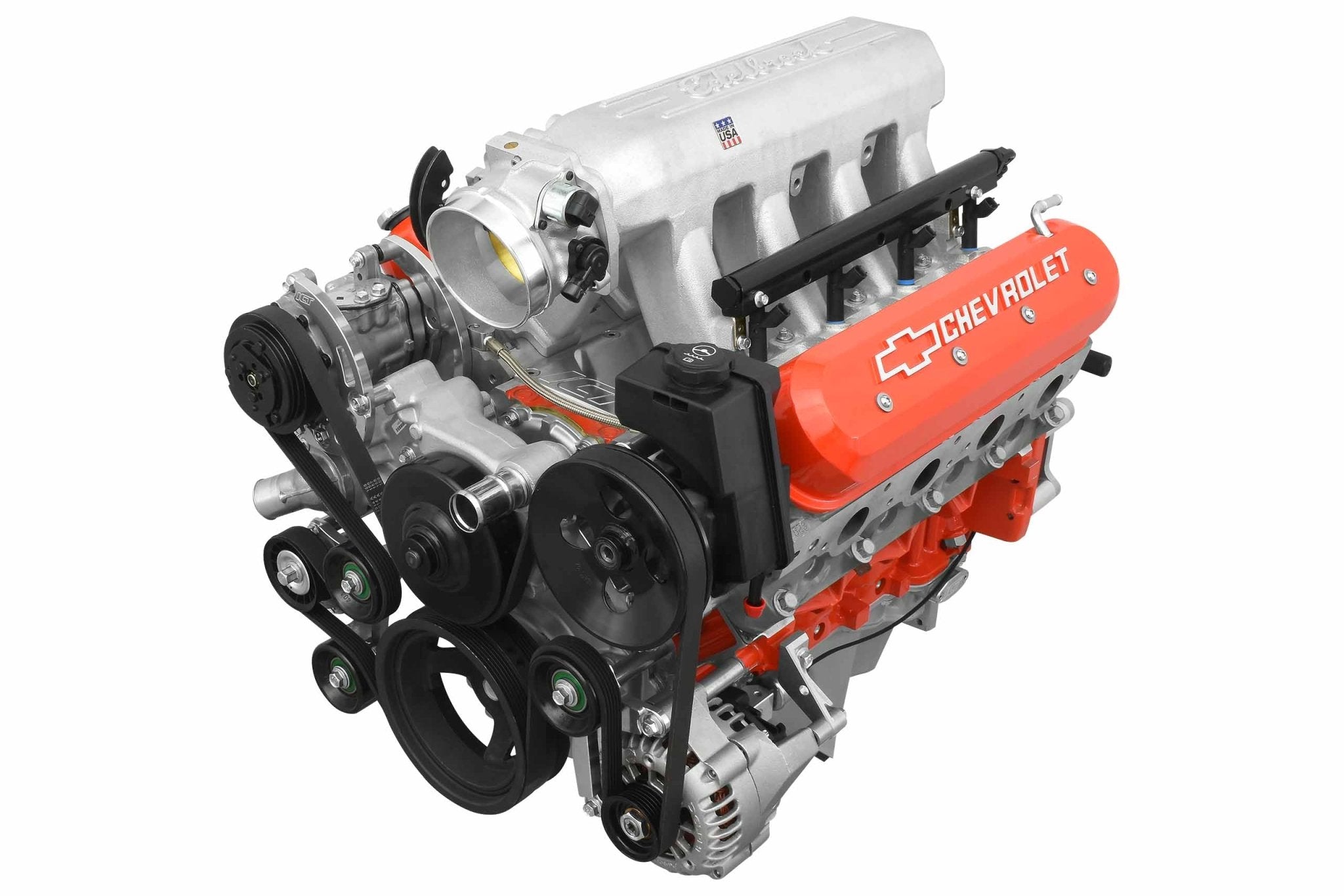

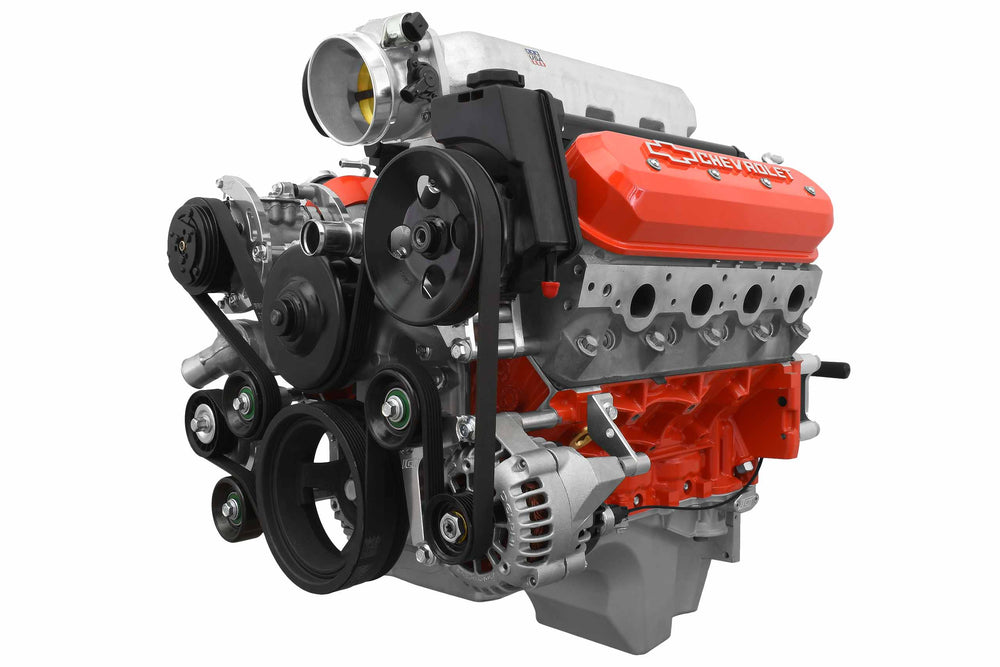

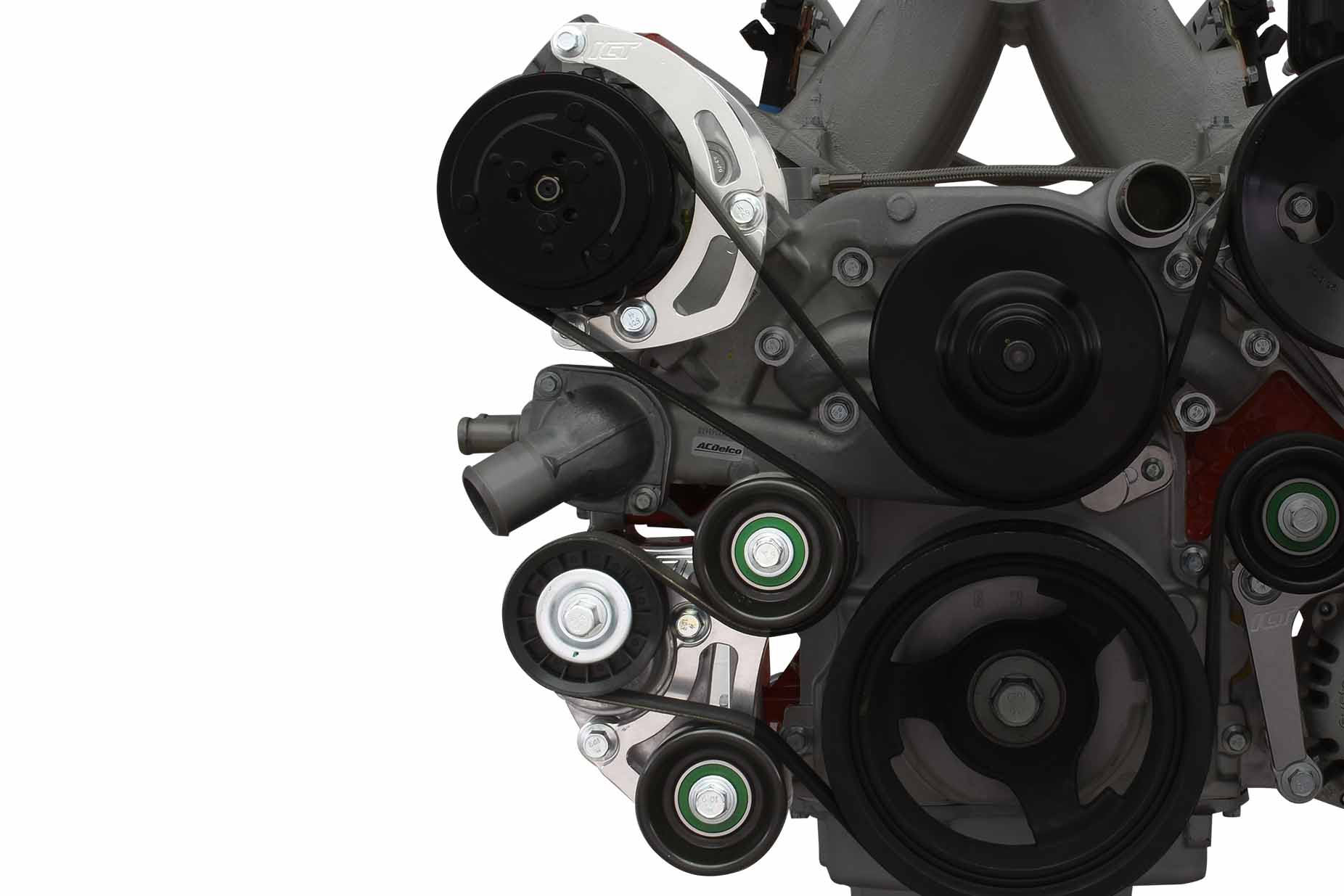

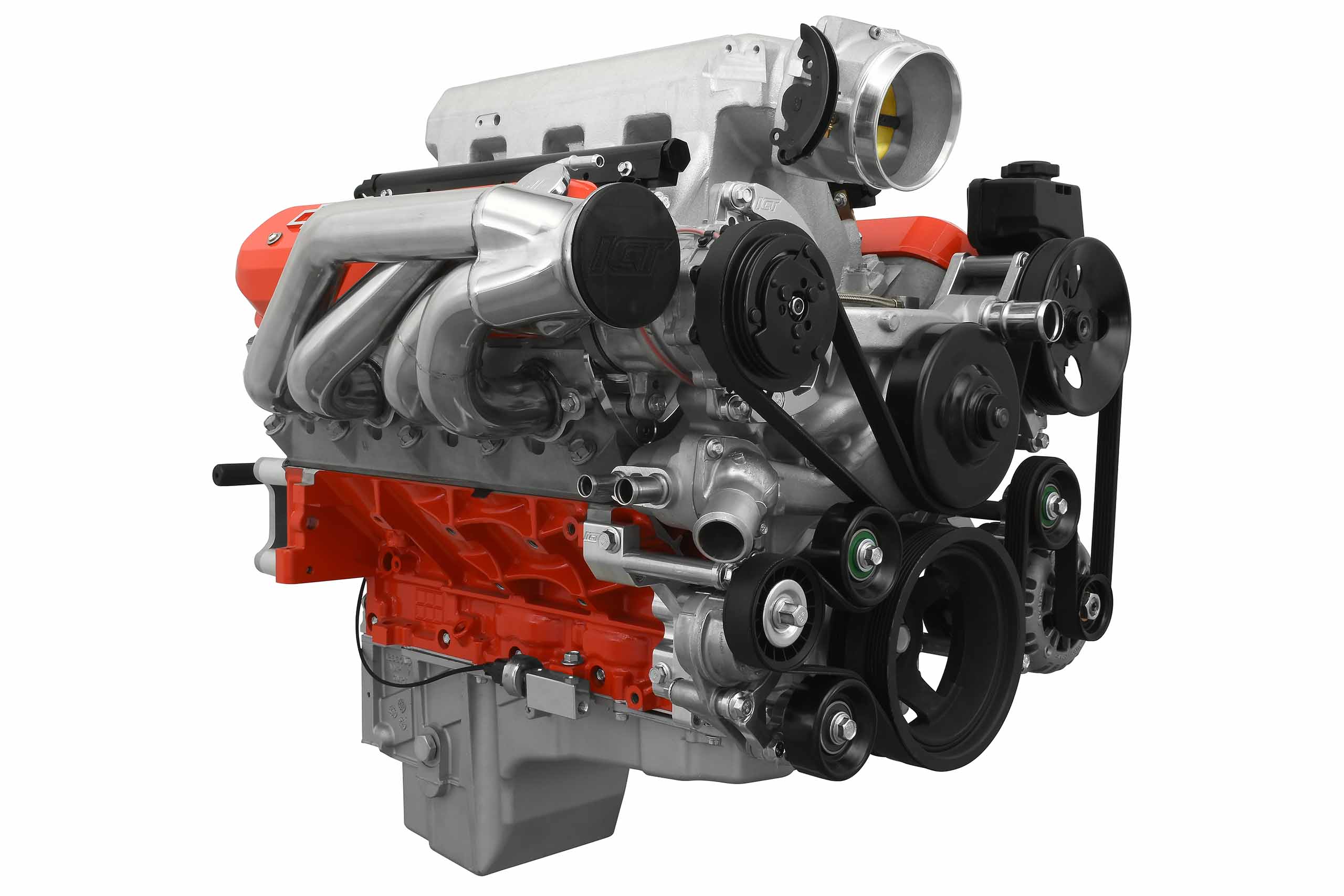

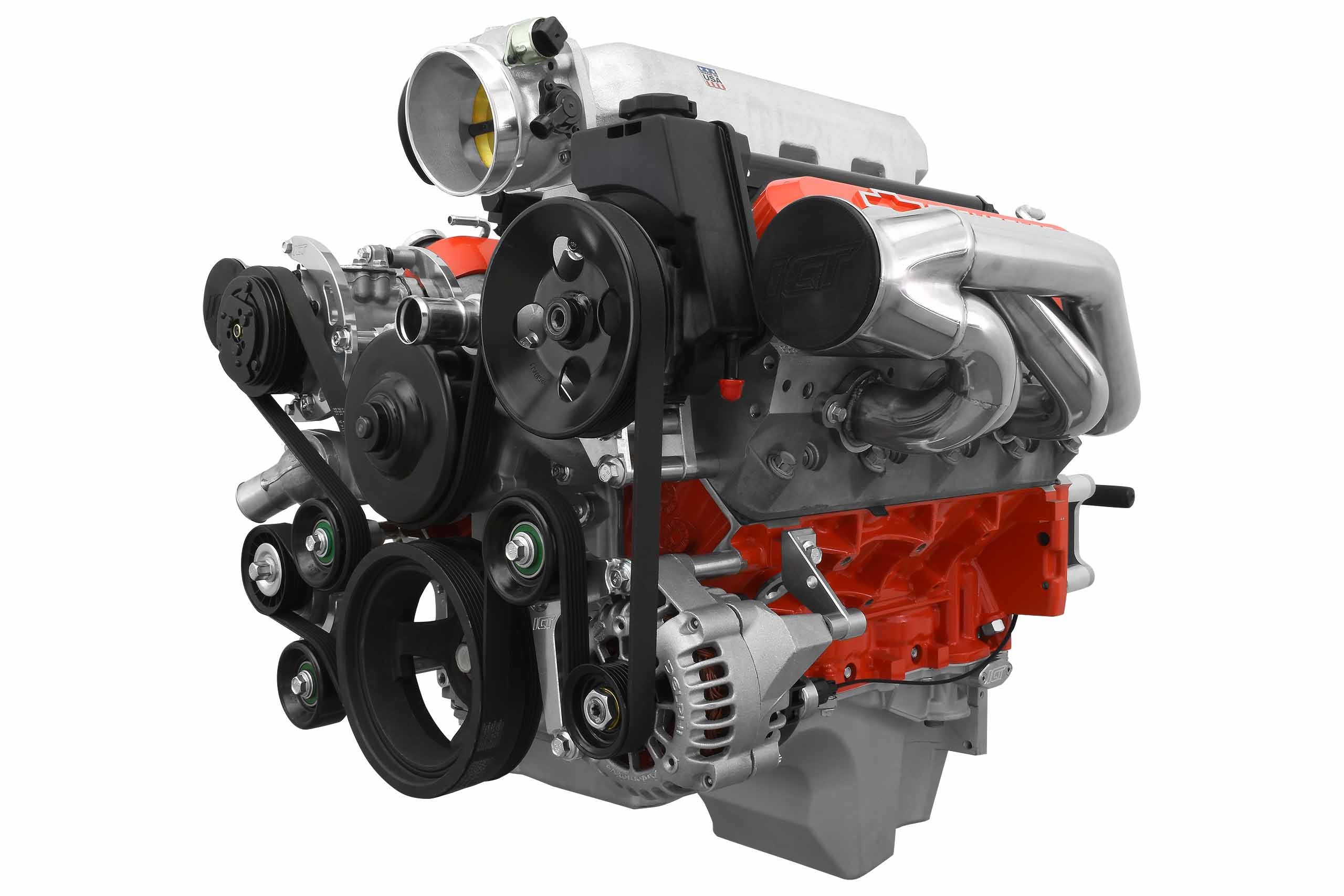

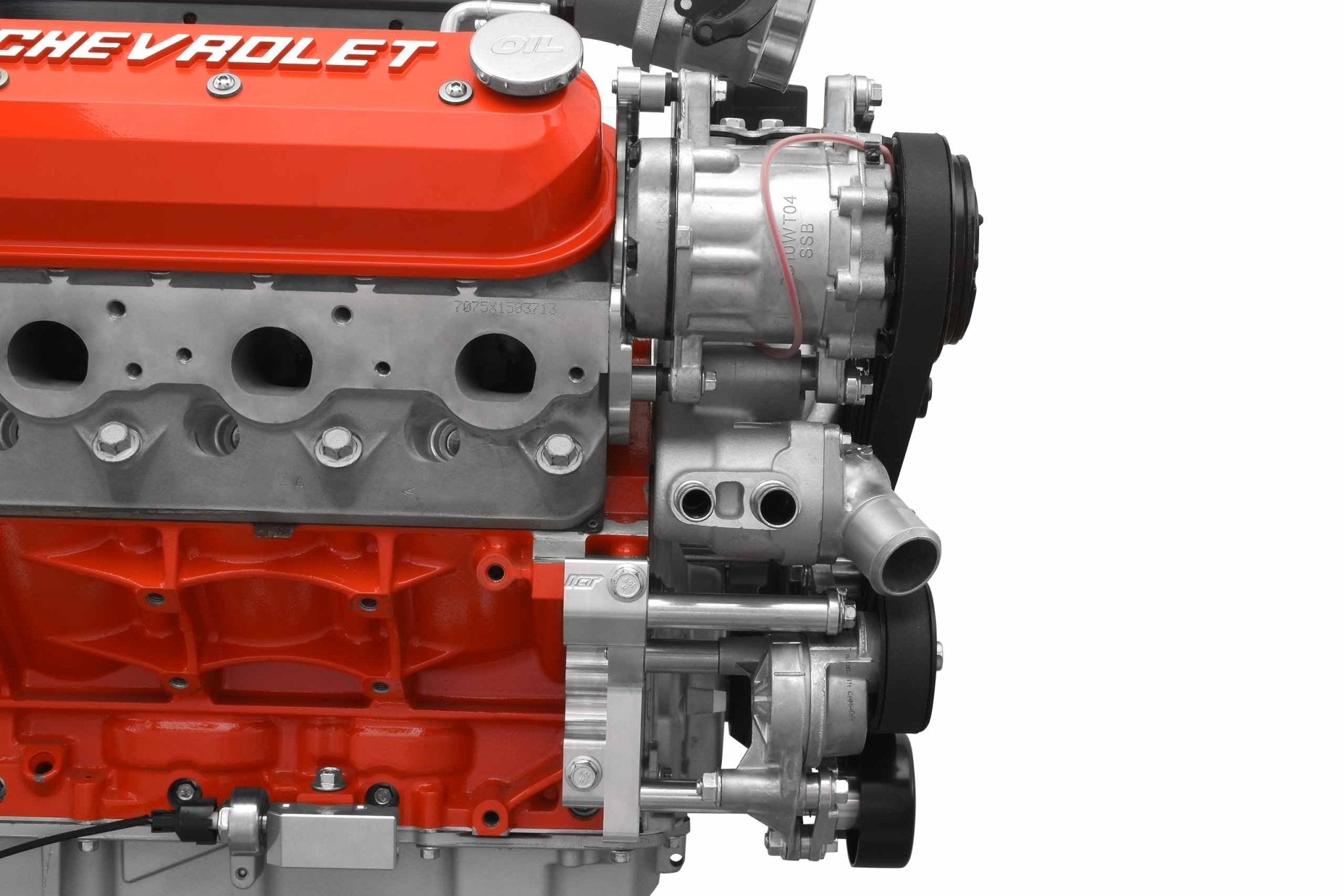

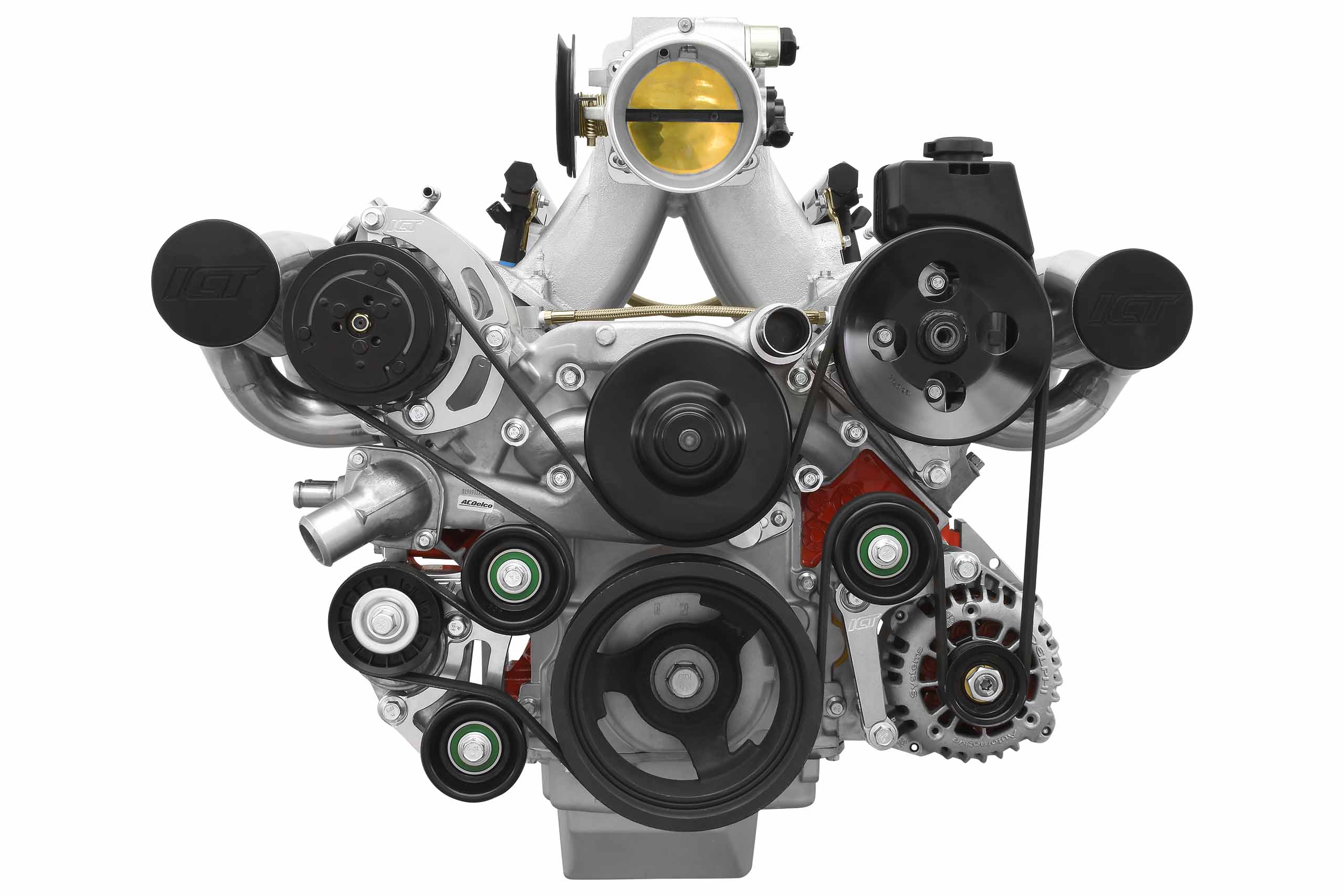

Mounts a Sanden 7176 compressor tight in front of the passenger cylinder head to provide more room to the side of the cylinder head. Great for turbo setups

• Compatible with truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Compatible with all truck-spacing water Pumps - Gen 3 & 4 truck, LS3/L99 Camaro, and LS1 Camaro (w/ 551690-71 spacers)

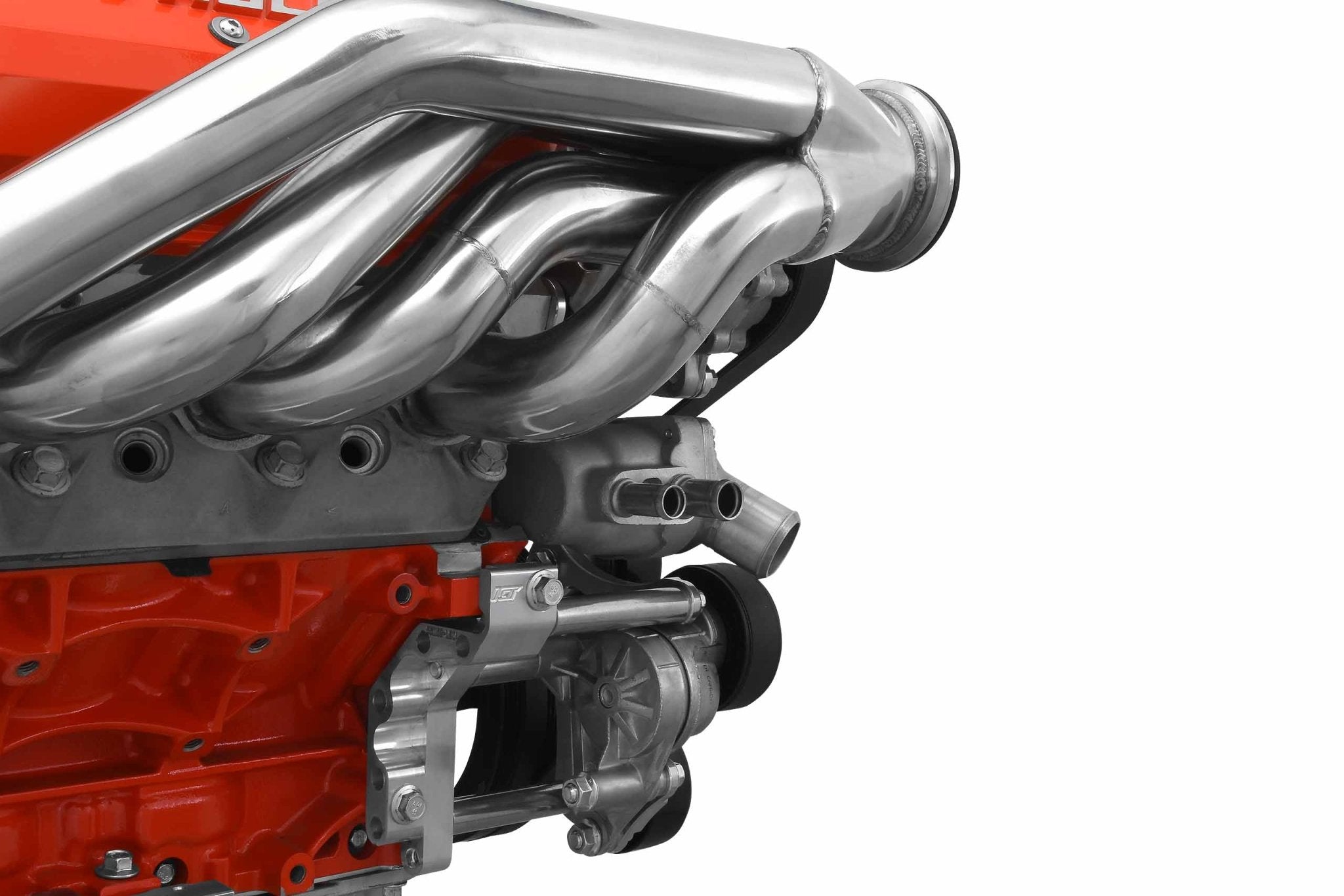

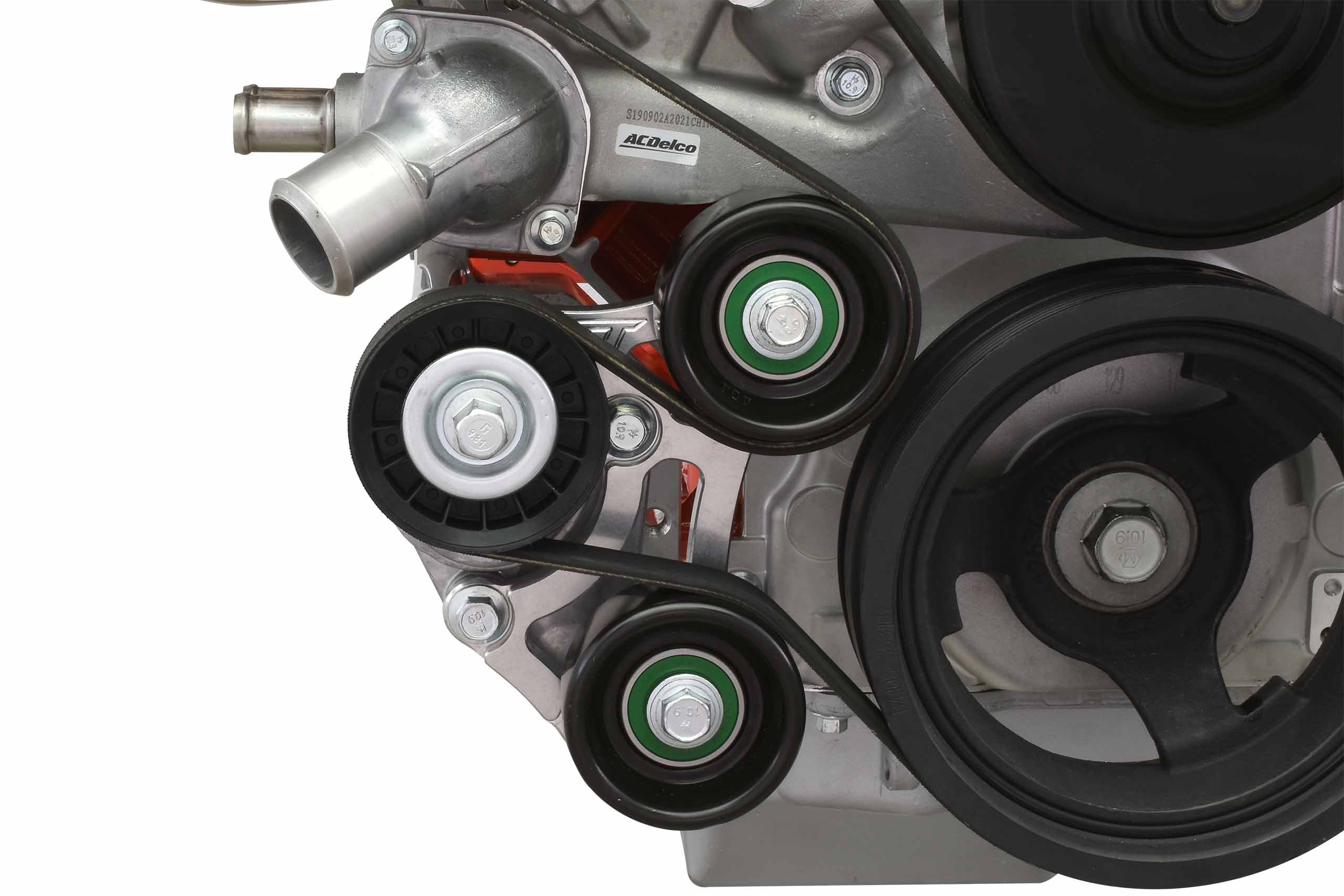

• Includes: ICT Billet low mount belt tensioner bracket (ICT# 551527-LS01-3)

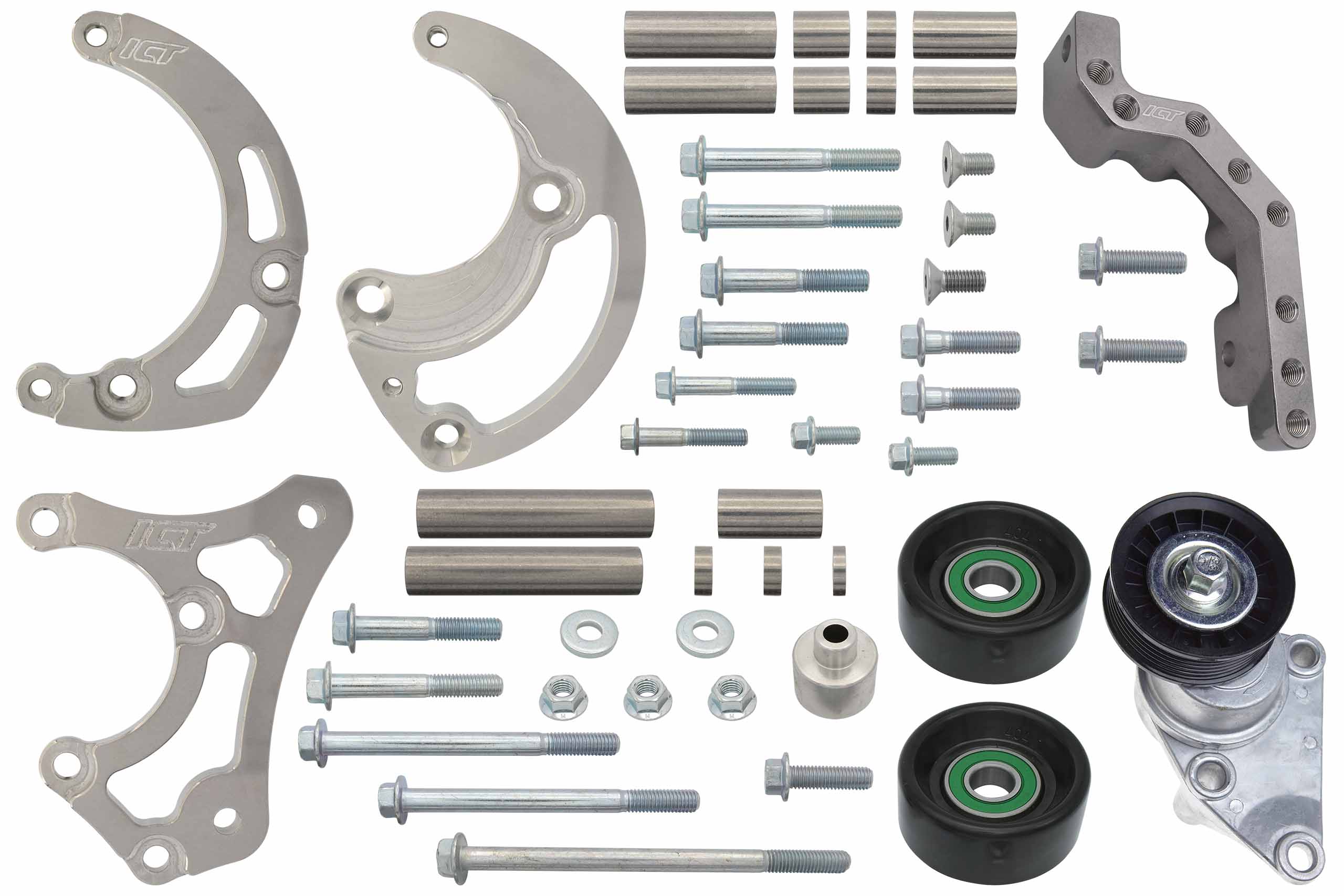

• Package includes: compressor bracket, tensioner and tensioner bracket, idler pulleys, and mounting hardware
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

*note - this does NOT fit factory style LS vehicle A/C compressors. This bracket is only for Sanden 7176 compressors

Belt lengths when used with:

• Factory truck alternator/power steering bracket 1095K6 with 105amp alt / or 1110K6 with 145+amp alt
• 551353 945K6 105amp alt / 955K6 145+amp alt
• 551362 1015K6 105amp alt
• 551519X 937K6 105amp alt / 945K6 145+amp alt
• 551521X-1 960K6 105amp alt / 968K6 145+amp alt
• 551566 915K6 105amp alt / 925K6 145+amp alt
• 551577 888K6 105amp alt / 895K6 145+amp alt
• 551668 720K6 105amp alt / 715K6 145+amp alt
• 551669-2 55K6 105amp alt / 960K6 145+amp alt
• 551747 930K6 105amp alt / 960K6 145+amp alt
• 551777-3 1095K6 105amp alt / 1110K6 145+amp alt
• 551778 955K6 105amp alt / 965K6 145+amp alt
