Wire Pigtail - LS Intake Air Temperature IAT Pigtail
Prix de vente
$23
Prix habituel
$30
Vous sauvegardez
23%
UGS#: WPIAT30
En stock et prêt pour l'expédition
Description du produit
Wire Pigtail - LS Intake Air Temperature IAT Pigtail
Product Details

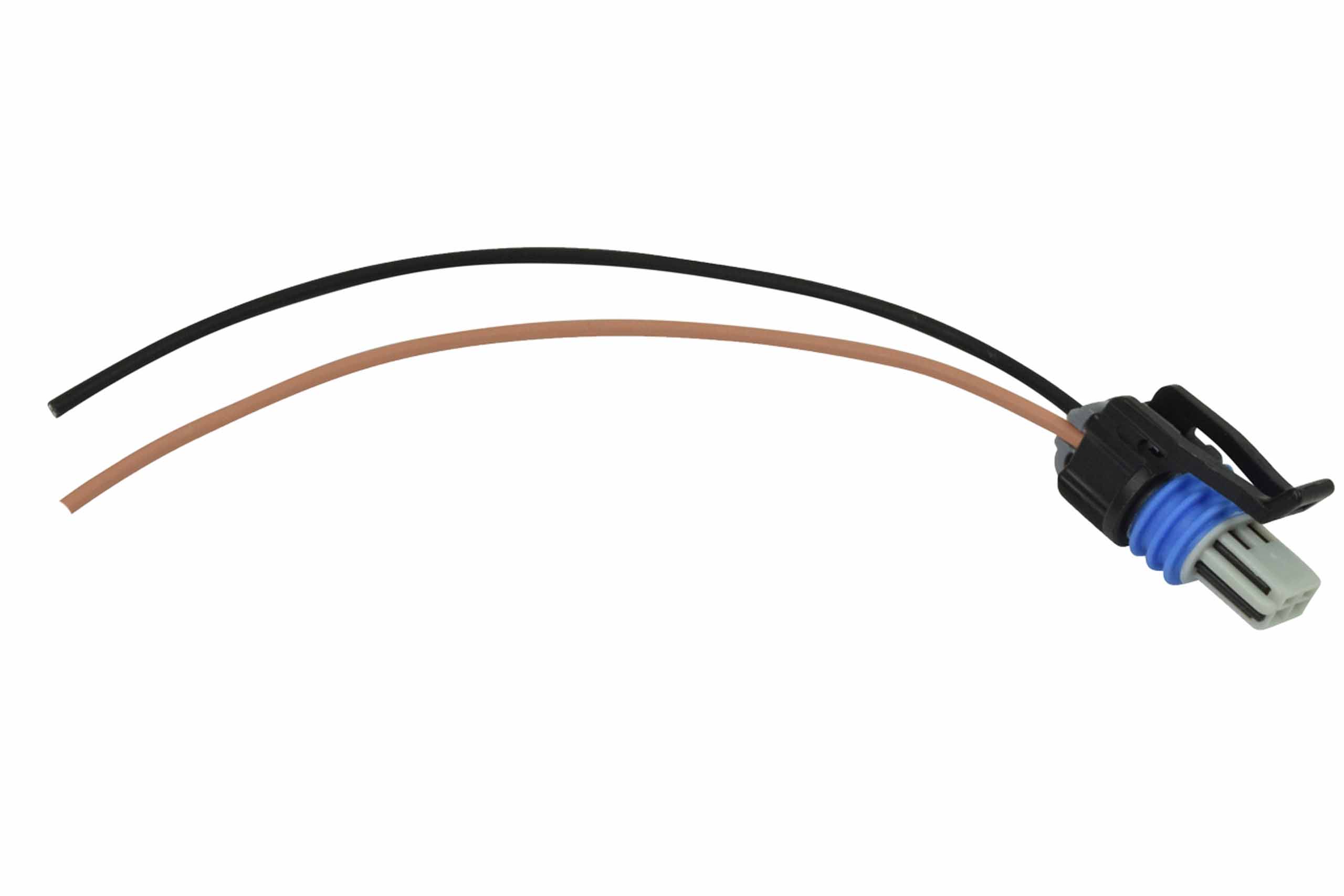

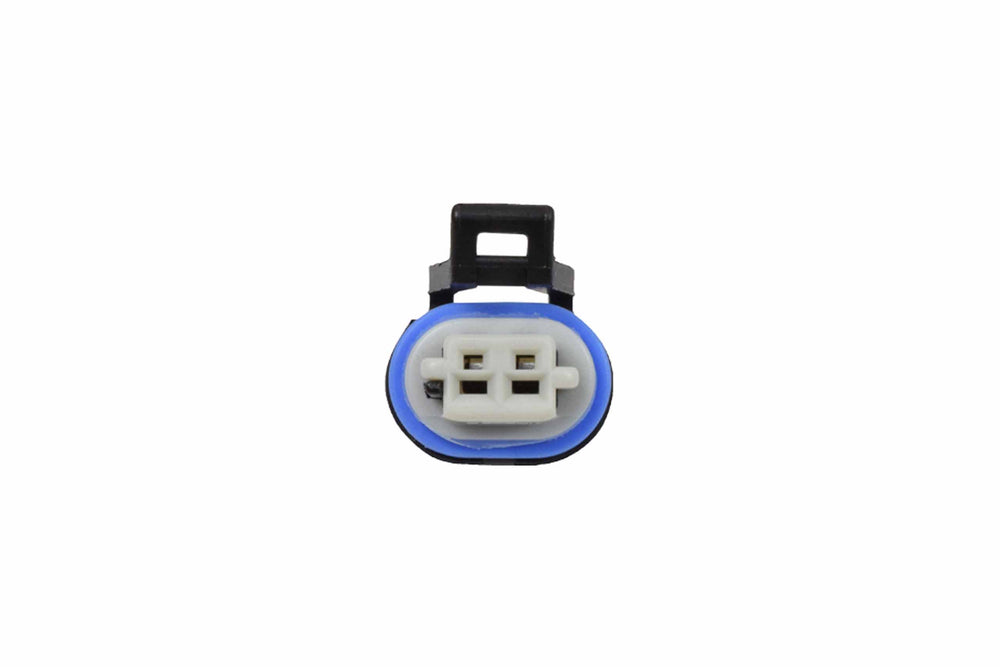

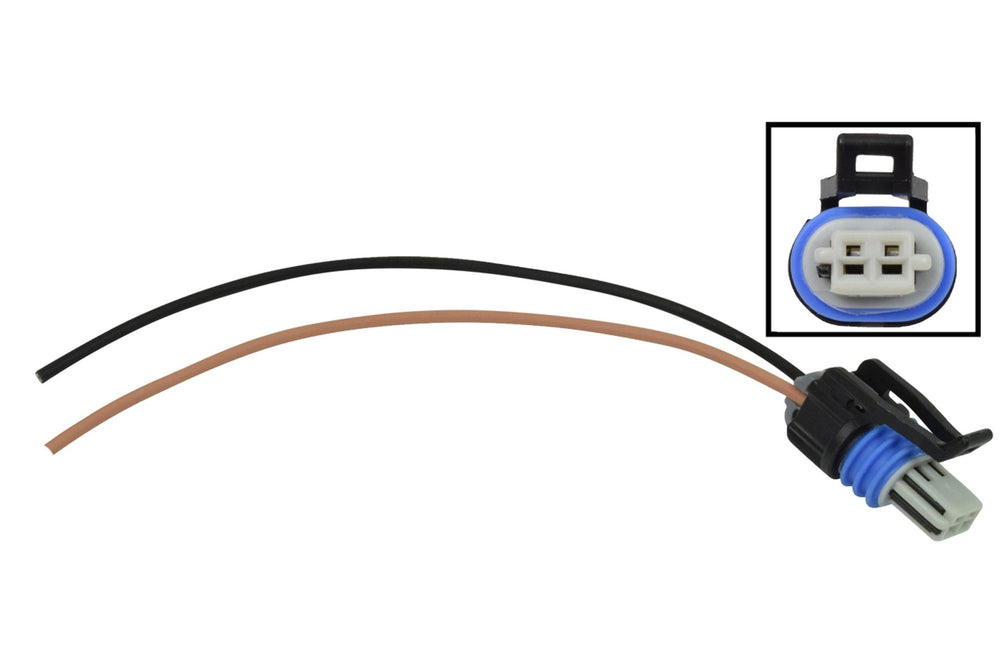

Includes: pigtail w/ 6" wire leads
Sealed, crimped, and assembled in Wichita, Kansas using USA made OEM grade TXL wire, OEM connectors, locks, seals, and terminals for proper fit and a positive, audible click when connected
5 wire MAF sensor rewire how to: Use the tan and solid black wires to run the IAT sensor. These are located on the PCM RED connector pin 25 for the TAN wire, then pin 57 for the BLACK wire. (see photo for connector wiring)
Compatible With
GM Gen 3 LS-series engines using a 2-wire intake-air-temperature sensor and matching factory harness connector RPO code LS1, LS6, LQ4, LQ9, LM7, L59, and LR4
Helpful Links
Compatible intake air temperature sensor, Gen 3 MAF to AIT wire adapter, 24" wire extension, connector component kit, or terminal depinning tool
Need a custom length? We can build most wiring to your required length within 48 hours. Custom lengths are typically around 2× the listed price. Contact us for pricing
