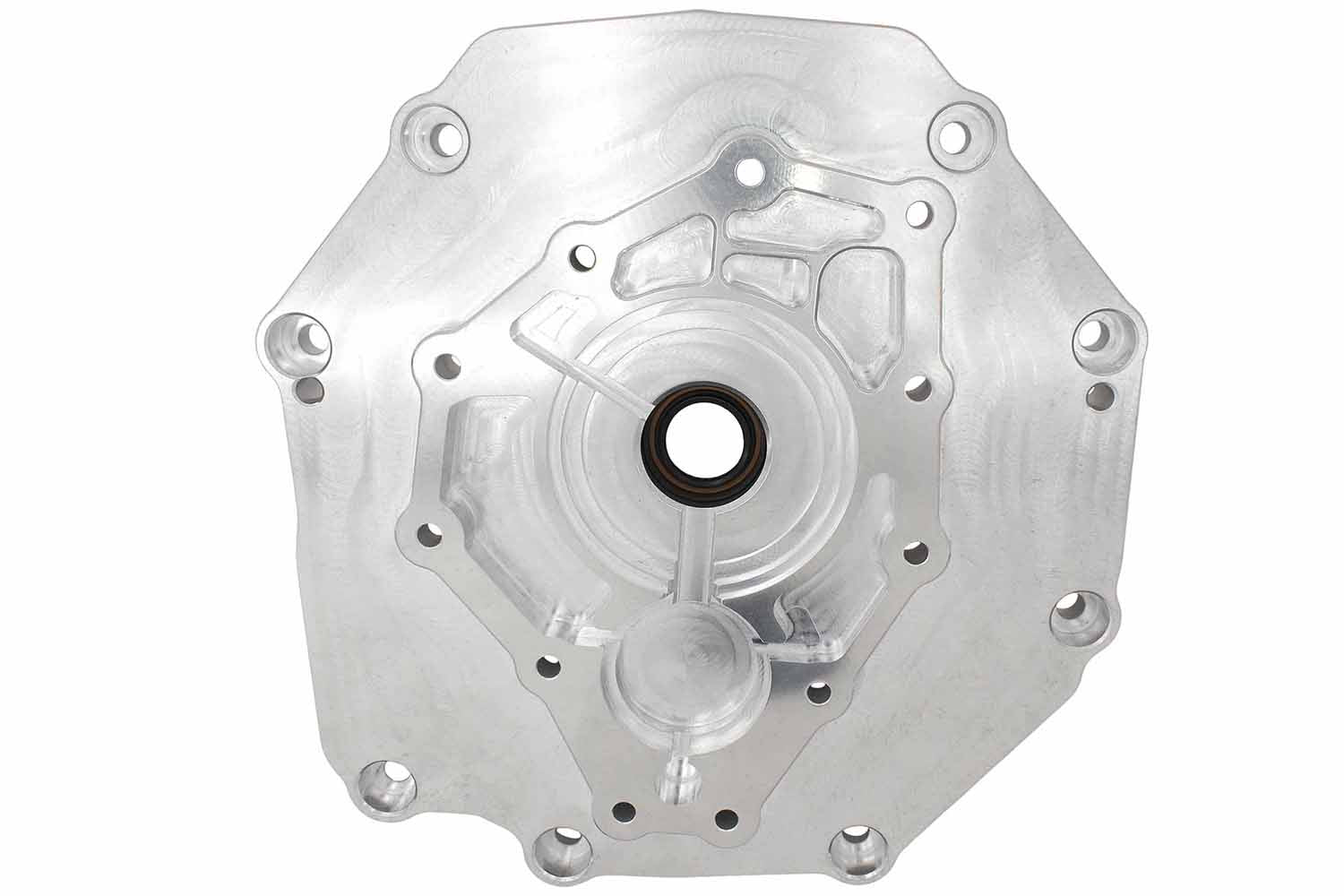

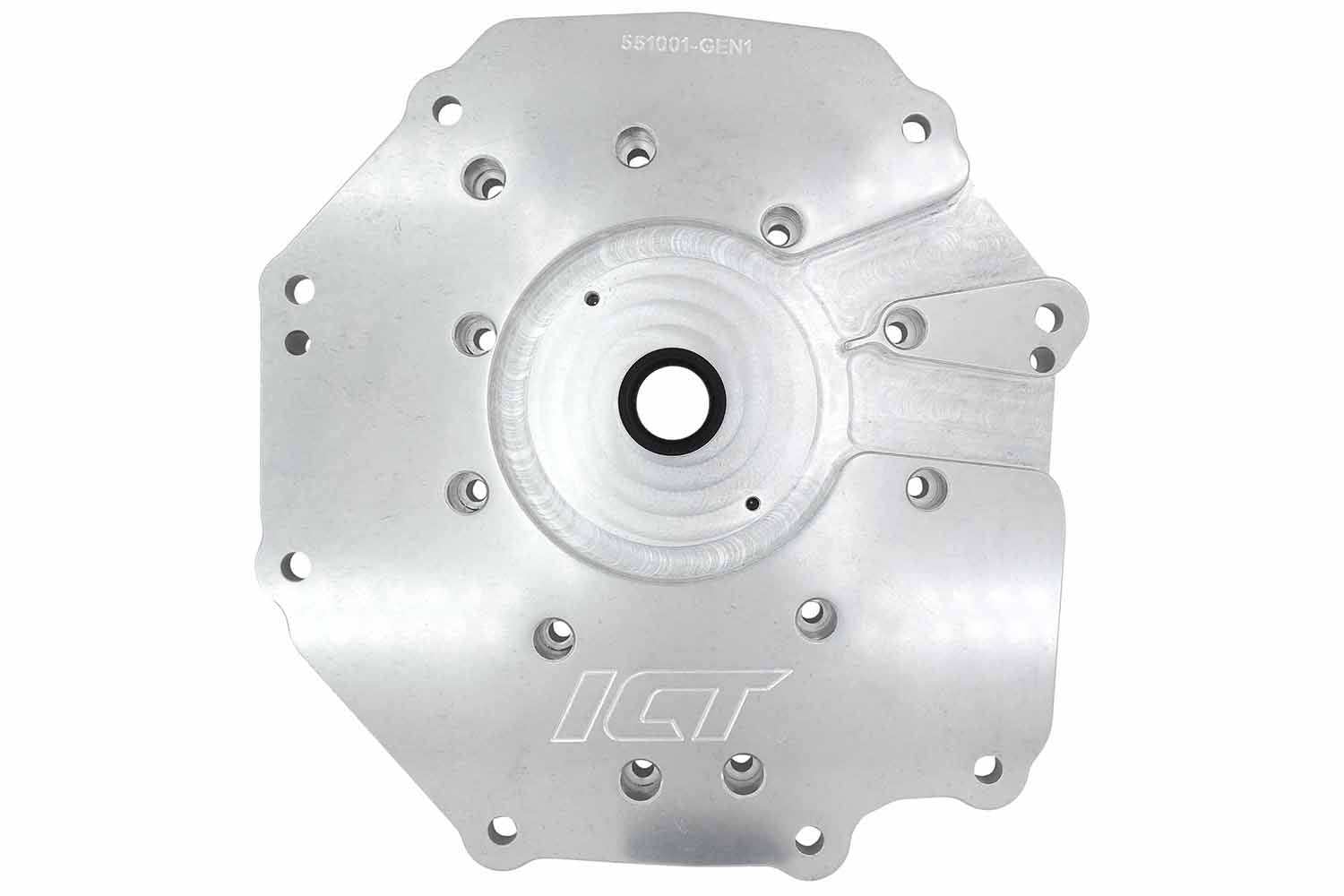

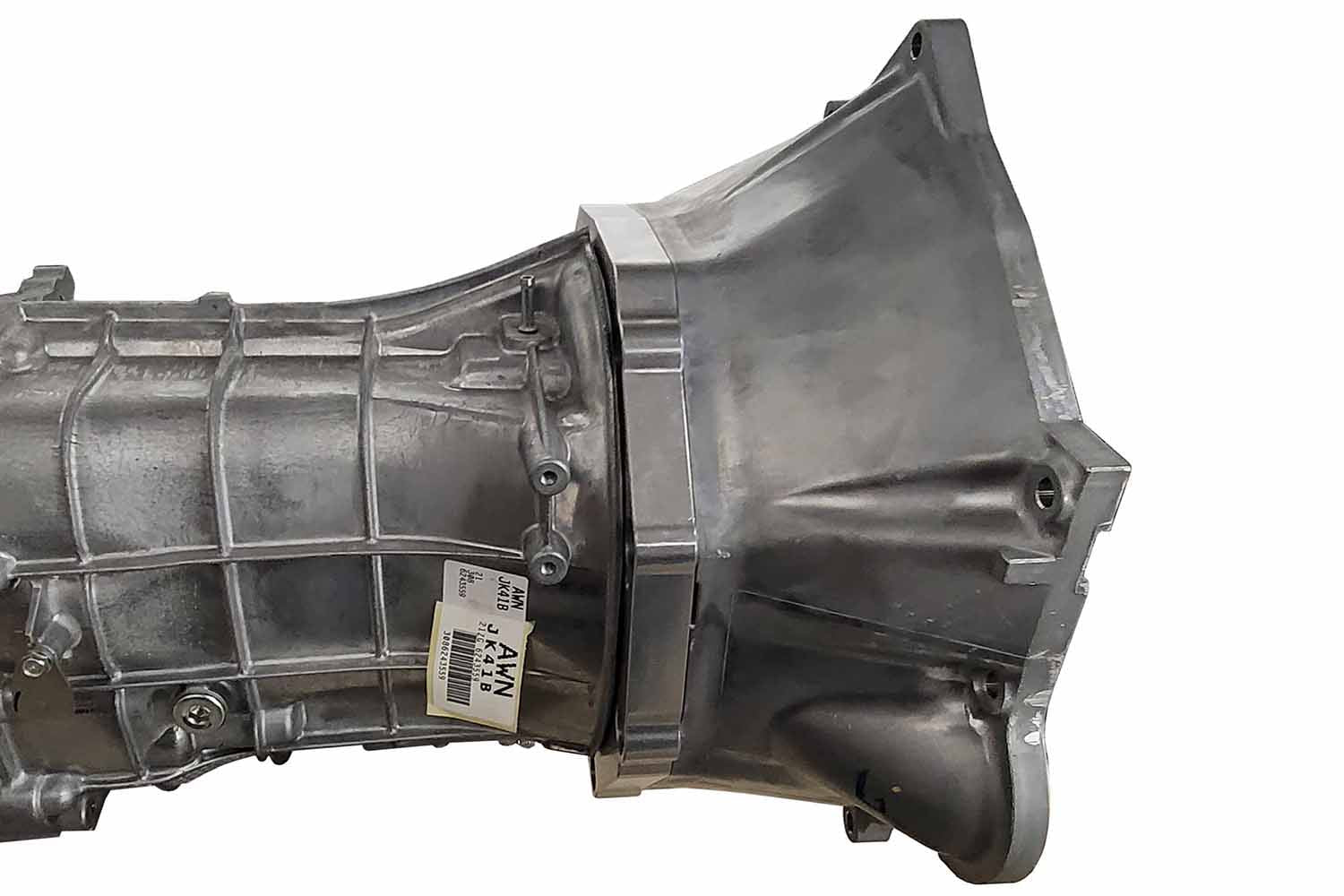

LS Engine to Nissan Gen 2 JK Transmission Bellhousing Adapter Plate - Clutch Disc Kit

Fits: GM LS Series Engines, Gen 2 JK Transmission

• Allows the ability to install the Nissan JK Transmission onto a GM LS engine with minimal modification
• Uses all standard F-Body LS T56 Flywheel - Pressure Plate - Bellhousing components
• Compatible with Nissan 350Z/G35 6-speed Transmissions from 2007 to mid 2008
• Allows transmission and clutch servicing without removing engine in most applications

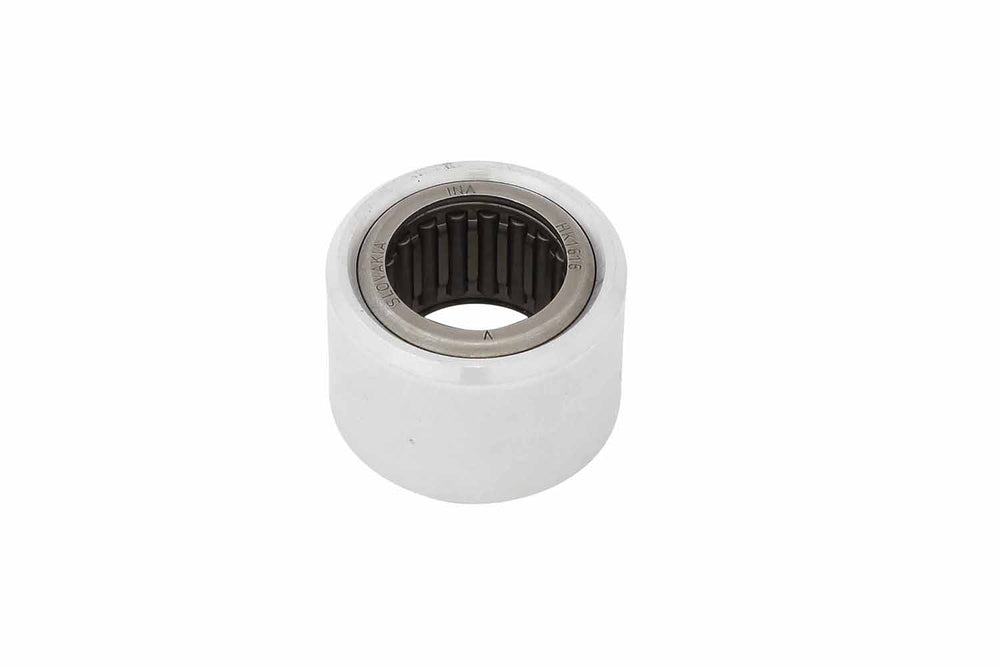

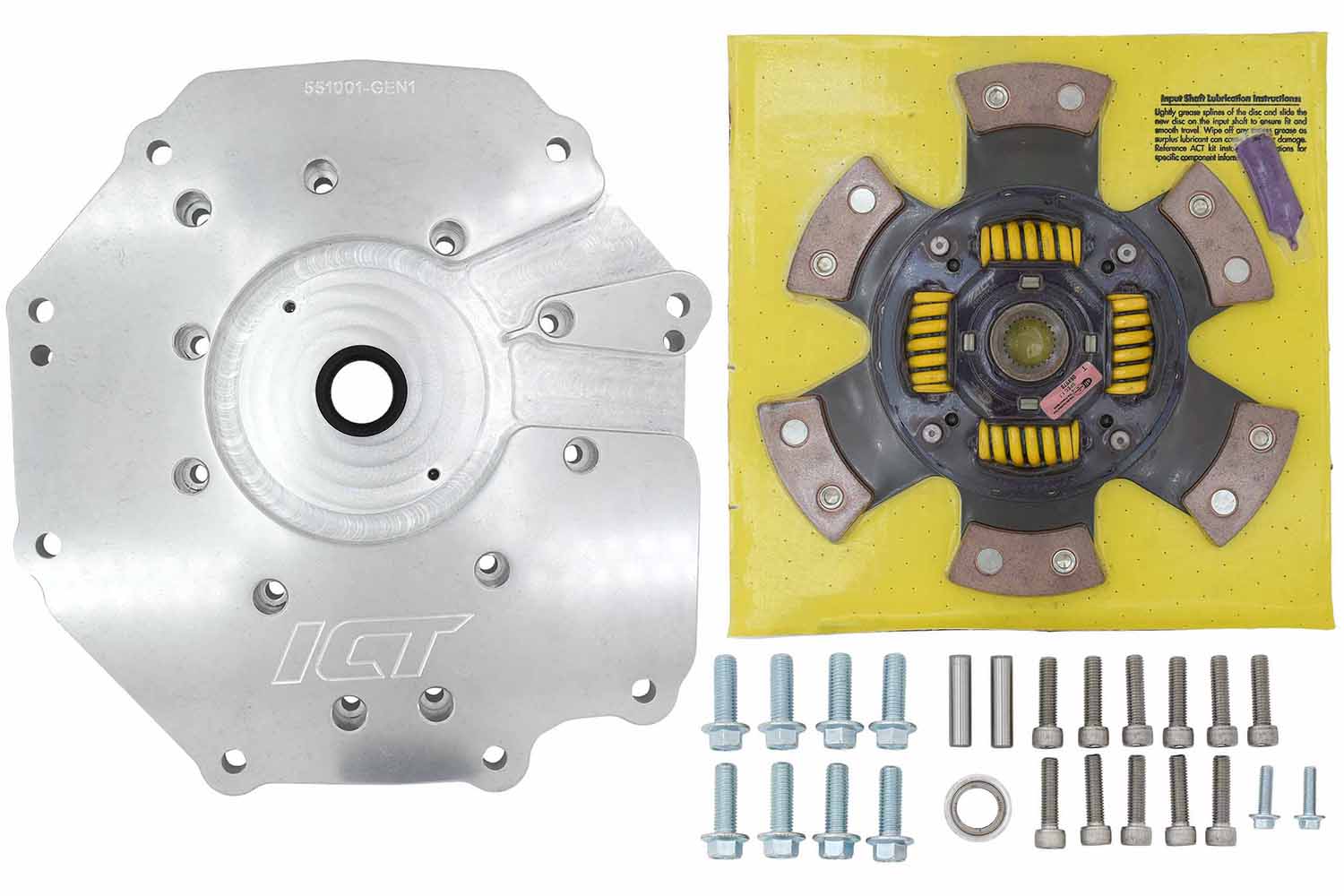

• Package includes: Bellhousing Adapter Plate, Pilot Bushing, Clutch Disk, Alignment Tool and Mounting Hardware
• Recommended to use with ACT Flywheel and Pressure plate
• Made from aerospace-grade billet aluminum
• Made in the USA
• NOT compatible with Generation 1 CD009 Transmissions from 2003-2006 350Z/G35 applications - See 551001-GEN1 Adapter Kit
• NOT compatible with Generation 2b JK Transmissions from mid 2008 and up 350Z/G35 applications - See 551001-GEN2b Adapter Kit
• To verify Transmission Generation, Measure input shaft bearing OUTSIDE DIAMETER
  • Generation 1 = 3.937 or 100mm, Generation 2a = 3.740 or 95mm, Generation 2b = 3.543" or 90mm
• Modification to transmission entails cutting/removing OEM Bellhousing and OEM front bearing cover from transmission to allow adapter plate installation

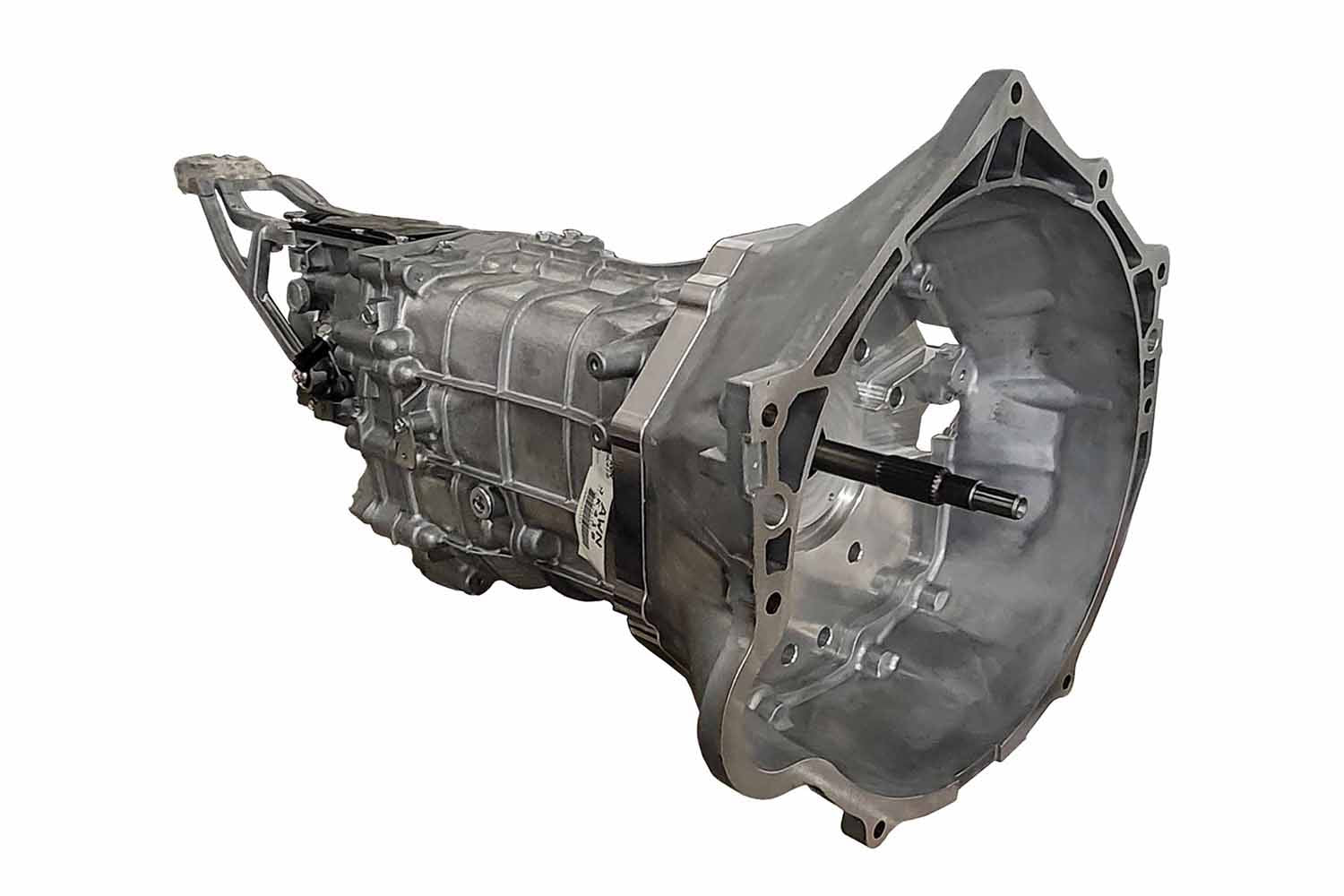

• Adapter plate will take place of front bearing cover on transmission

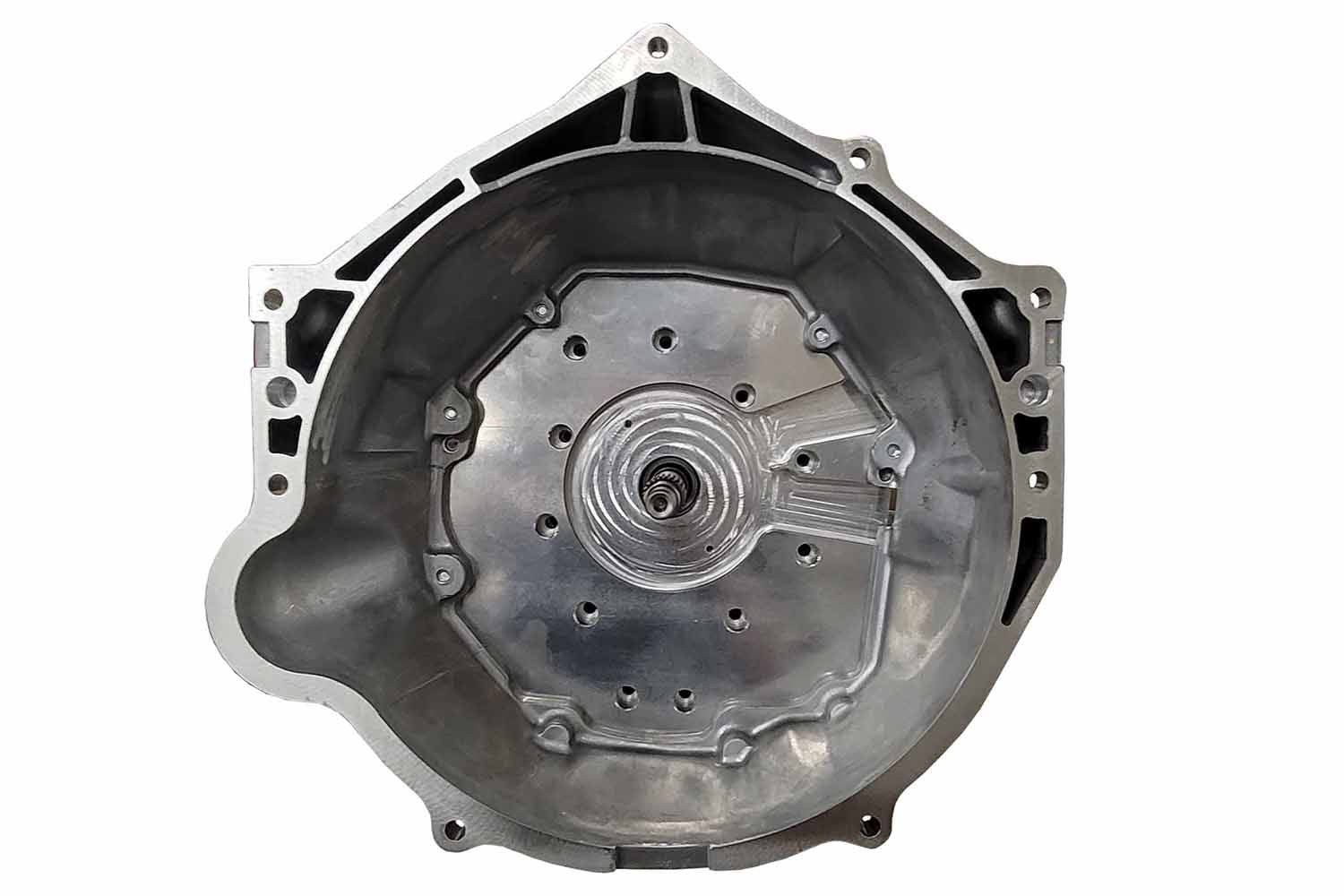

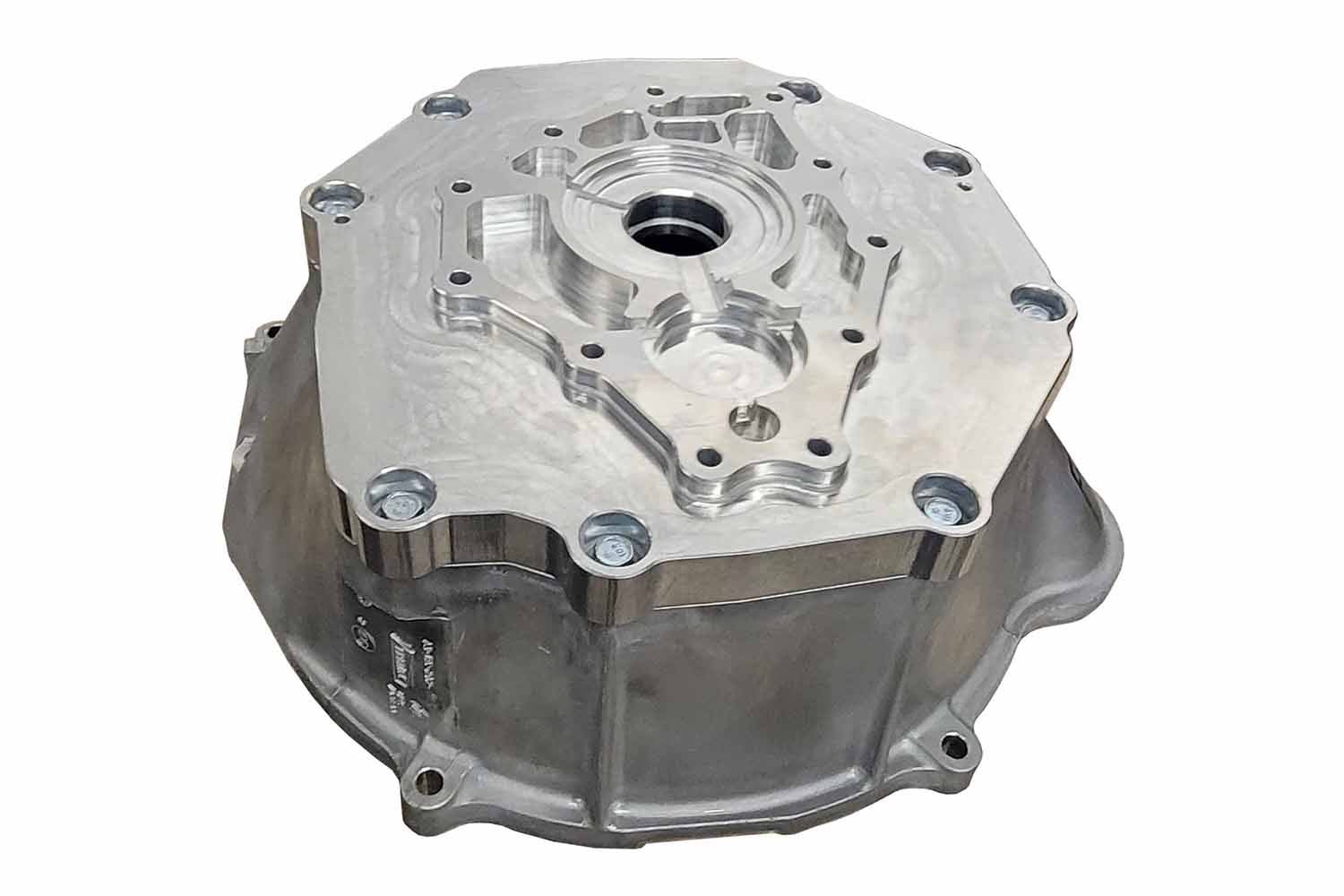

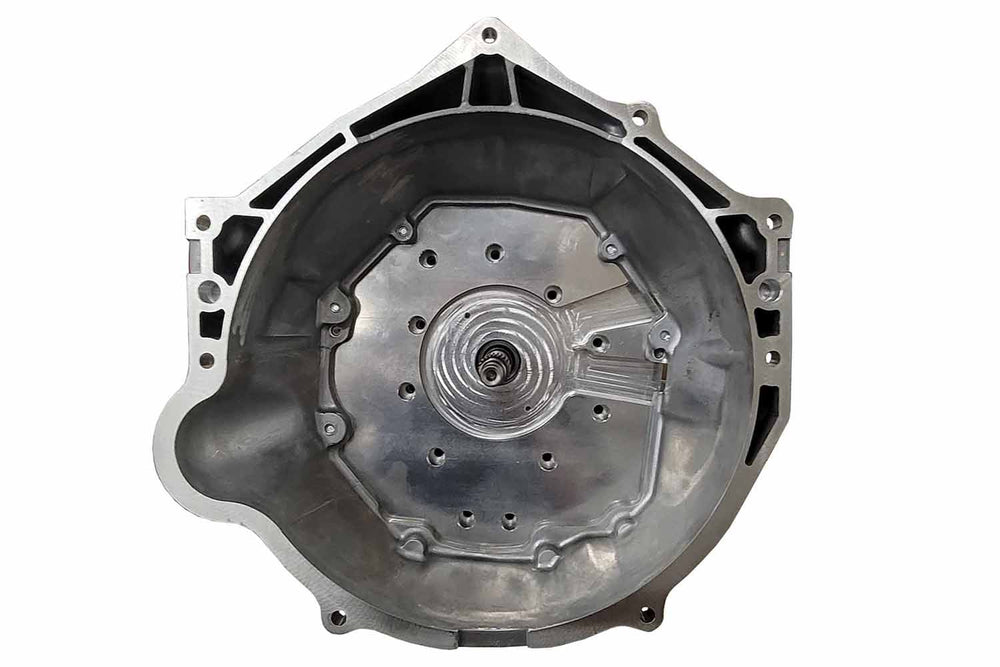

• Standard T56 Bellhousing will bolt to adapter plate
• Installer must verify bellhousing/adapter plate alignment is within .005" during installation to prevent bearing side-loading - OFFSET DOWELS MAY BE NECESSARY TO ENSURE PROPER ALIGNMENT
• DOES NOT FIT WITH EXTENDED CRANKSHAFTS
• Socket cap Bolts will use an M6 hex bit to tighten
