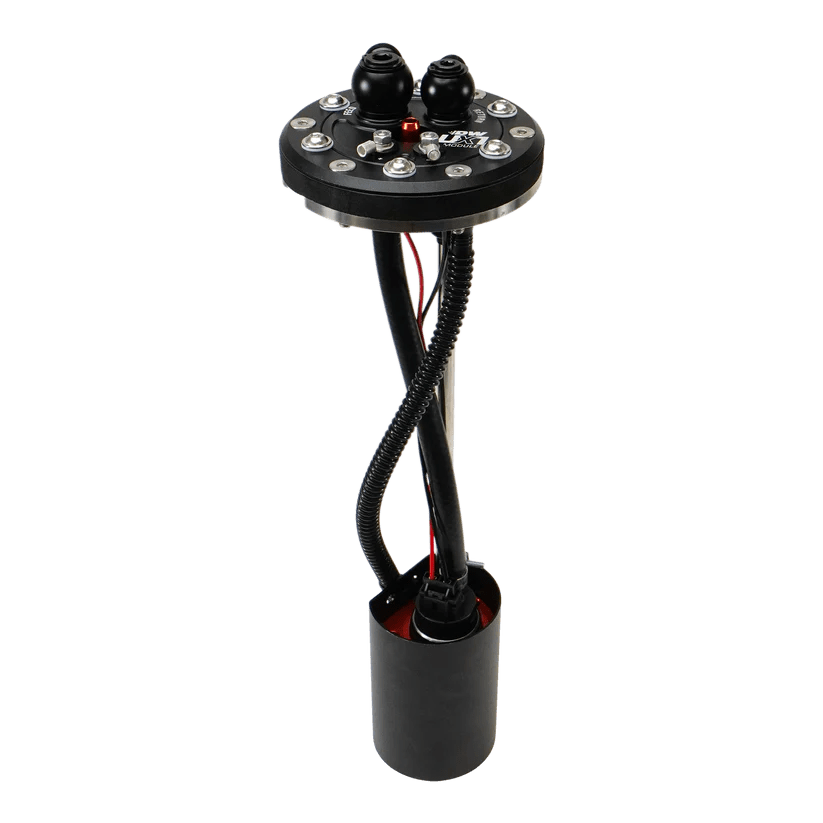

Deatschwerks Universal UX1 Module w/ DW400 Pump

Easy to Install EFI Fueling Solution for Any Vehicle

The DeatschWerks UX1 Module brings modern EFI fueling performance to custom and retrofitted fuel tanks. Designed for vehicles without an OEM in-tank pump, this complete module adds a high-flow in-tank solution with integrated slosh control, venturi siphon, and quiet turbine-style in-tank pump. With a universal cut-to-fit design and ORB port flexibility, the UX1 is the go-to solution for upgrading older systems to modern fuel delivery standards.

Features & Benefits

• Universal cut-to-fit design fits fuel tanks up to 20" deep*
• Integrated surge bucket prevents fuel slosh and starvation
• Built-in venturi siphon system keeps the pump submerged in fuel
• Turbine-style in-tank pump – Quiet, high-performance operation
• One-way check valves maintain line pressure after engine shutoff
• Includes low-profile swivel 8AN feed and 6AN return fittings, with an optional 4AN vent fitting

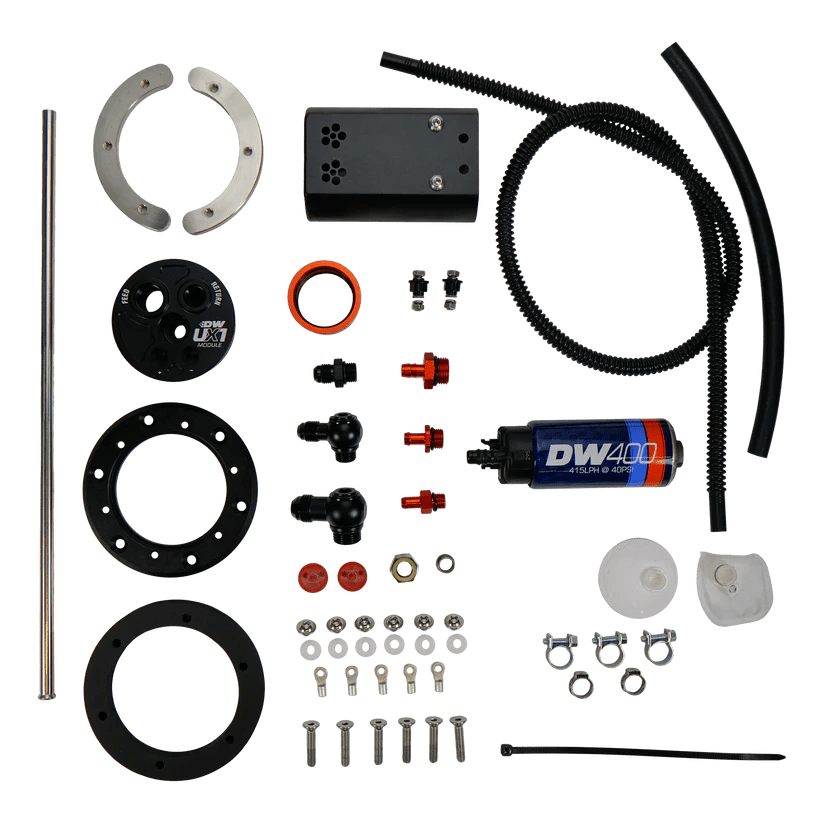

• Includes everything needed for an easy install – gasket, support tube, and hardware
• Uniquely engineered two-piece split ring for easy installation

*minimum tank height 6.5" (39mm pump) or 7.25" (46mm pump)
