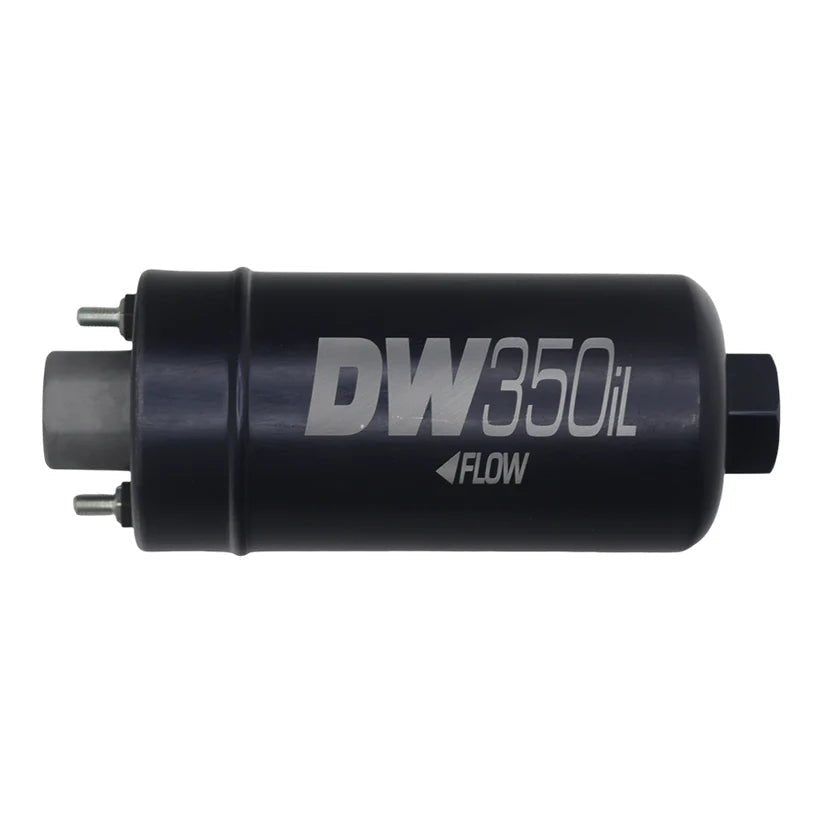

Deatschwerks 350LPH In-Line Fuel Pump

The DW350iL is engineered for high flow at high
pressure. The pump is rated at 350lph at 40psi
and maintains over 300lph at 70psi. This flat flow
curve is a result of combining a high torque motor
and a roller-vane pumping mechanism, High flow
at high pressure is a must for turbo and
supercharged applications. Plumbing is easy with
the -8AN ORB inlet and outlet. The 350iL is
compatible with ethanol blended fuels but is NOT
compatible with methanol or diesel fuels. All DW
fuel pumps are backed by a 3-yr no-fault warranty.

Inlet Fitting -8 AN ORB
Outlet Fitting -8 AN ORB

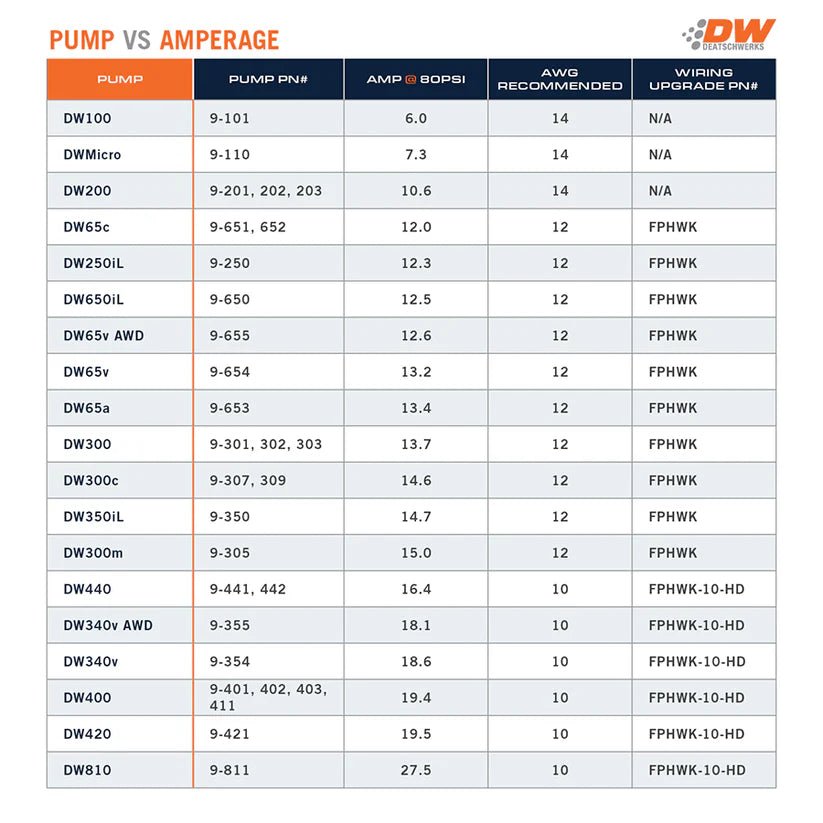

To ensure maximum voltage at the pump, a 12-gauge hardwire
kit is strongly recommended for optimum performance
(DeatschWerks part #FPHWK)

Weight 34oz (975grams)
External Materials Hard Anodized Aluminum
Inlet Fitting -8 AN ORB Flow Chart
Outlet Fitting -8 AN ORB
PRV Activation NA
Impeller Design Roller-Vane
Connector Terminal Binding Post ( M5x0.8 )
Min Voltage Input 8 Volts
Max Voltage Input 18 volts
Current Draw 40psi 12.0 amps (13.5v)

Tech Data Sheet
