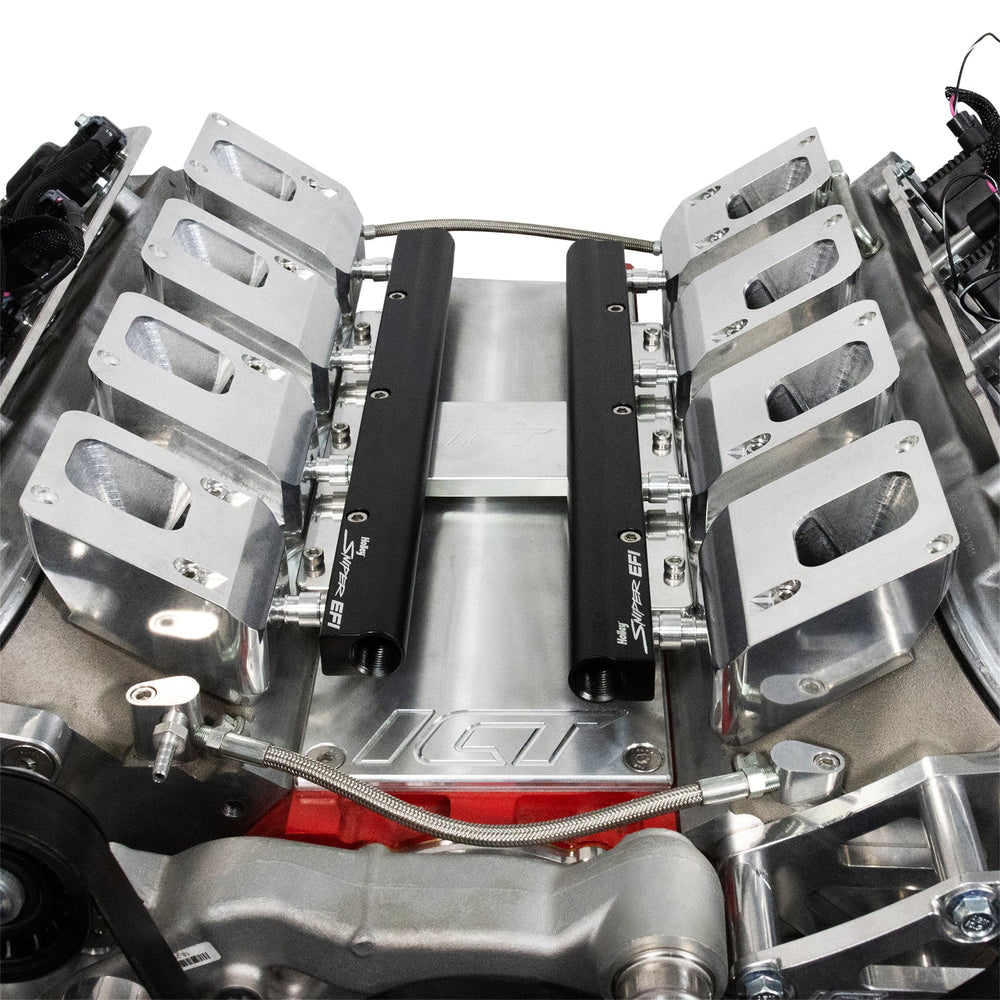

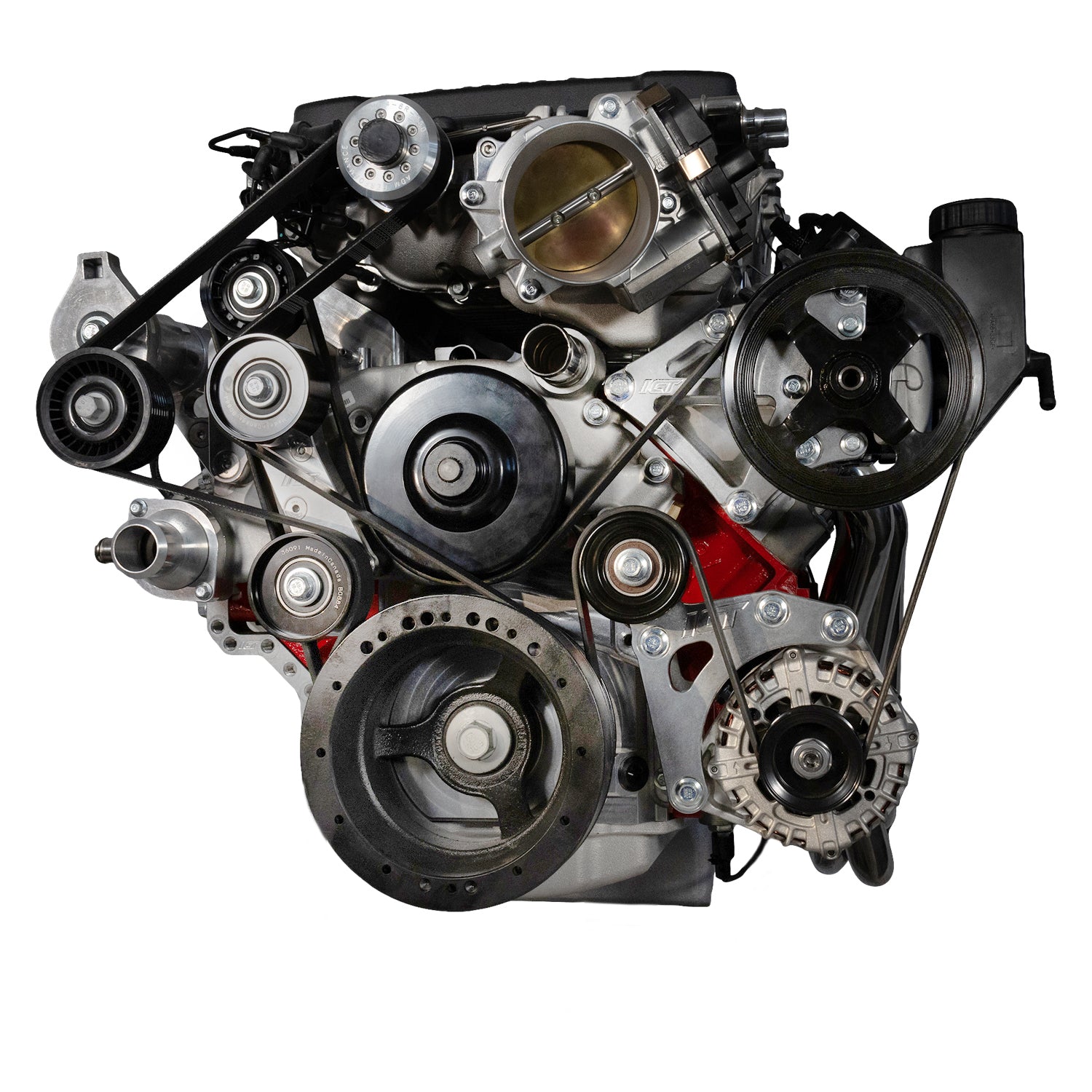

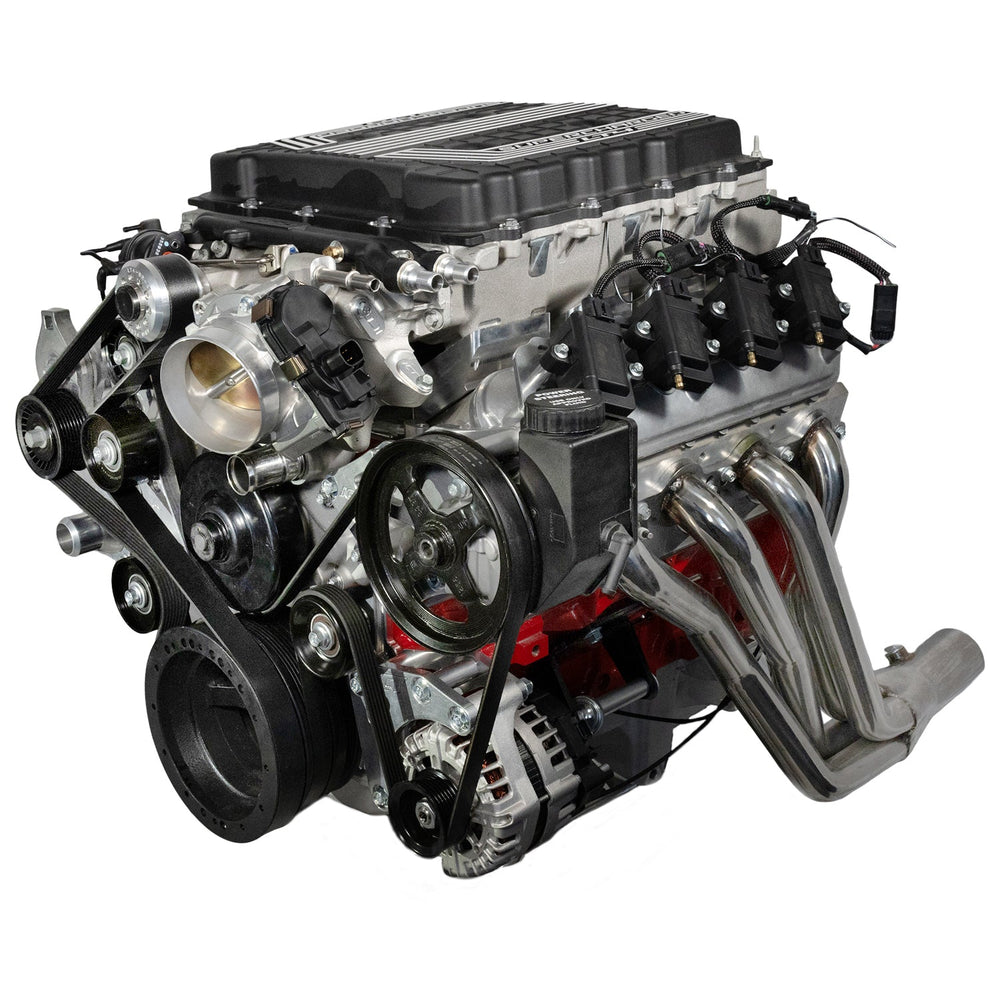

Camaro/CTS-V LT4 Supercharger to LS Rectangle Port Head Adapter Kit

Product Details:

• 8 fuel injector ports (16 port available)
• Compatible with LT4 supercharger from Camaro or CTS-V (this effects sc hub only)
• Compatible with all rectangle port cylinder heads RPO codes: LS3 L99 L92 L94 L9H L76 L77 L98 L96 LY6 LFA LZ1 LSA LS9
• Requires LS3 length fuel injectors
• Compatible with LSA harmonic balancer

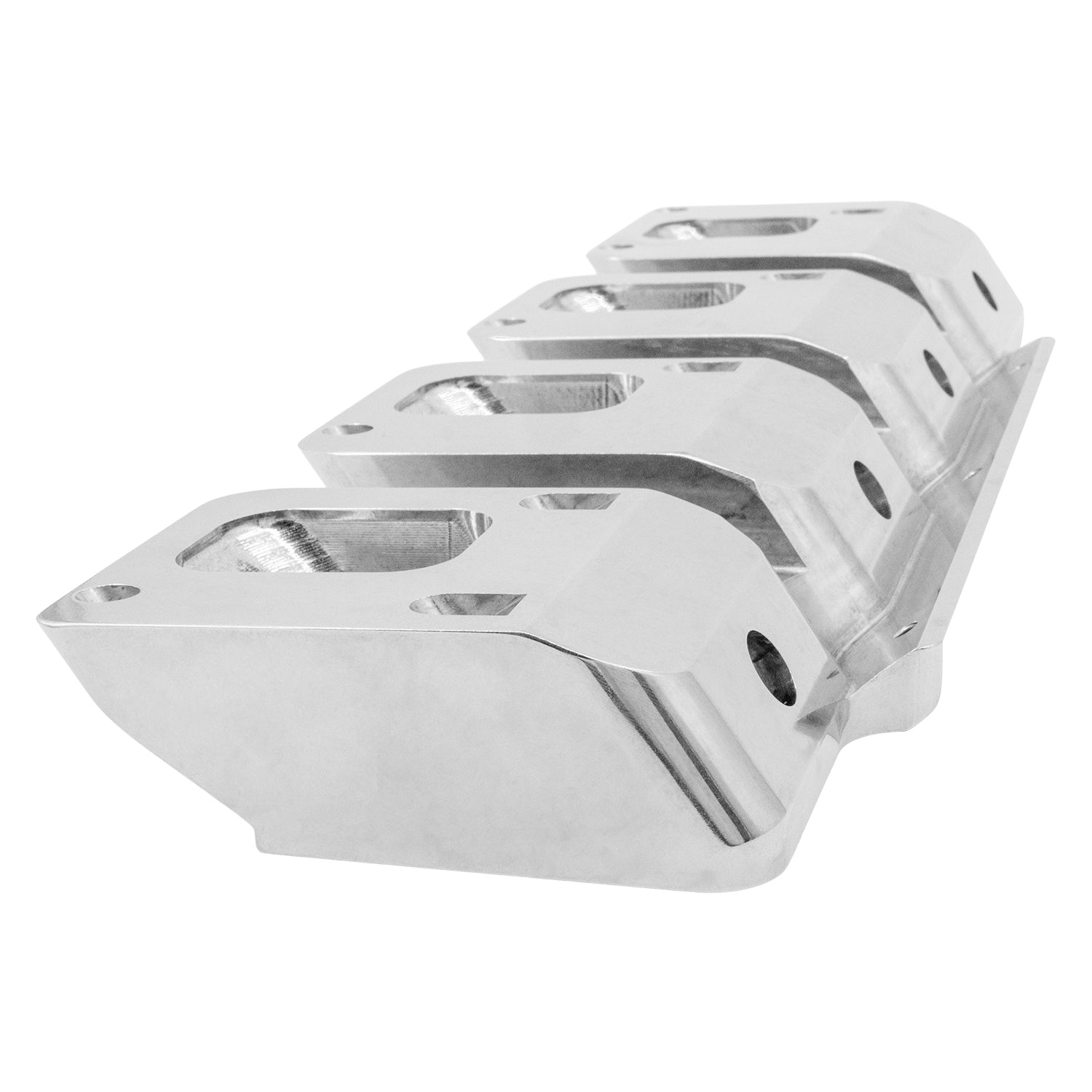

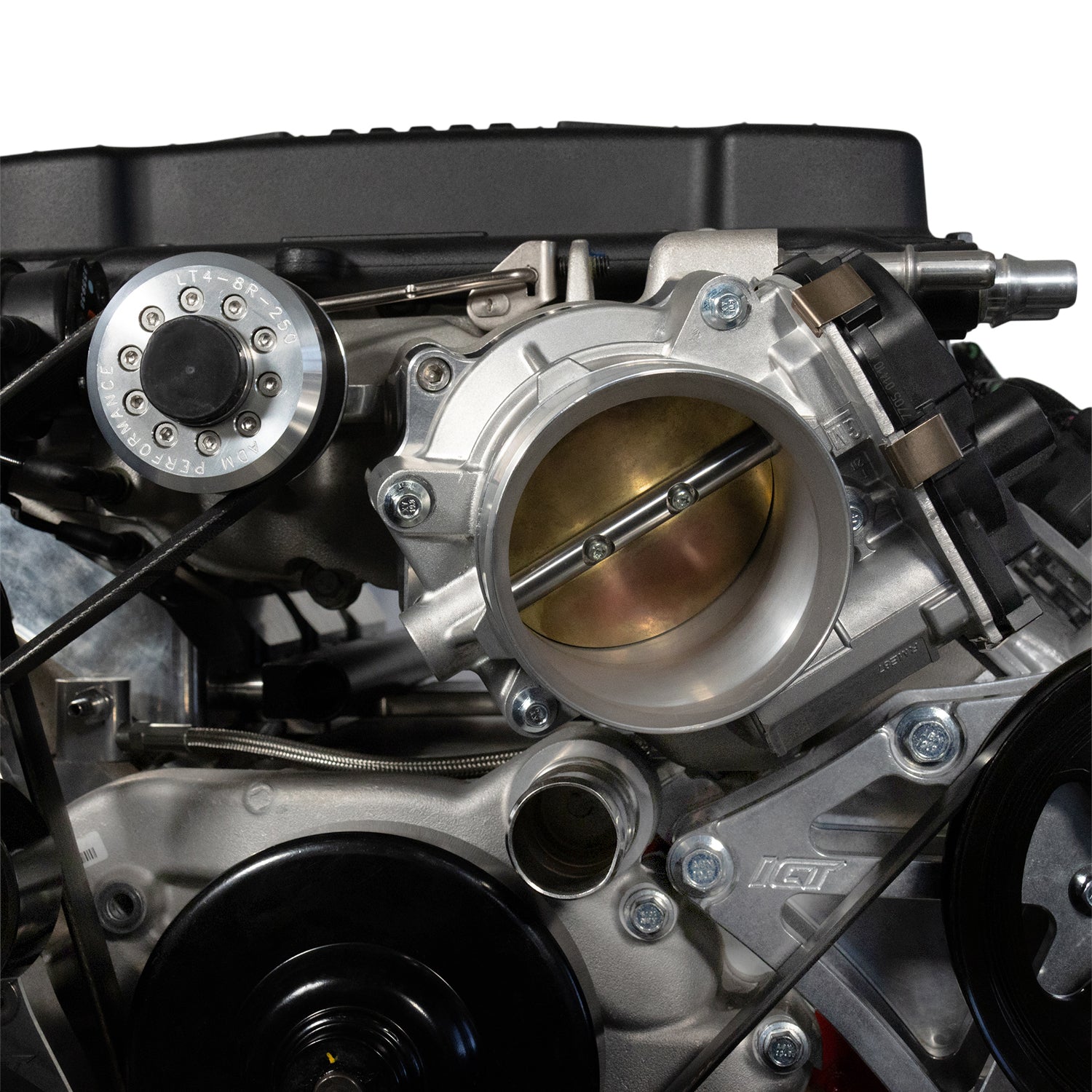

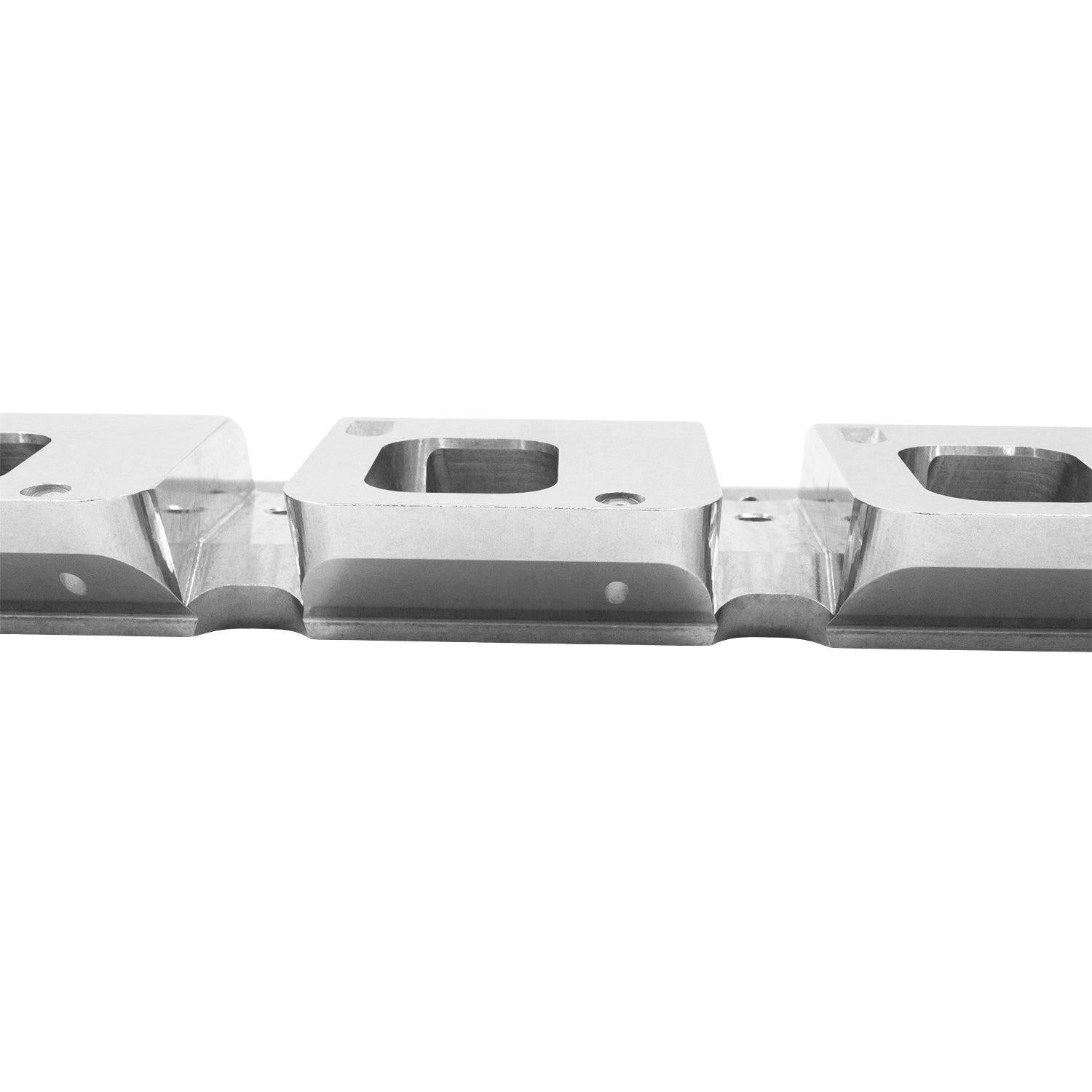

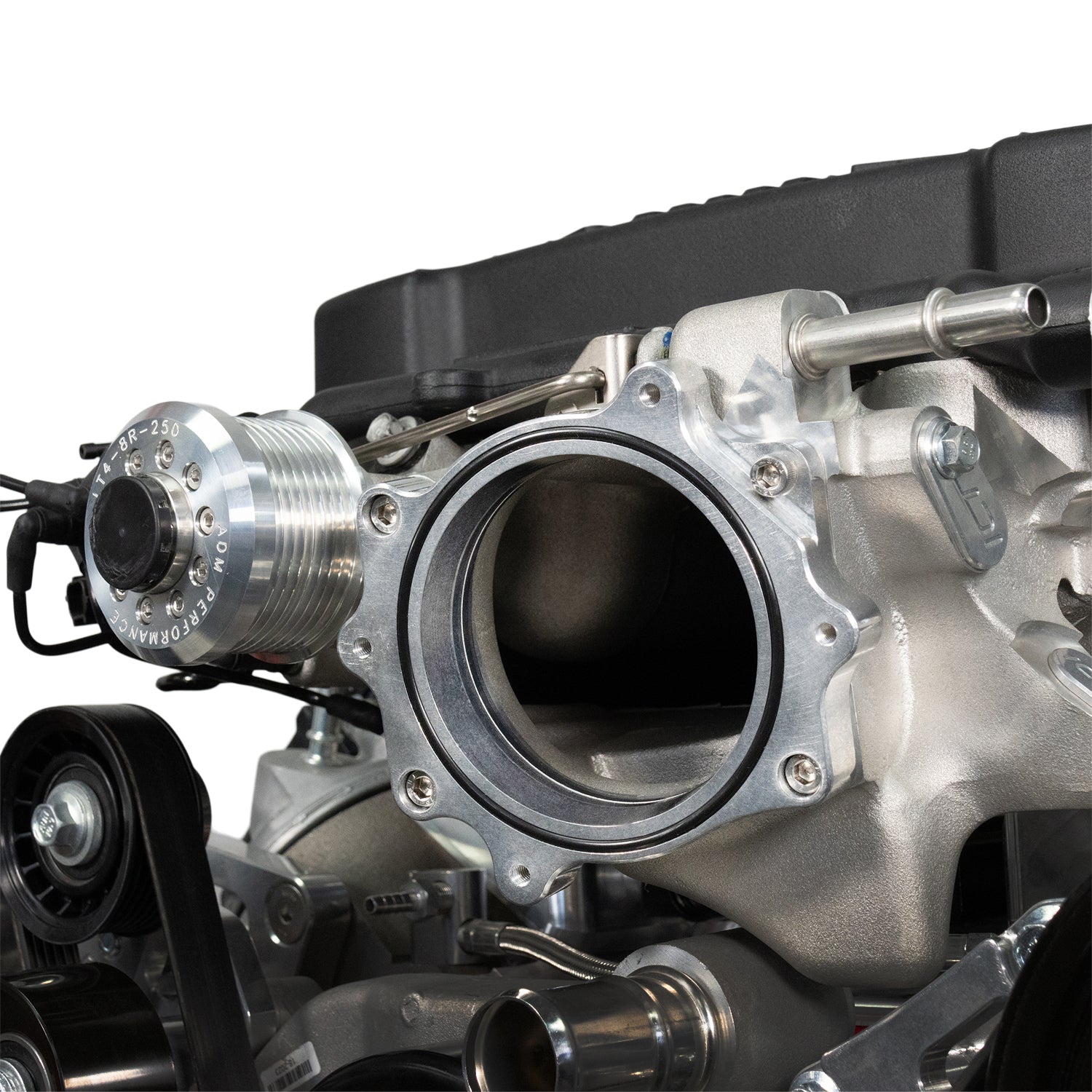

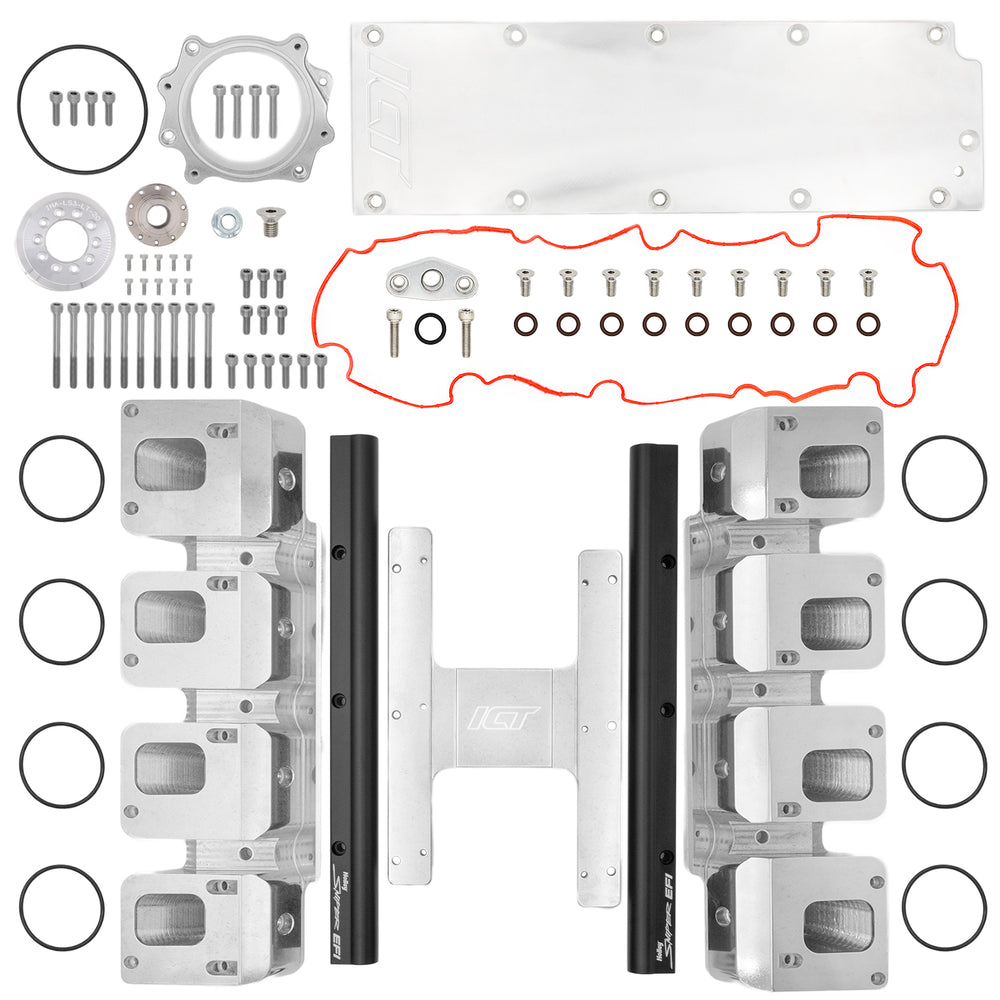

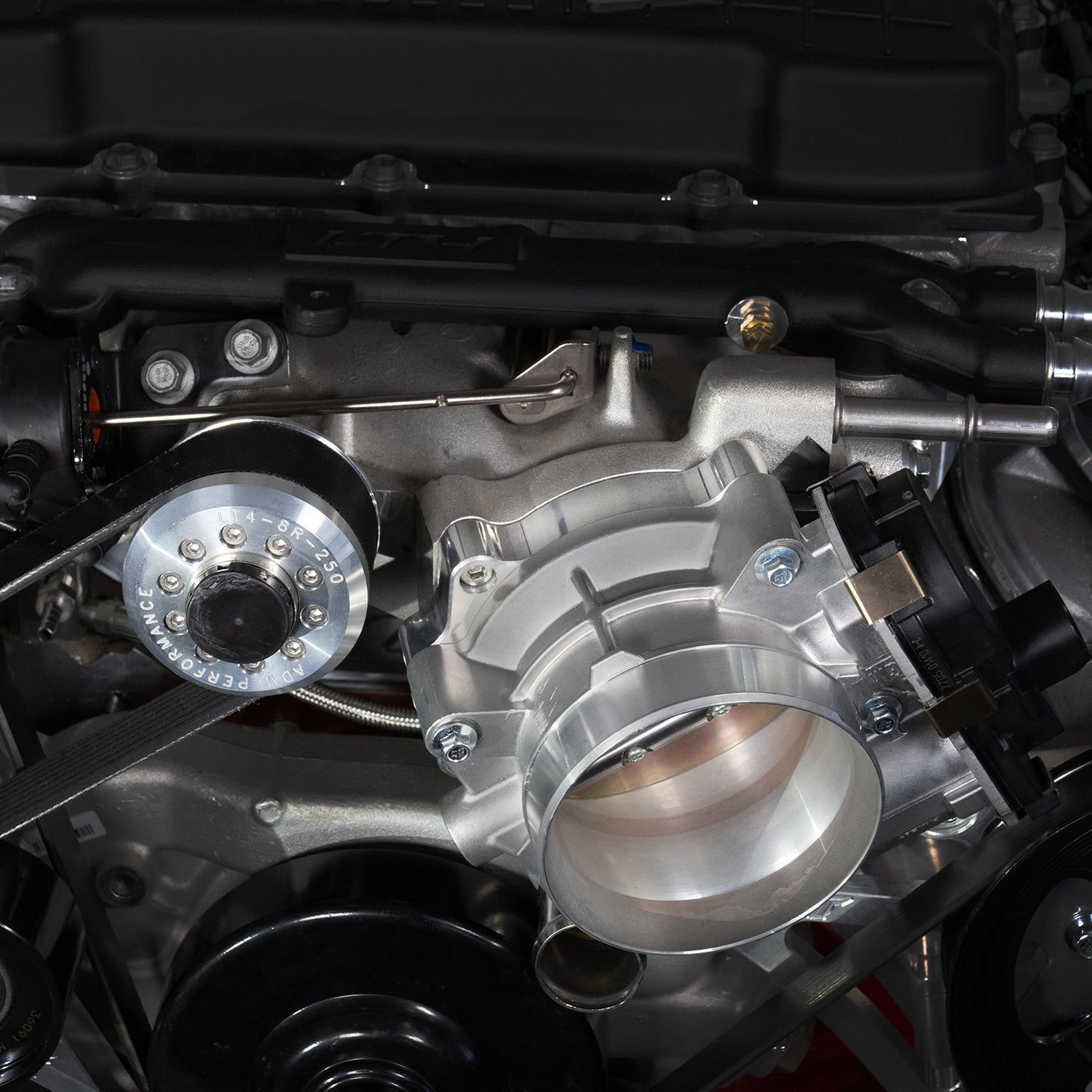

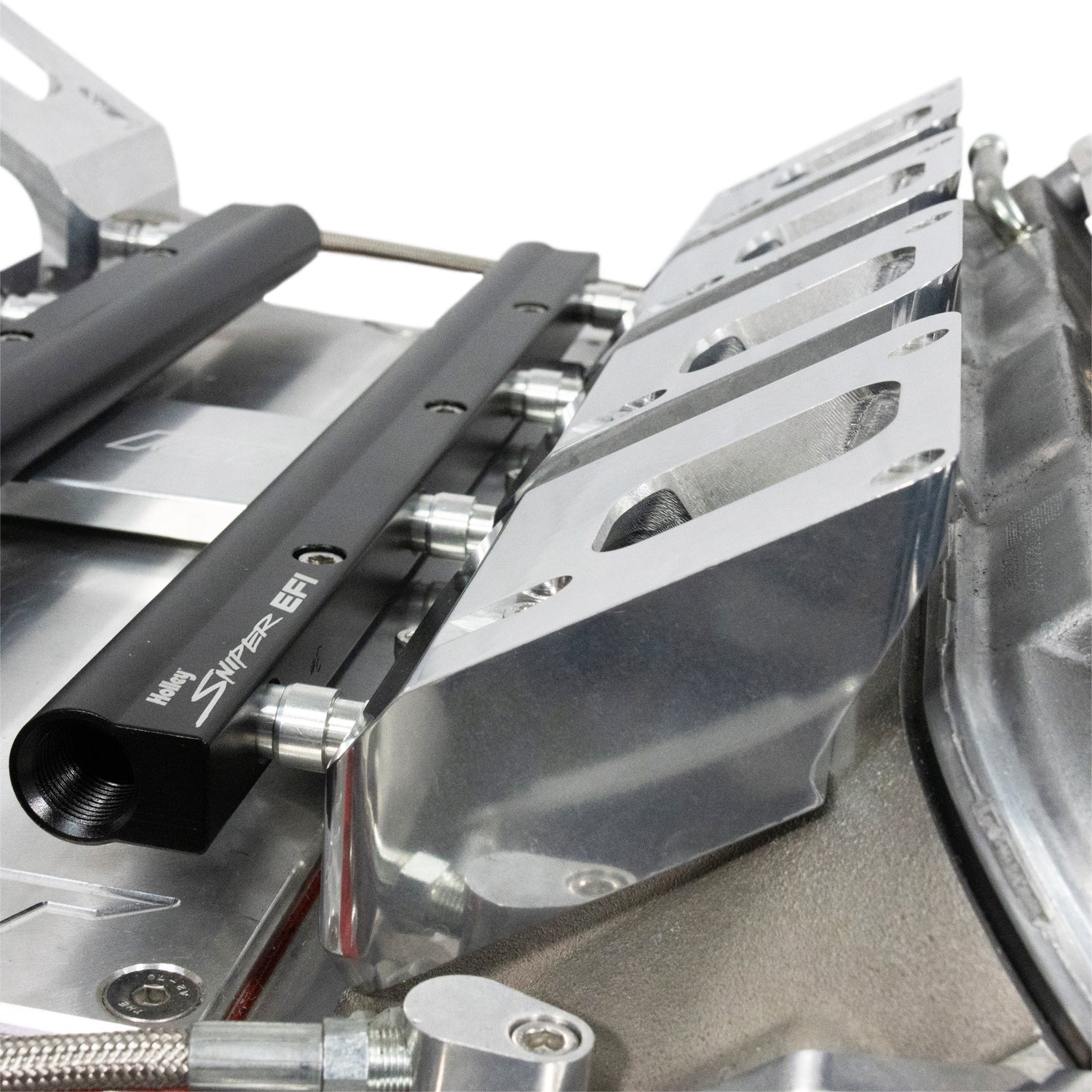

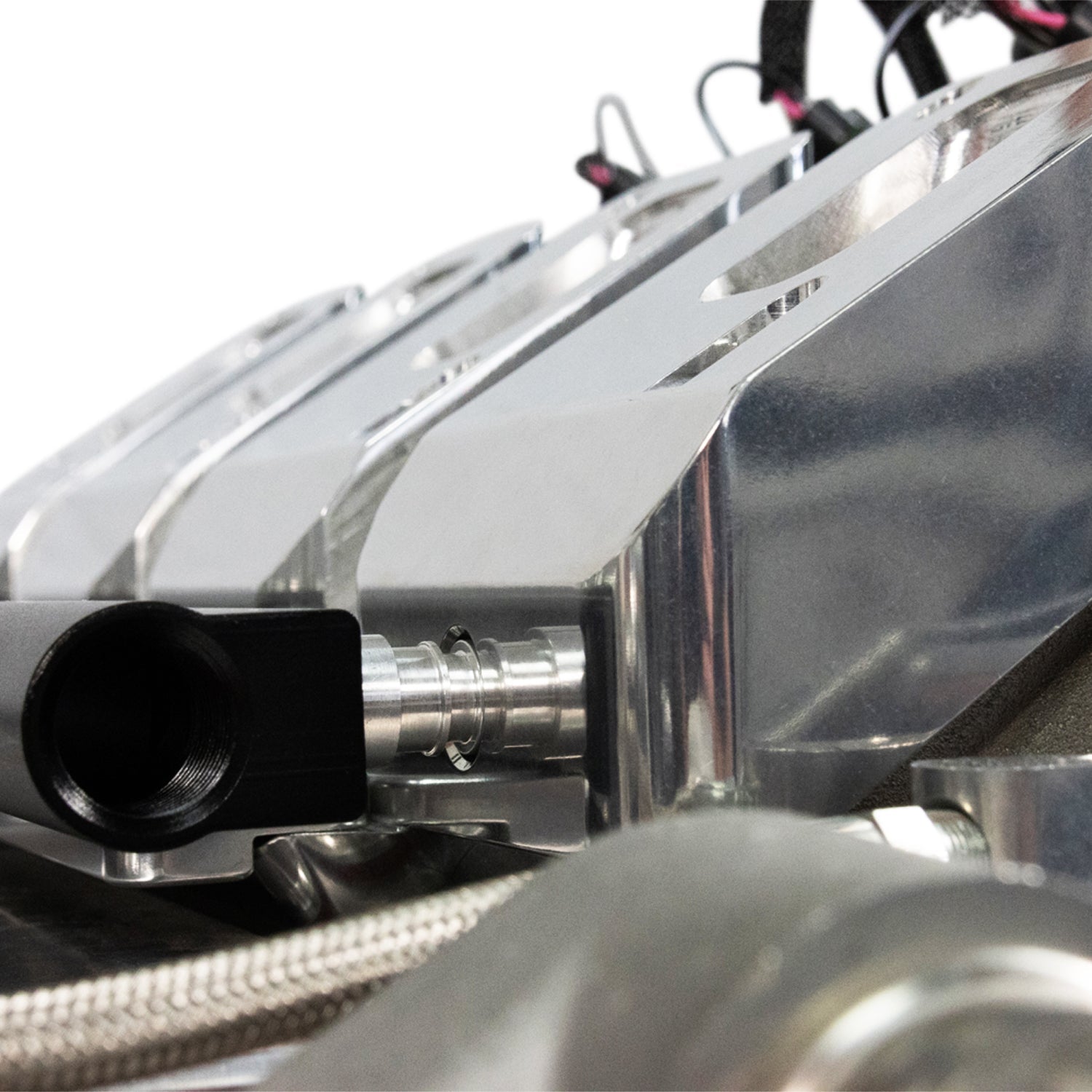

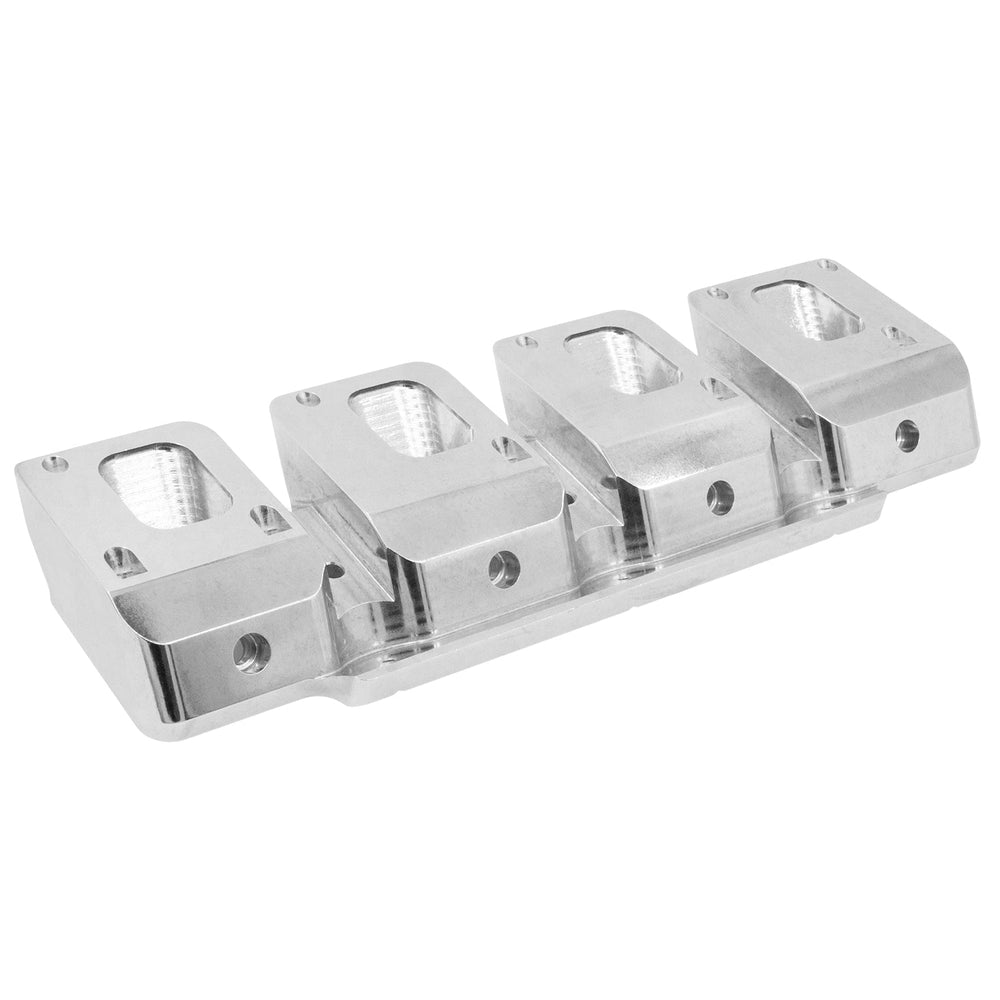

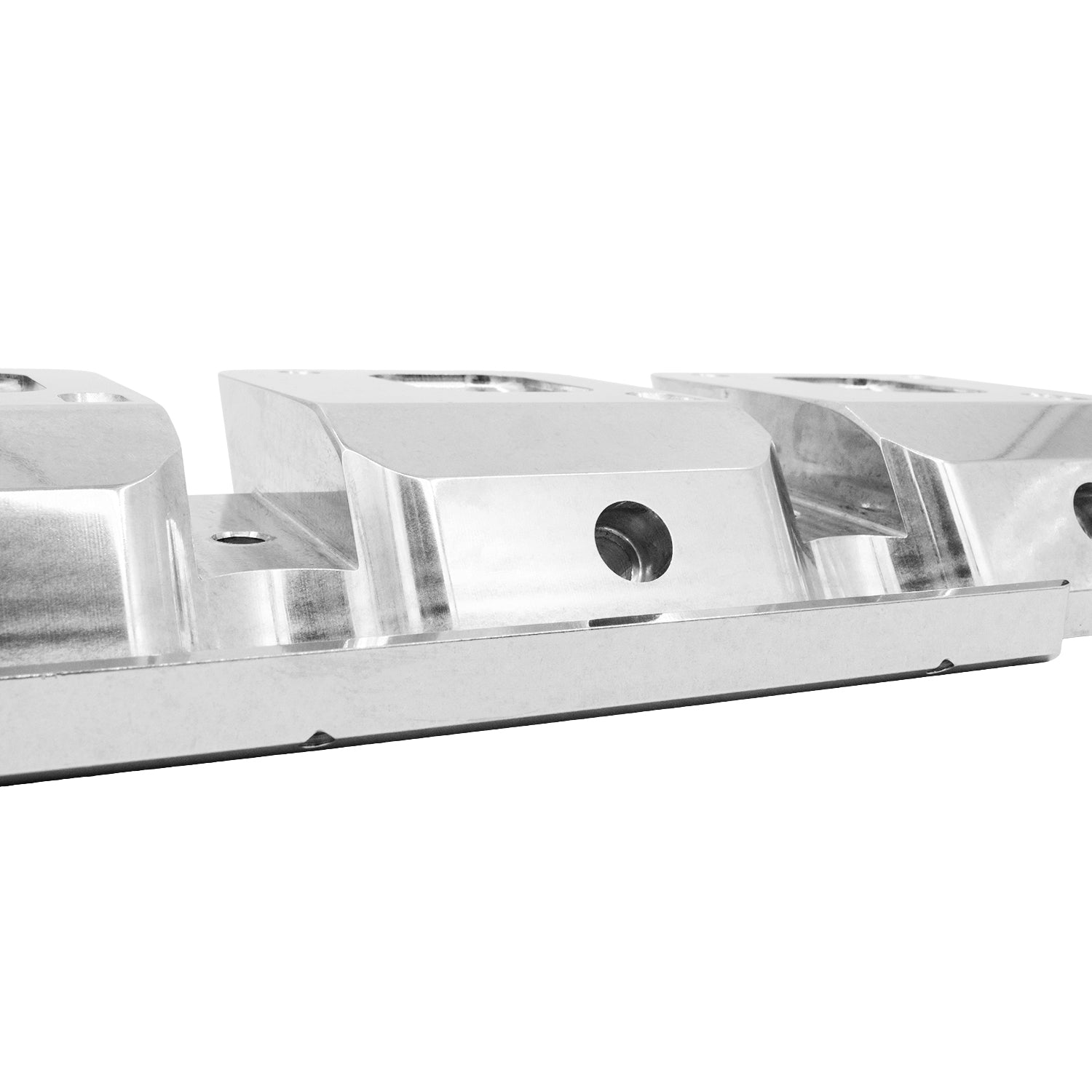

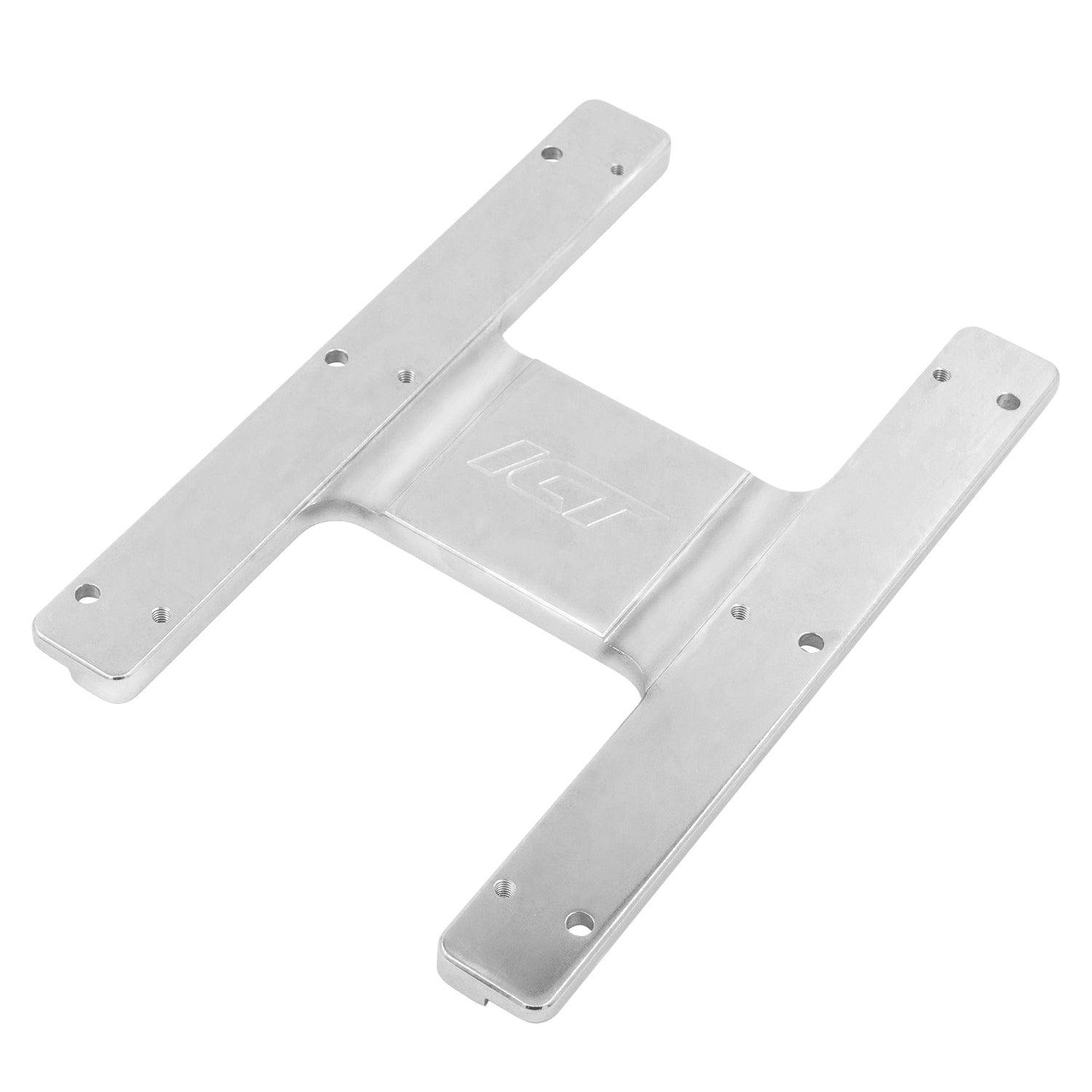

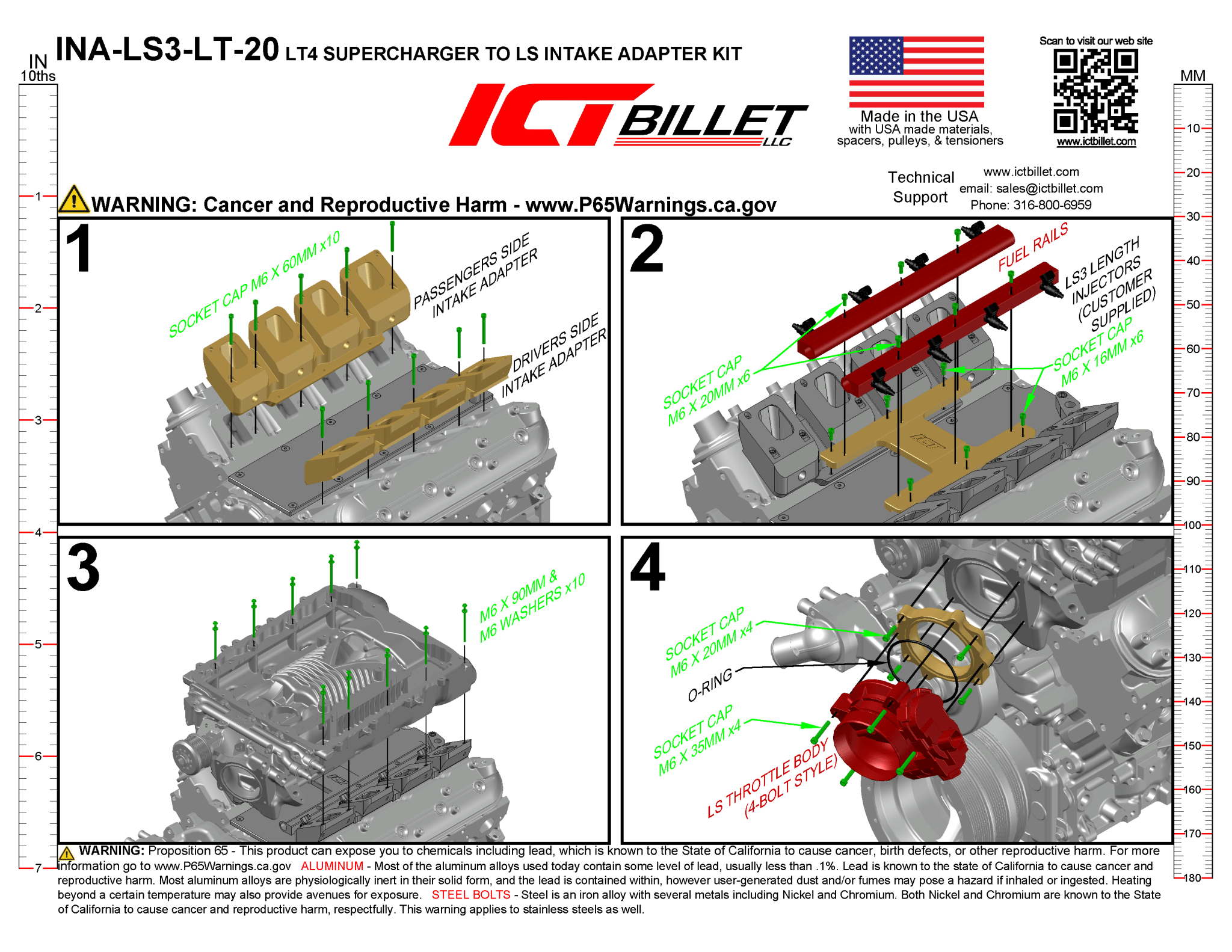

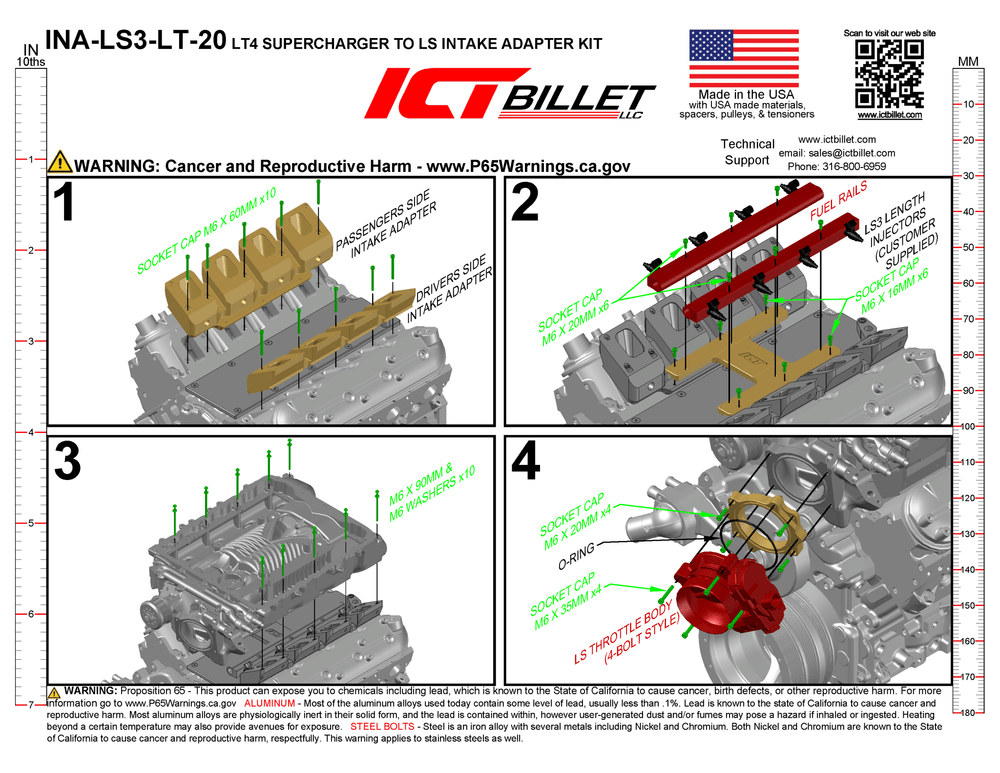

•  Includes: Intake adapters, -8orb fuel rails, valley cover, LS throttle body adapter, supercharger hub w/ 2.5" pulley, mounting hardware, and instructions
• Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails). SC hub is made in USA from stainless steel

Helpful Links

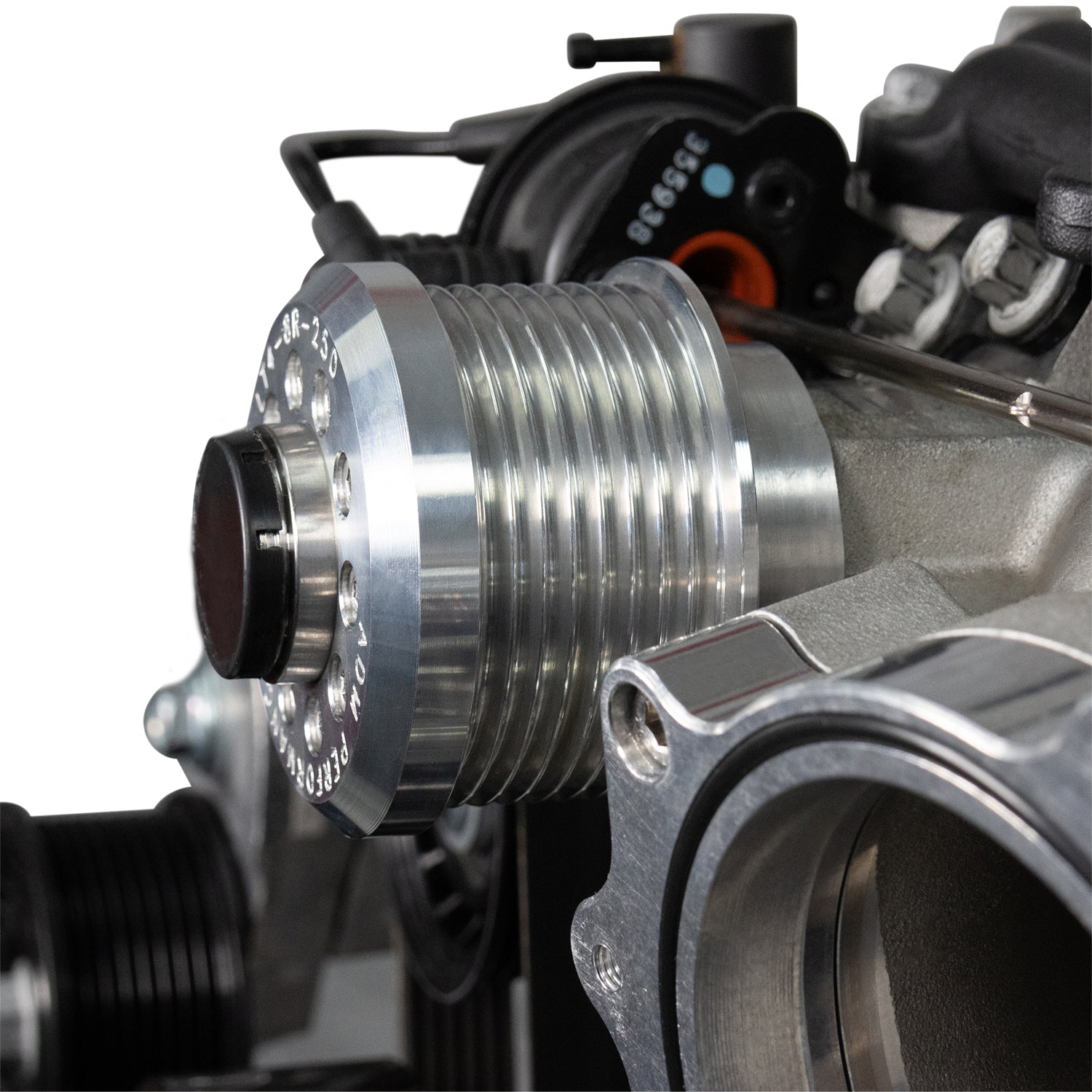

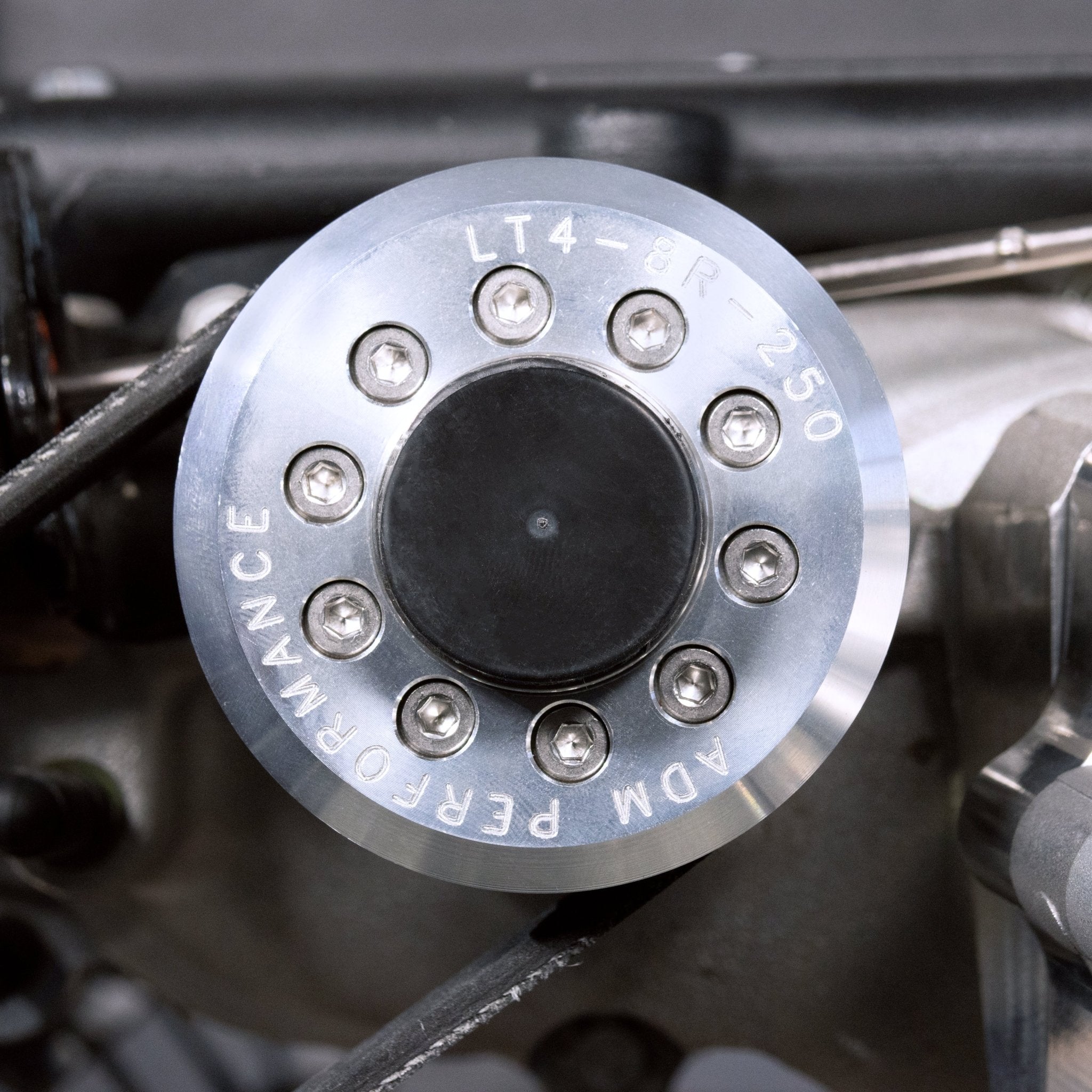

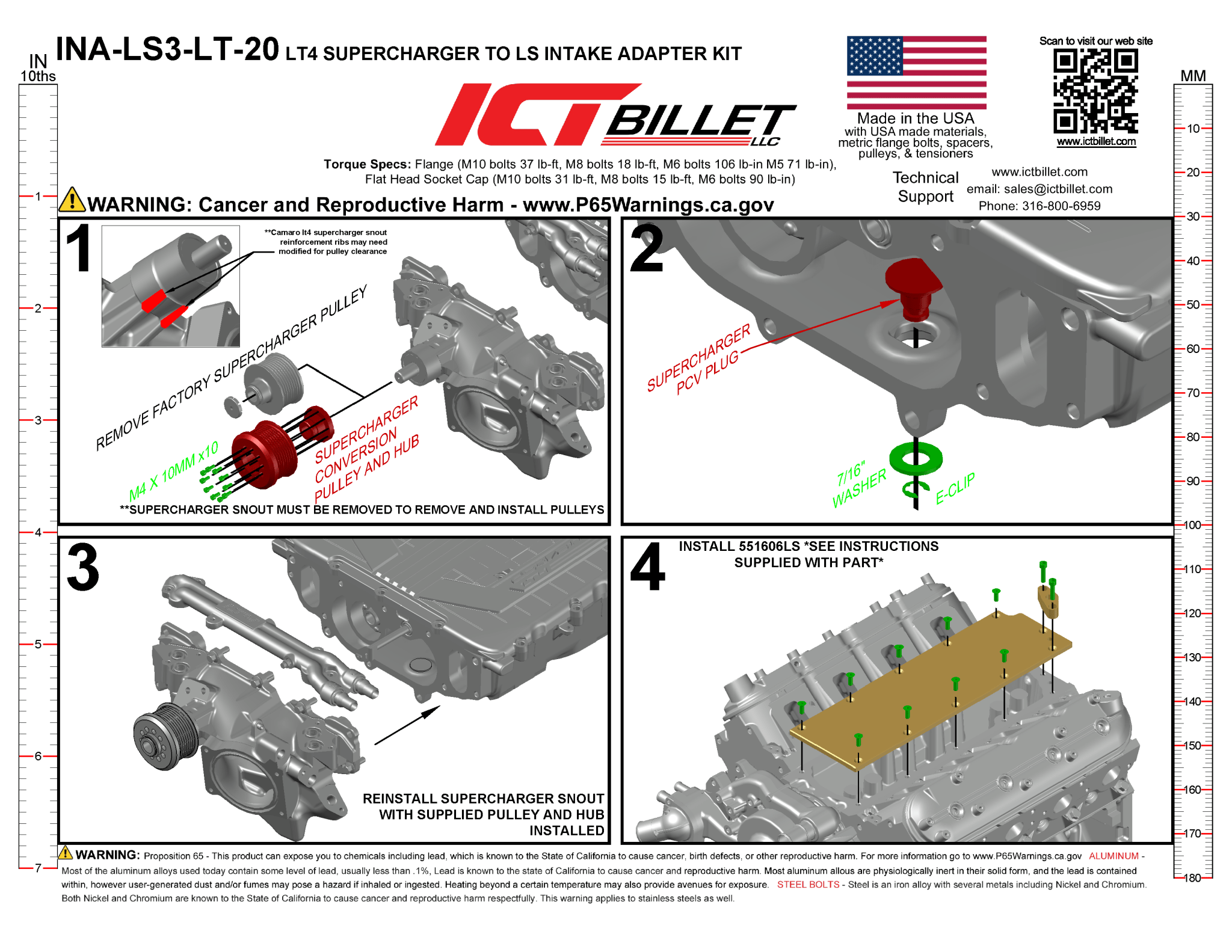

• When installing - press the supercharger hub on until it sits in the inner race of the snout bearing
• Measures 10.125" from top of engine block to top of supercharger lid (13.0" for Escalade V supercharger lid)
• Torque specs: pulley hub bolts to 27 in-lbs w/ blue Loctite.  adapters to head 106 lb-in, supercharger to adapters 106 lb-in, valley cover 37 lb-ft, throttle body & adapter 106 lb-in
• Replacement -229 oring
