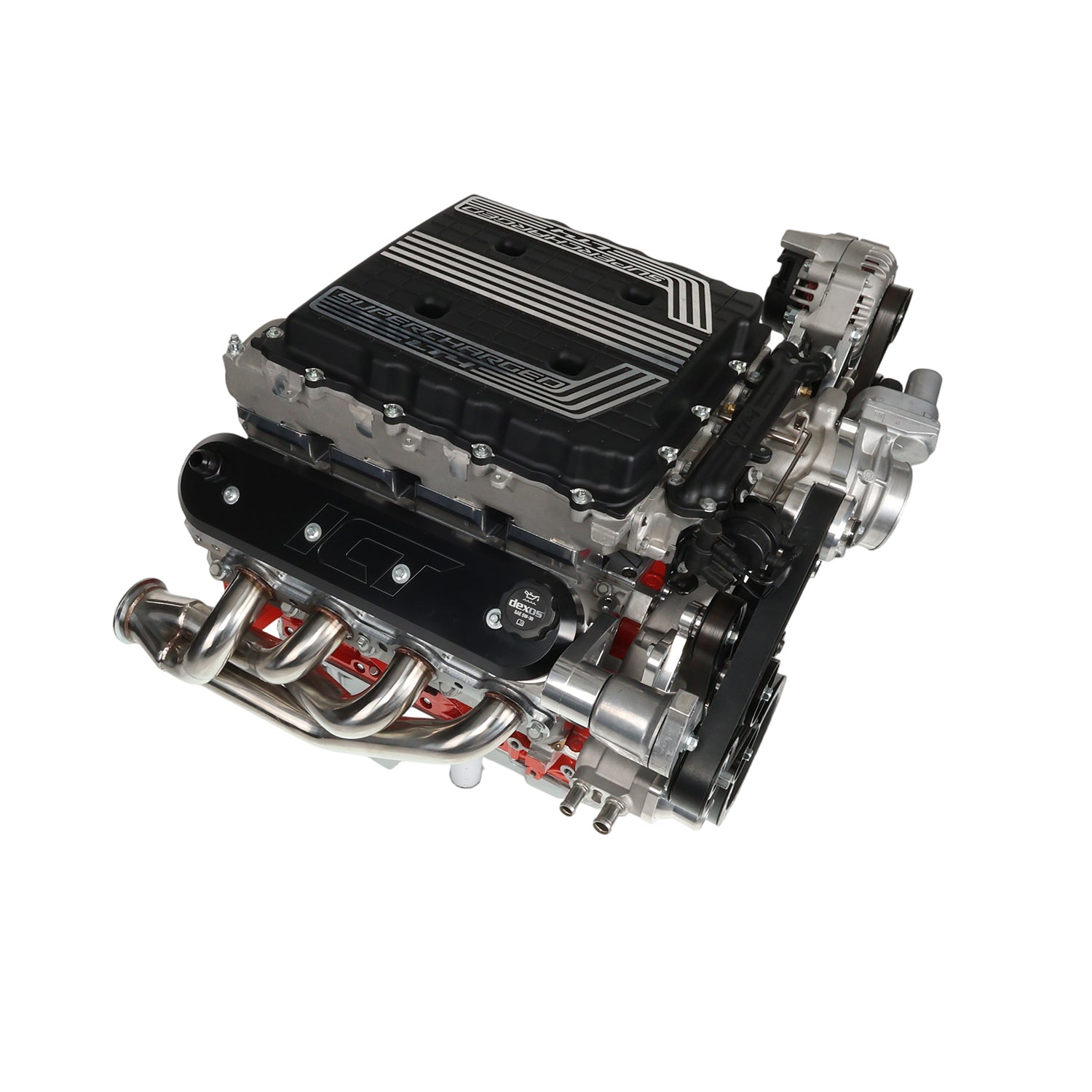

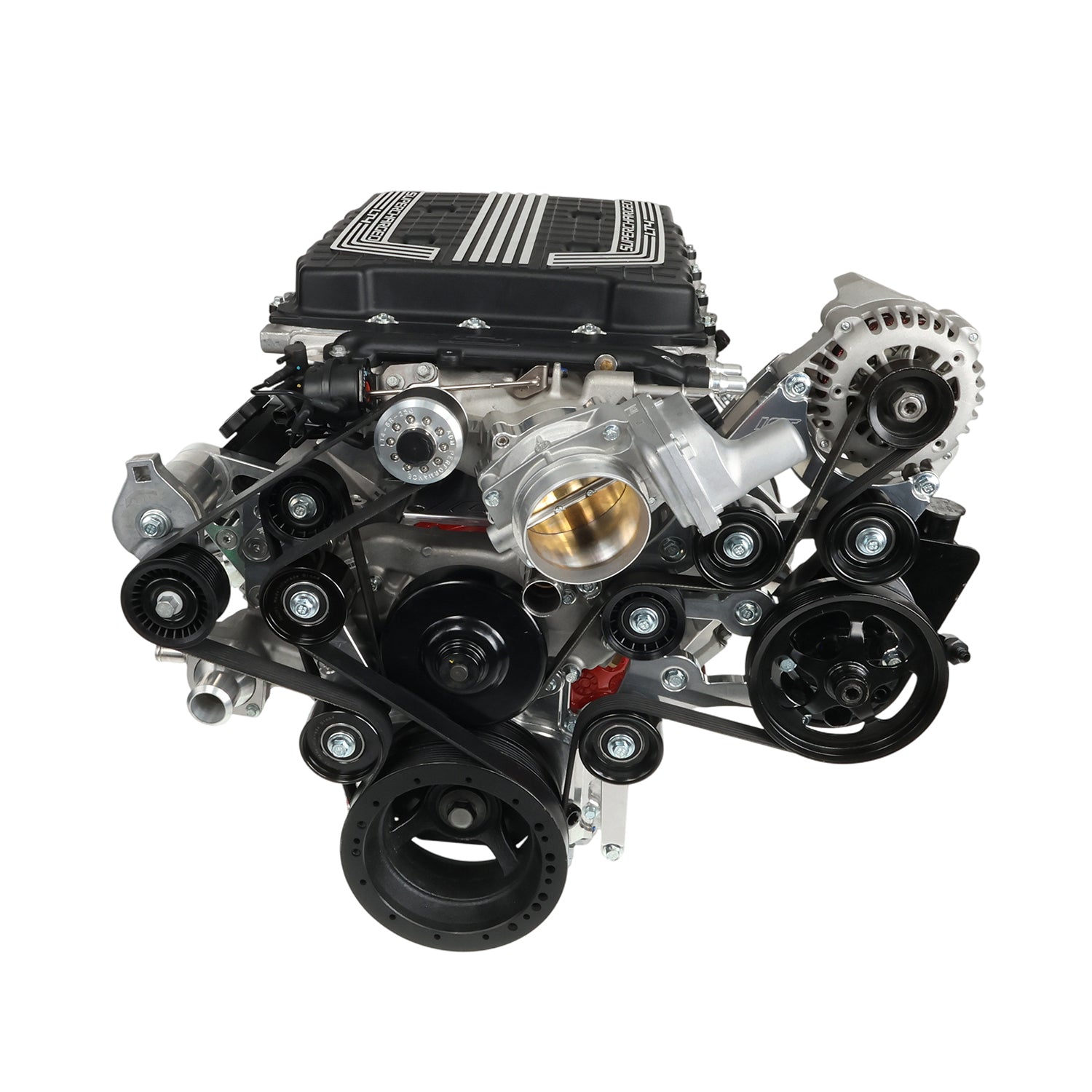

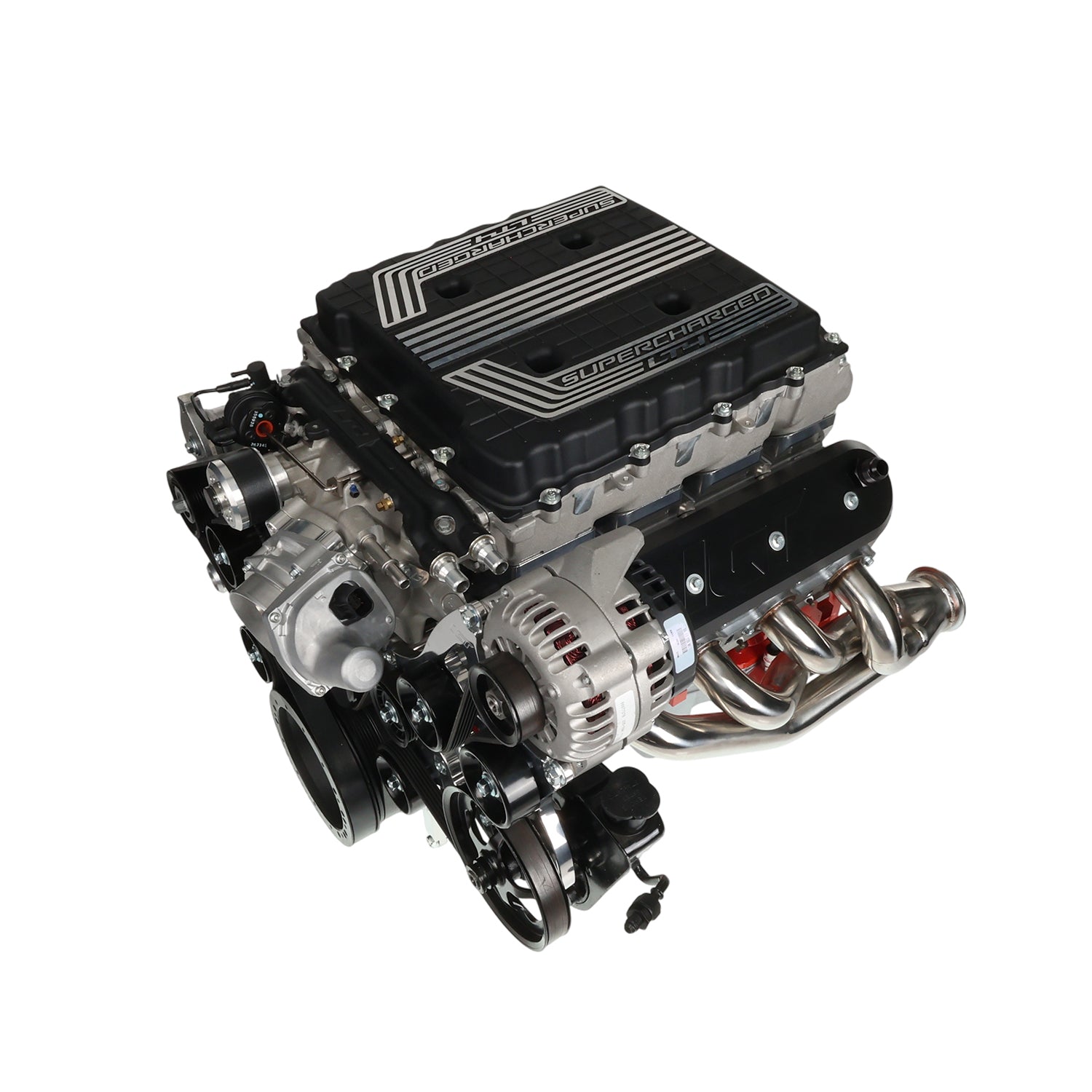

Camaro/CTS-V LT4 Supercharger to LS Cathedral Port Head Adapter Kit

Product Details:

• 8 fuel injector ports (16 port available)
• Compatible with LT4 supercharger from Camaro or CTS-V (this effects sc hub only)
• Compatible with all cathedral port cylinder heads RPO codes: LS1 LS2 LS6 LY2 L20 LH6 LY5 LMG LC9 LS4 LH8 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33
• Requires LS3 length fuel injectors
• Compatible with LSA harmonic balancer

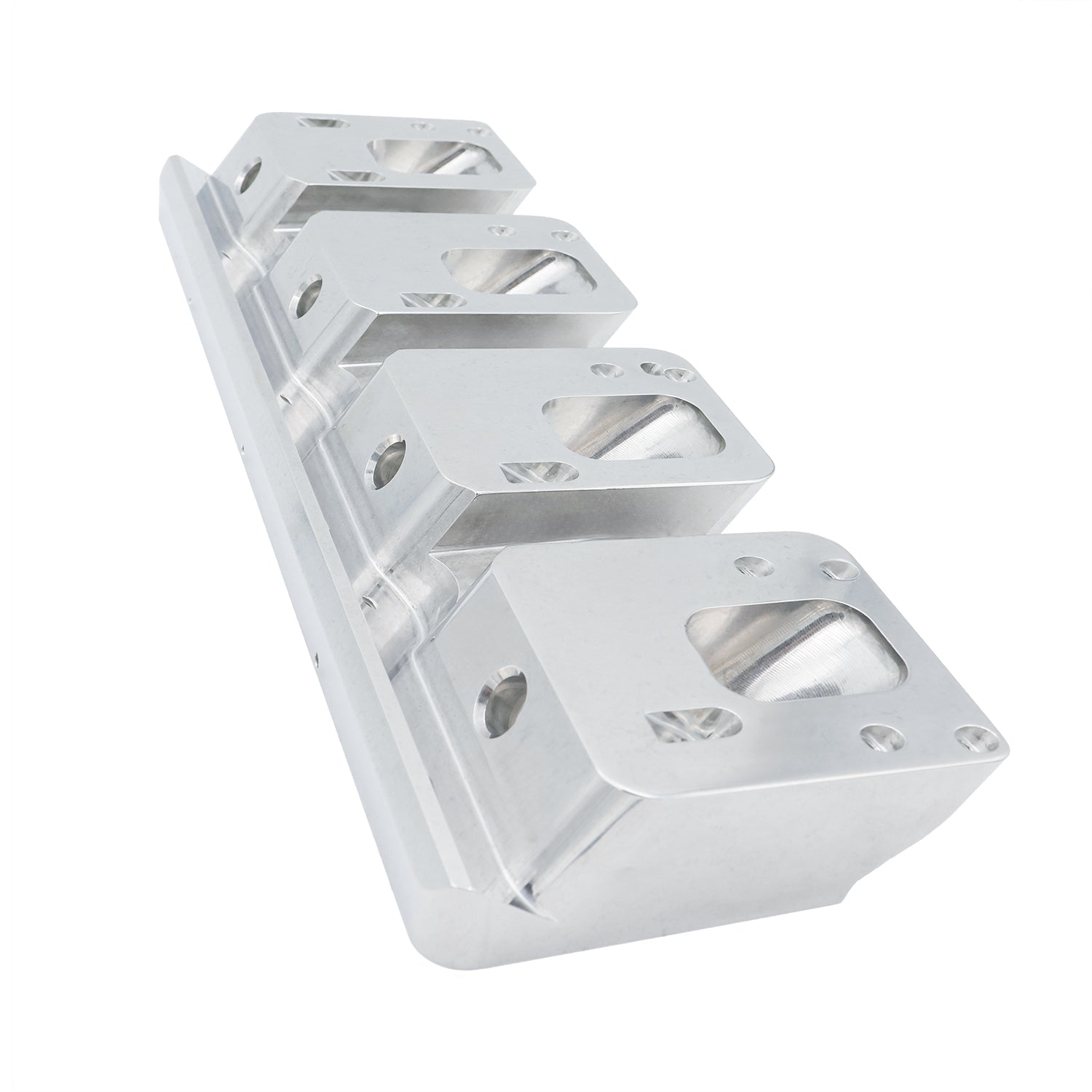

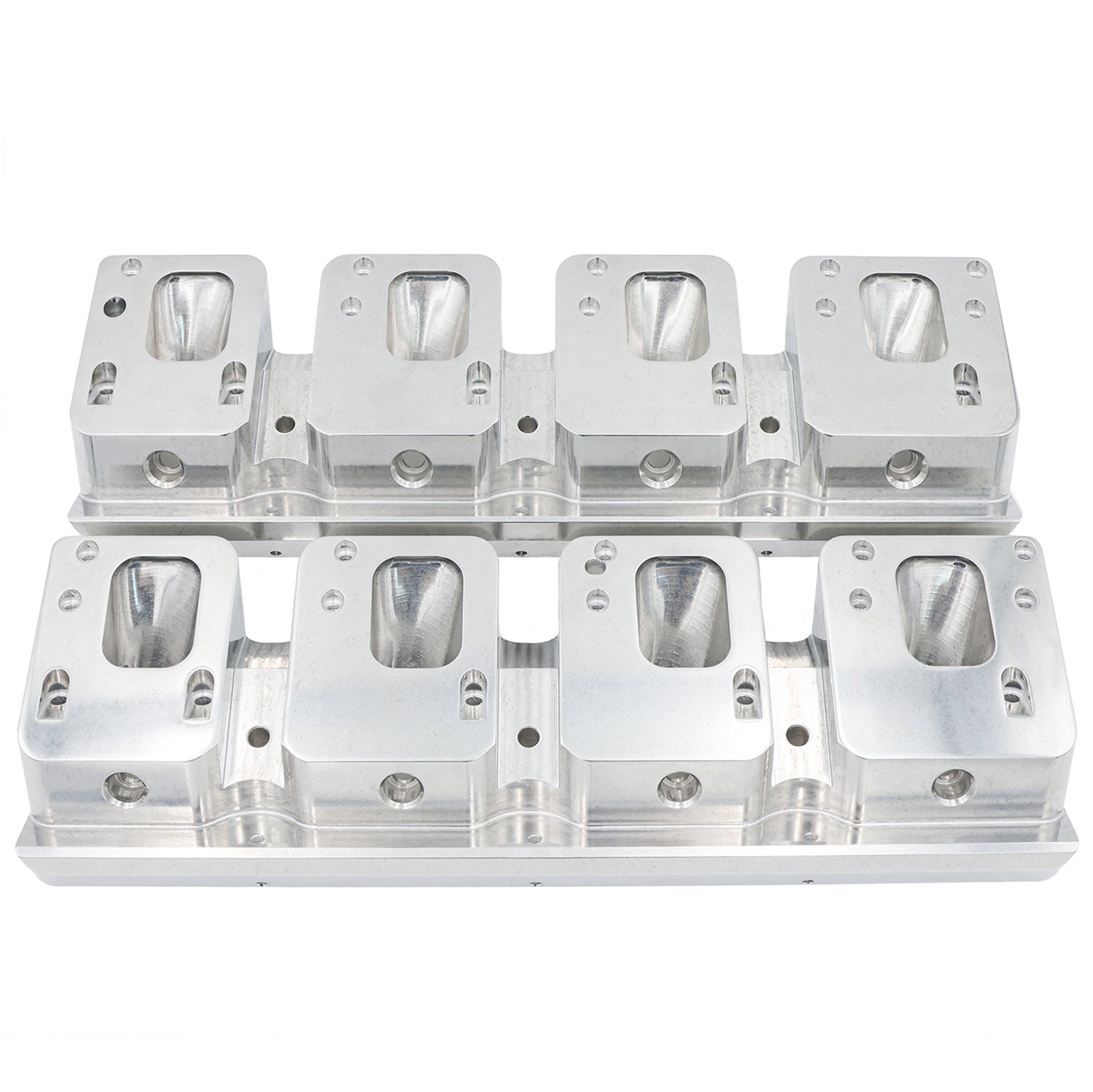

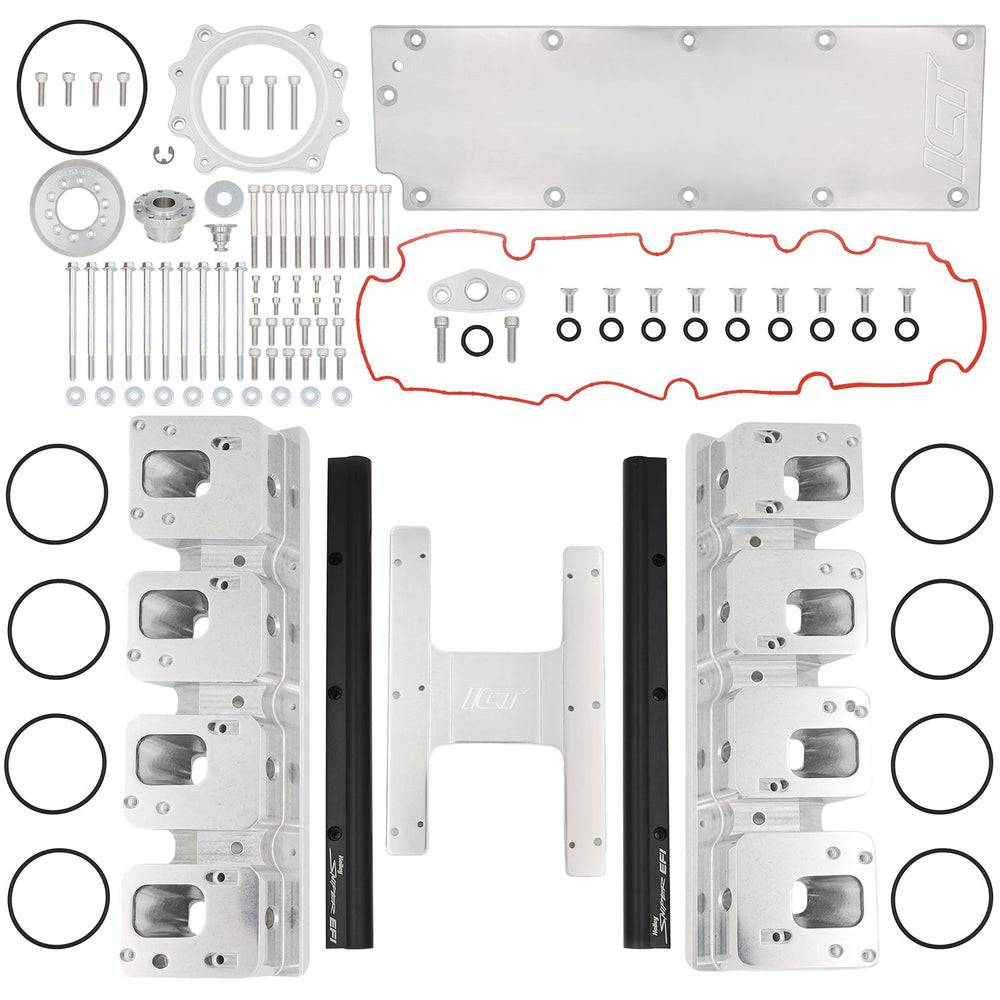

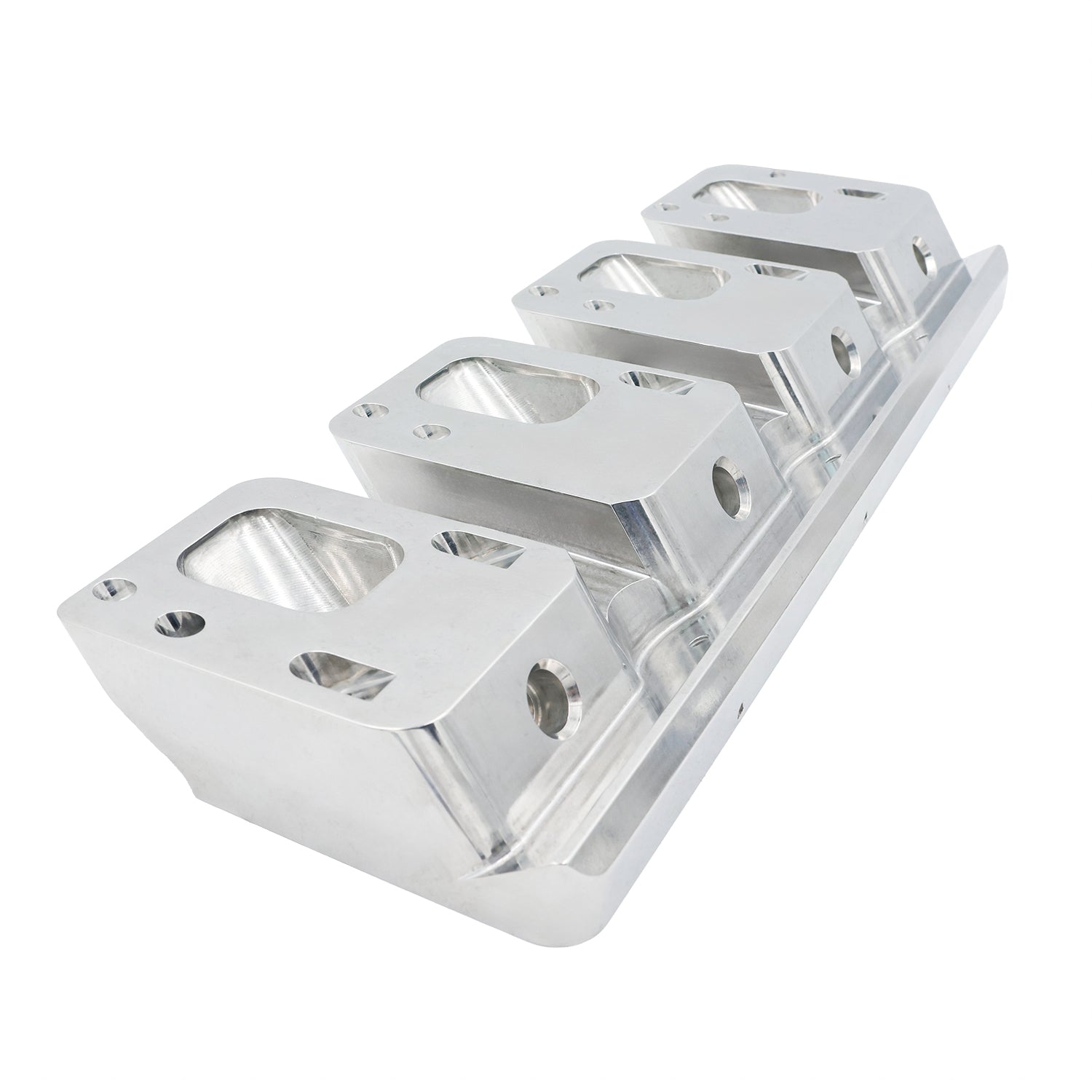

•  Includes: Intake adapters, -8orb fuel rails, valley cover, LS throttle body adapter, supercharger hub w/ 2.5" pulley, and mounting hardware
• Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails). SC hub is made in USA from stainless steel

Helpful Links

• When installing - press the supercharger hub on until it sits in the inner race of the snout bearing

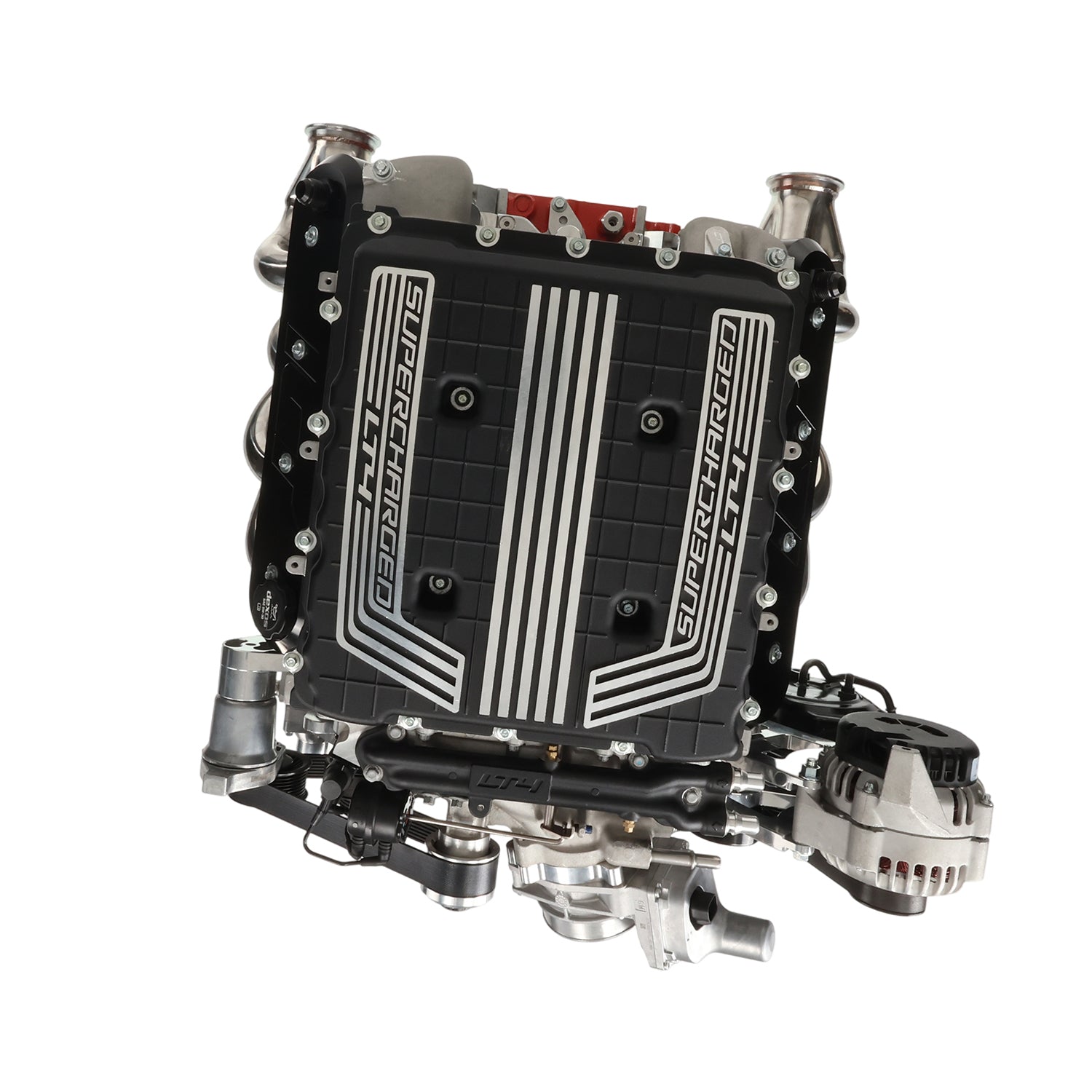

• Measures 10.125" from top of engine block to top of supercharger lid (13.0" for Escalade V supercharger lid)
• Torque specs: pulley hub bolts to 27 in-lbs w/ blue Loctite.  adapters to head 106 lb-in, supercharger to adapters 106 lb-in, valley cover 37 lb-ft, throttle body & adapter 106 lb-in
• Replacement -231 oring
