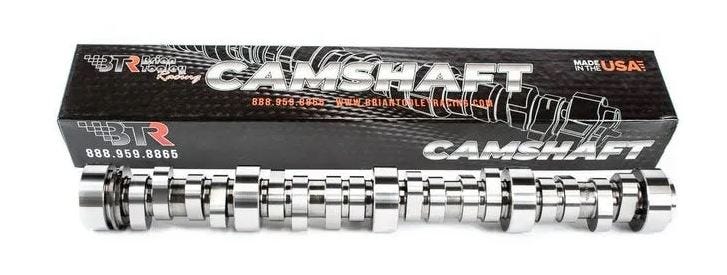

BTR LS Stage 2 Turbo Camshaft V2

Product Details

The BTR Stage 2 Turbo Camshaft V2 is designed for turbocharged LS engines looking for increased horsepower while maintaining good street drivability. Its turbo specific profile is designed to work well across a wide range of boosted LS combinations.

Camshaft Specifications

• Duration @ .050": 220° intake / 23X° exhaust
• Valve lift: .618" intake / .618" exhaust
• LSA: 113°
• Intake lobe lift @ TDC: .04422"
• Turbo specific camshaft profile
• Hydraulic roller camshaft
• 3 bolt camshaft

Important Installation Notes

• Upgraded valve springs and pushrods are required
• Professional tuning is required
• Always verify piston to valve clearance with your specific engine combination
