Black Cerakote LS Truck Alternator and Power Steering Kit Driver Side

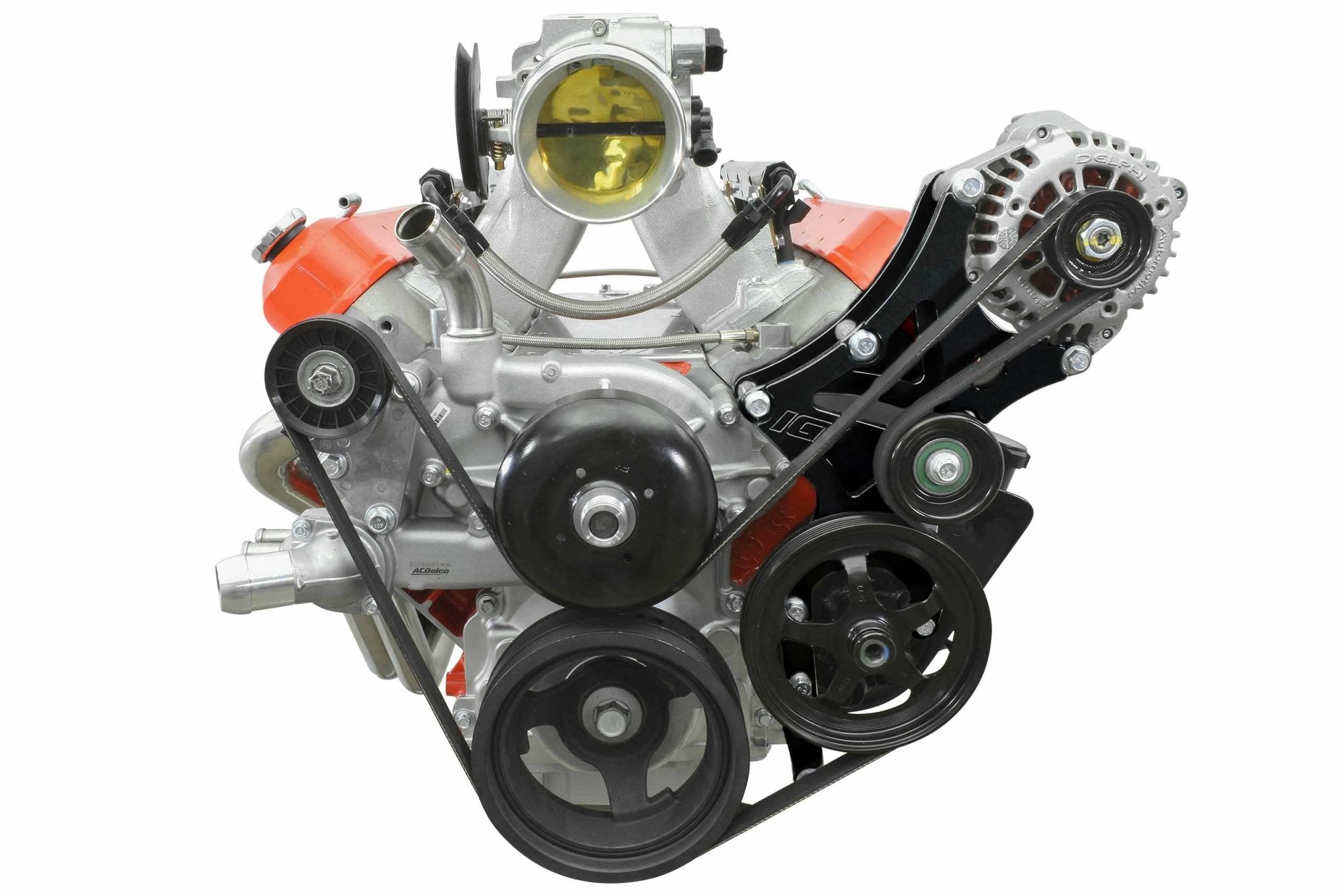

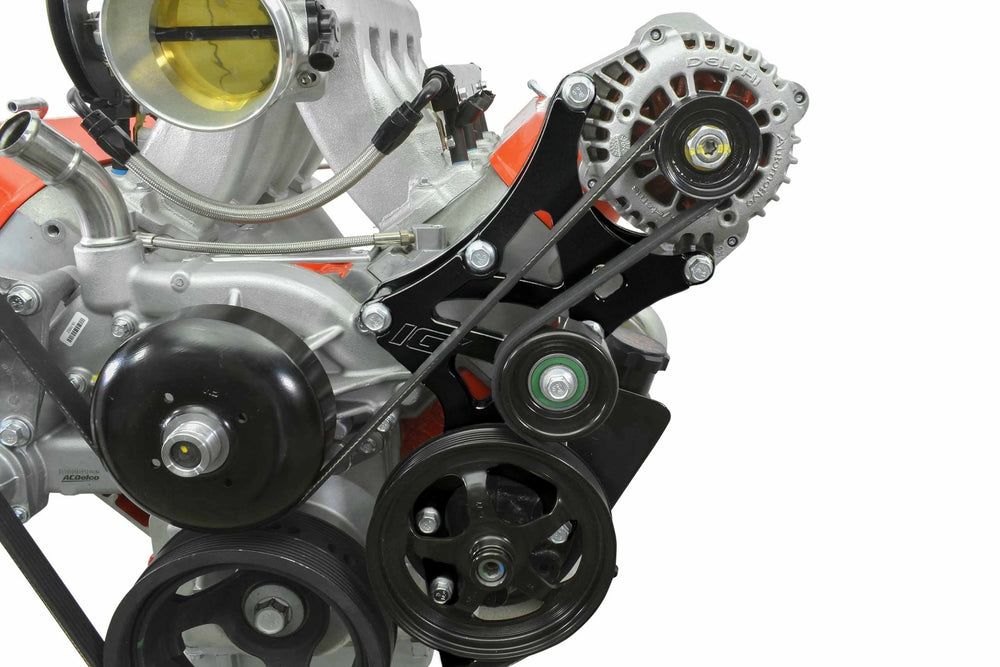

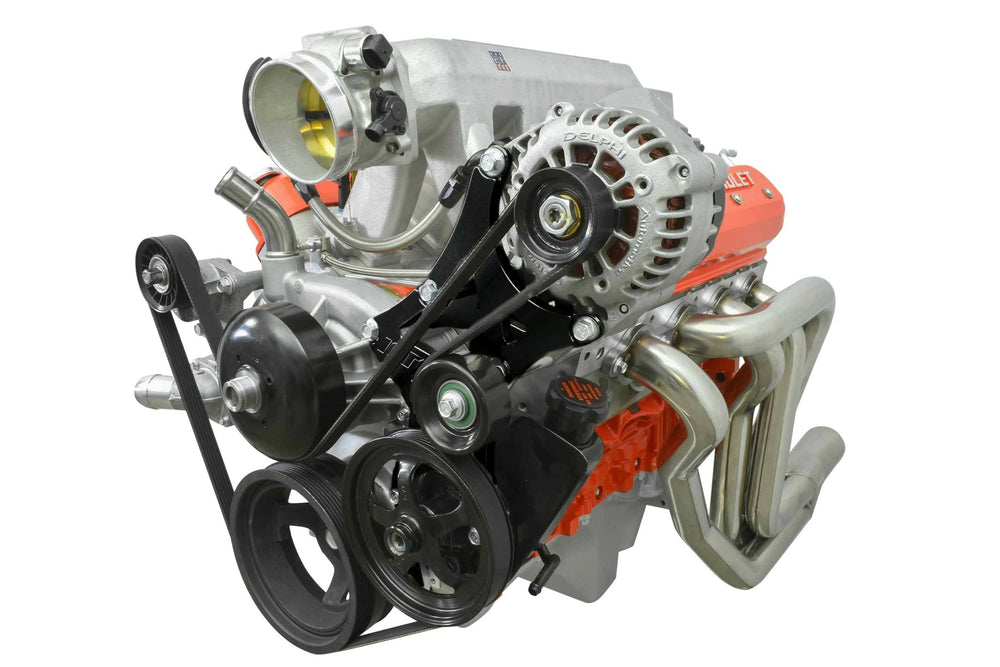

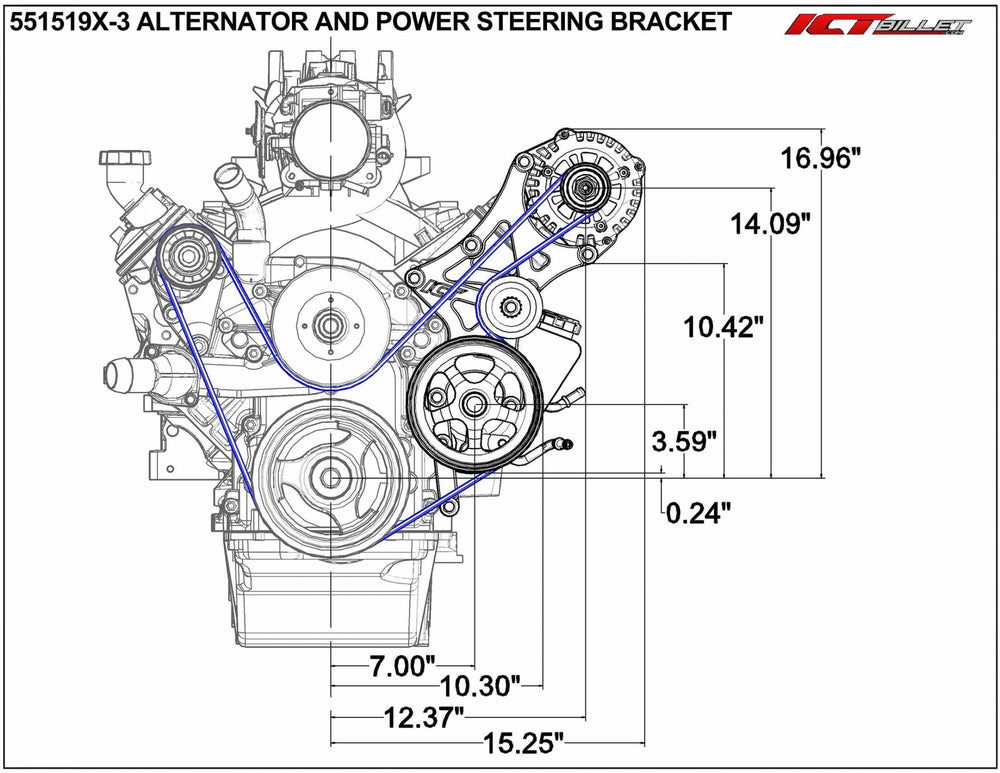

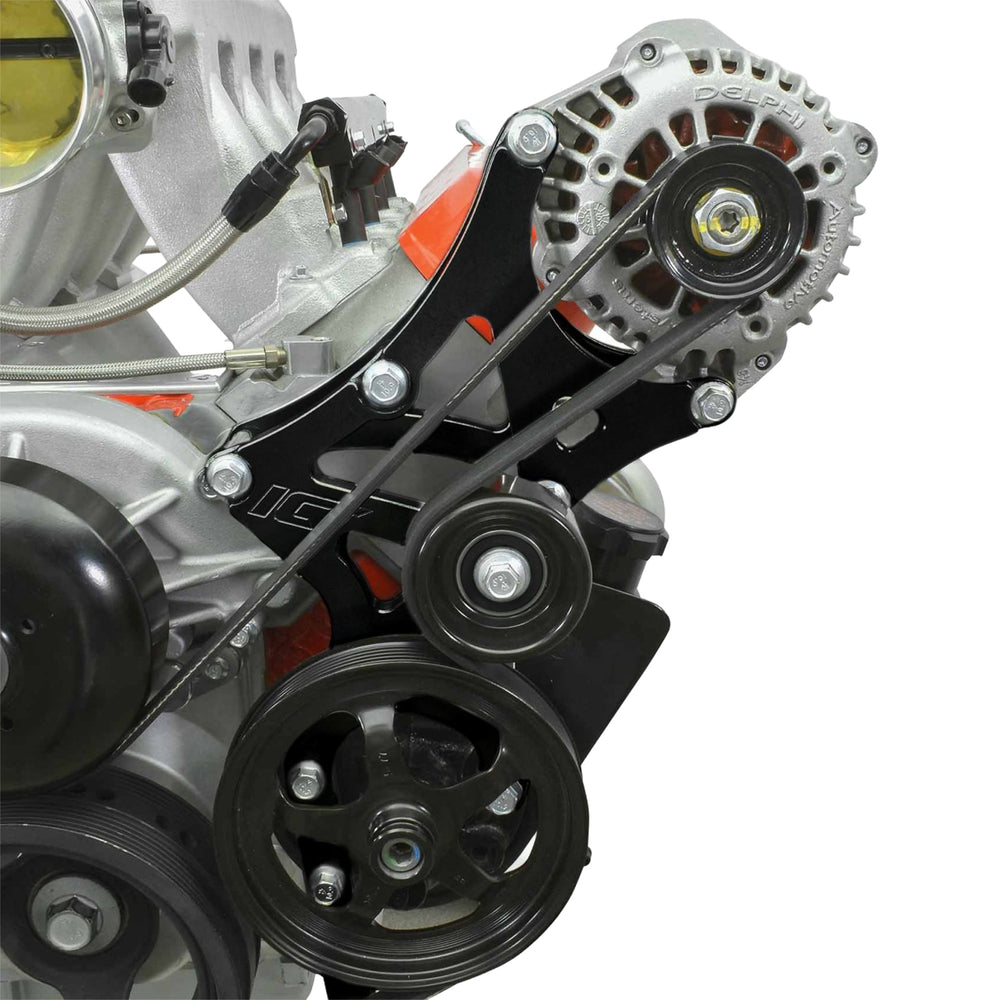

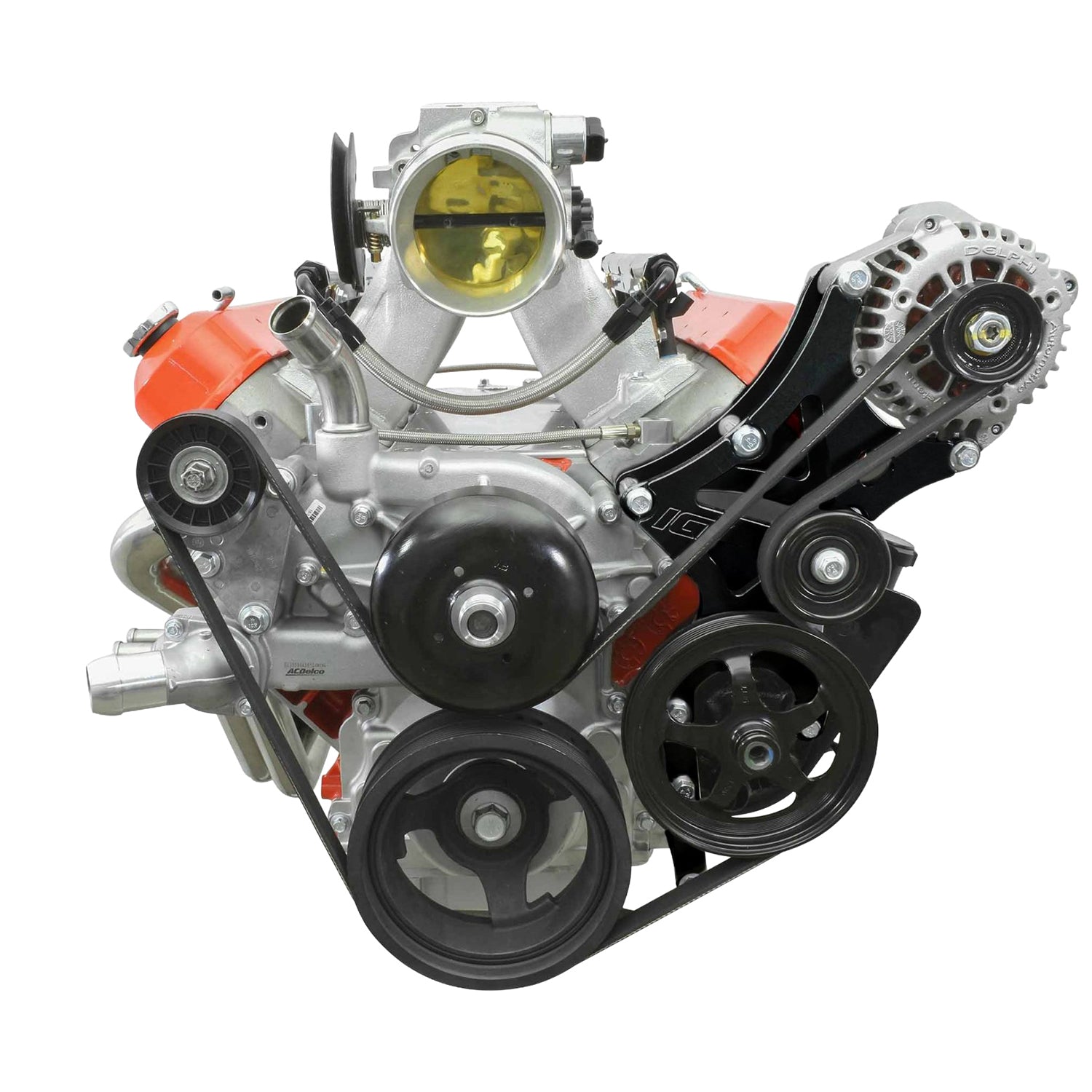

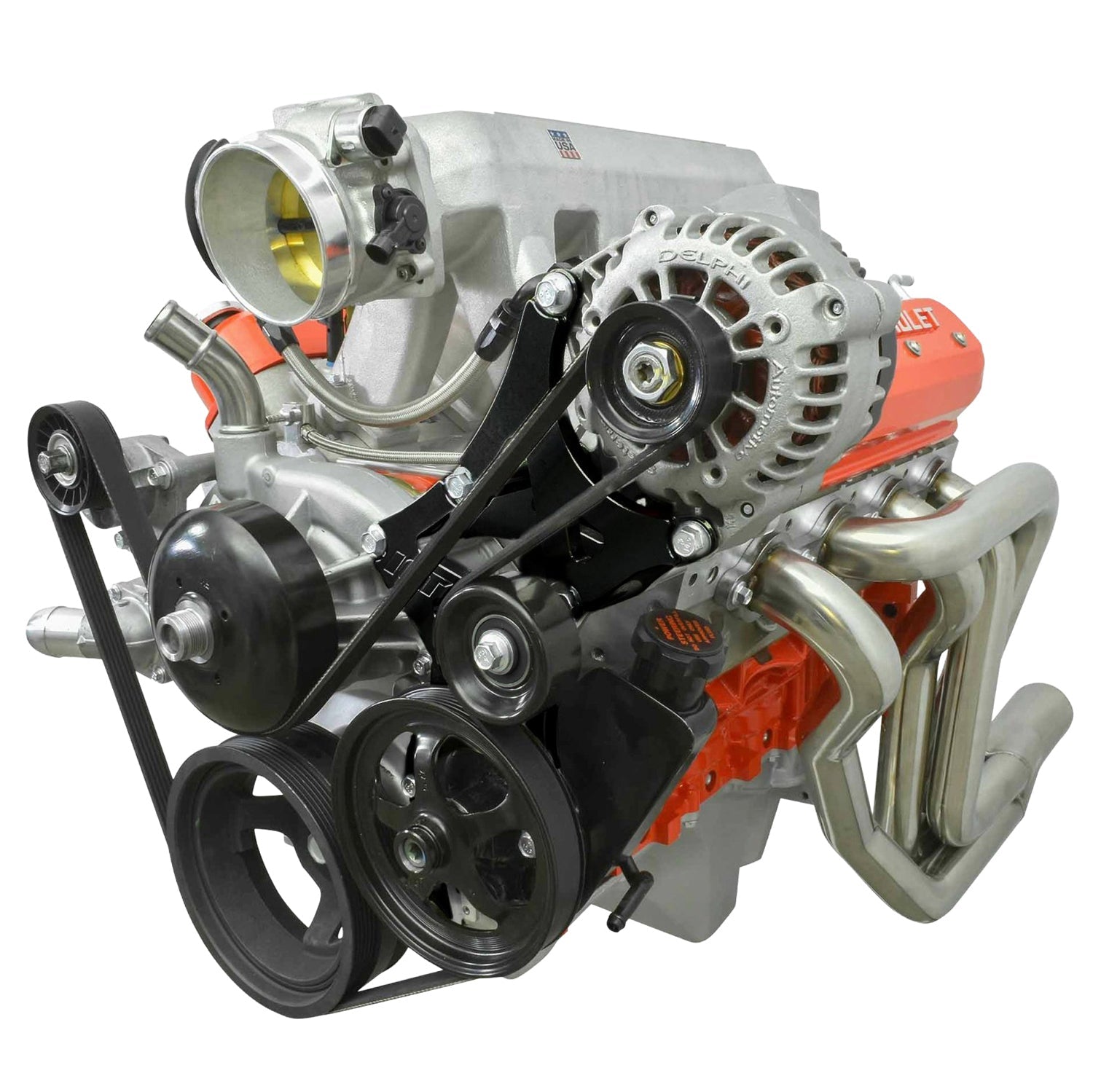

LS Truck Alternator and Power Steering Kit Driver Side Relocates The Alternator In Front Of The Drivers Head Above Valve Cover Black Cerakote

Product Details

• Black cerakote finish
• Moves power steering pump inboard, 1" from stock location for steering box clearance

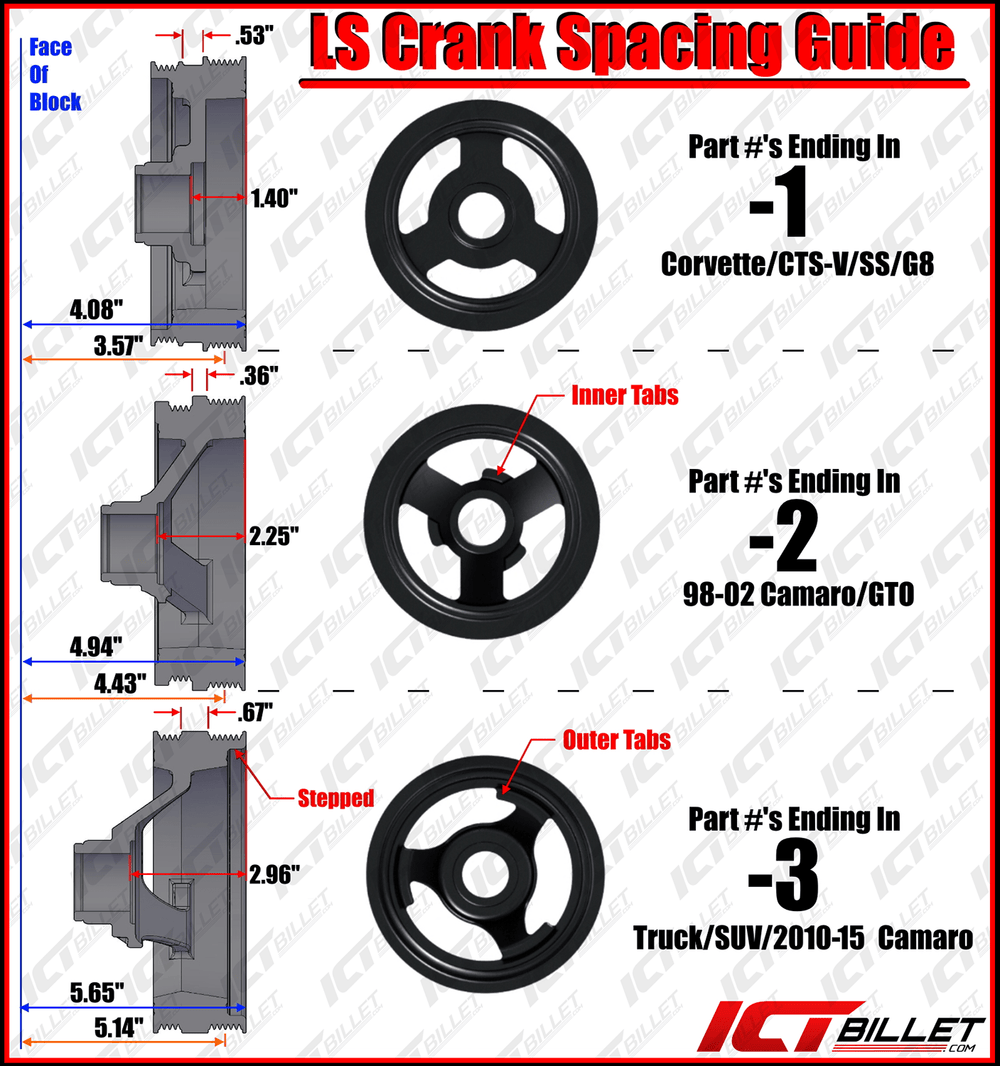

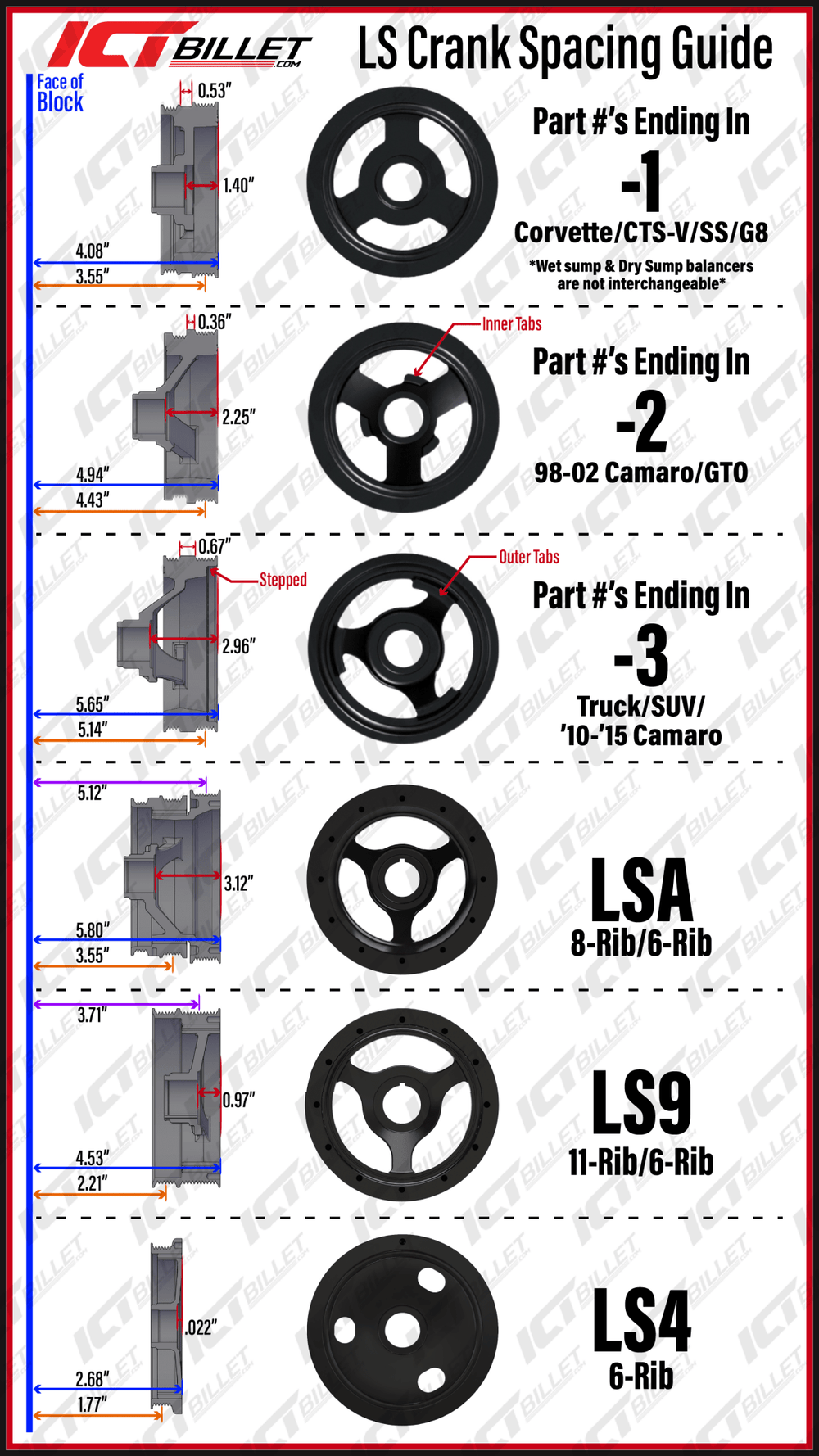

• Compatible with 99-13 LS Truck (& 10-15 Camaro) harmonic balancer, all LS truck alternators (5.46" bolt pattern, see chart), and LS truck Saginaw power steering pump and pulley (or 2pc pulley)

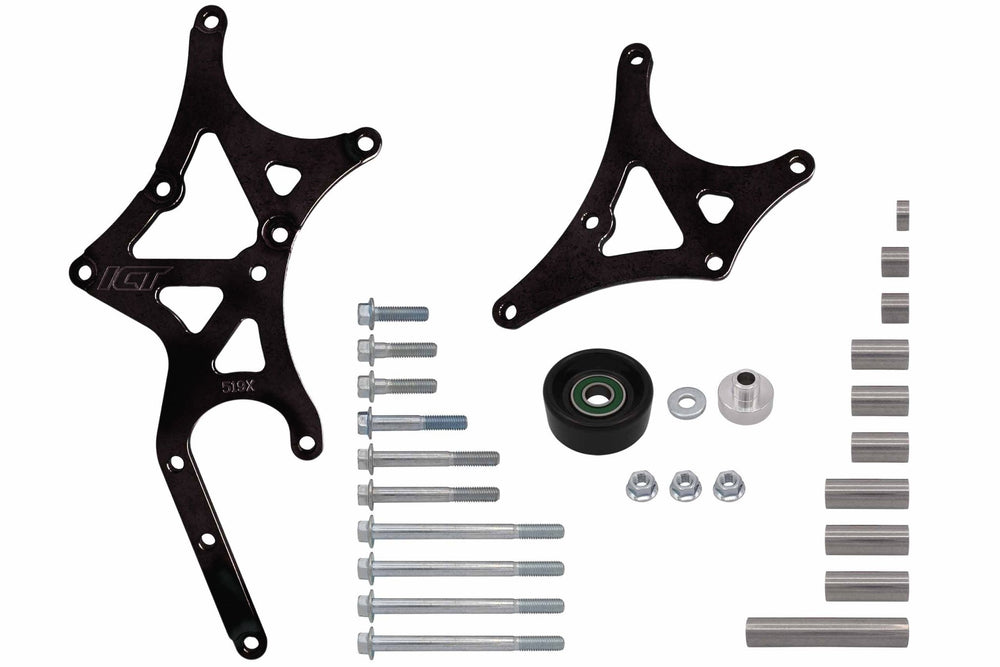

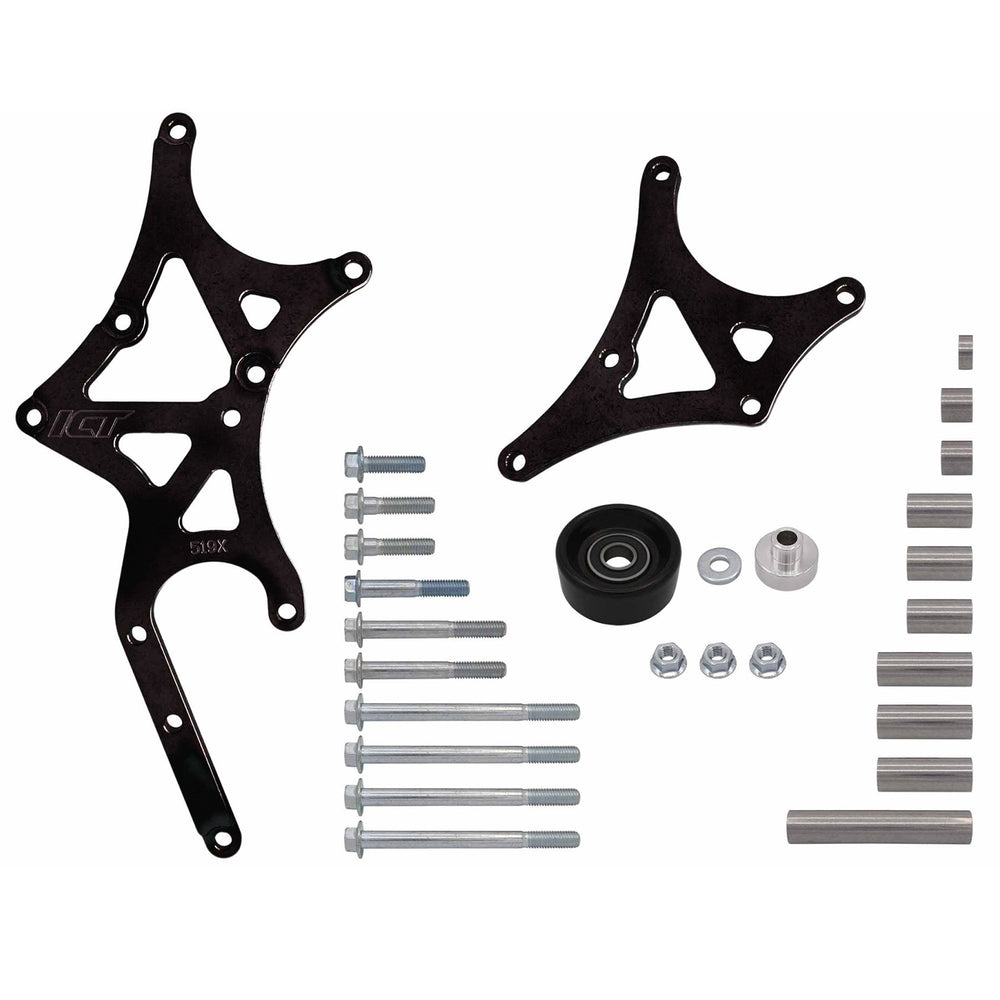

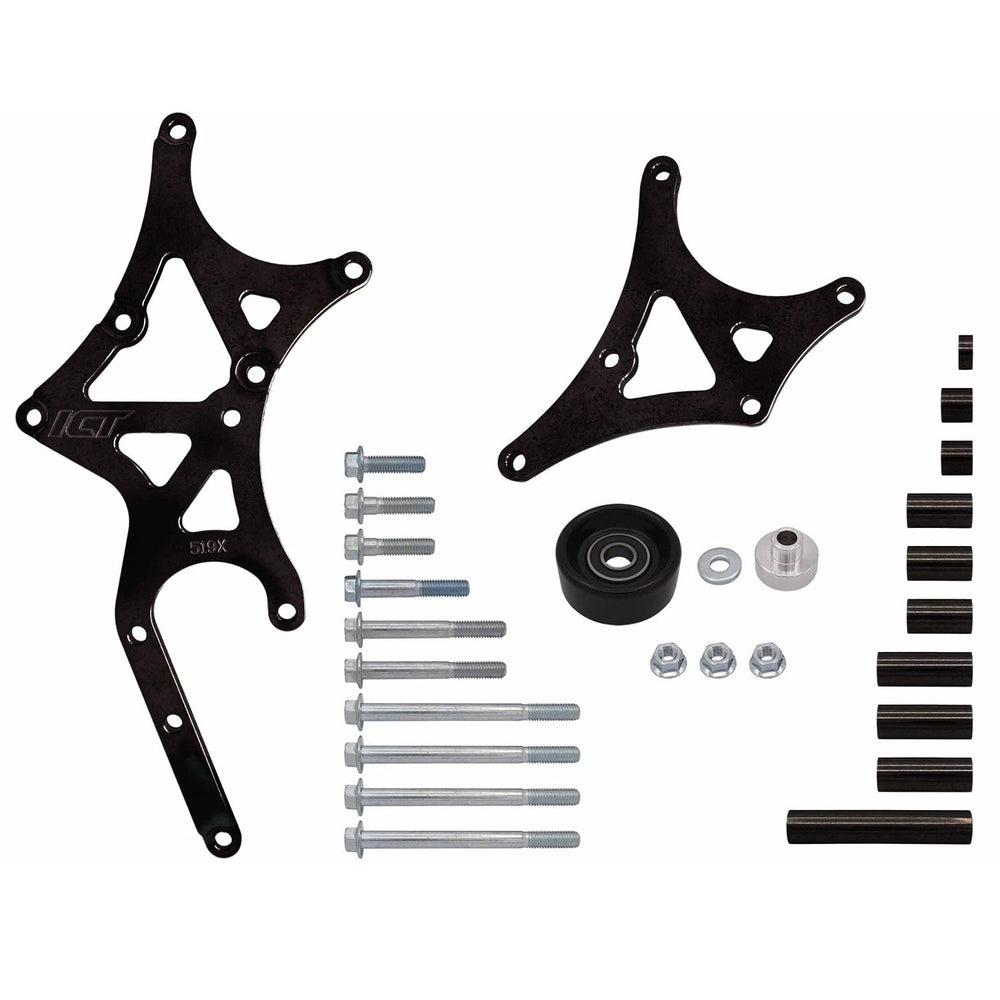

• Includes: bracket, idler pulley, mounting hardware, and instructions

• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum


*Cerakote coating may affect the grounding of the alternator. We recommend installing a dedicated ground strap from the alternator to the cylinder head to ensure proper electrical grounding

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Camaro 70-81

• Chevrolet Impala   65-70
• Chevrolet Chevelle 64-67

Helpful Links

• Torque bolts to 37 lb-ft
• Belt length chart
• Replacement smooth pulley or bolt and spacer kit
• Optional electrical cable box holder bracket or billet smooth pulley
• Instructions
