Billet Gen 3 Turbo Oil Drain - Timing Chain Cover -10AN ORB

Billet Gen III LS Timing Chain Cover w/ Twin -10AN Turbo Oil Returns

Compatible with Gen III GM LS series engines

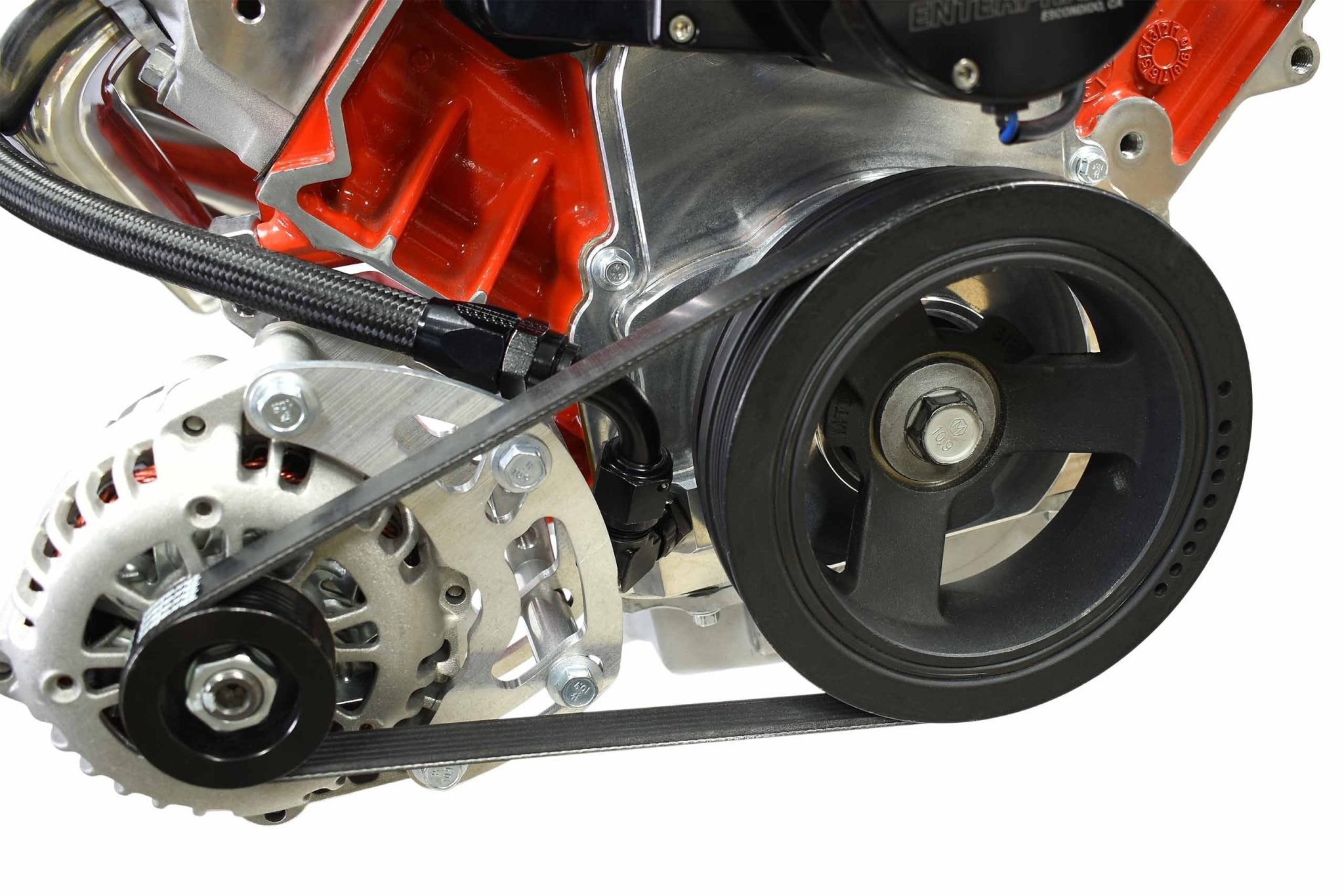

• Low profile angled -10AN ORB ports for clearance on Corvette, GTO, Camaro, and Truck balancers
• Fits with double roller timing chains, factory gaskets and crank seal (uses PN 551312)

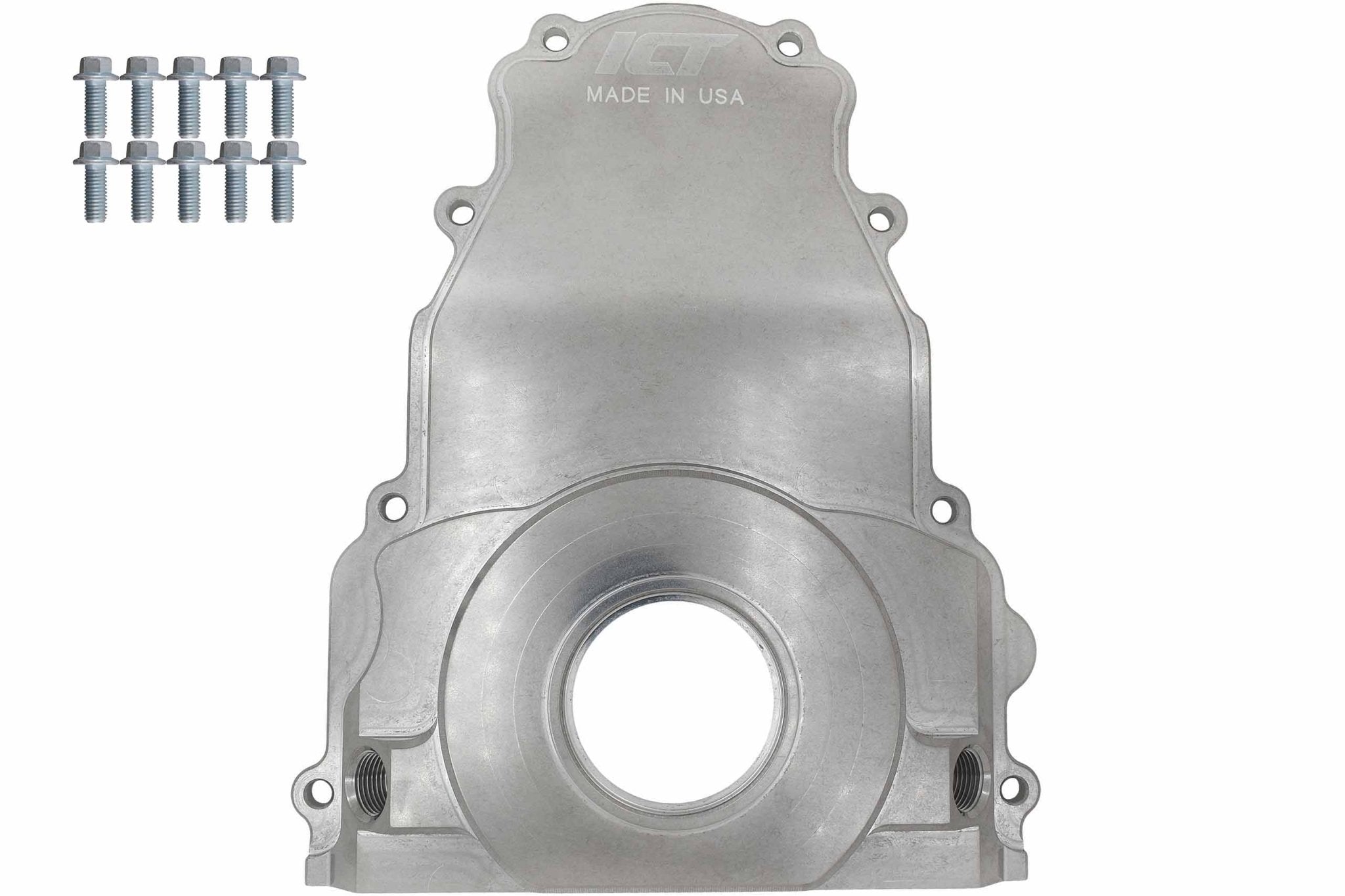

• Package includes: timing cover and bolts. (Does not come with gaskets or crank seal)
• Will require the use of one fitting on the opposing side or high mount accessories
• This timing cover will NOT work with factory LS A/C compressors in the factory low passenger side location.
• Made in Wichita, Kansas From Aerospace Grade, USA Produced, Billet Aluminum
• For the tightest fitment, we recommend using Fragola 90 degree fitting part number FRA-499210-BL
• Due to close clearance of fittings and accessories this cover is not compatible with part numbers 551527X-3, 551667EWP-1,551137-LS74-1, 551667-1, 551177-1, 551177-3, 551777 and 551747

*use sealer (timing cover to seal) to prevent main seals from spinning or leaking. Required on oem applications too
