BBC Alternator & Power Steering Bracket Kit for Electric Water Pump ONLY

Product Details

• This kit will ONLY work with long water pump, V-belt (1, 2, or 3 rib pulleys)
• Does NOT include pulleys

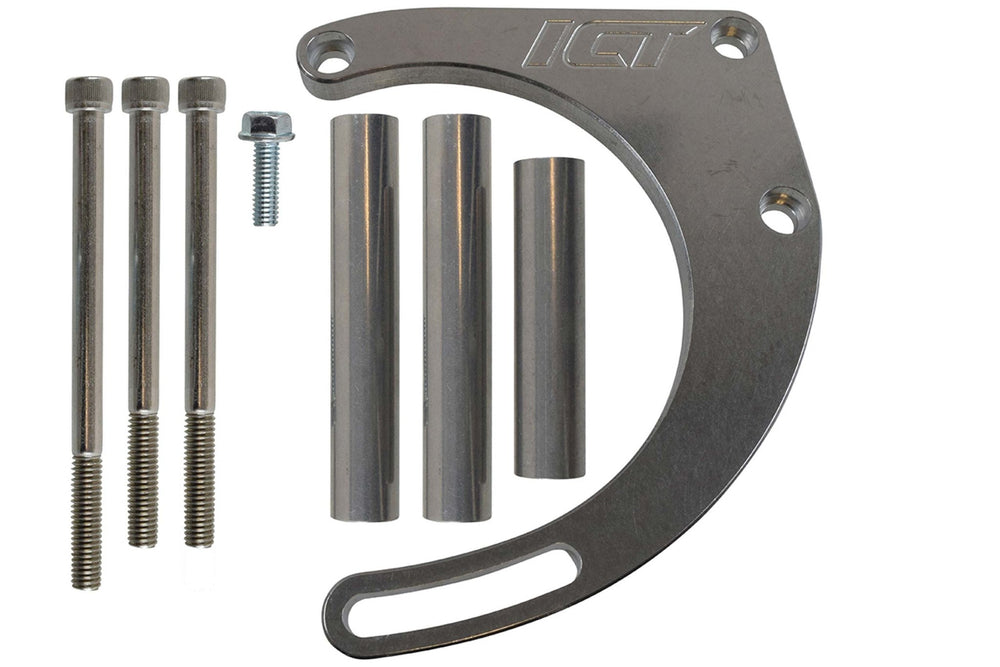

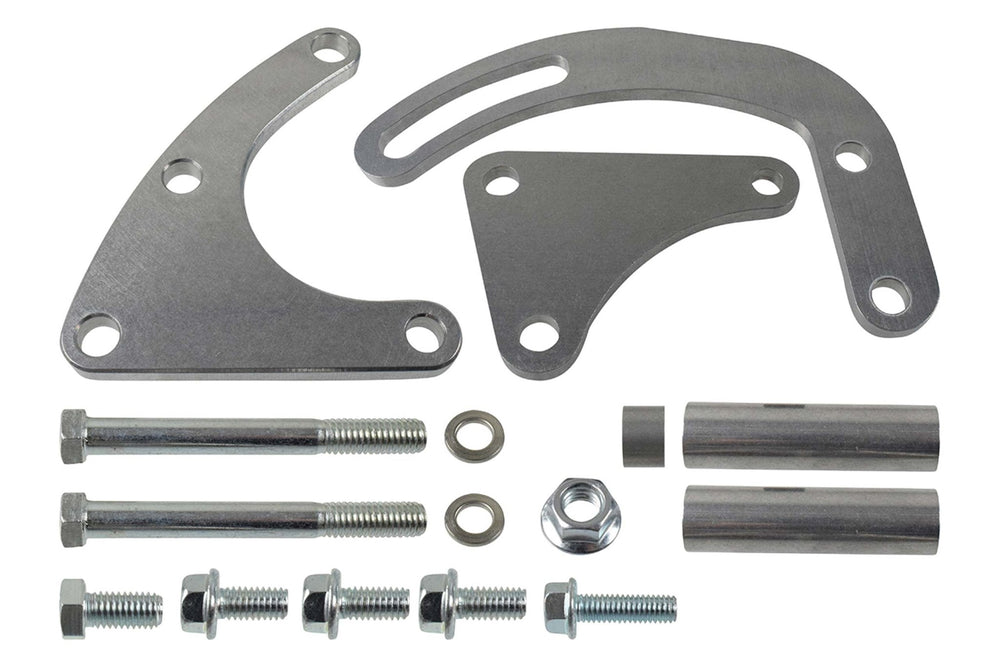

• Includes alternator and power steering brackets, instructions, and mounting hardware
  • Kit includes hardware for 3/8" accessory holes in cylinder head, call our sales team if you need 7/16" bolt and matching bracket
• Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

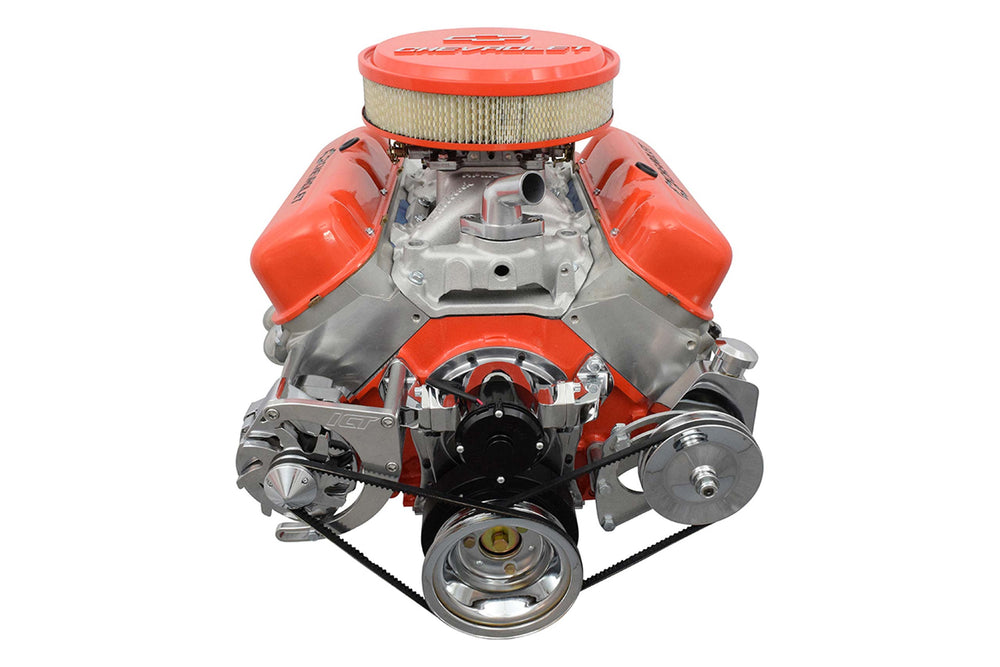

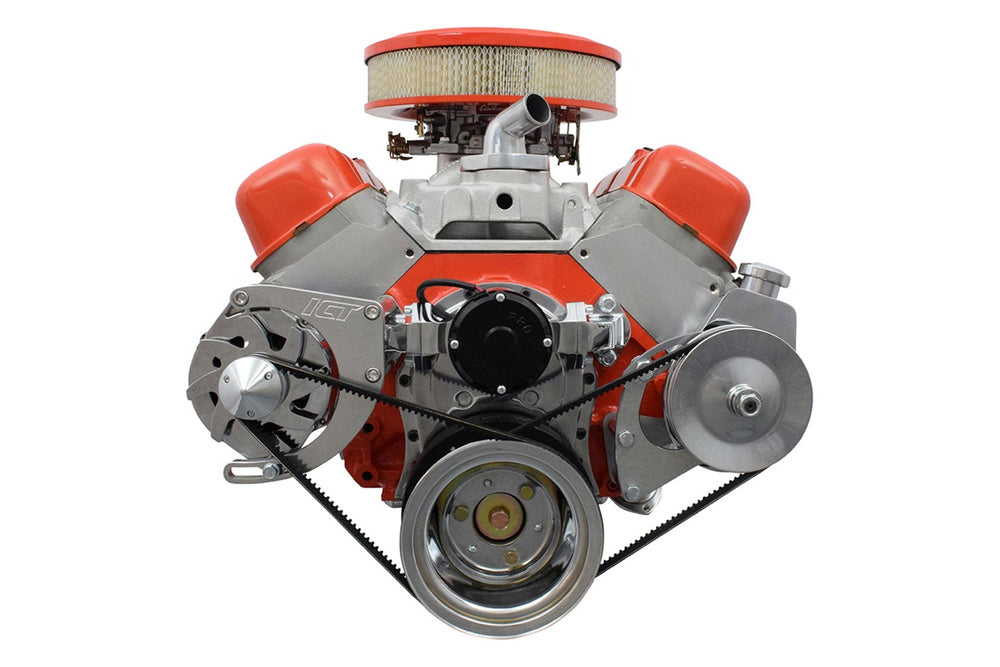

*Depending on thickness of water pump base, the bolt sleeves/spacers may need trimmed to fit. Pictures are shown with electric water pump #E-5927-P

Alternator

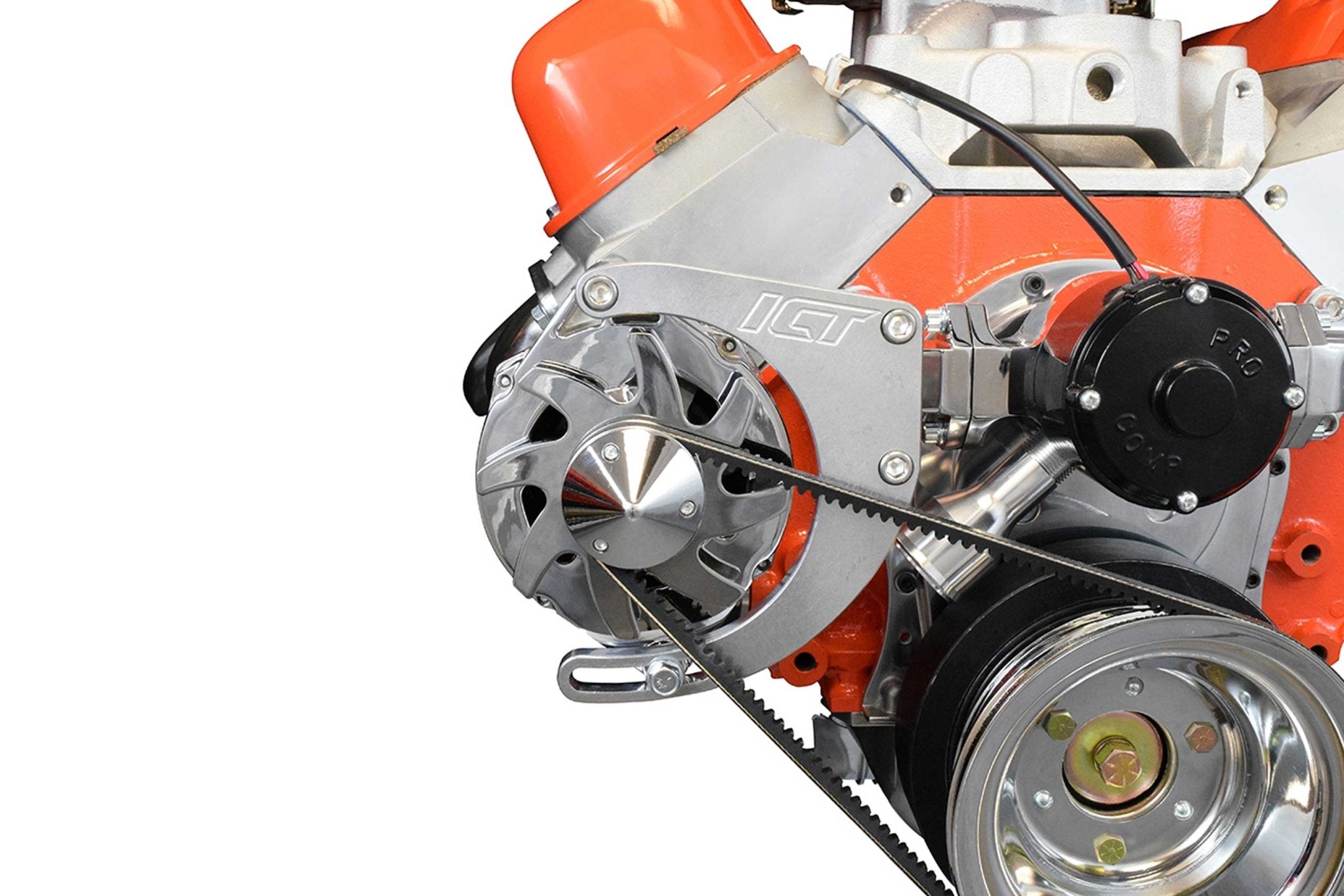

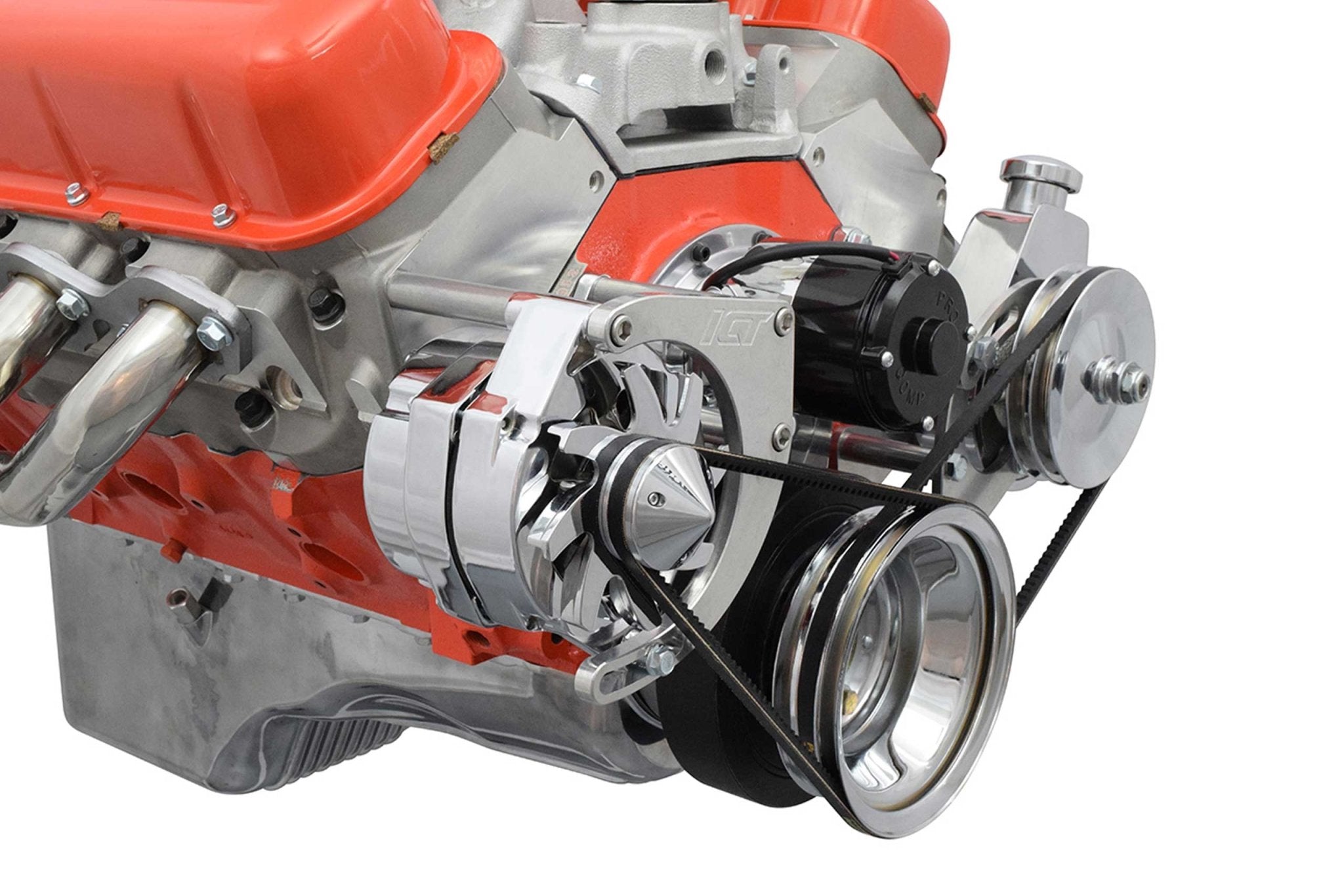

• Uses 10si/12si style alternators

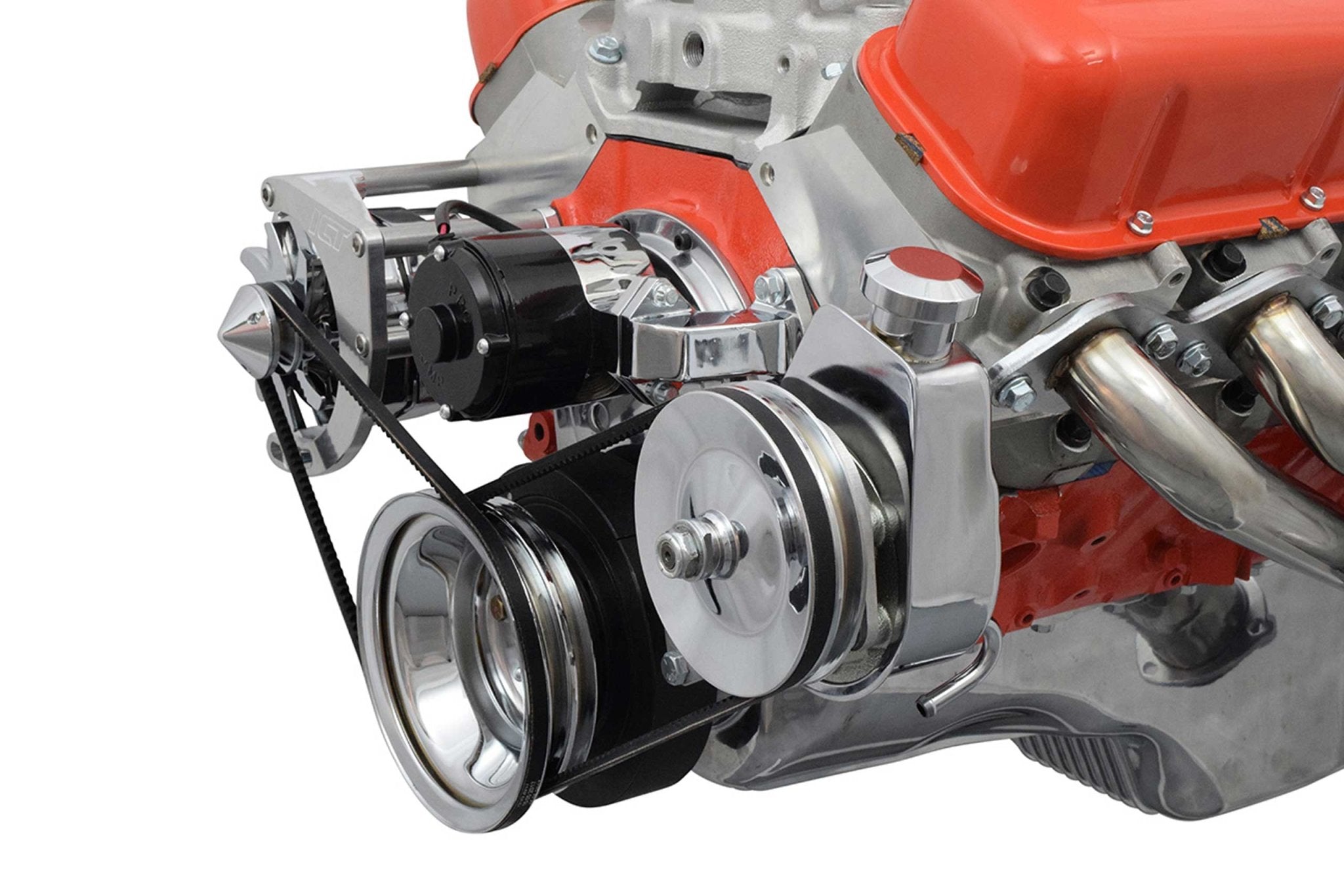

Power Steering Pump (OE style or Lares 2134)

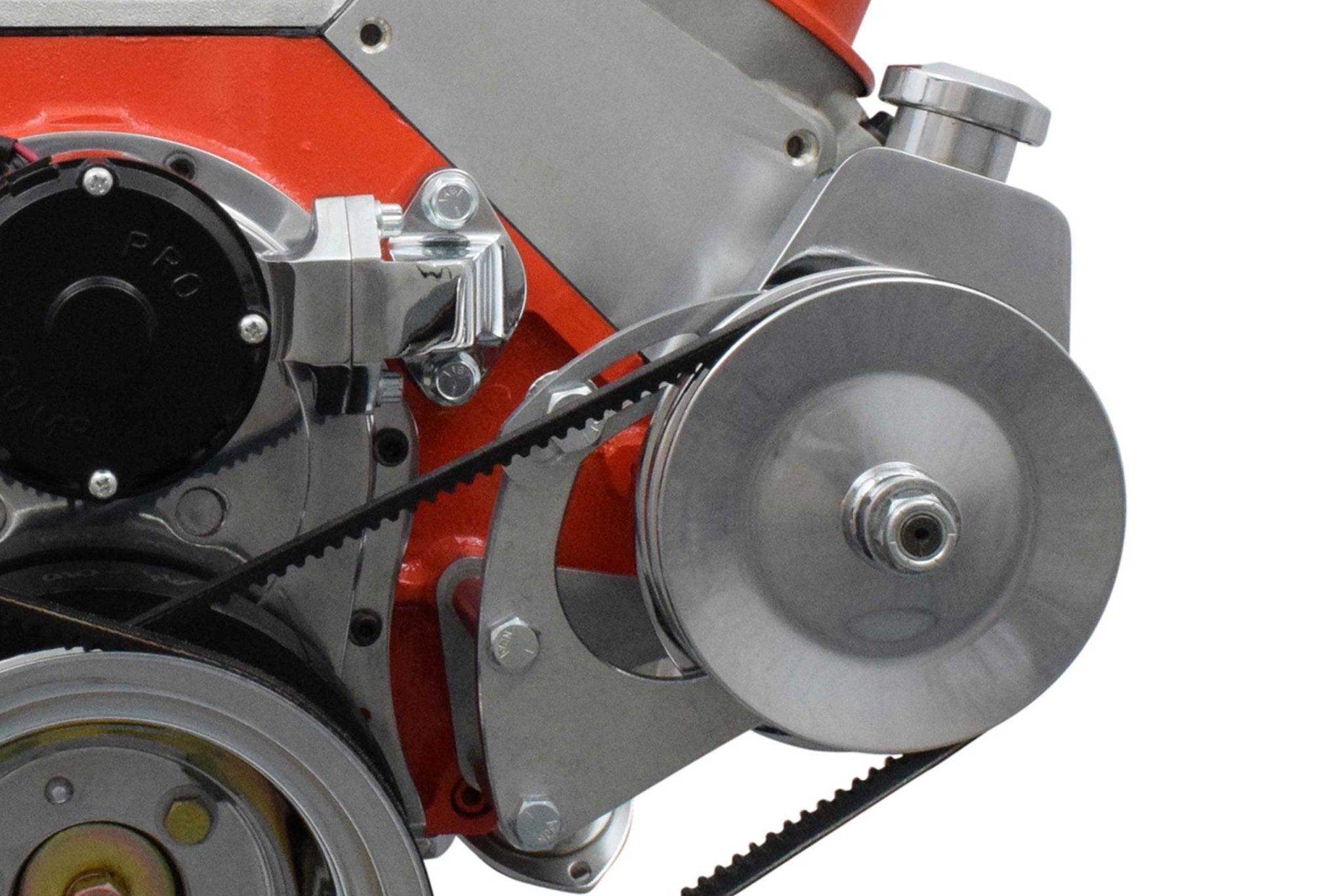

• Bracket is only compatible with the power steering pump style shown in picture 3 with rear stud at bottom of the reservoir


Pulleys (or similar OE style, V-Rib ONLY)

• Suggested Crank Pulley Part #14023148
• Suggested Power Steering Pulley Part #14023173

Belt Length

• Alternator uses 38.5" V-belt - Gates 7385 (with factory diameter pulleys)
• Power steering uses 39.5" V-belt - Gates 7395 (with factory diameter pulleys)

Helpful Links

• Torque flange bolts 5/16" = 15 lb-ft, 3/8" = 37 lb-ft, 7/16" = 59 lb-ft
• Socket cap bolts 3/8" = 20 lb-ft, 7/16" = 31 lb-ft
