SBC to LS Engine Mount Adapter - Heavy Duty 1/2" Thick Plates

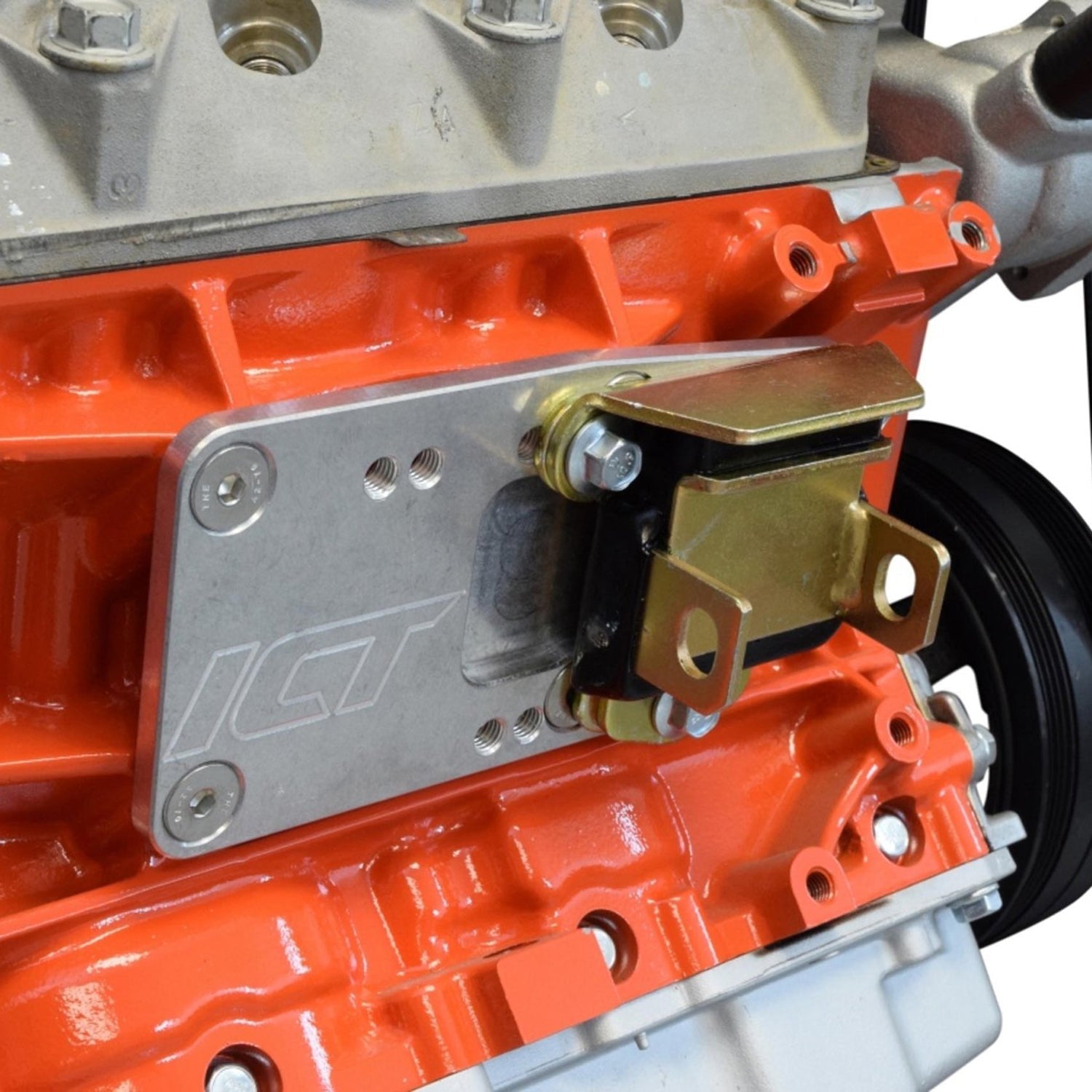

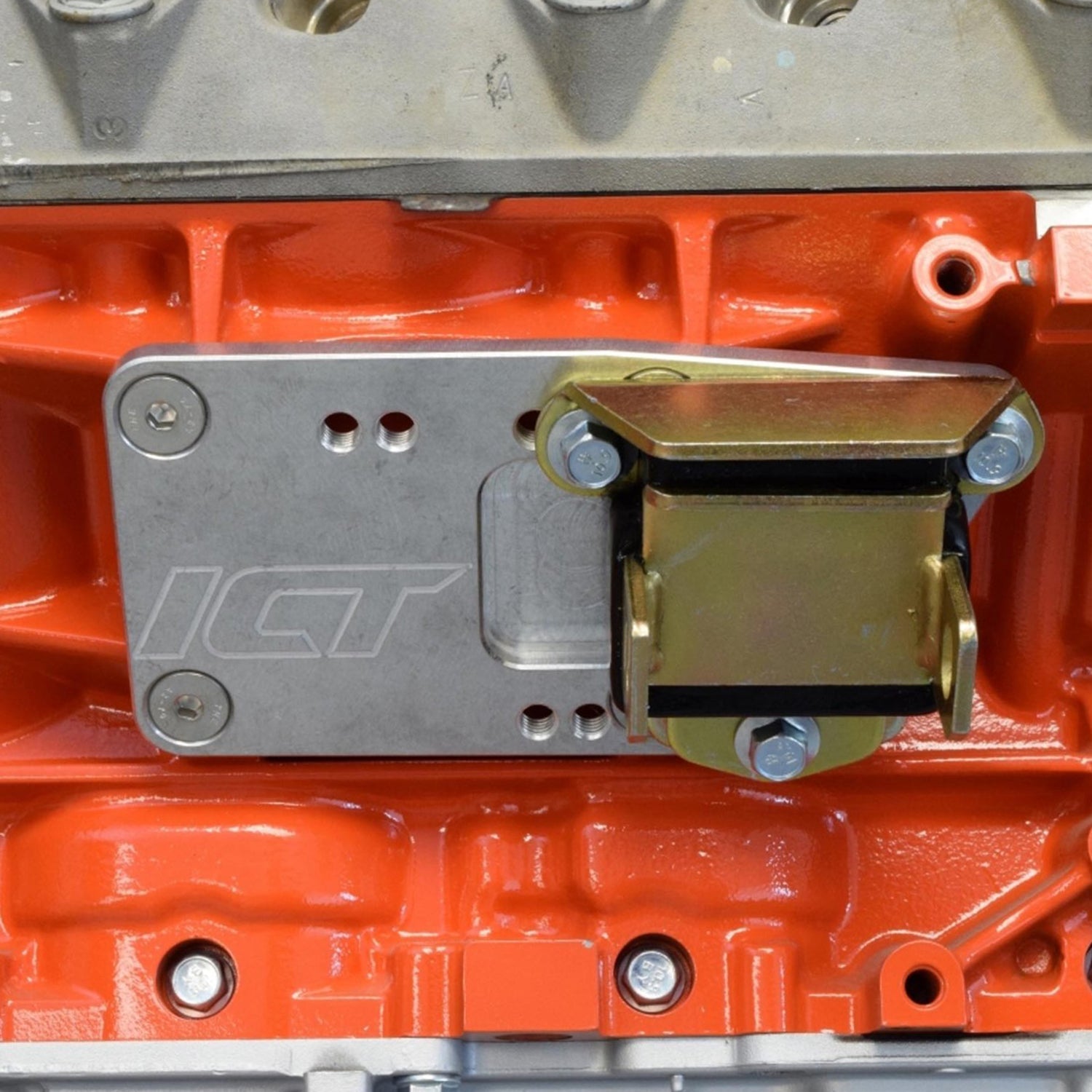

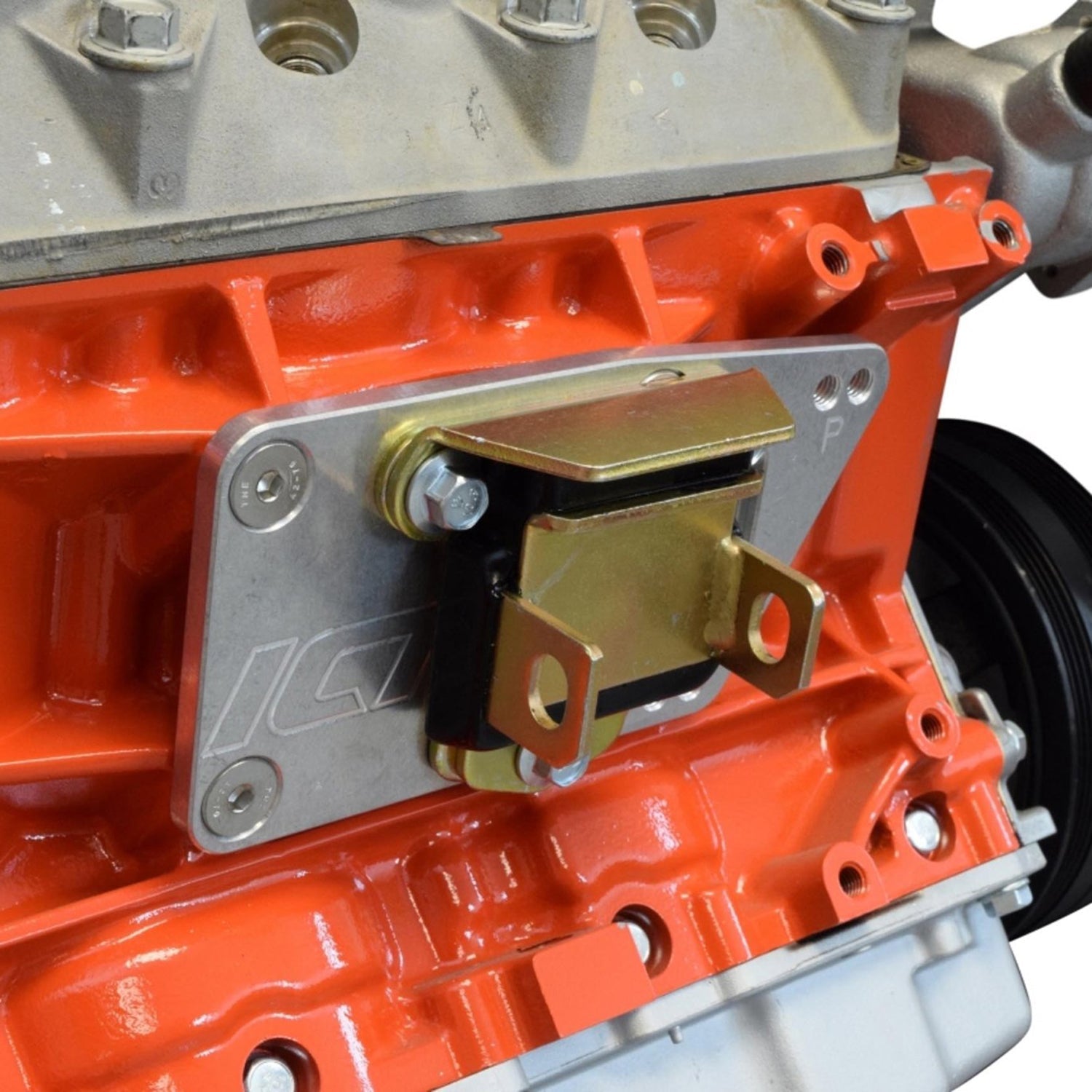

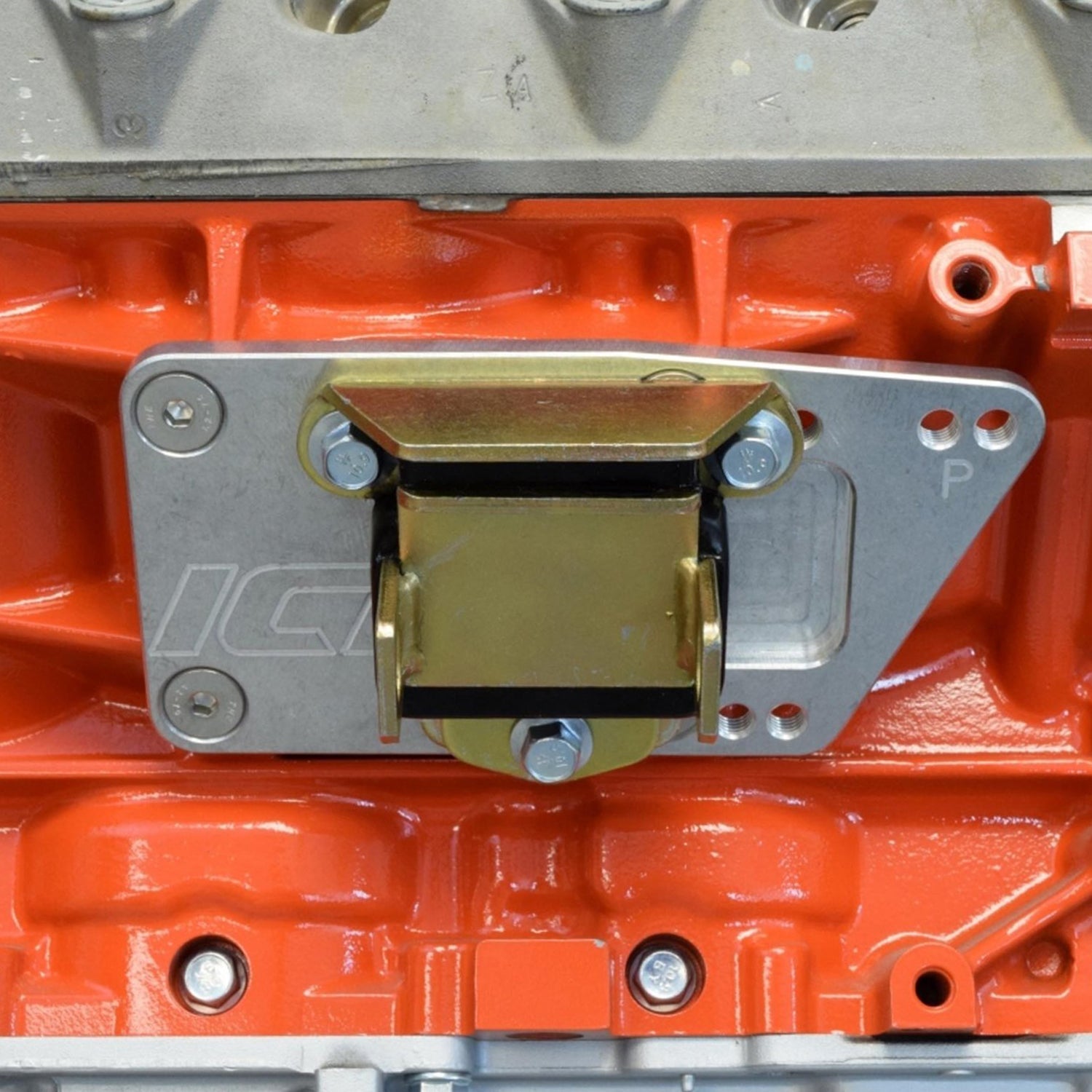

These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine with your existing mounts (see photos).

** Does Not Include Engine Mounts***

• Made with OEM specifications for the best possible fitment into your vehicle
• These plates will move the crankshaft centerline up .2" in the vehicle
• Made in Wichita, Kansas from 6061-T6, USA produced 1/2" thick billet aluminum

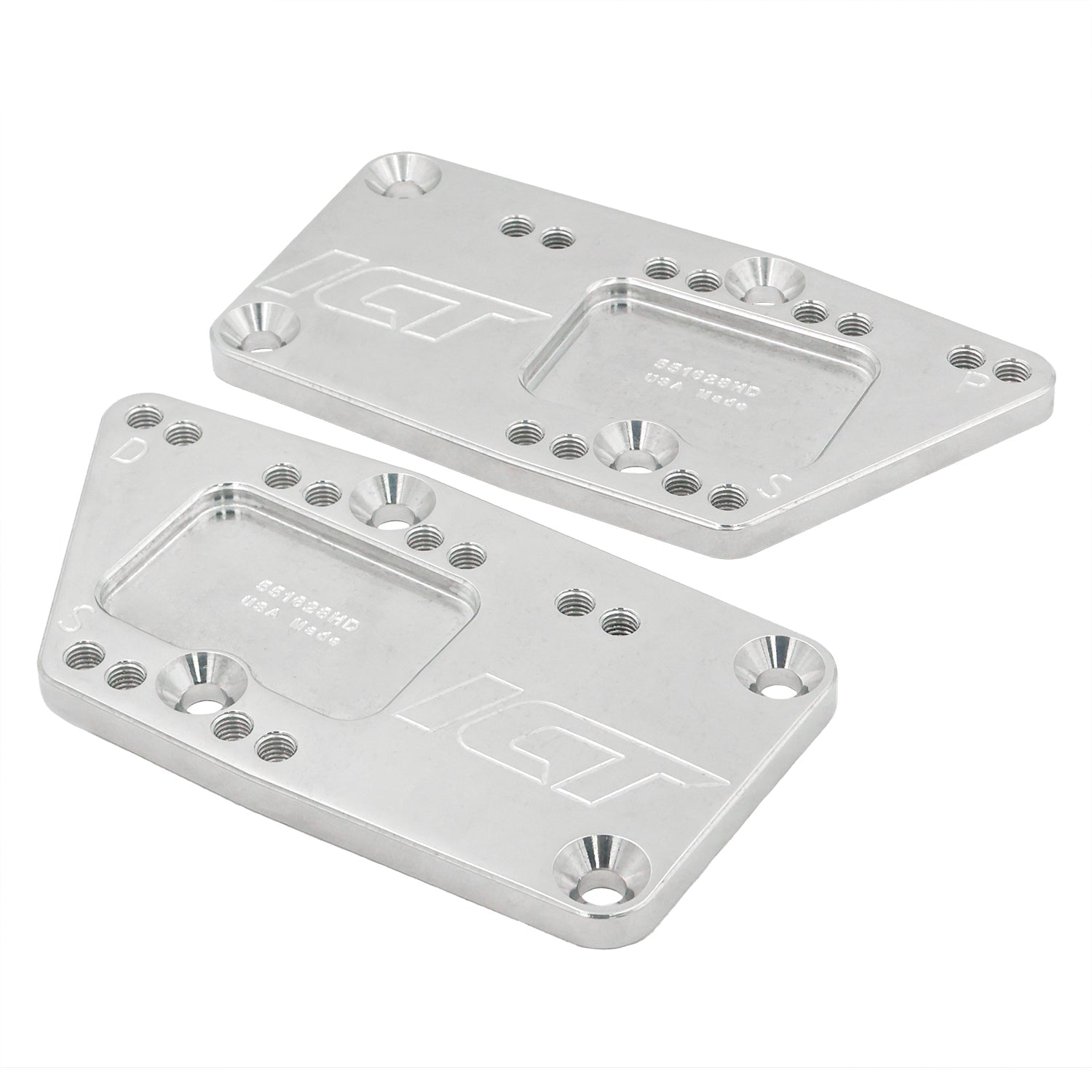

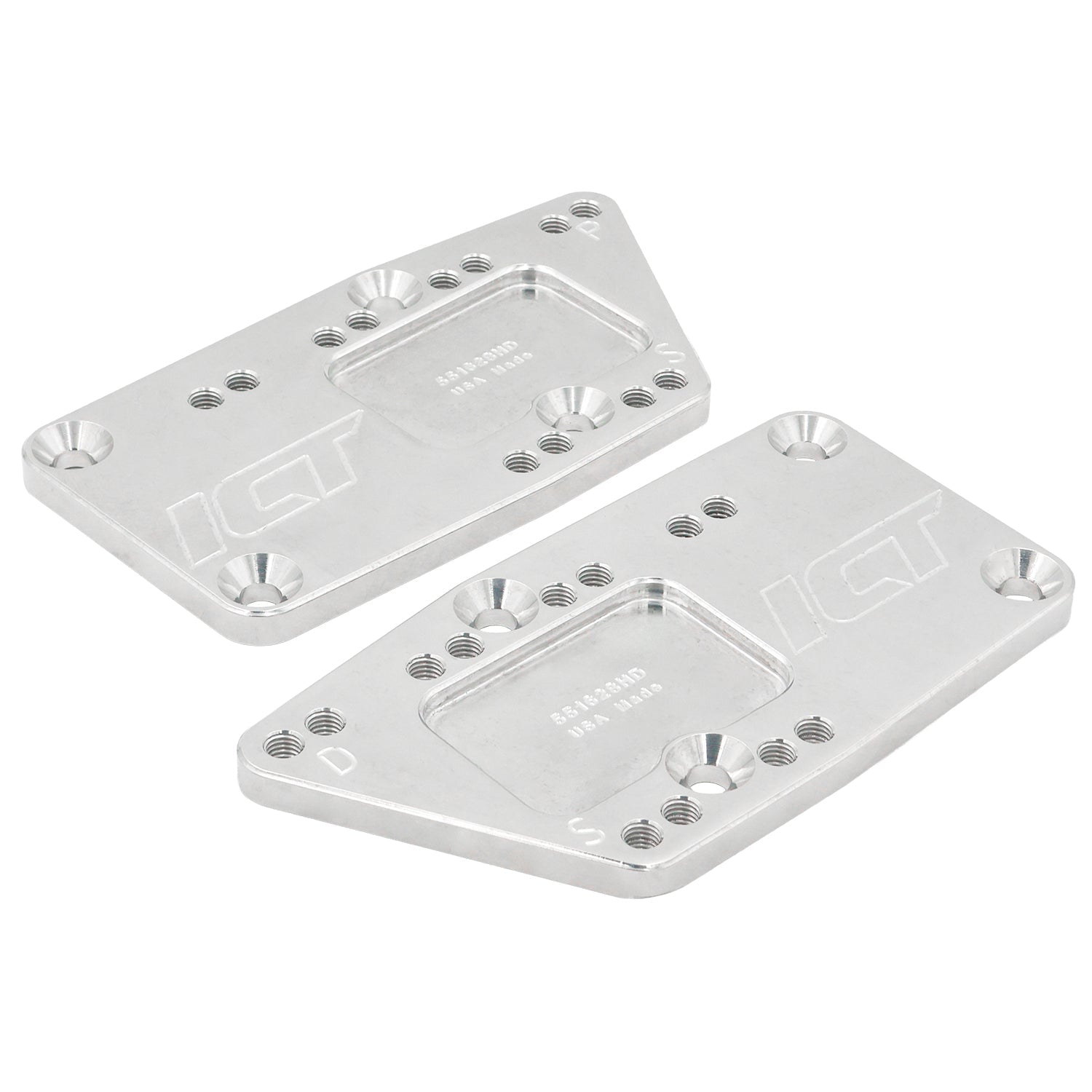

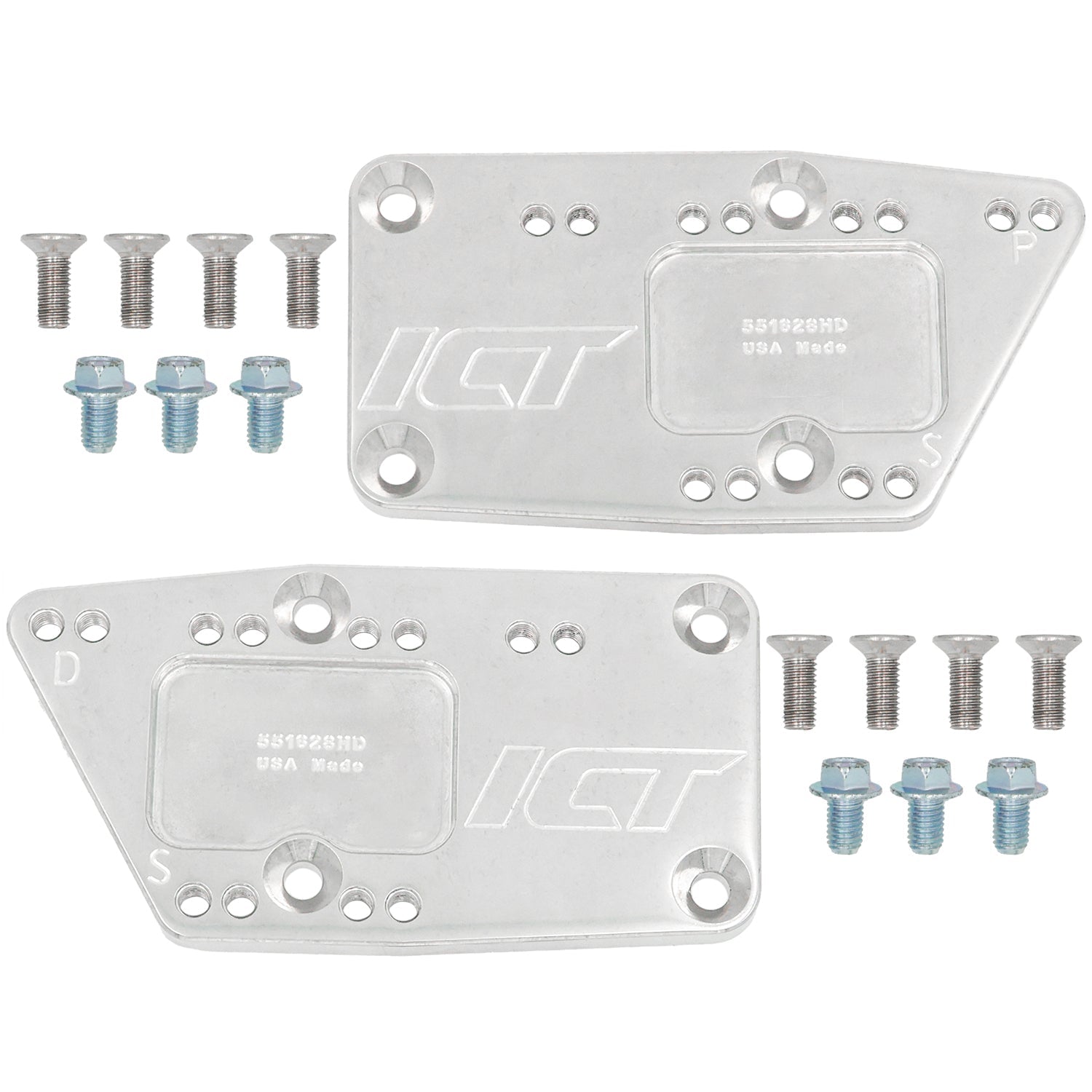

• Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
• Natural aluminum finish
• See our other listings for all your LS swap needs. Check out our "Tips and Guides" section on our page

There are 4 positions for maximum adjustment of engine (from .100" forward of OEM bellhousing position [due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~, Secondary positions are: .600", 1.86", and 2.36" engine moved forward)

These swap plates will shift the crankshaft centerline up .2" above factory small block location.

At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning.
