SBC Motor Mount Alignment Jig

Small Block Chevy / BBC Engine to Frame Motor Mount Alignment Tool

Product Details

• Works with all oil pans, so no need to disassemble your engine prior to use
• This jig has mount thru-bolt hole locations for old-style and new-style (clamshell) SBC frame mounts

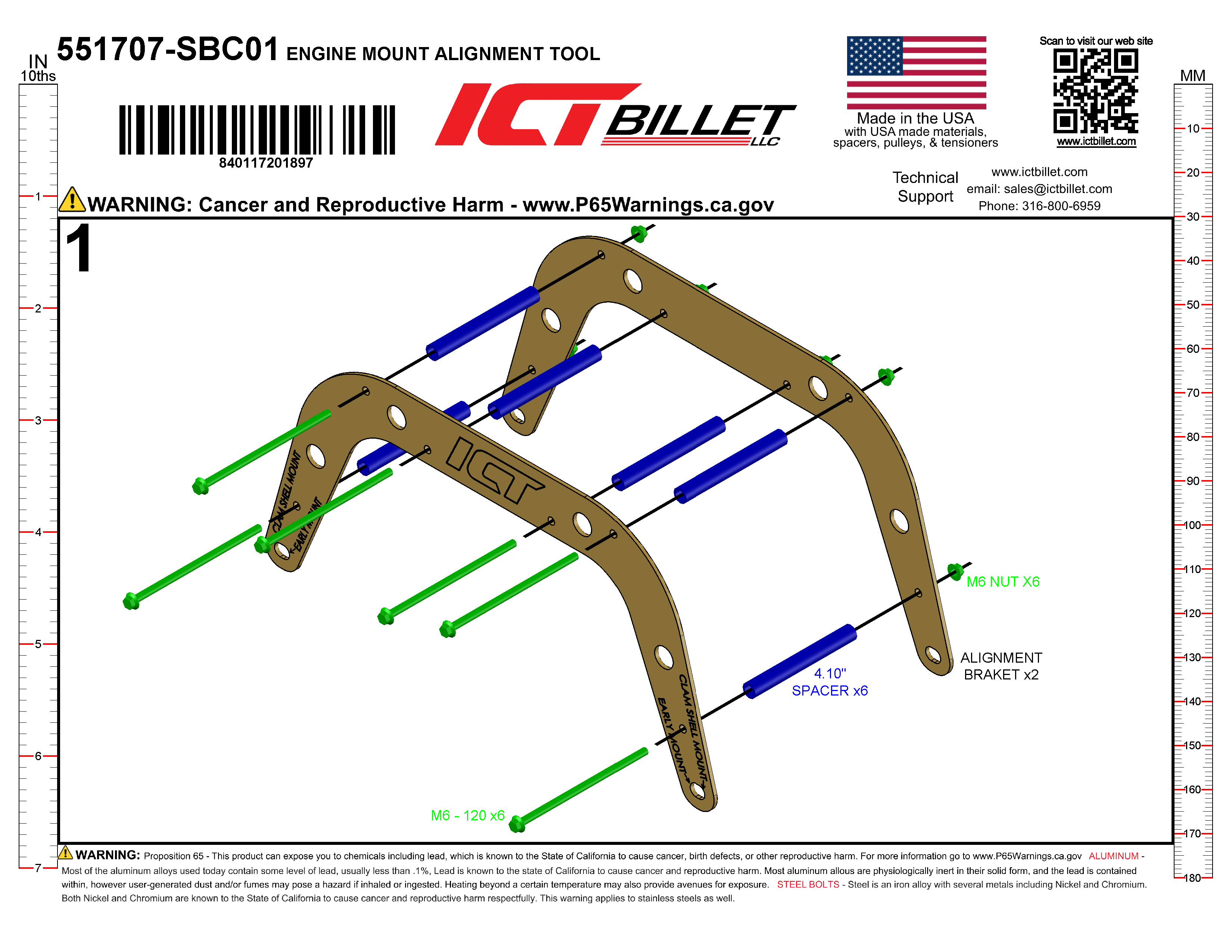

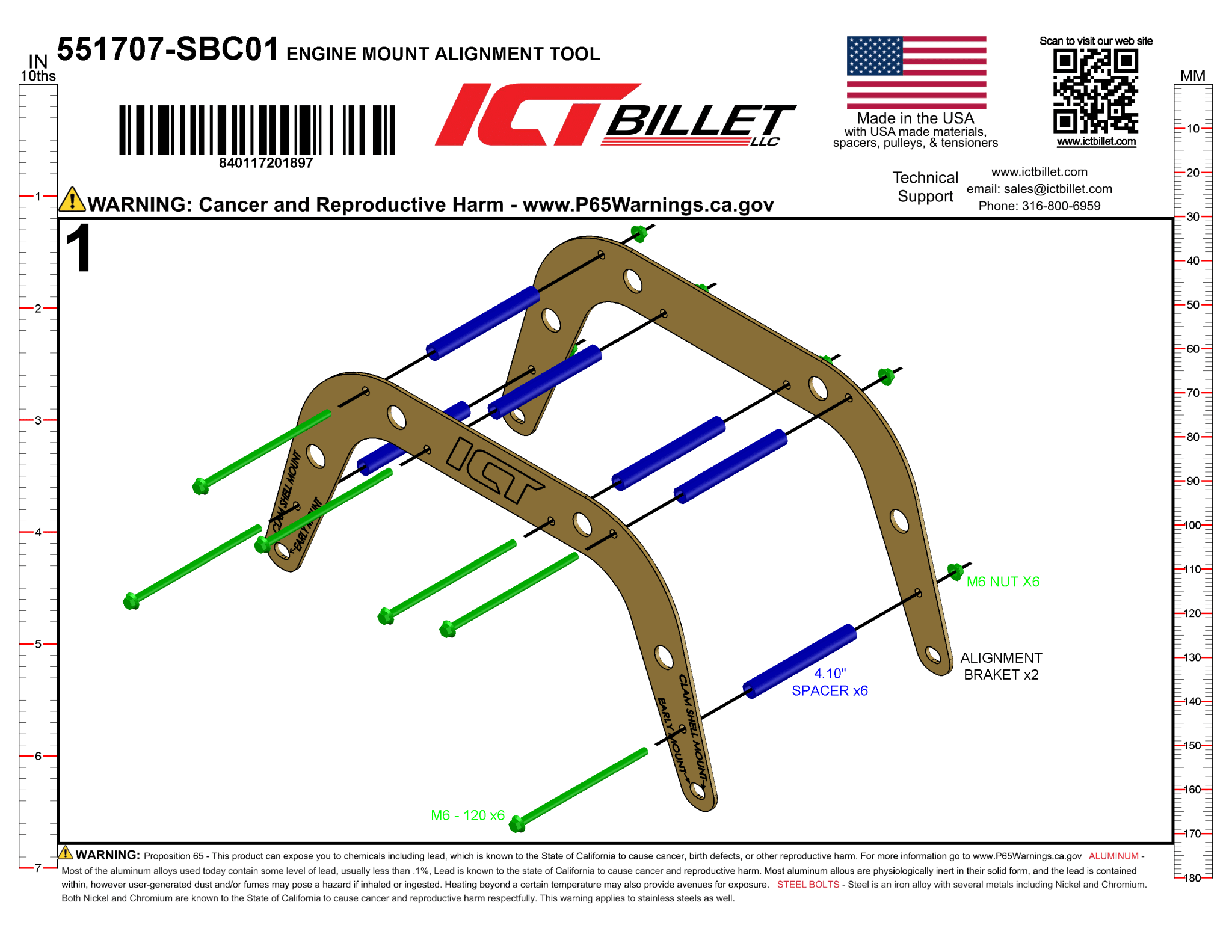

• Includes: instructions, alignment tool, and mounting hardware
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

Instructions - Hold the tool to your engine and see where the hole lines up.  Now take the tool and bolt it to your frame mounts.  Adjust your frame mounts until they line up with engines position (holes are slightly slotted to fit all BBC and SBC factory mounts)
