LT LV3 4.3 (V6 ONLY) Alternator Power Steering Pump Bracket Accessory Kit Gen V

Gen V - LT Series - LV3 4.3L V6 Alternator and Power Steering Pump Bracket Kit

Product Details

• For use with LV3 V6 truck balancer, LV3/L83/L86 water pump and belt tensioner
• ONLY compatible with V6 engines

• This kit will clear the LV3 4.3L V6 factory intake and allow the use of the factory LV3 4.3L V6 truck A/C compressor
• Will fit alternators from Gen 5 LT truck engines
• This kit will require; 1000K6 Belt (100.0 inch) or 6PK2540 (2540mm) & (Corvette 97-13) power steering pump & pulley (Camaro pump and pulley will not work)
• Includes: accessory brackets, 2 idler pulleys, hardware, and instructions

• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

We also offer this bracket kit for L83/L86 V8 engines. This kit WILL NOT fit V8 Engines

Helpful Links

• Torque specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft), FHSC bolts (M10 = 30 lb-ft, M8=15 lb-ft
• Replacement smooth pulley or bolts & spacers kit
• Optional LV3 to LS 3-bolt throttle body adapter, billet smooth pulley, or billet power steering pulley with hub

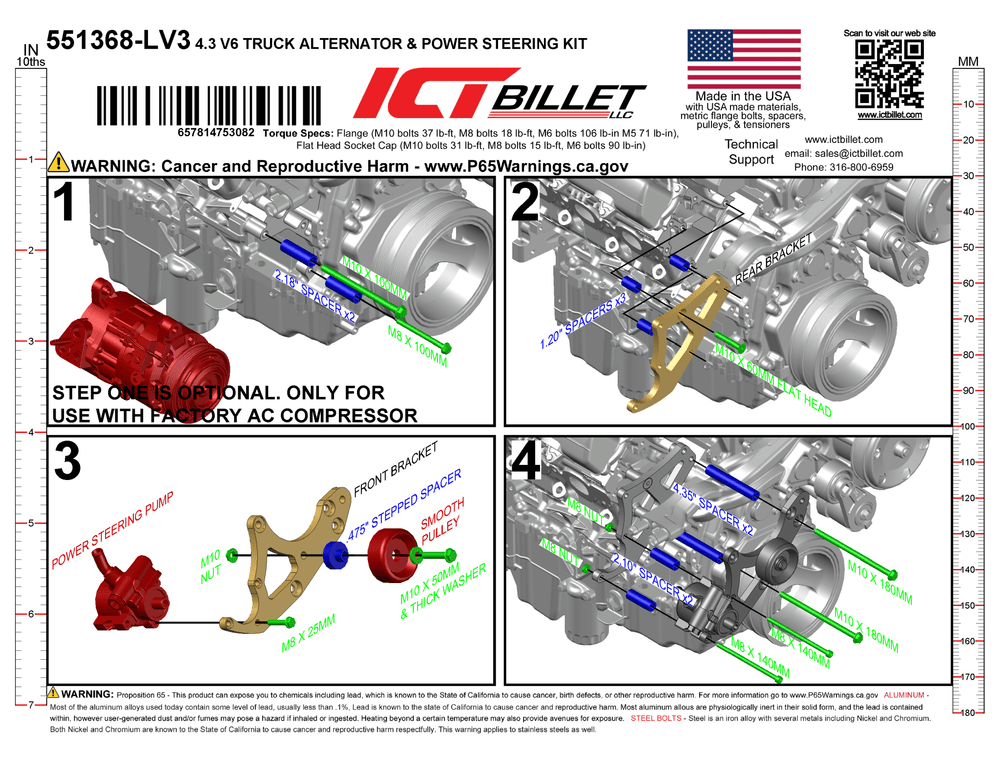

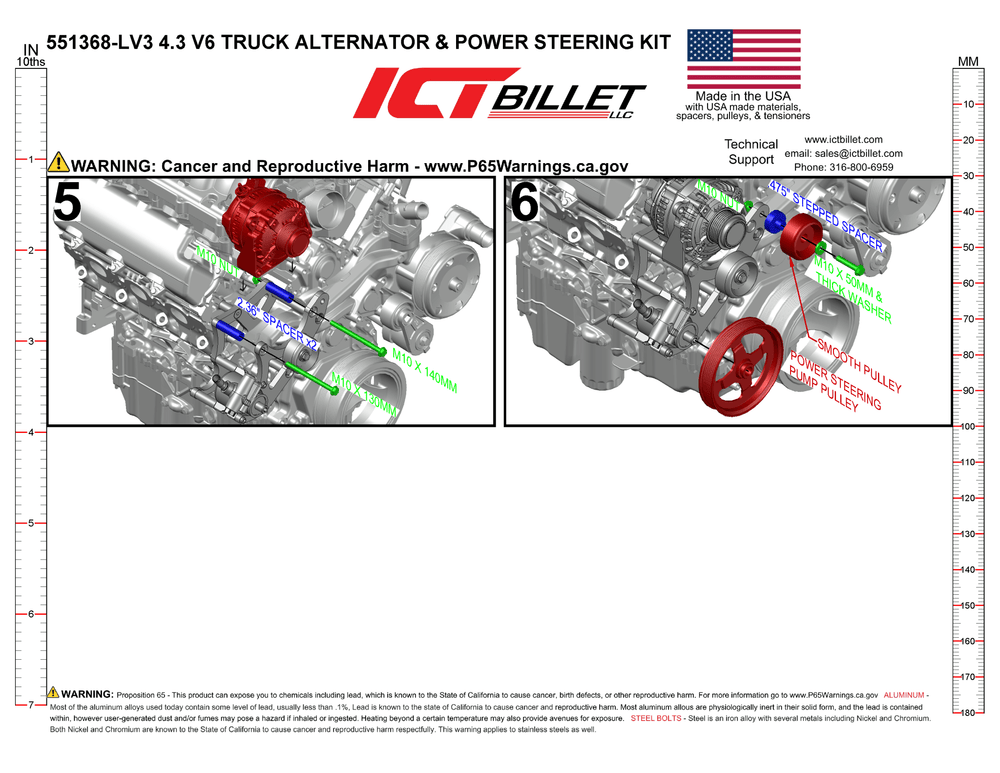

• Instructions
• Belt length chart
