LS Alternator and LS1 Power Steering Pump Relocation Bracket Kit (Uses LS1 Water Pump)

Fits LS Series Engines - LSX 4.8L 5.3L 6.0L

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
• Compatible with 1998-02 LS1 Camaro power steering pump and pulley (or billet 2pc pulley)
• Compatible with all LS alternators (Except Corvette, CTS-V or 10-15 Camaro)

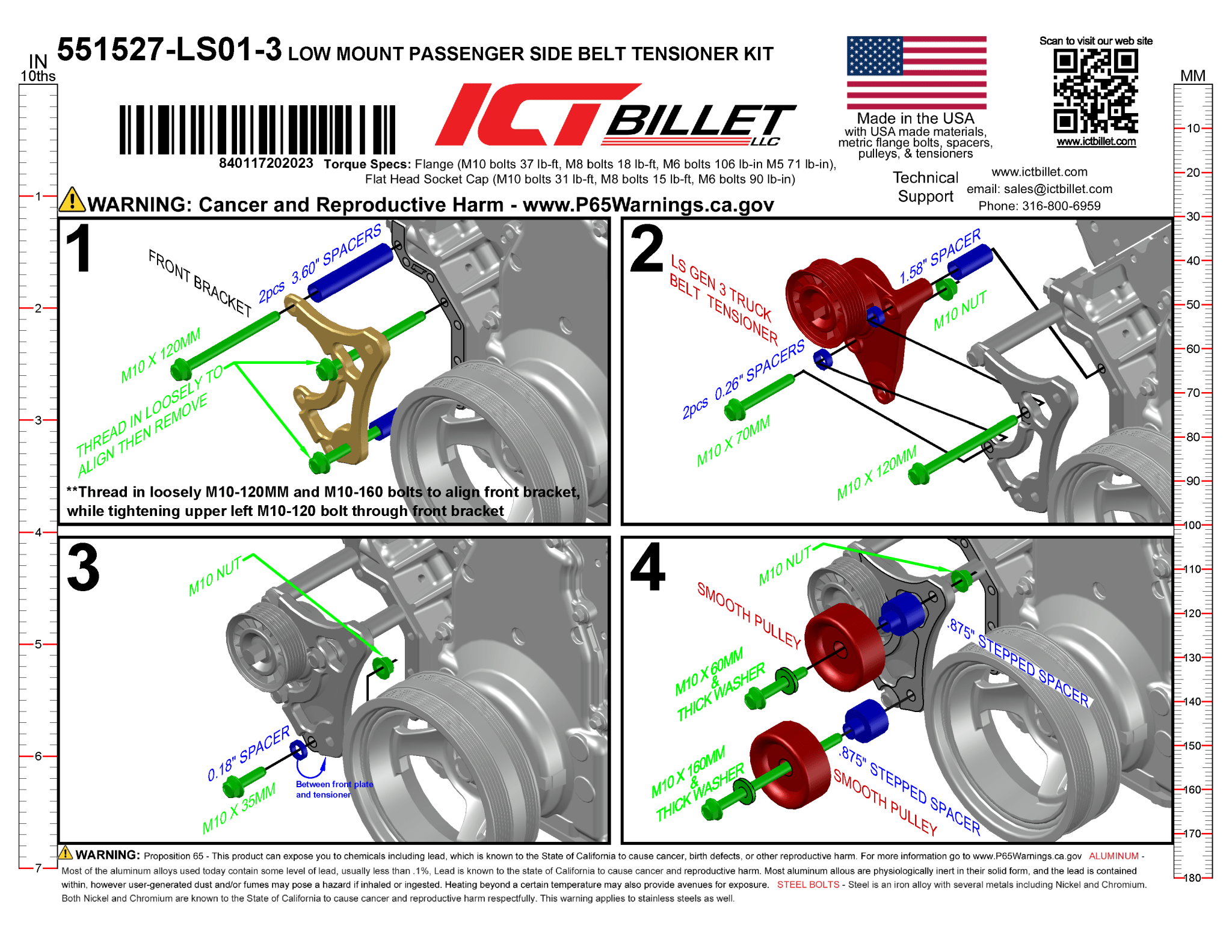

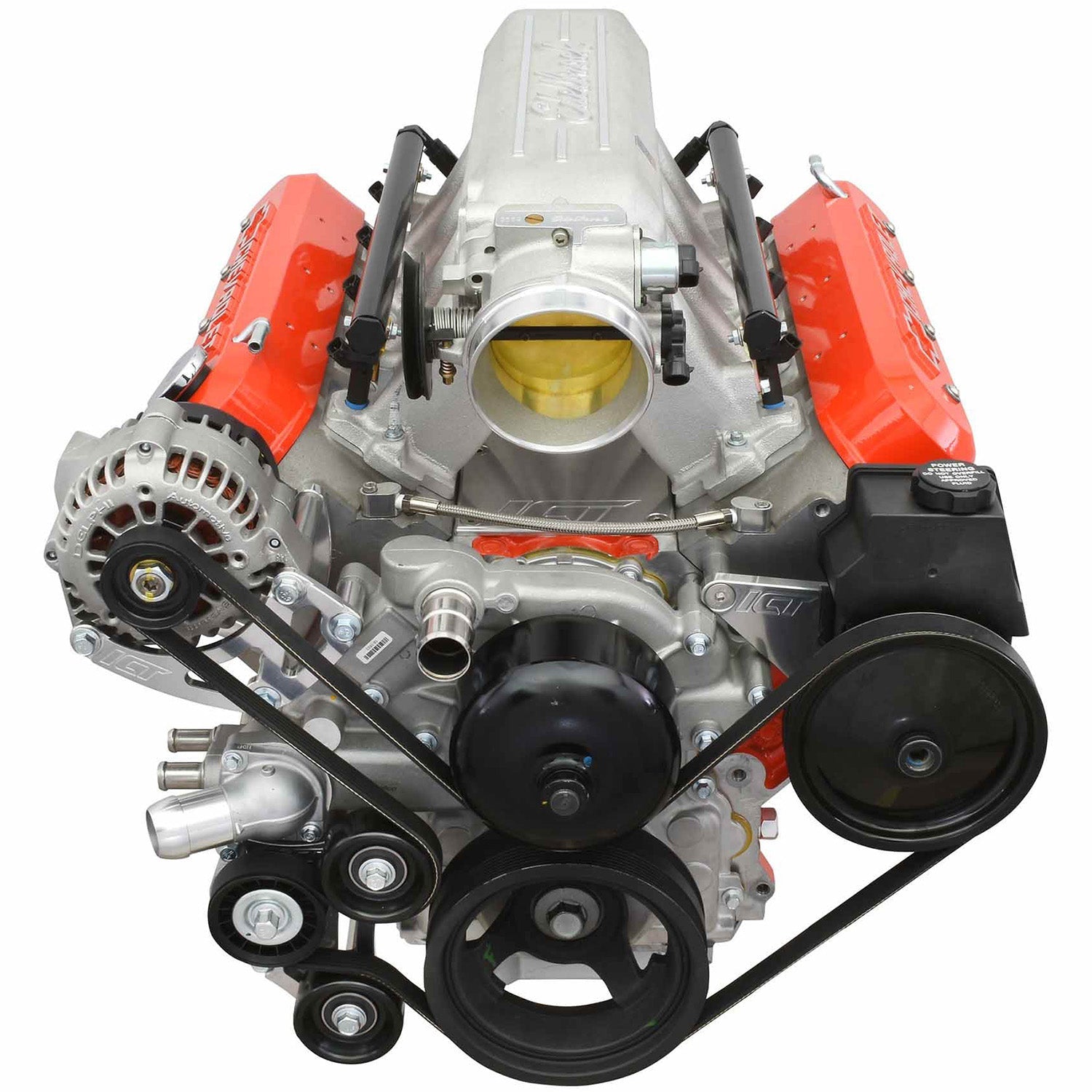

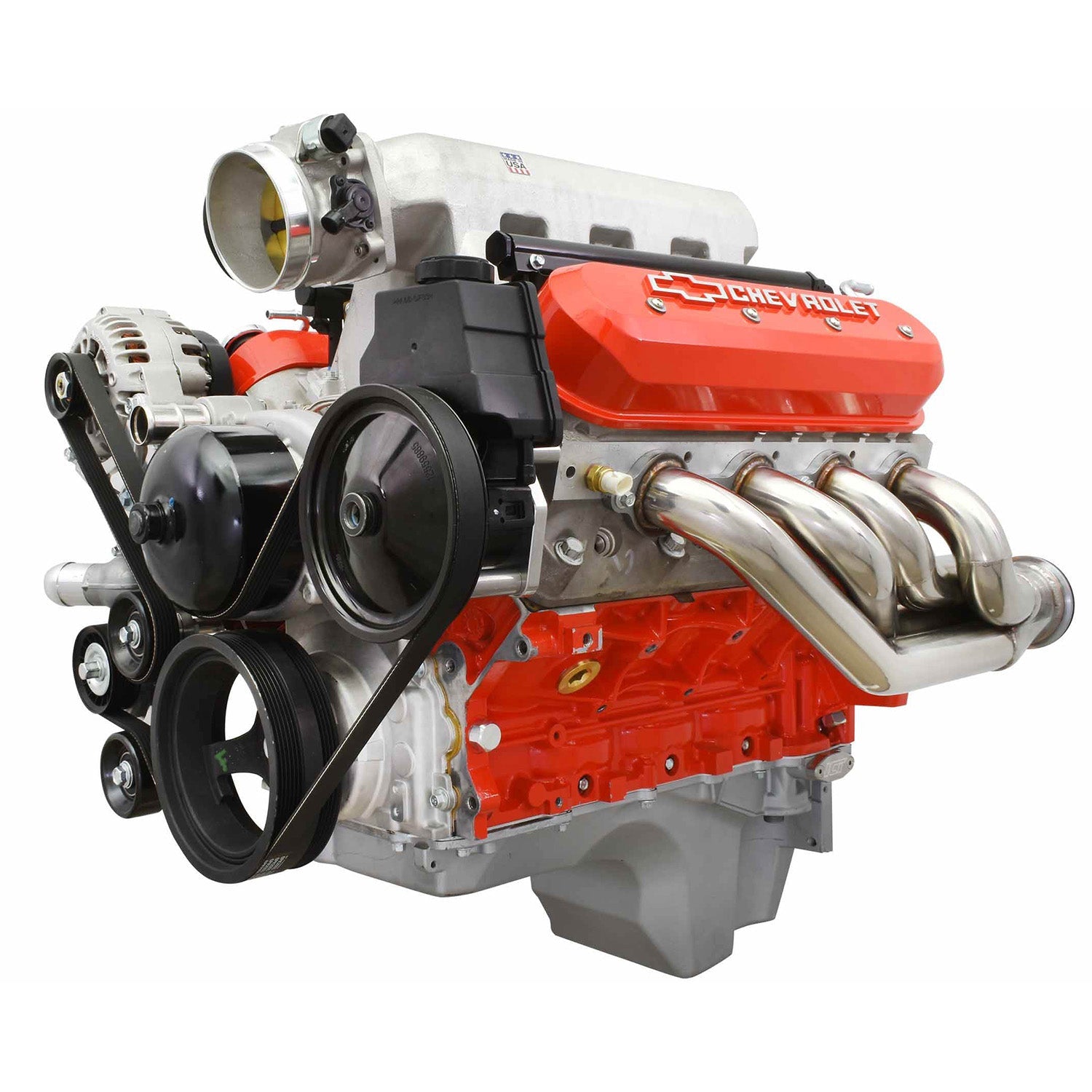

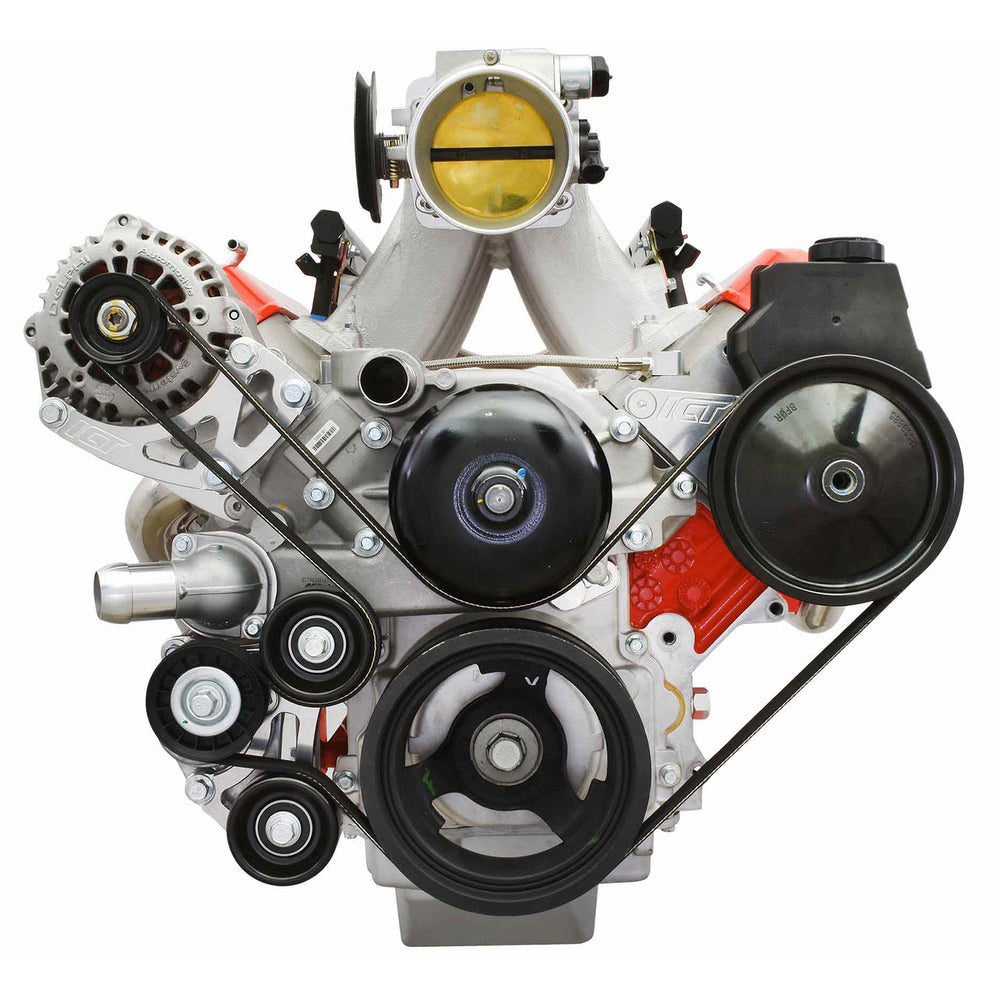

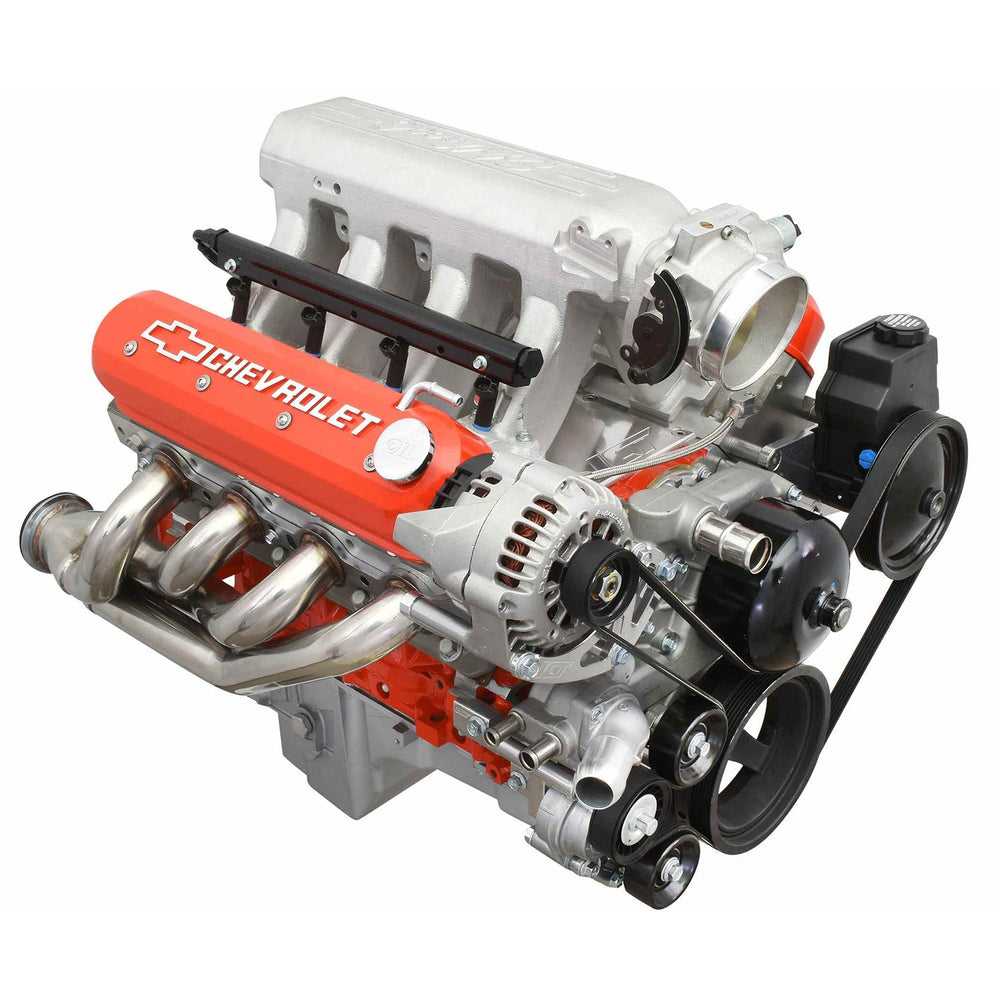

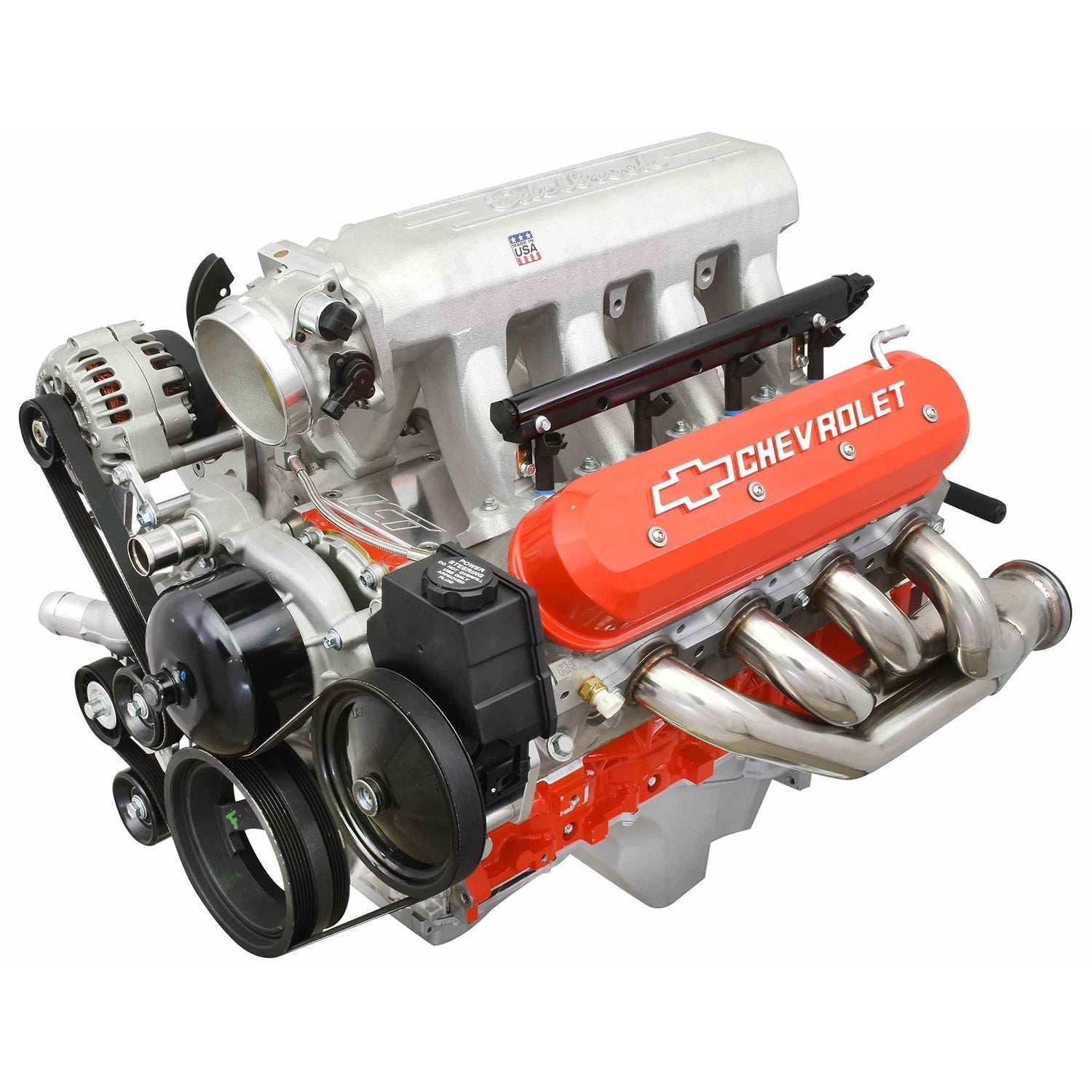

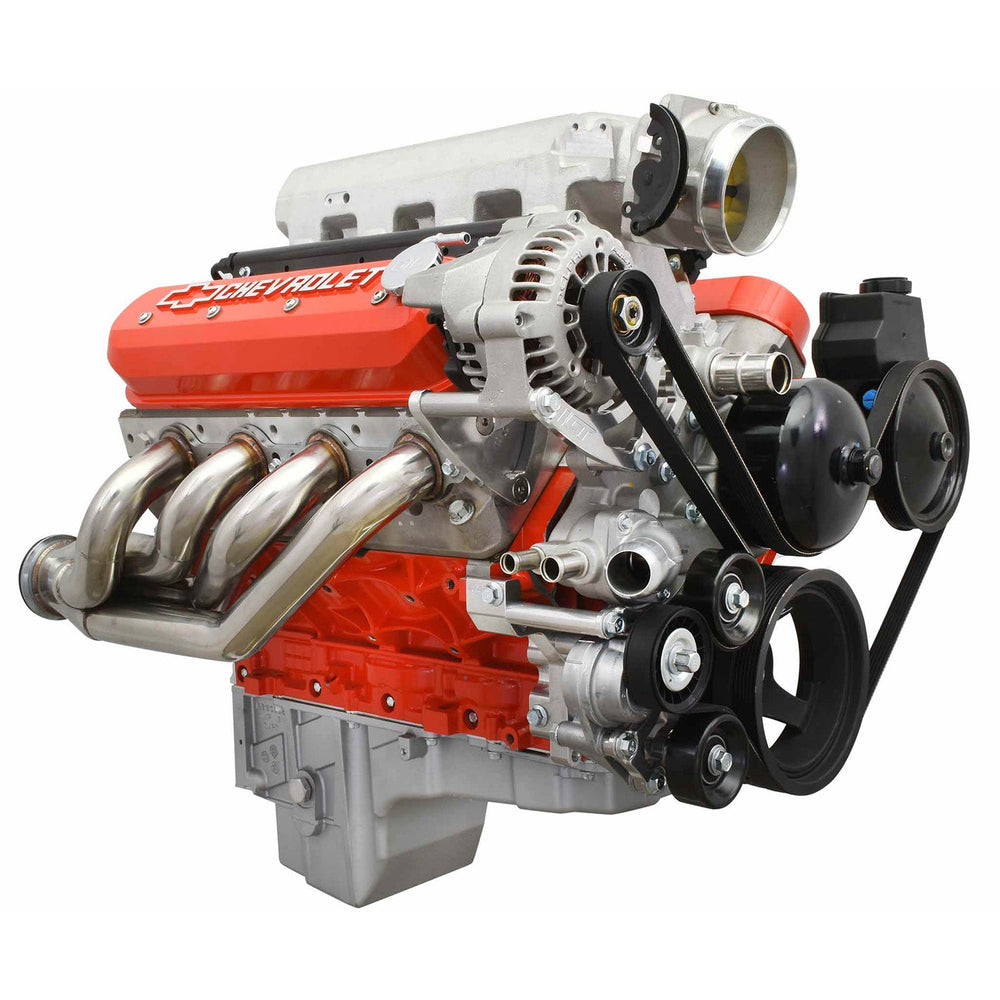

• This kit relocates your LS alternator and LS1 Camaro Power Steering Pump in front of the cylinder heads and utilizes an LS1 water pump with spacers. Includes automatic belt tensioner mounted low on the passenger side of the block



• Compatible with: all LS series engines

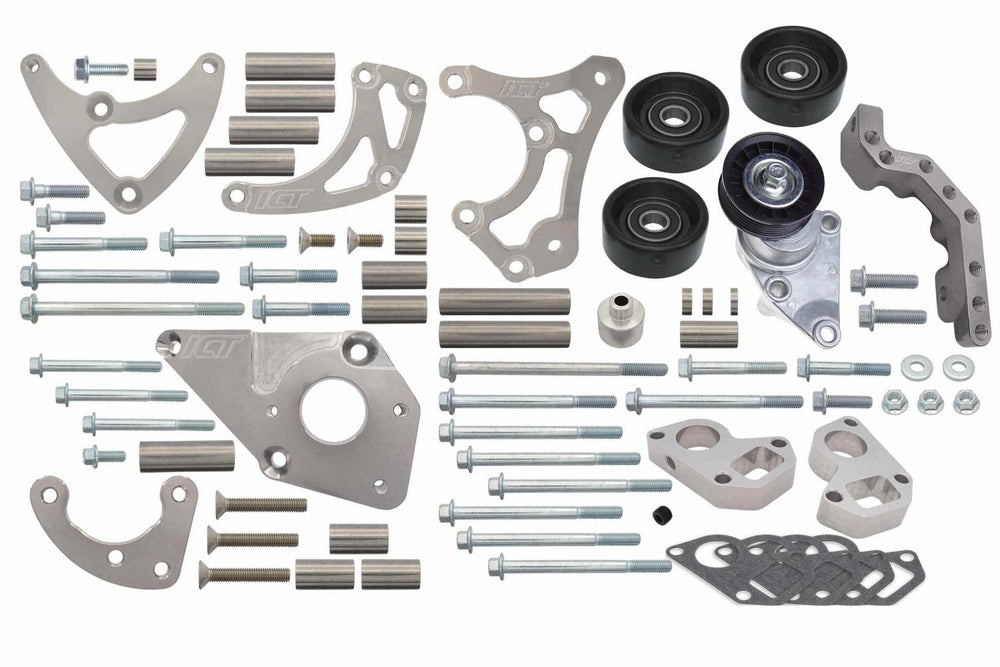

• Kit Includes ICT Part #'s 551526-LS01, 551785, 551527-LS01, and 551690-71

• Belt length: 81.0" (810K6)



• Made in the USA from 6061-T6, USA produced billet aluminum

Helpful Links & Guides

• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley

• Replacement bolt and spacer kit
• Replacement Tensioner
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Replacement bolt and spacer kit for alternator or power steering bracket

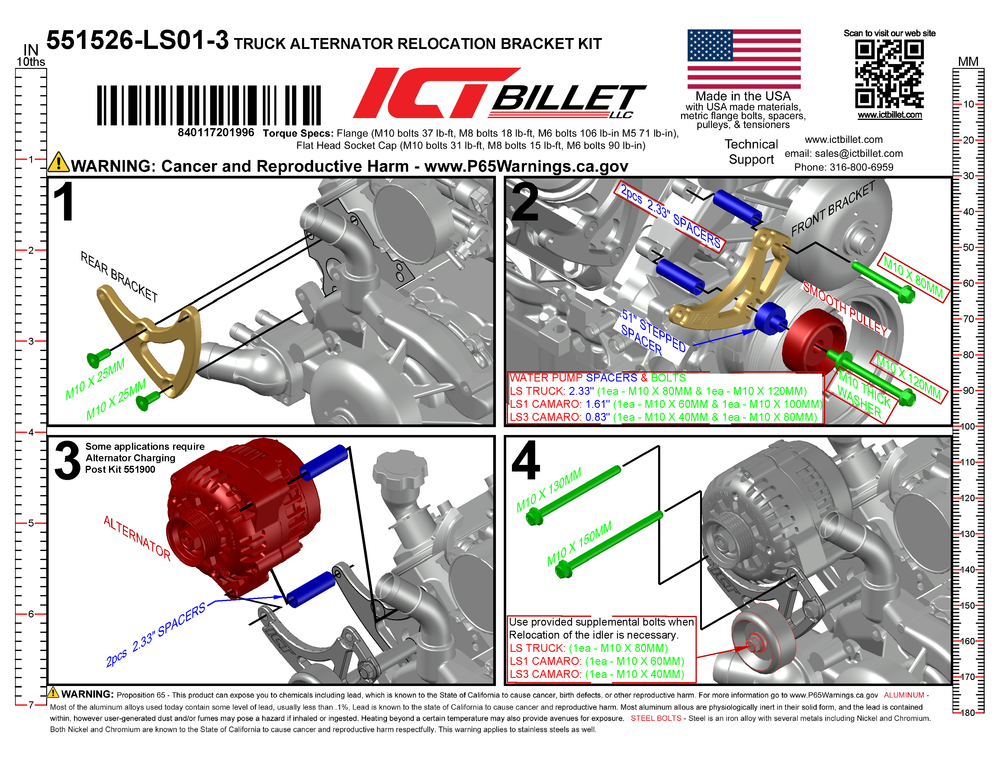

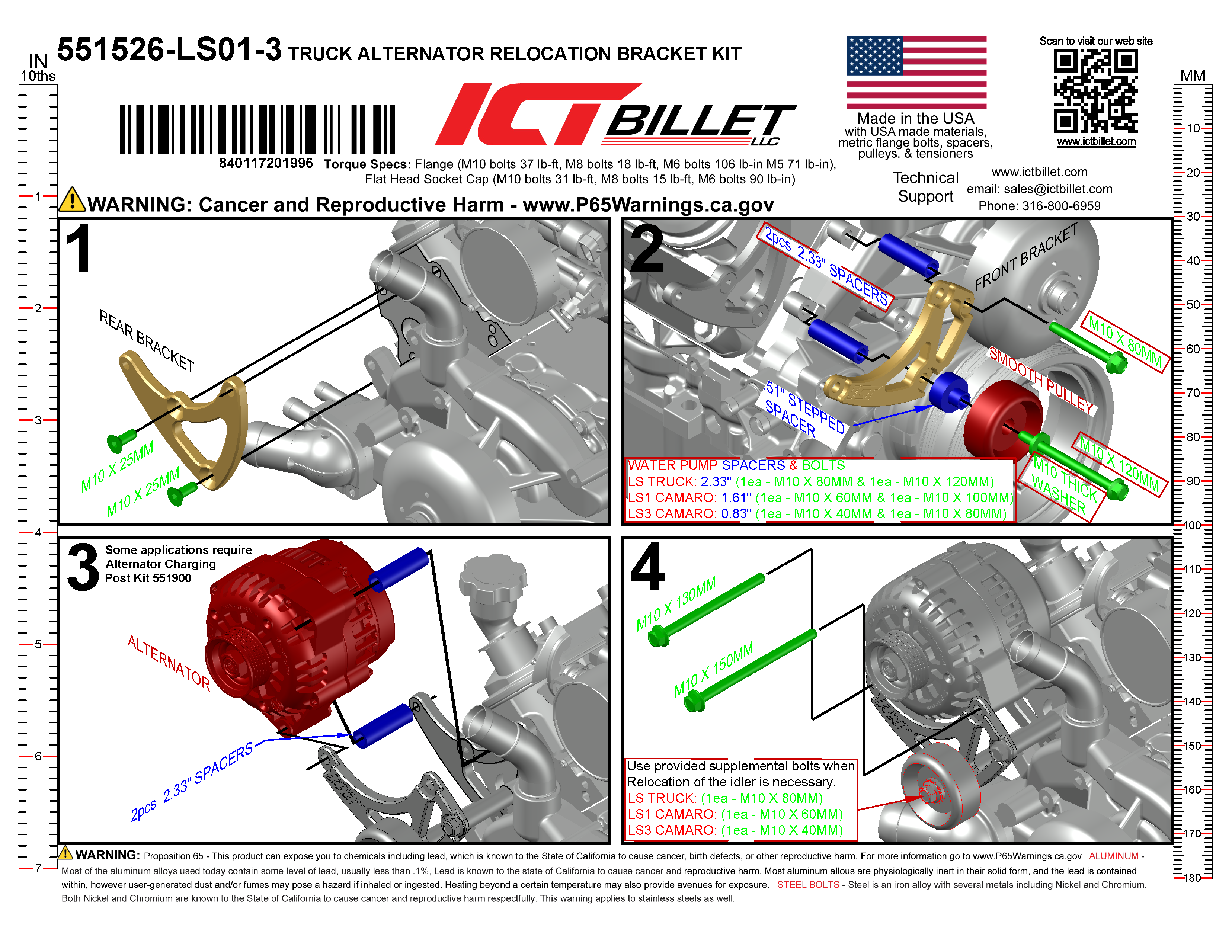

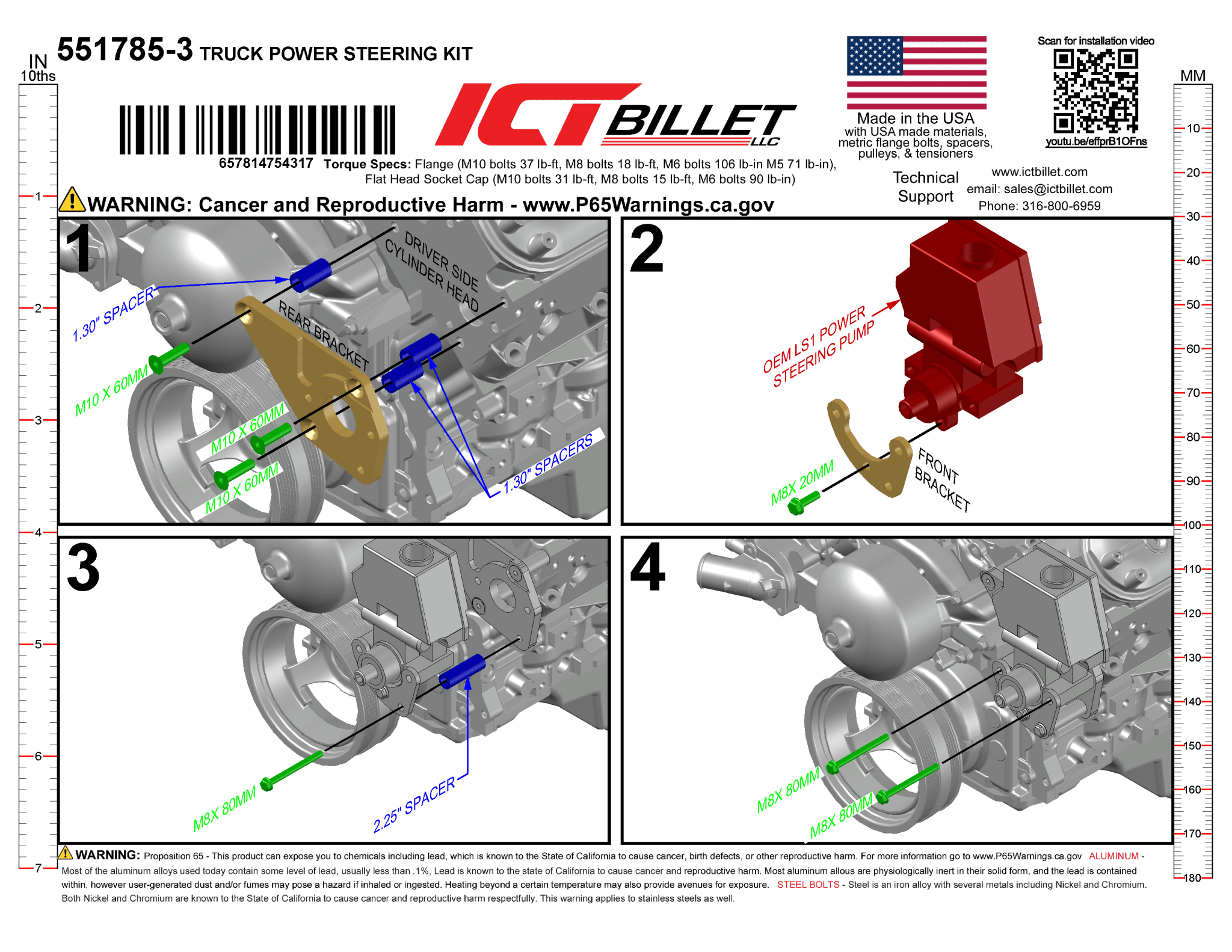

• Instructions
