Tuff Stuff - Air Conditioning Compressor - 508 Sanden SD5H

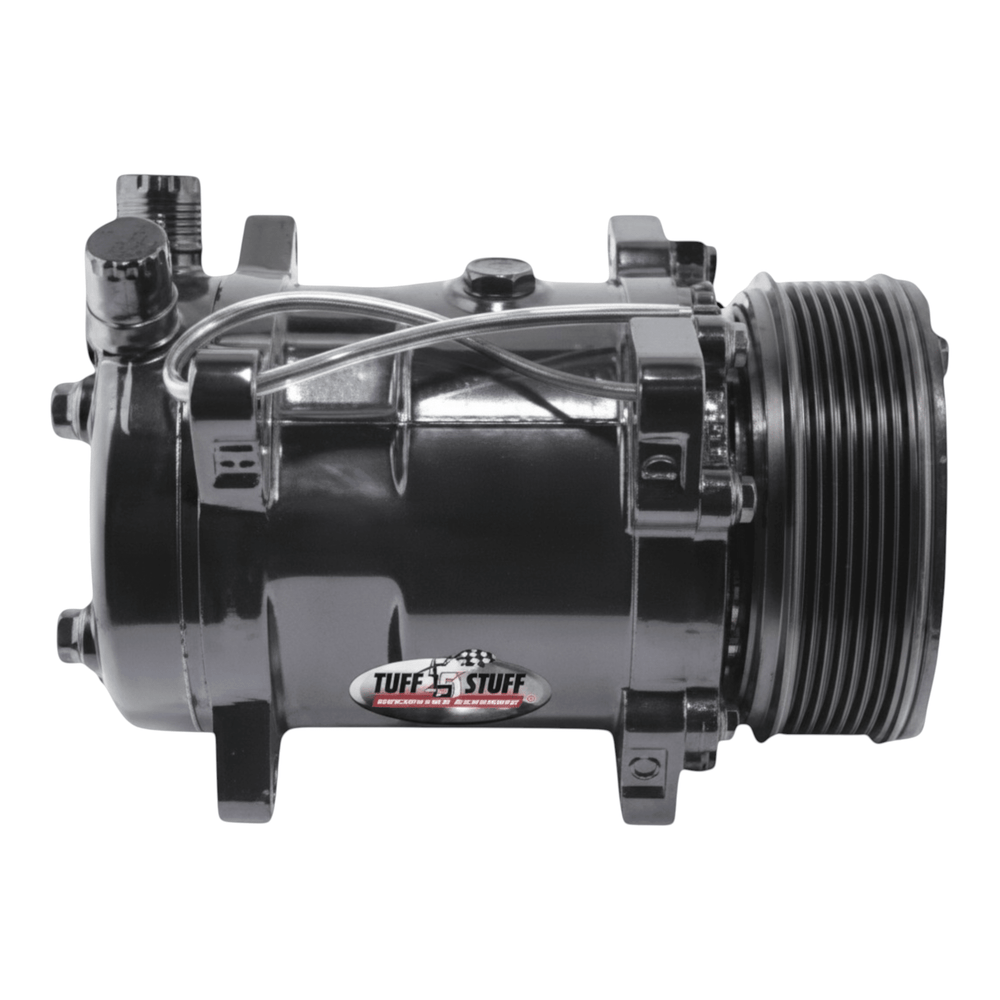

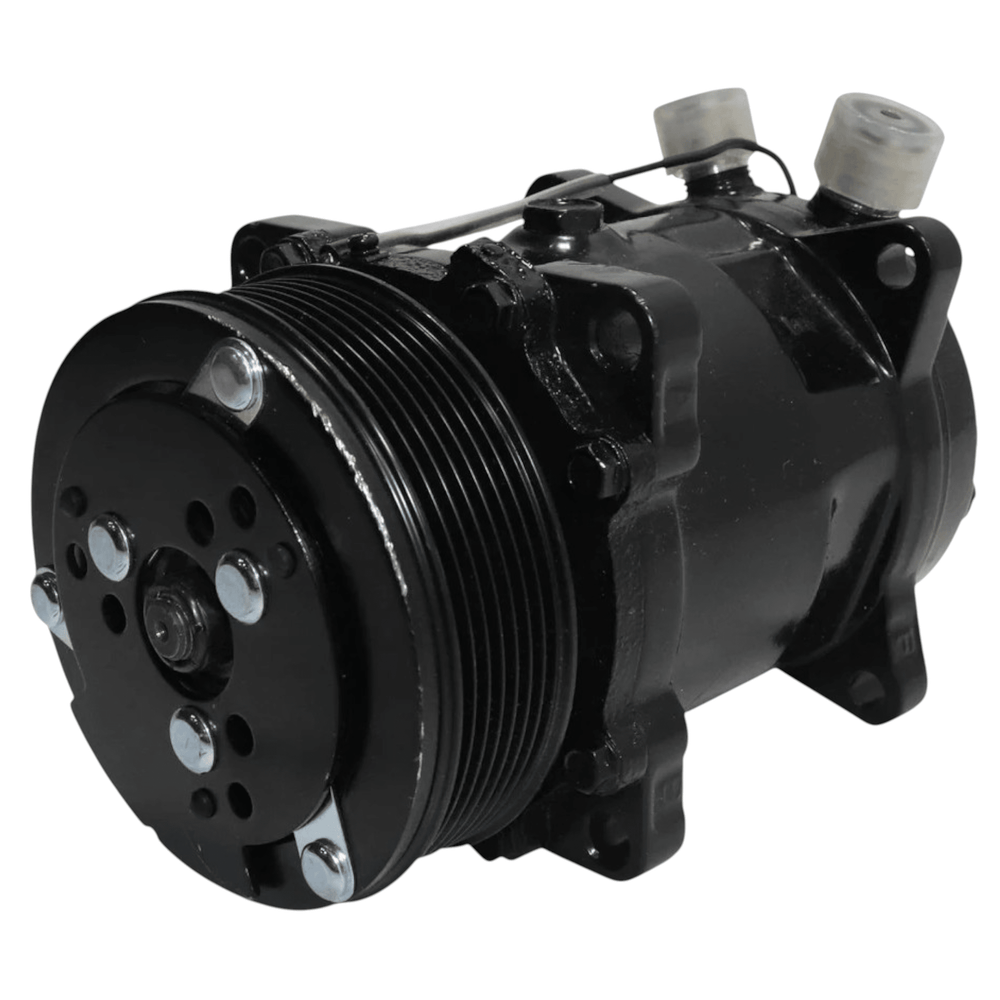

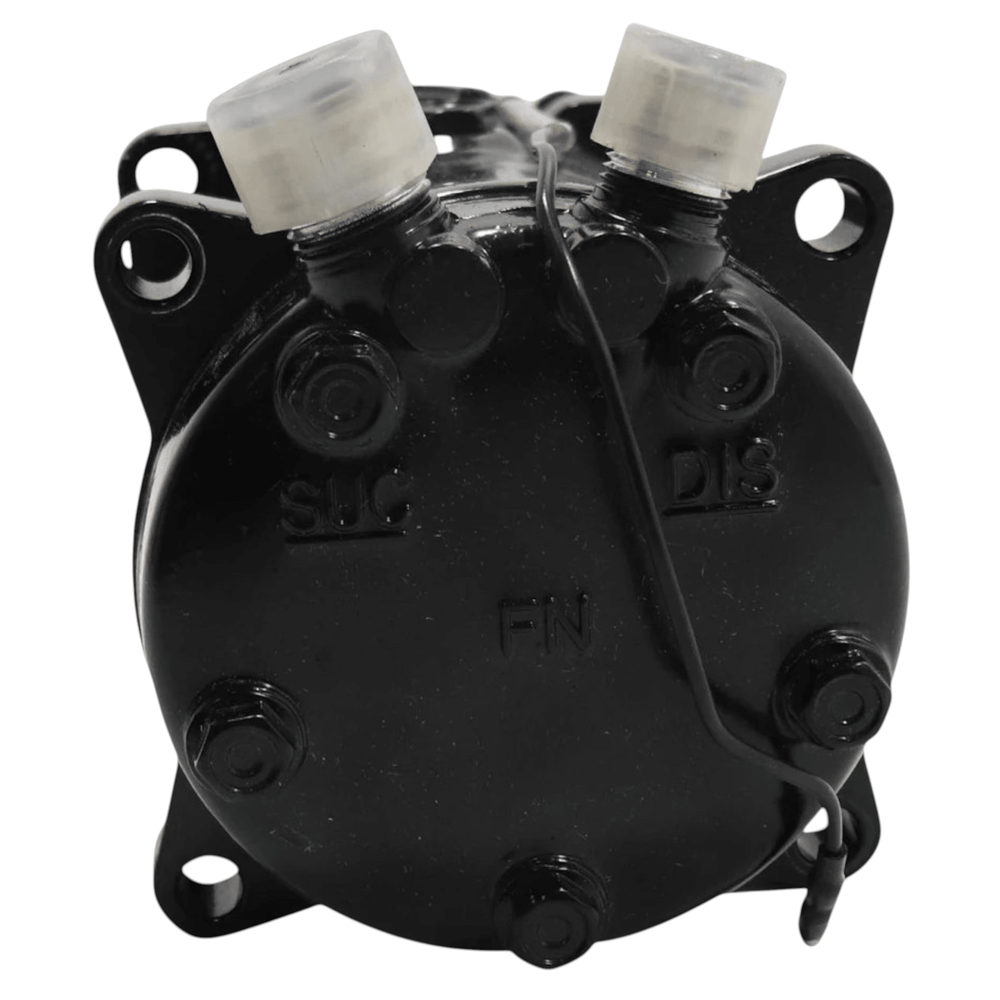

• Sanden Style SD508 A/C Compressor

• Black powder coat finish
• 5-piston, 138cc displacement
• Line out/in sizes:  #8 (3/4"-16) / #10 (7/8"-14)
• 7-groove, serpentine belt pulley (compatible with all 6-rib belts and accessories)
• New (not remanufactured) compressor, R-134A compatible
• Includes: 1 compressor with pulley and clutch
• SP-15 / PAG 100 oil recommended (may vary depending on vehicle)
• Pumps 8.4 cubic inches per revolution with a maximum 6000 sustained RPM range

Compatible with

• LS High side passenger brackets for corvette, camaro, truck spacings or LSA truck supercharger bracket

Helpful Links

• Torque bolts to 37 lb-ft
• Optional reducer A/C fittings (female side (male side)): #8 (#6), #10 (#6, #8), #12 (#6, #8, #10)
• Optional R4 hose adapter plate or universal hose kit

IMPORTANT A/C COMPRESSOR WARRANTY NOTE: To ensure proper warranty credit if needed, the compressor installation instructions must be followed. All compressors returned for defects must include proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush, or a Work Order showing the purchase of these items and that the system was flushed. 1-year limited warranty
