LS Truck Spacing Low Mount Alternator Bracket for Electric or Remote Water Pump Motor Plate

Price
$219.99
SKU#: 551177LS0-3
In stock

Product Description

LS Low Mount Alternator Bracket (Electric or Remote Water Pump or Motor Plate) - for LS Truck Crank Pulley Spacing

Compatible with: LS Truck/SUV Crank Spacing LS Series Engines

Places the alternator to the passenger side of the crank pulley, designed to clear electric or remote water pumps only

  • Compatible with LS front engine plates, but not required (145 amp or 160 amp alternators may not work in some applications when pairing with a front engine plate)
  • Compatible with: LS Truck/SUV (or 2010-15 Camaro) crank pulley (ICT# BAL300)
  • Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

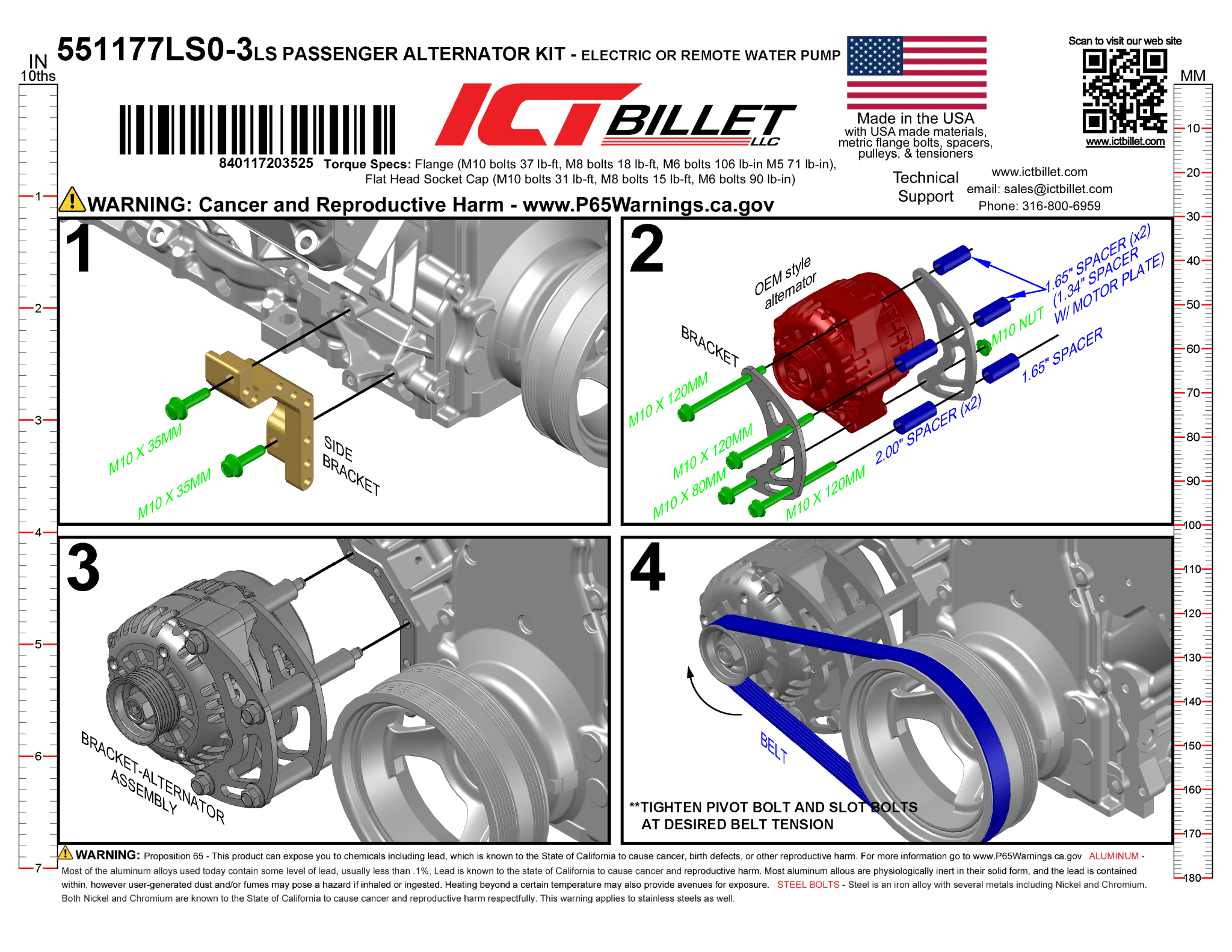

  • Includes: alternator bracket and mounting hardware
  • Made from aerospace-grade billet aluminum
  • Made in the USA
  • NOT COMPATIBLE WITH ICT BILLET TURBO OIL DRAIN TIMING COVER

Belt Lengths:

(105 Amp-130 Amp Alternator) 36.0” PN 360K6

WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551177LS0-3 840117203525.0 2.6 lb 8 in 8 in 2 in No
