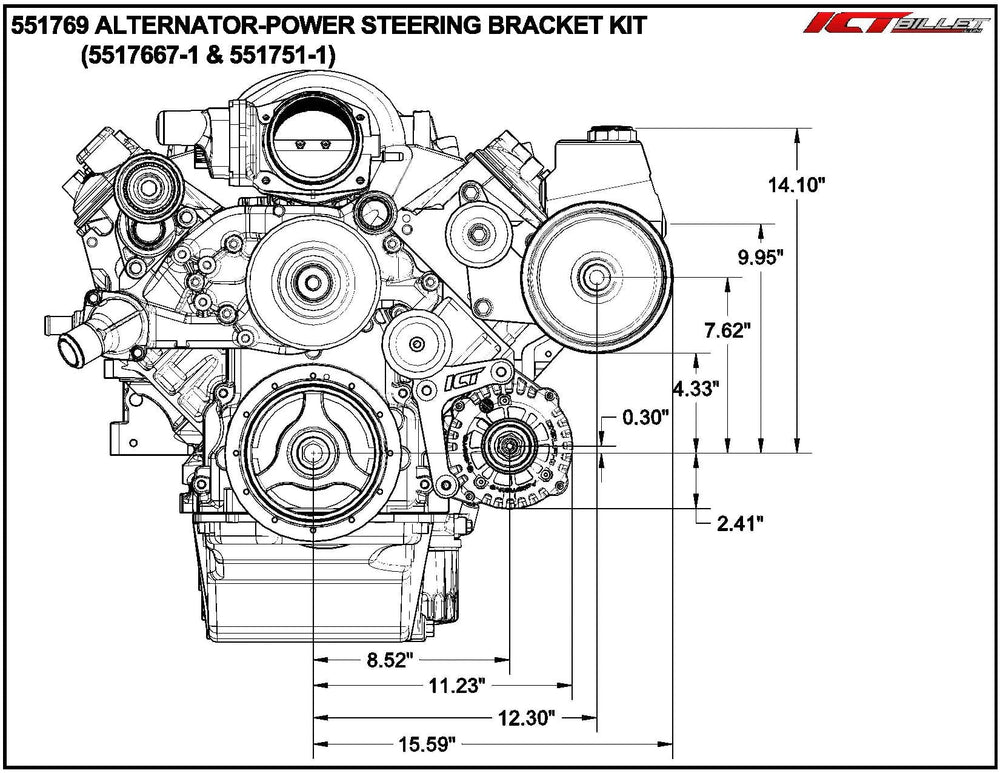

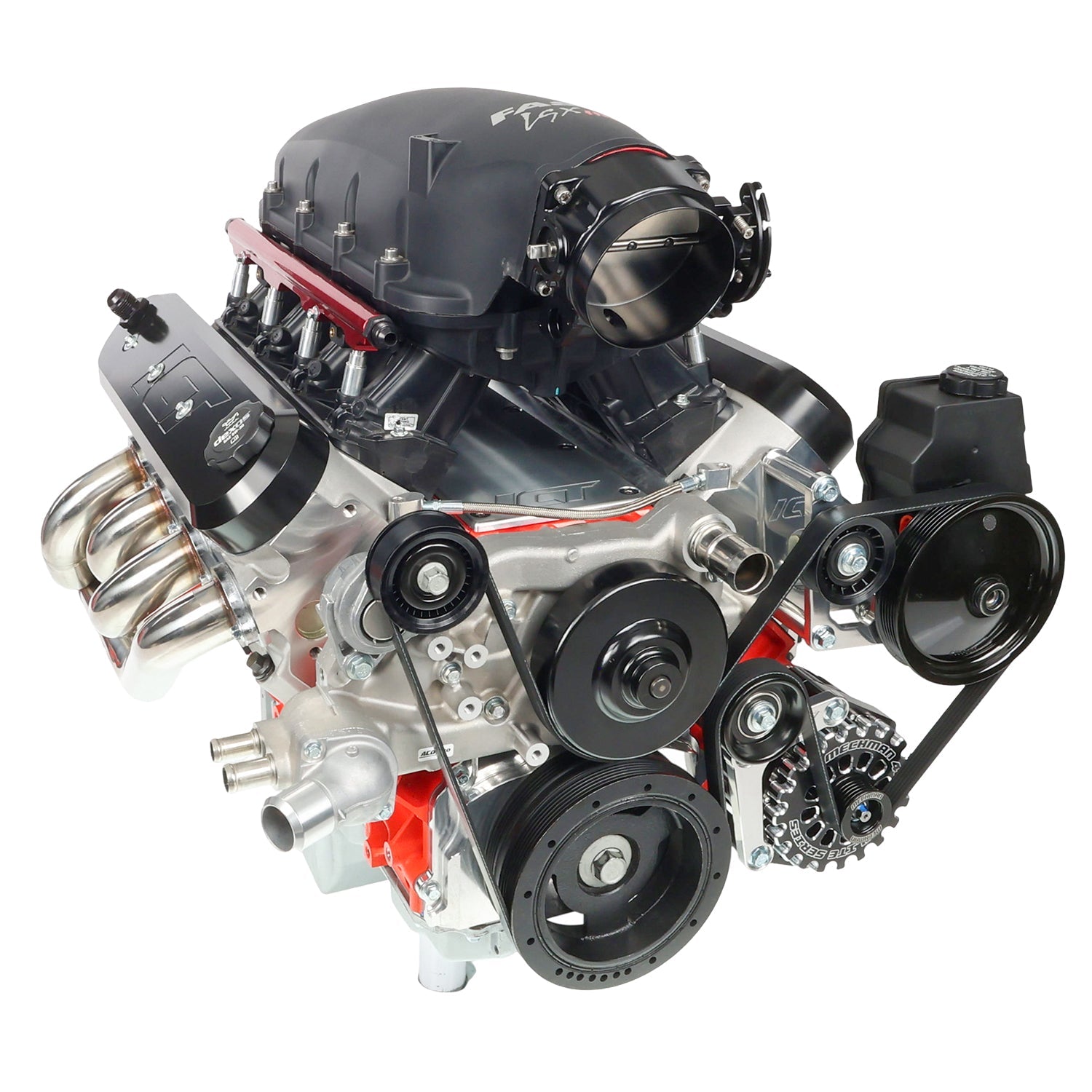

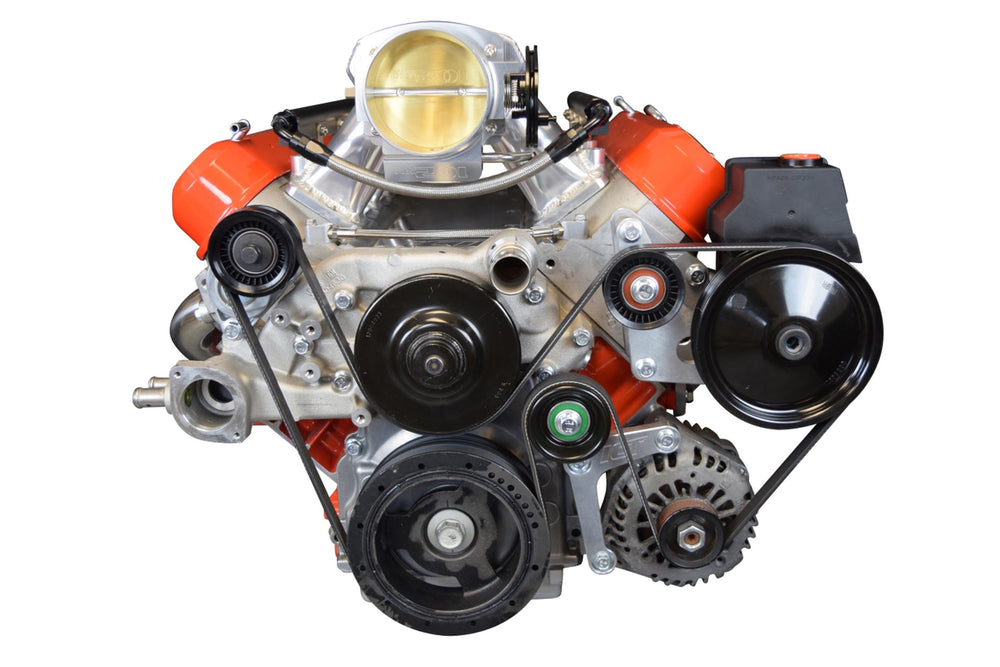

Alternator and Power Steering Bracket Kit Compatible with LS Corvette

Does not fit Corvette bolt pattern a alternators (see below) unless using a 551905 ICT Billet extension bracket

*May require slight grinding on block (see photos) if using a 105 amp alternator (145/160 amp alternators are a direct fit)

• Compatible with: Corvette (any year LS) (or CTSV/G8/SS) crank pulley (ICT # BAL100)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

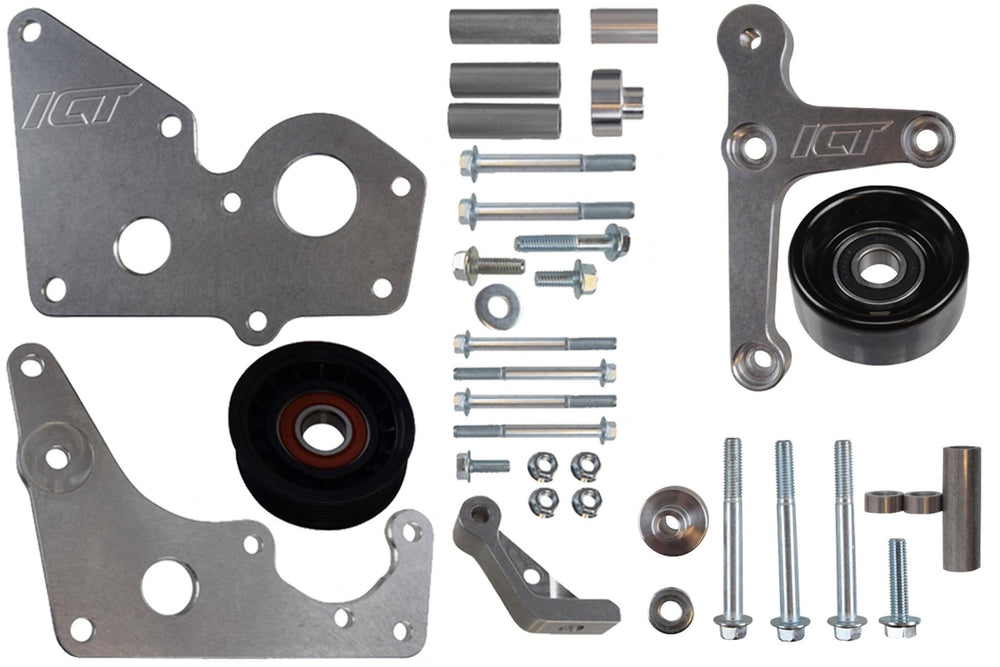

• Includes: alternator bracket, power steering bracket, idler pulley, and mounting hardware
• **Alternator: Suggested part # ICT# ALT300. (will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), Will fit any other LS powered vehicle alternators with any amperage.
• Power Steering Pump: Compatible with 1998-02 LS1 Camaro power steering pump & pulley (ICT # PUM200 & ICT # PUL200)
• Uses 845K6 Belt (84.5" length)

**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole. This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets. This bracket only bolts to the front face of the engine block.
