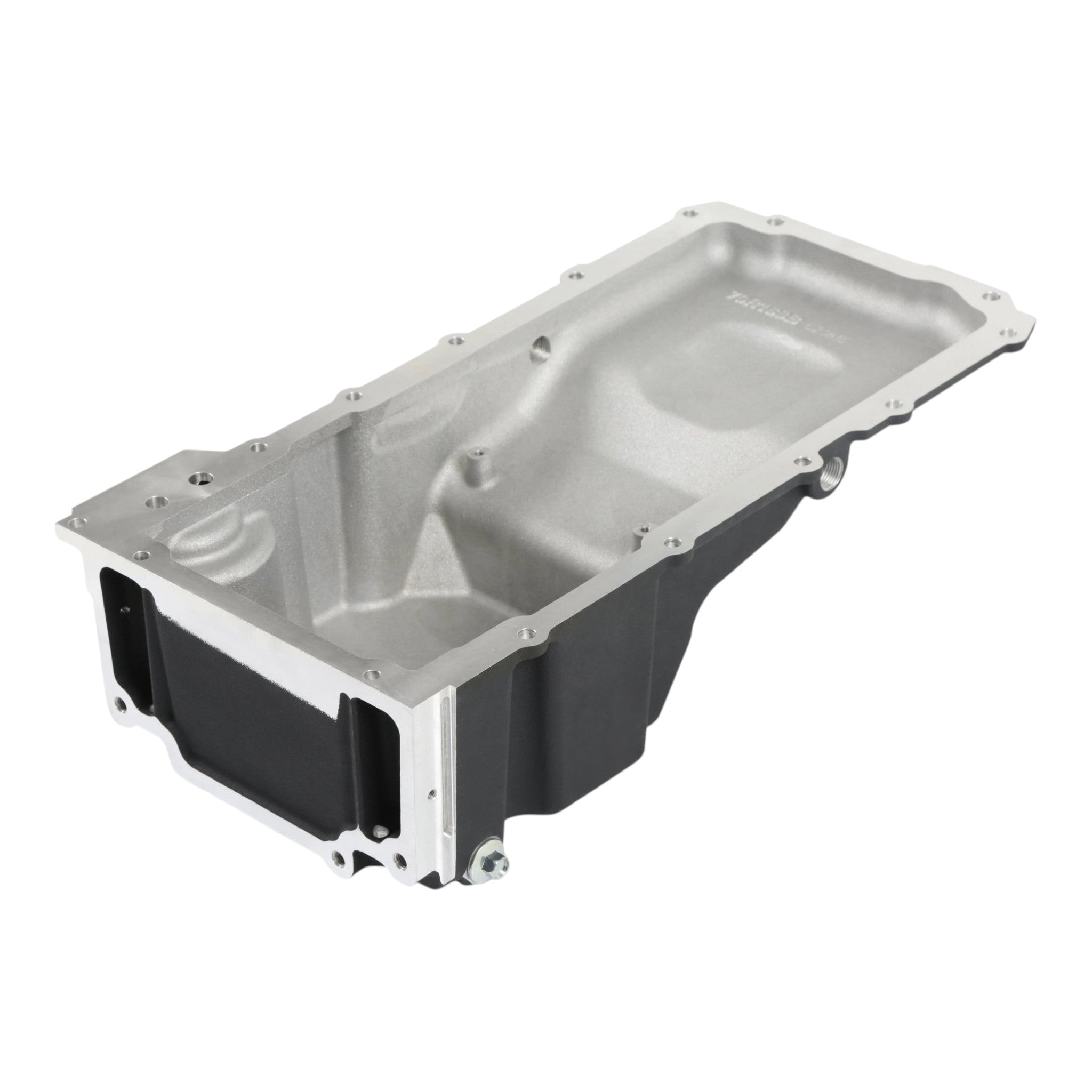

Holley 302-3 GM LS Swap Oil Pan - Black - Most Front Clearance

Features:

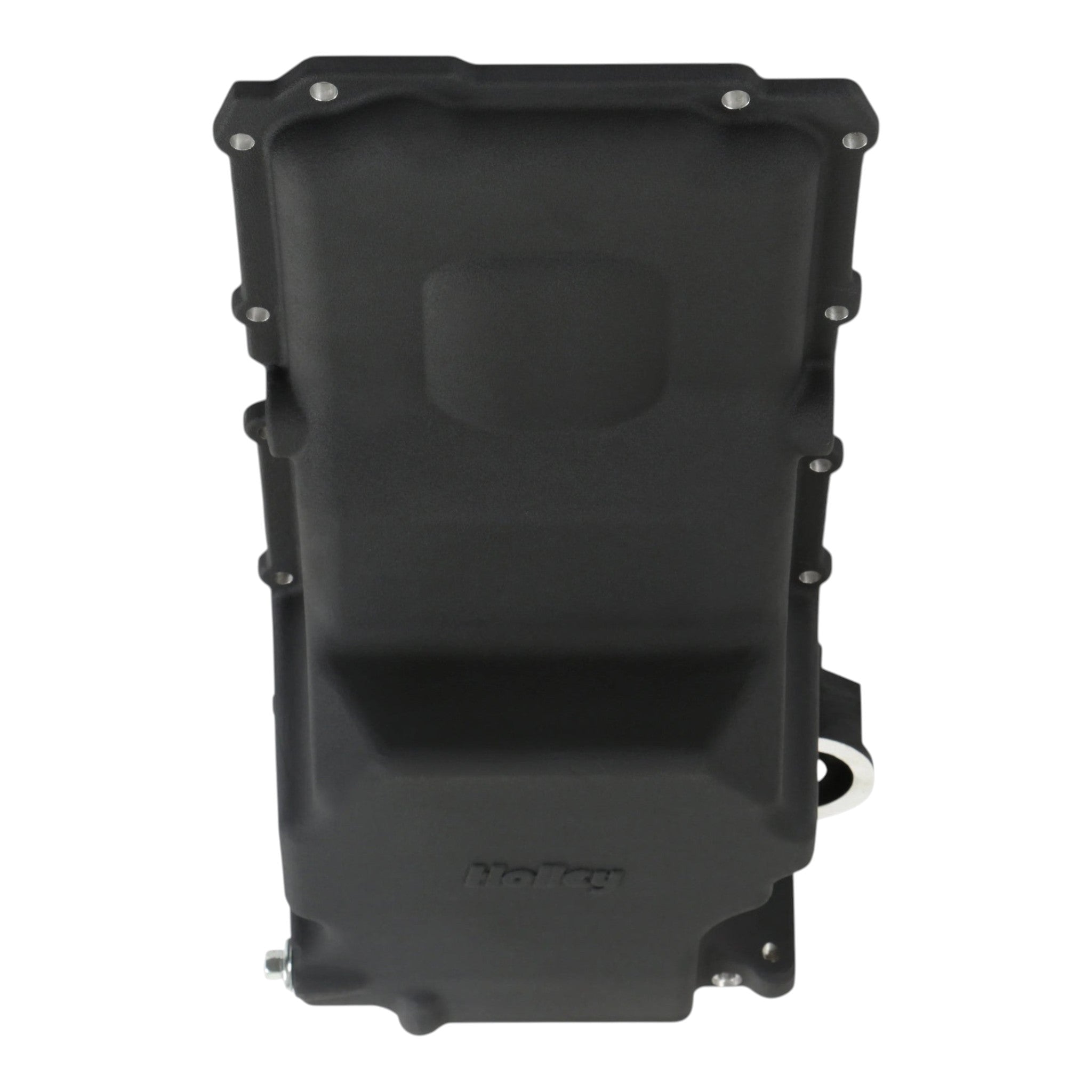

• The black finish on the LS swap pan looks great and compliments other engine accessories that have a black finish (accessory drive system, valve covers, intake manifolds, etc.)
• Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan

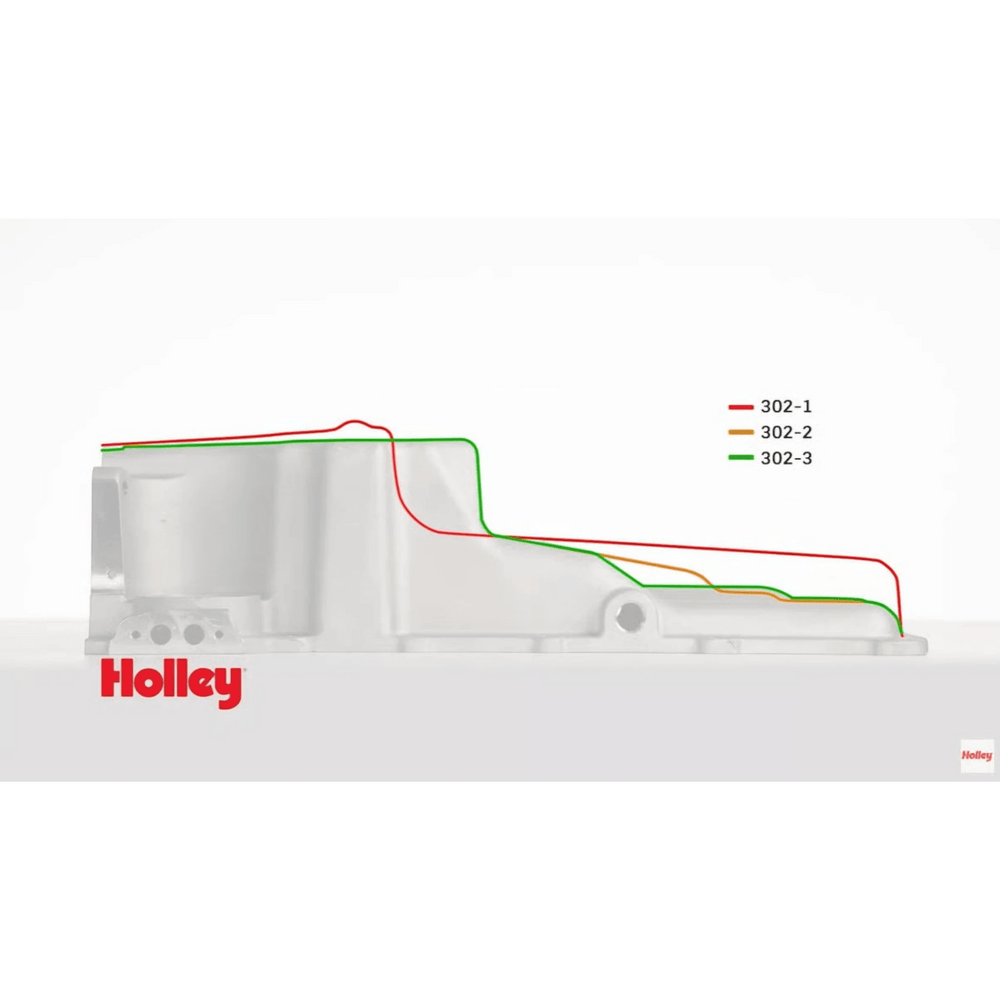

• The profile of the sump has been revised to provide extra chassis and steering rack clearance
• Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978- 1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
• NOTE – Oil pan #302-3 will clear a 4.00-inch stroke crankshaft

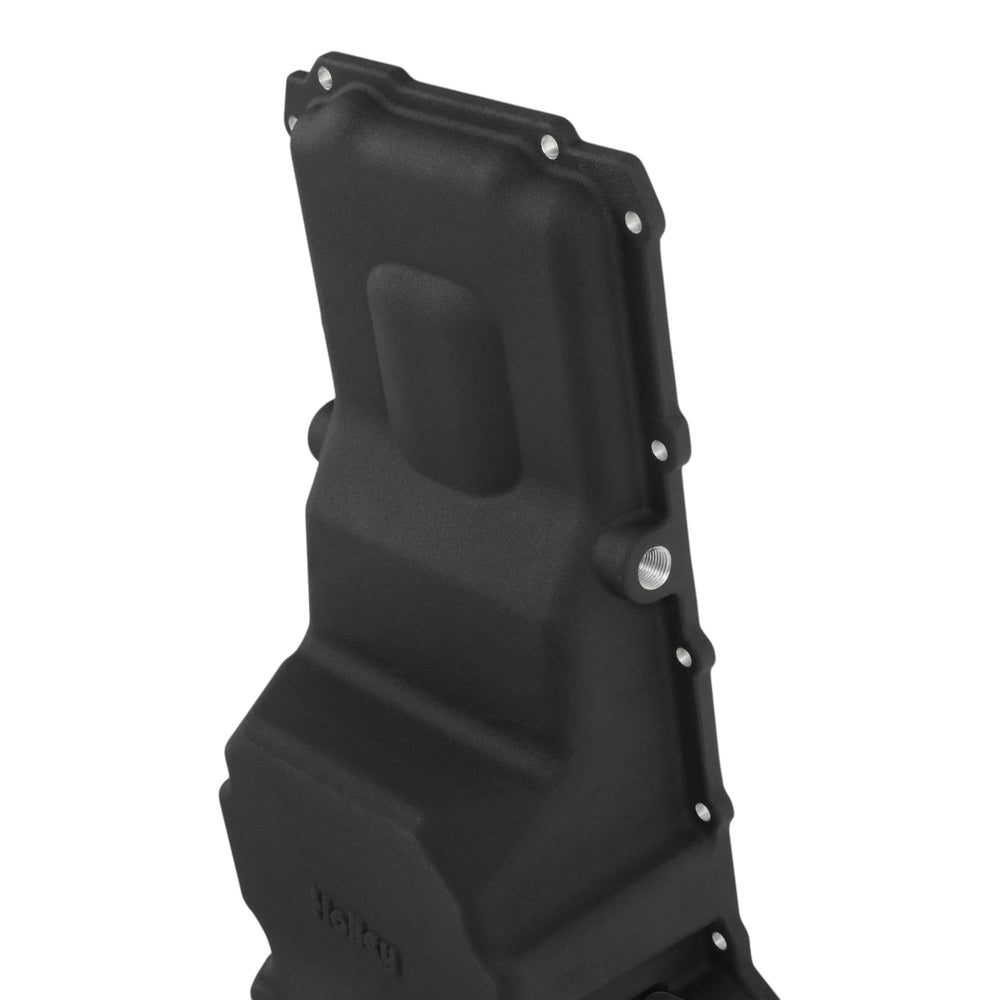

• Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)
• Can be used with Earls oil cooler adaptor LS0012ERL and LS0013ERL, or Earls oil cooler block off plate LS0020ERL with 1/8-inch NPT port

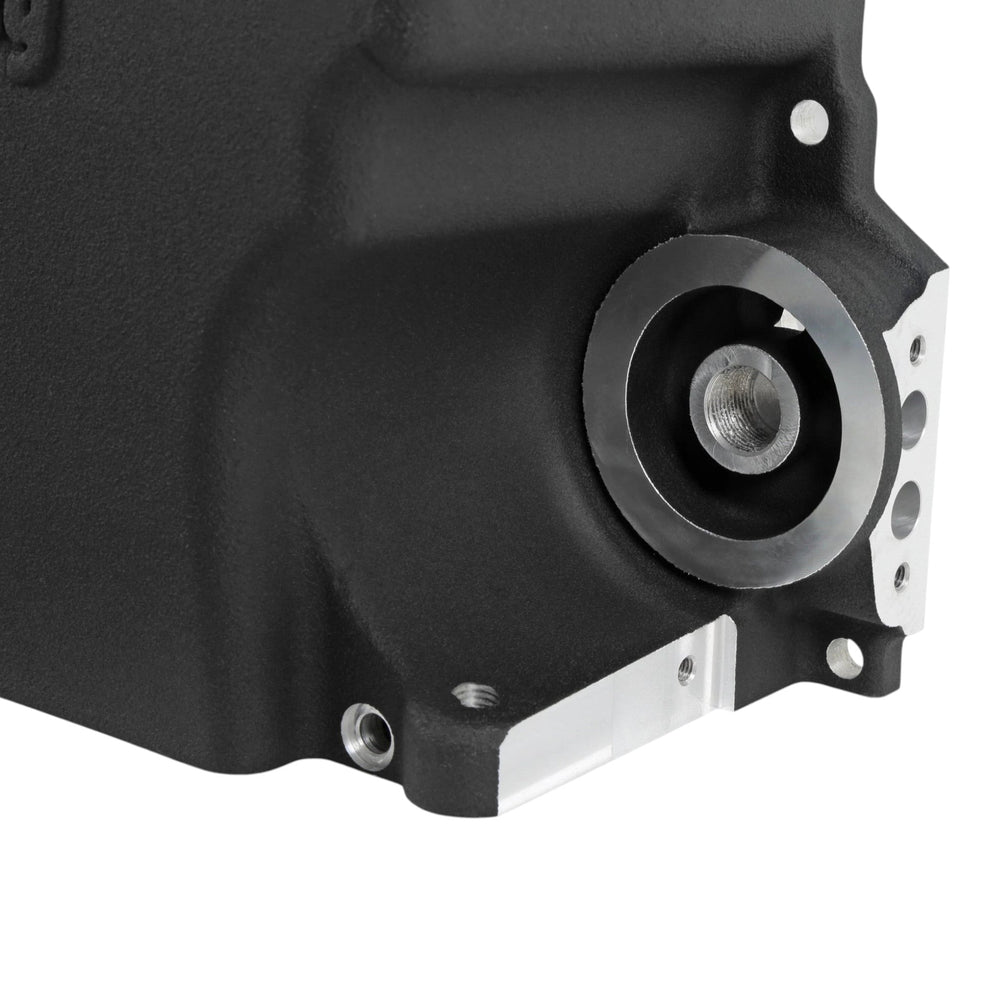

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket, and sealing proper structural rigidity, and OE bell-housing attachments

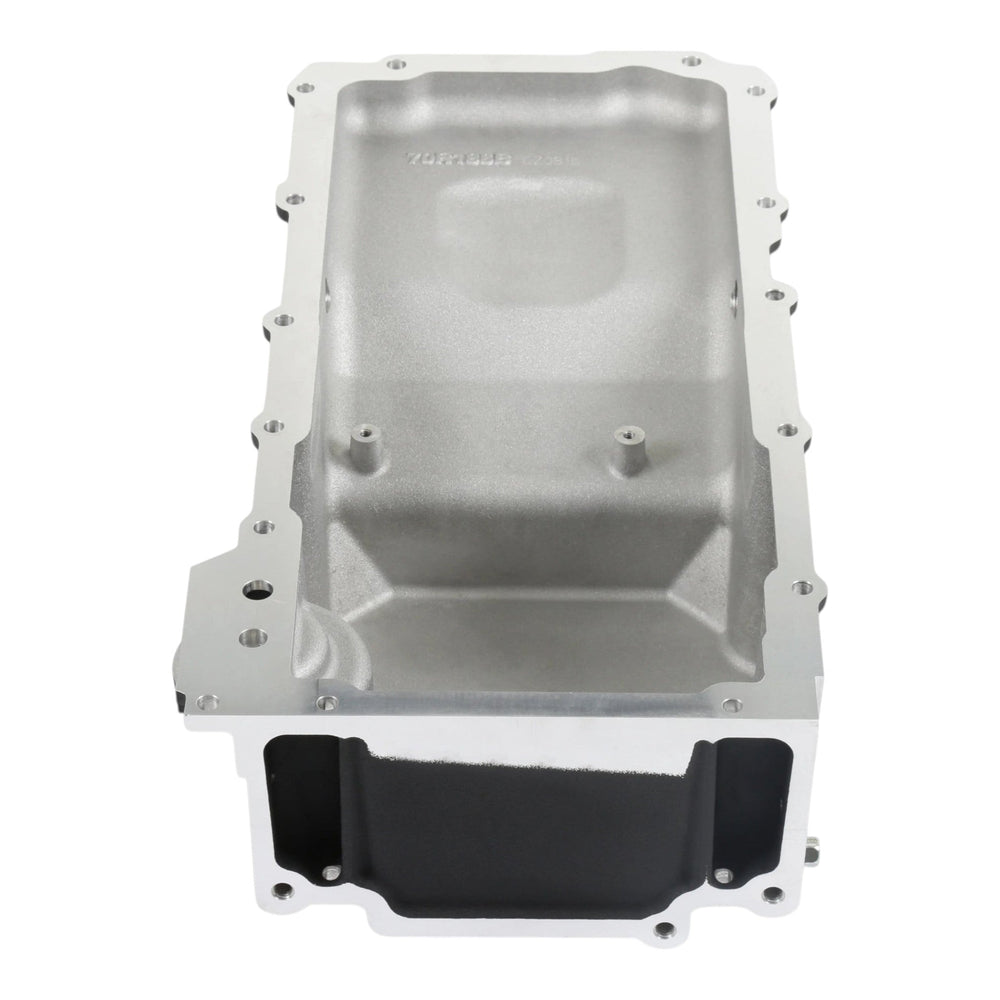

• Traditional high-quality cast aluminum appearance with clean exterior styling
• Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

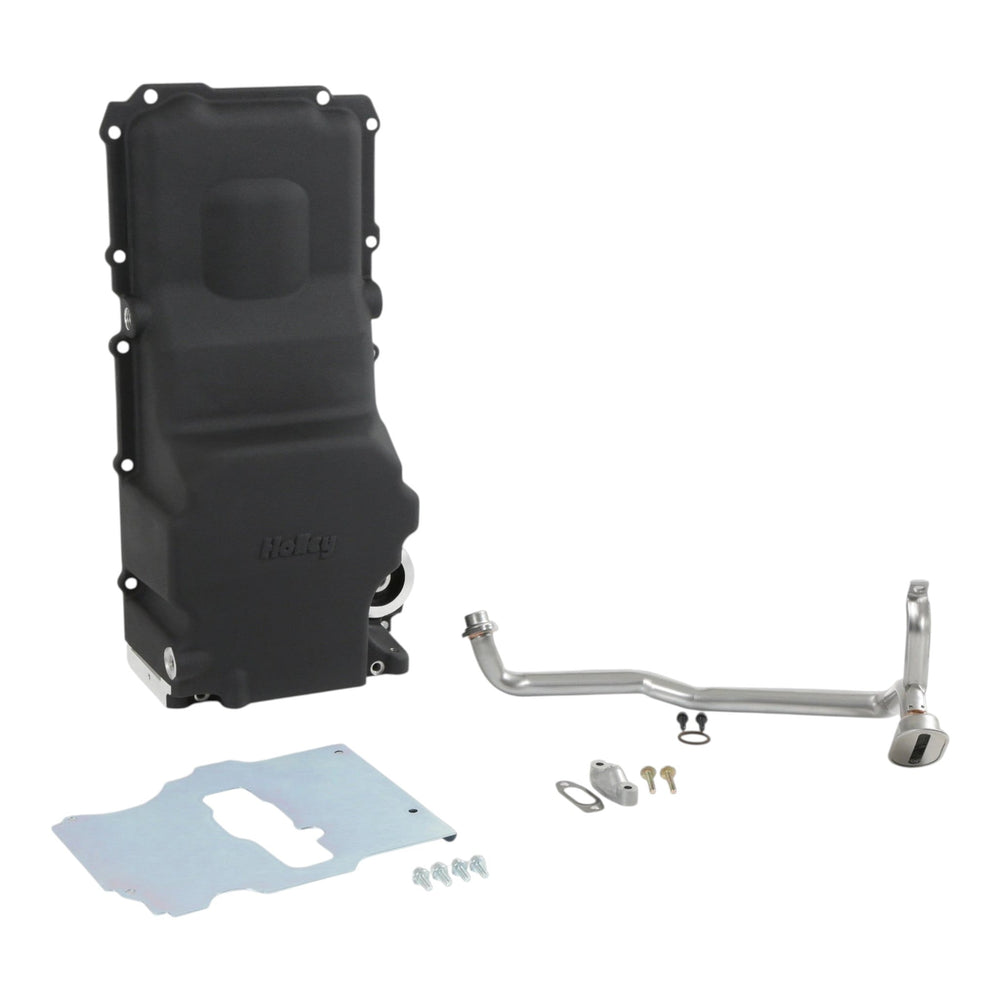

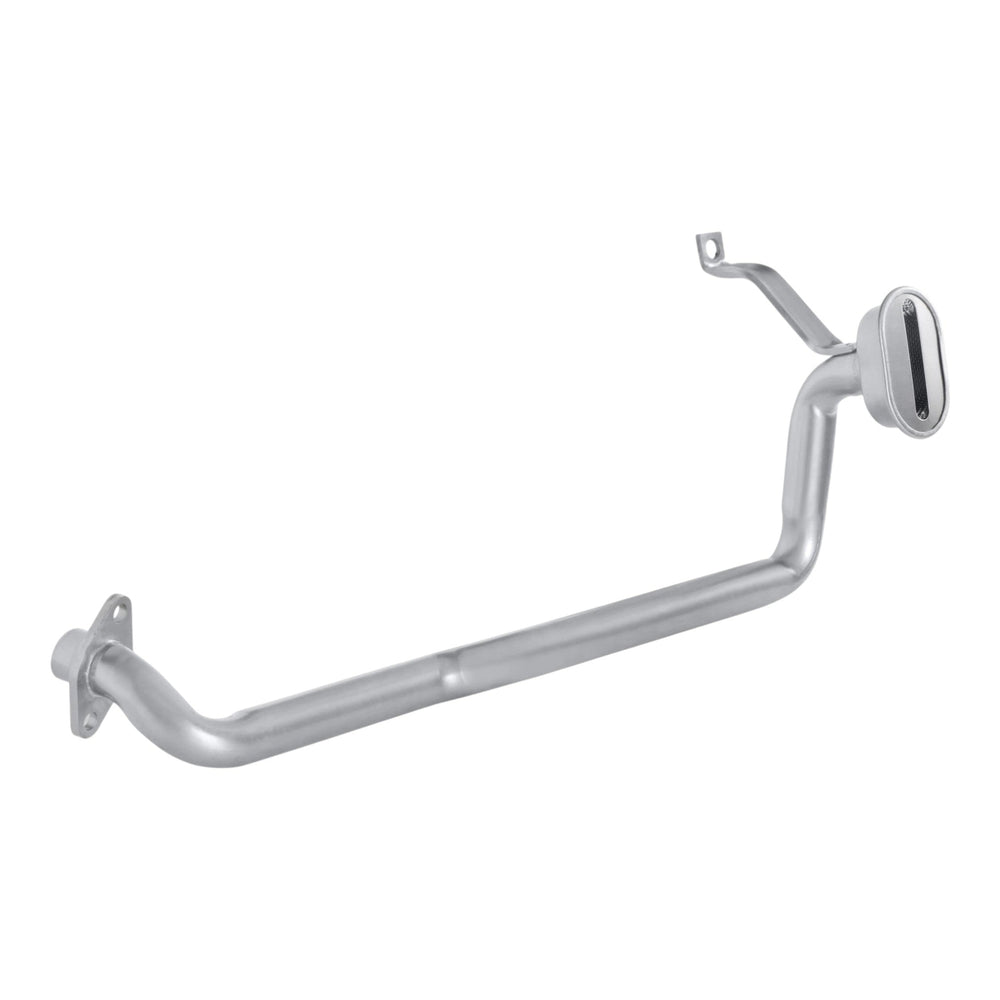

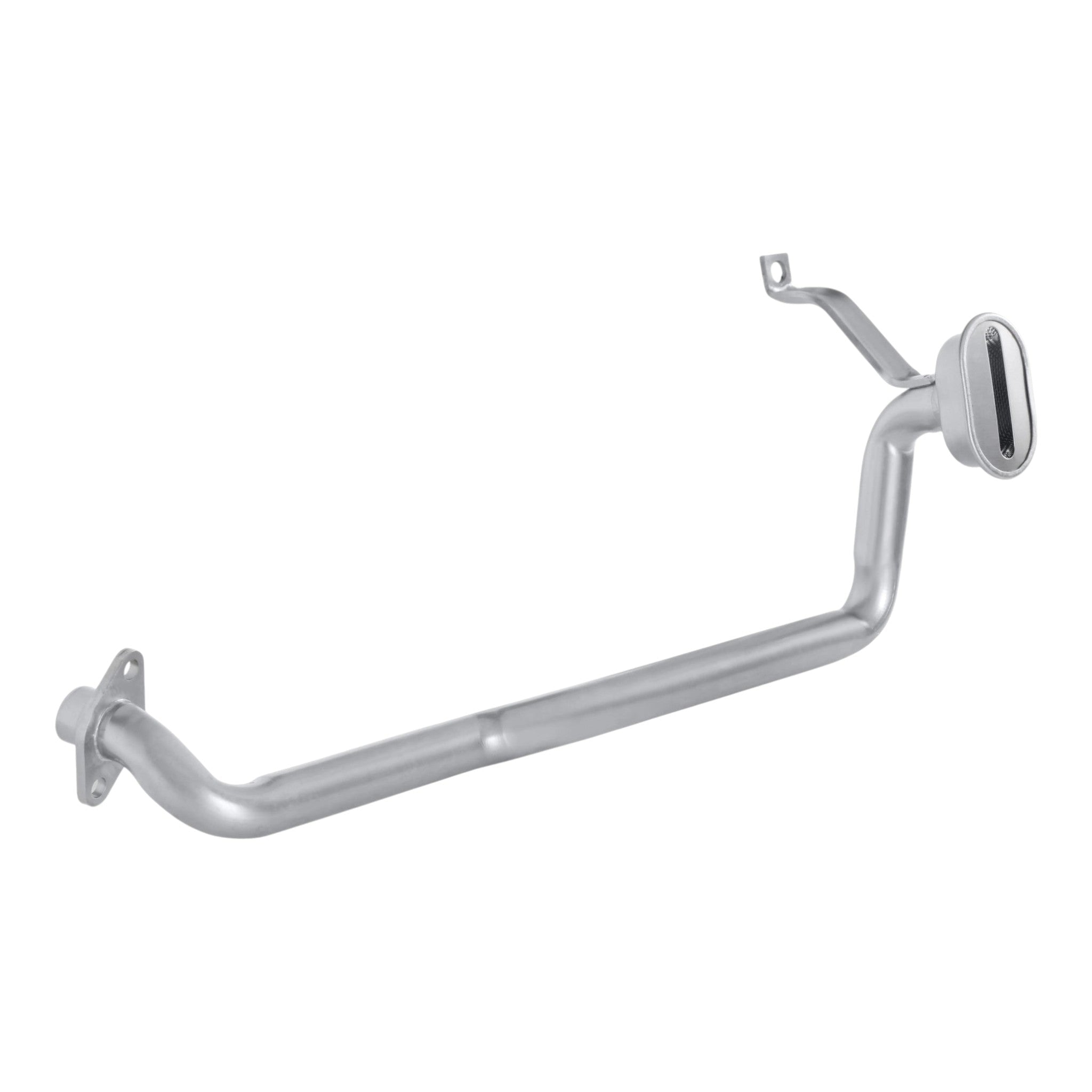

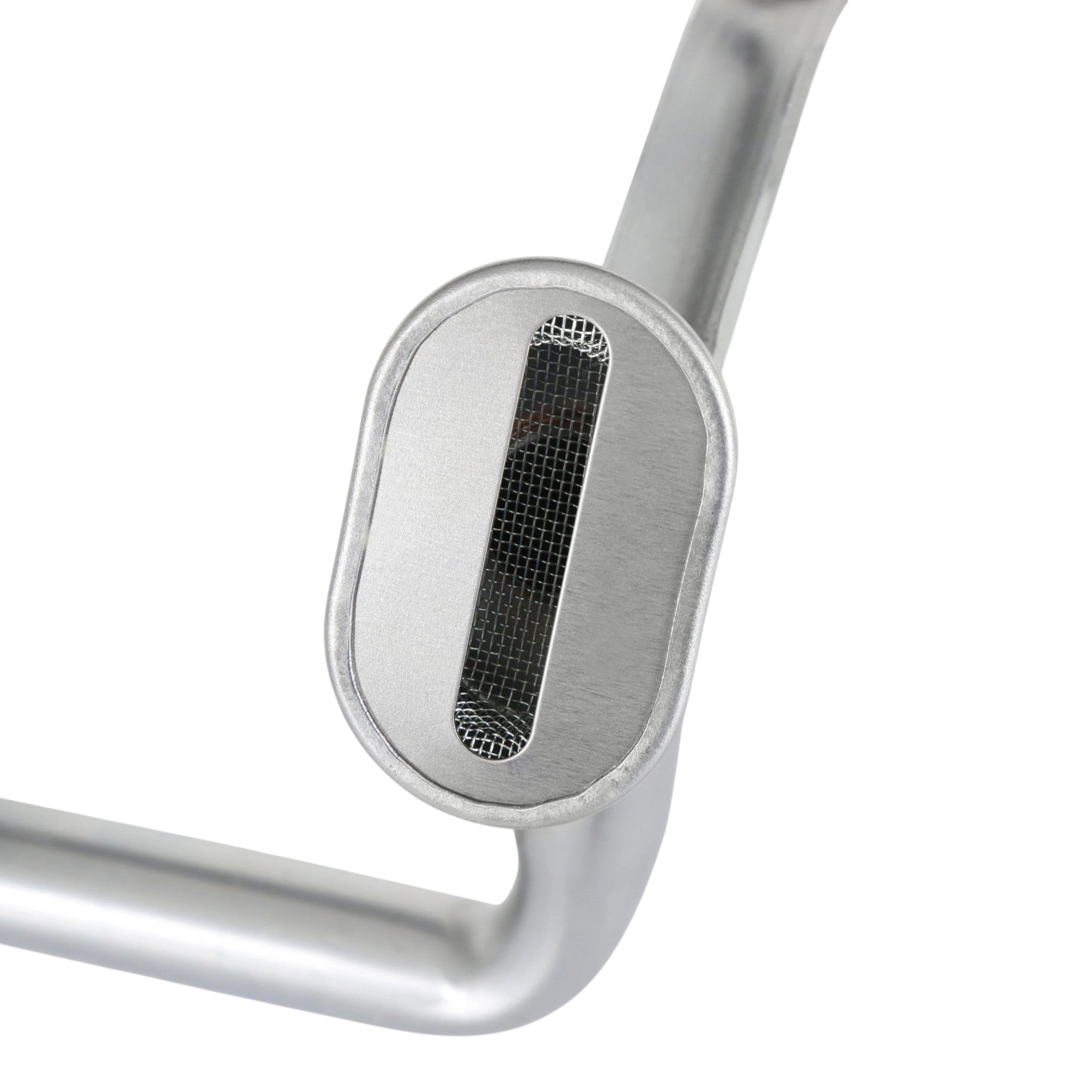

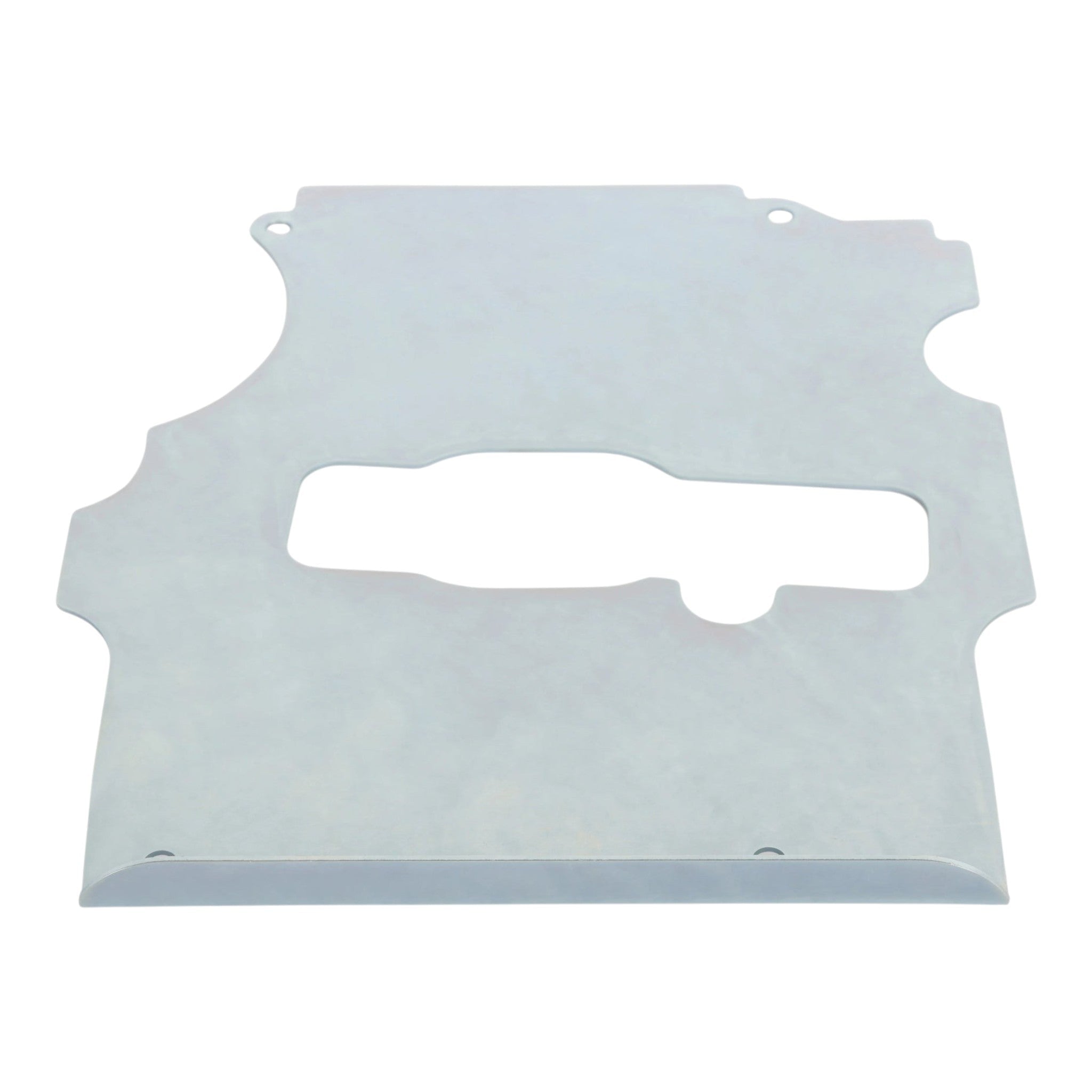

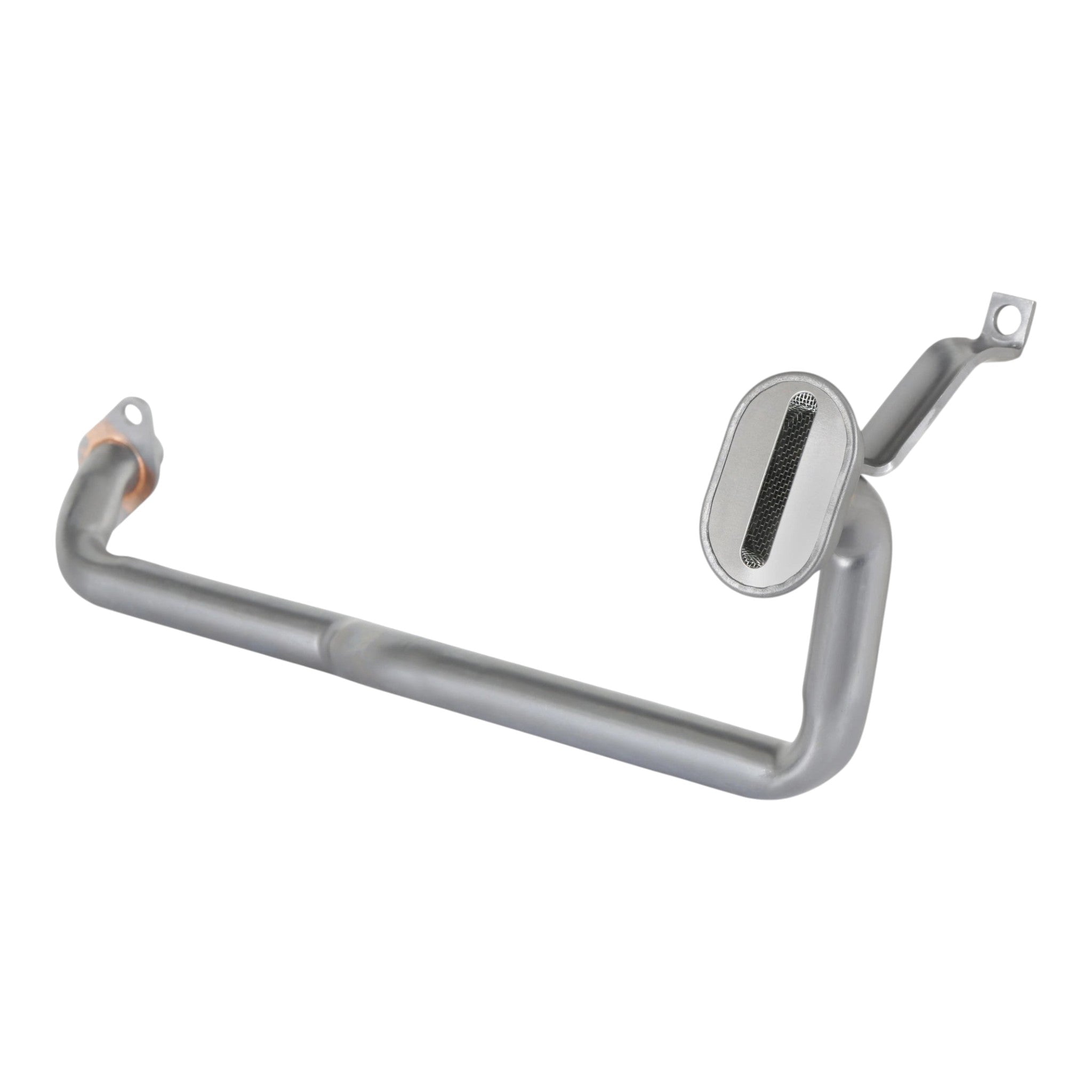

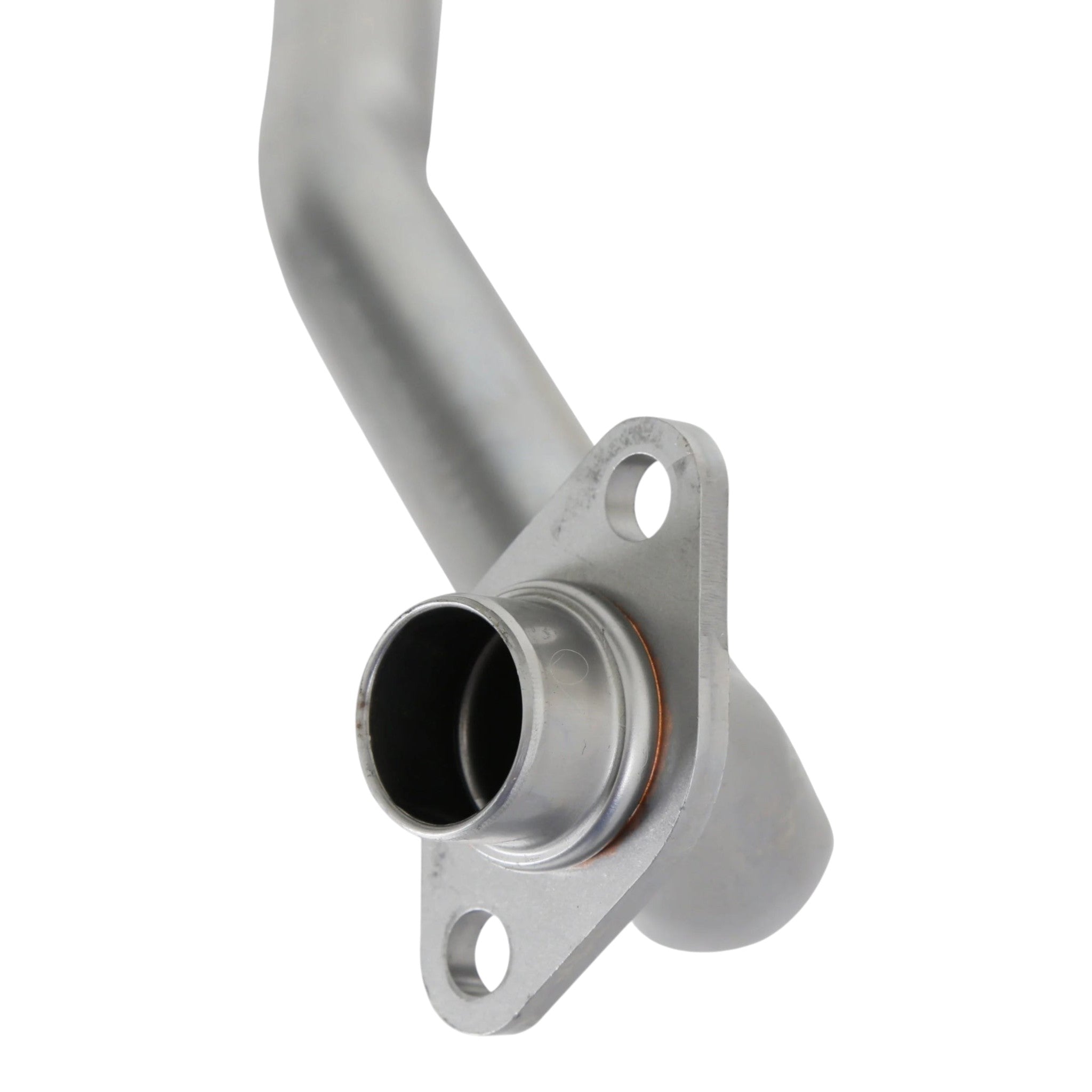

• Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
