Gen 5 LT1 Cylinder Head to LT4 Supercharger Adapter Plates

Price
$241.99
SKU#: 551590
In stock

Product Description

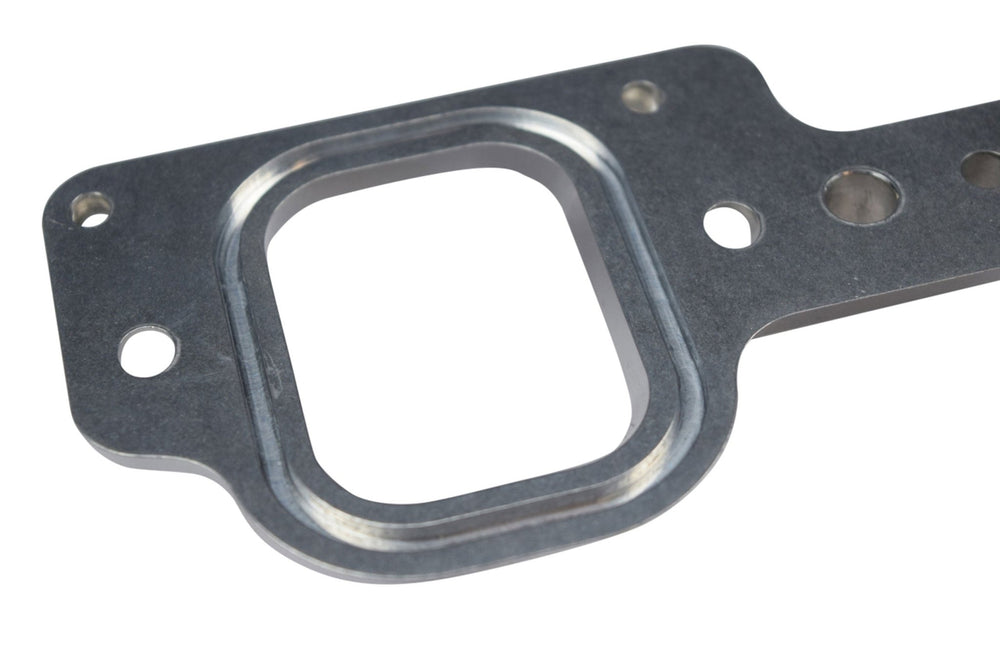

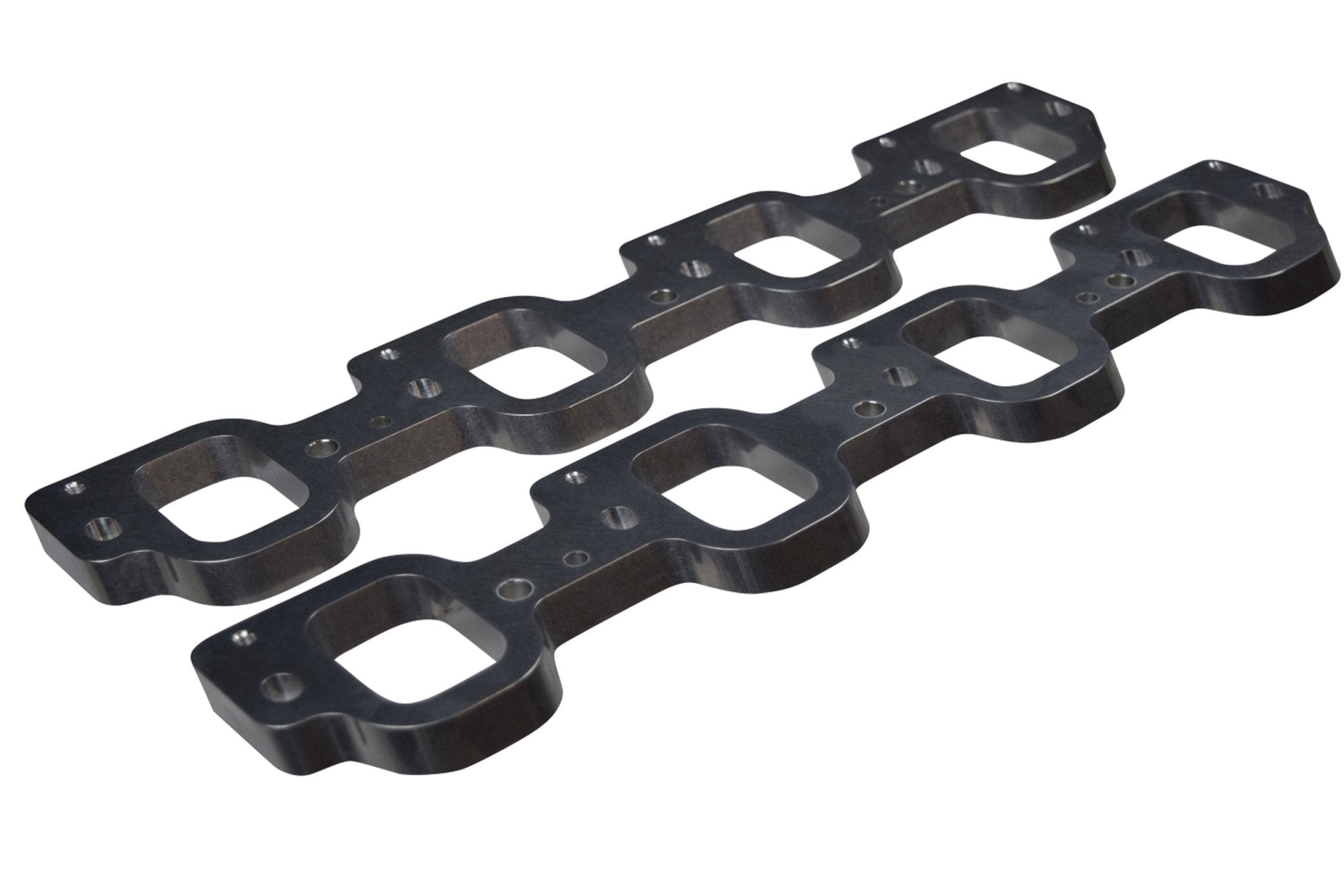

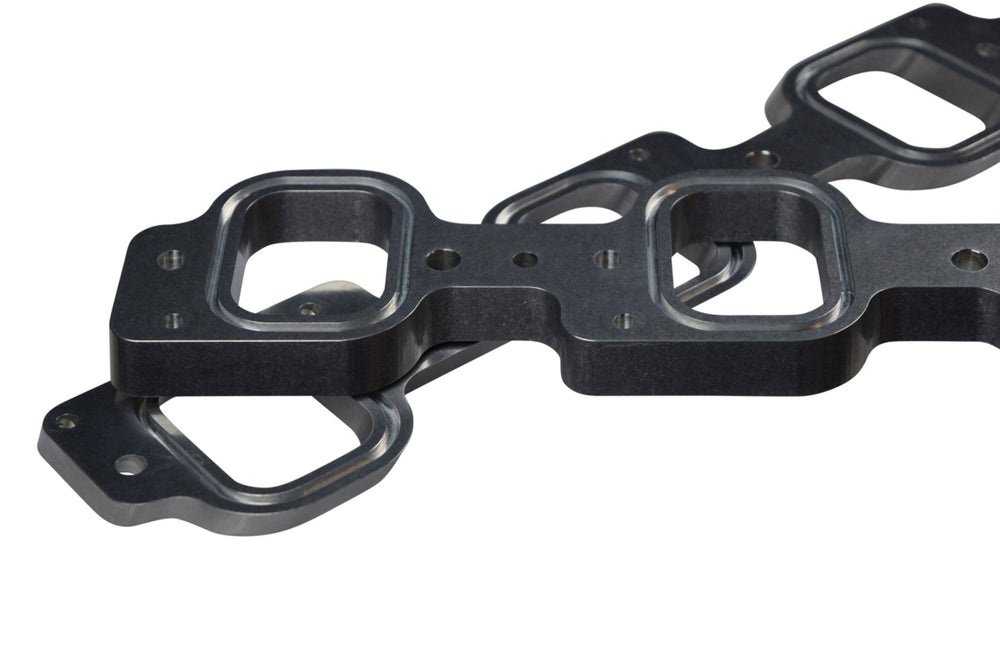

LT Cylinder Heads to LT4 Supercharger Adapter Plates

*** Some intake manifolds will require modification of alignment pin to sit flush on adapters***

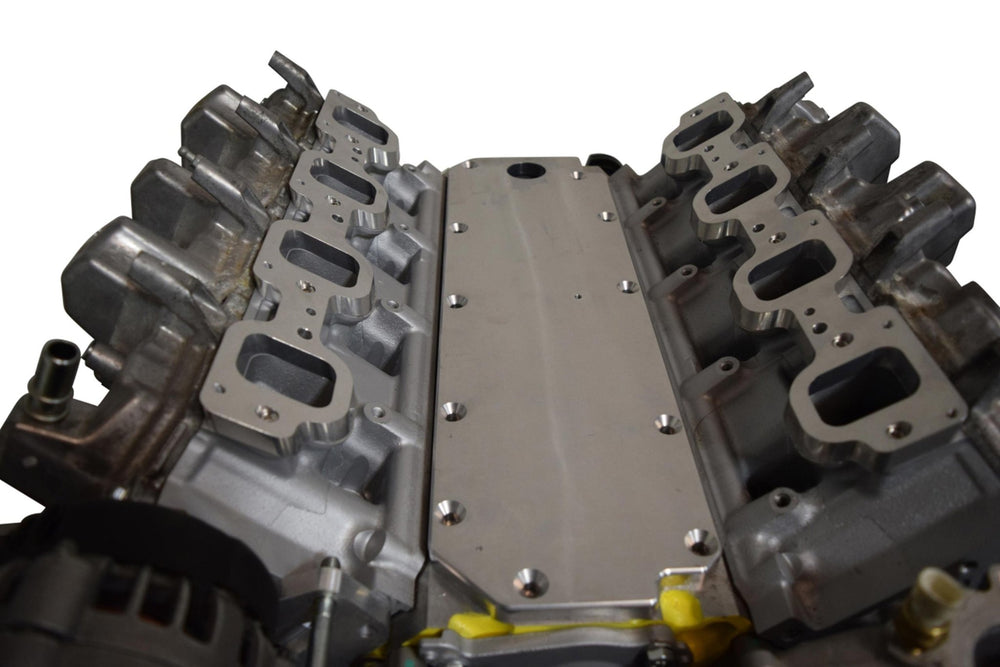

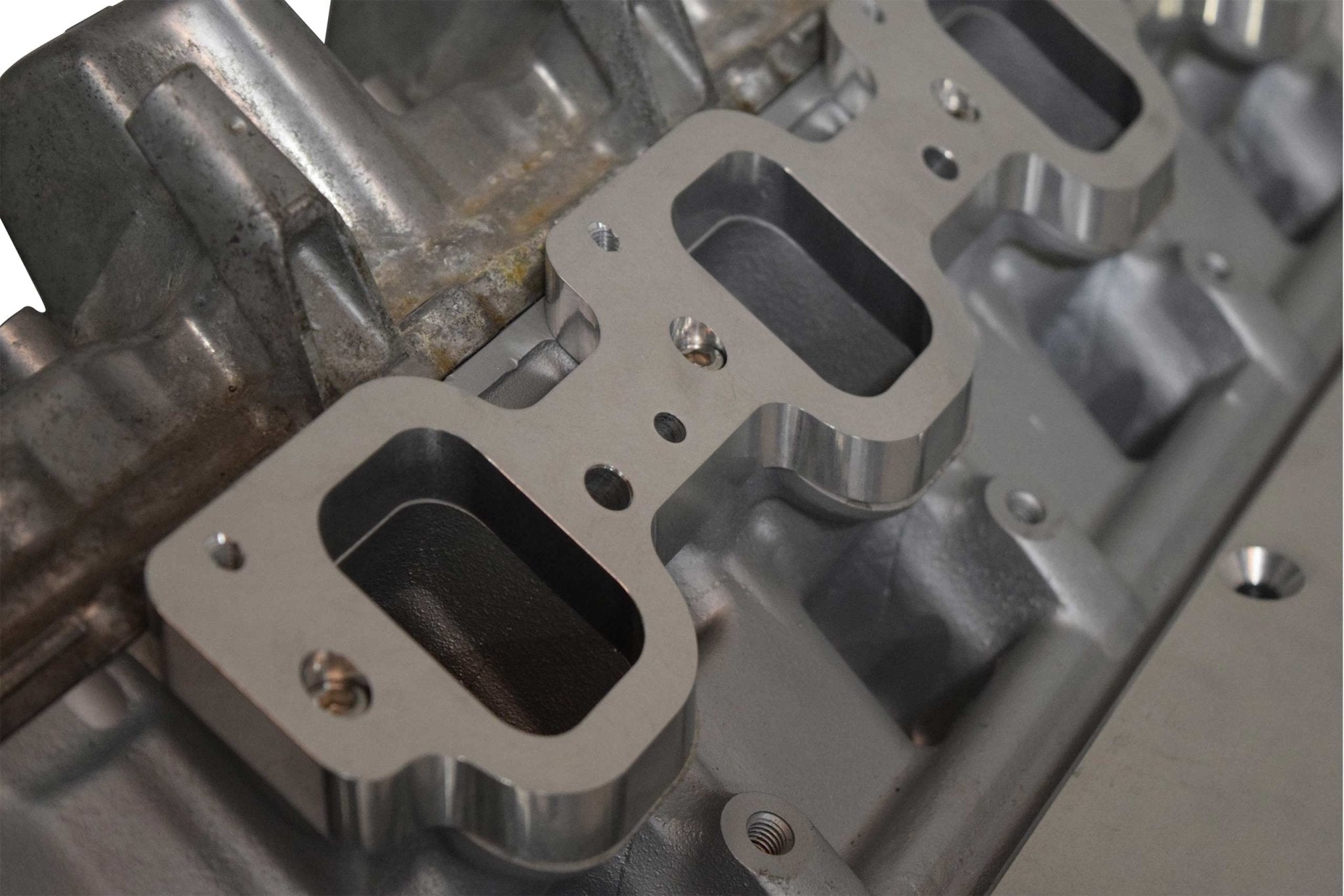

  • These plates adapt the non supercharger cylinder head bolt pattern to a supercharger bolt pattern
  • Compatible with: 2014 and newer V8 LT series engines including L83 & L86
  • Can also be used as an intake spacer for LT1, L82, L83, L84, L86, L87, and L8B engines

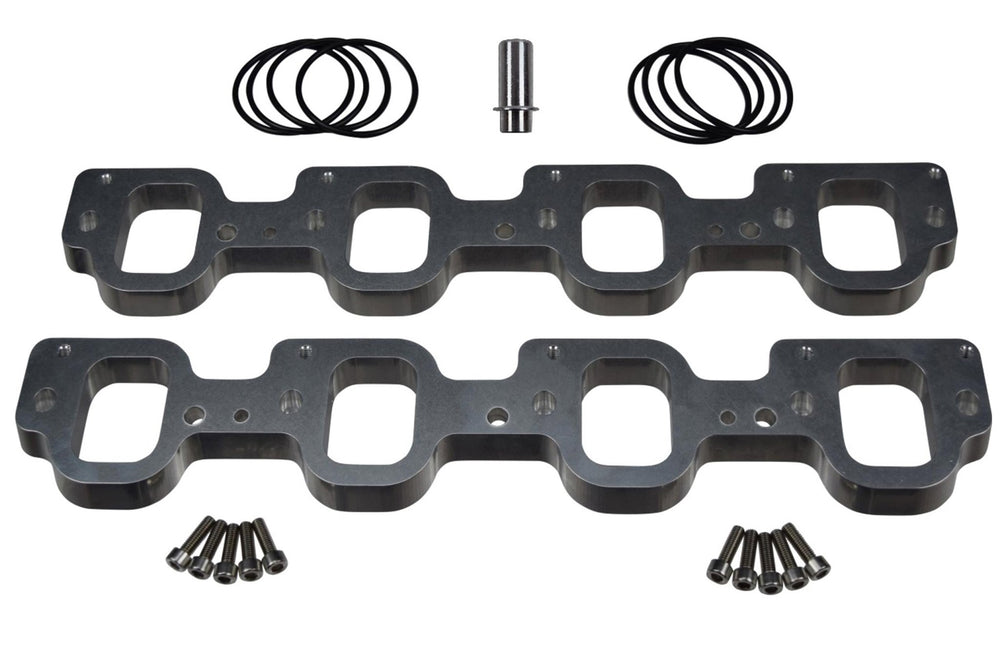

  • Includes: 2 adapter plates (1/2" thick) with 8 O-ring seals, 10 supercharger to flange bolts, and 10 flange to cylinder head bolts
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
  • Can also be used as an intake manifold spacer for LT1 bolt pattern intakes
  • Will fit these cylinder heads: LT1, L82, L83, L84, L86, L87, and L8B
  • Will fit these superchargers: LT4 & LT5
  • May require the Fuel line to be re-routed
WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551590.0 656729845905.0 3.3 lb 17 in 3 in 1 in No
