LS Water Pump Spacer Kit

Used for mounting Corvette (any year LS) water pump onto 1998-02 LS1 Camaro (or GTO any year) engine to keep the belt properly aligned. This is the EXACT dimension required for this combination.

• Can be used with all LS engines, currently running LS1 Camaro (or GTO) crank pulley
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

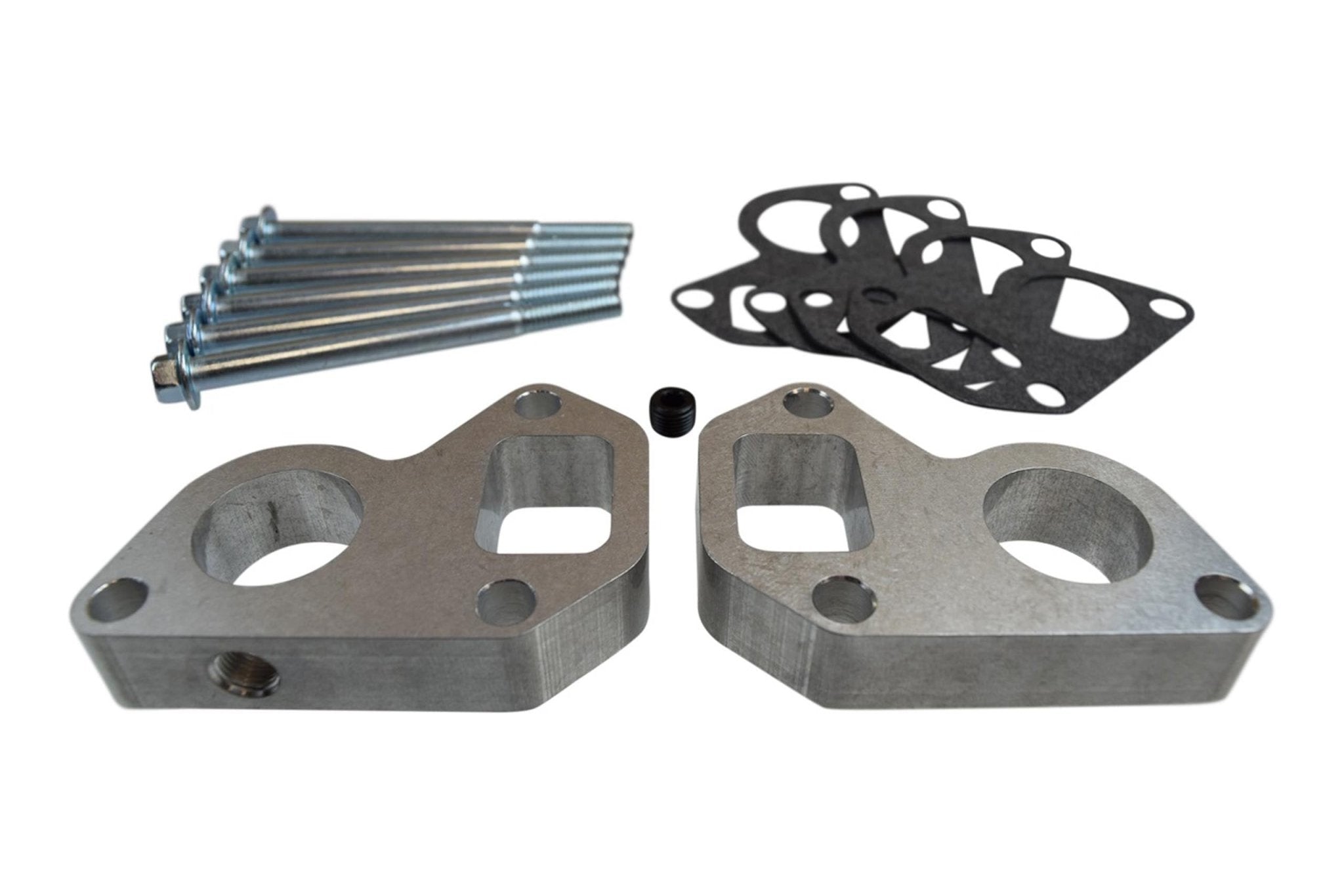

• Includes: 2 spacers, 4 gaskets, 1 steam port plug, and bolts
• Approximately .86 inch thick spacers

***always use the belt tensioner that would have originally came with the water pump that you are using. (example: 1997 Corvette water pump would use a 1997 Corvette belt tensioner) These spacers will keep the alignment perfectly.

LS Series Engine Belt Spacing Guide: Corvette, G8, SS, & CTSV engines have the tightest belt to block setting (other than FWD vehicles w/ LS4) LS1 Camaro belt spacing is approximately .86" further outboard

Truck & Camaro 2010up belt spacing is approximately .71" further than LS1 Camaro (1.57" from Corvette)

for replacement gaskets use part number 551690-GAS4
