LS1 Camaro 98-02 Alternator and Power Steering Kit - Type II

Type II Power Steering and Alternator Bracket For LS1 1998-02 Camaro Belt Spacing

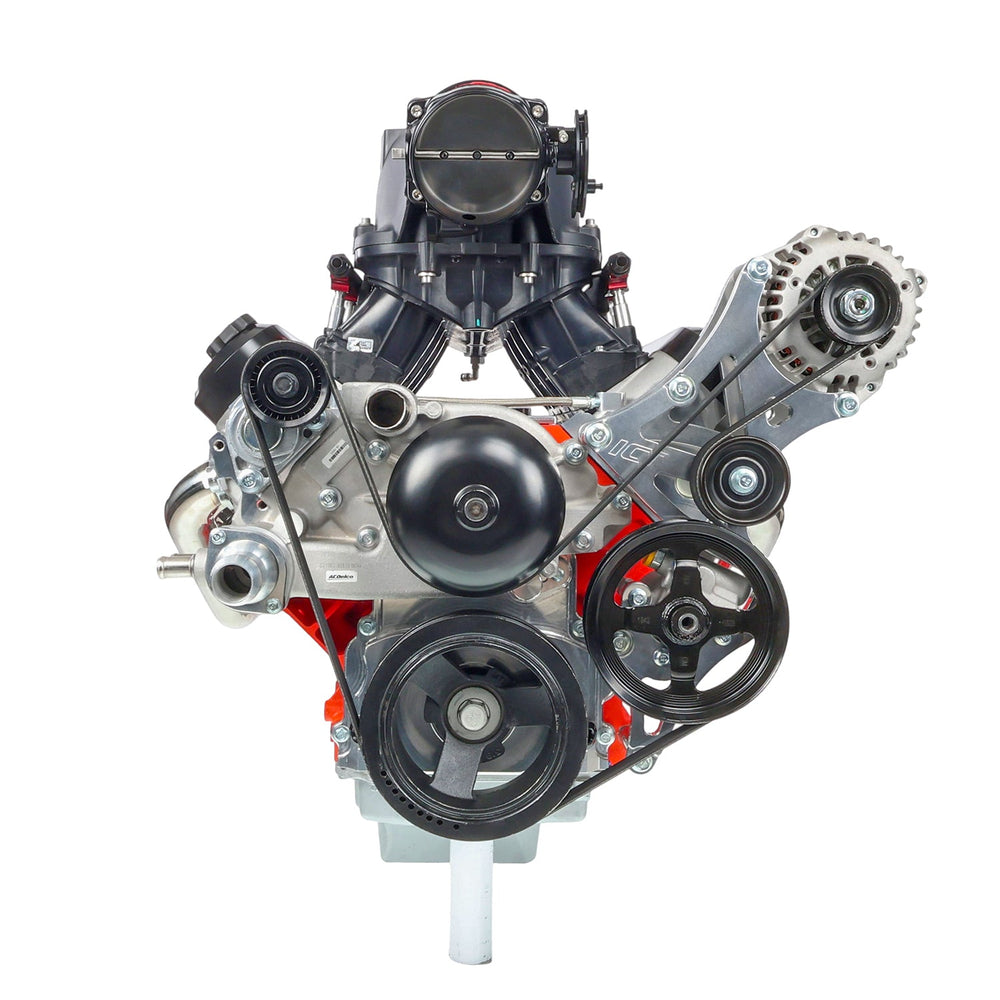

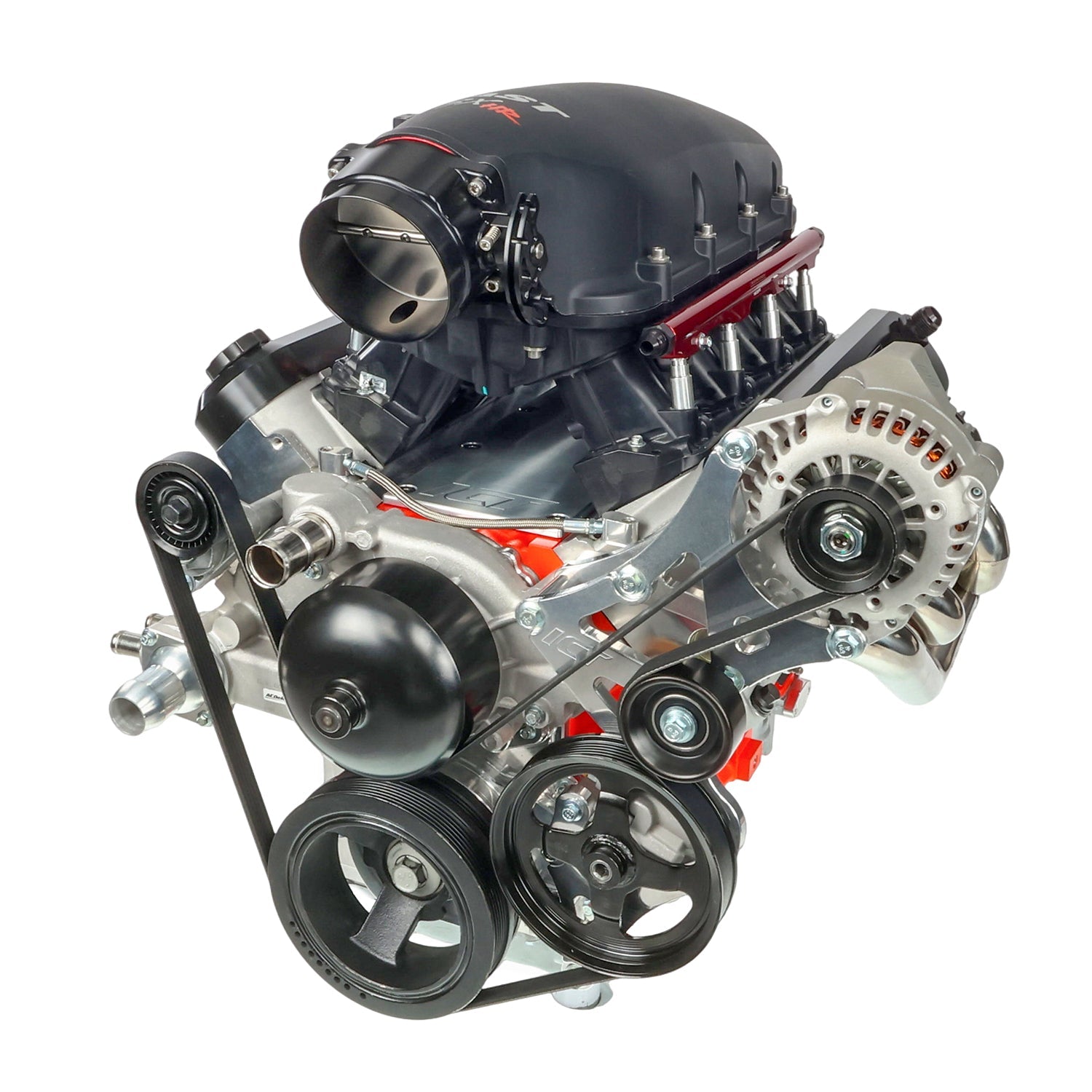

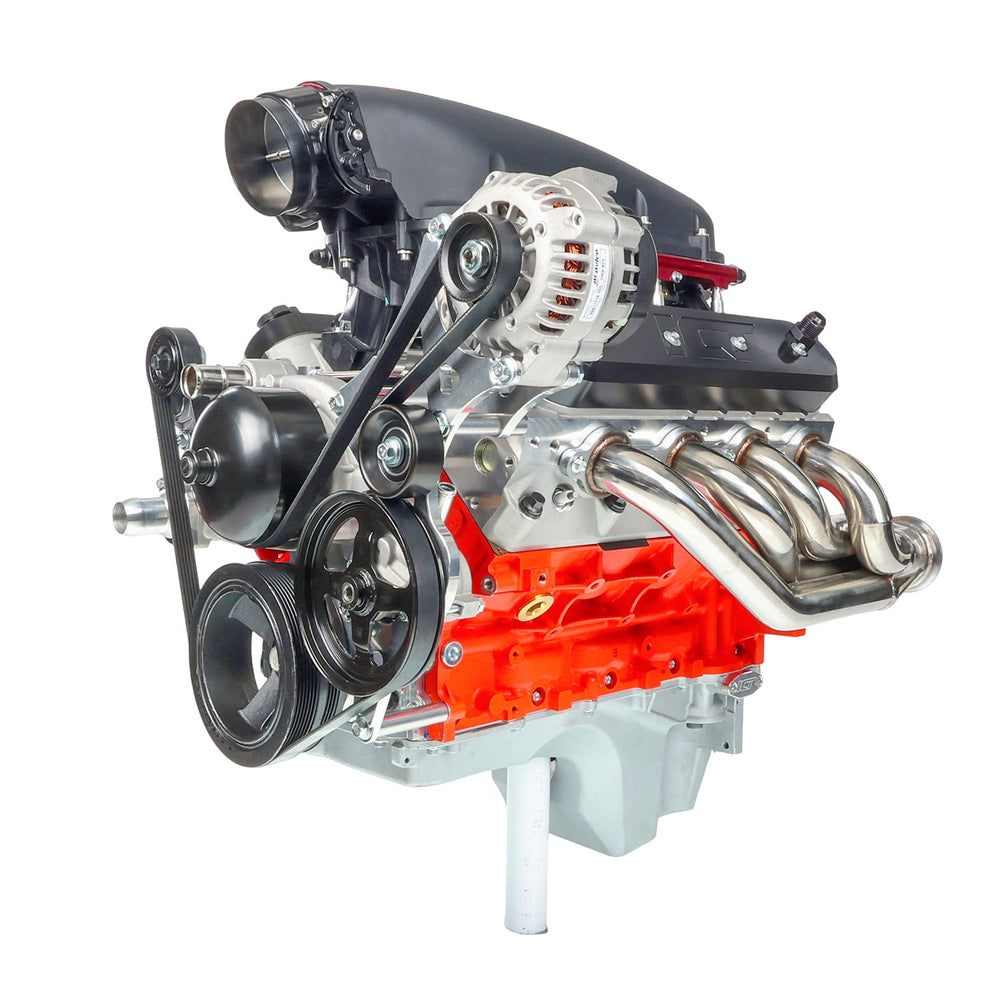

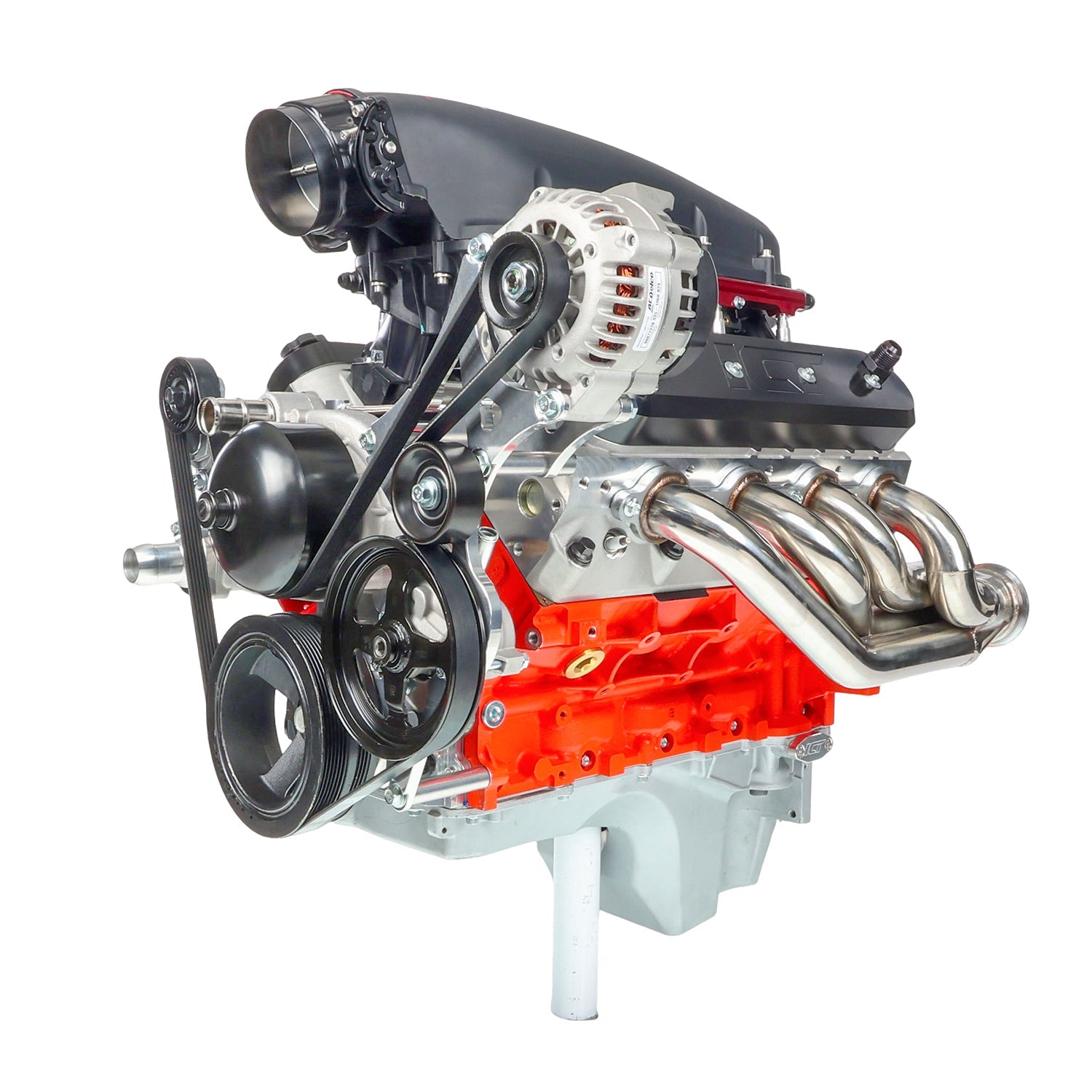

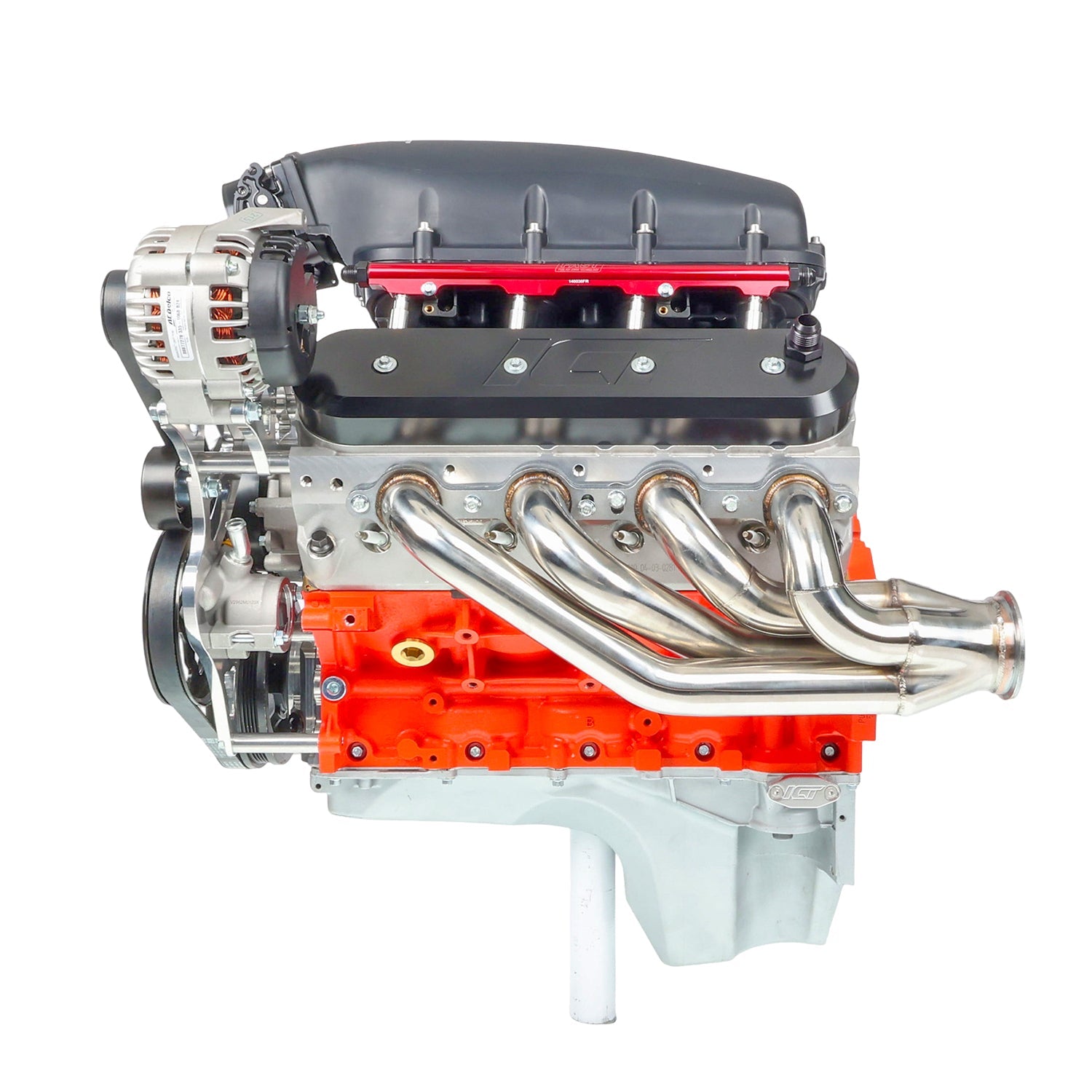

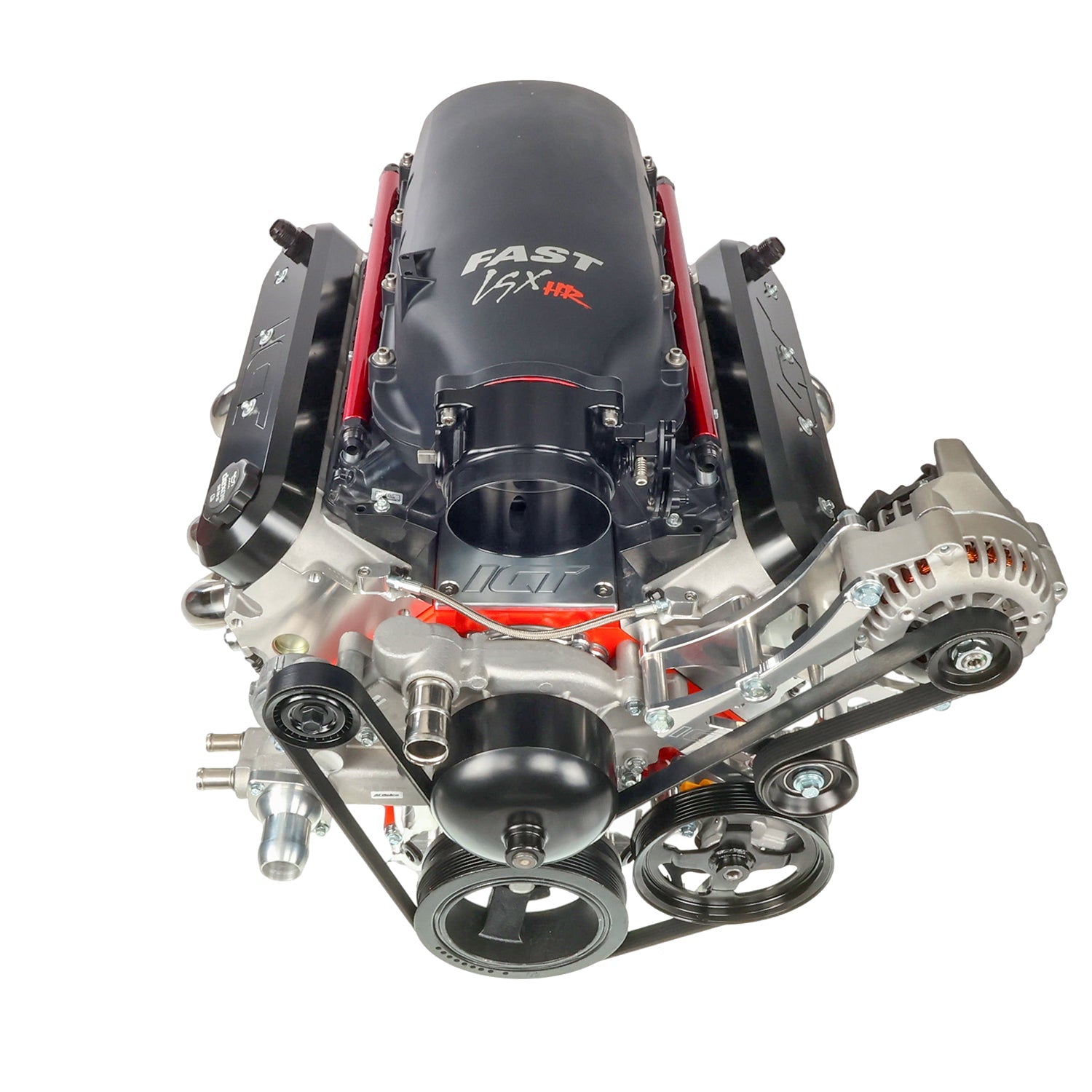

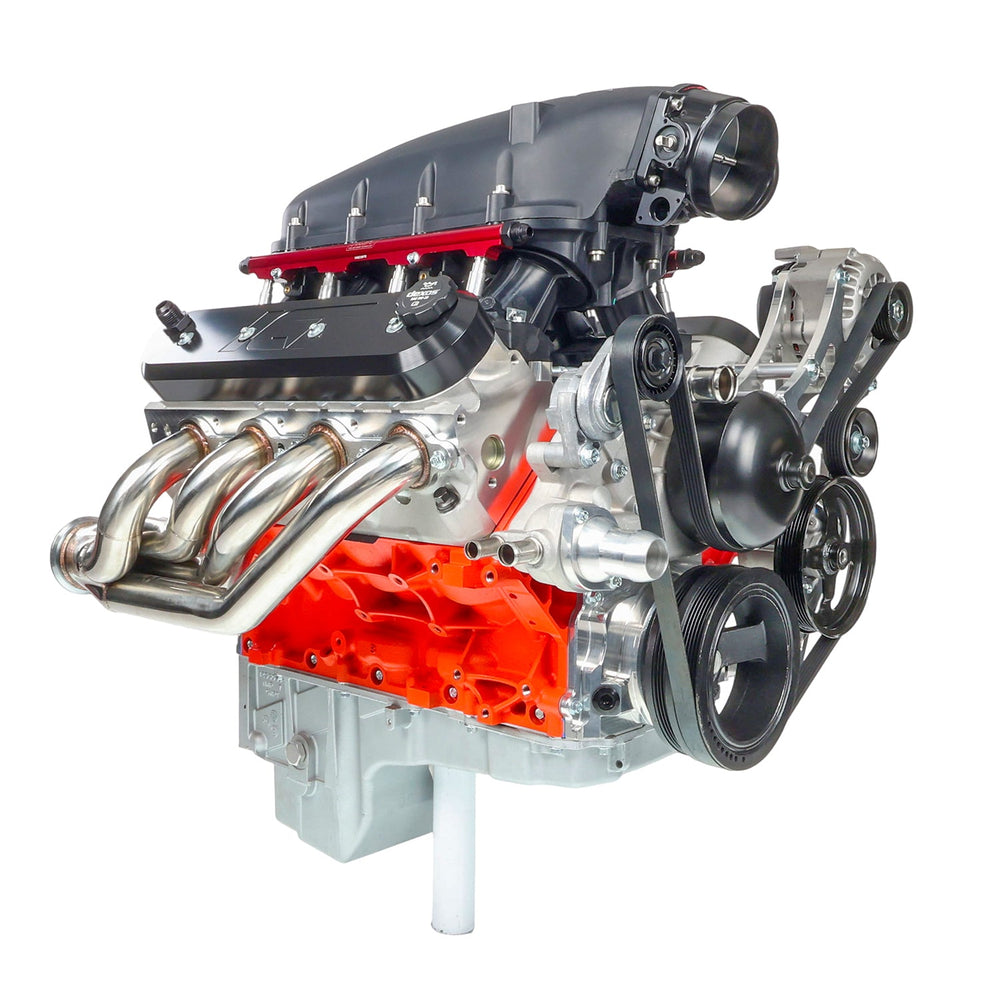

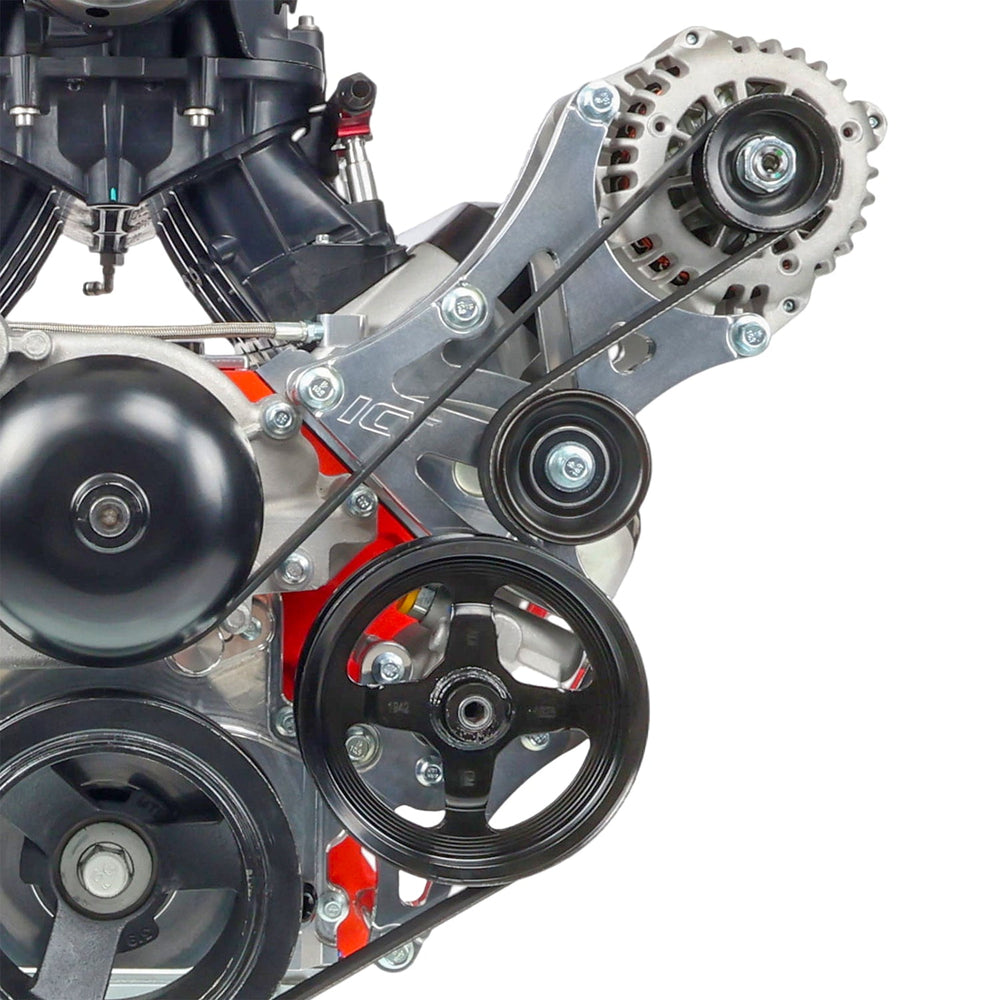

Relocates the alternator in front of the drivers head, above the valve cover

• Brings power steering pump in 1 inch closer from stock location
• Compatible with all LS engines

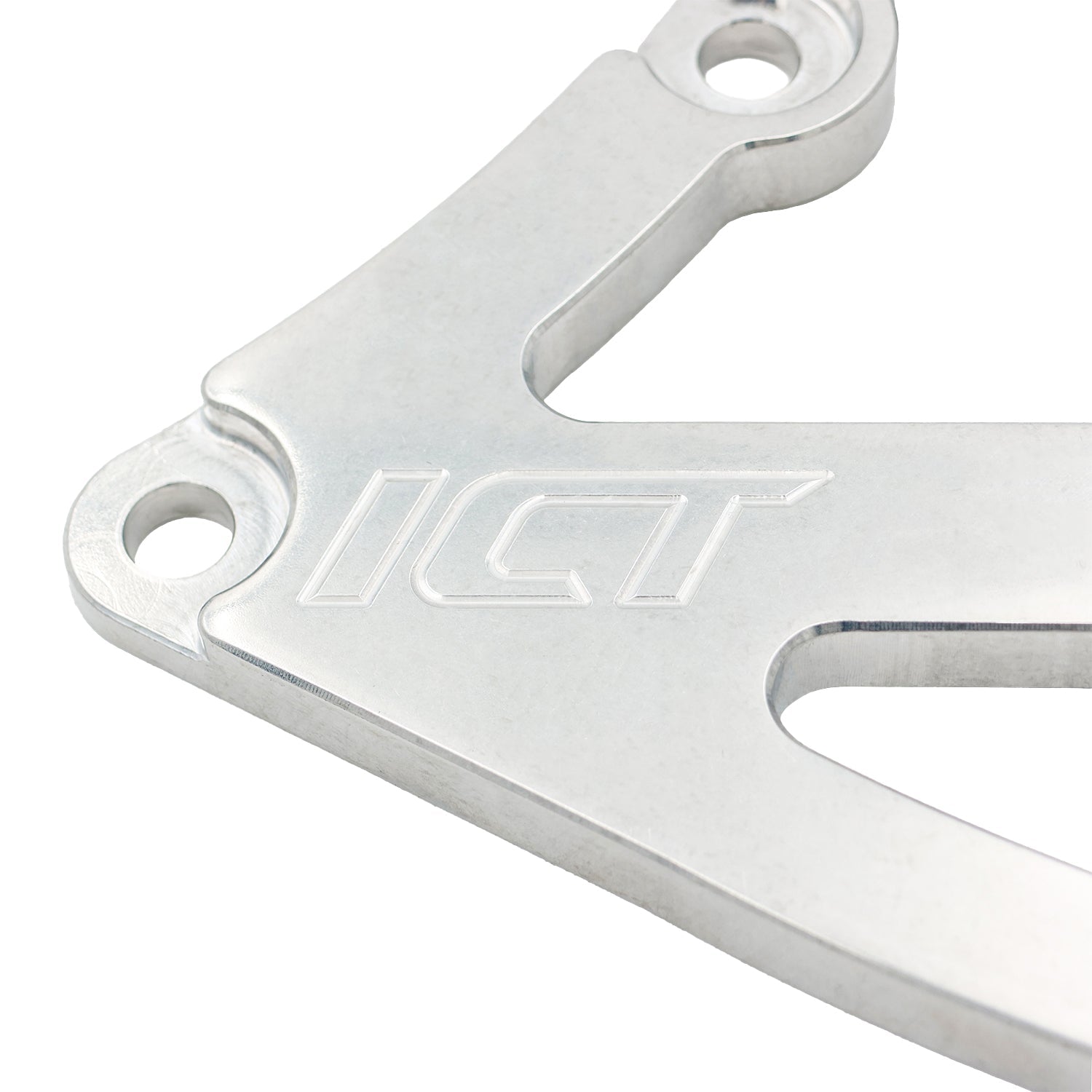

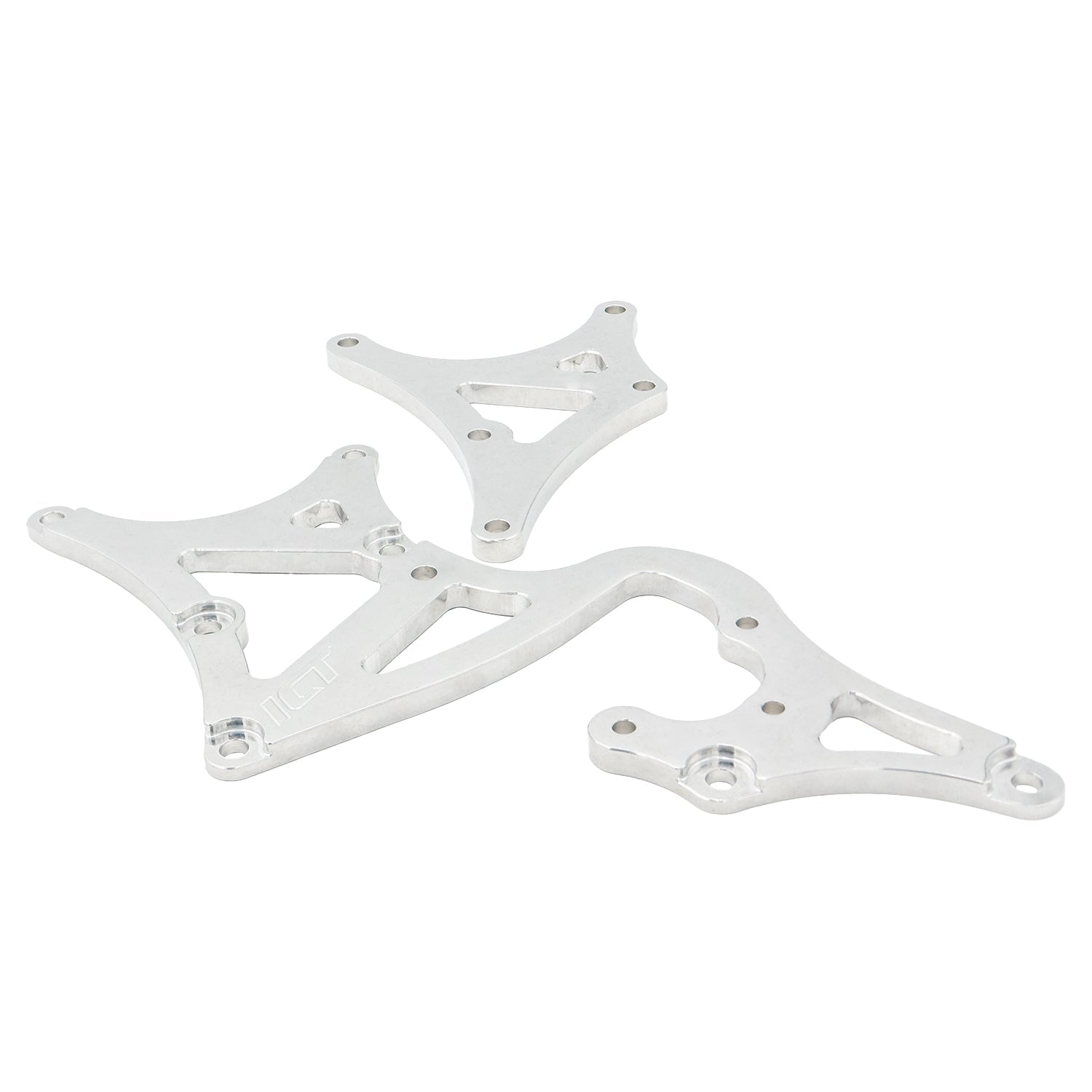

• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

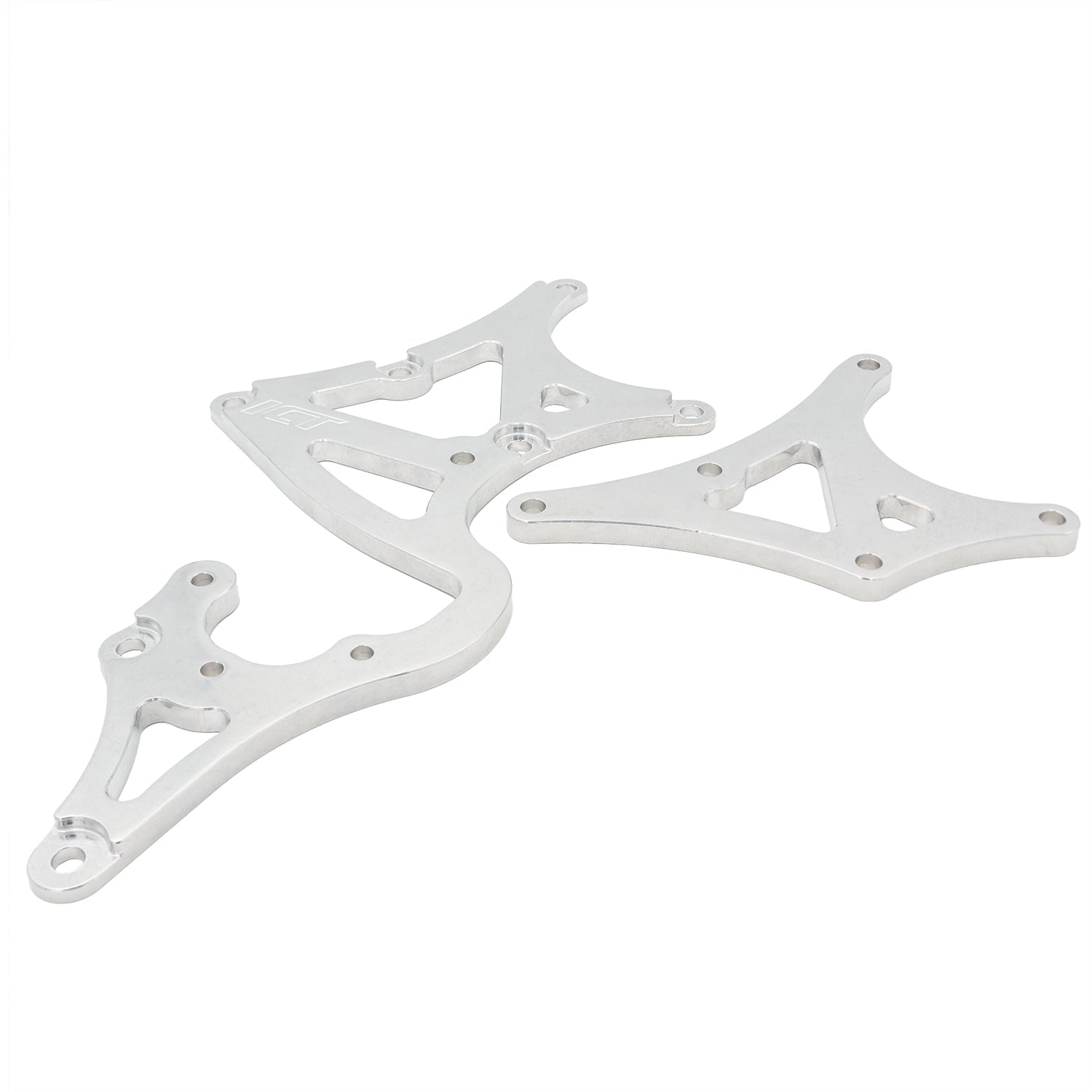

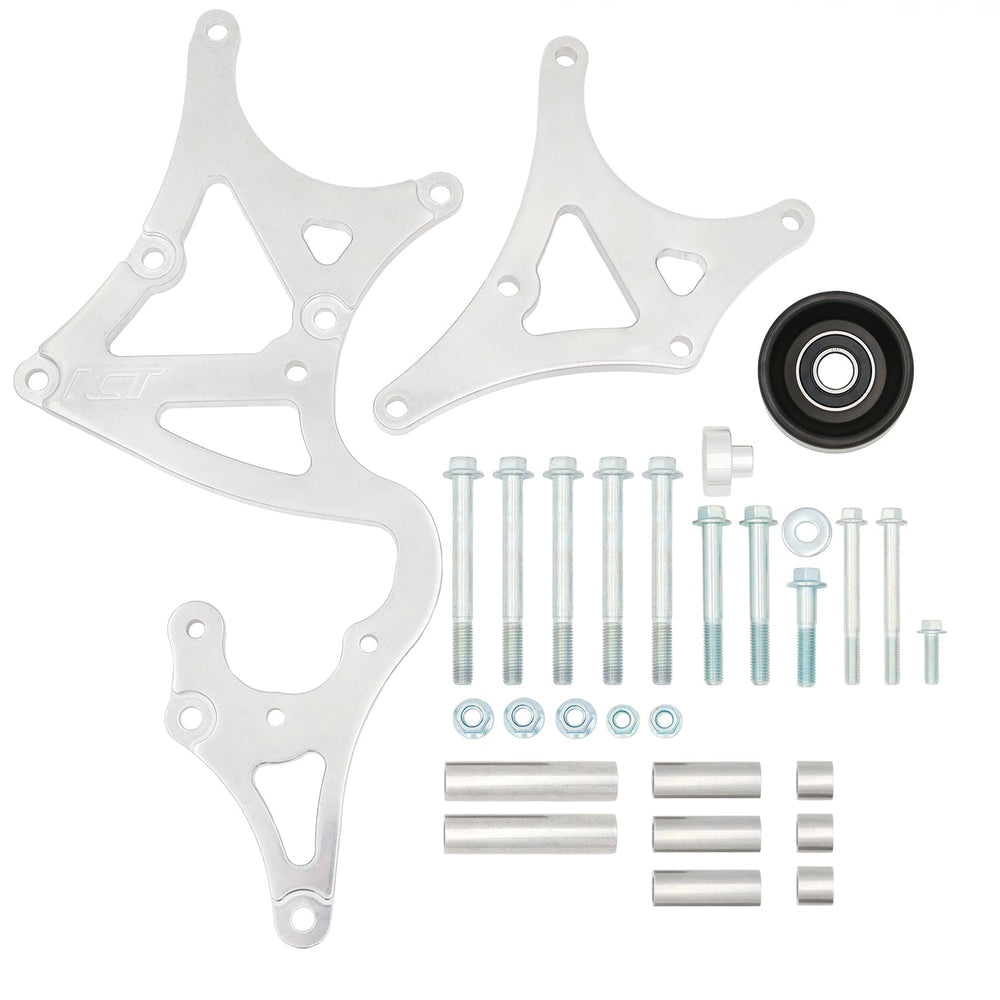

• Includes: bracket, idler pulley, and mounting hardware

Compatibility

• Uses type 2 power steering pump and pulley, from Jones with side reservoir (ICT# PUM401 or PUM402.  Pulley PUL100)
• 1998-02 Camaro balancer (ICT# BAL200)
• Truck/SUV (any year, any amperage) alternator (ICT# ALT300)
• NOT compatible with Corvette, CTS-V, or 2010-2015 Camaro bolt pattern alternators

Belt

Compatible with: 775K6 (77.5 inch) belt when used with 105 amp alternator and no AC (ICT# ALT300), 780K6 (78.0 inch) belt with 145/160 amp alternator with no AC.
