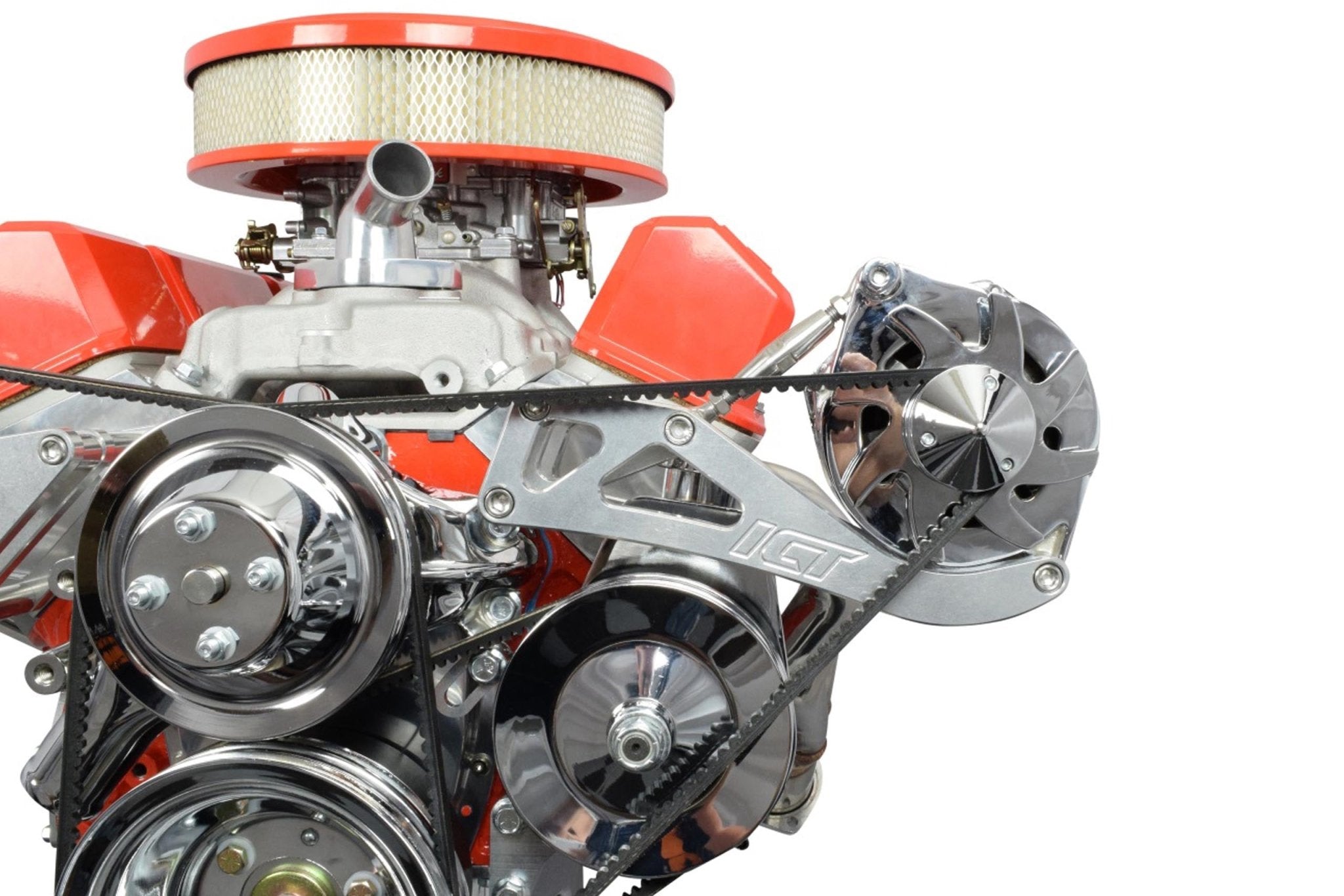

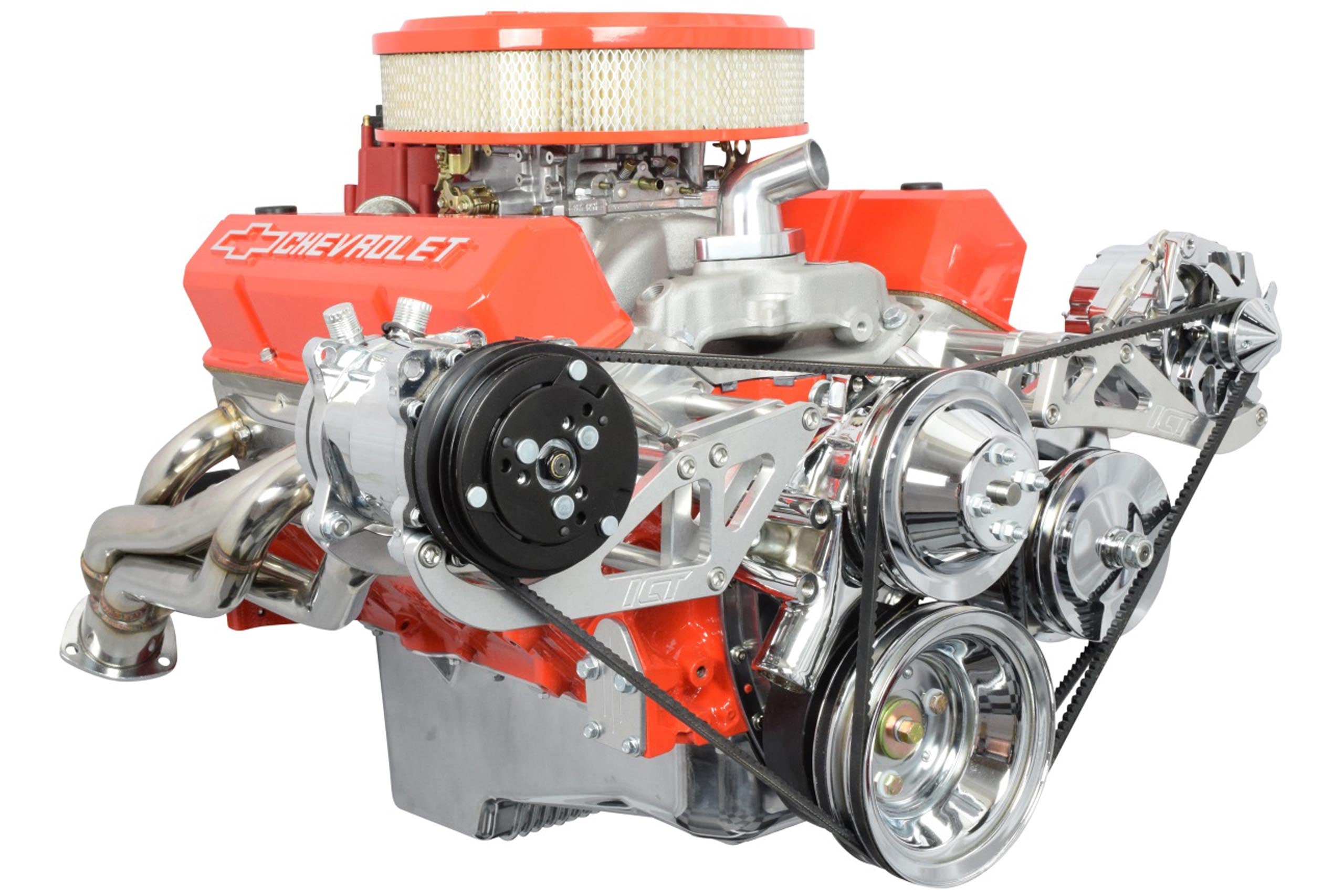

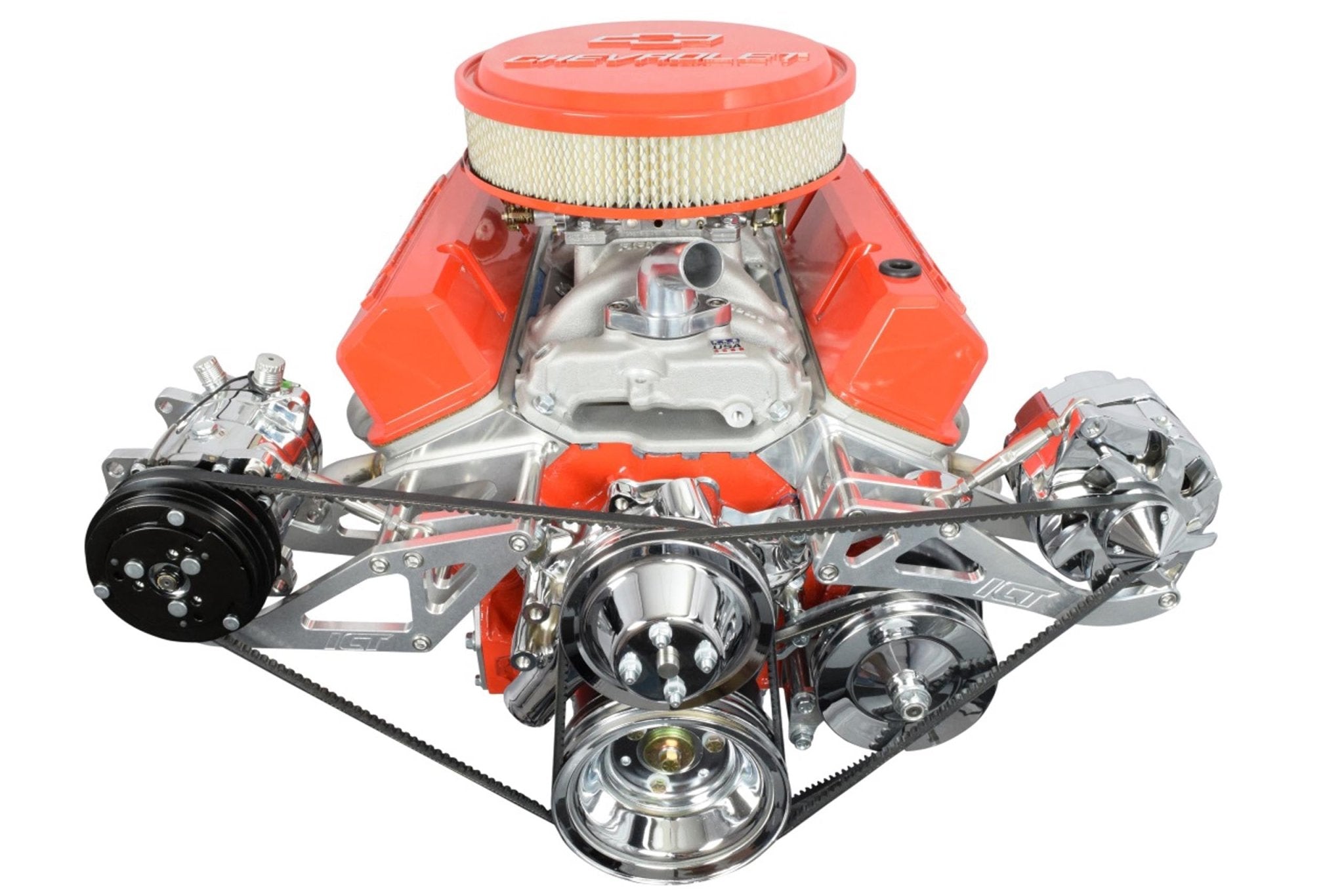

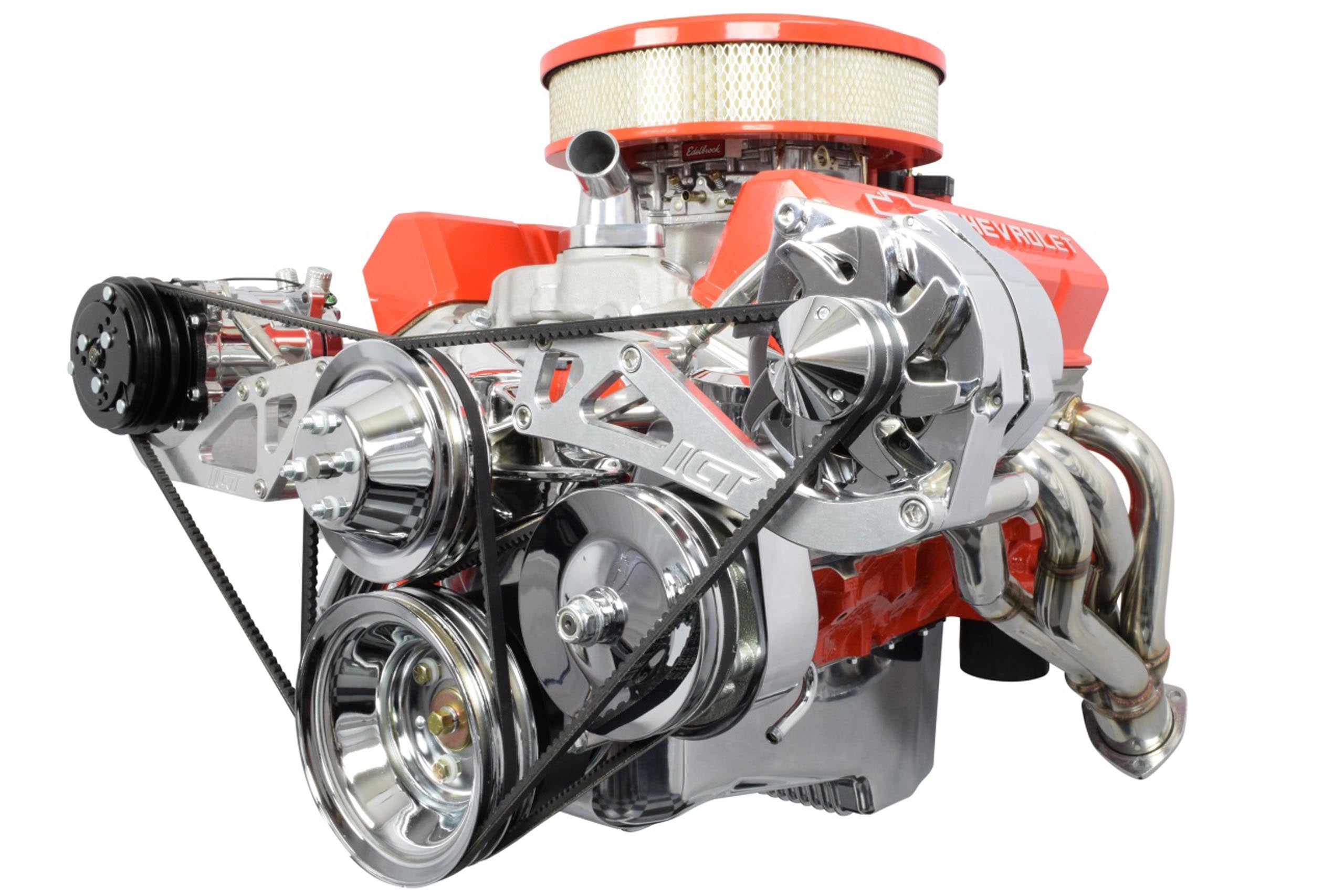

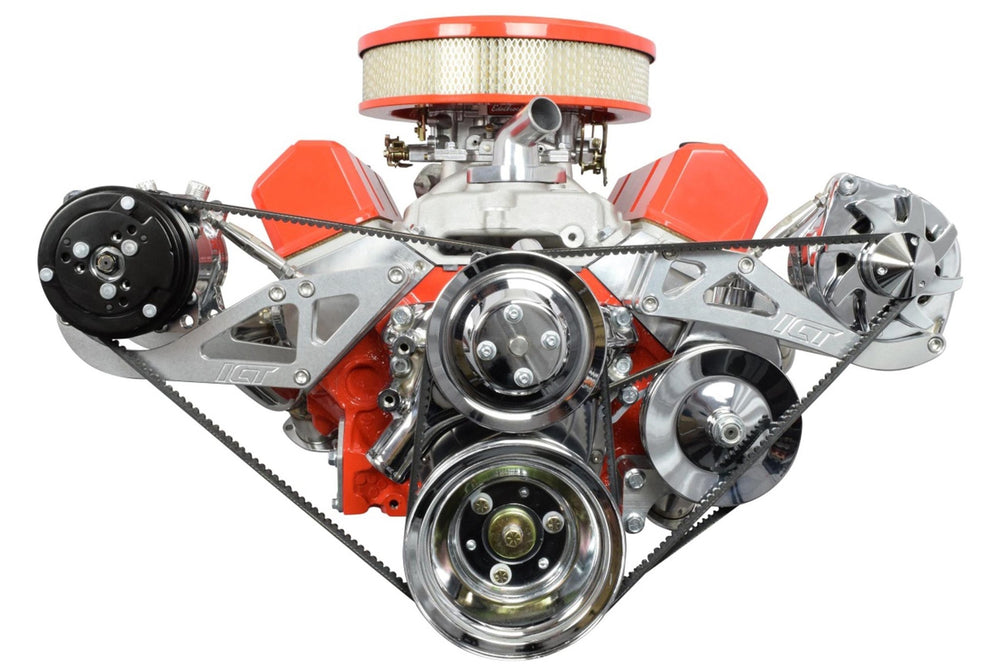

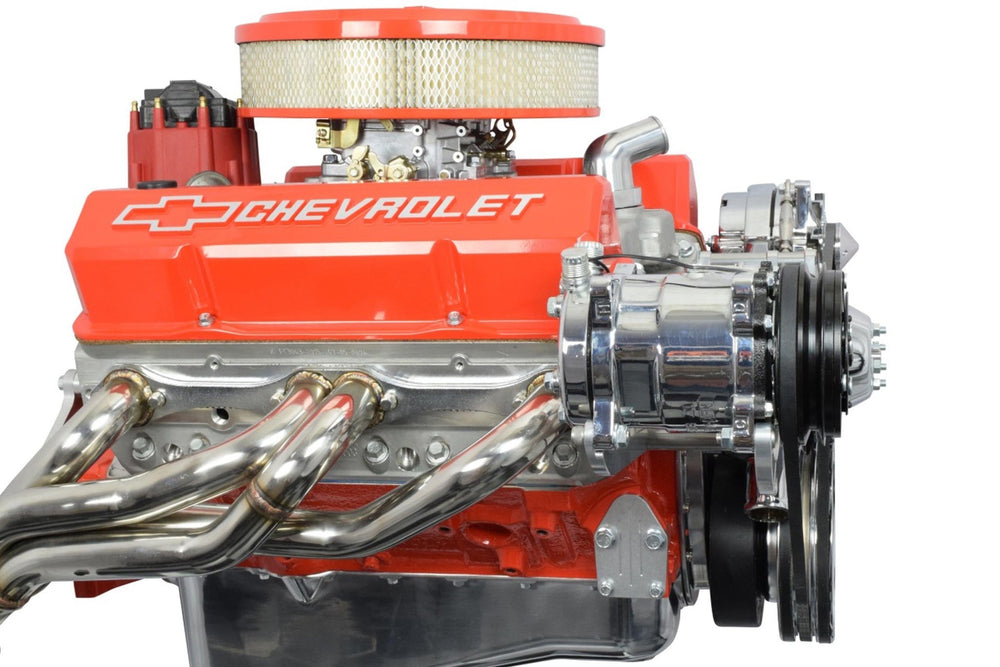

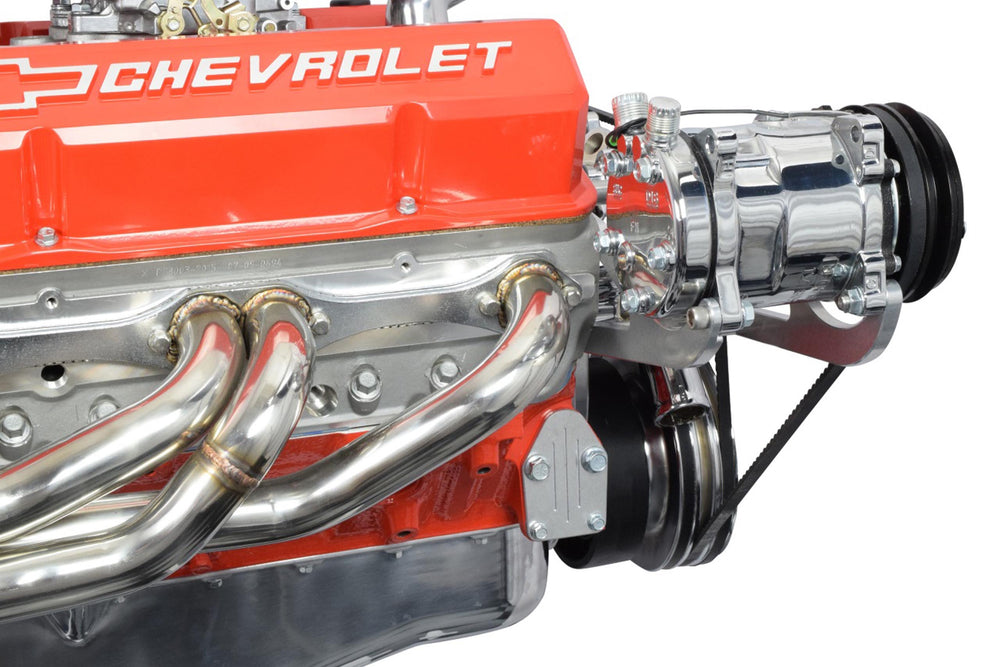

Long Water Pump LWP ONLY - 350 SBC Air Conditioning, Alternator & Power Steering Pump Accessory Bracket Kit

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

• These brackets attach to 3 bolt heads and water pump (no double hump)

• Does NOT include pulleys

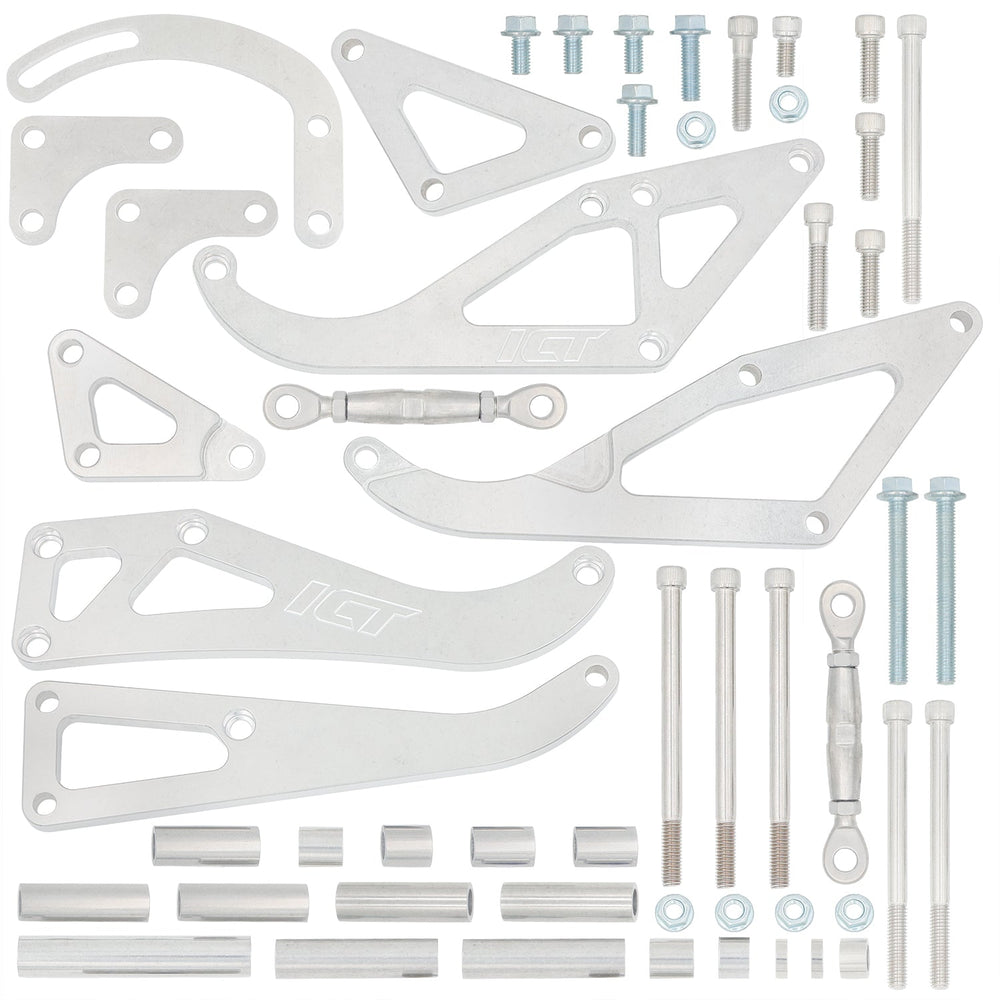

• Includes: brackets for A/C compressor, alternator, and PS pump, tensioner turnbuckles, instructions, and mounting hardware
• This kit will work with 3-rib V-belt pulley

A/C Compressor

• Compatible with Sanden 508 V-belt Pulley A/C Compressor

Alternator

• Compatible with 10si/12si style alternators

Power Steering Pump (OE style or Lares 2134)

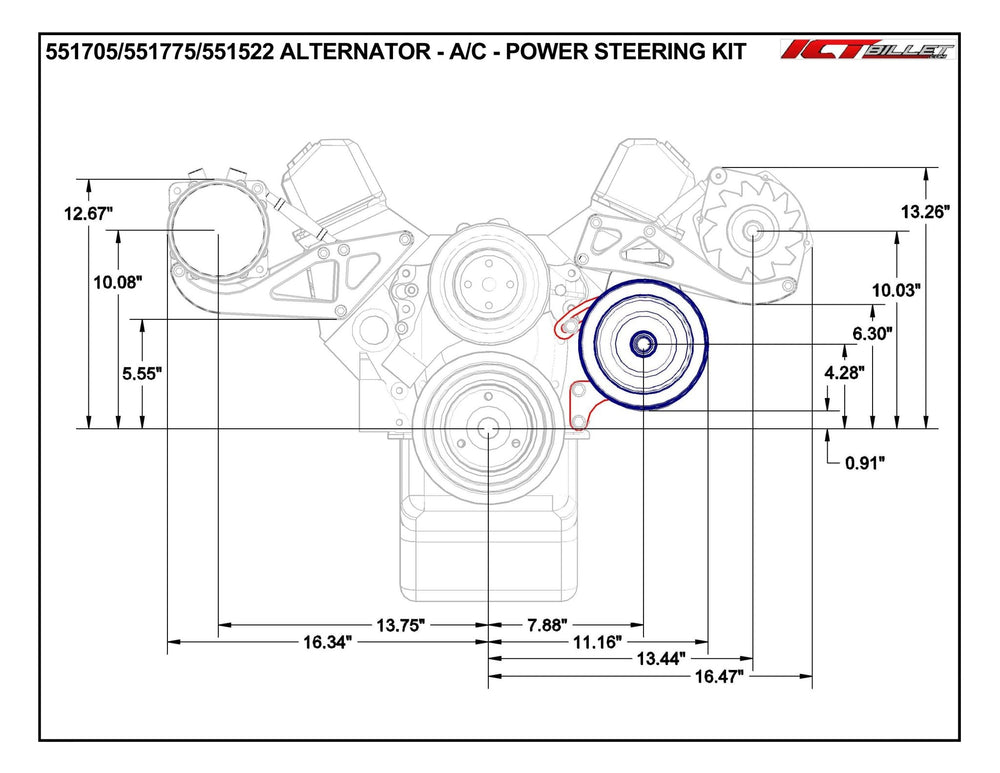

• Bracket is only compatible with the power steering pump style shown in picture 4 with rear stud at bottom of the reservoir.

Water Pump

• Water pump Gates #43099 or similar with threaded accessory hole just below driver side pump to block bolts

Pulleys (or similar OE style, V-Rib ONLY)

• Crank pulley 3-groove SUM-G3958
• Water pump pulley 2-groove SUM-G3955
• Power steering pulley 1-groove w/ 5/8" keyway SUM-340131
• Power steering pulley 1-groove w/ .747" press-on TFF-8485A
• Power steering pulley 2-groove w/ .747" press-on TFF-8486A

Belt Length

• Alternator uses 54" V-belt - Gates 7541 (with factory diameter pulleys)
• Air conditioning 57" V-belt  - Gates 7570
• Power steering uses 37" V-belt - Gates 7370

Torque Specs

• Flange Head Bolts: 3/8" = 37 lb-ft, 5/16" = 15 lb-ft
• Socket Head Cap Screws: 3/8" = 20 lb-ft

Helpful Links

• Power steering pulley installer/removal tool
