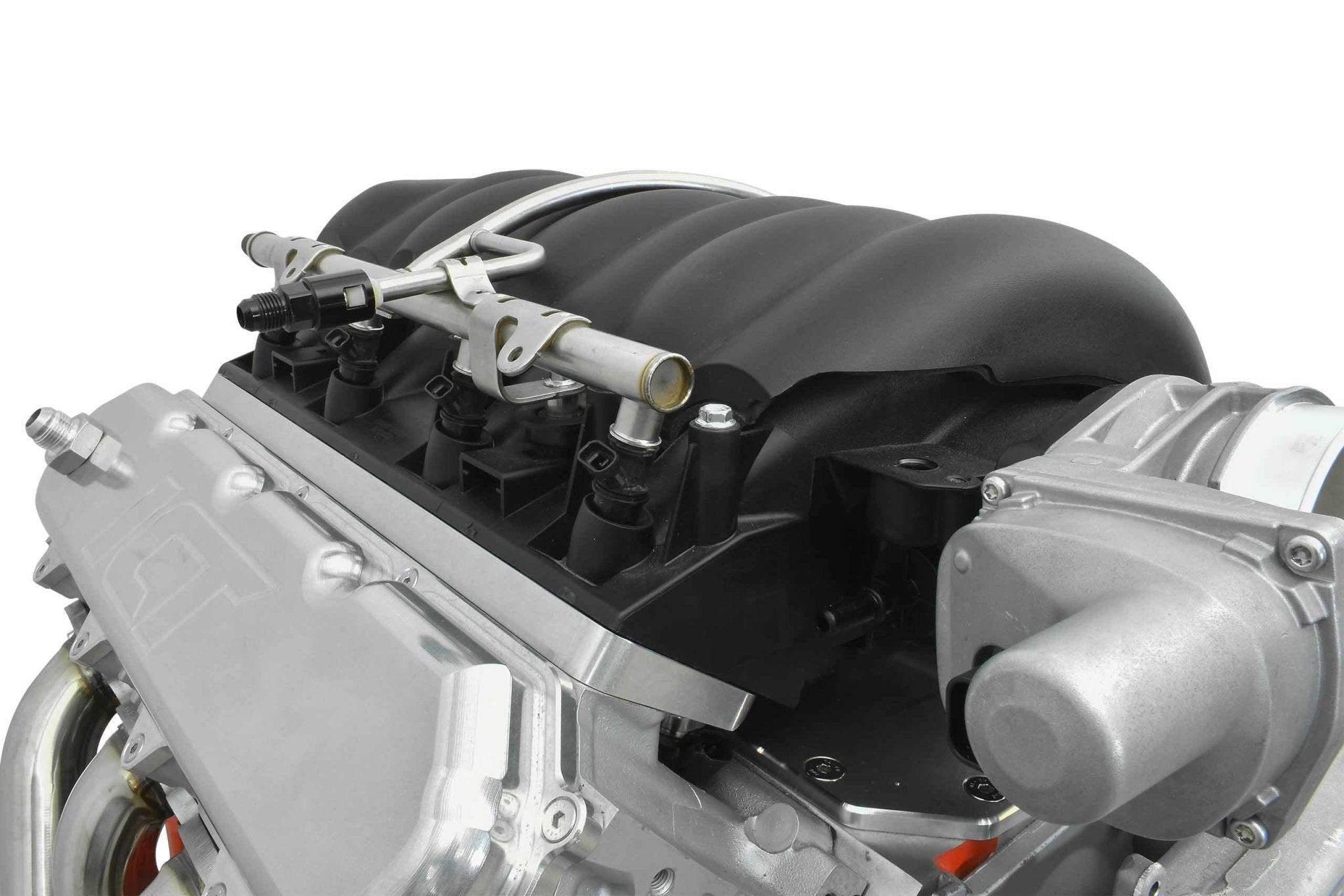

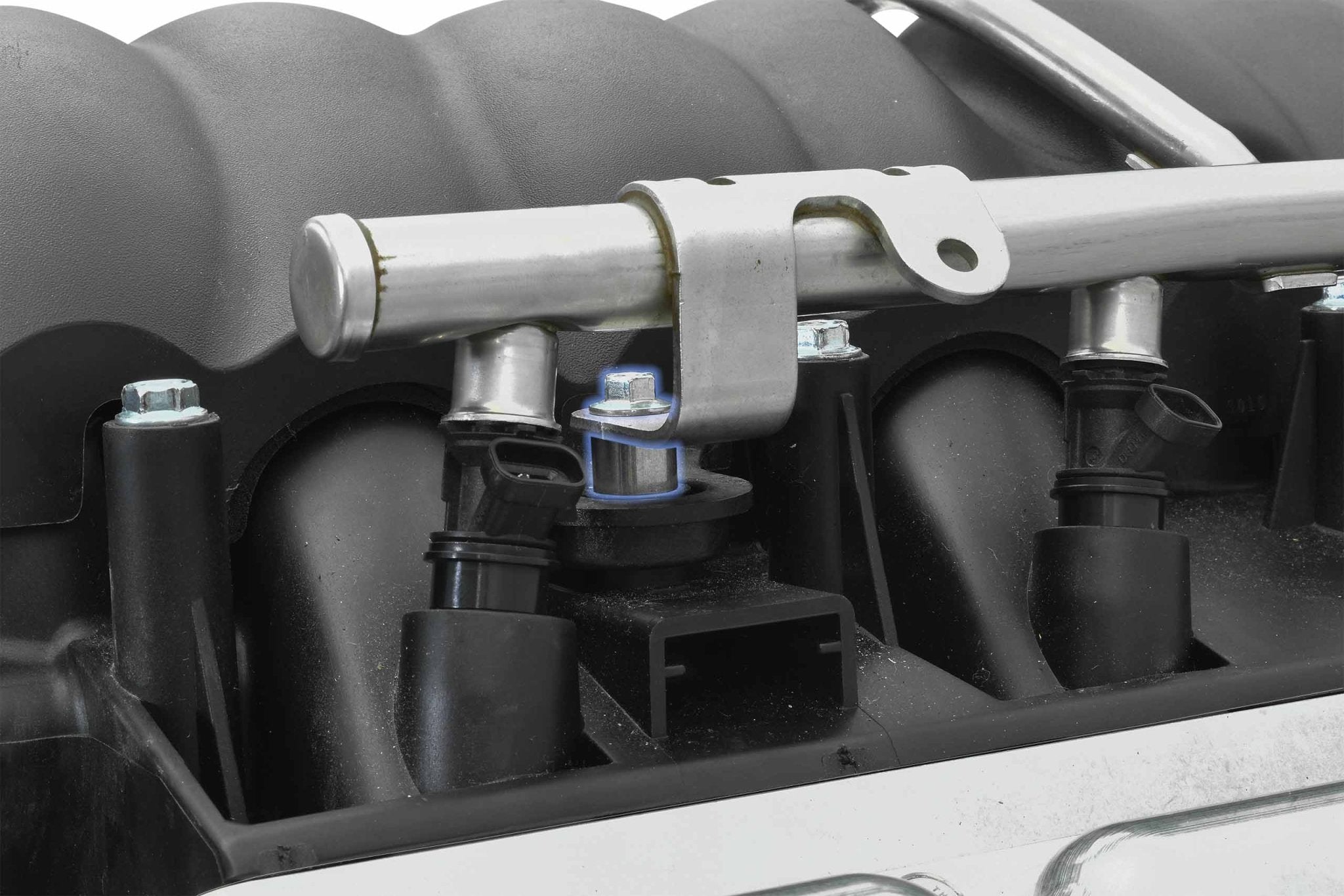

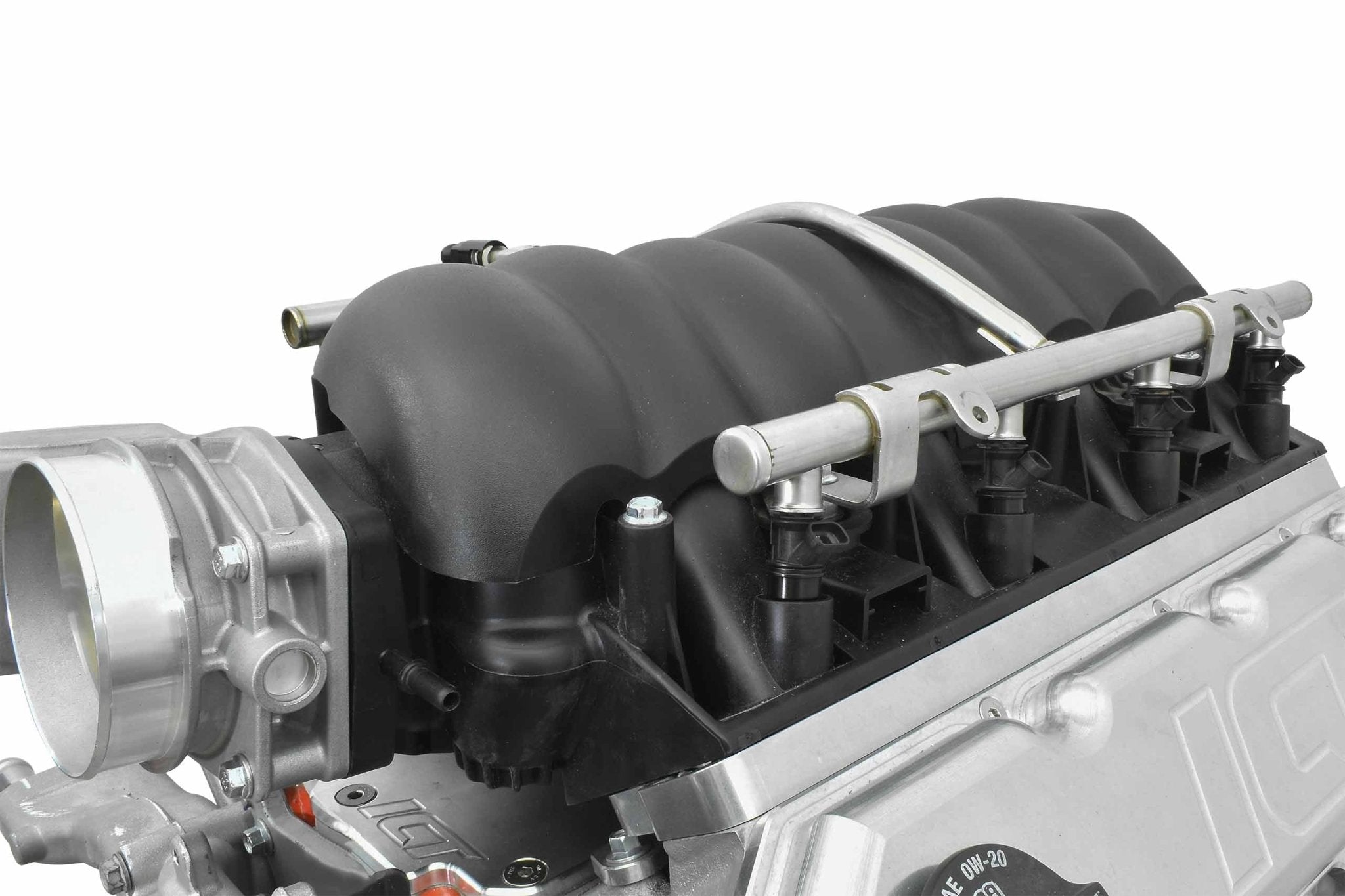

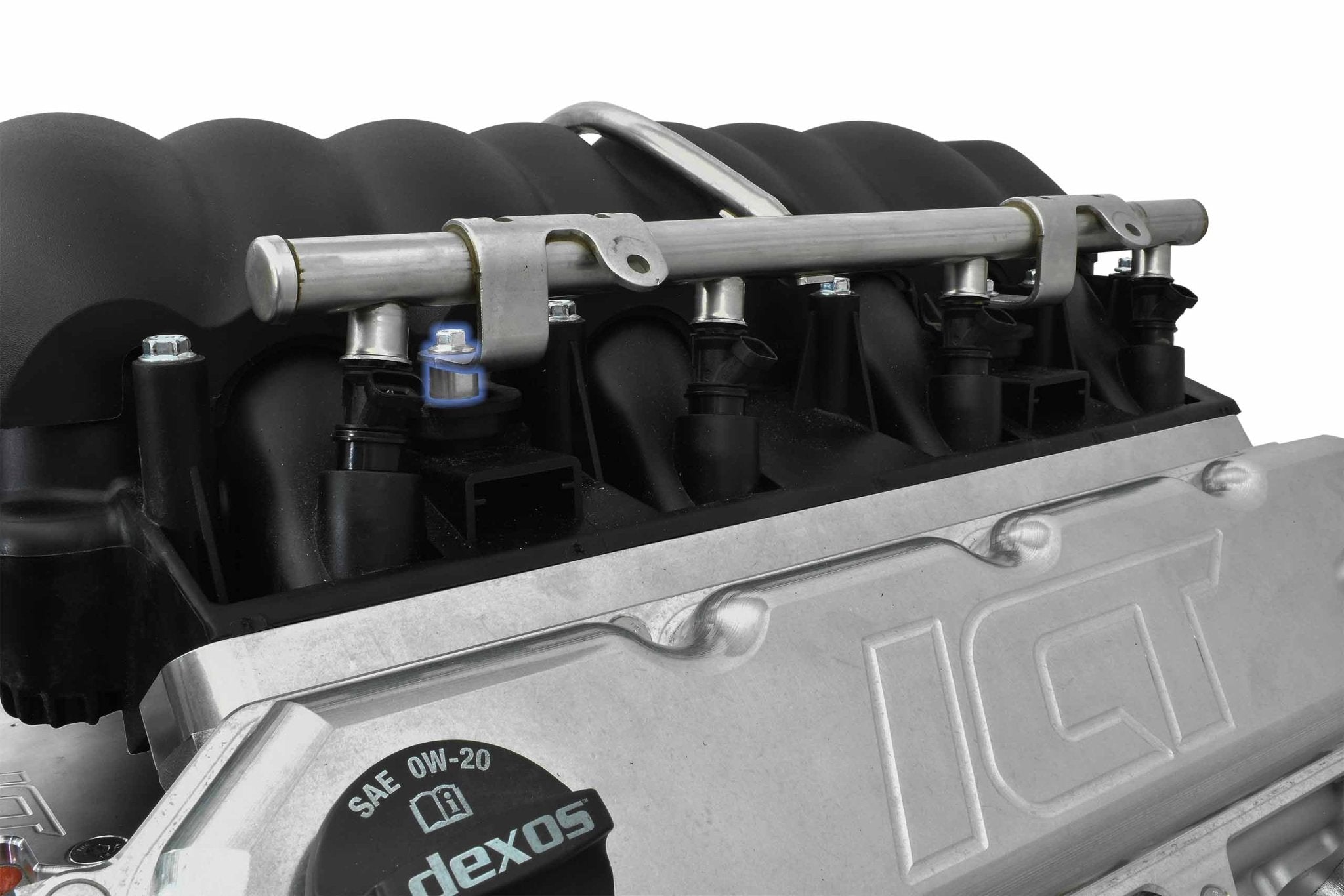

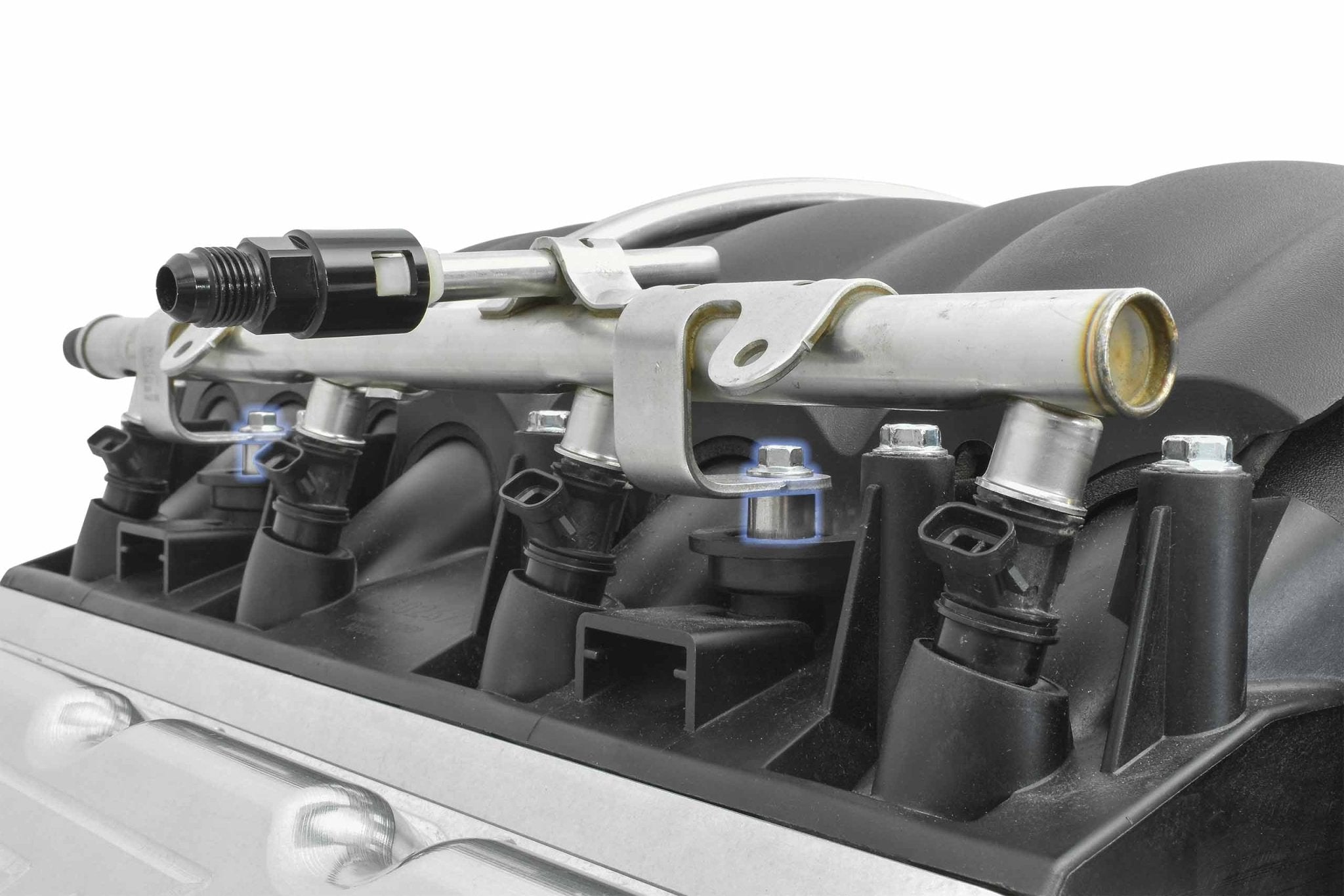

LS Fuel Rail Spacer Kit for LS Truck Mini Delphi Injectors on LS3 Car Intake

Product Details

• Commonly used with truck injectors to LS3 intake applications

• Orings will need to be installed on the bottom of the fuel injector to properly fit the larger intake manifold bores on the LS3
• To convert from LS3 harness to truck injectors use this adapter (required for LM7 LR4 LQ4 LQ9 LM7 L33 injectors)

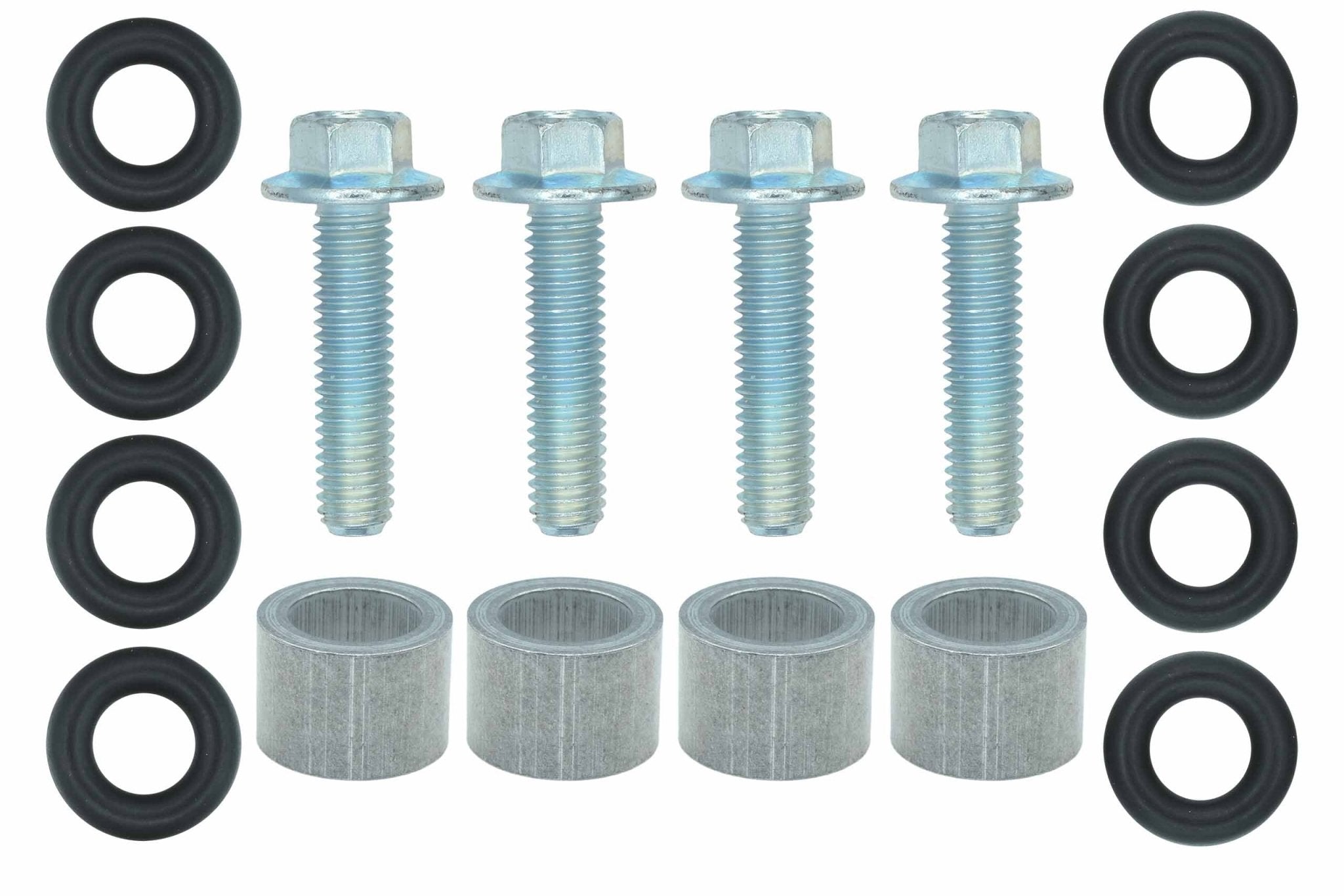

• Includes: bolts, orings, and spacers

• Made in the USA bolts (grade 10.9) and spacers

*NOT compatible with aftermarket fuel rails (these have horizontal mounting bolts)

Compatible with

• 4.8L LR4, L20
• 5.3L LM7, L33, LH6, LH8, LY5, LC9
• 6.0L LQ4, LQ9, LY6, L98, L96, LC8, LFA, LZ1
• 6.2L L92

Helpful Links

• Torque bolts to 106 lb-in
• Replacement -203 oring
• Optional LS fuel injectors or wire harness adapter compatible with USCAR EV6 to Mini Delphi Multec 2 fuel injector

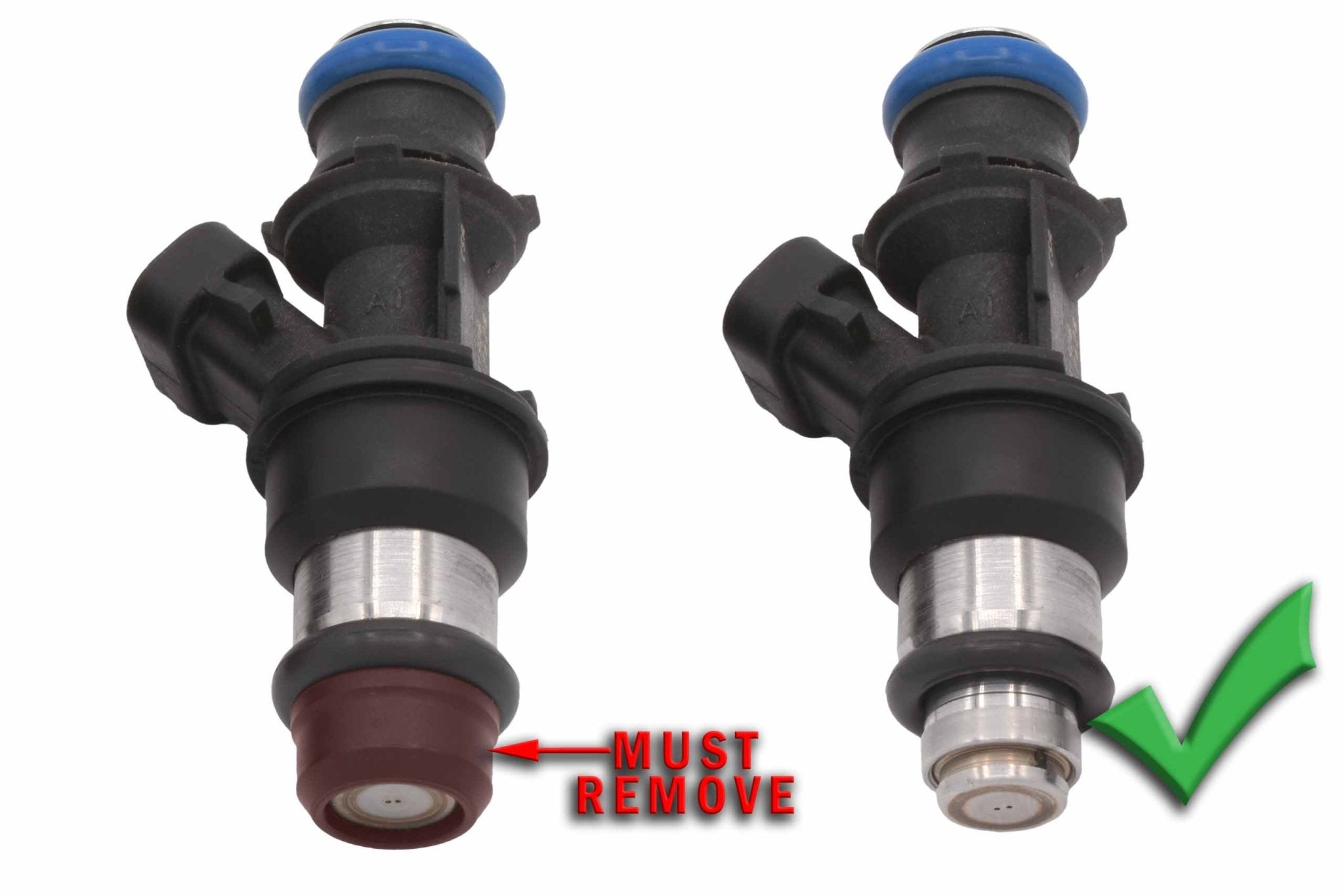

*NOTE Truck injector caps will need to be removed to sit down into LS3 intake. These are the black caps on the bottom of the injector
