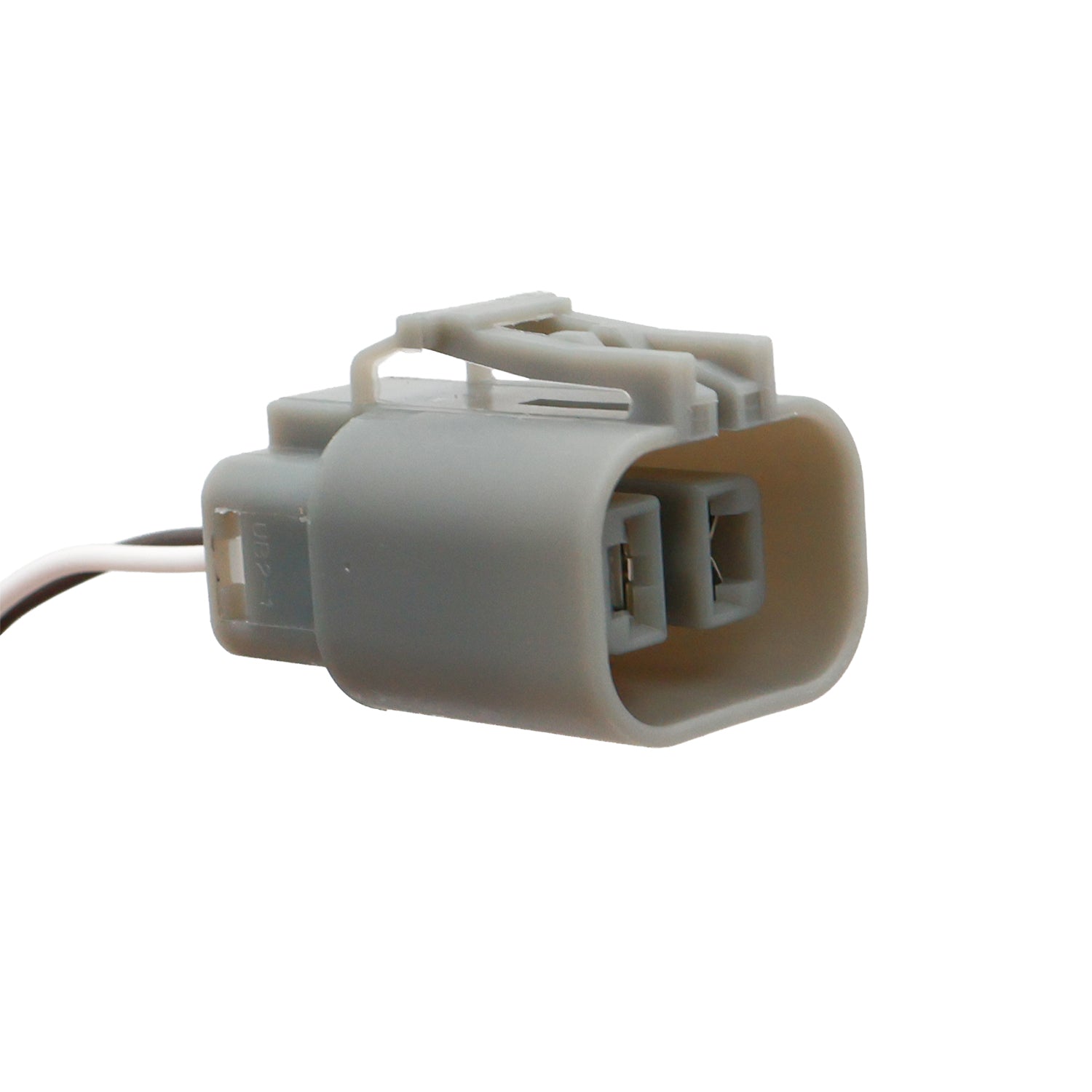

LS Alternator Resistor Pigtail - 2004 Pontiac GTO

Wire Pigtail for 2004 Pontiac GTO Alternator with Resistor (Drops 12 volt to 5v)

Product details

• Compatible with 2004 GTO ONLY
• Inline resistor reduces 12 volt power to the correct alternator "on" signal when not using an ECM
• Must connect the wire to a 12v switched power source

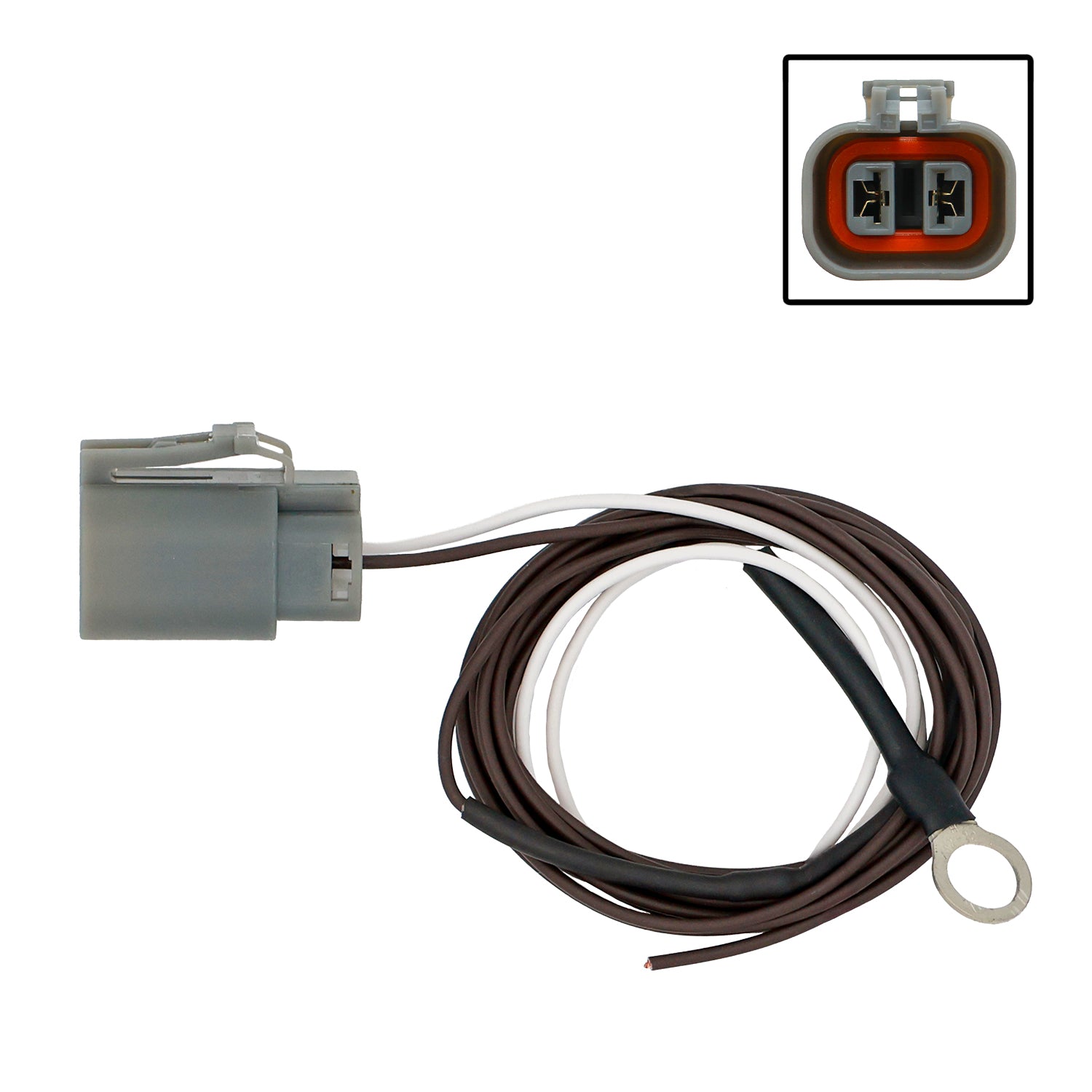

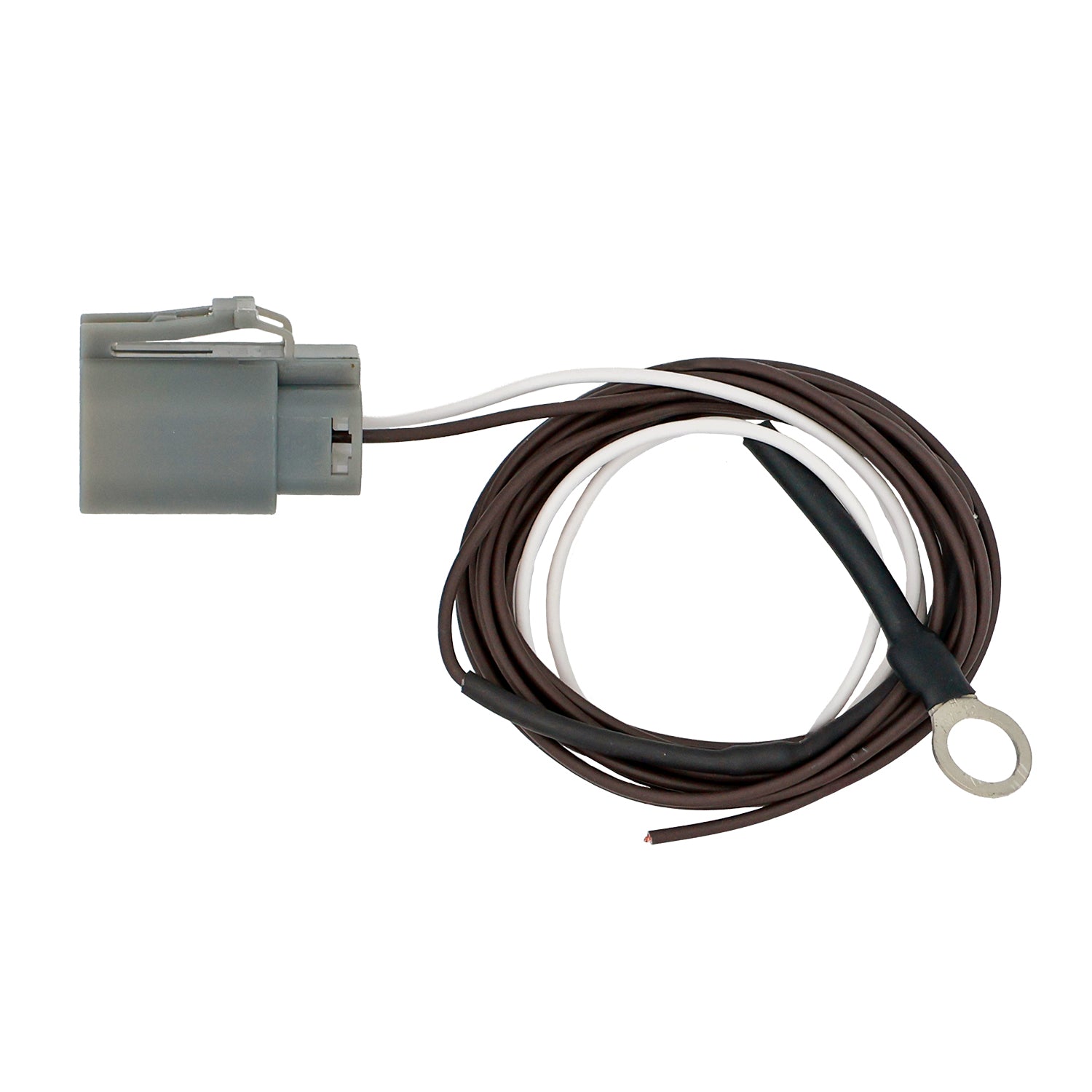

• Includes: pigtail (96" overall length)
• Assembled, crimped, and sealed in Wichita Kansas using OEM tooling, with OEM Delphi connector and terminals, and USA made, factory color, OEM Grade TXL Wire

Compatible With

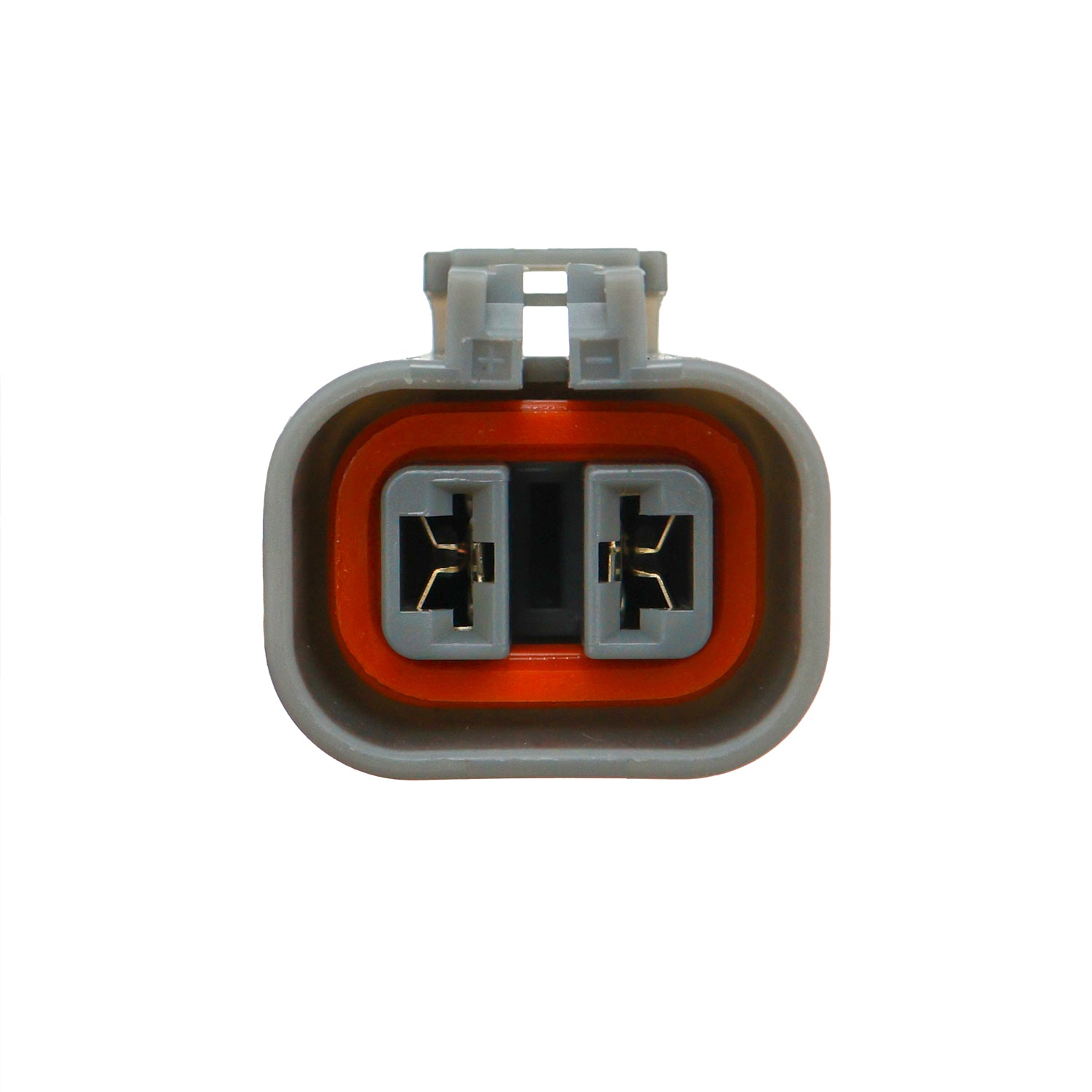

• Pontiac GTO 2004 only (this has a 2-wire Mitsubishi style connector)


Installation

• White Wire - "S - Voltage Sense" - Battery Positive Connection or Alternator B+ Stud
  • Do NOT connect this wire to ground
• Brown - "L - Charge/Excite" - Charge Indicator / Excite Circuit

Helpful Links

• If measuring voltage output, the voltage will not drop until a load is added. The resistor can be checked by ohms
