SuperMatic™ 4L75-E Four-Speed Transmission

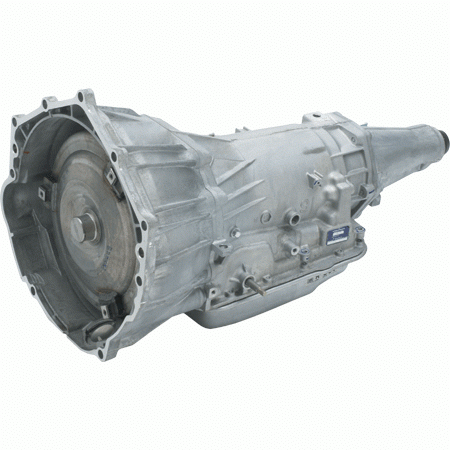

* stock photo.  Does NOT include torque converter

Product Details

• 650 ft-lbs rated
• Built with 4L70E electronics (15-pin)
• This is the highest torque rated 4 speed automatic transmission GM produces!

• LS engine bolt pattern torque converter (LT engine require 19125817)

Features

• Increased horsepower and torque capacity
• Heavy duty upgrades including 5 pinion gearsets
• Heat treated stator shaft splines
• Induction hardened turbine shaft
• Eight-plate 3-4 clutch packs
• Unique, high-strength input housing
• Specific valve body calibration
• Higher-capacity servo
• Larger 2-4 band
• Gear ratios: 1st-3.06, 2nd-1.62, 3rd-1.00, 4th .070

*The connector on this transmission is 15-pin

*freight charges not included

Use with electronic controller 19332775 for carbureted and Ram Jet applications.
Use with electronic controller 19302405 with Chevrolet Performance LS fuel injected applications

Helpful links

• Optional transmission wire pigtail
• Optional transmission wire harness extension
