BBCAlternator Bracket - for Electric WP - Head & WP Mounted - ICT Billet 551449

BBCAlternator Bracket - for Electric WP - Head & WP Mounted

Prix de vente
$65.99
Prix habituel
$78.99
Vous sauvegardez
16%
UGS#: 551449
En stock et prêt pour l'expédition

Description du produit

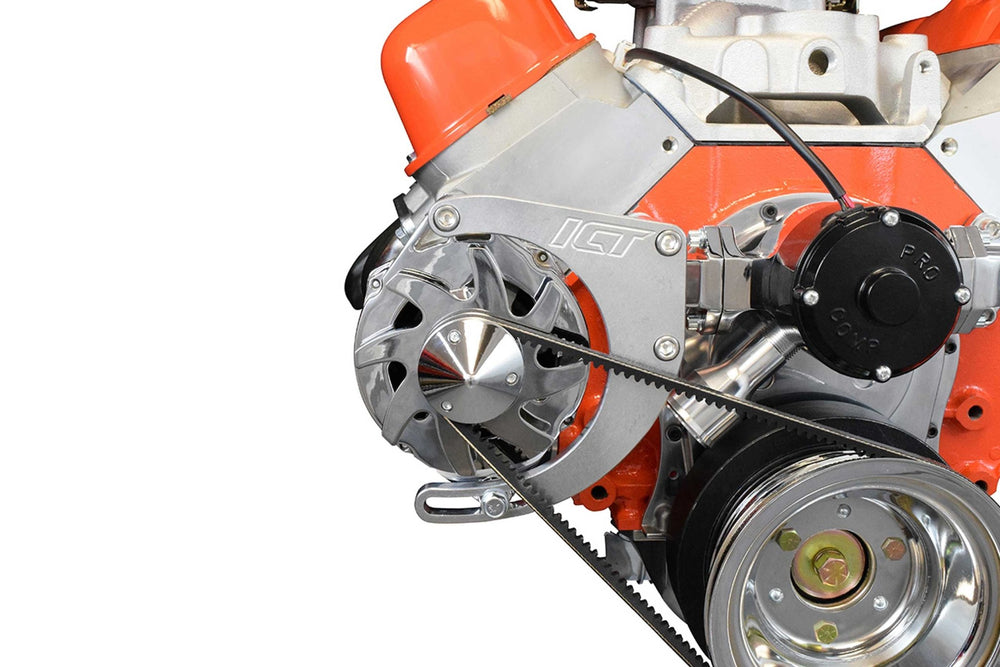

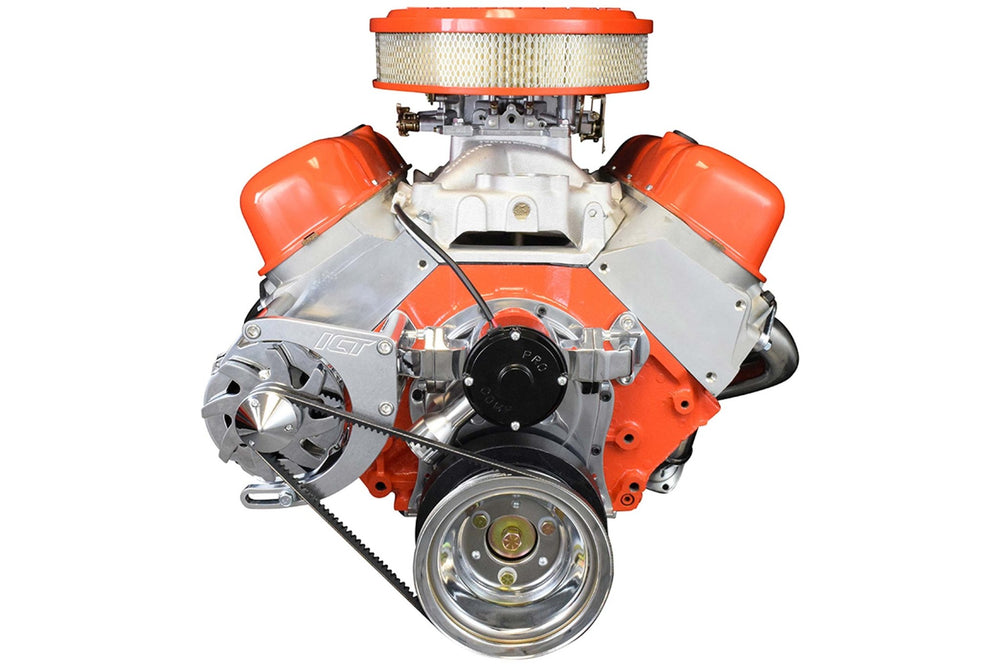

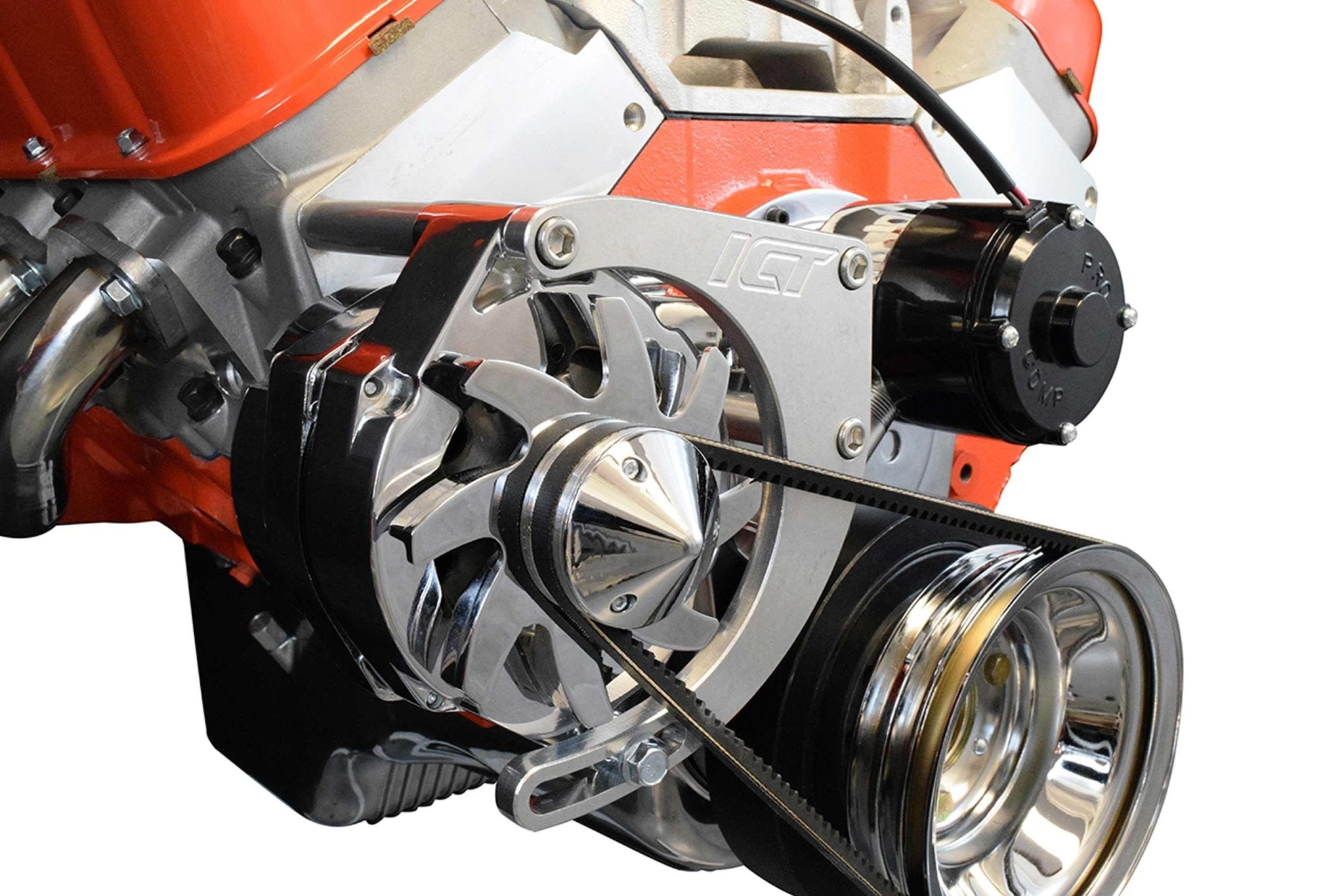

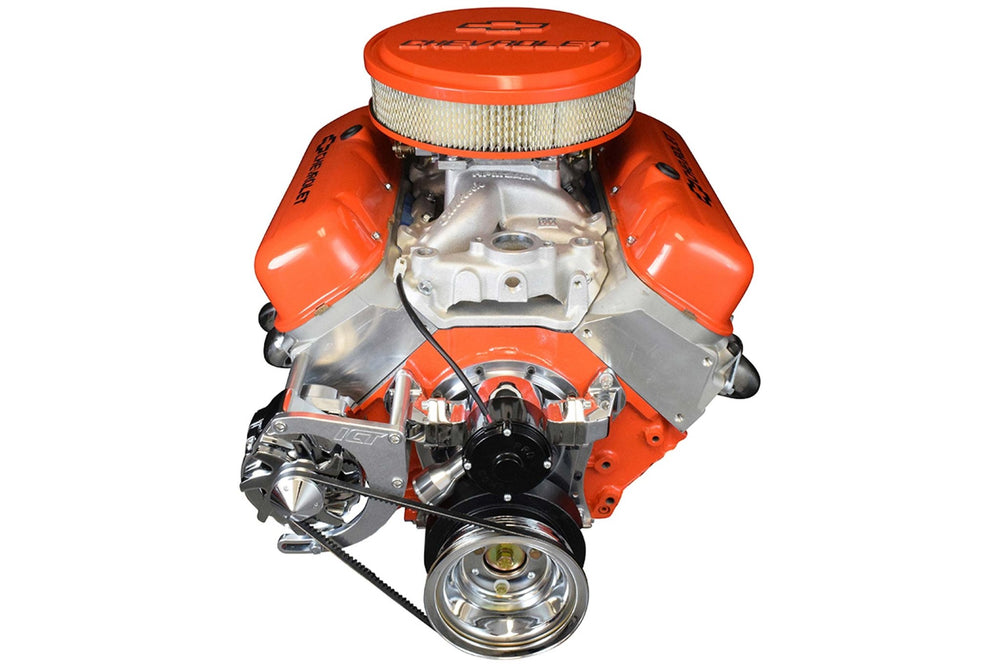

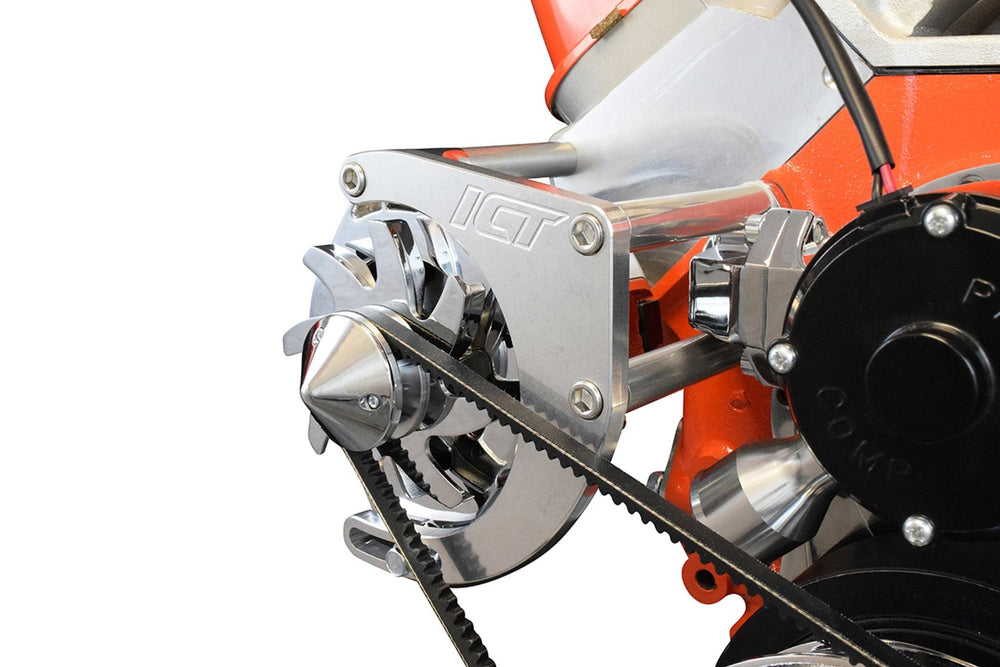

BBC Low Mount Billet Alternator Bracket for Electric Water Pump

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

  • Bracket mounts to cylinder head and water pump
  • Does NOT include pulleys
  • This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)

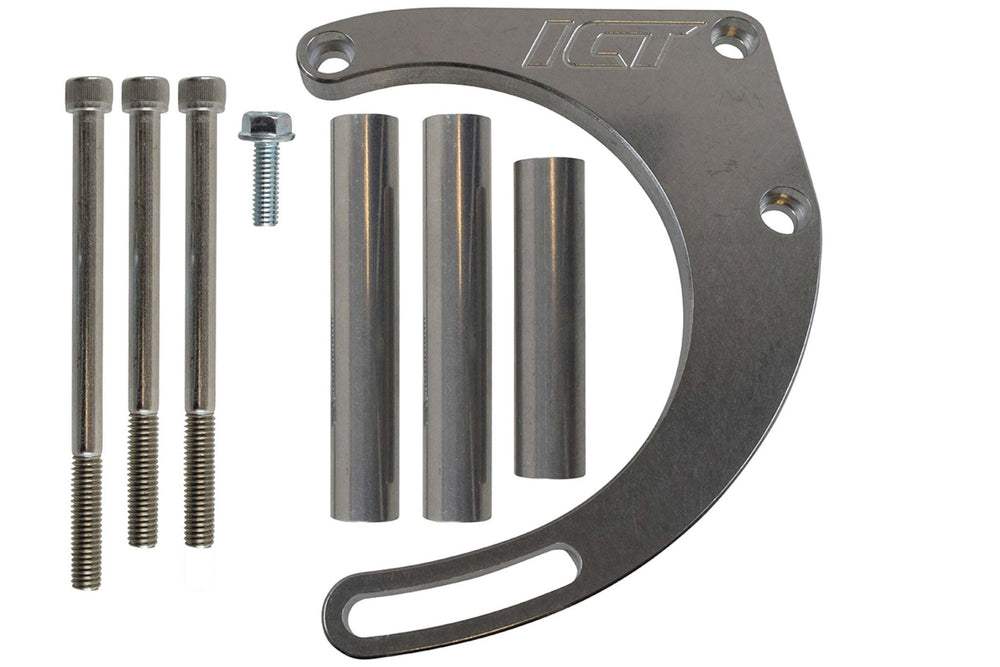

  • Includes: bracket, instructions, and mounting hardware

Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts).  If the hole is larger then also purchase 7/16" bolt #551663-B0LT.

Pulleys (or similar OE style, V-Rib ONLY)

  • Suggested Crank Pulley #14023148
  • Suggested Water Pump DWP-442

Belt Length

  • Alternator uses 38.5" V-belt - Gates 7385 (with factory diameter pulleys)

Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications shown with part# E-5927-P electric water pump

*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

BBCAlternator Bracket - for Electric WP - Head & WP Mounted

UGS#: 551449
En stock et prêt pour l'expédition
Prix de vente
$65.99
Prix habituel
$78.99
Vous sauvegardez
16%
free shipping over $100

& 90 day returns Policy

Description du produit

BBC Low Mount Billet Alternator Bracket for Electric Water Pump

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

  • Bracket mounts to cylinder head and water pump
  • Does NOT include pulleys
  • This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)
  • Includes: bracket, instructions, and mounting hardware

Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts).  If the hole is larger then also purchase 7/16" bolt #551663-B0LT.

Pulleys (or similar OE style, V-Rib ONLY)

  • Suggested Crank Pulley #14023148
  • Suggested Water Pump DWP-442

Belt Length

  • Alternator uses 38.5" V-belt - Gates 7385 (with factory diameter pulleys)

Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications shown with part# E-5927-P electric water pump

*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Warning Prop 65 >>

Product Specifications

Manufacturer Part Number UPC Weight Length Width Height Made in
ICT Billet 551449 656729844496 1.91 lb 8 po 6 po 1 po USA
